2000 NISSAN PATROL Electronic Repair Manual

TEL224M

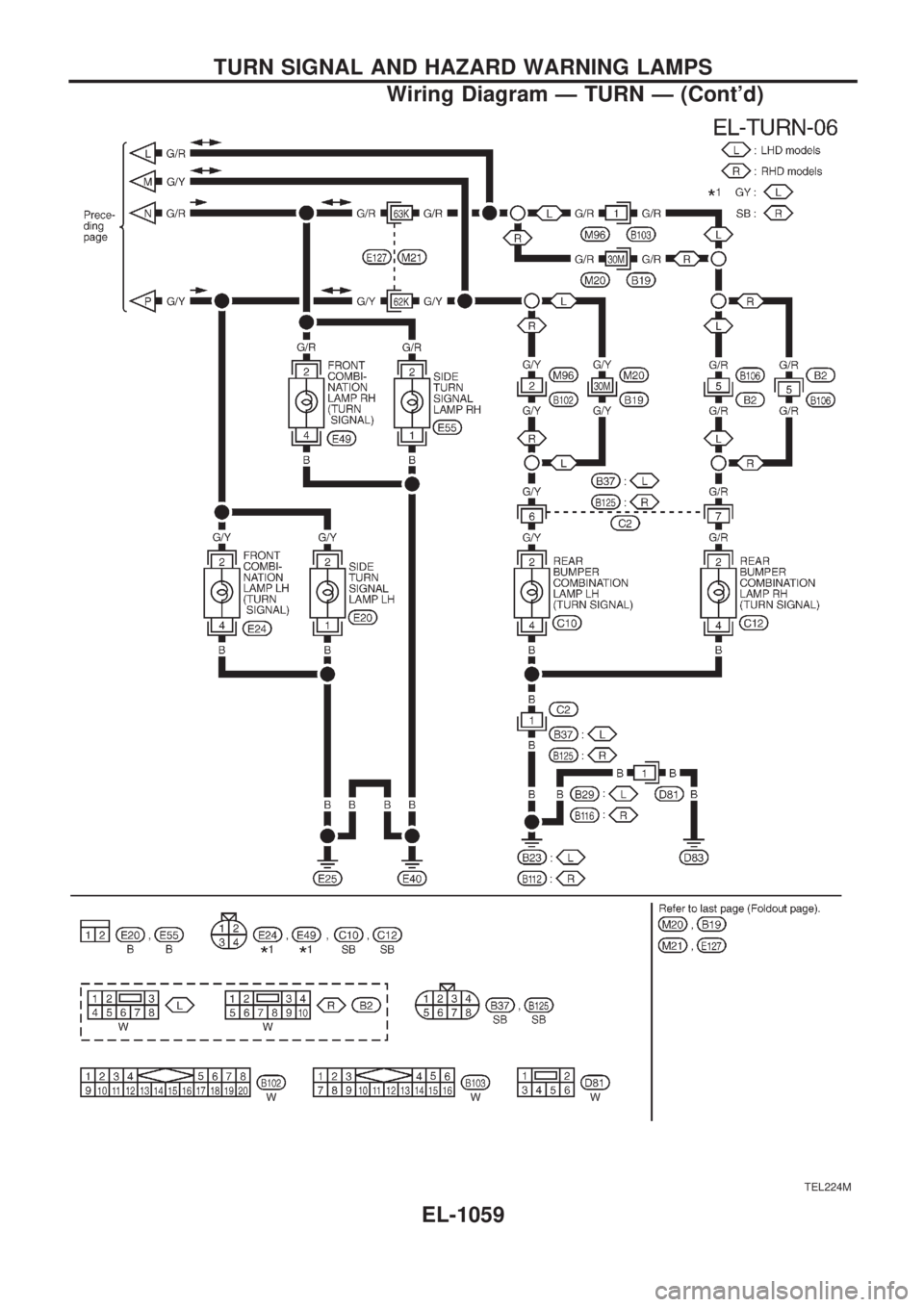

TURN SIGNAL AND HAZARD WARNING LAMPS
Wiring Diagram Ð TURN Ð (Cont'd)
EL-1059

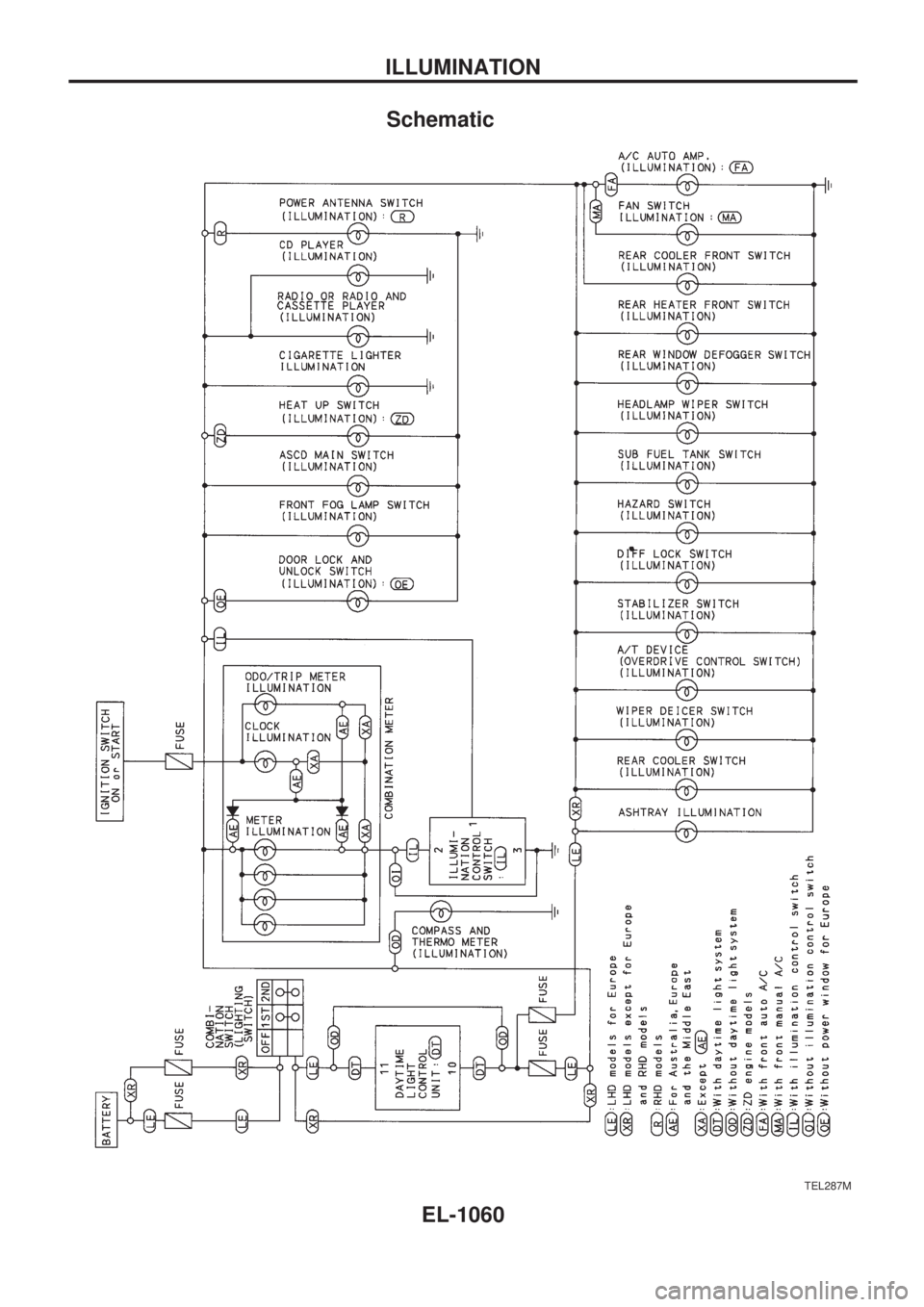

Schematic
TEL287M
ILLUMINATION
EL-1060

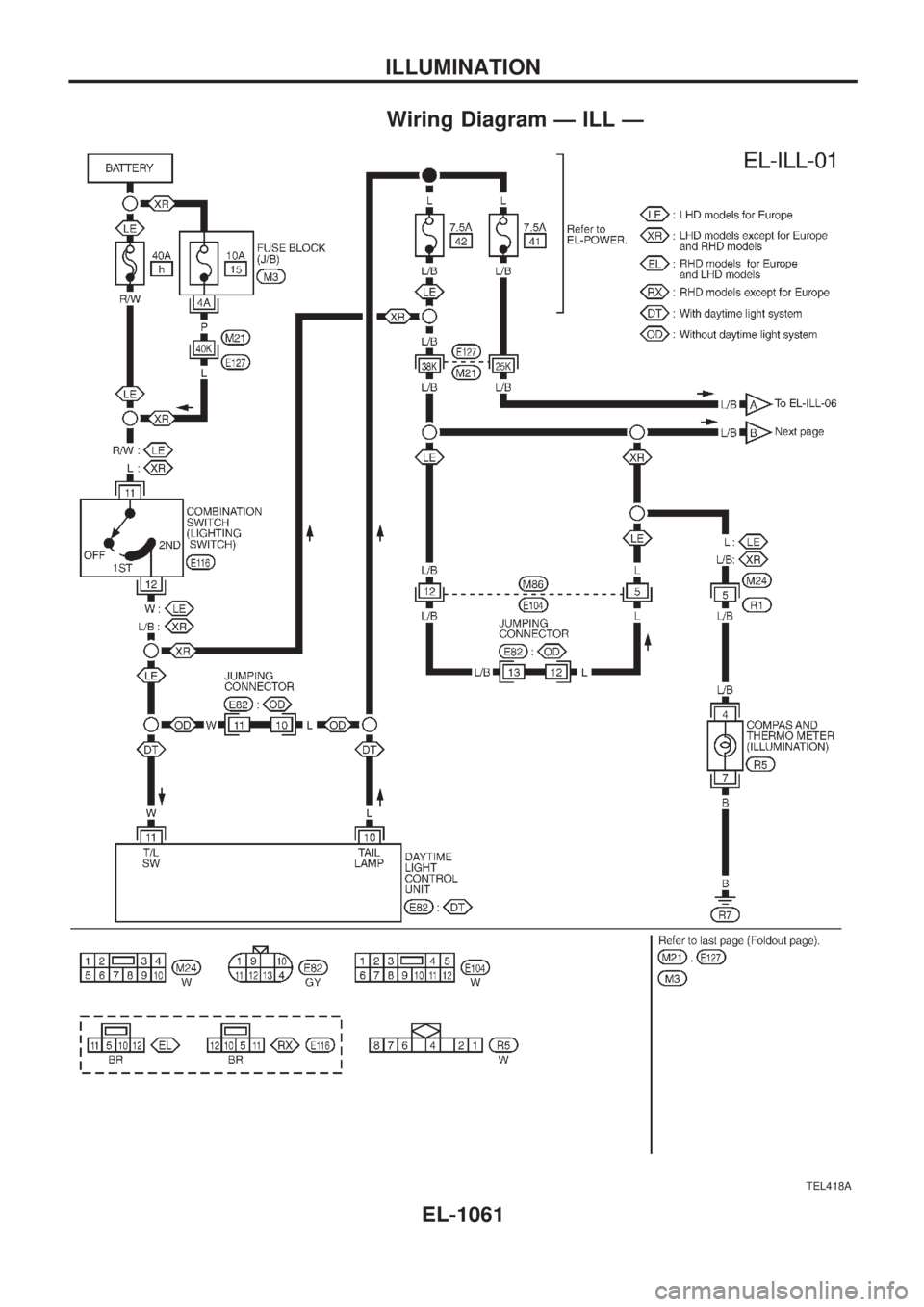

Wiring Diagram Ð ILL Ð
TEL418A

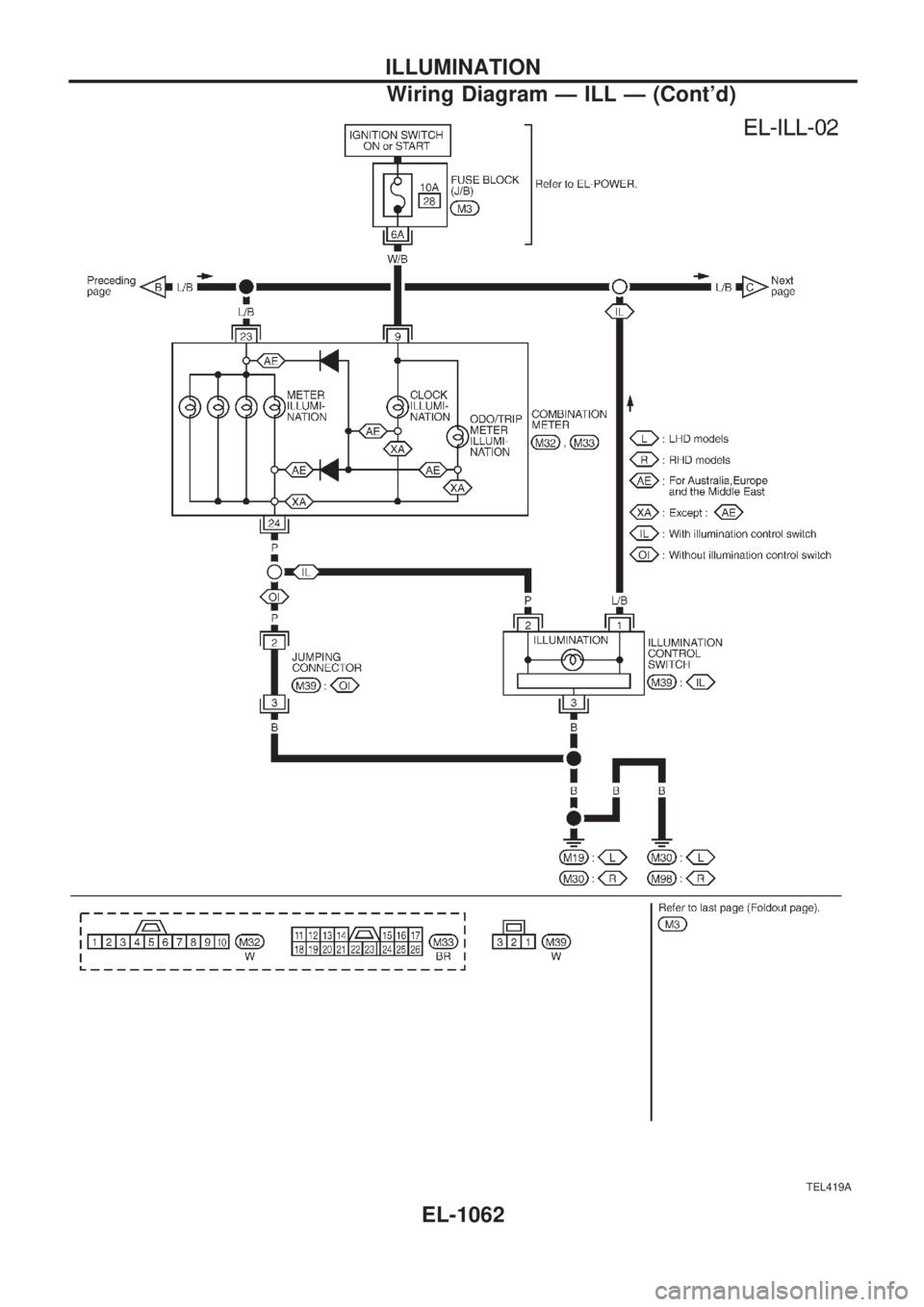

ILLUMINATION
EL-1061

TEL419A
ILLUMINATION
Wiring Diagram Ð ILL Ð (Cont'd)
EL-1062

TEL288M
ILLUMINATION
Wiring Diagram Ð ILL Ð (Cont'd)
EL-1063

TEL600B
ILLUMINATION
Wiring Diagram Ð ILL Ð (Cont'd)
EL-1064

TEL422A
ILLUMINATION
Wiring Diagram Ð ILL Ð (Cont'd)
EL-1065

TEL601B
ILLUMINATION
Wiring Diagram Ð ILL Ð (Cont'd)
EL-1066
