2000 NISSAN PATROL Electronic Repair Manual

Final Drive
GENERAL SPECIFICATIONS
Body type Wagon Hardtop
Transmission M/T A/T M/T A/T
Front final drive Standard
H233B
2-pinion 4-pinion 2-pinion 4-pinion
Gear ratio 4.375
Number of teeth (Ring gear/drive
pinion) 35/8
Oil capacity (Approx.) !(Imp pt) 5.4 (9-1/2)
Rear final drive
[Grade] Optional Standard Optional Standard Optional Standard
H260 H233B
Diff. lock LSD Diff. lock LSD Diff. lock LSD
Gear ratio 4.375
Number of teeth (Ring gear/drive
pinion) 35/8
Oil capacity
(Approx.) !(Imp pt) Without diff. lock 4.7 (8-1/4) 2.4 (4-1/4)
With diff. lock 3.7 (6-1/2) 3.0 (5-1/4)
INSPECTION AND ADJUSTMENT (H233B)
Drive pinion preload adjustment
Drive pinion bearing preload adjust-
ing method Adjusting shim and spacer
Drive pinion preload [P
1]
N zm (kg-cm, in-lb)
With front oil seal 1.4 - 2.2
(14 - 22, 12 - 19)
Without front oil seal 1.2 - 2.0
(12 - 20, 10 - 17)
Available drive pinion preload adjusting washer
Thickness mm (in) Part number* 2.31 (0.0909)
2.33 (0.0917)
2.35 (0.0925)
2.37 (0.0933)
2.39 (0.0941)
2.41 (0.0949)
2.43 (0.0957)
2.45 (0.0965)
2.47 (0.0972)
2.49 (0.0980)
2.51 (0.0988)
2.53 (0.0996)
2.55 (0.1004)
2.57 (0.1012)
2.59 (0.1020) 38125-82100
38126-82100
38127-82100
38128-82100
38129-82100
38130-82100
38131-82100
38132-82100
38133-82100
38134-82100
38135-82100
38136-82100
38137-82100
38138-82100
38139-82100
Available drive pinion preload adjusting spacers
Length mm (in) Part number 4.50 (0.1772)
4.75 (0.1870)
5.00 (0.1969)
5.25 (0.2067)
5.50 (0.2165) 38165-76000
38166-76000
38167-76000
38166-01J00
38166-01J10
* Always check with the Parts Department for the latest parts informa- tion.
Total preload adjustment
Total preload
Nzm (kg-cm, in-lb)
With front oil seal Drive pinion bearing
P1+ [0.3 to 0.4
(3 to 4, 2.6 to 3.5)]
Ring gear backlash mm (in) 0.15 - 0.20
(0.0059 - 0.0079)
Side bearing adjusting method Side adjuster
P1: Drive pinion preload
SERVICE DATA AND SPECIFICATIONS (SDS)
PD-1011

REAR AXLE &
REAR SUSPENSION
SECTION
RA
MODIFICATION NOTICE:
+Wiring diagram connector colors have been changed.
CONTENTS
STABILIZER RELEASE DEVICE........................ 1002
Wiring Diagram ................................................ 1002

RA

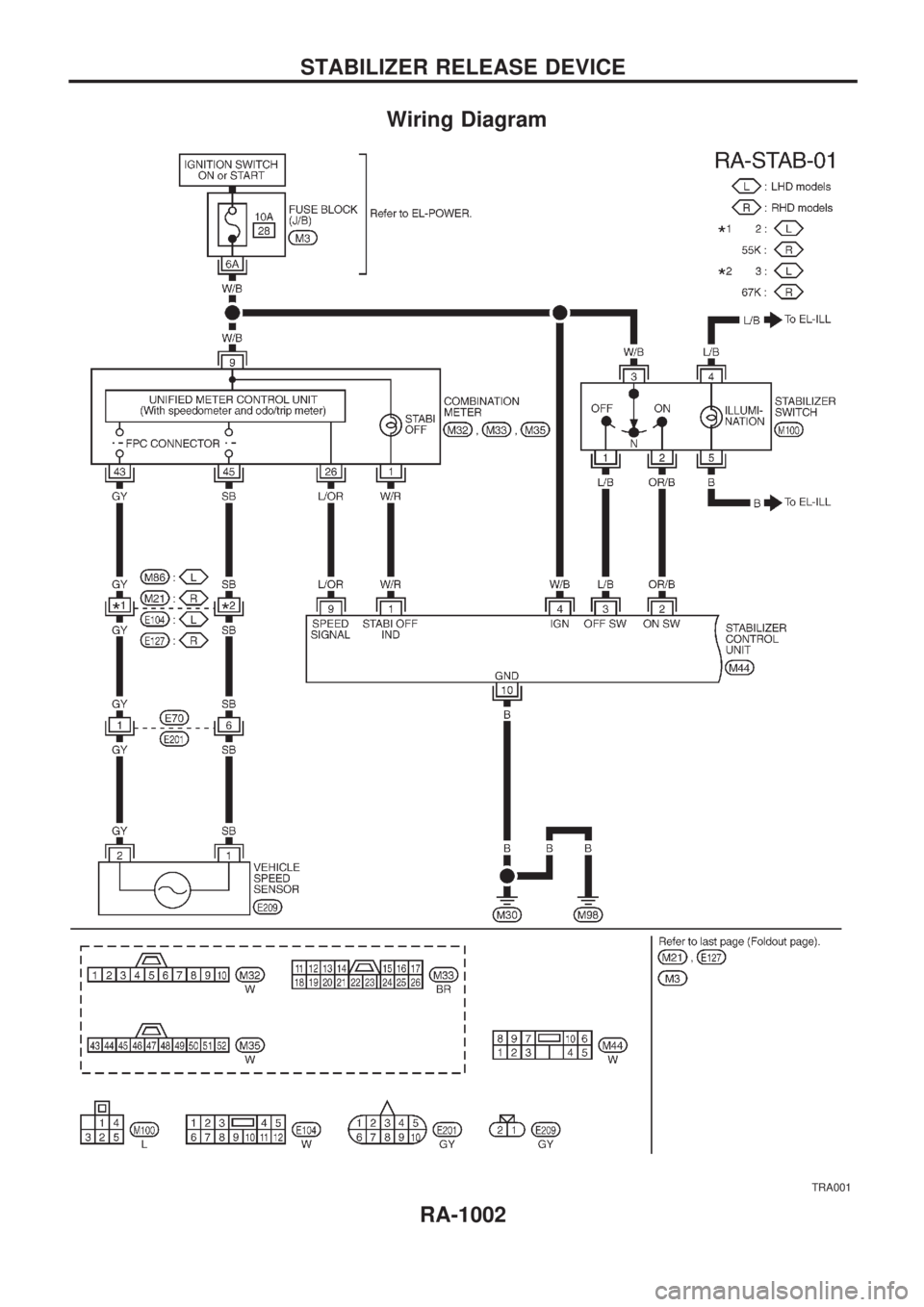

Wiring Diagram
TRA001
STABILIZER RELEASE DEVICE
RA-1002

TRA001M

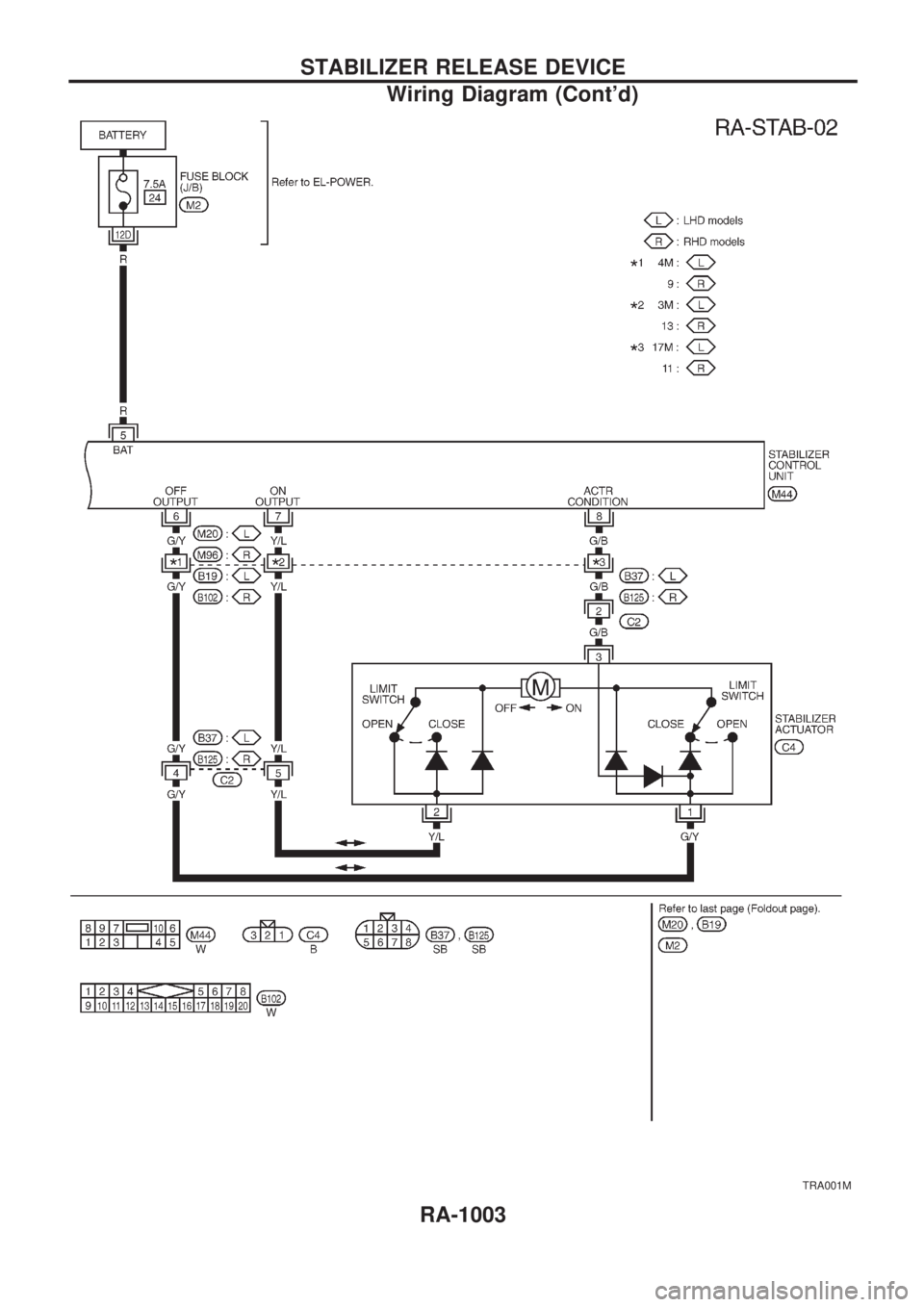

STABILIZER RELEASE DEVICE
Wiring Diagram (Cont'd)
RA-1003

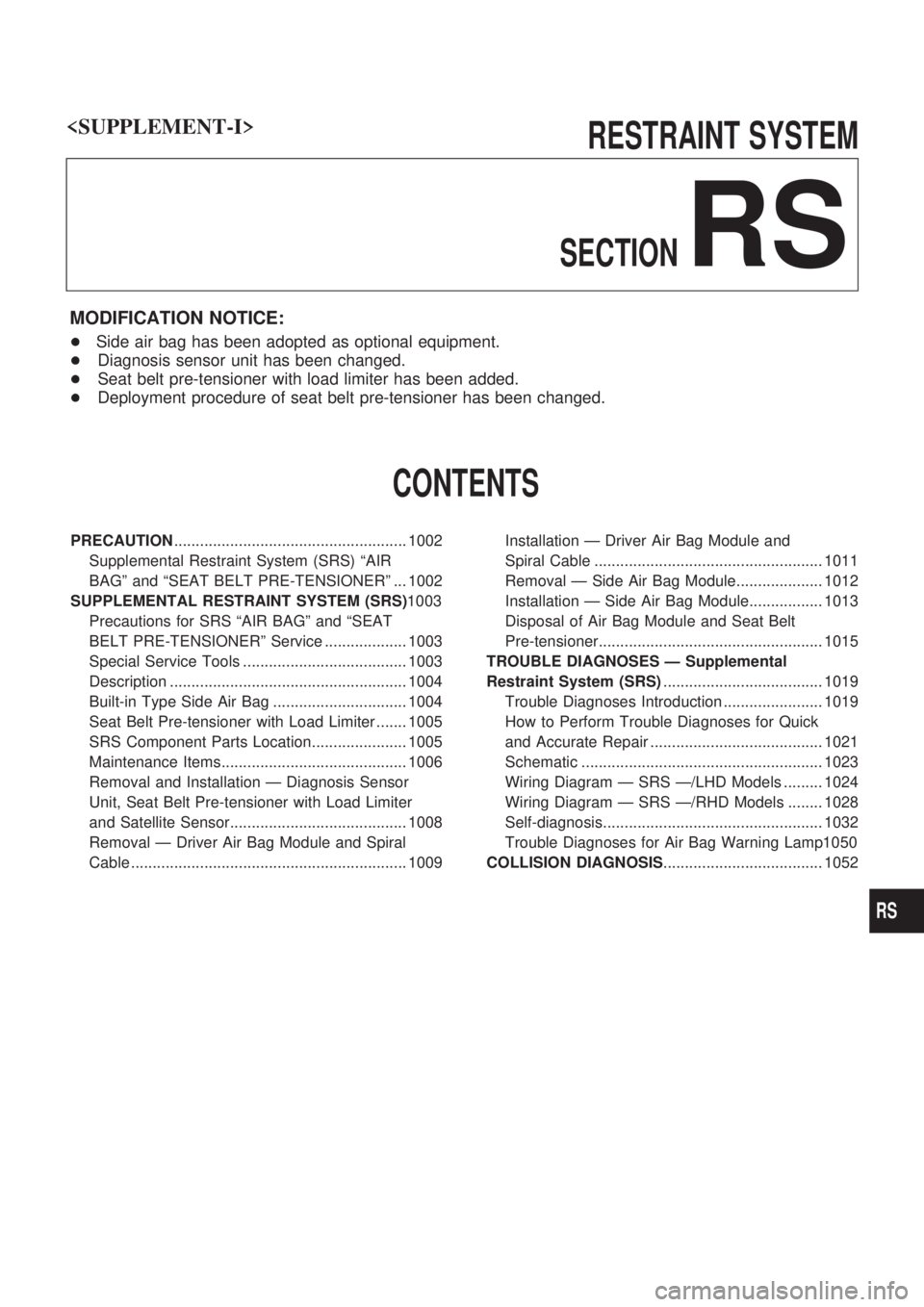

RESTRAINT SYSTEM
SECTION
RS
MODIFICATION NOTICE:
+Side air bag has been adopted as optional equipment.
+Diagnosis sensor unit has been changed.
+Seat belt pre-tensioner with load limiter has been added.
+Deployment procedure of seat belt pre-tensioner has been changed.
CONTENTS
PRECAUTION...................................................... 1002
Supplemental Restraint System (SRS) ªAIR
BAGº and ªSEAT BELT PRE-TENSIONERº ... 1002
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)1003
Precautions for SRS ªAIR BAGº and ªSEAT
BELT PRE-TENSIONERº Service ................... 1003
Special Service Tools ...................................... 1003
Description ....................................................... 1004
Built-in Type Side Air Bag ............................... 1004
Seat Belt Pre-tensioner with Load Limiter ....... 1005
SRS Component Parts Location...................... 1005
Maintenance Items........................................... 1006
Removal and Installation Ð Diagnosis Sensor
Unit, Seat Belt Pre-tensioner with Load Limiter
and Satellite Sensor......................................... 1008
Removal Ð Driver Air Bag Module and Spiral
Cable ................................................................ 1009Installation Ð Driver Air Bag Module and
Spiral Cable ..................................................... 1011
Removal Ð Side Air Bag Module.................... 1012
Installation Ð Side Air Bag Module................. 1013
Disposal of Air Bag Module and Seat Belt
Pre-tensioner.................................................... 1015
TROUBLE DIAGNOSES Ð Supplemental
Restraint System (SRS)..................................... 1019
Trouble Diagnoses Introduction ....................... 1019
How to Perform Trouble Diagnoses for Quick
and Accurate Repair ........................................ 1021
Schematic ........................................................ 1023
Wiring Diagram Ð SRS Ð/LHD Models ......... 1024
Wiring Diagram Ð SRS Ð/RHD Models ........ 1028
Self-diagnosis................................................... 1032
Trouble Diagnoses for Air Bag Warning Lamp1050
COLLISION DIAGNOSIS..................................... 1052

RS

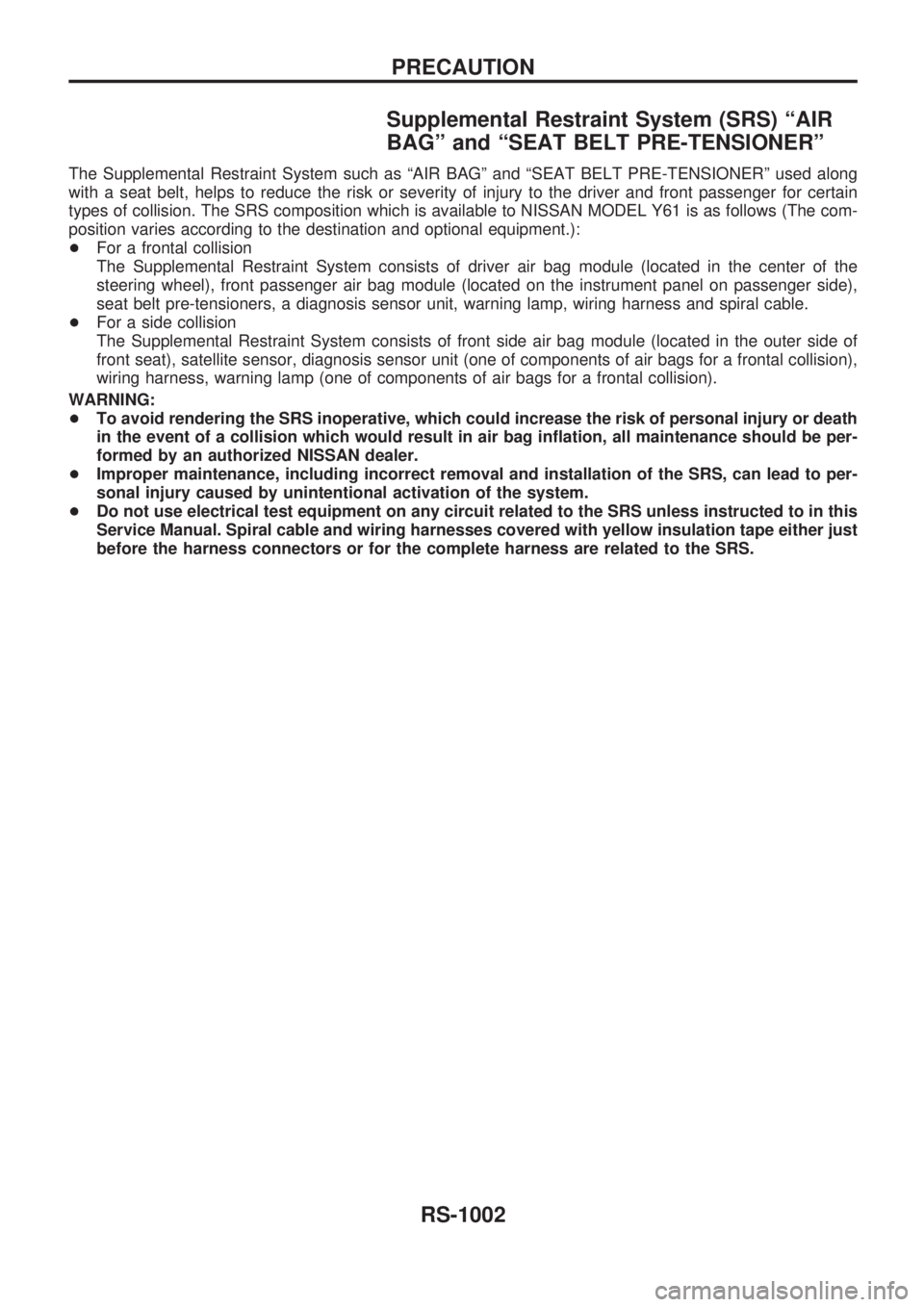

Supplemental Restraint System (SRS) ªAIR
BAGº and ªSEAT BELT PRE-TENSIONERº
The Supplemental Restraint System such as ªAIR BAGº and ªSEAT BELT PRE-TENSIONERº used along
with a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. The SRS composition which is available to NISSAN MODEL Y61 is as follows (The com-
position varies according to the destination and optional equipment.):
+For a frontal collision
The Supplemental Restraint System consists of driver air bag module (located in the center of the
steering wheel), front passenger air bag module (located on the instrument panel on passenger side),
seat belt pre-tensioners, a diagnosis sensor unit, warning lamp, wiring harness and spiral cable.
+For a side collision
The Supplemental Restraint System consists of front side air bag module (located in the outer side of
front seat), satellite sensor, diagnosis sensor unit (one of components of air bags for a frontal collision),
wiring harness, warning lamp (one of components of air bags for a frontal collision).
WARNING:
+To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance should be per-
formed by an authorized NISSAN dealer.
+Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system.
+Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and wiring harnesses covered with yellow insulation tape either just
before the harness connectors or for the complete harness are related to the SRS.
PRECAUTION
RS-1002

Precautions for SRS ªAIR BAGº and ªSEAT
BELT PRE-TENSIONERº Service
+Do not use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.
+Before servicing the SRS, turn ignition switch ªOFFº, disconnect both battery cables and wait at least 3
minutes.
For approximately 3 minutes after the cables are removed, it is still possible for the air bag and seat belt pre-
tensioner to deploy. Therefore, do not work on any SRS connectors or wires until at least 3 minutes have passed.
+Diagnosis sensor unit must always be installed with their arrow marks ªSº pointing towards the front of
the vehicle for proper operation. Also check diagnosis sensor unit for cracks, deformities or rust before
installation and replace as required.
+The spiral cable must be aligned with the neutral position since its rotations are limited. Do not attempt
to turn steering wheel or column after removal of steering gear.
+Handle air bag module carefully. Always place driver and passenger air bag modules with the pad side
facing upward and front side air bag modules (built-in type) with the stud bolt side facing down.
+Conduct self-diagnosis to check entire SRS for proper function after replacing any components.
+After air bag inflates, the front instrument panel assembly should be replaced if damaged.
Special Service Tools
Tool number
Tool nameDescription
KV99106400
Deployment tool
NT357
Disposing of air bag module
KV99105300
Air bag module bracket
NT354
Anchoring air bag module
HT61961000 and
HT62152000 combined
*Special torx bit
NT361
Use for special bolts
[TAMPER RESISTANT TORX (Size T50)]
a: 3.5 (0.138) dia.
b: 8.5 - 8.6 (0.335 - 0.339) dia.
c: approx. 10 (0.39) sq.
Unit: mm (in)
KV99108300
Deployment tool adapters for
built-in type side air bag and
passenger air bag modules
NT780
KV99108200 (KV999R0020)
Deployment tool adapters for
seat belt pre-tensioner
NT721
*: Special tool or commercial equivalent
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
RS-1003

Description
The air bag deploys if the diagnosis sensor unit activates while the ignition switch is in the ªONº or ªSTARTº
position.
The collision modes for which supplemental restraint systems are activated are different among the SRS
systems. For example, the driver air bag module and passenger air bag module are activated in a frontal
collision but not in a side collision.
SRS configurations which are activated for some collision modes are as follows;
SRS configuration Frontal collision Left side collision Right side collision
Driver air bag modulejÐÐ
Passenger air bag modulejÐÐ
Seat belt pre-tensioner (Driver side)jÐÐ
Seat belt pre-tensioner (Passenger side)jÐÐ
Side air bag module (LH) ÐjÐ
Side air bag module (RH) Ð Ðj
Built-in Type Side Air Bag
Front side air bag is built-in type.
The front seat backs with built-in type side air bag have the labels
shown in figures at left.
SRS585-A
SRS755
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
RS-1004
