2022 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

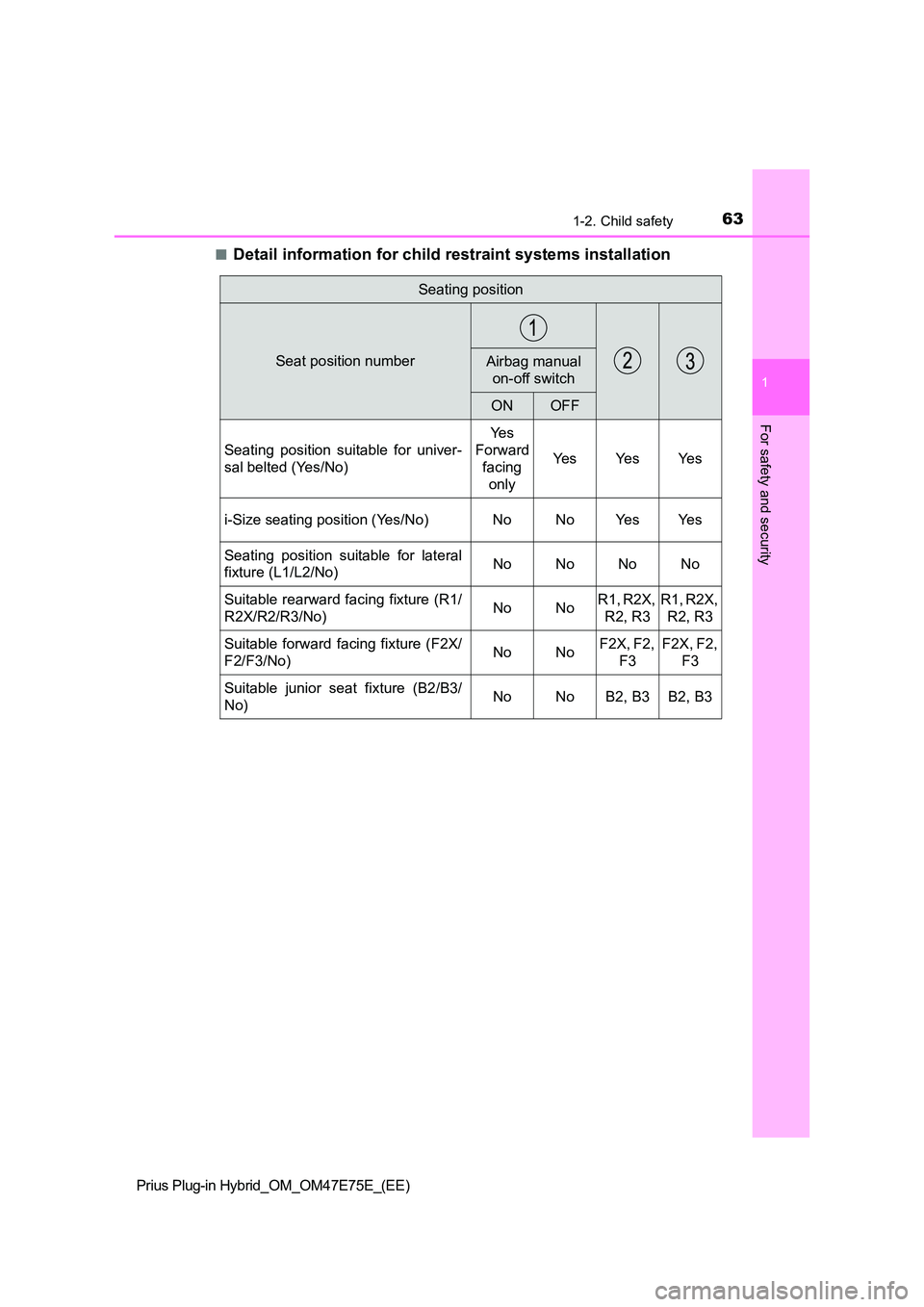

631-2. Child safety
1
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
For safety and security
QDetail information for child restraint systems installation
Seating position
Seat position numberAirbag manual
on-off switch
ONOFF
Seating position suitable for univer-
sal belted (Yes/No)
Ye s
Forward
facing
only
Ye s Ye s Ye s
i-Size seating position (Yes/No) No No Yes Yes
Seating position suitable for lateral
fixture (L1/L2/No) No No No No
Suitable rearward facing fixture (R1/
R2X/R2/R3/No) No NoR1, R2X,
R2, R3
R1, R2X,
R2, R3
Suitable forward facing fixture (F2X/
F2/F3/No) No No F2X, F2,
F3
F2X, F2,
F3
Suitable junior seat fixture (B2/B3/
No) No No B2, B3 B2, B3

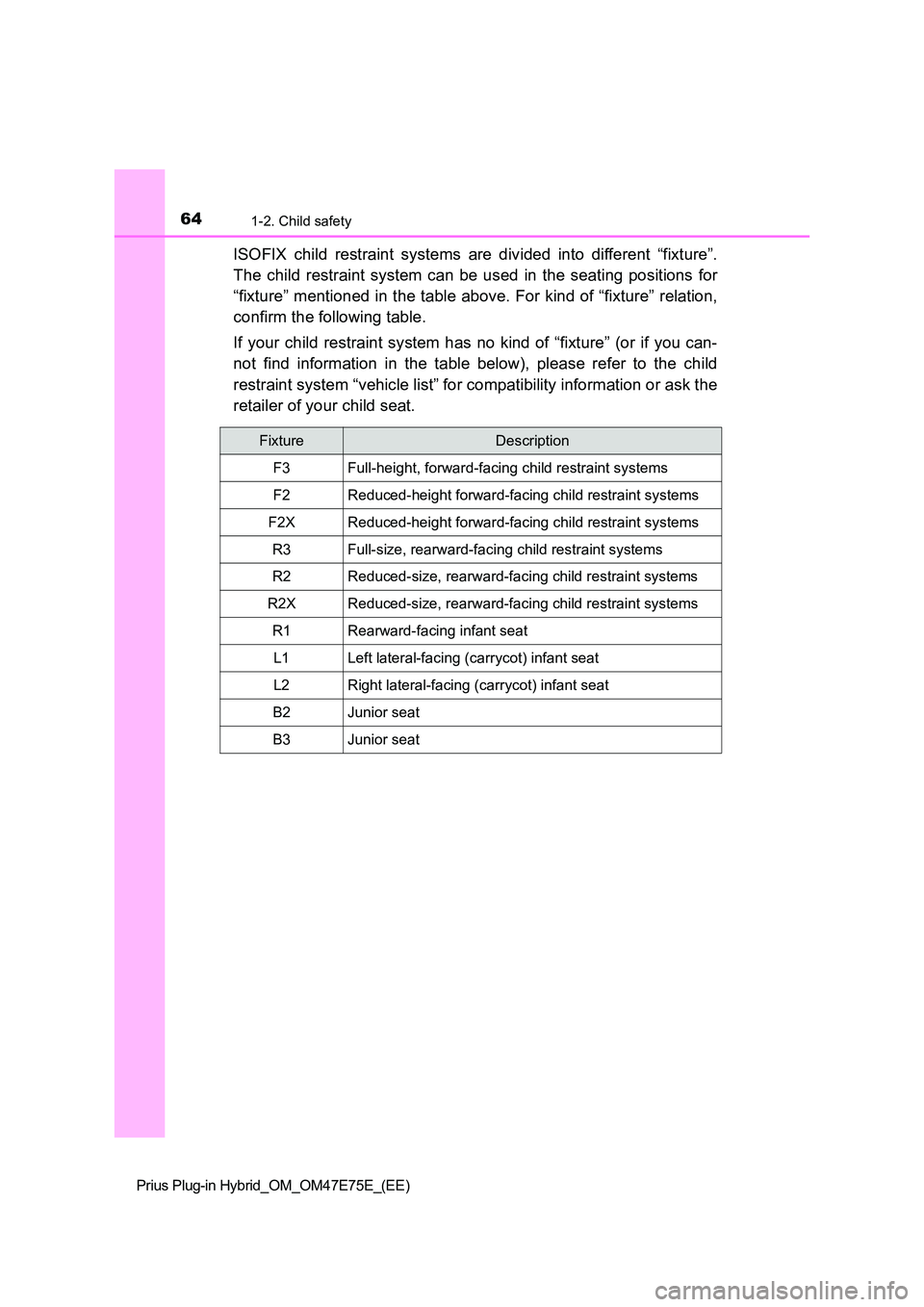

641-2. Child safety
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
ISOFIX child restraint systems are divided into different “fixture”.
The child restraint system can be used in the seating positions for
“fixture” mentioned in the table above. For kind of “fixture” r elation,
confirm the following table.
If your child restraint system has no kind of “fixture” (or if you can-
not find information in the table below), please refer to the c hild
restraint system “vehicle list” for compatibility information o r ask the
retailer of your child seat.
FixtureDescription
F3 Full-height, forward-facing child restraint systems
F2 Reduced-height forward-facing child restraint systems
F2X Reduced-height forward-facing child restraint systems
R3 Full-size, rearward-facing child restraint systems
R2 Reduced-size, rearward-facing child restraint systems
R2X Reduced-size, rearward-facing child restraint systems
R1 Rearward-facing infant seat
L1 Left lateral-facing (carrycot) infant seat
L2 Right lateral-facing (carrycot) infant seat
B2 Junior seat
B3 Junior seat

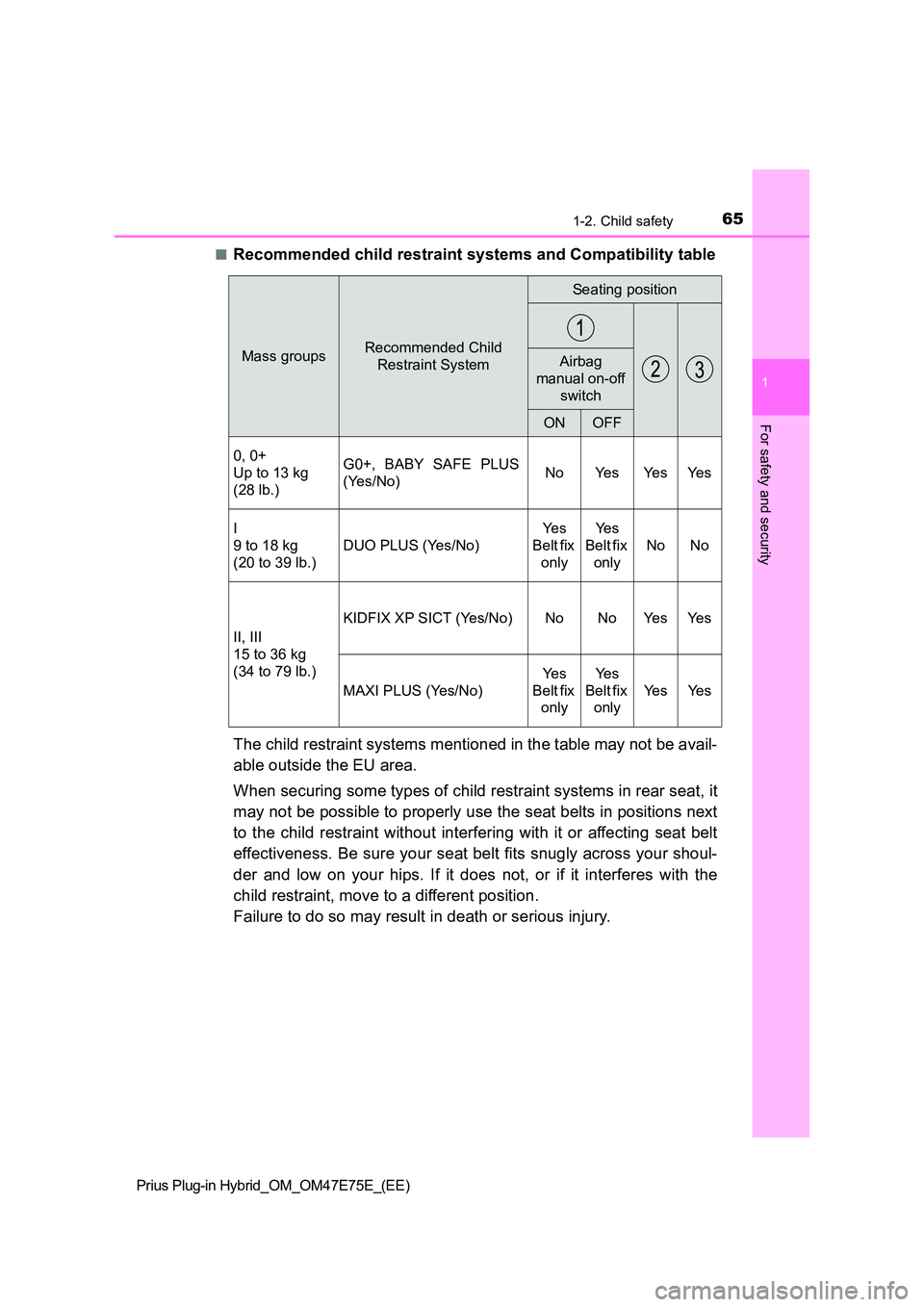

651-2. Child safety
1
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
For safety and security
QRecommended child restraint systems and Compatibility table
The child restraint systems mentioned in the table may not be a vail-
able outside the EU area.
When securing some types of child restraint systems in rear sea t, it
may not be possible to properly use the seat belts in positions next
to the child restraint without interfering with it or affecting seat belt
effectiveness. Be sure your seat belt fits snugly across your s houl-
der and low on your hips. If it does not, or if it interferes w ith the
child restraint, move to a different position.
Failure to do so may result in death or serious injury.
Mass groupsRecommended Child
Restraint System
Seating position
Airbag
manual on-off
switch
ONOFF
0, 0+
Up to 13 kg
(28 lb.)
G0+, BABY SAFE PLUS
(Yes/No) N o Ye s Ye s Ye s
I
9 to 18 kg
(20 to 39 lb.)
DUO PLUS (Yes/No)
Ye s
Belt fix
only
Ye s
Belt fix
only
No No
II, III
15 to 36 kg
(34 to 79 lb.)
KIDFIX XP SICT (Yes/No) No No Yes Yes
MAXI PLUS (Yes/No)
Ye s
Belt fix
only
Ye s
Belt fix
only
Ye s Ye s

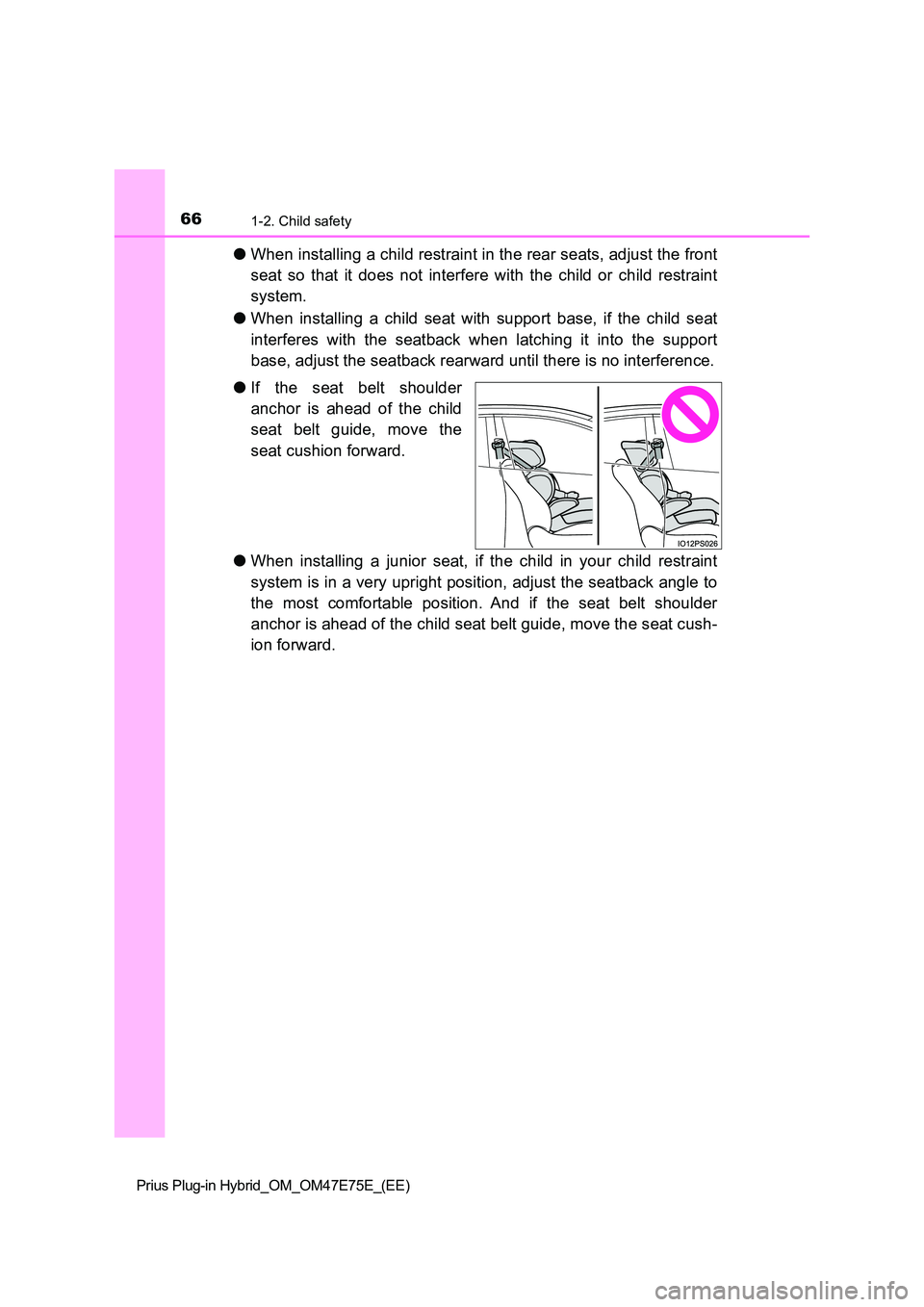

661-2. Child safety
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
OWhen installing a child restraint in the rear seats, adjust the front
seat so that it does not interfere with the child or child rest raint
system.
O When installing a child seat with support base, if the child seat
interferes with the seatback when latching it into the support
base, adjust the seatback rearward until there is no interferen ce.
O If the seat belt shoulder
anchor is ahead of the child
seat belt guide, move the
seat cushion forward.
O When installing a junior seat, if the child in your child restraint
system is in a very upright position, adjust the seatback angle to
the most comfortable position. And if the seat belt shoulder
anchor is ahead of the child seat belt guide, move the seat cus h-
ion forward.

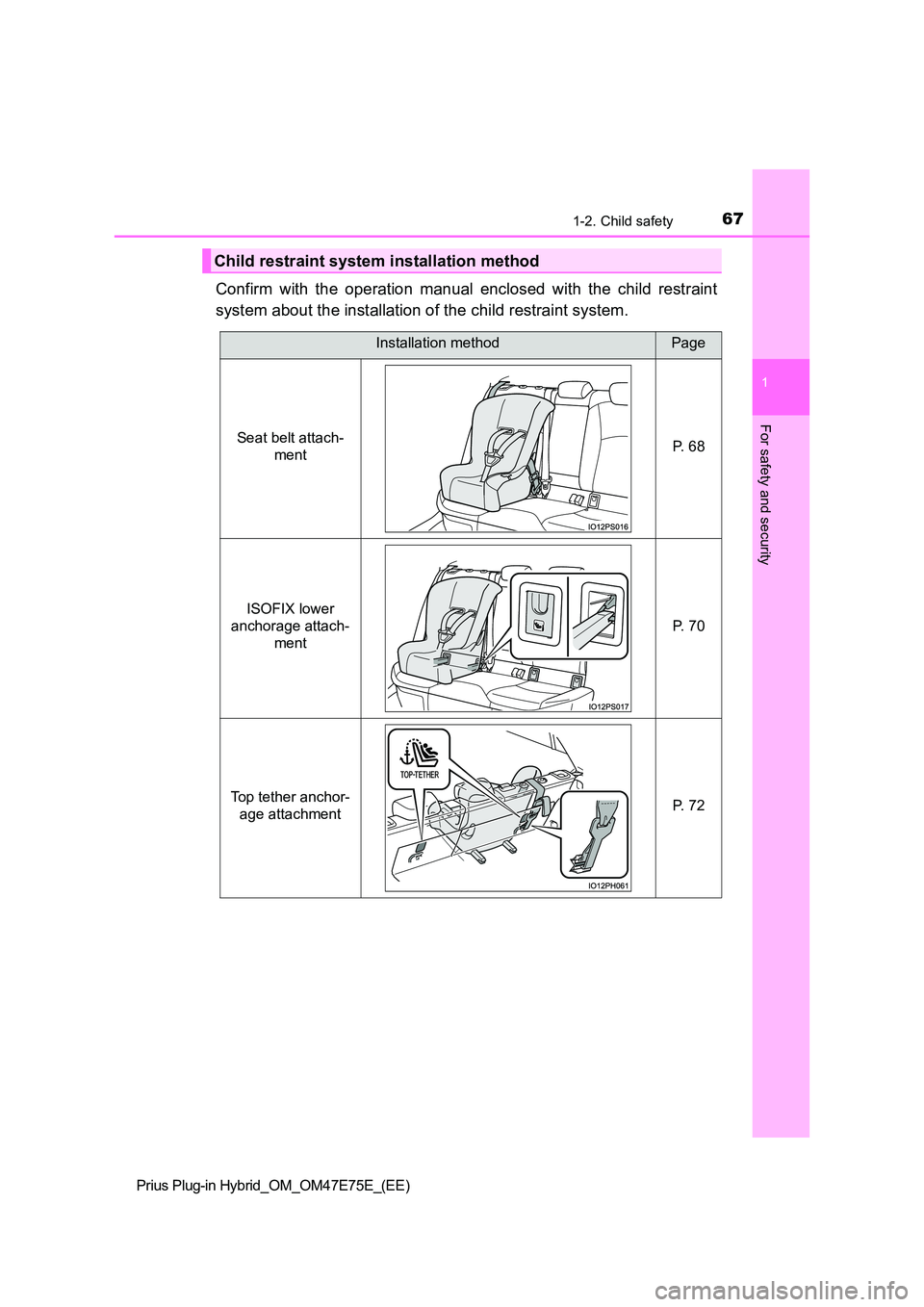

671-2. Child safety
1
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
For safety and security
Confirm with the operation manual enclosed with the child restraint
system about the installation of the child restraint system.
Child restraint system installation method
Installation methodPage
Seat belt attach-
ment P. 68
ISOFIX lower
anchorage attach-
ment
P. 70
Top tether anchor-
age attachmentP. 72

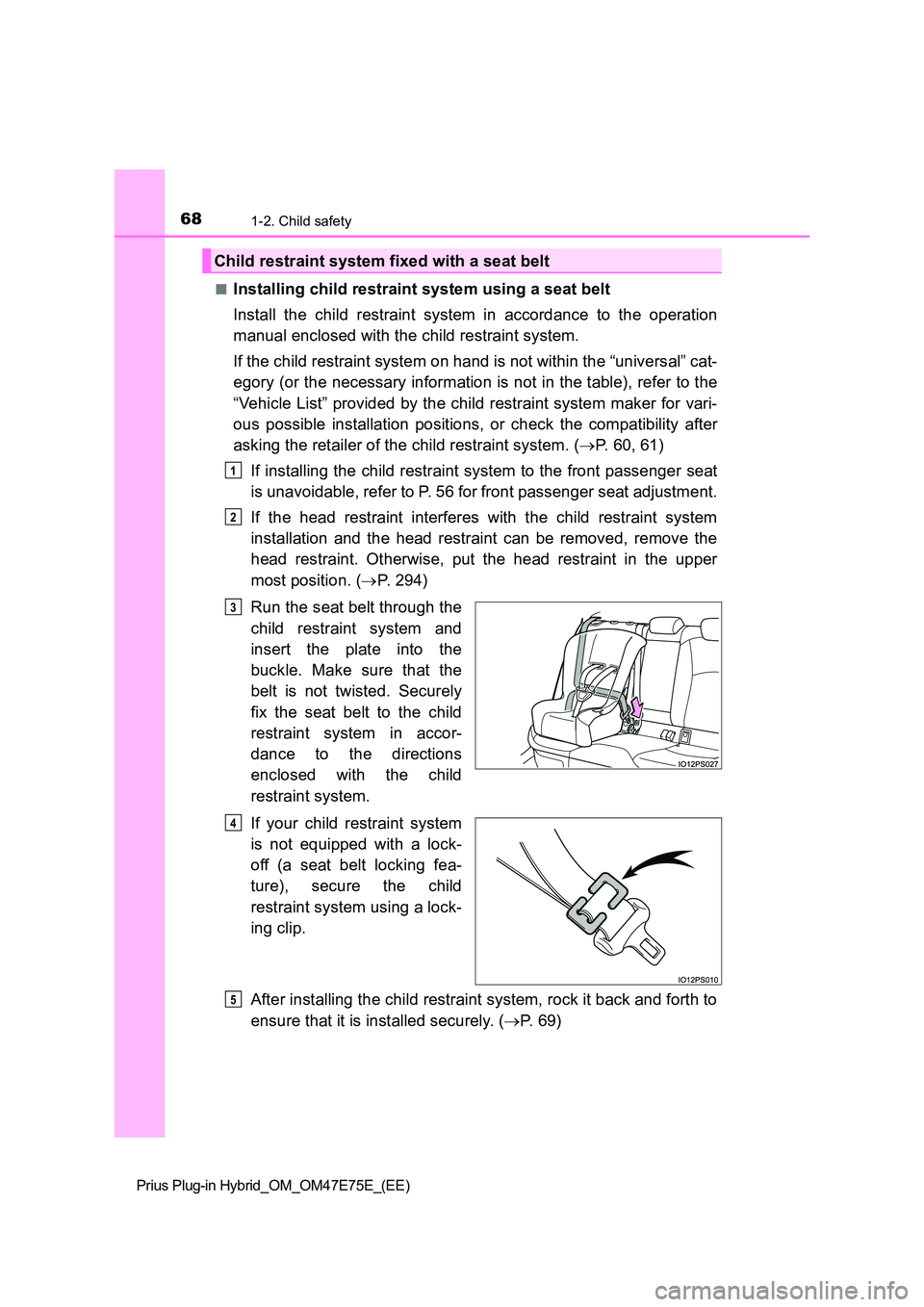

681-2. Child safety
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
QInstalling child restraint system using a seat belt
Install the child restraint system in accordance to the operati on
manual enclosed with the child restraint system.
If the child restraint system on hand is not within the “univer sal” cat-
egory (or the necessary information is not in the table), refer to the
“Vehicle List” provided by the child restraint system maker for vari-
ous possible installation positions, or check the compatibility after
asking the retailer of the child restraint system. ( P. 6 0 , 6 1 )
If installing the child restraint system to the front passenger seat
is unavoidable, refer to P. 56 for front passenger seat adjustm ent.
If the head restraint interferes with the child restraint syste m
installation and the head restraint can be removed, remove the
head restraint. Otherwise, put the head restraint in the upper
most position. ( P. 294)
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted. Securely
fix the seat belt to the child
restraint system in accor-
dance to the directions
enclosed with the child
restraint system.
If your child restraint system
is not equipped with a lock-
off (a seat belt locking fea-
ture), secure the child
restraint system using a lock-
ing clip.
After installing the child restraint system, rock it back and f orth to
ensure that it is installed securely. ( P. 6 9 )
Child restraint system fixed with a seat belt
1
2
3
4
5

691-2. Child safety
1
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
For safety and security
QRemoving a child restraint system installed with a seat belt
Press the buckle release button and fully retract the seat belt .
When releasing the buckle, the child restraint system may spring up due
to the rebound of the seat cushion. Release the buckle while ho lding
down the child restraint system.
Since the seat belt automatically reels itself, slowly return i t to the stow-
ing position.
Q When installing a child restraint system
You may need a locking clip to install the child restraint syst em. Follow the
instructions provided by the manufacturer of the system. If you r child restraint
system does not provide a locking clip, you can purchase the fo llowing item
from any authorized Toyota retailer or Toyota authorized repair er, or any reli-
able repairer: Locking clip for child restraint system
(Part No. 73119-22010)
WARNING
Q When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
O Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious inju-
ries that could result in death. If this occurs and the buckle cannot be
unfastened, scissors should be used to cut the belt.
O Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
O Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
O After securing a child restraint system, never adjust the seat.
O When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.
O Follow all installation instructions provided by the child restraint system
manufacturer.

701-2. Child safety
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
QISOFIX lower anchorages (ISOFIX child restraint system)
Lower anchorages are provided
for the rear outboard seats.
(Marks displaying the location
of the anchorages are attached
to the seats.)
QInstallation with ISOFIX lower anchorage (ISOFIX child
restraint system)
Install the child restraint system in accordance to the operati on
manual enclosed with the child restraint system.
If the child restraint system on hand is not within the “univer sal” cat-
egory (or the necessary information is not in the table), refer to the
“Vehicle List” provided by the child restraint system maker for vari-
ous possible installation positions, or check the compatibility after
asking the retailer of the child restraint system. ( P. 6 0 , 6 1 )
If the head restraint interferes with the child restraint syste m
installation and the head restraint can be removed, remove the
head restraint. Otherwise, put the head restraint in the upper
most position. ( P. 294)
Child restraint system fixed with an ISOFIX lower anchorage
1
