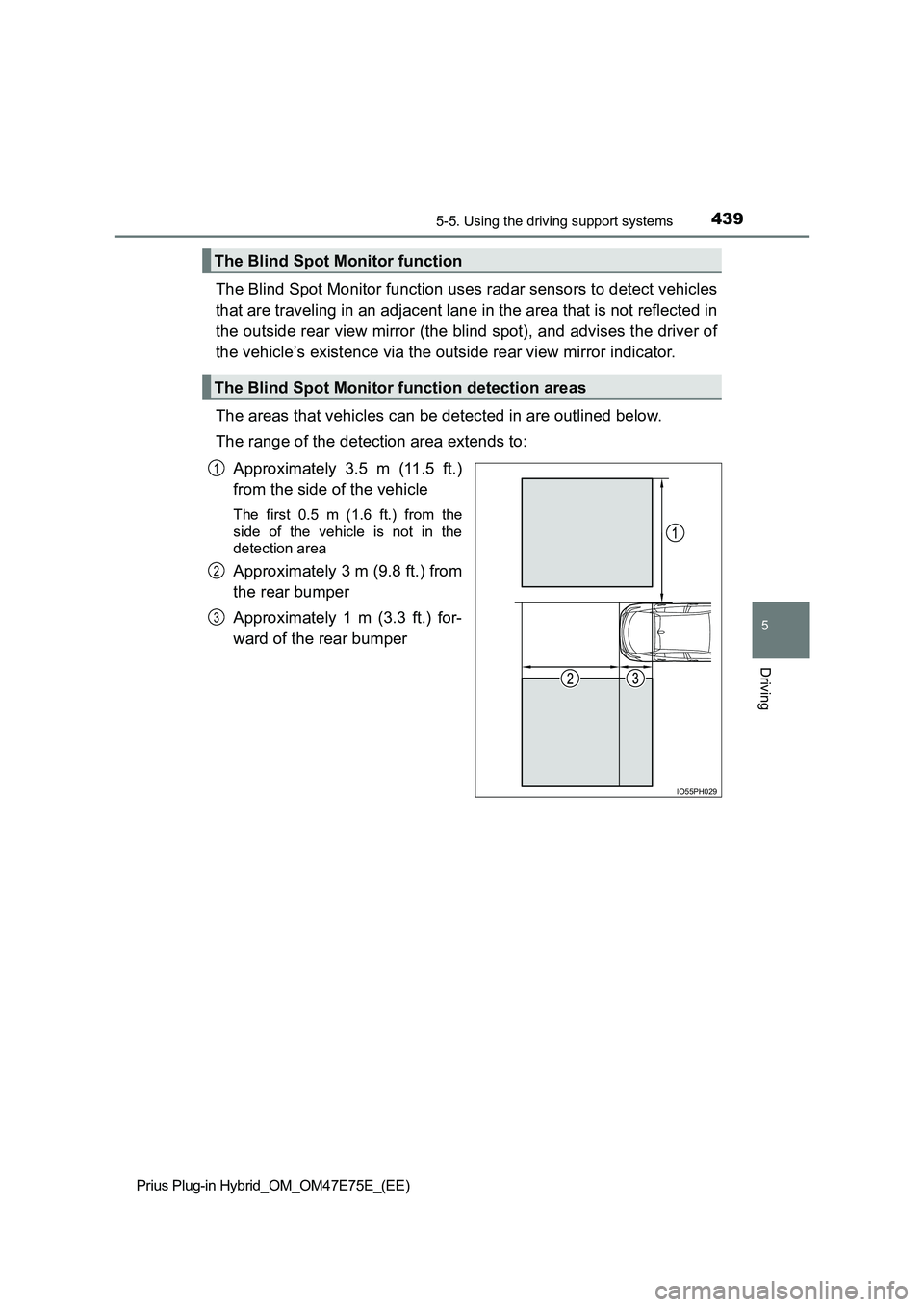

2022 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

4395-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving
The Blind Spot Monitor function uses radar sensors to detect vehicles
that are traveling in an adjacent lane in the area that is not reflected in
the outside rear view mirror (the blind spot), and advises the driver of
the vehicle’s existence via the outside rear view mirror indicator.
The areas that vehicles can be detected in are outlined below.
The range of the detection area extends to:
Approximately 3.5 m (11.5 ft.)
from the side of the vehicle
The first 0.5 m (1.6 ft.) from the
side of the vehicle is not in the
detection area
Approximately 3 m (9.8 ft.) from
the rear bumper
Approximately 1 m (3.3 ft.) for-
ward of the rear bumper
The Blind Spot Monitor function
The Blind Spot Monitor function detection areas
IO55PH029
1
2
3

4405-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
QThe Blind Spot Monitor function is operational when
O The BSM system is set to on (P. 247)
O Vehicle speed is greater than approximately 16 km/h (10 mph)
Q The Blind Spot Monitor function will detect a vehicle when
O A vehicle in an adjacent lane overtakes your vehicle.
O You overtake a vehicle in adjacent lane slowly.
O Another vehicle enters the detection area when it changes lanes.
Q Conditions under which the system will not detect a vehicle
The Blind Spot Monitor function is not designed to detect the f ollowing types
of vehicles and/or objects:
O Small motorcycles, bicycles, pedestrians etc.*
OVehicles traveling in the opposite direction
O Guardrails, walls, signs, parked vehicles and similar stationary objects*
OFollowing vehicles that are in the same lane*
OVehicles driving 2 lanes across from your vehicle*
OVehicles which are being overtaken rapidly by your vehicle*
*: Depending on conditions, detection of a vehicle and/or object may occur.
WARNING
QCautions regarding the use of the system
The driver is solely responsible for safe driving. Always drive safely, taking
care to observe your surroundings.
The Blind Spot Monitor function is a supplementary function whi ch alerts the
driver that a vehicle is present in the blind spot. Do not over ly rely on the
Blind Spot Monitor function. The function cannot judge if it is safe to change
lanes, therefore over reliance could cause an accident resultin g in death or
serious injury.
According to conditions, the system may not function correctly. Therefore
the driver’s own visual confirmation of safety is necessary.

4415-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving
QConditions under which the system may not function correctly
OThe Blind Spot Monitor function may not detect vehicles correctly in the fol-
lowing situations:
• When the sensor is misaligned due to a strong impact to the sensor or its
surrounding area
• When mud, snow, ice, a sticker, etc. is covering the sensor or surround-
ing area on the rear bumper
• When driving on a road surface that is wet with standing water during bad
weather, such as heavy rain, snow, or fog
• When multiple vehicles are approaching with only a small gap between
each vehicle
• When the distance between your vehicle and a following vehicle is short
• When there is a significant difference in speed between your vehicle and
the vehicle that enters the detection area
• When the difference in speed between your vehicle and another vehicle
is changing
• When a vehicle enters a detection area traveling at about the same
speed as your vehicle
• As your vehicle starts from a stop, a vehicle remains in the detection area
• When driving up and down consecutive steep inclines, such as hills, dips
in the road, etc.
• When driving on roads with sharp bends, consecutive curves, or uneven
surfaces
• When vehicle lanes are wide, or when driving on the edge of a lane, and
the vehicle in an adjacent lane is far away from your vehicle
• When a bicycle carrier or other accessory is installed to the rear of the
vehicle
• When there is a significant difference in height between your vehicle and
the vehicle that enters the detection area
• Immediately after the Blind Spot Monitor function is turned on

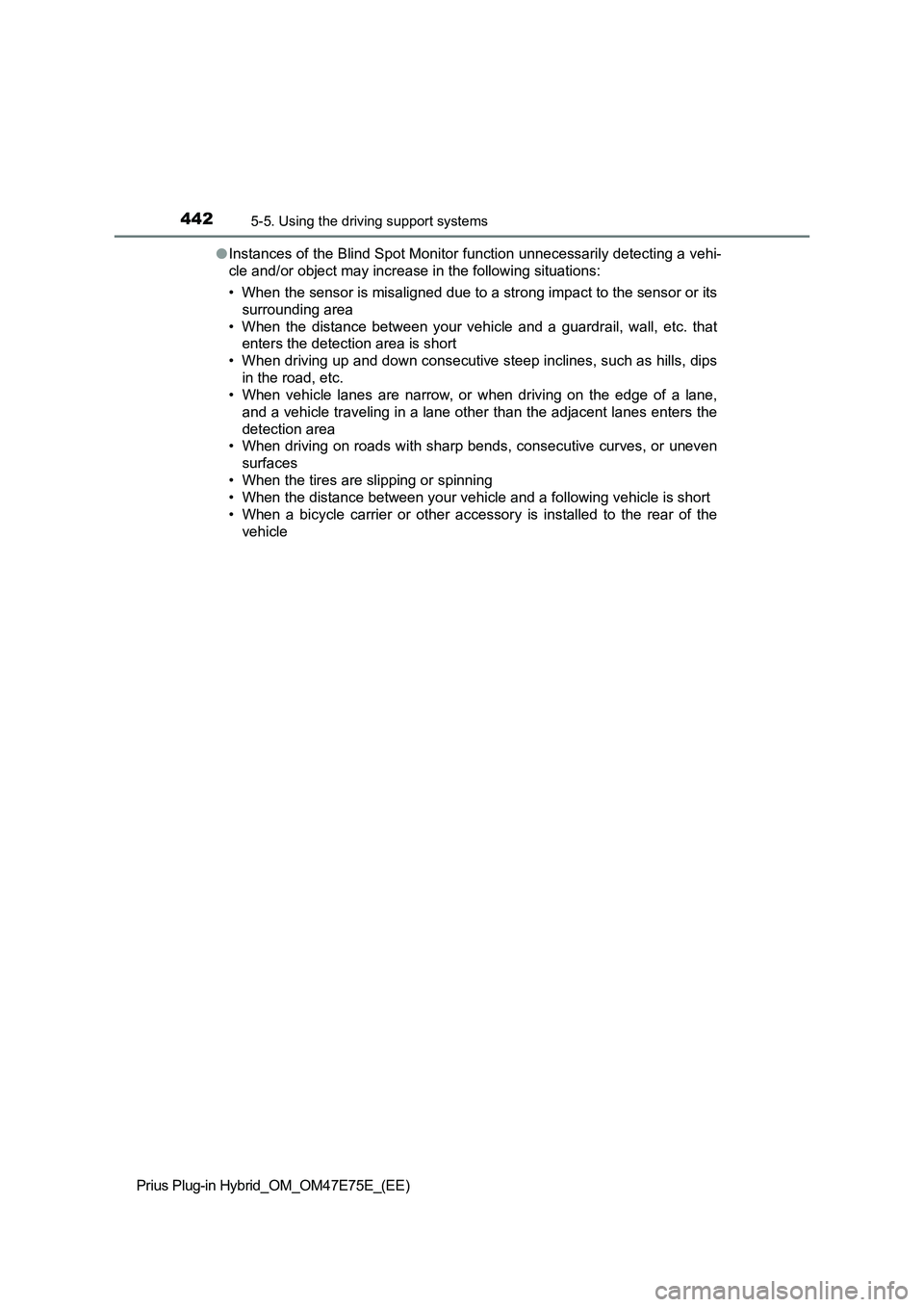

4425-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)OInstances of the Blind Spot Monitor function unnecessarily detecting a vehi-
cle and/or object may increase in the following situations:
• When the sensor is misaligned due to a strong impact to the sensor or its
surrounding area
• When the distance between your vehicle and a guardrail, wall, etc. that
enters the detection area is short
• When driving up and down consecutive steep inclines, such as hills, dips
in the road, etc.
• When vehicle lanes are narrow, or when driving on the edge of a lane,
and a vehicle traveling in a lane other than the adjacent lanes enters the
detection area
• When driving on roads with sharp bends, consecutive curves, or uneven
surfaces
• When the tires are slipping or spinning
• When the distance between your vehicle and a following vehicle is short
• When a bicycle carrier or other accessory is installed to the rear of the
vehicle

4435-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving
The Rear Crossing Traffic Alert functions when your vehicle is in
reverse. It can detect other vehicles approaching from the righ t or left
rear of the vehicle. It uses radar sensors to alert the driver of the other
vehicle’s existence through flashing the outside rear view mirr or indi-
cators and sounding a buzzer.
The Rear Crossing Traffic Alert function
IO55PH087
Approaching vehicles Detection areas
WARNING
Q Cautions regarding the use of the system
There is a limit to the degree of recognition accuracy and cont rol perfor-
mance that this system can provide, do not overly rely on this system. The
driver is always responsible for paying attention to the vehicl e’s surround-
ings and driving safely. ( P. 440)
Q To ensure the system can operate properly
 P. 438
12

4445-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
When a vehicle approaching from the right or left at the rear of the
vehicle is detected, the following will be displayed on the navigation
system screen.
RCTA icon display
When the Toyota parking assist
monitor is displayedWhen the panoramic view
monitor (if equipped) is dis-
played

4455-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving
The areas that vehicles can be detected in are outlined below.
To give the driver a more consistent time to react, the buzzer can alert
for faster vehicles from farther away.
Example:
Q The Rear Crossing Traffic Alert function is operational when
O The BSM system is set to on. (P. 247)
O The shift position is in R.
O Vehicle speed is less than approximately 8 km/h (5 mph).
O Approaching vehicle speed is between approximately 8 km/h (5 mph) and
28 km/h (18 mph).
The Rear Crossing Traffic Alert function detection areas
IO55PH088
Approaching vehicleSpeedApproximate
alert distance
Fast28 km/h (18 mph)20 m (65 ft.)
Slow8 km/h (5 mph)5.5 m (18 ft.)
1

4465-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Q Conditions under which the system will not detect a vehicle
The Rear Crossing Traffic Alert function is not designed to det ect the follow-
ing types of vehicles and/or objects:
O Vehicles approaching from directly behind
O Vehicles backing up in a parking space next to your vehicle
O Guardrails, walls, signs, parked vehicles and similar stationary objects*
OSmall motorcycles, bicycles, pedestrians, etc.*
OVehicles moving away from your vehicle
O Vehicles approaching from the parking spaces next to your vehicle*
OThe distance between the sensor and approaching vehicle gets too close
*: Depending on the conditions, detection of a vehicle and/or object may
occur.
O Vehicles that the sensors cannot detect
due to obstructions
IO55PH089
