2022 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

6798-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises

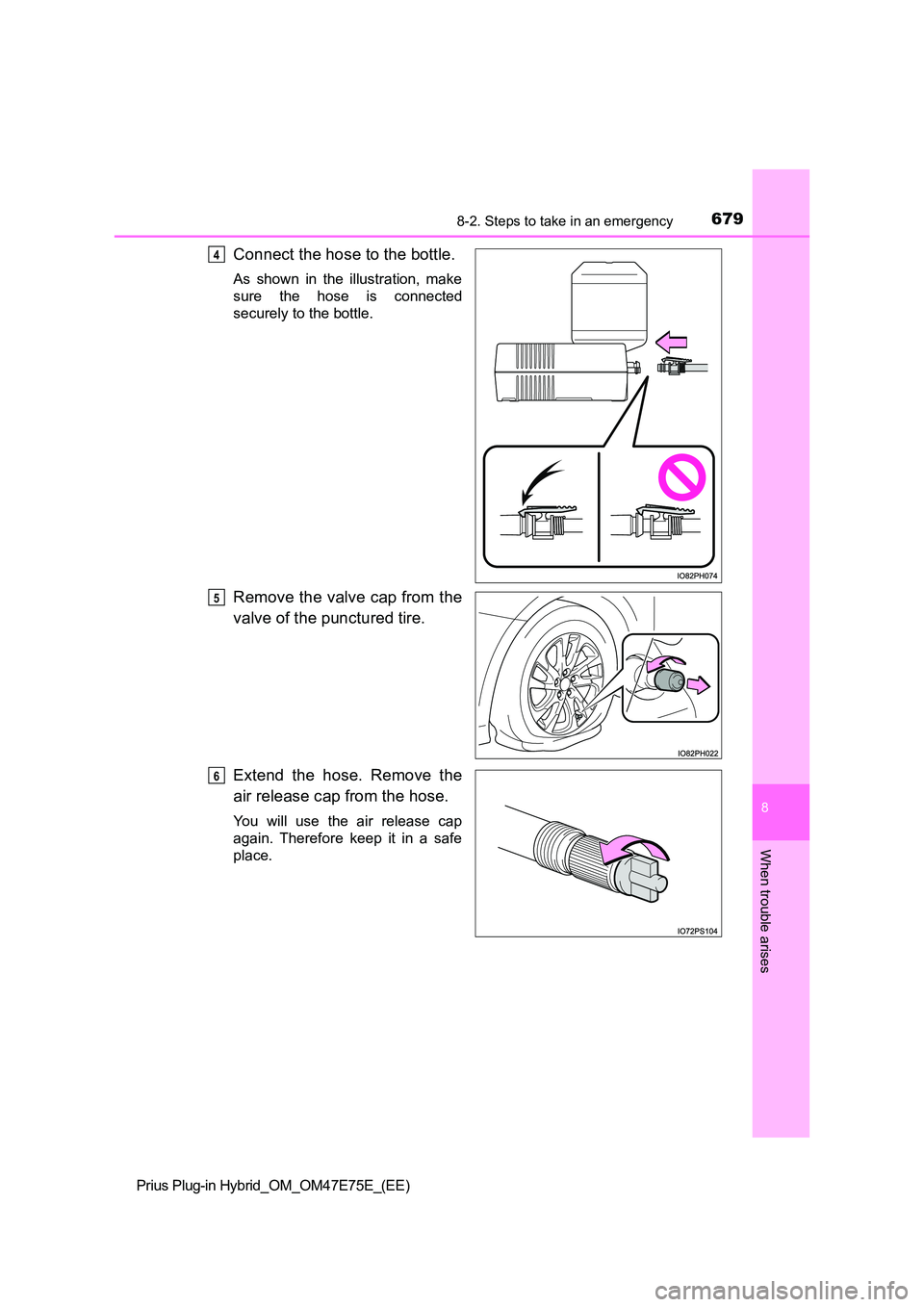

Connect the hose to the bottle.
As shown in the illustration, make
sure the hose is connected
securely to the bottle.
Remove the valve cap from the
valve of the punctured tire.
Extend the hose. Remove the
air release cap from the hose.
You will use the air release cap
again. Therefore keep it in a safe
place.
4
5
6

6808-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Connect the hose to the valve.
Screw the end of the hose clock-
wise as far as possible.
Make sure that the compressor
switch is off.
Connect the power plug to the power outlet socket. ( P. 556)
Attach the sticker provided with
the tire puncture repair kit to a
position easily seen from the
driver’s seat.
7
8
9
FrontRear
10

6818-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises

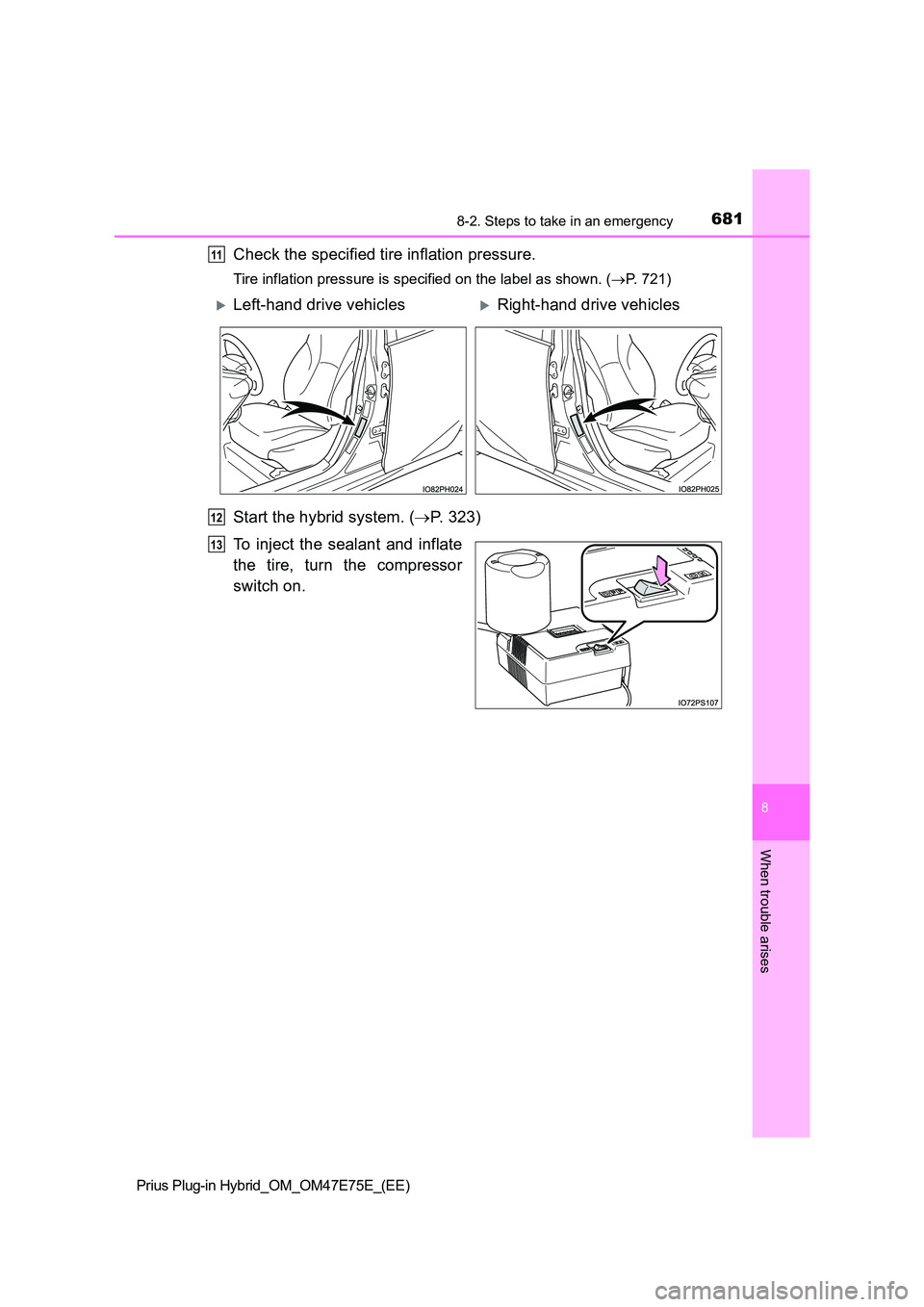

Check the specified tire inflation pressure.
Tire inflation pressure is specified on the label as shown. (P. 721)
Start the hybrid system. (P. 3 2 3 )
To inject the sealant and inflate
the tire, turn the compressor
switch on.
11
Left-hand drive vehiclesRight-hand drive vehicles
12
13

6828-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Inflate the tire until the specified air pressure is reached.
The sealant will be injected
and the pressure will spike to
300 kPa (3.0 kgf/cm2 or bar, 44
psi) or 400 kPa (4.0 kgf/cm2 or
bar, 58 psi), then gradually
decrease.
The air pressure gauge will
display the actual tire infla-
tion pressure about 1 to 5
minutes after the switch is
turned on.
Turn the compressor switch off
and then check the tire inflation
pressure.
Being careful not to over inflate,
check and repeat the inflation
procedure until the specified tire
inflation pressure is reached.
The tire can be inflated for about 5 to 20 minutes (depending o n the out-
side temperature). If the tire inflation pressure is still lowe r than the
specified point after inflation for 25 minutes, the tire is too damaged to
be repaired. Turn the compressor switch off and contact any aut horized
Toyota retailer or Toyota aut horized repairer, or any reliable repairer.
If the tire inflation pressure exceeds the specified air pressu re, let out
some air to adjust the tire inflation pressure. ( P. 685, 721)
With the compressor switch off, pull out the power plug from the
power outlet socket and then disconnect the hose from the valve on
the tire.
Some sealant may leak when the hose is removed.
Install the valve cap onto the valve of the emergency repaired tire.
Attach the air release cap to the
end of the hose.
If the air release cap is not
attached, the sealant may leak and
the vehicle may get dirty.
14
1
2
15
16
17

6838-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises

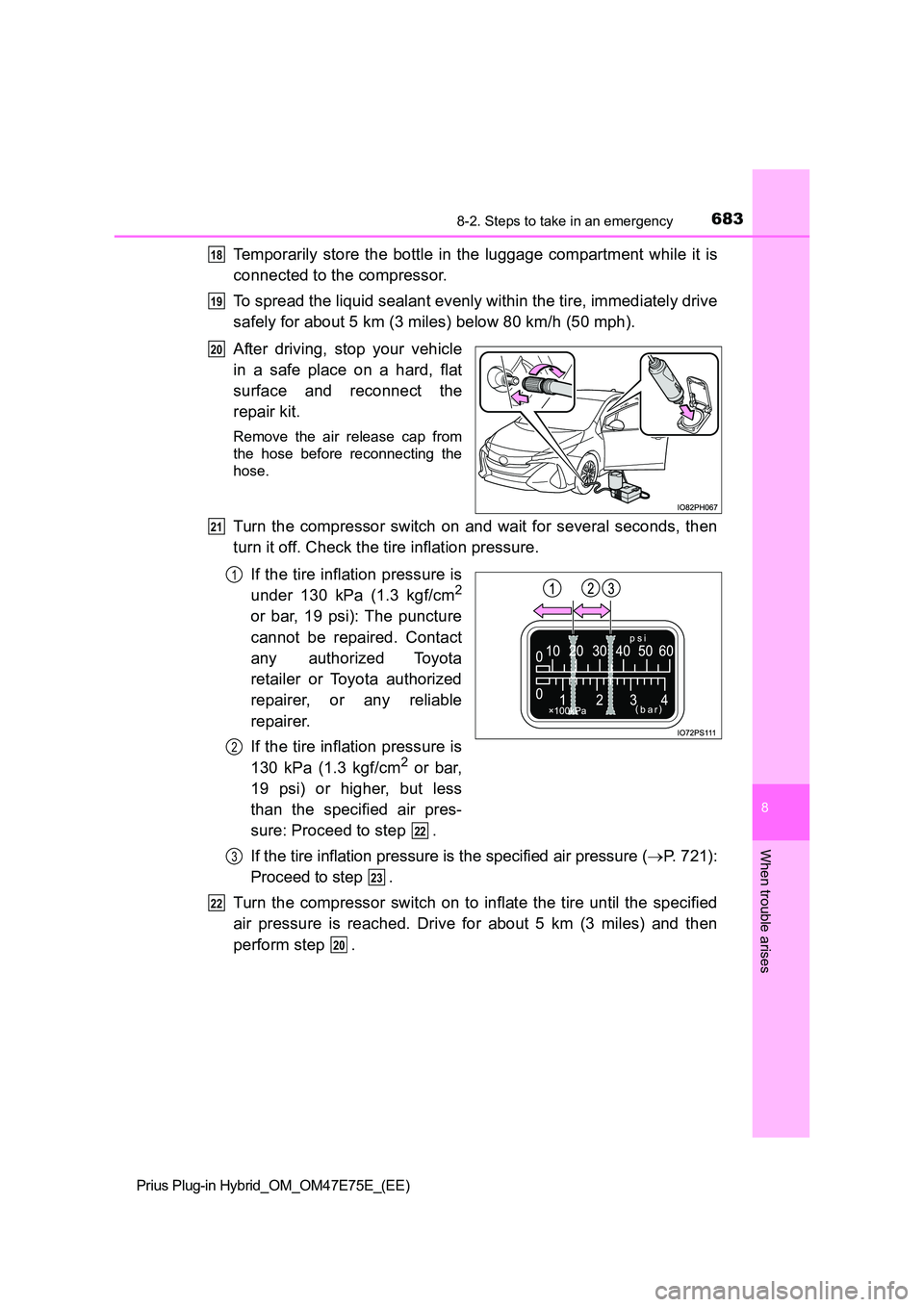

Temporarily store the bottle in the luggage compartment while it is
connected to the compressor.
To spread the liquid sealant evenly within the tire, immediatel y drive
safely for about 5 km (3 miles) below 80 km/h (50 mph).
After driving, stop your vehicle
in a safe place on a hard, flat
surface and reconnect the
repair kit.
Remove the air release cap from
the hose before reconnecting the
hose.
Turn the compressor switch on and wait for several seconds, the n
turn it off. Check the tire inflation pressure.
If the tire inflation pressure is
under 130 kPa (1.3 kgf/cm2
or bar, 19 psi): The puncture
cannot be repaired. Contact
any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable
repairer.
If the tire inflation pressure is
130 kPa (1.3 kgf/cm2 or bar,
19 psi) or higher, but less
than the specified air pres-
sure: Proceed to step .
If the tire inflation pressure is the specified air pressure ( P. 721):
Proceed to step .
Turn the compressor switch on to inflate the tire until the spe cified
air pressure is reached. Drive for about 5 km (3 miles) and the n
perform step .
18
19
20
21
1
2
22
3
23
22
20

6848-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

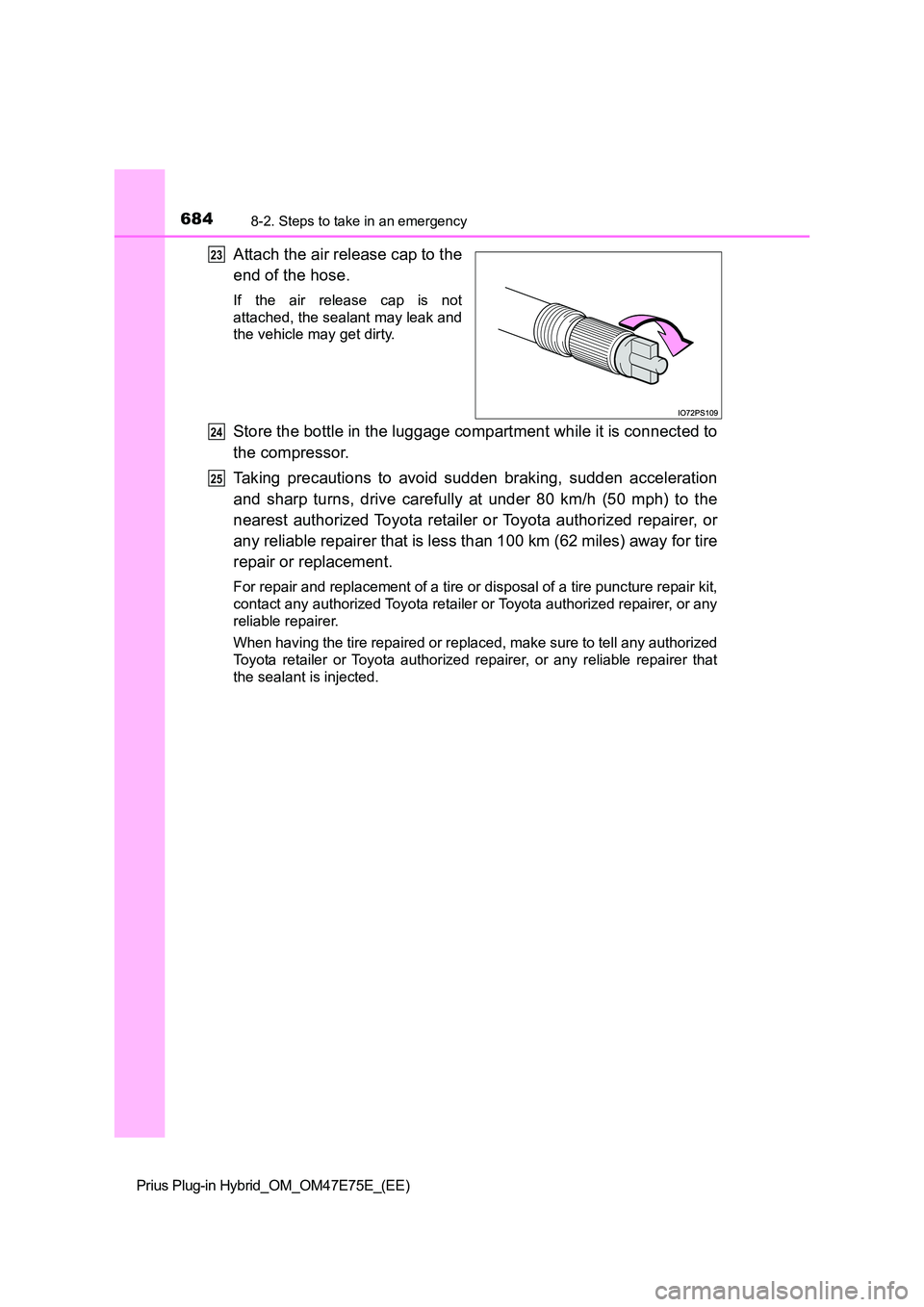

Attach the air release cap to the
end of the hose.
If the air release cap is not
attached, the sealant may leak and
the vehicle may get dirty.
Store the bottle in the luggage compartment while it is connect ed to
the compressor.
Taking precautions to avoid sudden braking, sudden acceleration
and sharp turns, drive carefully at under 80 km/h (50 mph) to t he
nearest authorized Toyota retailer or Toyota authorized repaire r, o r
any reliable repairer that is less than 100 km (62 miles) away for tire
repair or replacement.
For repair and replacement of a tire or disposal of a tire punc ture repair kit,
contact any authorized Toyota retailer or Toyota authorized rep airer, or any
reliable repairer.
When having the tire repaired or replaced, make sure to tell an y authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer that
the sealant is injected.
23
24
25

6858-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises
QIf the tire is inflated to more than the specified air pressure
Disconnect the hose from the valve.
Disconnect the hose from the valve, remove the air release cap from the
hose and then reconnect the hose.
Turn the compressor switch on and wait for several seconds, and then turn
it off. Check that the air pressure indicator shows the specifi ed air pressure.
( P. 721)
If the air pressure is under the designated pressure, turn the compressor
switch on again and repeat the inflation procedure until the sp ecified air
pressure is reached.
Q The valve of a tire that has been repaired
After a tire is repaired with the emergency tire puncture repai r kit, the valve
should be replaced.
Q After a tire is repaired with the emergency tire puncture repair kit (vehi-
cles with the tire pressure warning system)
O The tire pressure warning valve and transmitter should be replaced.
O Even if the tire inflation pressure is at the recommended level, the tire pres-
sure warning light may come on/flash.
Q Note for checking the emergency tire puncture repair kit
Check the sealant expiry date occasionally.
The expiry date is shown on the bottle. Do not use sealant whos e expiry date
has already passed. Otherwise, repairs conducted using the emer gency tire
puncture repair kit may not be performed properly.
Install the air release cap to the end of
the hose and push the protrusion on the
air release cap into the tire valve to let
some air out.
1
2
3
4

6868-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

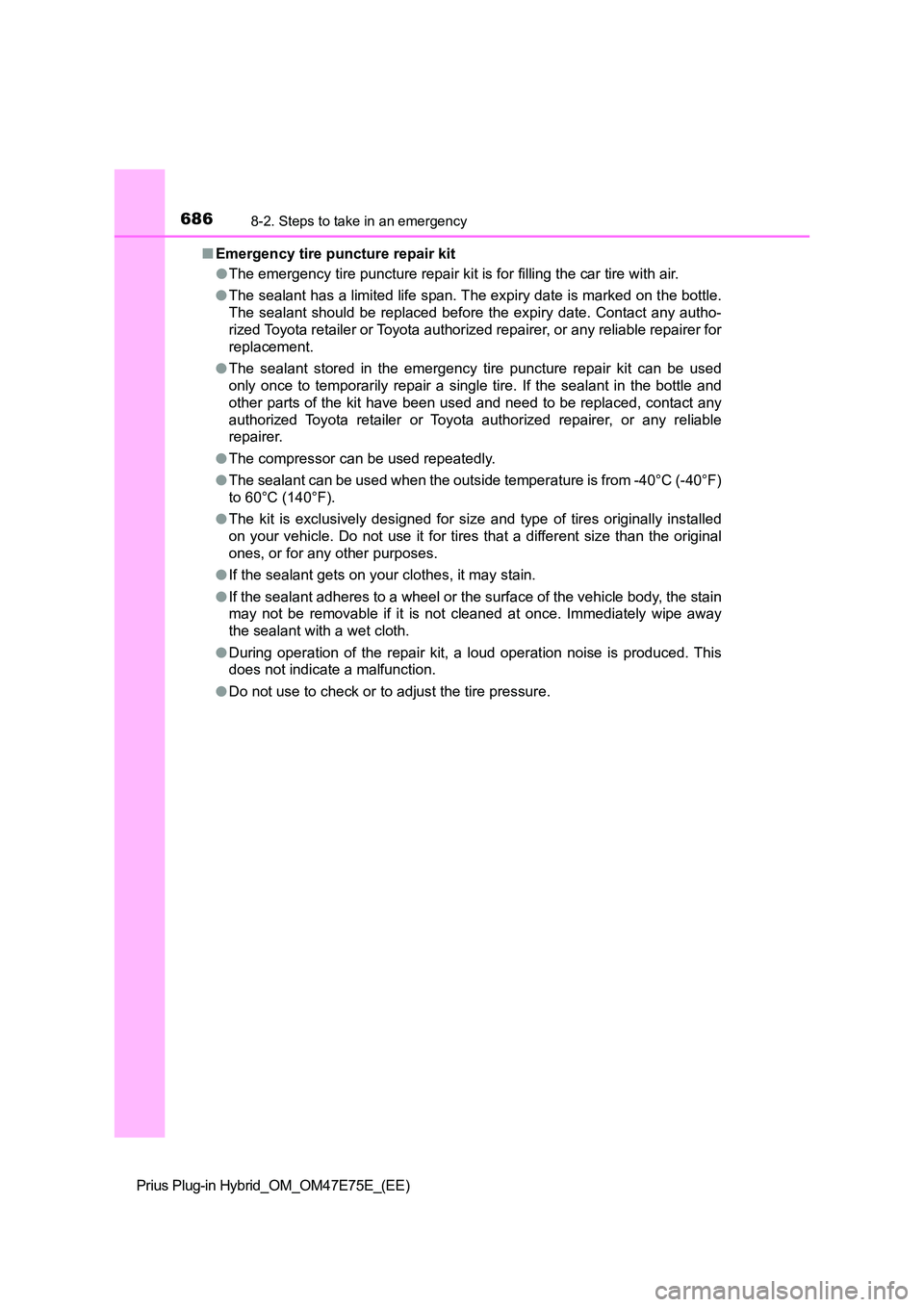

Q Emergency tire puncture repair kit
O The emergency tire puncture repair kit is for filling the car tire with air.
O The sealant has a limited life span. The expiry date is marked on the bottle.
The sealant should be replaced before the expiry date. Contact any autho-
rized Toyota retailer or Toyota authorized repairer, or any rel iable repairer for
replacement.
O The sealant stored in the emergency tire puncture repair kit can be used
only once to temporarily repair a single tire. If the sealant i n the bottle and
other parts of the kit have been used and need to be replaced, contact any
authorized Toyota retailer or Toyota authorized repairer, or an y reliable
repairer.
O The compressor can be used repeatedly.
O The sealant can be used when the outside temperature is from -40°C (-40°F)
to 60°C (140°F).
O The kit is exclusively designed for size and type of tires originally installed
on your vehicle. Do not use it for tires that a different size than the original
ones, or for any other purposes.
O If the sealant gets on your clothes, it may stain.
O If the sealant adheres to a wheel or the surface of the vehicle body, the stain
may not be removable if it is not cleaned at once. Immediately wipe away
the sealant with a wet cloth.
O During operation of the repair kit, a loud operation noise is produced. This
does not indicate a malfunction.
O Do not use to check or to adjust the tire pressure.
