2022 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

5195-6. Driving tips
5
Driving
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
WARNING
QDriving with snow tires
Observe the following precautions to reduce the risk of acciden ts.
Failure to do so may result in a loss of vehicle control and ca use death or
serious injury.
O Use tires of the specified size.
O Maintain the recommended level of air pressure.
O Do not drive at speeds in excess of the speed limit or the speed limit spec-
ified for the snow tires being used.
O Use snow tires on all, not just some wheels.
Q Driving with tire chains
Observe the following precautions to reduce the risk of acciden ts.
Failure to do so may result in the vehicle being unable to be d riven safely,
and may cause death or serious injury.
O Do not drive in excess of the speed limit specified for the tire chains being
used, or 50 km/h (30 mph), whichever is lower.
O Avoid driving on bumpy road surfaces or over potholes.
O Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
O Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
O Do not use LTA (Lane Tracing Assist).
Q When parking the vehicle
When parking the vehicle without applying the parking brake, ma ke sure to
chock the wheels. If you do not chock the wheels, the vehicle m ay move
unexpectedly, possibly resulting in an accident.
NOTICE
Q Repairing or replacing snow tires
Request repairs or replacement of snow tires from any authorize d Toyota
retailer or Toyota authorized repairer, or any reliable repaire r or legitimate
tire retailers.
This is because the removal and attachment of snow tires affect s the opera-
tion of the tire pressure warning valves and transmitters.
Q Fitting tire chains
The tire pressure warning valves and transmitters may not funct ion correctly
when tire chains are fitted.

5205-6. Driving tips
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

521
6Interior features
Prius Plug-in Hybrid_OM_OM47E75E_(EE)6-1. Using the air conditioning
system and defogger
Automatic air conditioning
system ............................. 522
Remote Air Conditioning
System............................. 535
Seat heaters ...................... 539
6-2. Using the interior lights
Interior lights list ................. 541
• Front interior light .......... 542
• Front personal lights ...... 542
• Rear interior light ........... 543
6-3. Using the storage features
List of storage features ...... 544
• Glove box ...................... 545
• Console box .................. 545
• Cup holders ................... 546
• Bottle holders/
door pockets .................. 547
• Auxiliary boxes .............. 548
• Seat back pockets ......... 549
Luggage compartment
features............................ 550
6-4. Using the other interior
features
Other interior features ........ 555
• Sun visors...................... 555
• Vanity mirrors ................ 555
• Power outlets................. 556
• Wireless charger ........... 557
• Armrest .......................... 563
• Coat hooks .................... 563
• Assist grips .................... 564

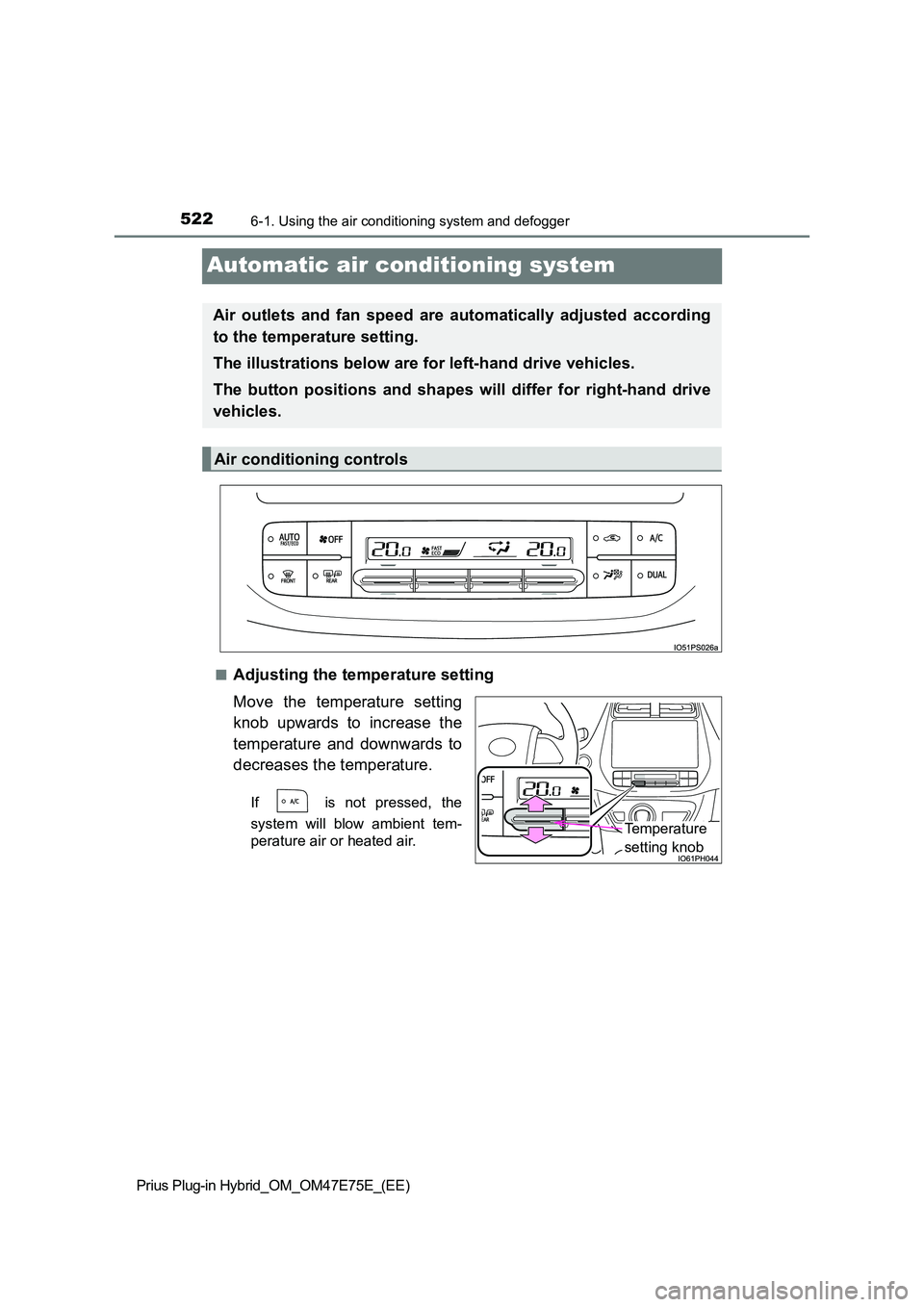

5226-1. Using the air conditioning system and defogger
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Automatic air conditioning system
QAdjusting the temperature setting
Move the temperature setting
knob upwards to increase the
temperature and downwards to
decreases the temperature.
If is not pressed, the
system will blow ambient tem-
perature air or heated air.
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
The illustrations below are for left-hand drive vehicles.
The button positions and shapes will differ for right-hand driv e
vehicles.
Air conditioning controls
Temperature
setting knob

5236-1. Using the air conditioning system and defogger
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
6
Interior features
QFan speed setting
Move the fan speed setting
knob upwards to increase the
fan speed and downwards to
decrease the fan speed.
The fan speed is shown on the
display. (7 levels)
Press to turn the fan off.
QChange the airflow mode
Move the airflow change knob
upwards or downwards to
change the airflow mode.
The air outlets used are
switched each time the knob is
operated.
Air flows to the upper body
Air flows to the upper body
and feet
Air flows to the feet
Air flows to the feet and the
windshield defogger oper-
ates
QOther functions
O Switching between outside air and recirculated air modes
( P. 526)
O Defogging the windshield (P. 5 2 7 )
O Defogging the rear window and outside rear view mirrors
( P. 527)
Fan speed
setting knob
Airflow change
knob
1
2
3
4

5246-1. Using the air conditioning system and defogger
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Press .
Adjust the temperature setting. (P. 522)
To stop the operation, press .
When in automatic mode, the air outlet modes and fan speed levels
are not displayed in the air conditioning control panel display.
QAutomatic mode indicator
If the fan speed setting or air flow modes are operated, the
indicator goes off. However, automatic mode for functions other
than that operated is maintained.
QAdjusting the temperature for driver and passenger seats sep-
arately (DUAL mode)
To turn on the DUAL mode, perform the following either operation:
OPress .
OAdjust the temperature setting of the passenger side with the
passenger side temperature adjustment knob.
The indicator illuminates when the DUAL mode is on.
Using automatic mode
1
2
3

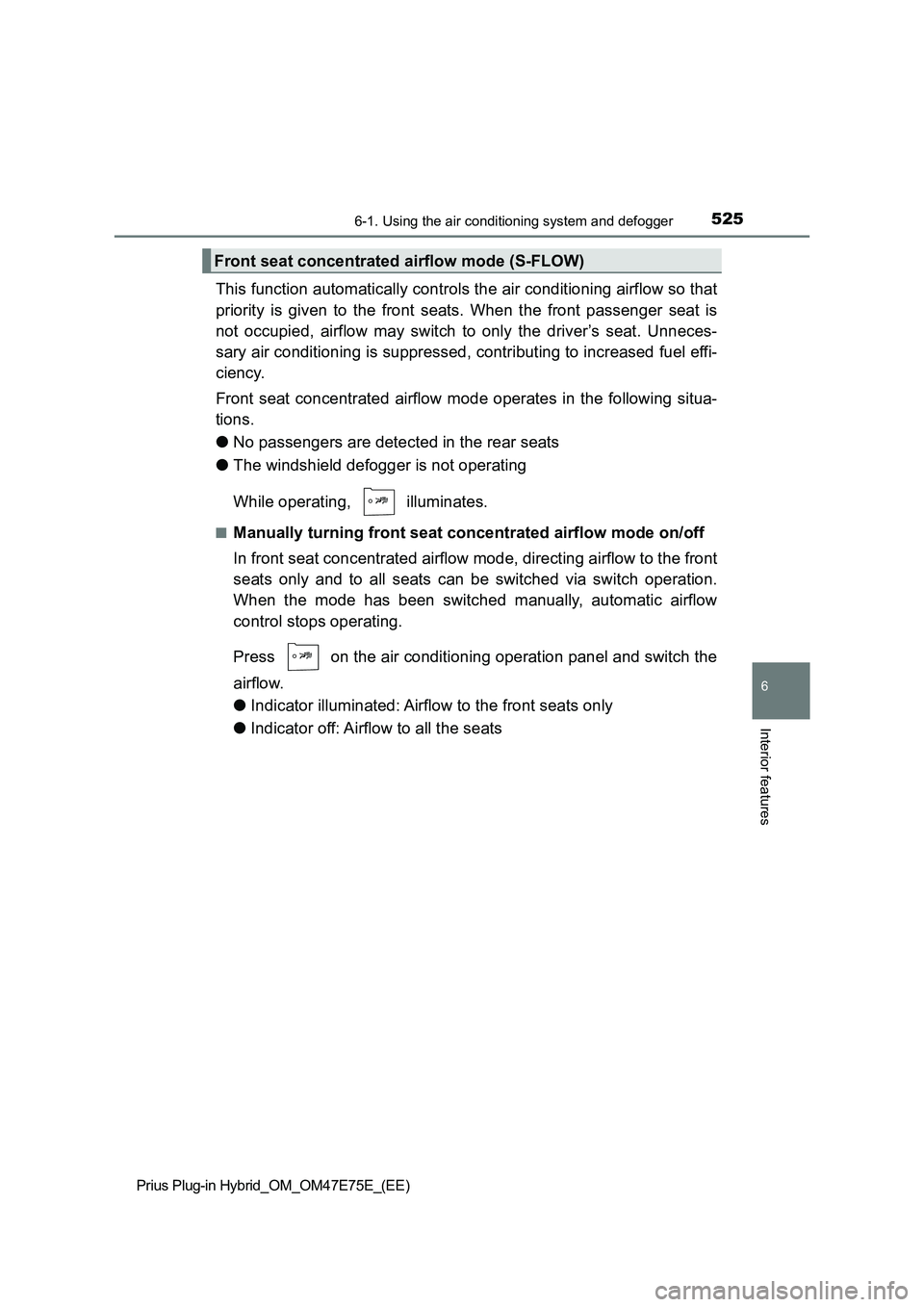

5256-1. Using the air conditioning system and defogger
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
6
Interior features
This function automatically controls the air conditioning airflow so that
priority is given to the front seats. When the front passenger seat is
not occupied, airflow may switch to only the driver’s seat. Unneces-
sary air conditioning is suppressed, contributing to increased fuel effi-
ciency.
Front seat concentrated airflow mode operates in the following situa-
tions.
ONo passengers are detected in the rear seats
OThe windshield defogger is not operating
While operating, illuminates.
QManually turning front seat concentrated airflow mode on/off
In front seat concentrated airflow mode, directing airflow to the front
seats only and to all seats can be switched via switch operation.
When the mode has been switched manually, automatic airflow
control stops operating.
Press on the air conditioning operation panel and switch the
airflow.
OIndicator illuminated: Airflow to the front seats only
OIndicator off: Airflow to all the seats
Front seat concentrated airflow mode (S-FLOW)

5266-1. Using the air conditioning system and defogger
Prius Plug-in Hybrid_OM_OM47E75E_(EE)Q
Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode and recirculated air mode
each time is pressed.
The indicator illuminates when the recirculated air mode is
selected.
Q
Blower customization
Fan speed setting during the automatic mode operation can be cus-
tomized.
To change the fan speed setting mode, press .
Each time is pressed, the fan speed setting mode changes as
follows.
“NORMAL”  “ECO”  “FAST”  “NORMAL”
When “ECO” is displayed on the air conditioning screen, the air condi-
tioning is controlled with low fuel consumption prioritized such as reduc-
ing fan speed, etc.
When “FAST” is displayed on the screen, fan speed will be increased.
Other functions
