2022 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

2794-2. Opening, closing and locking the doors
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
4
Operation of each component

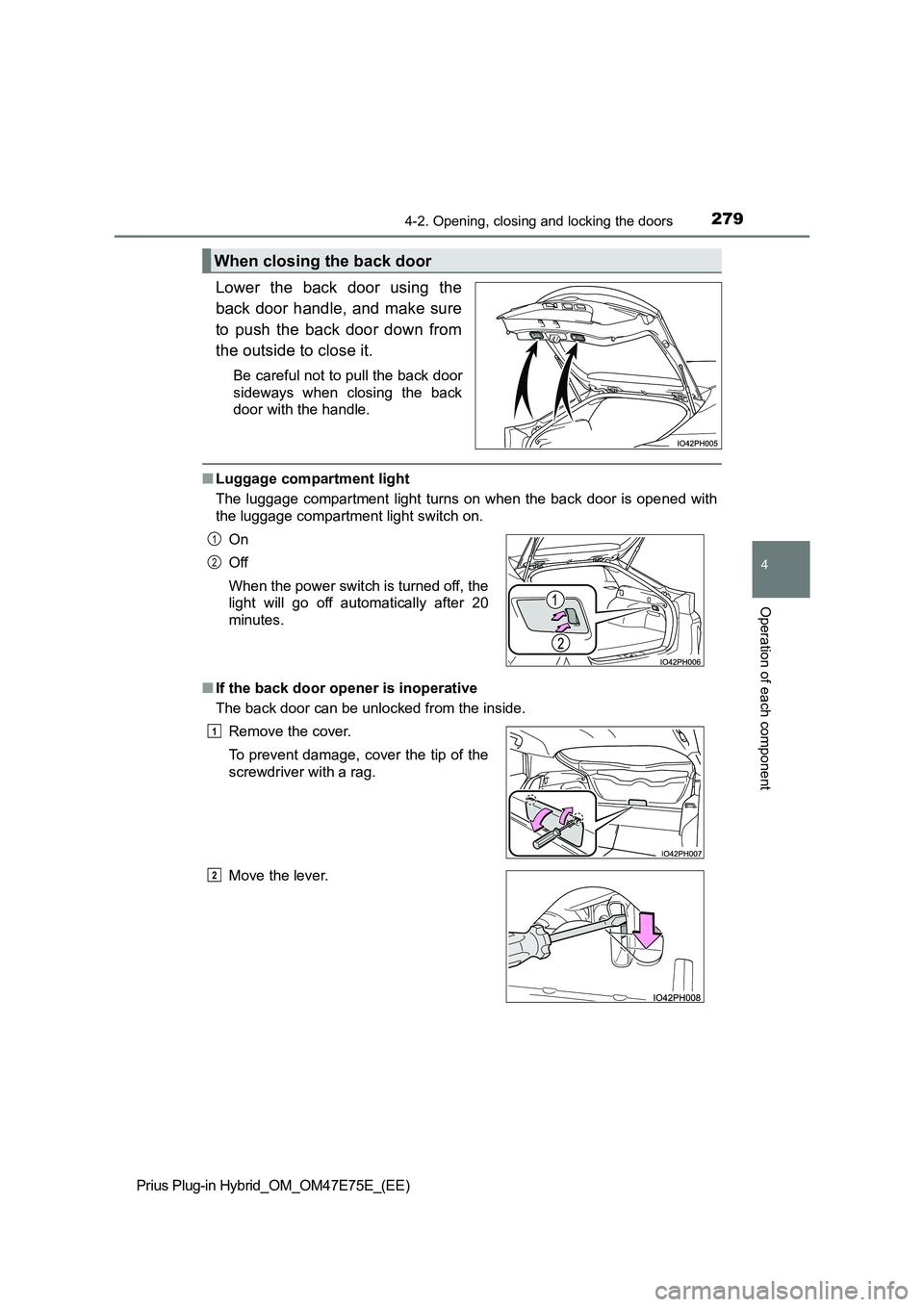

Lower the back door using the
back door handle, and make sure
to push the back door down from
the outside to close it.
Be careful not to pull the back door
sideways when closing the back
door with the handle.
Q Luggage compartment light
The luggage compartment light turns on when the back door is op ened with
the luggage compartment light switch on.
Q If the back door opener is inoperative
The back door can be unlocked from the inside.
When closing the back door
On
Off
When the power switch is turned off, the
light will go off automatically after 20
minutes.
Remove the cover.
To prevent damage, cover the tip of the
screwdriver with a rag.
Move the lever.
1
2
1
2

2804-2. Opening, closing and locking the doors
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

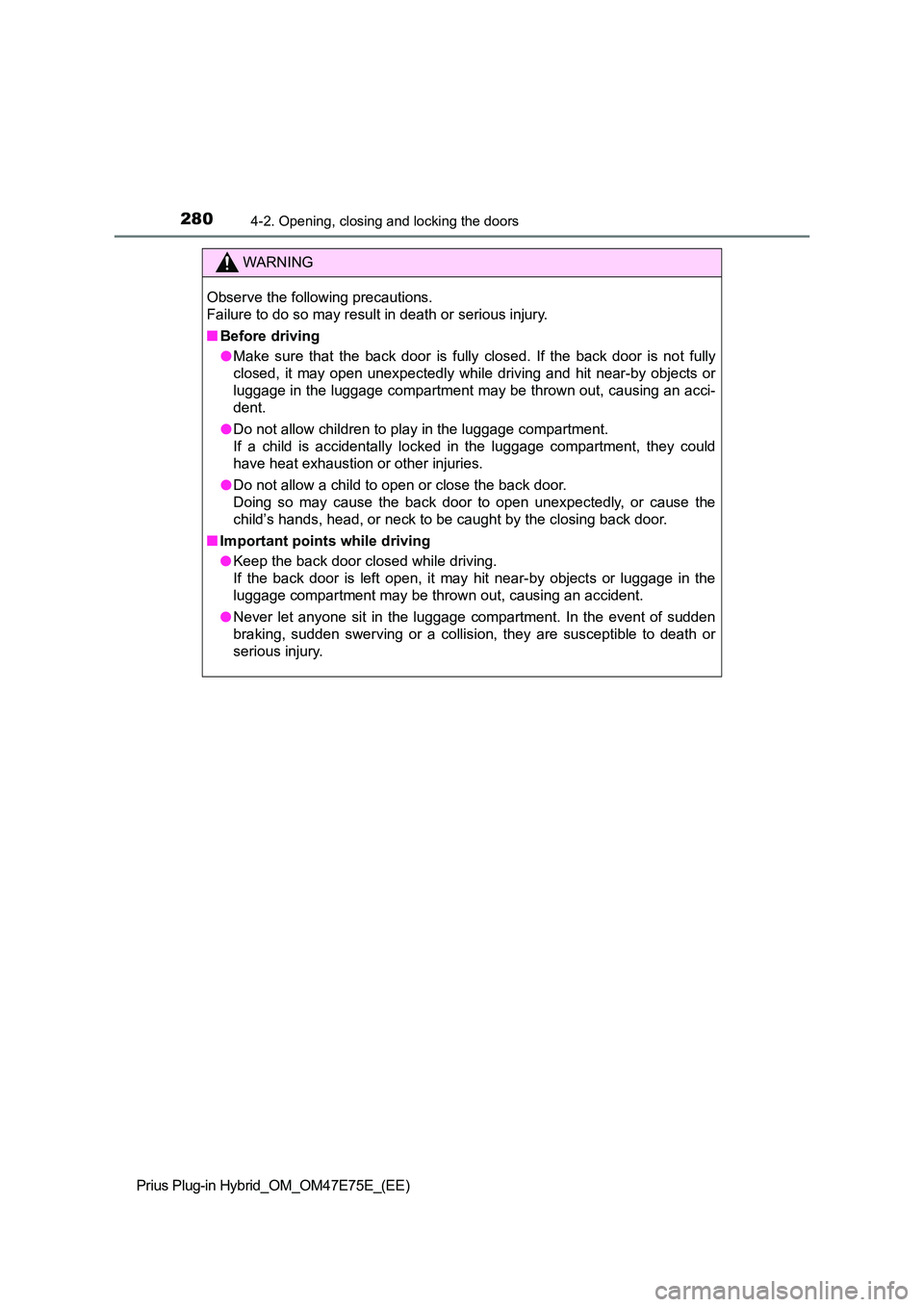

WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
Q Before driving
O Make sure that the back door is fully closed. If the back door is not fully
closed, it may open unexpectedly while driving and hit near-by objects or
luggage in the luggage compartment may be thrown out, causing a n acci-
dent.
O Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, t hey could
have heat exhaustion or other injuries.
O Do not allow a child to open or close the back door.
Doing so may cause the back door to open unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back d oor.
Q Important points while driving
O Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects or lu ggage in the
luggage compartment may be thrown out, causing an accident.
O Never let anyone sit in the luggage compartment. In the event of sudden
braking, sudden swerving or a collision, they are susceptible t o death or
serious injury.

2814-2. Opening, closing and locking the doors
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
4
Operation of each component

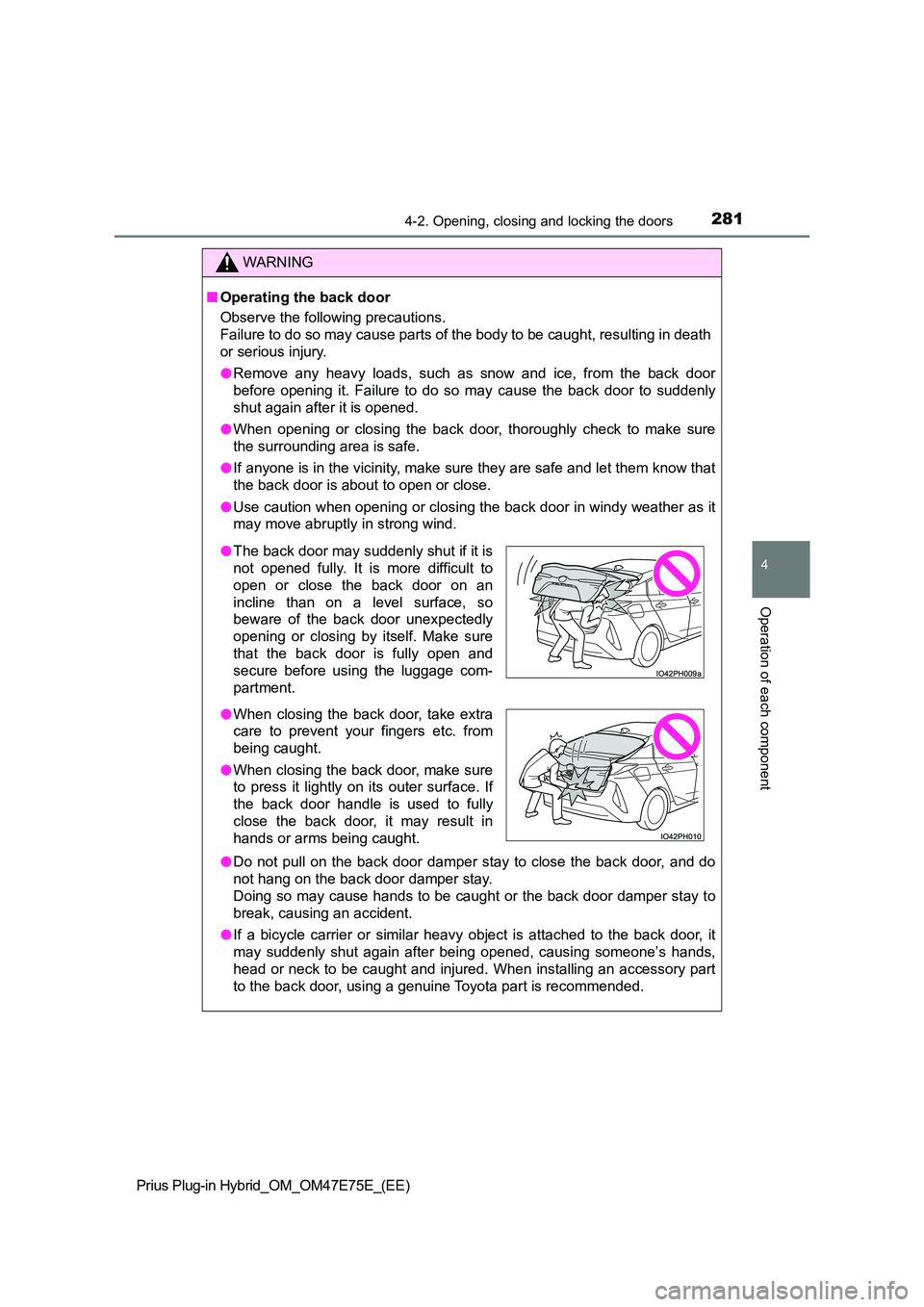

WARNING
QOperating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resu lting in death
or serious injury.
O Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to suddenly
shut again after it is opened.
O When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
O If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
O Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.
O Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper s tay to
break, causing an accident.
O If a bicycle carrier or similar heavy object is attached to the back door, it
may suddenly shut again after being opened, causing someone’s hands,
head or neck to be caught and injured. When installing an acces sory part
to the back door, using a genuine Toyota part is recommended.
O The back door may suddenly shut if it is
not opened fully. It is more difficult to
open or close the back door on an
incline than on a level surface, so
beware of the back door unexpectedly
opening or closing by itself. Make sure
that the back door is fully open and
secure before using the luggage com-
partment.
O When closing the back door, take extra
care to prevent your fingers etc. from
being caught.
O When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.

2824-2. Opening, closing and locking the doors
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

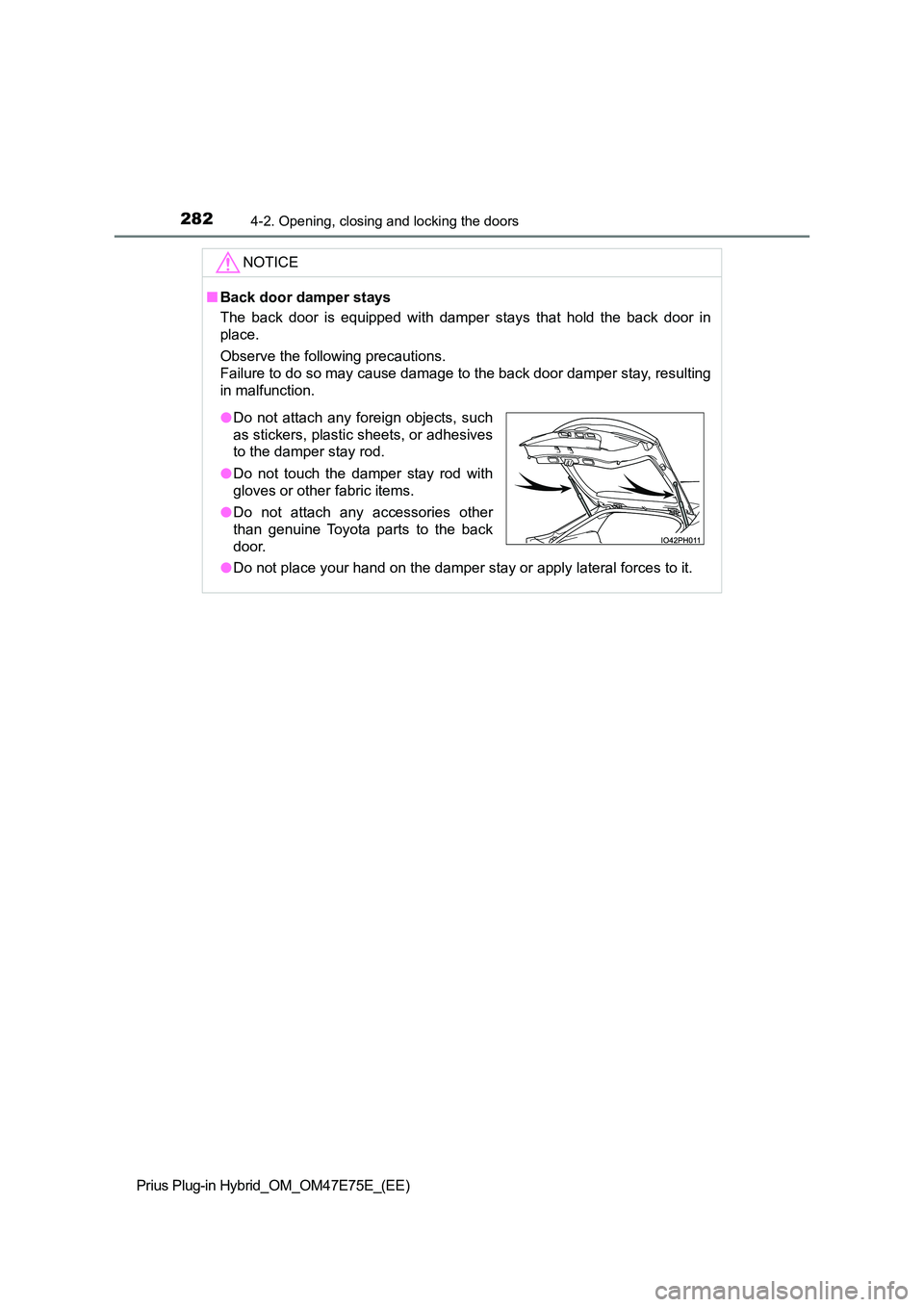

NOTICE
QBack door damper stays
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.
O Do not place your hand on the damper stay or apply lateral forces to it.
ODo not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
O Do not touch the damper stay rod with
gloves or other fabric items.
O Do not attach any accessories other
than genuine Toyota parts to the back
door.

2834-2. Opening, closing and locking the doors
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
4
Operation of each component

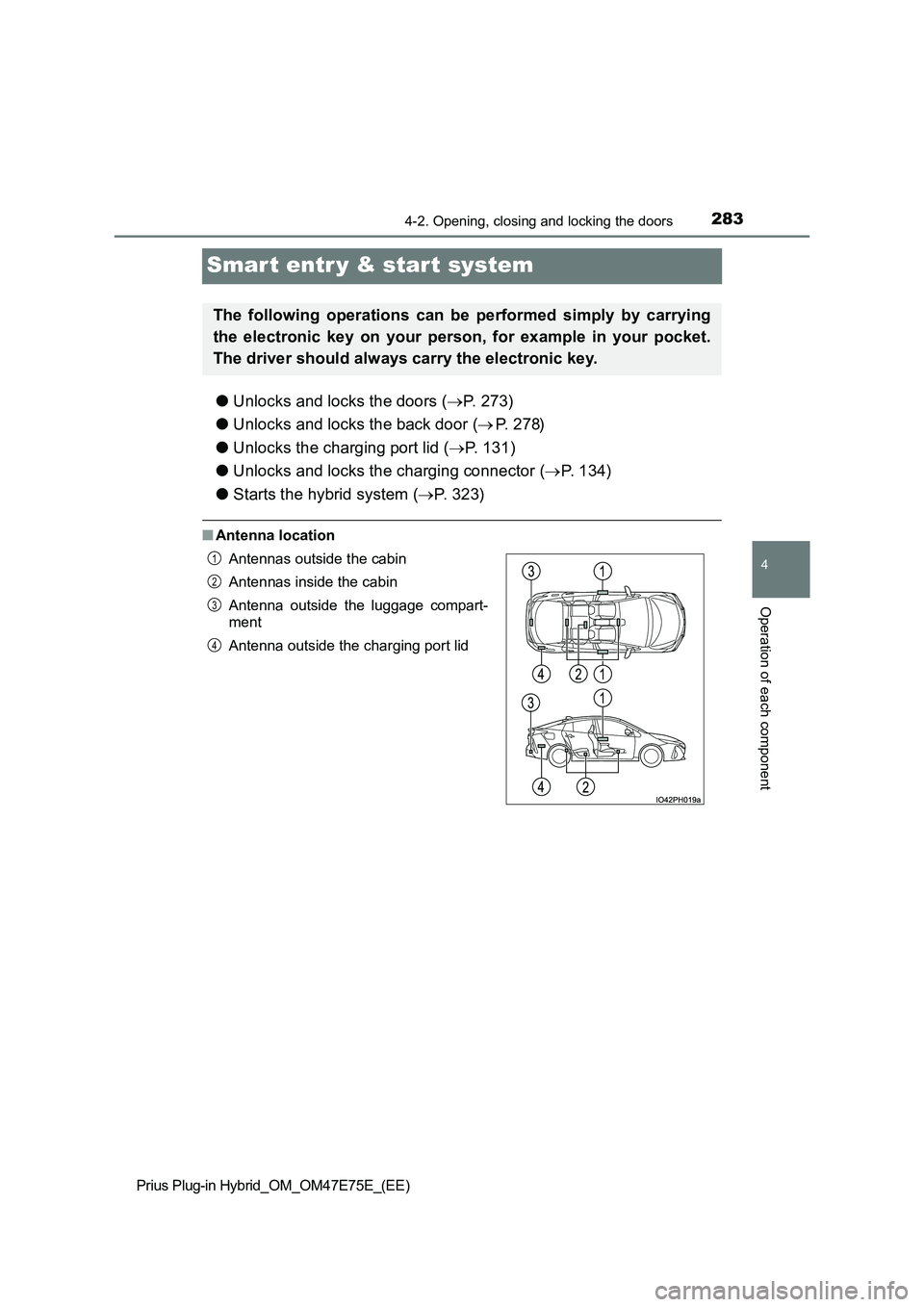

Smar t entr y & start system
OUnlocks and locks the doors (P. 2 7 3 )
O Unlocks and locks the back door (P. 278)
O Unlocks the charging port lid (P. 131)
O Unlocks and locks the charging connector (P. 134)
O Starts the hybrid system (P. 323)
QAntenna location
The following operations can be performed simply by carrying
the electronic key on your person, for example in your pocket.
The driver should always carry the electronic key.
Antennas outside the cabin
Antennas inside the cabin
Antenna outside the luggage compart-
ment
Antenna outside the charging port lid
1
2
3
4

2844-2. Opening, closing and locking the doors
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Q Effective range (areas within which the electronic key is detected)
When unlocking the charging port lid, when locking and unlockin g the
charging connector
The system can be operated when the electronic key is within ab out
0.7 m (2.3 ft.) of the charging port lid.
When starting the hybrid system or changing power switch modes
The system can be operated when the electronic key is inside th e vehi-
cle.
Q Alarms and warning messages
An alarm sounds and warning message displays shown on the multi -informa-
tion display are used to protect against unexpected accidents o r theft of the
vehicle resulting from erroneous operation. When a warning message is dis-
played, take appropriate measures based on the displayed messag e.
When only an alarm sounds, circumstances and correction procedu res are as
follows.
When locking or unlocking the doors
The system can be operated when
the electronic key is within about
0.7 m (2.3 ft.) of either of the outside
front door handles and back door
opener switch. (Only the doors
detecting the key can be operated.)
AlarmSituationCorrection procedure
Exterior alarm
sounds once for 5
seconds
An attempt was made to
lock the vehicle while a door
was open.
Close all of the doors
and lock the doors
again.
Interior alarm
pings repeatedly
The power switch was
turned to ACCESSORY
mode while the driver’s door
was open (The driver’s door
was opened when the
power switch was in
ACCESSORY mode).
Turn the power switch
off and close the
driver’s door.

2854-2. Opening, closing and locking the doors
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
4
Operation of each component
QWhen “Smart Entry & Start System Malfunction See Owner’s Manual” is
displayed on the multi-information display
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any rel iable repairer
immediately.
Q Battery-saving function
The battery-saving function will be activated in order to preve nt the electronic
key battery and the 12-volt battery from being discharged while the vehicle is
not in operation for a long time.
O In the following situations, the smart entry & start system may take some
time to unlock the doors.
• The electronic key has been left in an area of approximately 2 m (6 ft.) of
the outside of the vehicle for 10 minutes or longer.
• The smart entry & start system has not been used for 5 days or longer.
O If the smart entry & start system has not been used for 14 days or longer,
the doors cannot be unlocked at any doors except the driver’s d oor. In this
case, take hold of the driver’s door handle, or use the wireles s remote con-
trol or the mechanical key, to unlock the doors.
Q Electronic Key Battery-Saving Function
When battery-saving mode is set, battery depletion is minimized by stopping
the electronic key from receiving radio waves.
Press twice while pressing and
holding . Confirm that the electronic
key indicator flashes 4 times.
While the battery-saving mode is set, the
smart entry & start system cannot be
used. To cancel the function, press any of
the electronic key buttons.

2864-2. Opening, closing and locking the doors
Prius Plug-in Hybrid_OM_OM47E75E_(EE)QConditions affecting operation
The smart entry & start system, wireless remote control and immobilizer sys-
tem use weak radio waves. In the following situations, the communication
between the electronic key and the vehicle may be affected, preventing the
smart entry & start system, wireless remote control and immobilizer system
from operating properly. (Ways of coping: P. 693)
OWhen the electronic key battery is depleted
ONear a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
OWhen the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
OWhen other wireless key (that emit radio waves) is being used nearby
OWhen carrying the electronic key together with the following devices that
emit radio waves
• Portable radio, cellular phone, cordless phone or other wireless commu-
nication devices
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
OIf window tint with a metallic content or metallic objects are attached to the
rear window
OWhen the electronic key is placed near a battery charger or electronic
devices
