2022 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

4715-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving
WARNING
QWhen to disable the Parking Support Brake
In the following situations, disable the Parking Support Brake as the system
may operate even though there is no possibility of a collision.
O When inspecting the vehicle using a chassis roller, chassis dynamo or free
roller
O When loading the vehicle onto a boat, truck or other transport vessel
O If the suspension has been modified or tires of a size other than specified
are installed
O If the front of the vehicle is raised or lowered due to the carried load
O When equipment that may obstruct a sensor is installed, such as a towing
eyelet, bumper protector (an addi tional trim strip, etc.), bicycle carrier, or
snow plow
O When using automatic car washing devices
O If the vehicle cannot be driven in a stable manner, such as when the vehi-
cle has been in an accident or is malfunctioning
O When the vehicle is driven in a sporty manner or off-road
O When the tires are not properly inflated
O When the tires are very worn
O When tire chains, compact spare tire or an emergency tire puncture repair
kit are used
Q To ensure the system can operate properly
 P. 4 6 0
Q Handling the suspension
Do not modify the suspension, as changes to the height or incli ne of the
vehicle may prevent the sensors from correctly detecting obstac les, may
cause the system not operate, or may cause the system to operat e unnec-
essarily.
Q If the Parking Support Brake function (static objects) operates unnec-
essarily, such as at a railroad crossing
 P. 4 6 9
Q Notes when washing the vehicle
 P. 4 6 1

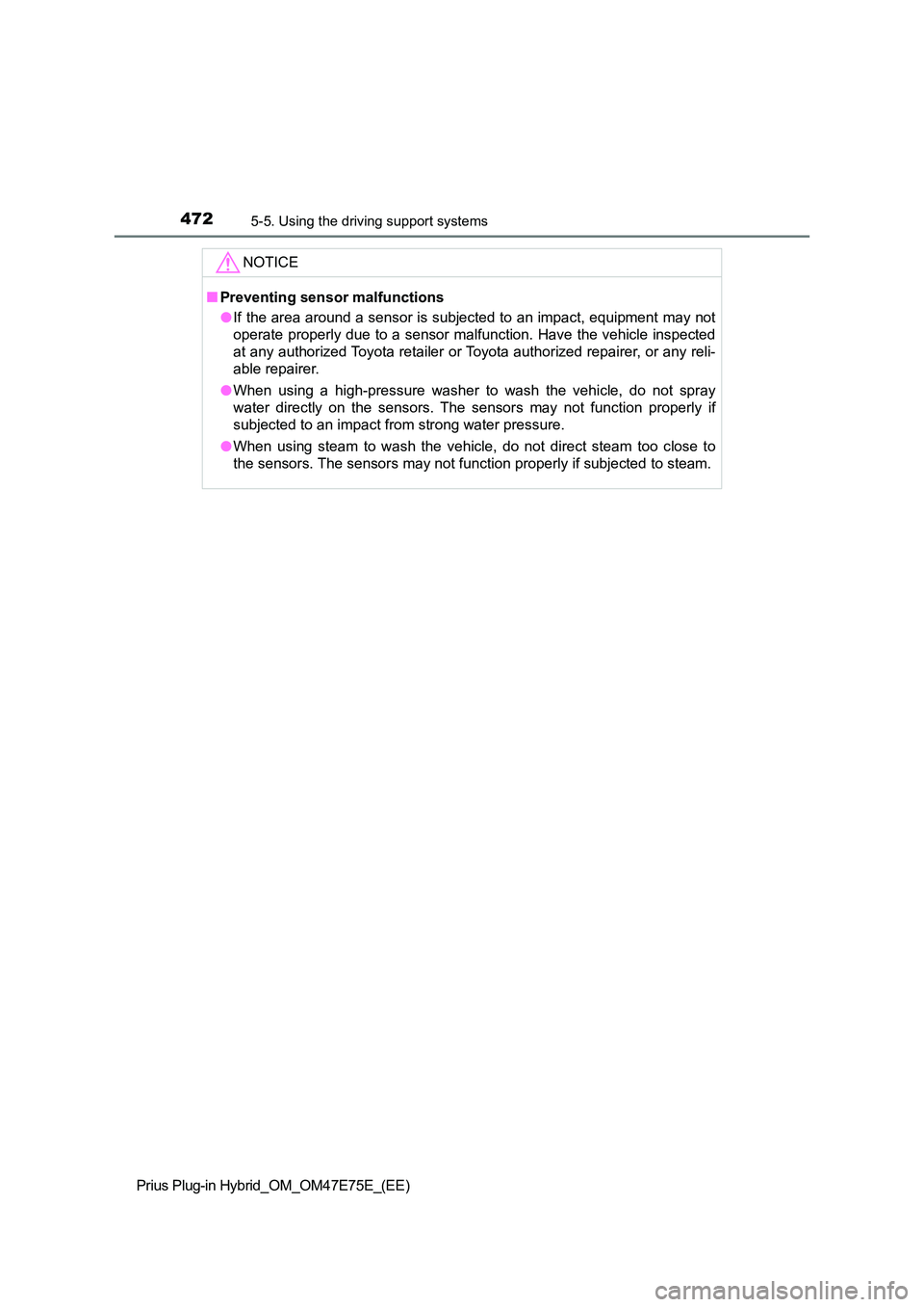

4725-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
NOTICE
QPreventing sensor malfunctions
O If the area around a sensor is subjected to an impact, equipment may not
operate properly due to a sensor malfunction. Have the vehicle inspected
at any authorized Toyota retailer or Toyota authorized repairer , or any reli-
able repairer.
O When using a high-pressure washer to wash the vehicle, do not spray
water directly on the sensors. The sensors may not function pro perly if
subjected to an impact from strong water pressure.
O When using steam to wash the vehicle, do not direct steam too close to
the sensors. The sensors may not function properly if subjected to steam.

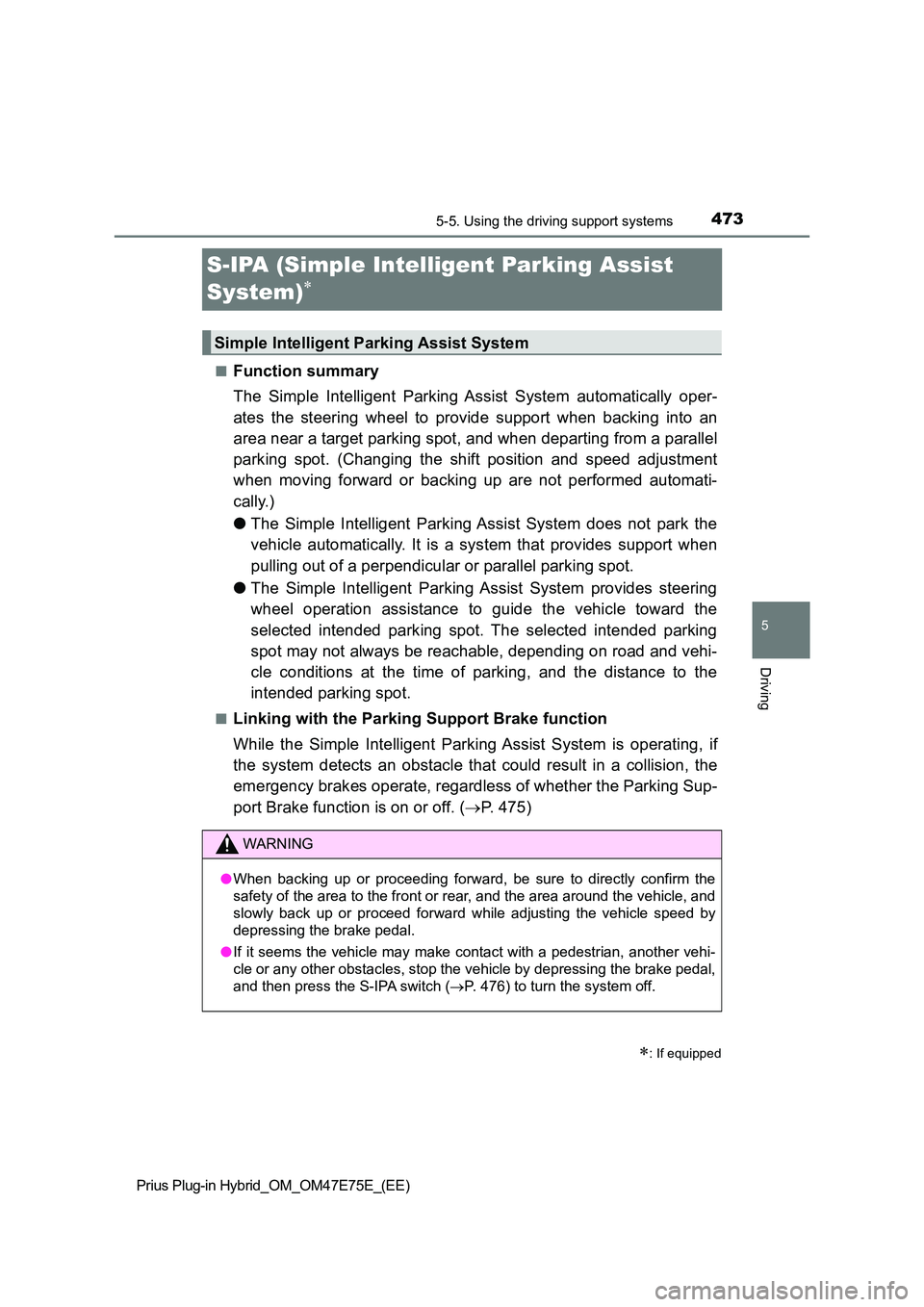

4735-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving
S-IPA (Simple Intelligent Parking Assist
System)
QFunction summary
The Simple Intelligent Parking Assist System automatically oper -
ates the steering wheel to provide support when backing into an
area near a target parking spot, and when departing from a para llel
parking spot. (Changing the shift position and speed adjustment
when moving forward or backing up are not performed automati-
cally.)
O The Simple Intelligent Parking Assist System does not park the
vehicle automatically. It is a system that provides support whe n
pulling out of a perpendicular or parallel parking spot.
O The Simple Intelligent Parking Assist System provides steering
wheel operation assistance to guide the vehicle toward the
selected intended parking spot. The selected intended parking
spot may not always be reachable, depending on road and vehi-
cle conditions at the time of parking, and the distance to the
intended parking spot.
QLinking with the Parking Support Brake function
While the Simple Intelligent Parking Assist System is operating , if
the system detects an obstacle that could result in a collision , the
emergency brakes operate, regardless of whether the Parking Sup -
port Brake function is on or off. ( P. 475)
: If equipped
Simple Intelligent Parking Assist System
WARNING
OWhen backing up or proceeding forward, be sure to directly confirm the
safety of the area to the front or rear, and the area around th e vehicle, and
slowly back up or proceed forward while adjusting the vehicle s peed by
depressing the brake pedal.
O If it seems the vehicle may make contact with a pedestrian, another vehi-
cle or any other obstacles, stop the vehicle by depressing the brake pedal,
and then press the S-IPA switch ( P. 476) to turn the system off.

4745-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Chart of Simple Intelligent Parking Assist System assist modes
and functions
Assist modeType of
parkingFunction summarySee page
Parallel parking
assist modeParallel park-
ing
Guidance is provided to
detect the intended
parking spot and reach a
position to begin back-
ing up from. Assistance
is provided from when
the vehicle begins back-
ing up until it reaches
the intended parking
spot.
P. 479
Exit parallel parking
assist modeExit parallel
parking
Assistance starts after
the vehicle has been
parallel parked. Assis-
tance is provided to
guide the vehicle from
the parking space to a
position from which it
can take off.
P. 486
Back-in parking
assist mode
(with forward guid-
ance function)
Back-in park-
ing
Assistance starts after
stopping the vehicle in
front of the intended
parking spot, and is pro-
vided for backing into a
parking space, including
guidance to reach a
position to begin back-
ing up from.
P. 491

4755-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving
QParking Support Brake function while the Simple Intelligent Parking
Assist System is operating
While the Simple Intelligent Parking Assist System is operating, if the system
detects an obstacle that could result in a collision, hybrid system output
restriction control and brake control of the Parking Support Brake function are
operated, regardless of whether the Parking Support Brake function is on or
off. (P. 464)
OAfter the Parking Support Brake function operates, operation of the Simple
Intelligent Parking Assist System is temporarily stopped, and operation of
the Parking Support Brake function is indicated on the multi-information dis-
play. (P. 468)
OWhen operation of the Simple Intelligent Parking Assist System is stopped 3
times by operation of the Parking Support Brake function, the Simple Intelli-
gent Parking Assist System is canceled.
OOnce the Simple Intelligent Parking Assist System becomes available after
the Parking Support Brake function is operated, a message prompting you
to shift is displayed on the multi-information display. Operation of the Simple
Intelligent Parking Assist System can be resumed by shifting according to
the prompt on the multi-information display and pressing the S-IPA switch
(P. 476) again.
QShifting while the Simple Intelligent Parking Assist System is operating
If the system determines that the driver intends to move forward or in reverse,
assistance continues even if the driver shifted before being prompted to do so
by the system. However, because driver operation differs from the guidance
provided by the system, the number of turning maneuvers may increase.
QCustomization
Settings (e.g. obstacle detection range) can be changed. (Customizable fea-
tures: P. 724)

4765-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
QSwitching using the S-IPA switch
Press the switch
This allows you to switch func-
tions and cancel or restart assist
modes.
While the power switch is on, the vehicle speed is approximatel y
30 km/h (19 mph) or less, each time the S-IPA switch is pressed t he
function switches as follows.
The selected function is indicated on the operation display are a of the
multi-information display. ( P. 477)
*: The back-in parking assist mode can be switched to when its operating
conditions are met ( P. 496). When the operating conditions are not met,
it switches to off.
Switching assist mode
IO55PH104
When the S-IPA switch is
pressed with the shift position
not in P
When the S-IPA switch is
pressed with the shift position
in P
Back-in parking assist mode*
Parallel parking assist mode
Off
Exit parallel parking
assist mode
Off

4775-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving
The guidance screen is displayed on the multi-information display.
Assistance level indicator
Displays a gauge indicating the
level until the vehicle’s stopping
position/the position at which assist
control ends.
Stop display
When illuminated, depress the
brake pedal and stop the vehicle at
once.
Operation display area
Displays the operating condition of the Simple Intelligent Parking Assist
System.
Advice display
Follow the instructions on the display and perform any indicated opera-
tions. As an example, the illustration shows the display indicating it is nec-
essary to depress the brake pedal in order to control the vehicle speed and
to confirm the safety of your surroundings.
S-IPA switch icon
Displayed when the assist mode can be changed and the system can be
turned off or on using the S-IPA switch.
Steering wheel auto operation display
Displays when the steering wheel auto operation is being performed.
Toyota parking assist-sensor display/door position (open/close) dis-
play
P. 451
QS-IPA indicator inside the meter (P. 208)
This indicator illuminates when the steering wheel auto operation is being
performed by the Simple Intelligent Parking Assist System. After control
ends, the indicator blinks for a short period of time and then turns off.
QToyota parking assist-sensor pop-up display
While the Simple Intelligent Parking Assist System is operating, if the Toyota
parking assist-sensor function detects an obstacle, the Toyota parking assist-
sensor display automatically pops up on the guidance screen (P. 451),
regardless of whether the Toyota parking assist-sensor function is on or off.
(P. 450)
Guidance screen
1
2
3
4
5
6
7

4785-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Assist mode will be canceled or stopped in the following cases.
QAssist control is canceled when
OThe system temperature preservation function operates
OThere is a system malfunction
OSystem determined that the parking environment is not suitable
for assist to continue
When assist control is canceled, firmly grasp the steering wheel,
depress the brake pedal and stop the vehicle.
Start again from the beginning, as the system will already be can-
celed. When continuing to park manually, operate the steering
wheel as you normally would.
QAssist control is stopped when
OThe steering wheel is operated
OThe vehicle speed exceeds 7 km/h (4 mph) during assist control
OThe Parking Support Brake function operates
When assist control is stopped, it can be resumed by following the
guidance shown on the screen.
QIf the vehicle speed is about to exceed the speed limit during assist con-
trol
Canceling or stopping assist mode
A buzzer sounds and the message indi-
cating there is possibility that the vehicle
speed may exceed the speed limit.
When the message is displayed, immedi-
ately depress the brake pedal to deceler-
ate. If the vehicle continues to accelerate,
assist control will be canceled when the
vehicle speed exceeds a certain speed.
(P. 501)
