2022 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

2874-2. Opening, closing and locking the doors
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
4
Operation of each component
QNote for the entry function
OEven when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near
the ground, or in a high place when the doors are locked or unlocked.
• The electronic key is on the instrument panel, floor, or in the door pockets
or glove box when the hybrid system is started or power switch modes
are changed.
ODo not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave recep-
tion conditions, it may be detected by the antenna outside the cabin and the
door will become lockable from the outside, possibly trapping the electronic
key inside the vehicle.
OAs long as the electronic key is within the effective range, the doors may be
unlocked or locked by anyone.
OEven if the electronic key is not inside the vehicle, it may be possible to start
the hybrid system if the electronic key is near the window.
OThe doors may unlock if a large amount of water splashes on the door han-
dle, such as in the rain or in a car wash when the electronic key is within the
effective range. (The door will automatically be locked after approximately
30 seconds if the doors are not opened and closed.)
OIf the wireless remote control is used to lock the doors when the electronic
key is near the vehicle, there is a possibility that the door may not be
unlocked by the entry function. (Use the wireless remote control to unlock
the doors.)
OTouching the door lock sensor while wearing gloves may delay or prevent
lock operation. Remove the gloves and touch the lock sensor again.
OOn some models: When the lock operation is performed using the lock sen-
sor, recognition signals will be shown up to two consecutive times. After this,
no recognition signals will be given.
OIf the door handle becomes wet while the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. In this case, follow the
following correction procedures to wash the vehicle.
• Place the electronic key in a location 2 m (6 ft.) or more away from the
vehicle. (Take care to ensure that the key is not stolen.)
• Set electronic key to battery-saving mode to disable the smart entry &
start system. (P. 285)

2884-2. Opening, closing and locking the doors
Prius Plug-in Hybrid_OM_OM47E75E_(EE)OIf the electronic key is inside the vehicle and a door handle becomes wet
during a car wash, a message may be shown on the multi-information dis-
play and a buzzer will sound outside the vehicle. To turn off the alarm, lock
all the doors.
OThe lock sensor may not work properly if it comes into contact with ice,
snow, mud, etc. Clean the lock sensor and attempt to operate it again.
OA sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the origi-
nal position and check that the doors unlock before pulling the door handle
again.
OIf there is another electronic key in the detection area, it may take slightly
longer to unlock the doors after the door handle is gripped.
QWhen the vehicle is not driven for extended periods
OTo prevent theft of the vehicle, do not leave the electronic key within 2 m
(6 ft.) of the vehicle.
OThe smart entry & start system can be deactivated in advance. (P. 724)
QTo operate the system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from the
outside of the vehicle.
Depending on the position and holding condition of the electronic key, the key
may not be detected correctly and the system may not operate properly. (The
alarm may go off accidentally, or the door lock prevention may not operate.)
QIf the smart entry & start system does not operate properly
OLocking and unlocking the doors: Use the mechanical key. (P. 693)
OStarting the hybrid system: P. 694
QCustomization
Settings (e.g. smart entry & start system) can be changed.
(Customizable features: P. 724)
QIf the smart entry & start system has been deactivated in a customized
setting
OUnlocking and locking the doors:
Use the wireless remote control or mechanical key. (P. 273, 693)
OUnlocking the charging port lid: P. 132
OUnlocking and locking the charging connector: P. 135
OStarting the hybrid system and changing power switch modes: P. 694
OStopping the hybrid system: P. 324

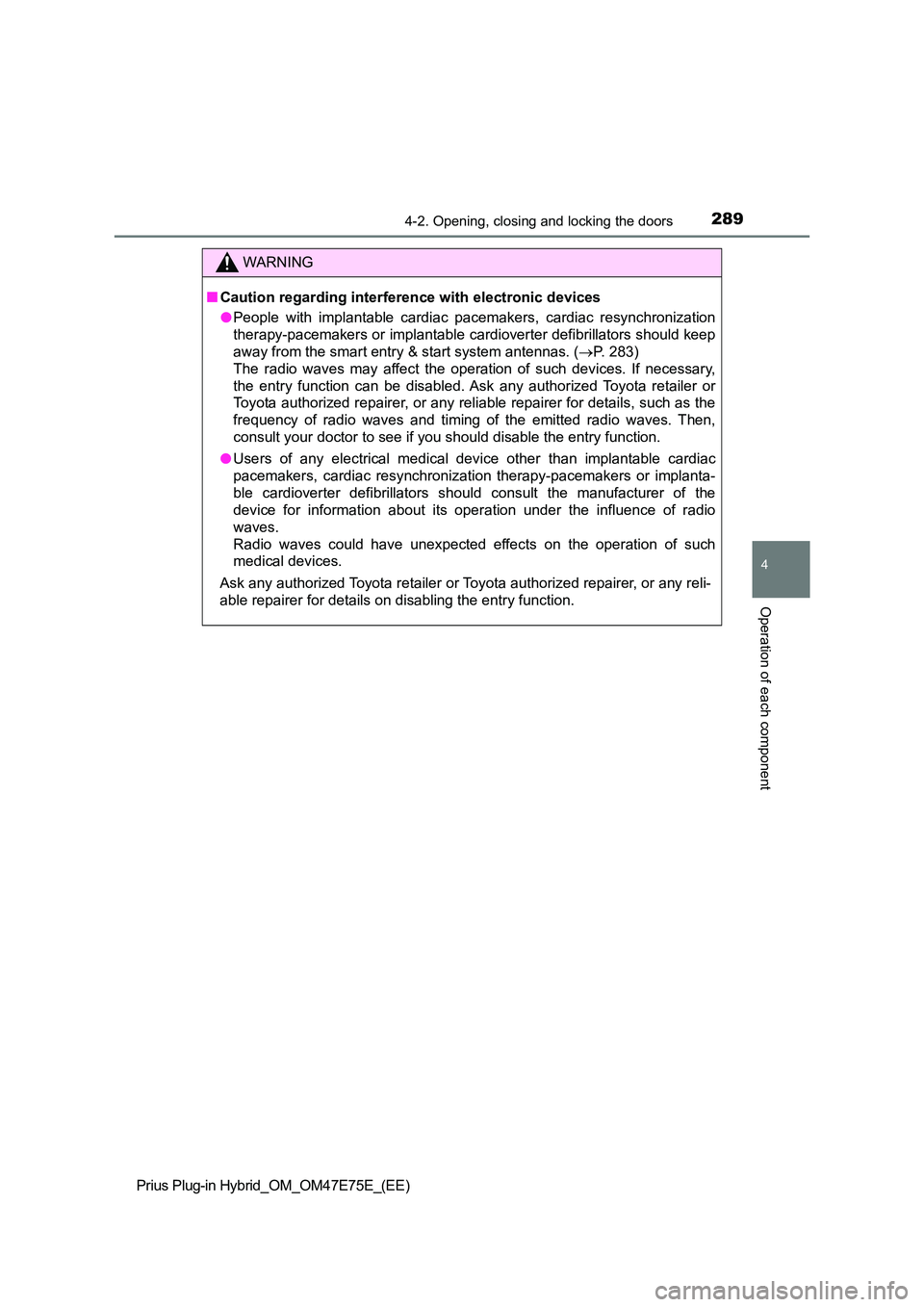

2894-2. Opening, closing and locking the doors
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
4
Operation of each component
WARNING
QCaution regarding interference with electronic devices
O People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators s hould keep
away from the smart entry & start system antennas. ( P. 283)
The radio waves may affect the operation of such devices. If ne cessary,
the entry function can be disabled. Ask any authorized Toyota r etailer or
Toyota authorized repairer, or any reliable repairer for detail s, such as the
frequency of radio waves and timing of the emitted radio waves. Then,
consult your doctor to see if you should disable the entry func tion.
O Users of any electrical medical device other than implantable cardiac
pacemakers, cardiac resynchroni zation therapy-pacemakers or implanta-
ble cardioverter defibrillators should consult the manufacturer of the
device for information about its operation under the influence of radio
waves.
Radio waves could have unexpected effects on the operation of s uch
medical devices.
Ask any authorized Toyota retailer or Toyota authorized repaire r, or any reli-
able repairer for details on disabling the entry function.

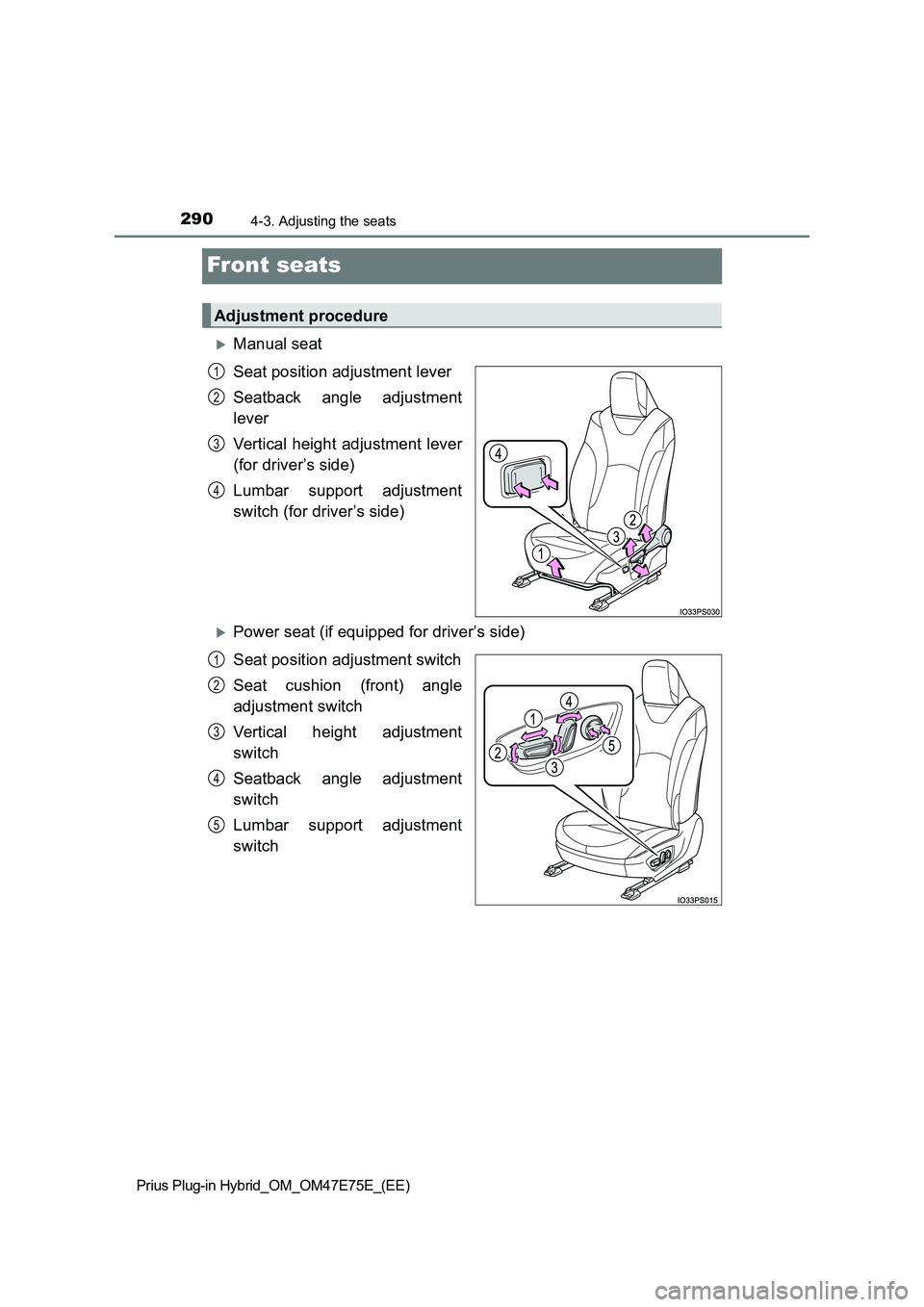

2904-3. Adjusting the seats
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Front seats
Manual seat
Seat position adjustment lever
Seatback angle adjustment
lever
Vertical height adjustment lever
(for driver’s side)
Lumbar support adjustment
switch (for driver’s side)
Power seat (if equipped for driver’s side)
Seat position adjustment switch
Seat cushion (front) angle
adjustment switch
Vertical height adjustment
switch
Seatback angle adjustment
switch
Lumbar support adjustment
switch
Adjustment procedure
1
2
3
4
1
2
3
4
5

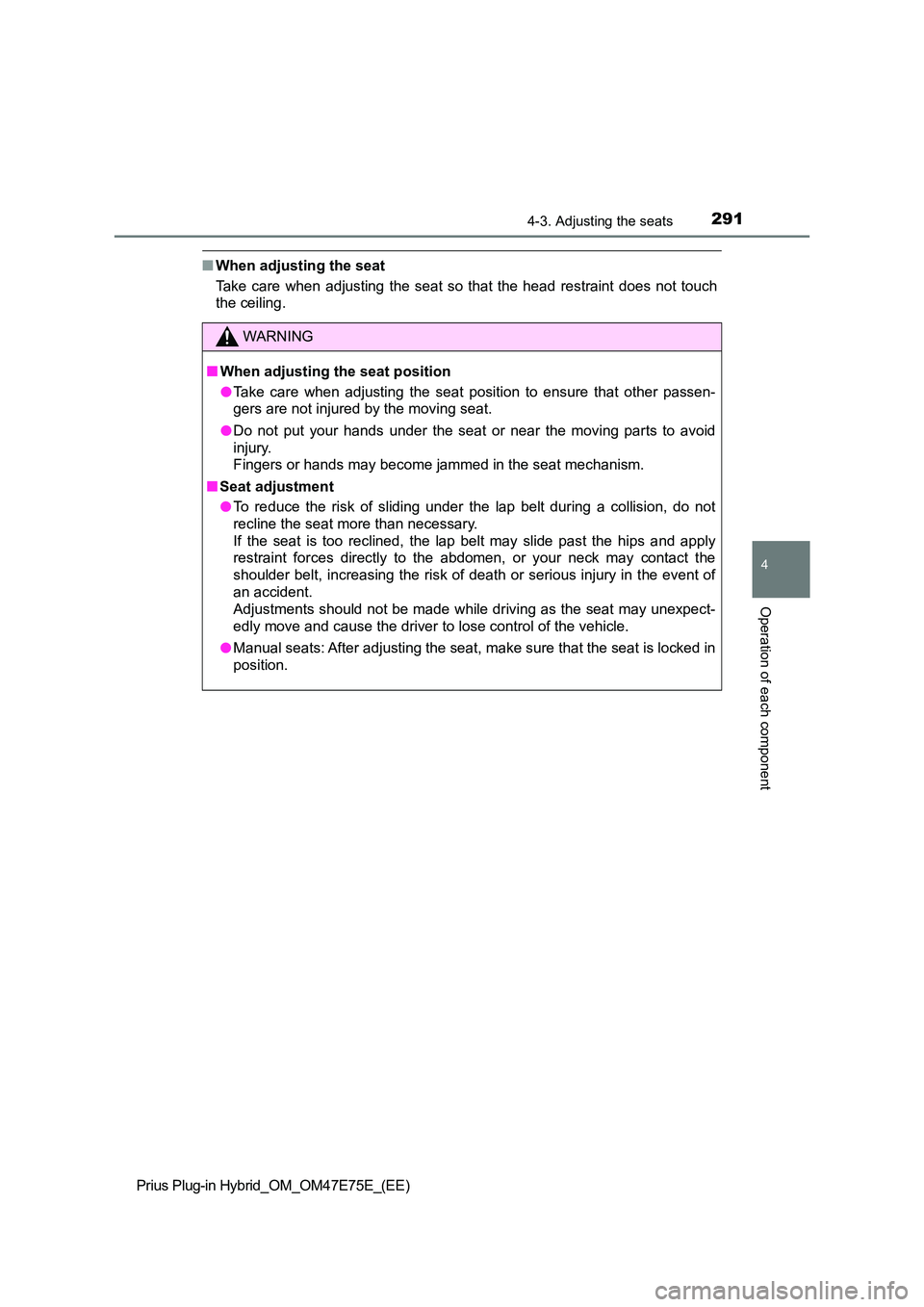

2914-3. Adjusting the seats
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
4
Operation of each component
QWhen adjusting the seat
Take care when adjusting the seat so that the head restraint do es not touch
the ceiling.
WARNING
Q When adjusting the seat position
O Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
O Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.
Q Seat adjustment
O To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hi ps and apply
restraint forces directly to the abdomen, or your neck may cont act the
shoulder belt, increasing the risk of death or serious injury i n the event of
an accident.
Adjustments should not be made while driving as the seat may un expect-
edly move and cause the driver to lose control of the vehicle.
O Manual seats: After adjusting the seat, make sure that the seat is locked in
position.

2924-3. Adjusting the seats
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Rear seats
Park the vehicle in a safe place.
Apply the parking brake firmly (P. 336) and shift the shift position to P.
( P. 330)
Adjust the position of the front seat and the angle of the seatback.
(P. 290)
Depending on the position of the front seat, if the seatback is folded back-
ward, it may interfere with the operation of the rear seat.
Lower the head restraint of the rear seat. (P. 294)
Stow the armrest of the rear seat if it is pulled out. (P. 563)
This step is not necessary when operating the left side seat on ly.
Pull the seatback lock release
lever and fold the seatback down.
To avoid trapping the seat belt
between the seat and the inside of
the vehicle, pass the seat belt
inside the seat belt guide and then
return the seatback securely to
the locked position.
The seatbacks can be folded down.
Before folding down the seatbacks
Folding down the seatbacks
1
2
3
4
Returning the rear seatbacks
Seat belt guide

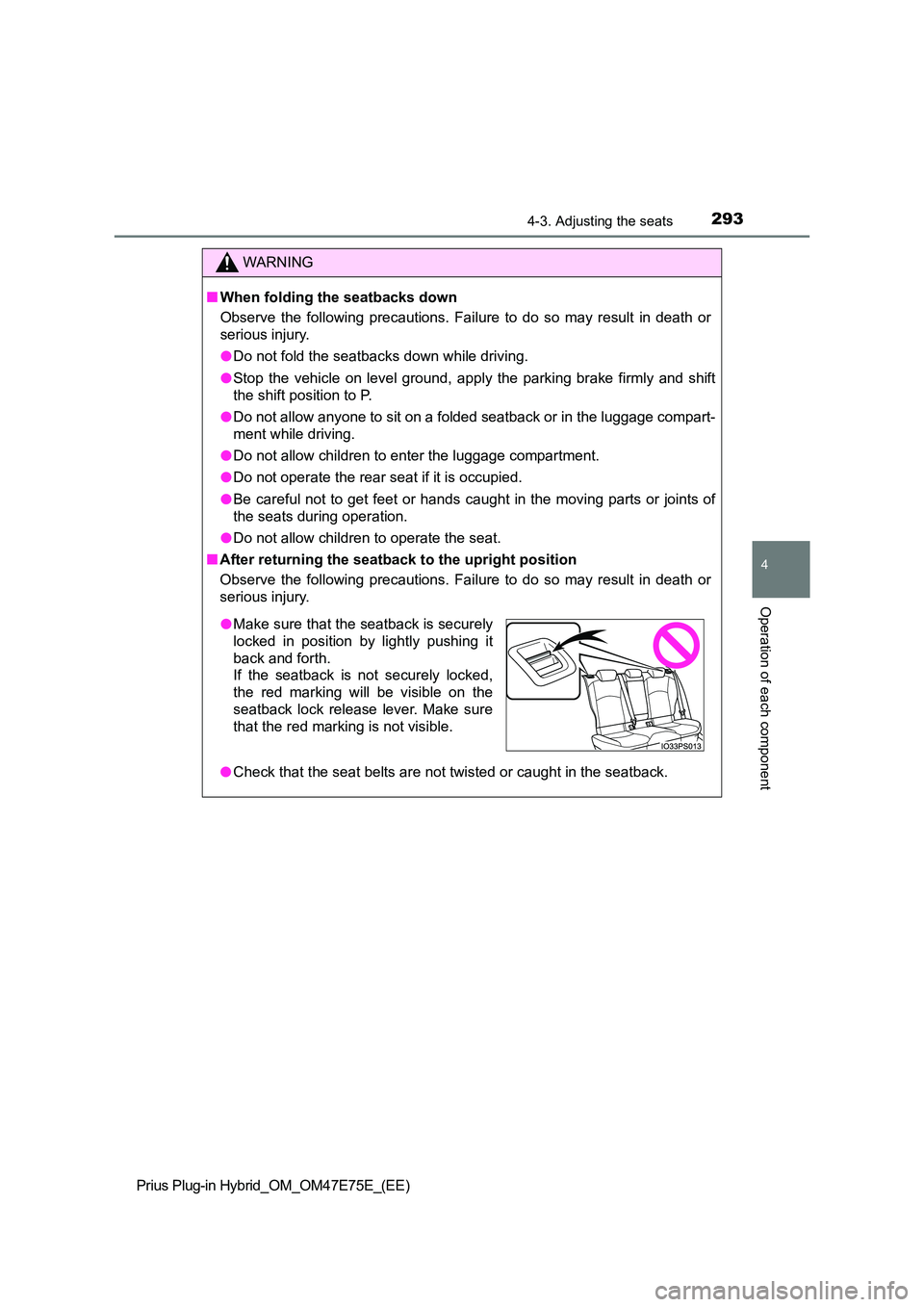

2934-3. Adjusting the seats
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
4
Operation of each component
WARNING
QWhen folding the seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
O Do not fold the seatbacks down while driving.
O Stop the vehicle on level ground, apply the parking brake firmly and shift
the shift position to P.
O Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
O Do not allow children to enter the luggage compartment.
O Do not operate the rear seat if it is occupied.
O Be careful not to get feet or hands caught in the moving parts or joints of
the seats during operation.
O Do not allow children to operate the seat.
Q After returning the seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
O Check that the seat belts are not twisted or caught in the seatback.
OMake sure that the seatback is securely
locked in position by lightly pushing it
back and forth.
If the seatback is not securely locked,
the red marking will be visible on the
seatback lock release lever. Make sure
that the red marking is not visible.

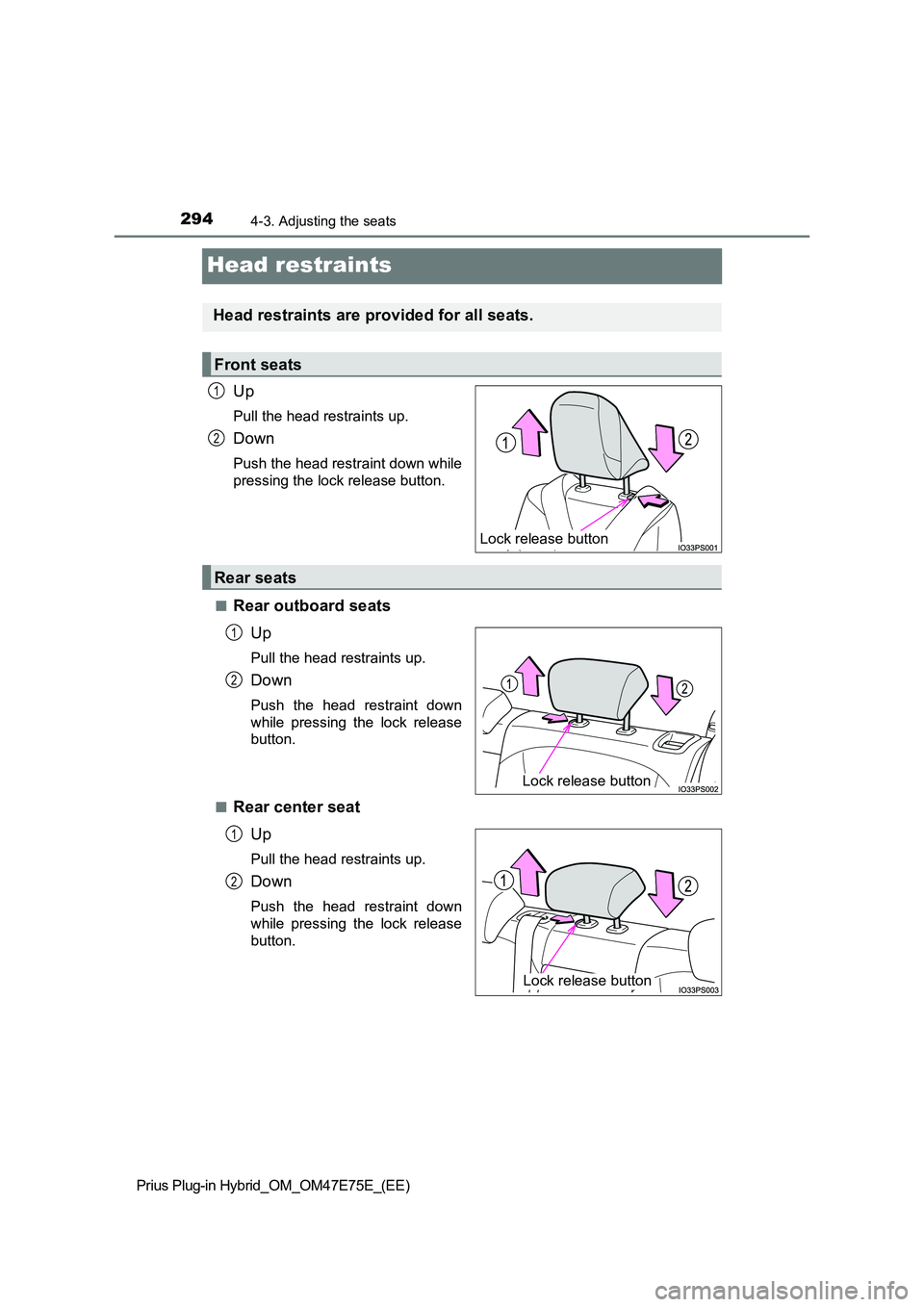

2944-3. Adjusting the seats
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Head restraints
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
QRear outboard seats
Up
Pull the head restraints up.
Down
Push the head restraint down
while pressing the lock release
button.
QRear center seat
Up
Pull the head restraints up.
Down
Push the head restraint down
while pressing the lock release
button.
Head restraints are provided for all seats.
Front seats
Lock release button
1
2
Rear seats
Lock release button
1
2
Lock release button
N
O
