2022 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

7199-1. Specifications
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
9
Vehicle specifications
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota reta iler or
Toyota authorized repairer, or any reliable repairer.
Electrical system (12-volt battery)
Specific gravity
reading at 20 C (68F):
1.25 or higher
If the specific gravity is lower than the
standard value, charge the 12-volt bat-
tery.
Charging ratesQuick charge15 A max.
Slow charge5 A max.
Transmission
Fluid capacity*3.7 L (3.9 qt., 3.3 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
Q Transmission fluid type
Using transmission fluid other than the above type may cause ab normal
noise or vibration, or ultimately damage the transmission of yo ur vehicle.

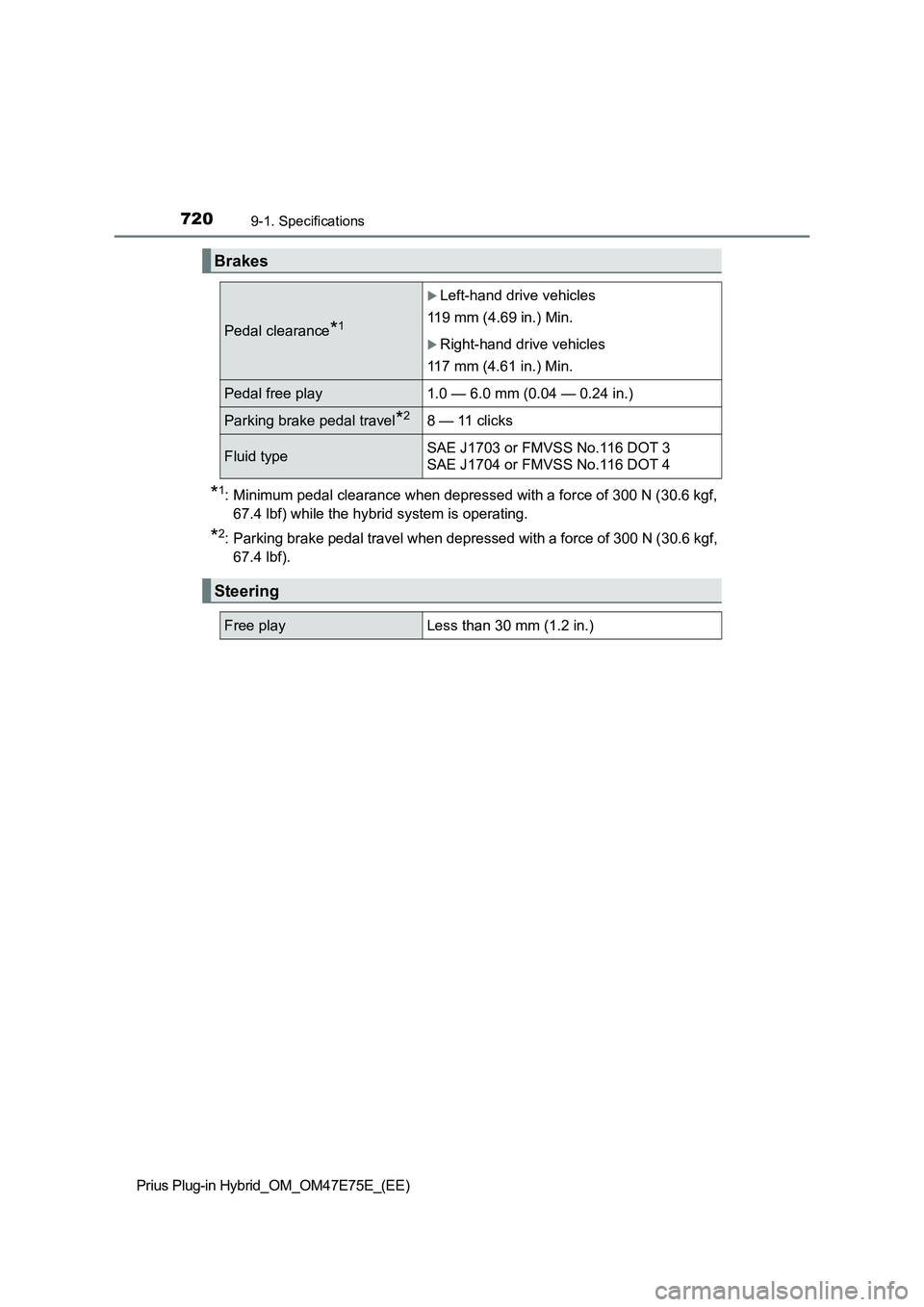

7209-1. Specifications
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
*1: Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf,
67.4 lbf) while the hybrid system is operating.
*2: Parking brake pedal travel when depressed with a force of 300 N (30.6 kgf,
67.4 lbf).
Brakes
Pedal clearance*1
Left-hand drive vehicles
119 mm (4.69 in.) Min.
Right-hand drive vehicles
117 mm (4.61 in.) Min.
Pedal free play1.0 — 6.0 mm (0.04 — 0.24 in.)
Parking brake pedal travel*28 —11 clicks
Fluid typeSAE J1703 or FMVSS No.116 DOT 3
SAE J1704 or FMVSS No.116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)

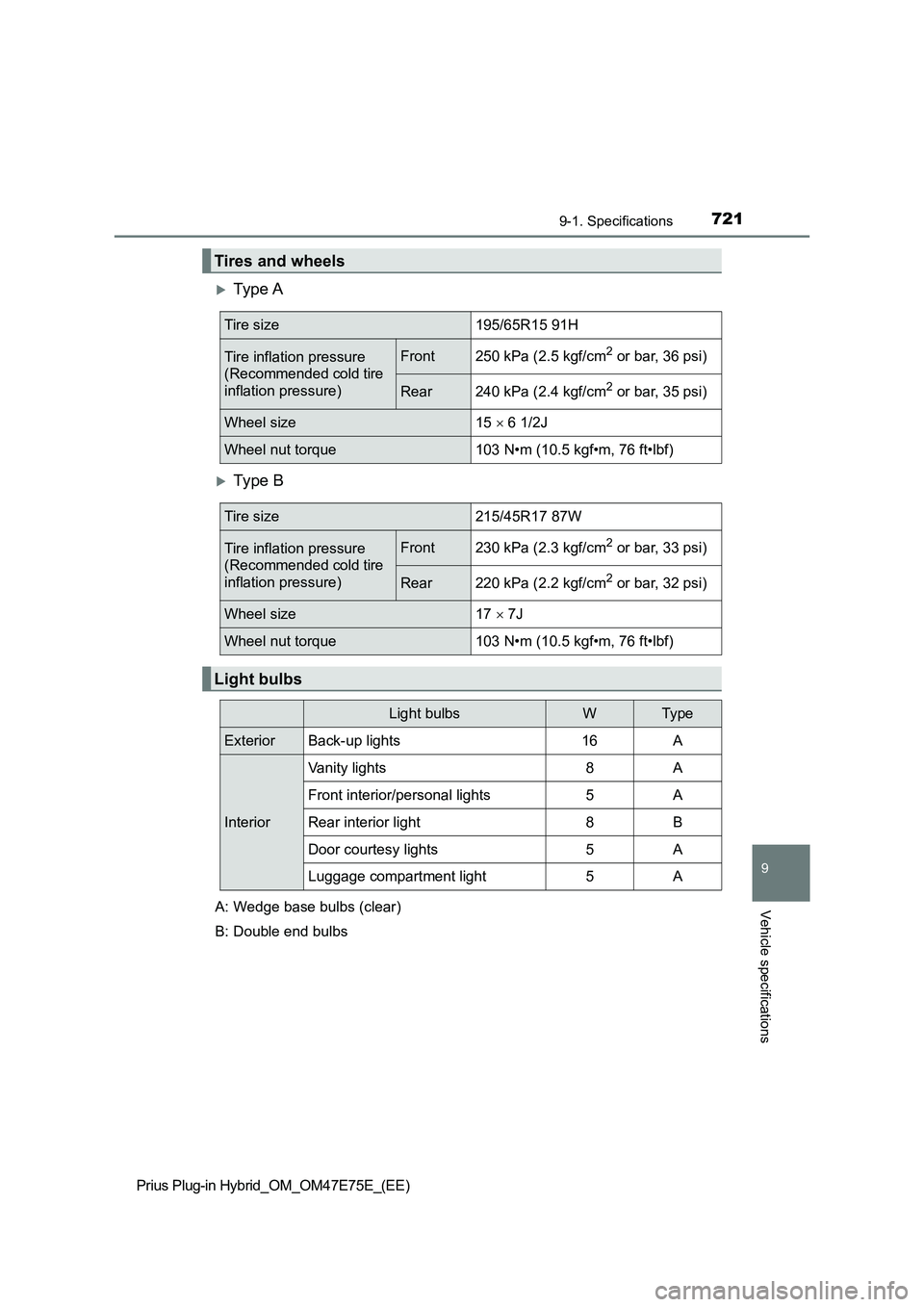

7219-1. Specifications
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
9
Vehicle specifications
Ty pe A
Ty pe B
Tires and wheels
Tire size195/65R15 91H
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front250 kPa (2.5 kgf/cm2 or bar, 36 psi)
Rear240 kPa (2.4 kgf/cm2 or bar, 35 psi)
Wheel size15  6 1/2J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size215/45R17 87W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Rear220 kPa (2.2 kgf/cm2 or bar, 32 psi)
Wheel size17  7J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Light bulbs
Light bulbsWTyp e
ExteriorBack-up lights16A
Interior
Vanity lights8A
Front interior/personal lights5A
Rear interior light8B
Door courtesy lights5A
Luggage compartment light5A
A: Wedge base bulbs (clear)
B: Double end bulbs

7229-1. Specifications
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Fuel infor mation
QUse of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
QIf your engine knocks
OConsult any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
OYou may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
When you find these types of fuel label at the gas station, use
only the fuel with one of the following labels.

EU area:
You must only use unleaded gasoline conforming to European
standard EN228.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.

7239-1. Specifications
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
9
Vehicle specifications
NOTICE
QNotice on fuel quality
O Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
O Do not use gasoline with metallic additives, for example manganese, iron
or lead, otherwise it may cause damage on your engine or emissi on con-
trol system.
O Do not add aftermarket fuel additives which contain metallic additives.
O EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. T he use of
these fuels will damage the vehi cle’s fuel system. In case of any doubt,
ask any authorized Toyota retailer or Toyota authorized repaire r, or any
reliable repairer.
O Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be use d. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicl e’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, ask any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
O Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine damage or
failure.
Q Notice about fuel
 P. 104

7249-2. Customization
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Customizable features
When customizing vehicle features, ensure that the vehicle is parked
in a safe place with the parking brake set and the shift position in P.
QChanging using the multi-information display
Press or of the meter control switches, select .
Press or of the meter control switches, select
(“Vehicle Settings”), and then press .
Press or of the meter control switches, select the item,
and then press .
Press or of the meter control switches, select the desired
setting, and then press .
To go back to the previous screen or exit the customize mode,
press .
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. The settings of these fea-
tures can be changed using the multi-information display, the
navigation system, or at any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
Some function settings are changed simultaneously with other func-
tions being customized. Contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer for further details.
Customizing vehicle features
1
2
3
4

7259-2. Customization
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
9
Vehicle specifications
QChanging using the navigation system
Press the “SETUP” button.
Select “Vehicle” on the “Setup” screen and select “Vehicle cus-
tomization”.
Various settings can be changed. Refer to the list of settings that
can be changed for details.
Settings that can be changed using the multi-information display
Settings that can be changed using the navigation system
Settings that can be changed by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer
Definition of symbols: O = Available, – = Not available
QInstrument cluster (P. 194)
Customizable features
1
2
1
2
3
FunctionDefault
settingCustomized
setting
Sensor sensitivity for darken-
ing the brightness of the
instrument cluster depending
on the outside brightness
Standard-2 to 2––O
Sensor sensitivity for returning
the brightness of the instru-
ment cluster to the original
level depending on the outside
brightness
Standard-2 to 2––O
123

7269-2. Customization
Prius Plug-in Hybrid_OM_OM47E75E_(EE)Q
Smart entry & start system and wireless remote control
(P. 273, 283)
QSmart entry & start system (P. 283)
*: If equipped
Q
Wireless remote control (P. 273)
QRear seat reminder (P. 276)
FunctionDefault
settingCustomized
setting
Operation signal
(emergency flashers)OnOff–OO
Open door reminder buzzer
(When locking the vehicle)OnOff––O
Time elapsed before the auto-
matic door lock function is
activated if a door is not
opened after being unlocked
30 seconds
60 seconds
––O
120 seconds
123
FunctionDefault
settingCustomized
setting
Smart entry & start system On Off – O O
Number of consecutive door
lock operations
*2 timesAs many as
desired––O
123
FunctionDefault
settingCustomized
setting
Wireless remote control On Off – – O
123
FunctionDefault
settingCustomized
setting
Rear seat reminder function On Off O – –
123
