2022 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

5516-3. Using the storage features
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
6
Interior features

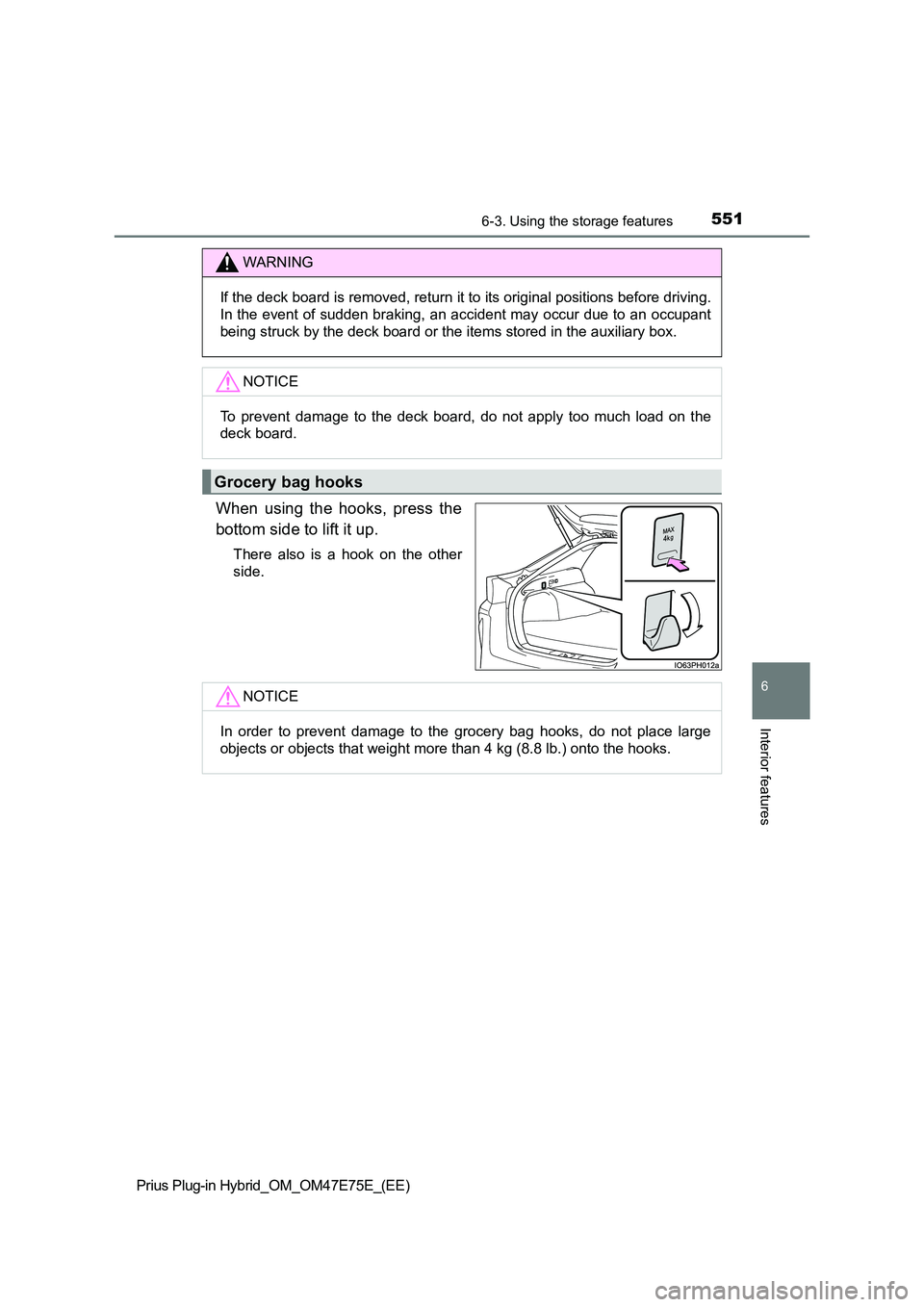

When using the hooks, press the
bottom side to lift it up.
There also is a hook on the other
side.
WARNING
If the deck board is removed, retur n it to its original positions before driving.
In the event of sudden braking, an accident may occur due to an occupant
being struck by the deck board or the items stored in the auxil iary box.
NOTICE
To prevent damage to the deck board, do not apply too much load on the
deck board.
Grocery bag hooks
NOTICE
In order to prevent damage to the grocery bag hooks, do not pla ce large
objects or objects that weight more than 4 kg (8.8 lb.) onto th e hooks.

5526-3. Using the storage features
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

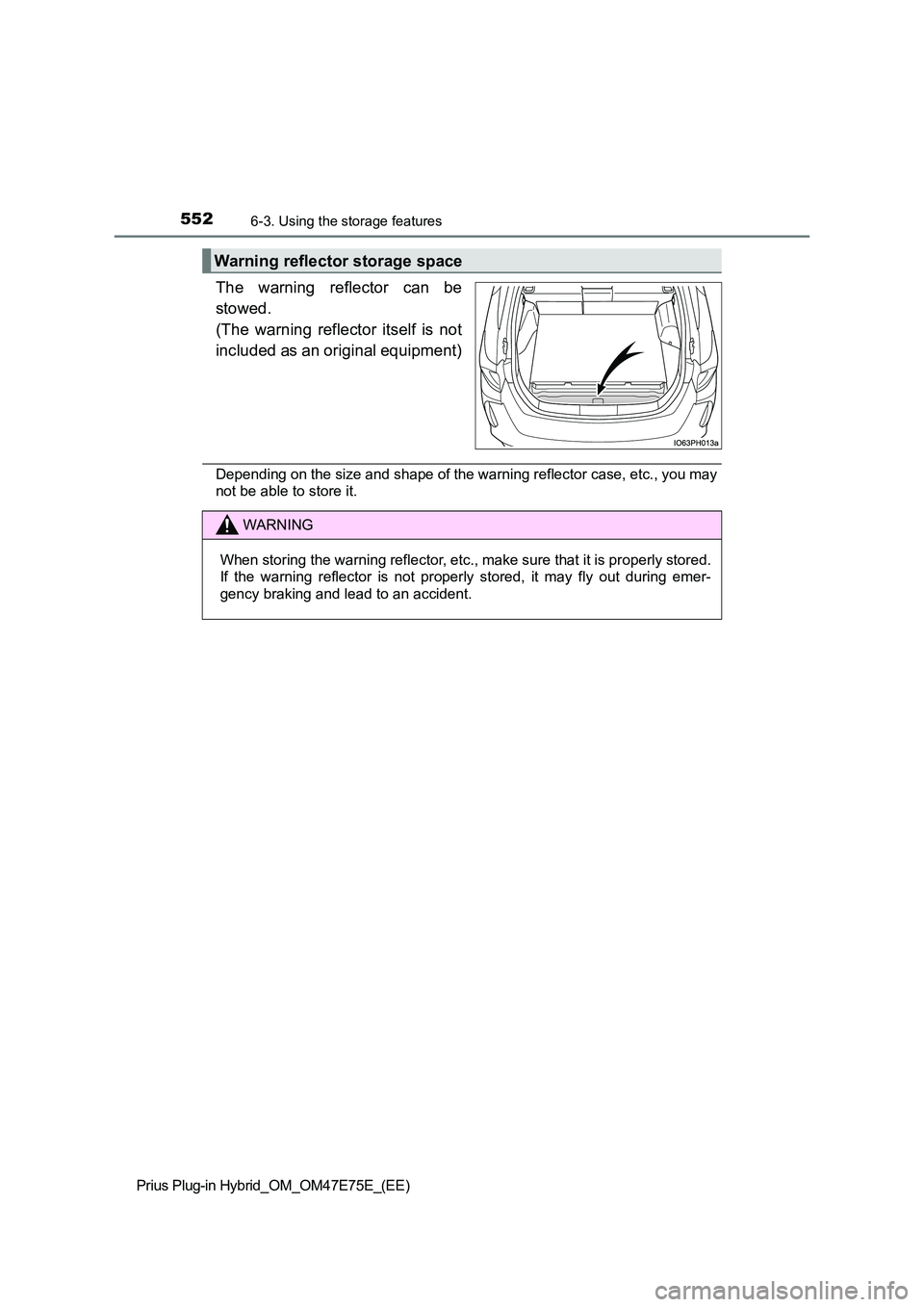

The warning reflector can be
stowed.
(The warning reflector itself is not
included as an original equipment)
Depending on the size and shape of the warning reflector case, etc., you may
not be able to store it.
Warning reflector storage space
WARNING
When storing the warning reflector, etc., make sure that it is properly stored.
If the warning reflector is not properly stored, it may fly out during emer-
gency braking and lead to an accident.

5536-3. Using the storage features
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
6
Interior features

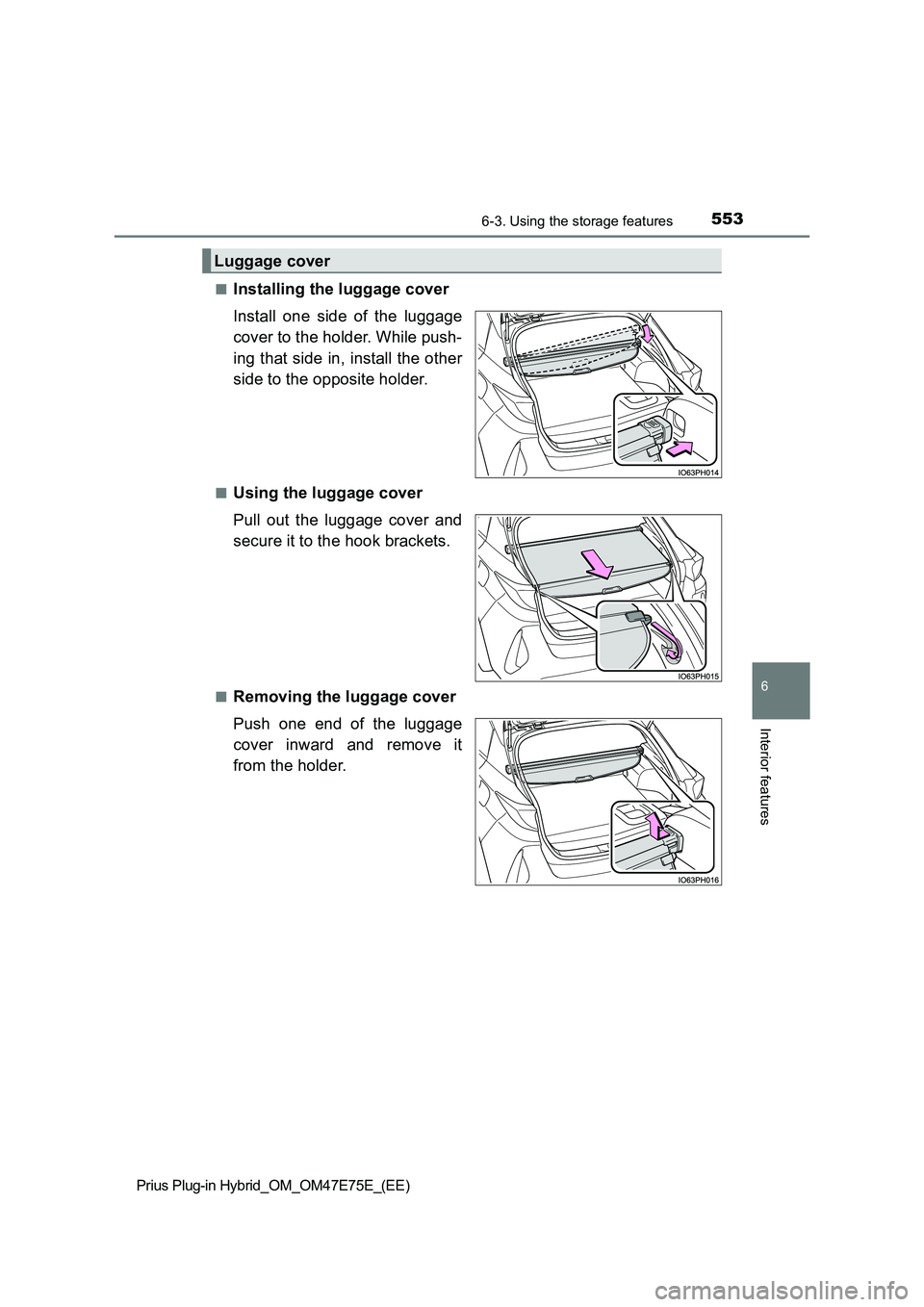

QInstalling the luggage cover
Install one side of the luggage
cover to the holder. While push-
ing that side in, install the other
side to the opposite holder.
QUsing the luggage cover
Pull out the luggage cover and
secure it to the hook brackets.
QRemoving the luggage cover
Push one end of the luggage
cover inward and remove it
from the holder.
Luggage cover

5546-3. Using the storage features
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

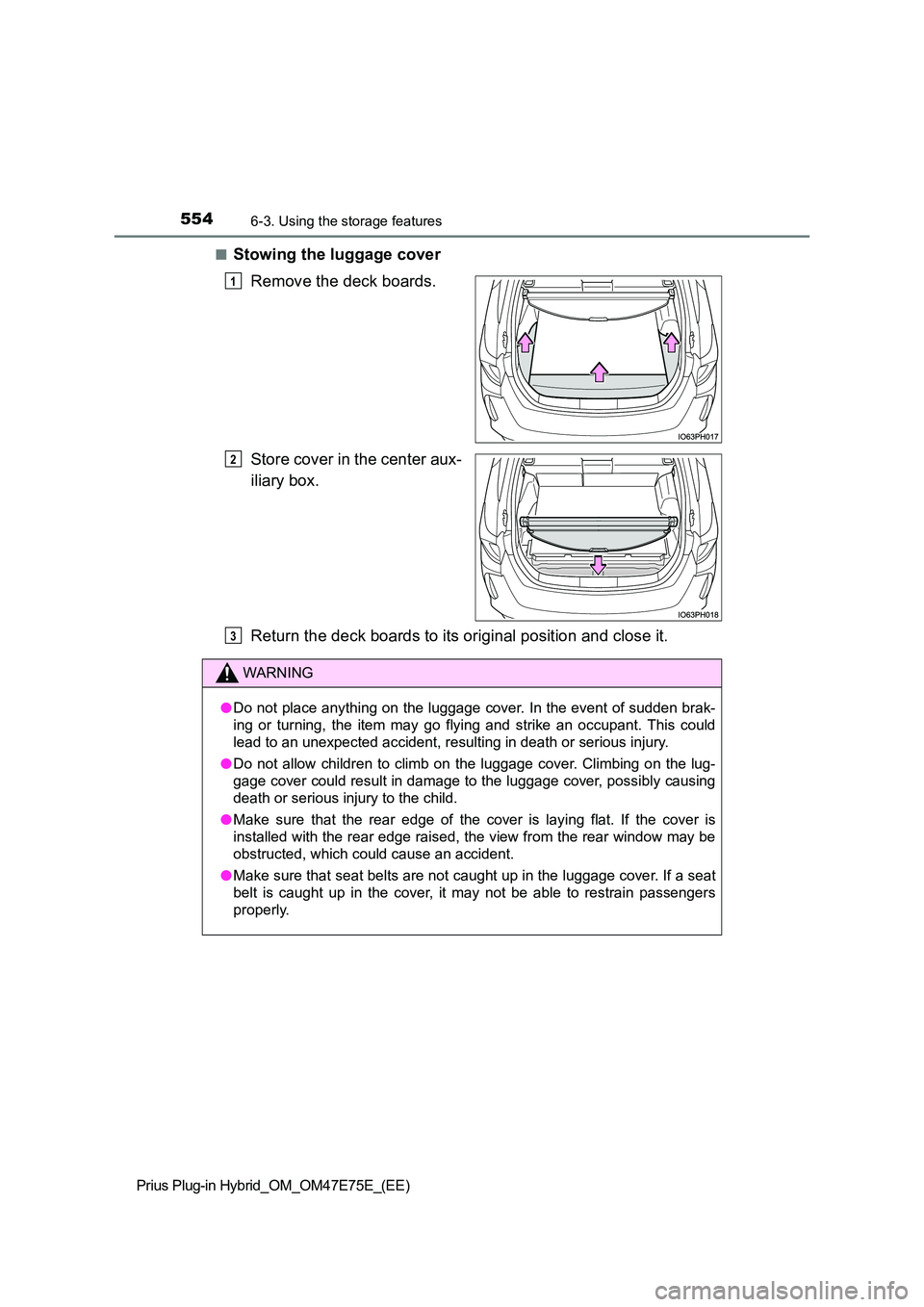

QStowing the luggage cover
Remove the deck boards.
Store cover in the center aux-
iliary box.
Return the deck boards to its original position and close it.
1
2
WARNING
O Do not place anything on the luggage cover. In the event of sudden brak-
ing or turning, the item may go flying and strike an occupant. This could
lead to an unexpected accident, resulting in death or serious i njury.
O Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibl y causing
death or serious injury to the child.
O Make sure that the rear edge of the cover is laying flat. If the cover is
installed with the rear edge raised, the view from the rear win dow may be
obstructed, which could cause an accident.
O Make sure that seat belts are not caught up in the luggage cover. If a seat
belt is caught up in the cover, it may not be able to restrain passengers
properly.
3

5556-4. Using the other interior features
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
6
Interior features
Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Slide the cover to open.
The light turns on when the cover
is opened.
If the vanity lights remain on when the power switch is turned off, the light will
go off automatically after 20 minutes.
Sun visors
1
2
Vanity mirrors
NOTICE
To prevent 12-volt battery discharge, do not leave the vanity l ights on for
extended periods while the hybrid system is off.

556
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
6-4. Using the other interior features

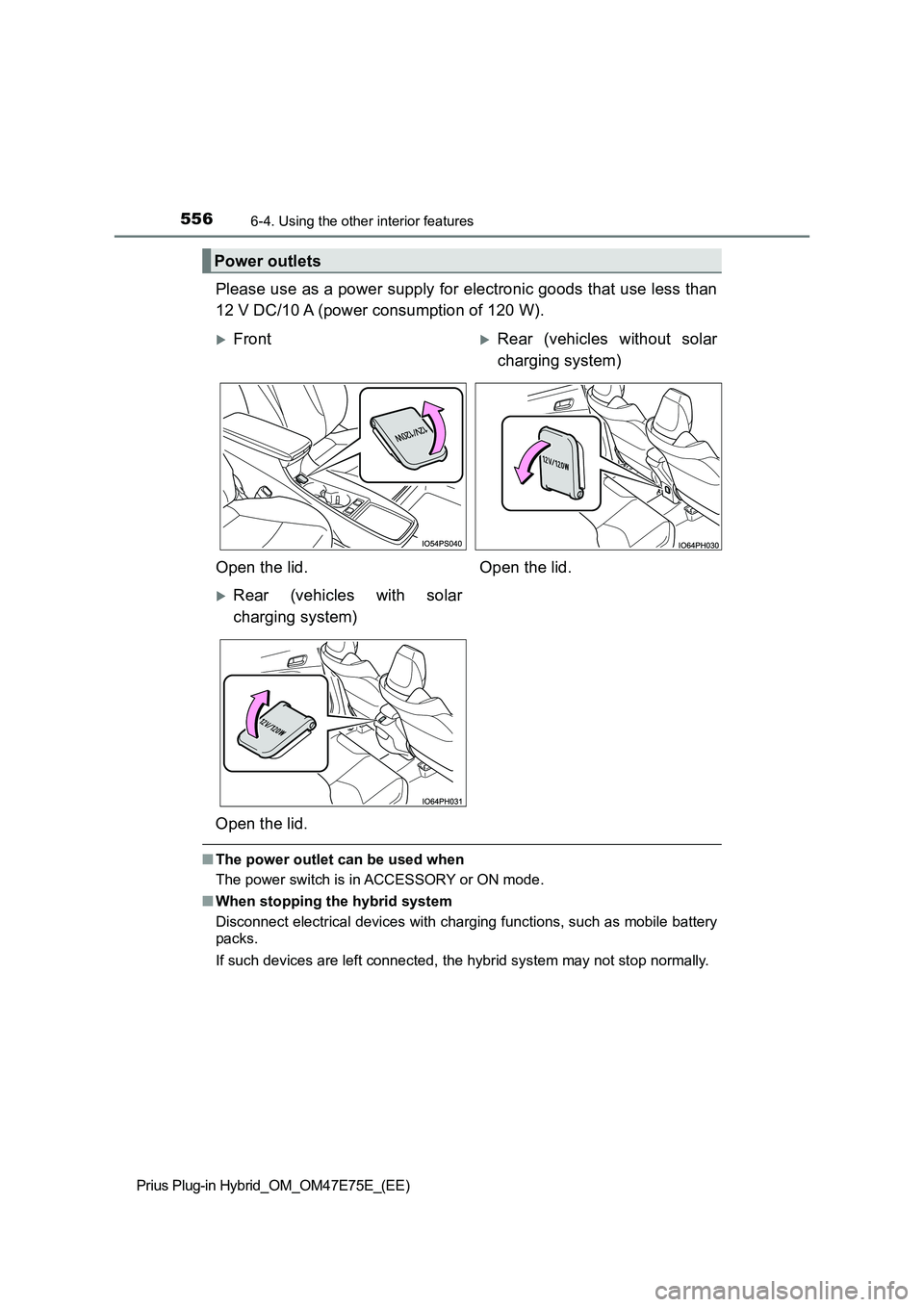

Please use as a power supply for electronic goods that use less than
12 V DC/10 A (power consumption of 120 W).
QThe power outlet can be used when
The power switch is in ACCESSORY or ON mode.
QWhen stopping the hybrid system
Disconnect electrical devices with charging functions, such as mobile battery
packs.
If such devices are left connected, the hybrid system may not stop normally.
Power outlets
FrontRear (vehicles without solar
charging system)
Open the lid. Open the lid.
Rear (vehicles with solar
charging system)
Open the lid.

5576-4. Using the other interior features
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
6
Interior features

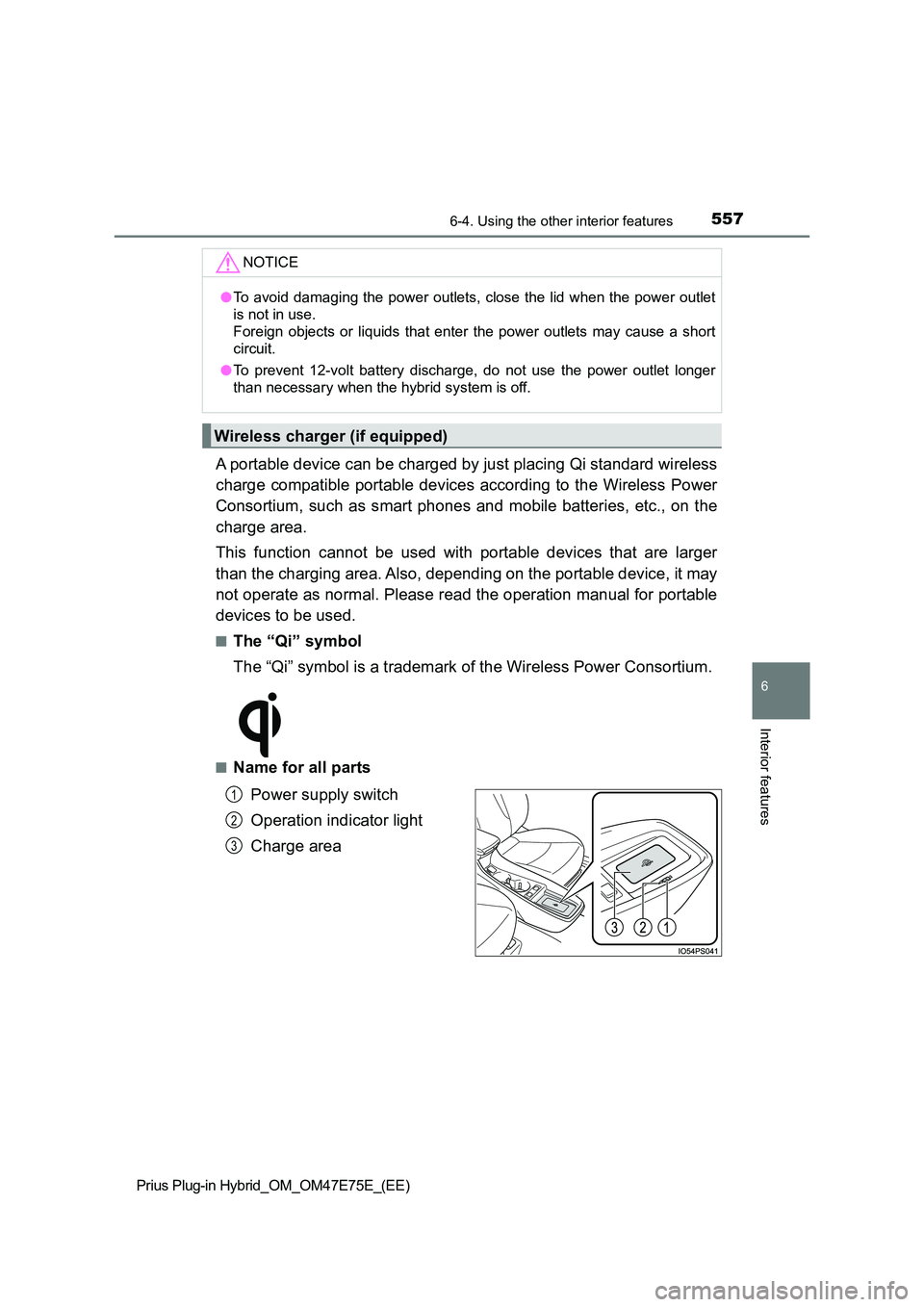

A portable device can be charged by just placing Qi standard wireless
charge compatible portable devices according to the Wireless Po wer
Consortium, such as smart phones and mobile batteries, etc., on the
charge area.
This function cannot be used with portable devices that are lar ger
than the charging area. Also, depending on the portable device, it may
not operate as normal. Please read the operation manual for por table
devices to be used.
QThe “Qi” symbol
The “Qi” symbol is a trademark of the Wireless Power Consortium .
QName for all parts
Power supply switch
Operation indicator light
Charge area
NOTICE
O To avoid damaging the power outlets, close the lid when the power outlet
is not in use.
Foreign objects or liquids that enter the power outlets may cau se a short
circuit.
O To prevent 12-volt battery discharge, do not use the power outlet longer
than necessary when the hybrid system is off.
Wireless charger (if equipped)
1
2
3

558
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
6-4. Using the other interior features
QUsing the wireless charger
Press the power supply
switch of the wireless char-
ger.
Switches on and off with each
press of the power supply
switch.
When turned on, the operation
indicator light (green) comes on.
Even with the hybrid system off,
the on/off state of the power
supply switch is memorized.
Place the charging side of
the portable device down.
When charging, the operation
indicator light (orange) comes
on.
If charging is not occurring, try
placing the portable device as
close to the center of the
charging area as possible.
When charging is complete, the operation indicator light (green ) comes
on.
O Recharging function
• When charging is complete and after a fixed time in the charge
suspension state, charging restarts.
• When the portable device is moved, charging is stopped for a
moment and then it restarts.
1
2
