2022 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

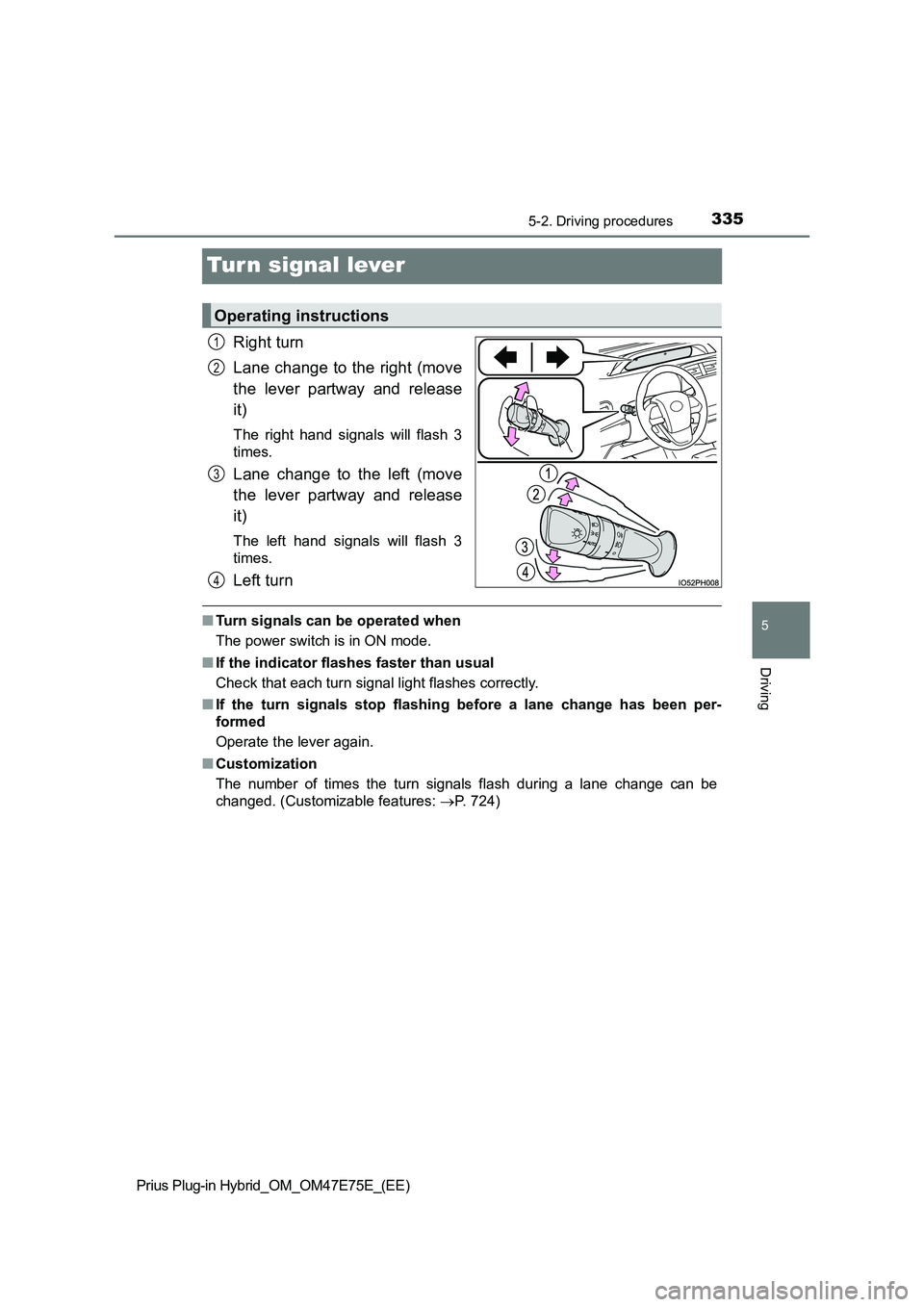

3355-2. Driving procedures
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving
Turn signal lever
Right turn
Lane change to the right (move
the lever partway and release
it)
The right hand signals will flash 3
times.
Lane change to the left (move
the lever partway and release
it)
The left hand signals will flash 3
times.
Left turn
Q Turn signals can be operated when
The power switch is in ON mode.
Q If the indicator flashes faster than usual
Check that each turn signal light flashes correctly.
Q If the turn signals stop flashing before a lane change has been per-
formed
Operate the lever again.
Q Customization
The number of times the turn signals flash during a lane change can be
changed. (Customizable features: P. 724)
Operating instructions
1
2
3
4

3365-2. Driving procedures
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Parking brake
To set the parking brake, fully
depress the parking brake pedal
with your left foot while depress-
ing the brake pedal with your right
foot.
(Depressing the pedal again
releases the parking brake.)
Q Parking the vehicle
 P. 309
Q Parking brake engaged warning buzzer
A buzzer will sound if the vehicle is driven with the parking b rake engaged.
“Release Parking Brake” is displayed on the multi-information d isplay (with
the vehicle reached a speed of 5 km/h [3 mph]).
Q Usage in winter time
 P. 517
Operating instructions
NOTICE
QBefore driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to bra ke components
overheating, which may affect braking performance and increase brake
wear.

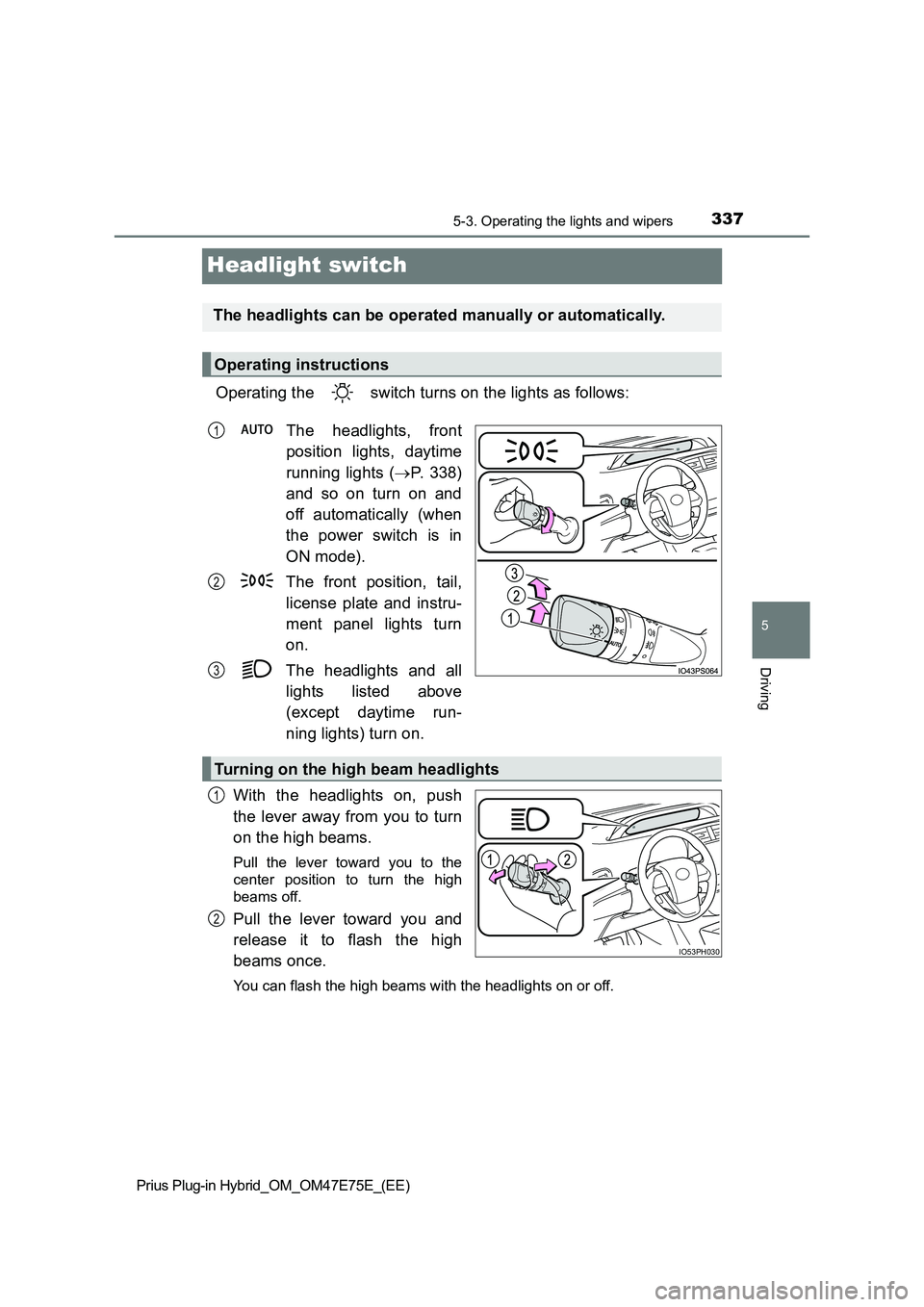

3375-3. Operating the lights and wipers
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving
Headlight switch
Operating the switch turns on the lights as follows:
The headlights, front
position lights, daytime
running lights ( P. 3 3 8 )
and so on turn on and
off automatically (when
the power switch is in
ON mode).
The front position, tail,
license plate and instru-
ment panel lights turn
on.
The headlights and all
lights listed above
(except daytime run-
ning lights) turn on.
With the headlights on, push
the lever away from you to turn
on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams with the headlights on or off.
The headlights can be operated manually or automatically.
Operating instructions
1
2
3
Turning on the high beam headlights
IO53PH030
1
2

3385-3. Operating the lights and wipers
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
This system allows the headlights and front position lights to be turned
on for 30 seconds when the power switch is off.
Pull the lever toward you and
release it with the light switch in
the position after turning
the power switch off.
Pull the lever toward you and
release it again to turn off the
lights.
Q Daytime running light system
To make your vehicle more visible to other drivers during dayti me driving, the
daytime running lights turn on automatically whenever the hybri d system is
started and the parking brake is released with the headlight sw itch in the
position. Daytime running lights are not designed for use at n ight.
Q Headlight control sensor
Extended Headlight Lighting system
IO53PH031
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the
windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.
Air conditioning operation may also be interrupted.

3395-3. Operating the lights and wipers
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving
QAutomatic light off system
O When the light switch is in the or position: The headlights turn
off automatically if the power switch is turned to ACCESSORY mo de or
turned off.
O When the light switch is in the position: The headlights and all lights
turn off automatically if the power switch is turned to ACCESSORY mode or
turned off.
To turn the lights on again, turn the power switch to ON mode, or turn the light
switch to the position once and then back to the or posi-
tion.
Q Automatic headlight leveling system
The level of the headlights is automatically adjusted according to the number
of passengers and the loading condition of the vehicle to ensur e that the
headlights do not interfere with other road users.
Q Light reminder buzzer
A buzzer sounds when the power switch is turned off and the dri ver’s door is
opened while the lights are turned on.
Q 12-volt battery-saving function
In order to prevent the vehicle 12-volt battery from dischargin g, if the light
switch is in the position when the power switch turned off the 12-volt
battery saving function will operate and automatically turn off all the lights
after approximately 20 minutes.
When any of the following are performed, the 12-volt battery-sa ving function
is canceled once and then reactivated. All the lights will turn off automatically
20 minutes after the 12-volt battery-saving function has been r eactivated:
O When the headlight switch is operated
O When a door is opened or closed
Q If “Headlight System Malfunction Visit Your Dealer” is displayed on the
multi-information display
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any rel iable repairer.
Q Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features: P. 724)

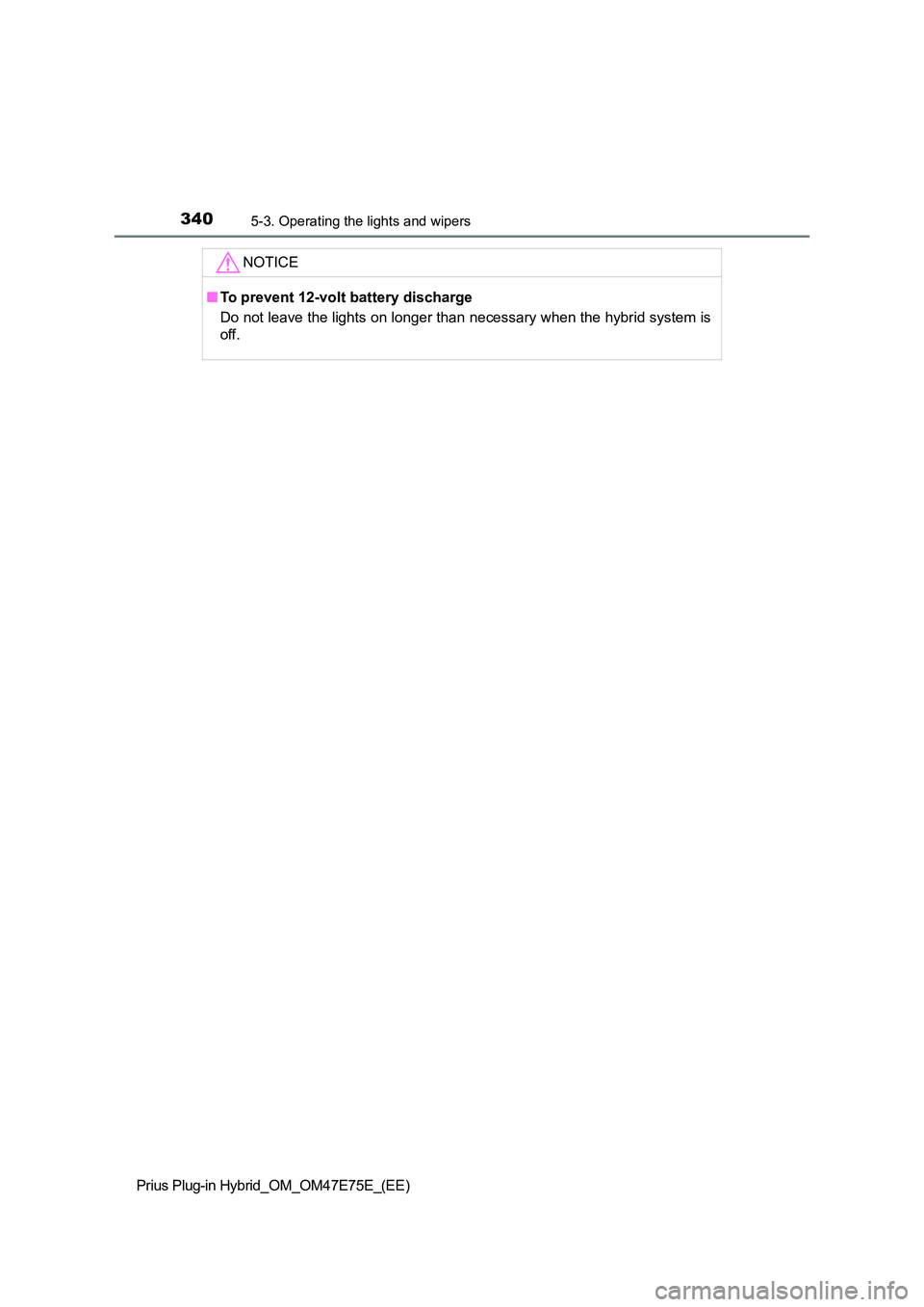

3405-3. Operating the lights and wipers
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
NOTICE
QTo prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybri d system is
off.

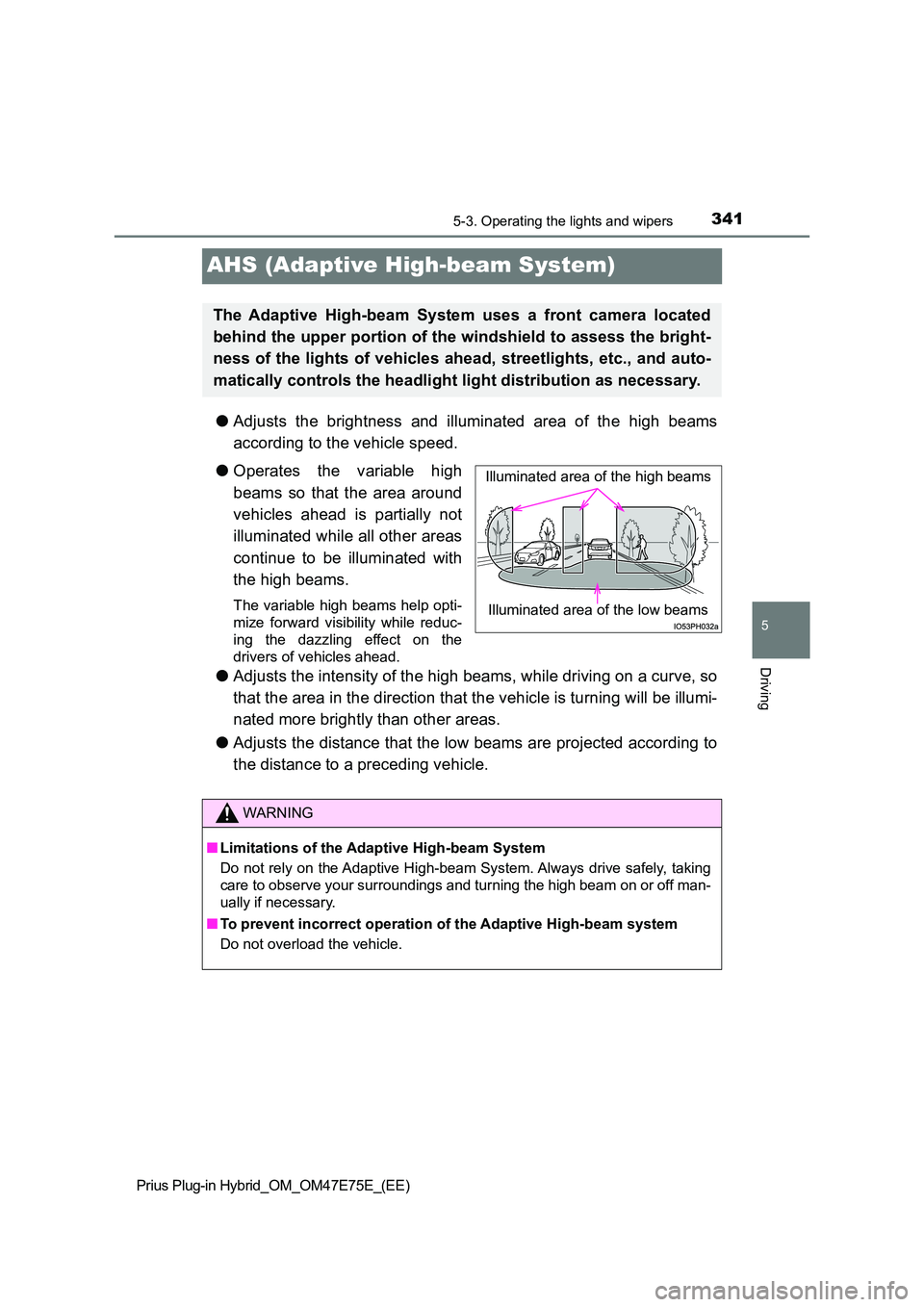

3415-3. Operating the lights and wipers
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving
AHS (Adaptive High-beam System)
OAdjusts the brightness and illuminated area of the high beams
according to the vehicle speed.
O Operates the variable high
beams so that the area around
vehicles ahead is partially not
illuminated while all other areas
continue to be illuminated with
the high beams.
The variable high beams help opti-
mize forward visibility while reduc-
ing the dazzling effect on the
drivers of vehicles ahead.
O Adjusts the intensity of the high beams, while driving on a curve, so
that the area in the direction that the vehicle is turning will be illumi-
nated more brightly than other areas.
O Adjusts the distance that the low beams are projected according to
the distance to a preceding vehicle.
The Adaptive High-beam System uses a front camera located
behind the upper portion of the windshield to assess the bright -
ness of the lights of vehicles ahead, streetlights, etc., and a uto-
matically controls the headlight light distribution as necessar y.
Illuminated area of the high beams
Illuminated area of the low beams
WARNING
QLimitations of the Adaptive High-beam System
Do not rely on the Adaptive High-beam System. Always drive safe ly, taking
care to observe your surroundings and turning the high beam on or off man-
ually if necessary.
Q To prevent incorrect operation of the Adaptive High-beam system
Do not overload the vehicle.

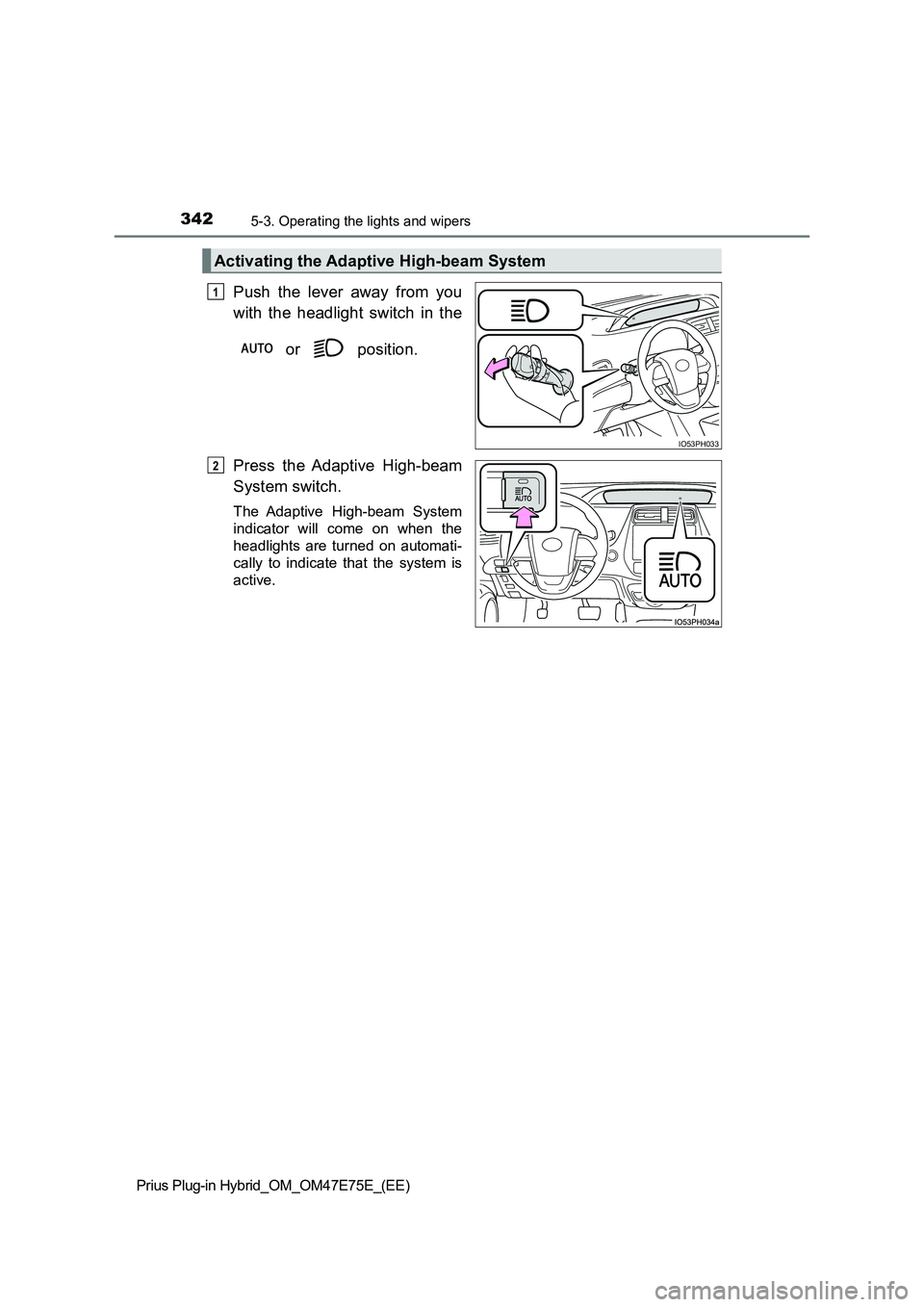

3425-3. Operating the lights and wipers
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Push the lever away from you
with the headlight switch in the
or position.
Press the Adaptive High-beam
System switch.
The Adaptive High-beam System
indicator will come on when the
headlights are turned on automati-
cally to indicate that the system is
active.
Activating the Adaptive High-beam System
IO53PH033
1
2
