5917-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
7
Maintenance and care
The coolant level is satisfactory if it is between the “MAX” and “MIN”
lines on the reservoir when the hybrid system is cold.
QEngine coolant reservoir
Reservoir cap
“MAX” line
“MIN” line
If the level is on or below the
“MIN” line, add coolant up to the
“MAX” line. ( P. 703)
QPower control unit coolant reservoir
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line. ( P. 703)
Coolant
1
2
3
1
2
3

5927-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
QCoolant selection
Only use “Toyota Super Long Life Coolant” or a similar high qua lity ethylene
glycol based non-silicate, non-am ine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant an d 50% deion-
ized water. (Minimum temperature: -35 C [-31F])
For more details about coolant, contact any authorized Toyota r etailer or
Toyota authorized repairer, or any reliable repairer.
Q If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine/power control unit c oolant reservoir
caps, drain cock and water pump.
If you cannot find a leak, have any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer, test the cap and chec k for leaks in the
cooling system.
WARNING
Q When the hybrid system is hot
Do not remove the engine/power control unit coolant reservoir c aps.
The cooling system may be under pressure and may spray hot cool ant if the
cap is removed, causing serious injuries, such as burns.
NOTICE
Q When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication , corrosion
protection and cooling. Be sure to read the antifreeze or coola nt label.
Q If you spill coolant
Be sure to wash it off with water to prevent it from damaging p arts or paint.

5937-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
7
Maintenance and care
Check the radiator and condenser and clear away any foreign objects.
If either of the above parts is extremely dirty or you are not sure of
their condition, have your vehicle inspected by any authorized To y o t a
retailer or Toyota authorized repairer, or any reliable repaire r.
Radiator and condenser
WARNING
QWhen the hybrid system is hot
Do not touch the radiator or condenser as they may be hot and c ause seri-
ous injuries, such as burns.
Q When the electric cooling fans are operating
Do not touch the engine compartment.
With the power switch in ON mode, the electric cooling fans may automati-
cally start to run if the air conditioning is on and/or the coo lant temperature
is high. Be sure the power switch is off when working near the electric cool-
ing fans or radiator grille.

5947-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

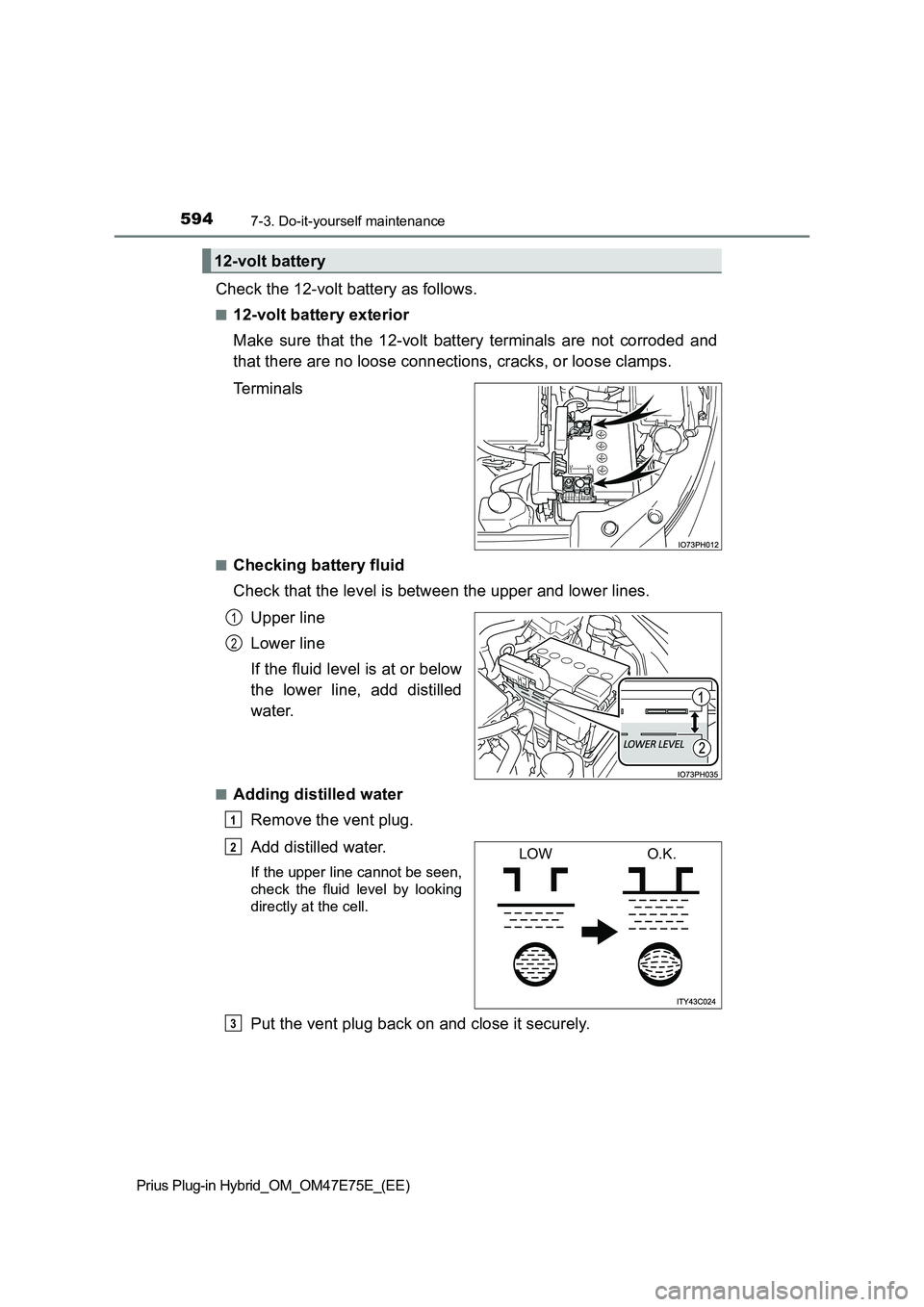

Check the 12-volt battery as follows.
Q12-volt battery exterior
Make sure that the 12-volt battery terminals are not corroded and
that there are no loose connections, cracks, or loose clamps.
Terminals
QChecking battery fluid
Check that the level is between the upper and lower lines.
Upper line
Lower line
If the fluid level is at or below
the lower line, add distilled
water.
QAdding distilled water
Remove the vent plug.
Add distilled water.
If the upper line cannot be seen,
check the fluid level by looking
directly at the cell.
Put the vent plug back on and close it securely.
12-volt battery
1
2
1
LOWO.K.O
P

5957-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
7
Maintenance and care
QWhen opening the cover of the positive (+) battery terminal
Q Before recharging
When recharging, the 12-volt battery produces hydrogen gas whic h is flam-
mable and explosive. Therefore, observe the following precautio ns before
recharging:
O If recharging with the 12-volt battery installed on the vehicle, be sure to dis-
connect the ground cable.
O Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the 12-volt battery.
Q After recharging/reconnecting the 12-volt battery
O Unlocking the doors using the smart entry & start system may not be possi-
ble immediately after reconnecting the 12-volt battery. If this happens, use
the wireless remote control or the mechanical key to lock/unloc k the doors.
O Start the hybrid system with the power switch in ACCESSORY mode. The
hybrid system may not start with the power switch turned off. H owever, the
hybrid system will operate normally from the second attempt.
O The power switch mode is recorded by the vehicle. If the 12-volt battery is
reconnected, the vehicle will return the power switch mode to t he status it
was in before the 12-volt battery was disconnected. Make sure t o turn off
the power switch before disconnect the 12-volt battery. Take ex tra care
when connecting the 12-volt battery if the power switch mode pr ior to dis-
charge is unknown.
If the system will not start even after multiple attempts at al l methods above,
contact any authorized Toyota retailer or Toyota authorized rep airer, or any
reliable repairer.
While pushing the portion shown in the
illustration from both sides, lift the end of
the cover up.

5967-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
WARNING
QChemicals in the 12-volt battery
The 12-volt battery contains poisonous and corrosive sulfuric a cid and may
produce hydrogen gas which is flammable and explosive. To reduc e the risk
of death or serious injury, take the following precautions while working on or
near the 12-volt battery:
O Do not cause sparks by touching the 12-volt battery terminals with tools.
O Do not smoke or light a match near the 12-volt battery.
O Avoid contact with eyes, skin and clothes.
O Never inhale or swallow electrolyte.
O Wear protective safety glasses when working near the 12-volt battery.
O Keep children away from the 12-volt battery.
Q Where to safely charge the 12-volt battery
Always charge the 12-volt battery in an open area. Do not charg e the 12-
volt battery in a garage or closed room where there is insuffic ient ventila-
tion.
Q Emergency measures regarding electrolyte
O If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and ge t immedi-
ate medical attention. If possible, continue to apply water wit h a sponge or
cloth while traveling to the nearest medical facility.
O If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
attention immediately.
O If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the cloth-
ing and follow the procedure above if necessary.
O If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.

5977-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
7
Maintenance and care
WARNING

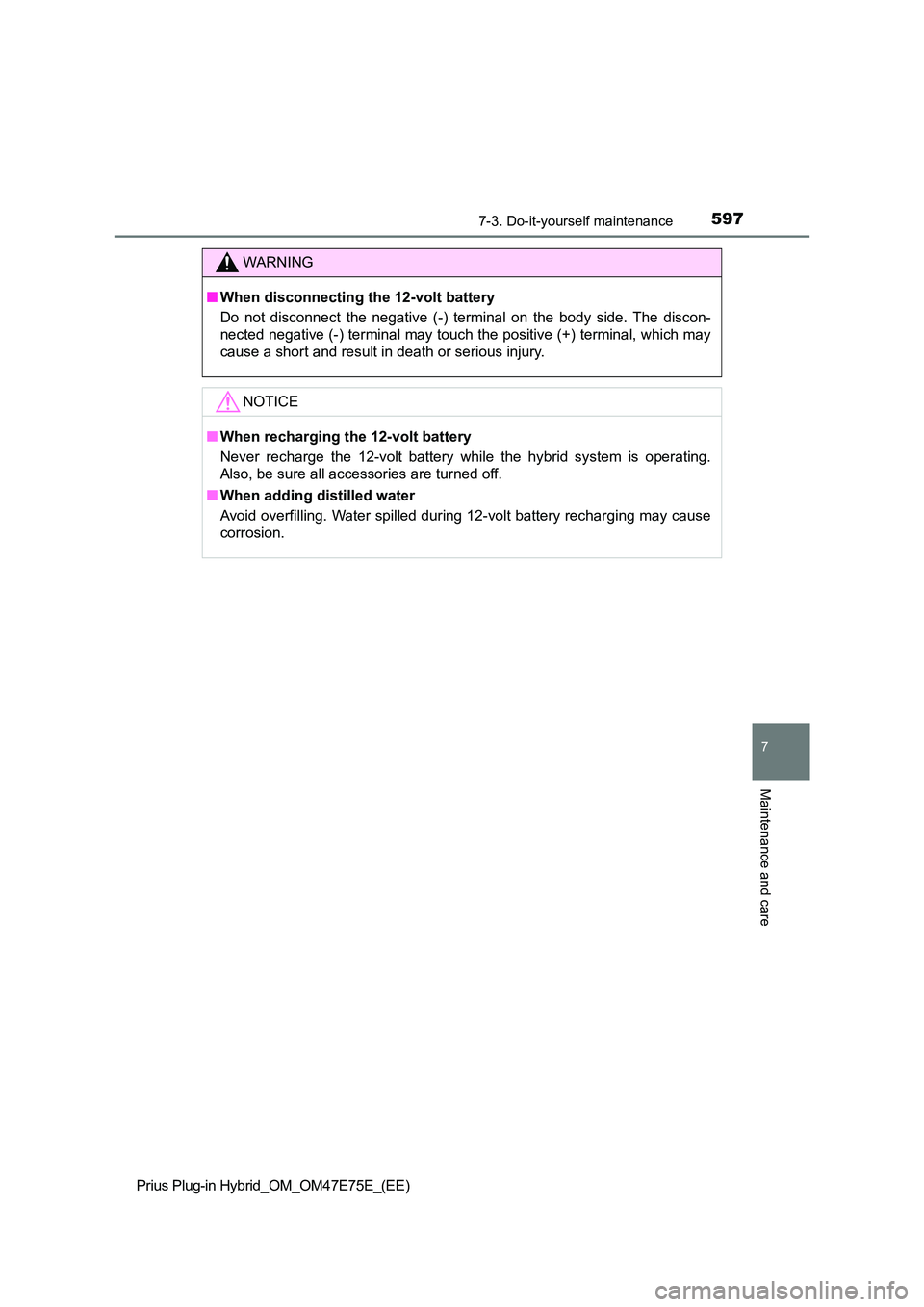

QWhen disconnecting the 12-volt battery
Do not disconnect the negative (-) terminal on the body side. T he discon-
nected negative (-) terminal may touch the positive (+) termina l, which may
cause a short and result in death or serious injury.
NOTICE
Q When recharging the 12-volt battery
Never recharge the 12-volt battery while the hybrid system is o perating.
Also, be sure all accessories are turned off.
Q When adding distilled water
Avoid overfilling. Water spilled during 12-volt battery recharg ing may cause
corrosion.

5987-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

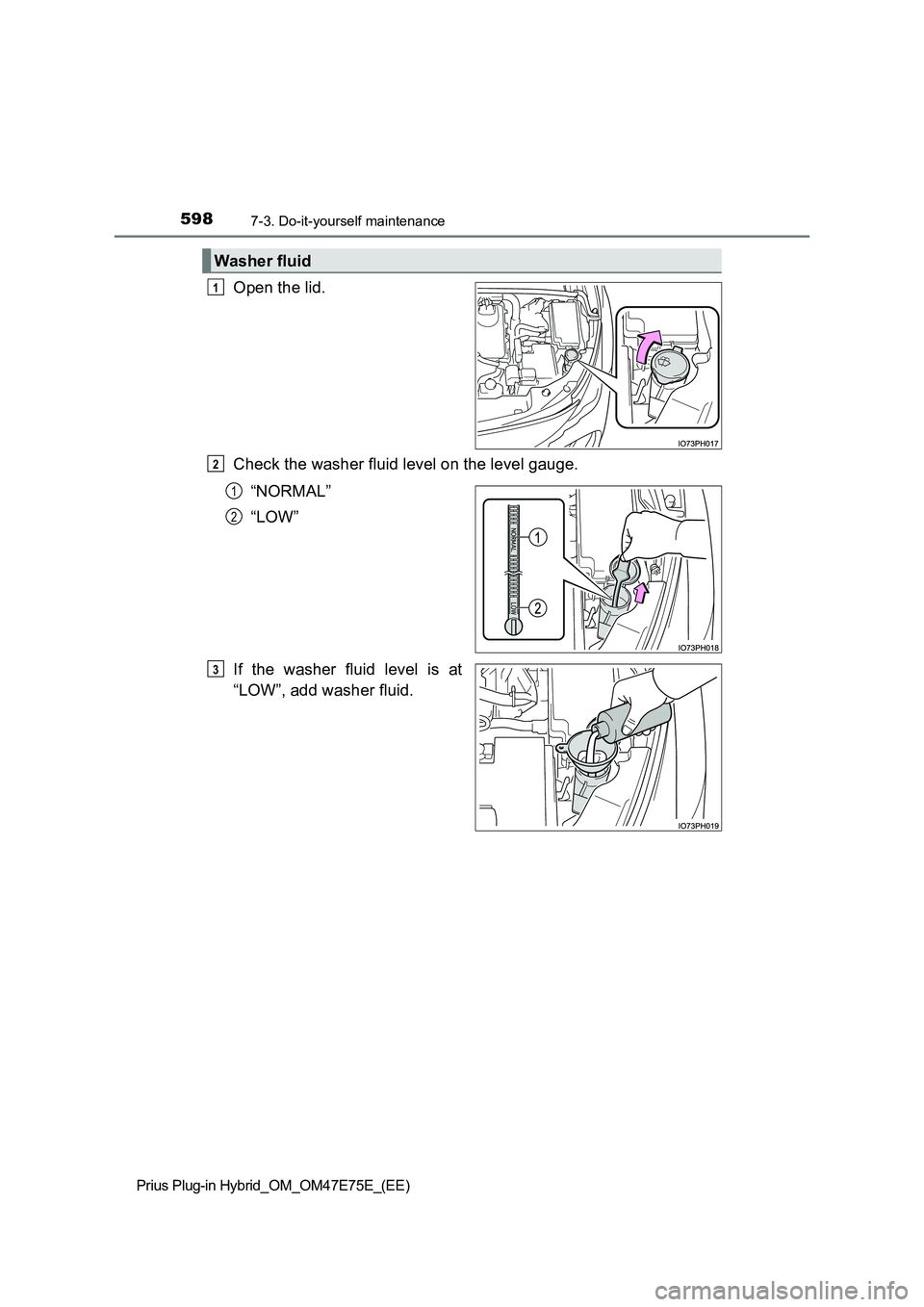

Open the lid.
Check the washer fluid level on the level gauge.
“NORMAL”
“LOW”
If the washer fluid level is at
“LOW”, add washer fluid.
Washer fluid
1
2
1
2
3
