2022 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

3595-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving

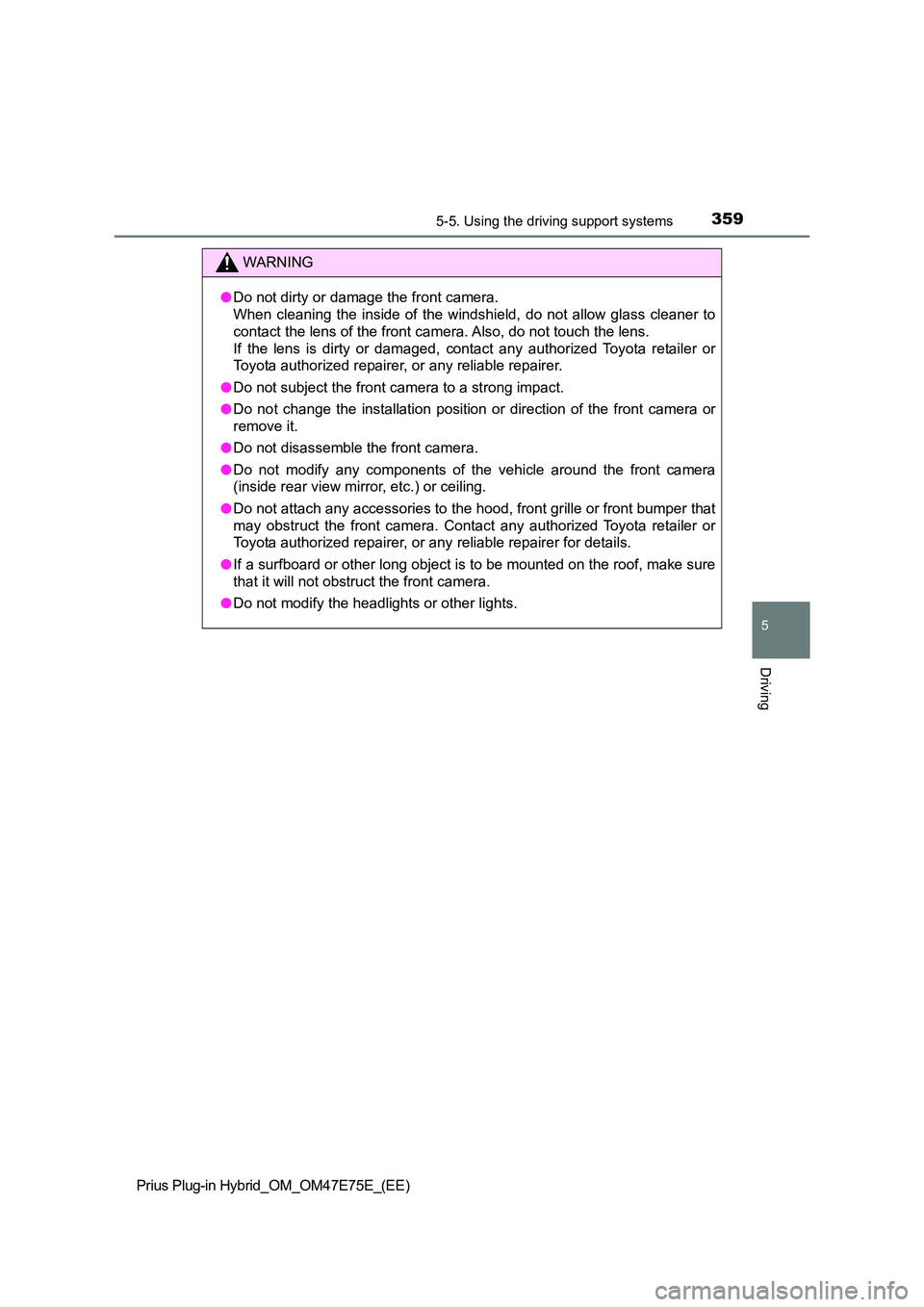

WARNING
ODo not dirty or damage the front camera.
When cleaning the inside of the windshield, do not allow glass cleaner to
contact the lens of the front camera. Also, do not touch the le ns.
If the lens is dirty or damaged, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
O Do not subject the front camera to a strong impact.
O Do not change the installation position or direction of the front camera or
remove it.
O Do not disassemble the front camera.
O Do not modify any components of the vehicle around the front camera
(inside rear view mirror, etc.) or ceiling.
O Do not attach any accessories to the hood, front grille or front bumper that
may obstruct the front camera. Contact any authorized Toyota re tailer or
Toyota authorized repairer, or any reliable repairer for details.
O If a surfboard or other long object is to be mounted on the roof, make sure
that it will not obstruct the front camera.
O Do not modify the headlights or other lights.

3605-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

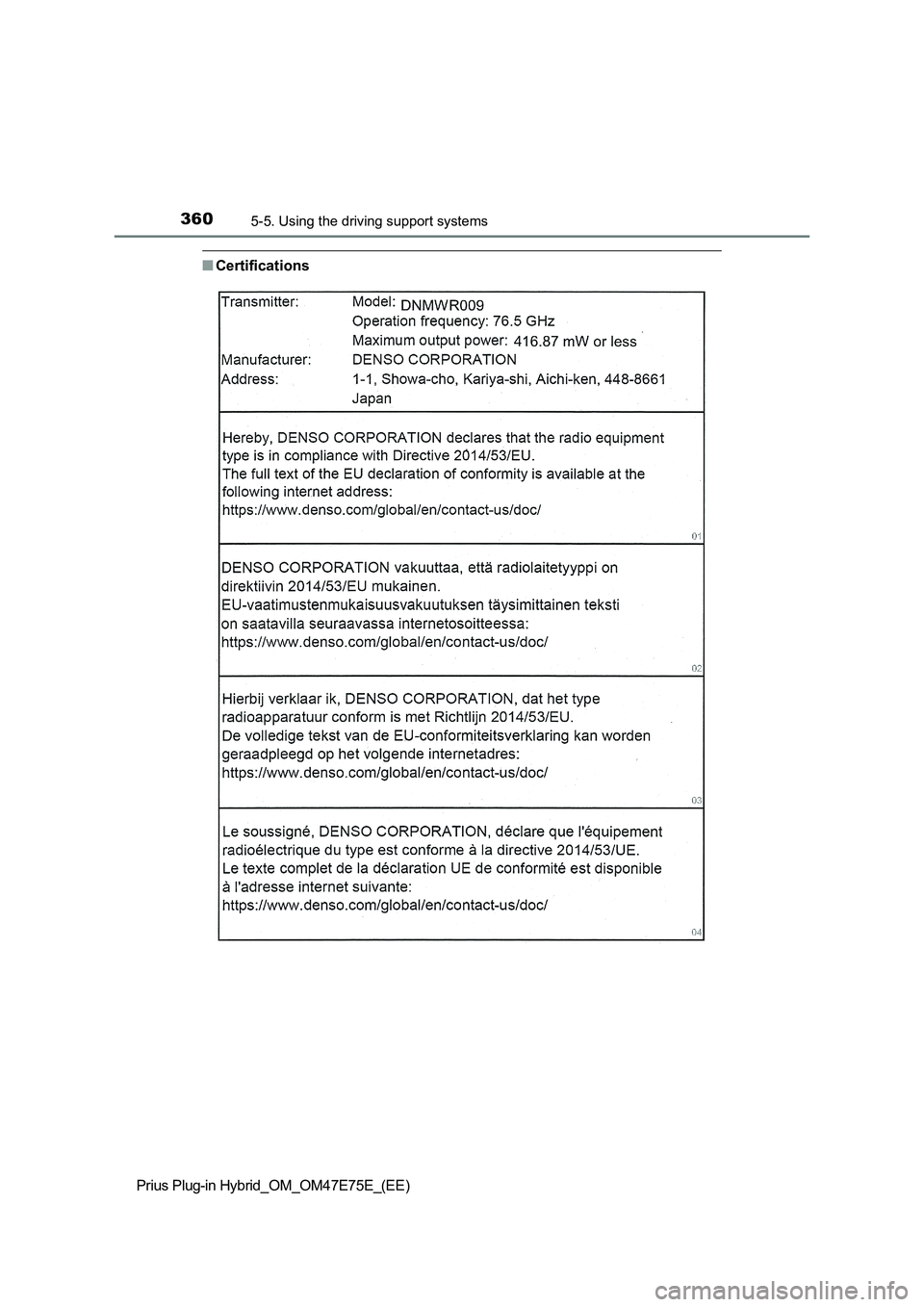

QCertifications

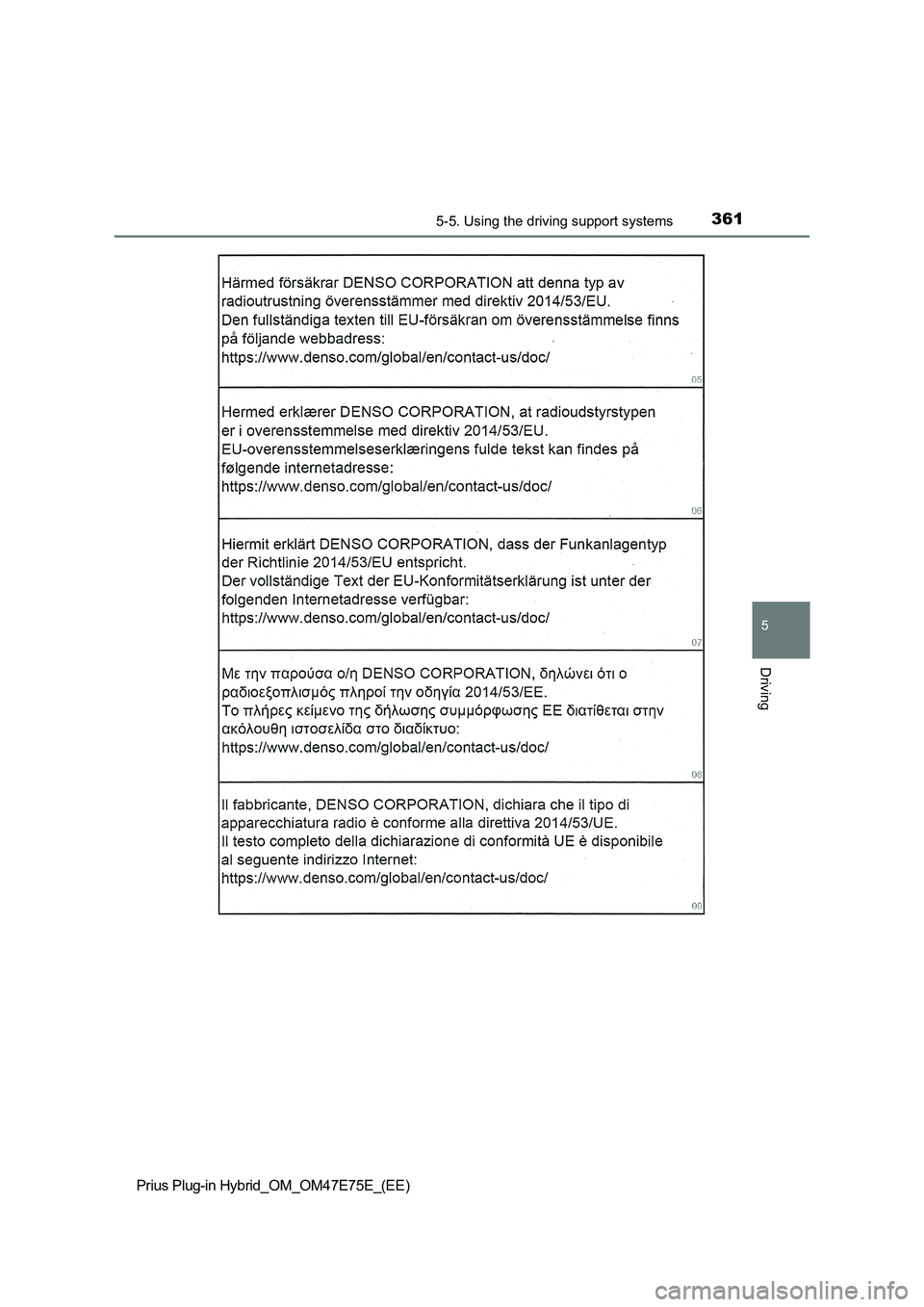

3615-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving

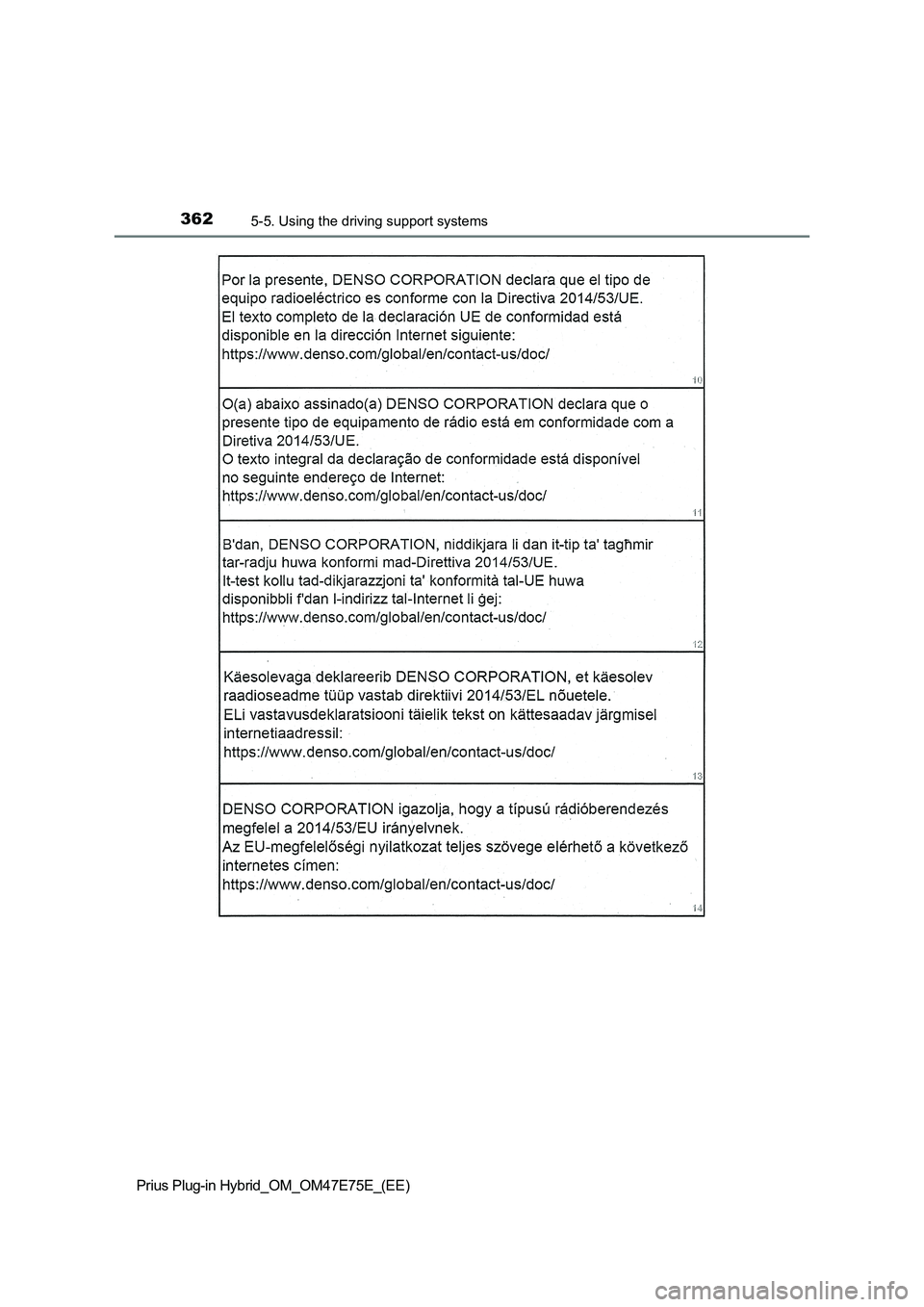

3625-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

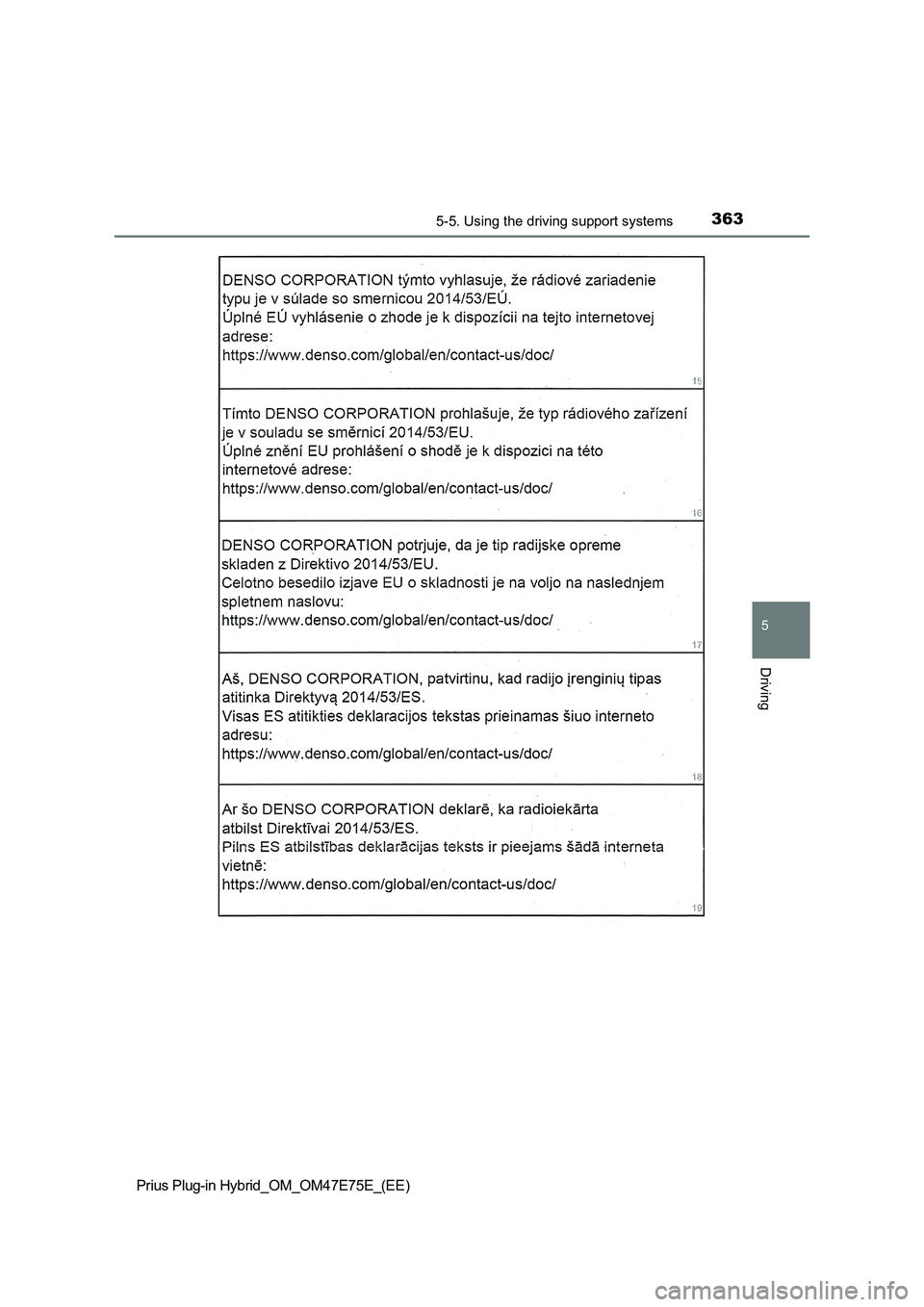

3635-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving

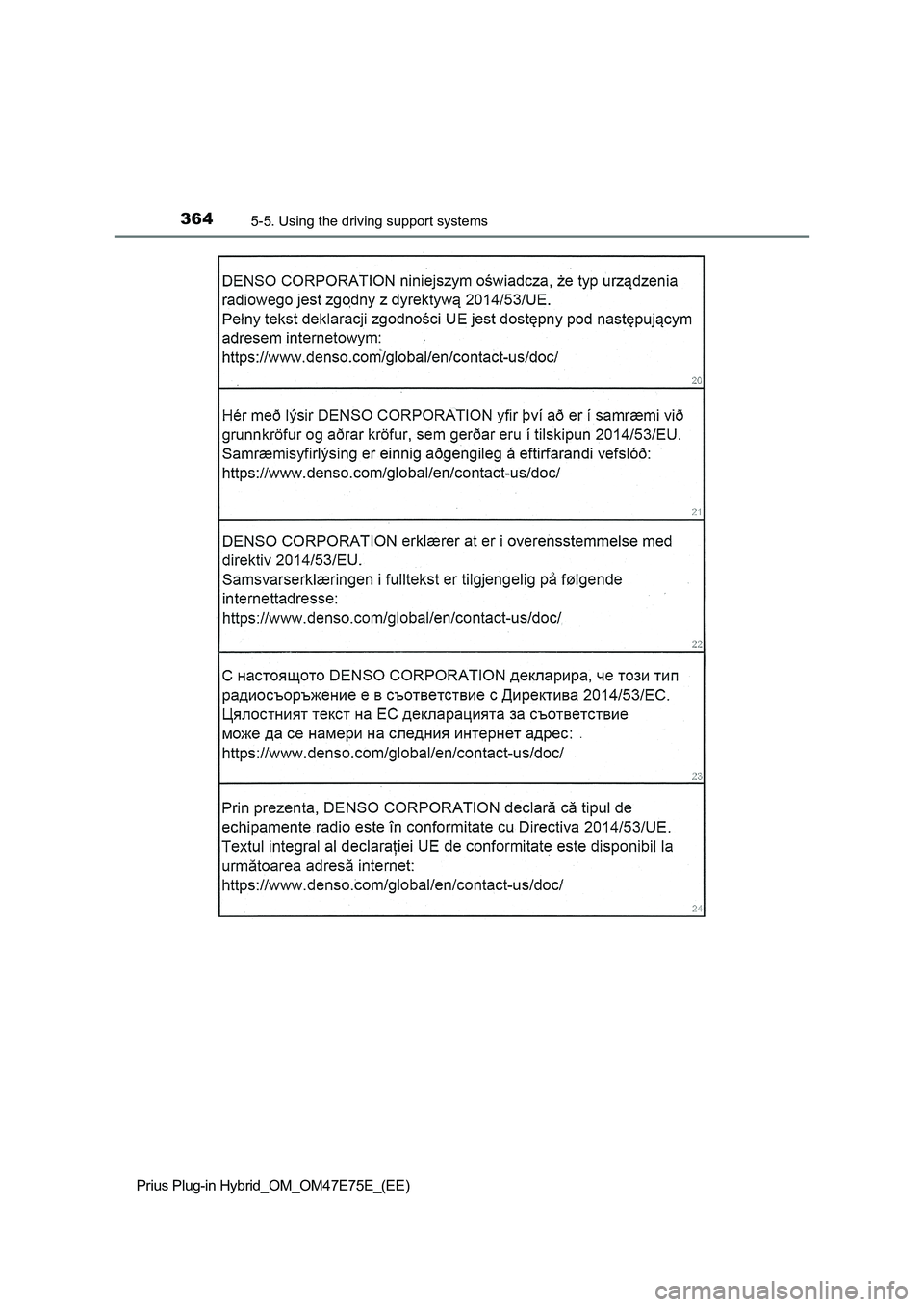

3645-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

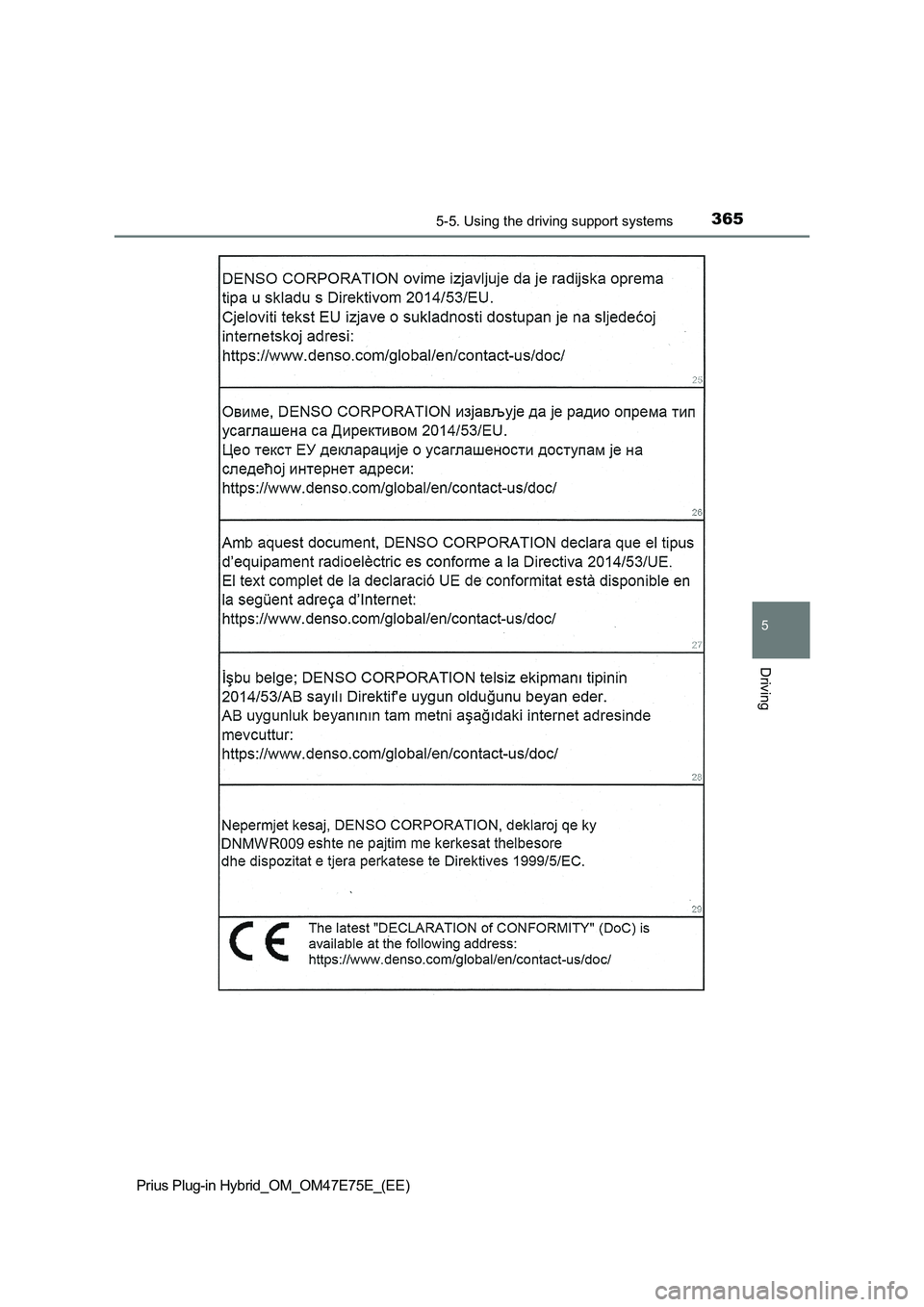

3655-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving

3665-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)QIf a warning message is displayed on the multi-information display
A system may be temporarily unavailable or there may be a malfunction in
the system.
OIn the following situations, perform the actions specified in the table. When
the normal operating conditions are detected, the message will disappear
and the system will become operational.
If the message does not disappear, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
SituationActions
When the area around a cam-
era is covered with dirt, mois-
ture (fogged up, covered with
condensation, ice, etc.), or
other foreign matter
Using the wiper and A/C function,
remove the dirt and other attached mat-
ter. (P. 527)
When the temperature around
the front camera is outside of
the operational range, such as
when the vehicle is in the sun or
in an extremely cold environ-
ment
If the front camera is hot, such as after
the vehicle had been parked in the sun,
use the air conditioning system to
decrease the temperature around the
front camera.
If a sunshade was used when the vehi-
cle was parked, depending on its type,
the sunlight reflected from the surface
of the sunshade may cause the tem-
perature of the front camera to become
excessively high.
If the front camera is cold, such after the
vehicle is parked in an extremely cold
environment, use the air conditioning
system to increase the temperature
around the front camera.
The area in front of the front
camera is obstructed, such as
when the hood is open or a
sticker is attached to the part of
the windshield in front of the
front camera.
Close the hood, remove the sticker, etc.
to clear the obstruction.
When “Pre-Collision System
Unavailable” is displayed.Check whether there is attached materi-
als on the radar sensor and radar sensor
cover, and if there is, remove it.
