2022 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

2954-3. Adjusting the seats
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
4
Operation of each component

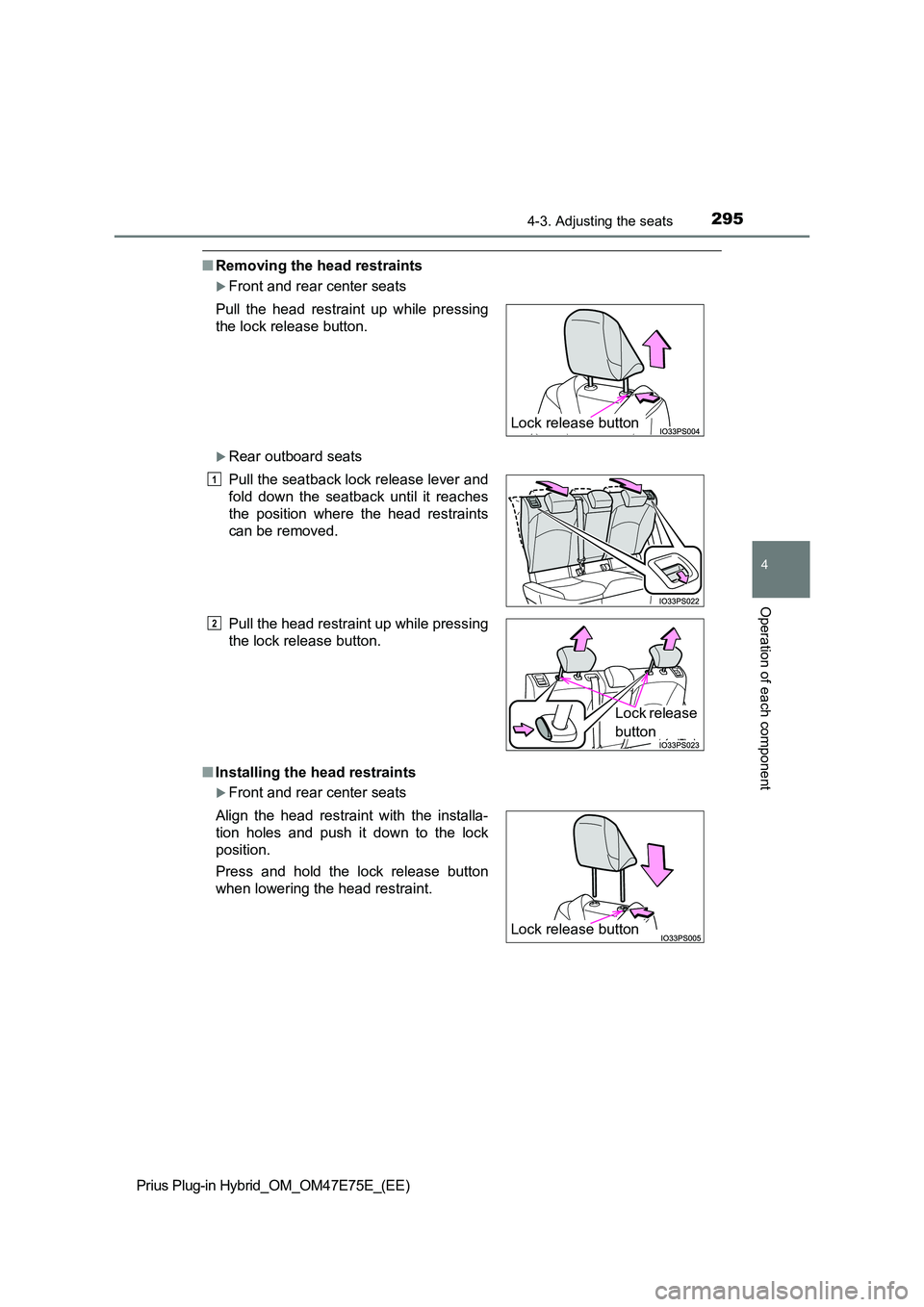

QRemoving the head restraints
Front and rear center seats
Rear outboard seats
Q Installing the head restraints
Front and rear center seats
Pull the head restraint up while pressing
the lock release button.
Pull the seatback lock release lever and
fold down the seatback until it reaches
the position where the head restraints
can be removed.
Pull the head restraint up while pressing
the lock release button.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Lock release button
1
2
Lock release
button
Lock release button

2964-3. Adjusting the seats
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Rear outboard seats
Q Adjusting the height of the head restraints (front seats)
Q Adjusting the rear seat head restraint
Always raise the head restraint one level from the stowed posit ion when
using.
Pull the seatback lock release lever and
fold down the seatback until it reaches
the position where the head restraints
can be installed.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
WARNING
Q Head restraint precautions
Observe the following precautions regarding the head restraints . Failure to
do so may result in death or serious injury.
O Use the head restraints designed for each respective seat.
O Adjust the head restraints to the correct position at all times.
O After adjusting the head restraints, push down on them and make sure
they are locked in position.
O Do not drive with the head restraints removed.
1
2
Lock release
button

2974-4. Adjusting the steering wheel and mirrors
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
4
Operation of each component

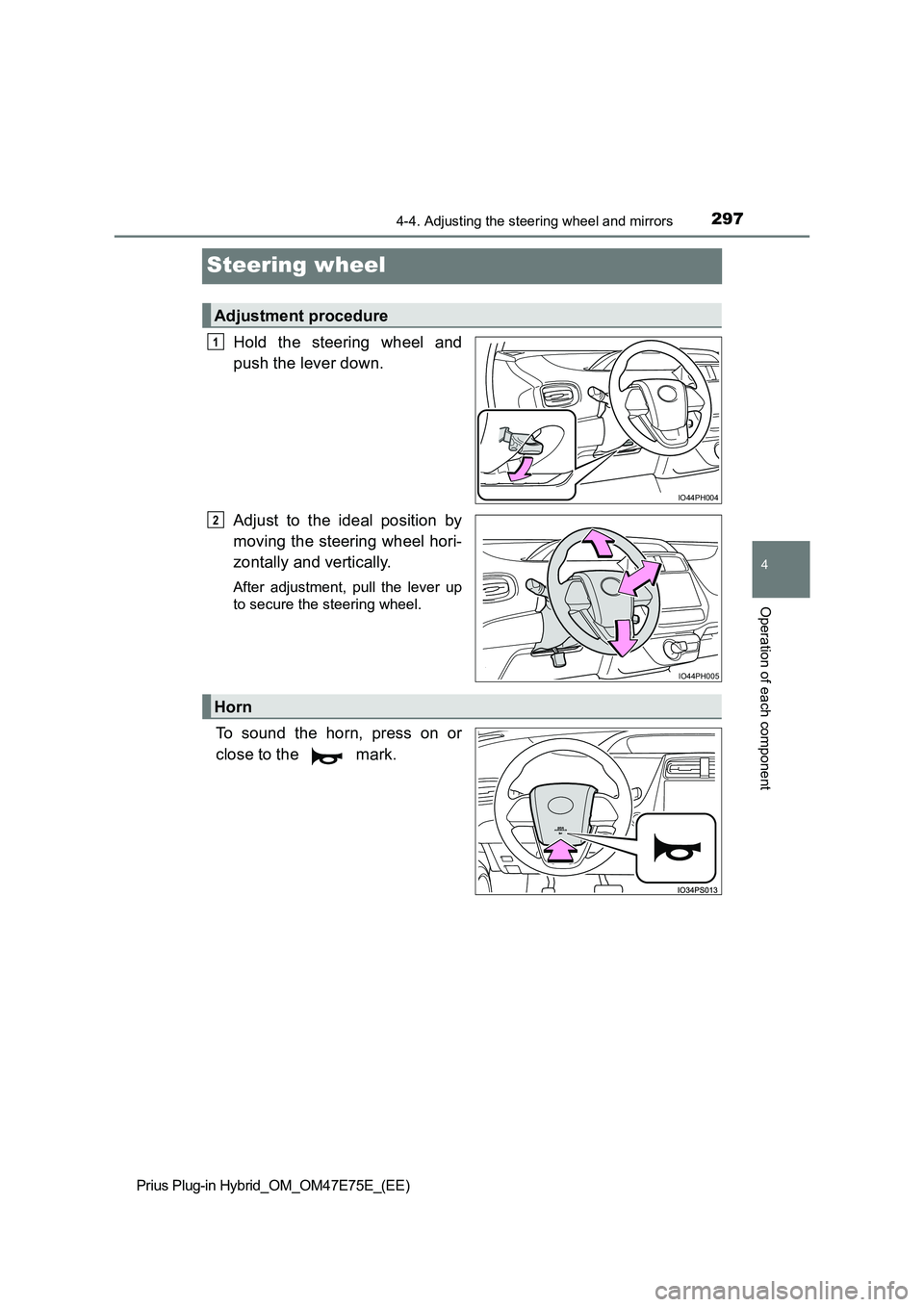

Steering wheel
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
To sound the horn, press on or
close to the mark.
Adjustment procedure
IO44PH004
1
IO44PH005
2
Horn

2984-4. Adjusting the steering wheel and mirrors
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

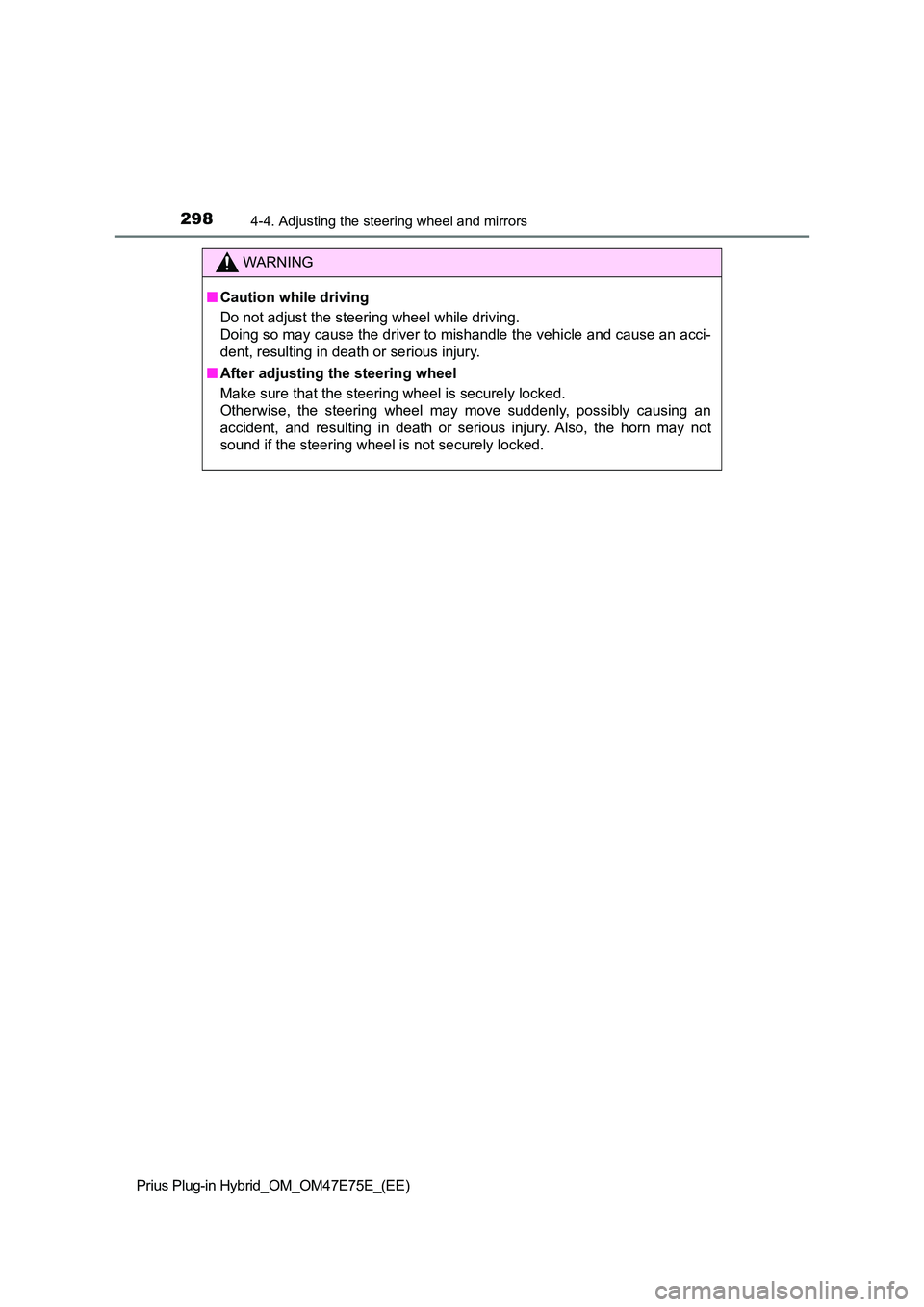

WARNING
QCaution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and caus e an acci-
dent, resulting in death or serious injury.
Q After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causi ng an
accident, and resulting in death or serious injury. Also, the h orn may not
sound if the steering wheel is not securely locked.

2994-4. Adjusting the steering wheel and mirrors
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
4
Operation of each component

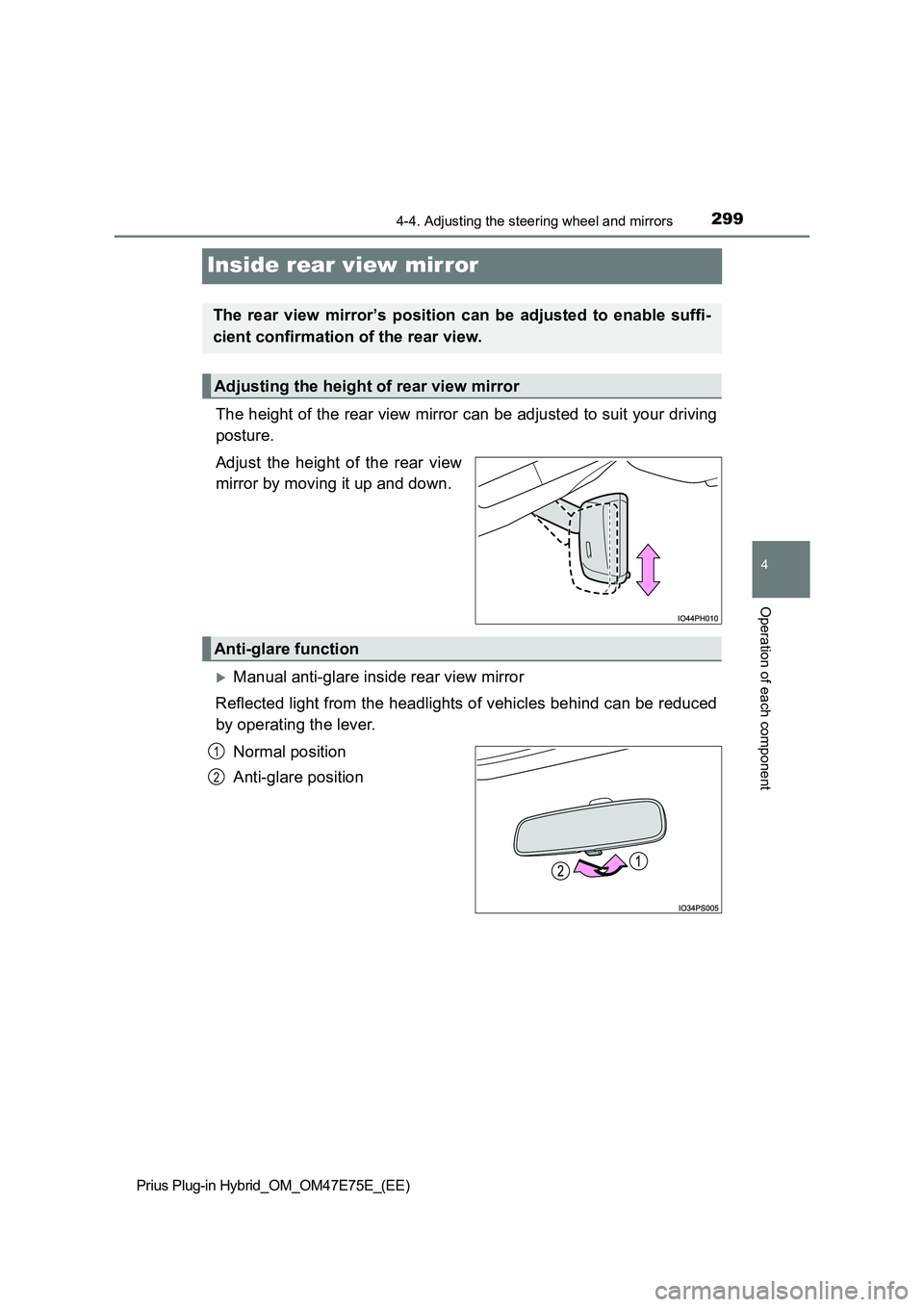

Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
Manual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.
Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.
Adjusting the height of rear view mirror
Anti-glare function
1
2

3004-4. Adjusting the steering wheel and mirrors
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Auto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehi cles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
On/off
When the automatic anti-glare
function is in ON mode, the indica-
tor illuminates.
The function will set to ON mode
each time the power switch is
turned to ON mode.
Pressing the button turns the func-
tion to OFF mode. (The indicator
also turns off.)
Q To prevent sensor error (vehicles with auto anti-glare inside rear view
mirror)
Indicator
To ensure that the sensors operate prop-
erly, do not touch or cover them.
WARNING
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an ac cident,
resulting in death or serious injury.

3014-4. Adjusting the steering wheel and mirrors
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
4
Operation of each component

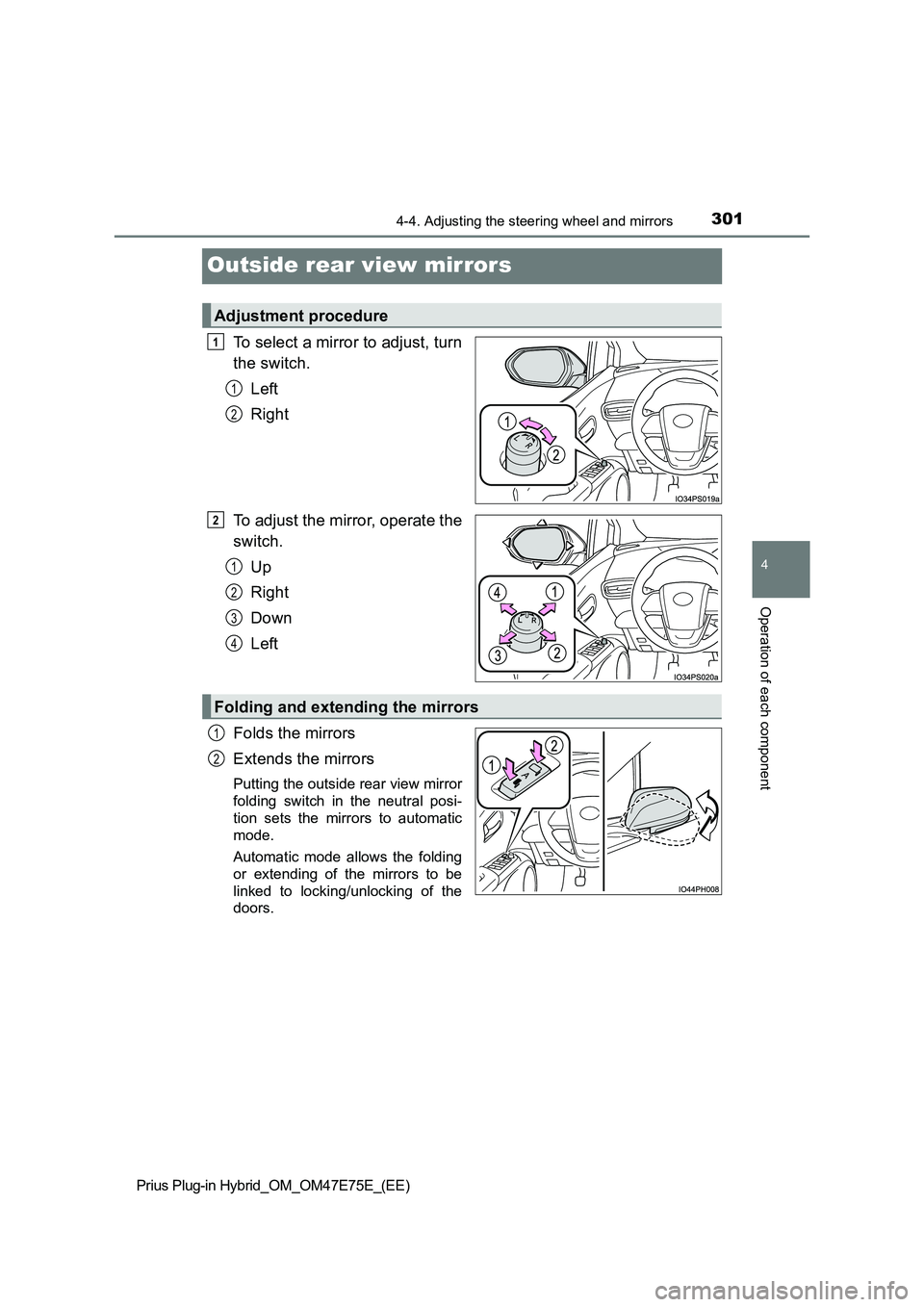

Outside rear view mirrors
To select a mirror to adjust, turn
the switch.
Left
Right
To adjust the mirror, operate the
switch.
Up
Right
Down
Left
Folds the mirrors
Extends the mirrors
Putting the outside rear view mirror
folding switch in the neutral posi-
tion sets the mirrors to automatic
mode.
Automatic mode allows the folding
or extending of the mirrors to be
linked to locking/unlocking of the
doors.
Adjustment procedure
1
1
2
2
1
2
3
4
Folding and extending the mirrors
1
2

3024-4. Adjusting the steering wheel and mirrors
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
QMirror angle can be adjusted when
The power switch is in ACCESSORY or ON mode.
Q When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror d efoggers. Turn
on the rear window defogger to turn on the outside rear view mi rror defog-
gers. ( P. 527)
Q Using automatic mode in cold weather
When automatic mode is used in cold weather, the door mirror co uld freeze
up and automatic stowing and return may not be possible. In thi s event,
remove any ice and snow from the door mirror, then either opera te the mirror
using manual mode or move the mirror by hand.
Q Customization
The automatic mirror folding and extending operation can be cha nged.
(Customizable features: P. 724)
WARNING
QImportant points while driving
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle a nd cause an
accident, resulting in death or serious injury.
O Do not adjust the mirrors while driving.
O Do not drive with the mirrors folded.
O Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
Q When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
Q When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot
and burn you.
