2022 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

5356-1. Using the air conditioning system and defogger
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
6
Interior features

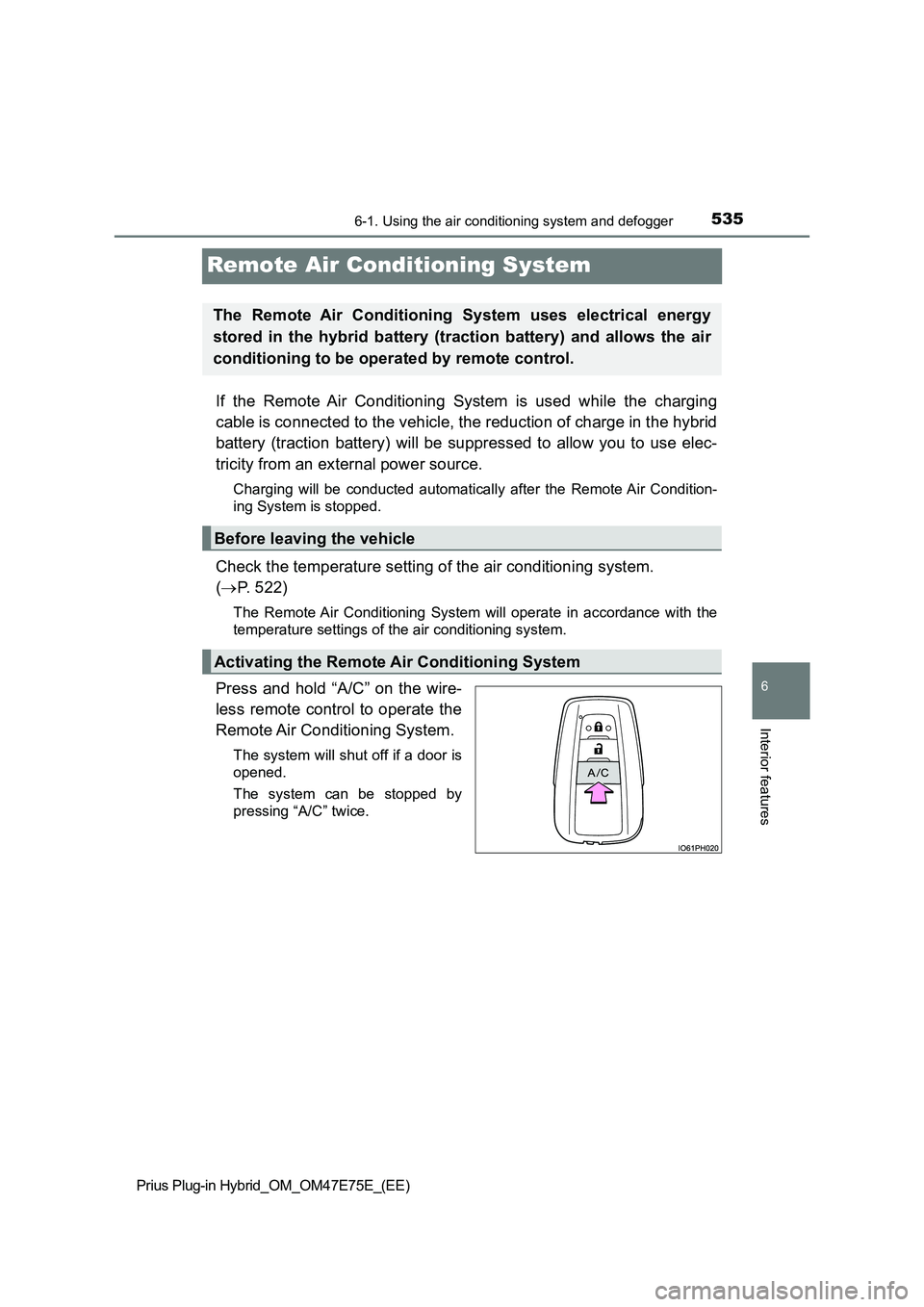

Remote Air Conditioning System
If the Remote Air Conditioning System is used while the charging
cable is connected to the vehicle, the reduction of charge in the hybrid
battery (traction battery) will be suppressed to allow you to use elec-
tricity from an external power source.
Charging will be conducted automatically after the Remote Air Condition-
ing System is stopped.
Check the temperature setting of the air conditioning system.
(P. 522)
The Remote Air Conditioning System will operate in accordance with the
temperature settings of the air conditioning system.
Press and hold “A/C” on the wire-
less remote control to operate the
Remote Air Conditioning System.
The system will shut off if a door is
opened.
The system can be stopped by
pressing “A/C” twice.
The Remote Air Conditioning System uses electrical energy
stored in the hybrid battery (traction battery) and allows the air
conditioning to be operated by remote control.
Before leaving the vehicle
Activating the Remote Air Conditioning System

5366-1. Using the air conditioning system and defogger
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
QOperating conditions
The system will only operate if all of the following conditions are met:
OThe shift position is in P.
OThe power switch is off.
*
OAll doors are closed.
OThe hood is closed.
*: The Remote Air Conditioning System cannot be used for approximately 3
minutes and a half after the power switch is turned off.
QRemote Air Conditioning System automatic shut-off
The system will automatically shut off under the following conditions:
OAbout 10 minutes have passed since operation began
OAny one of the operating conditions is not met
The system may also shut off if the charge level of the hybrid battery (traction
battery) drops to low.
QConditions affecting operation
The system may not start in the following situations:
OThe charge level of the hybrid battery (traction battery) is low
OThe outside temperature is extremely low
OWhen the hybrid system is cool (for example, after being left for a long time
in low temperatures)
QWindshield defogger
When defogging the windshield using the Remote Air Conditioning System,
defogging may be insufficient due to the power being restricted more than
during normal air conditioning operation. Also, the outside of the windshield
may fog up due to the outside temperature, humidity or air conditioning set
temperature.
QUsing the heater via the Remote Air Conditioning System
When the outside heat exchanger becomes frosted over, heating perfor-
mance may decline due to automatically switching to the frost removal opera-
tion.
QSecurity feature
Any unlocked doors will be automatically locked when the system is operat-
ing. The emergency flashers flash to indicate that the doors have been locked
or the system has been turned off.
(The doors locked: Once; The system turned off: Twice)
QConditions affecting operation
P. 286

5376-1. Using the air conditioning system and defogger
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
6
Interior features
QWhen using the Remote Air Conditioning System
A charging message will be displayed on the multi-information display. Differ-
ent messages will be displayed depending on when the Remote Air Condi-
tioning System was started (after charging or during charging).
QWhile the Remote Air Conditioning System is operating
ODepending on the operating condition of the Remote Air Conditioning Sys-
tem, the electric fan may spin and an operating noise may be heard.
However, this does not indicate a malfunction.
OThe Remote Air Conditioning System may stop operating temporarily if
other features that use electricity (for example, the seat heater, lights, wind-
shield wipers) are in operation or if the charge level of the 12-volt battery
becomes low.
OThe headlights, windshield wiper, combination meter, etc. will not operate
while the Remote Air Conditioning System is operating.
QElectronic key battery depletion
P. 270
QWhen the electronic key battery is fully depleted
P. 631
QCustomization
Setting (e.g. Operation using “A/C” on the wireless remote control) can be
changed. (Customizable features: P. 724)

5386-1. Using the air conditioning system and defogger
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

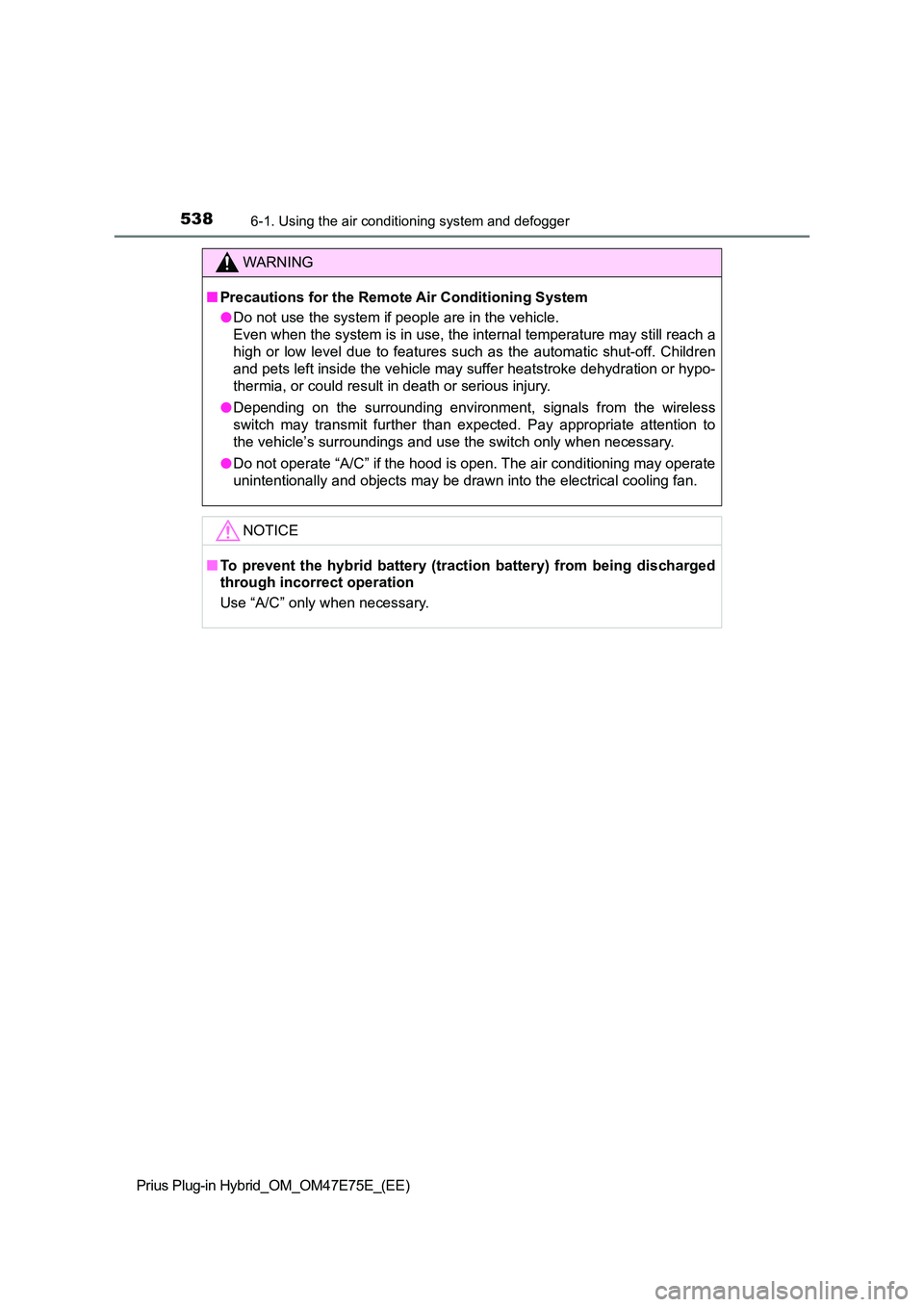

WARNING
QPrecautions for the Remote Air Conditioning System
O Do not use the system if people are in the vehicle.
Even when the system is in use, the internal temperature may st ill reach a
high or low level due to features such as the automatic shut-of f. Children
and pets left inside the vehicle may suffer heatstroke dehydrat ion or hypo-
thermia, or could result in death or serious injury.
O Depending on the surrounding environment, signals from the wireless
switch may transmit further than expected. Pay appropriate atte ntion to
the vehicle’s surroundings and use the switch only when necessa ry.
O Do not operate “A/C” if the hood is open. The air conditioning may operate
unintentionally and objects may be drawn into the electrical co oling fan.
NOTICE
QTo prevent the hybrid battery (traction battery) from being discharged
through incorrect operation
Use “A/C” only when necessary.

5396-1. Using the air conditioning system and defogger
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
6
Interior features

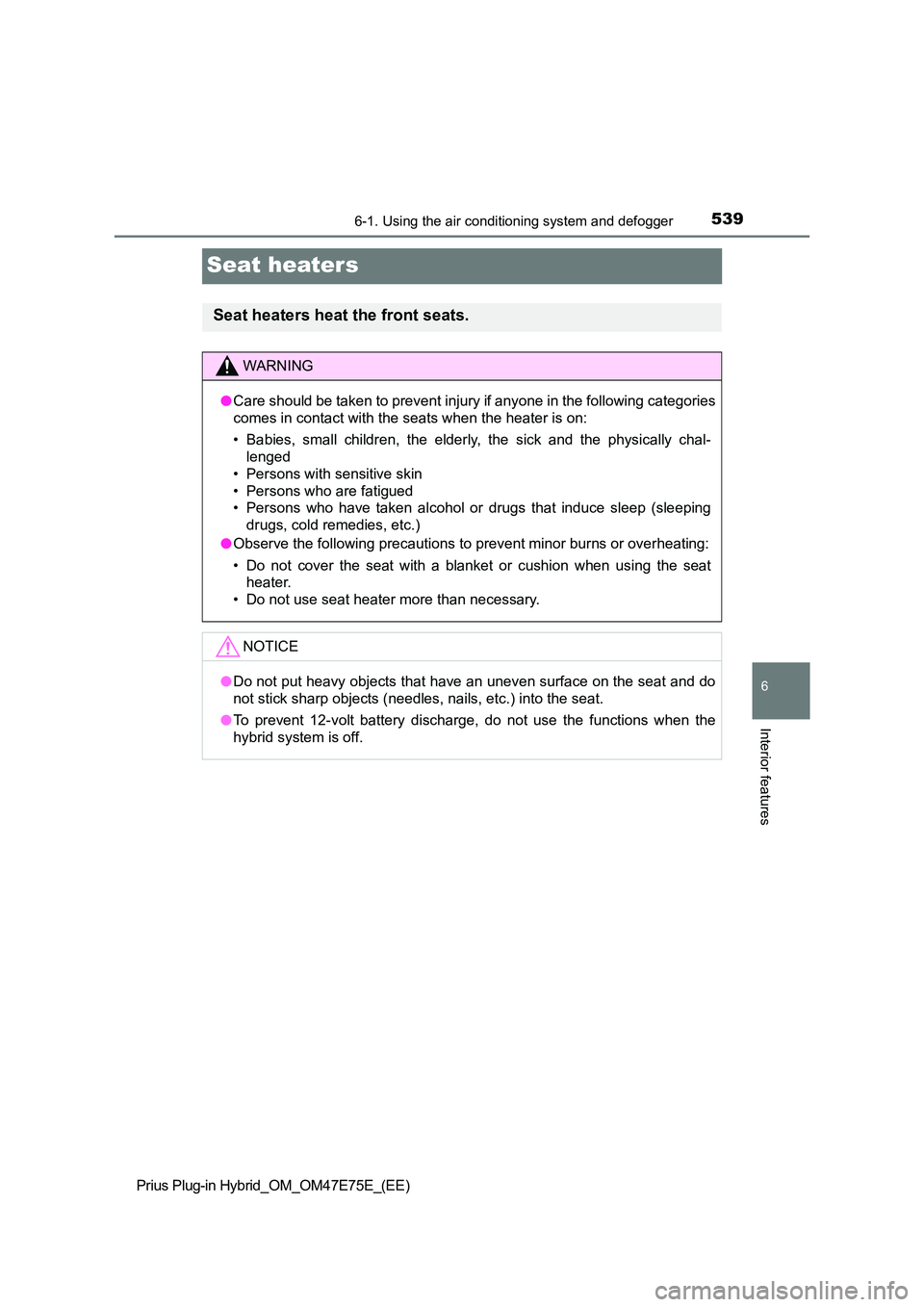

Seat heaters
Seat heaters heat the front seats.
WARNING
OCare should be taken to prevent injury if anyone in the following categories
comes in contact with the seats when the heater is on:
• Babies, small children, the elderly, the sick and the physical ly chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sle eping
drugs, cold remedies, etc.)
O Observe the following precautions to prevent minor burns or overheating:
• Do not cover the seat with a blanket or cushion when using the seat
heater.
• Do not use seat heater more than necessary.
NOTICE
O Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
O To prevent 12-volt battery discharge, do not use the functions when the
hybrid system is off.

5406-1. Using the air conditioning system and defogger
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

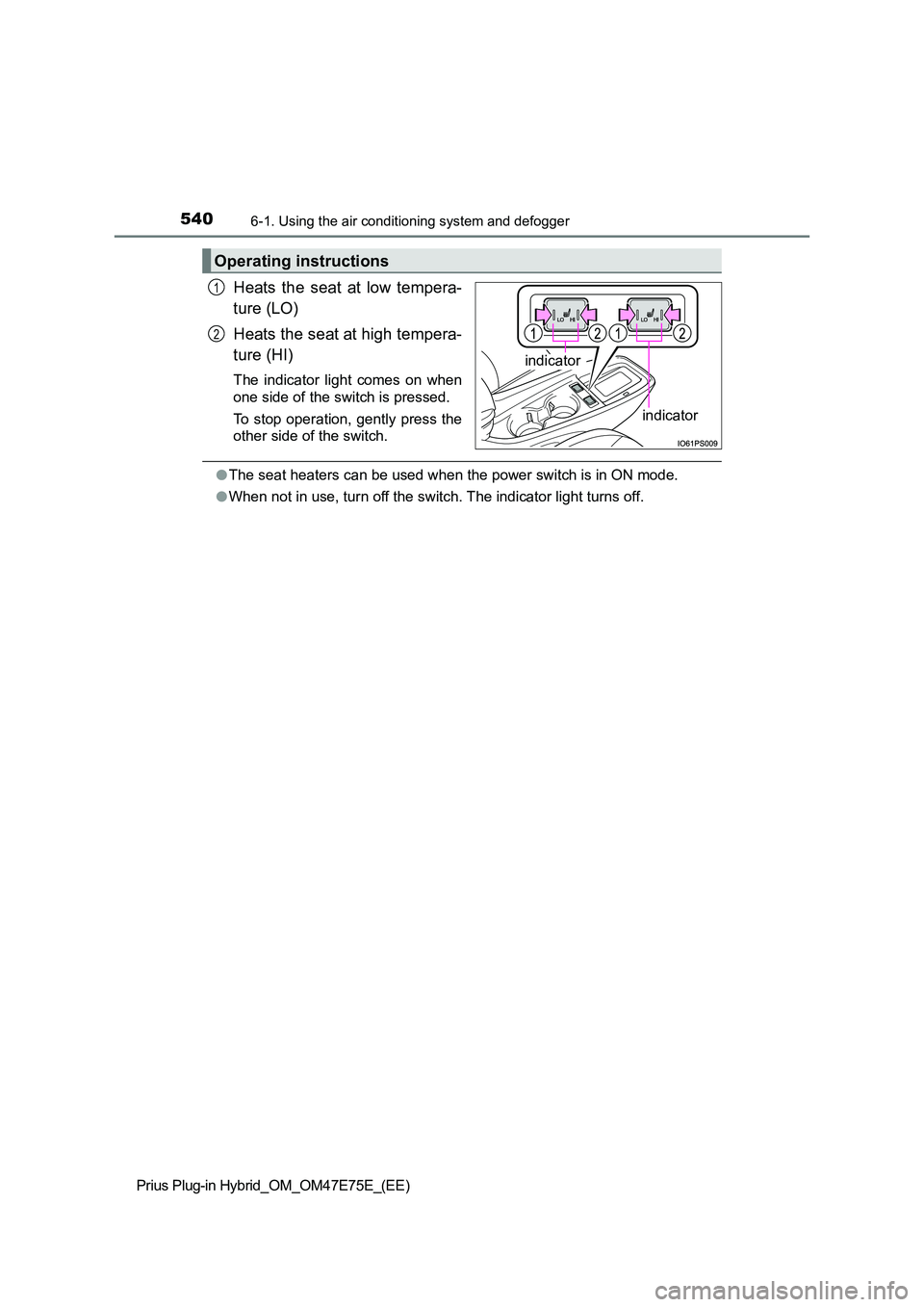

Heats the seat at low tempera-
ture (LO)
Heats the seat at high tempera-
ture (HI)
The indicator light comes on when
one side of the switch is pressed.
To stop operation, gently press the
other side of the switch.
O The seat heaters can be used when the power switch is in ON mode.
O When not in use, turn off the switch. The indicator light turns off.
Operating instructions
indicator
indicator
1
2

5416-2. Using the interior lights
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
6
Interior features

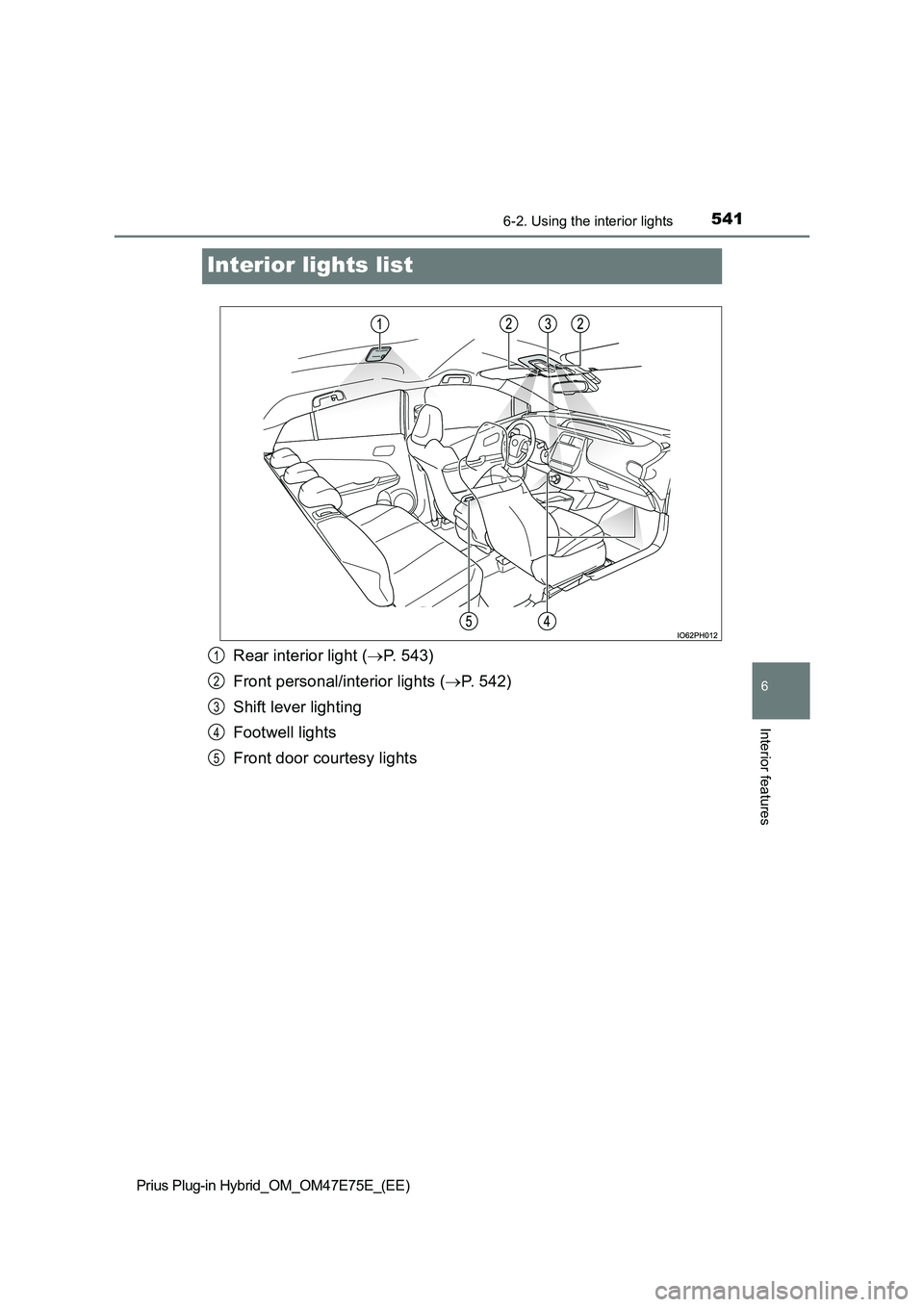

Interior lights list
Rear interior light (P. 5 4 3 )
Front personal/interior lights (P. 542)
Shift lever lighting
Footwell lights
Front door courtesy lights1
2
3
4
5

5426-2. Using the interior lights
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

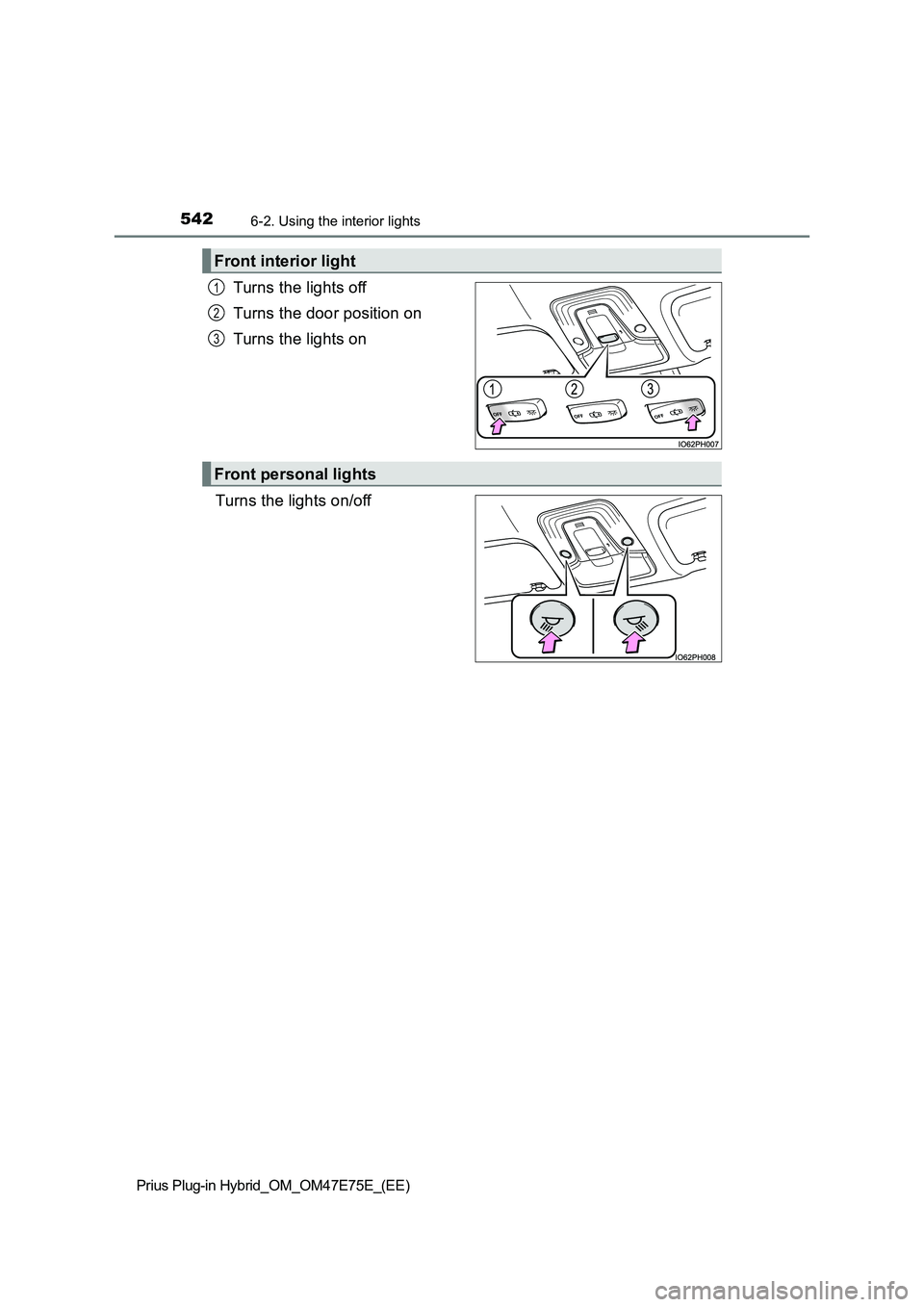

Turns the lights off
Turns the door position on
Turns the lights on
Turns the lights on/off
Front interior light
1
2
3
Front personal lights
