2022 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

471-1. For safe use
1
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
For safety and security

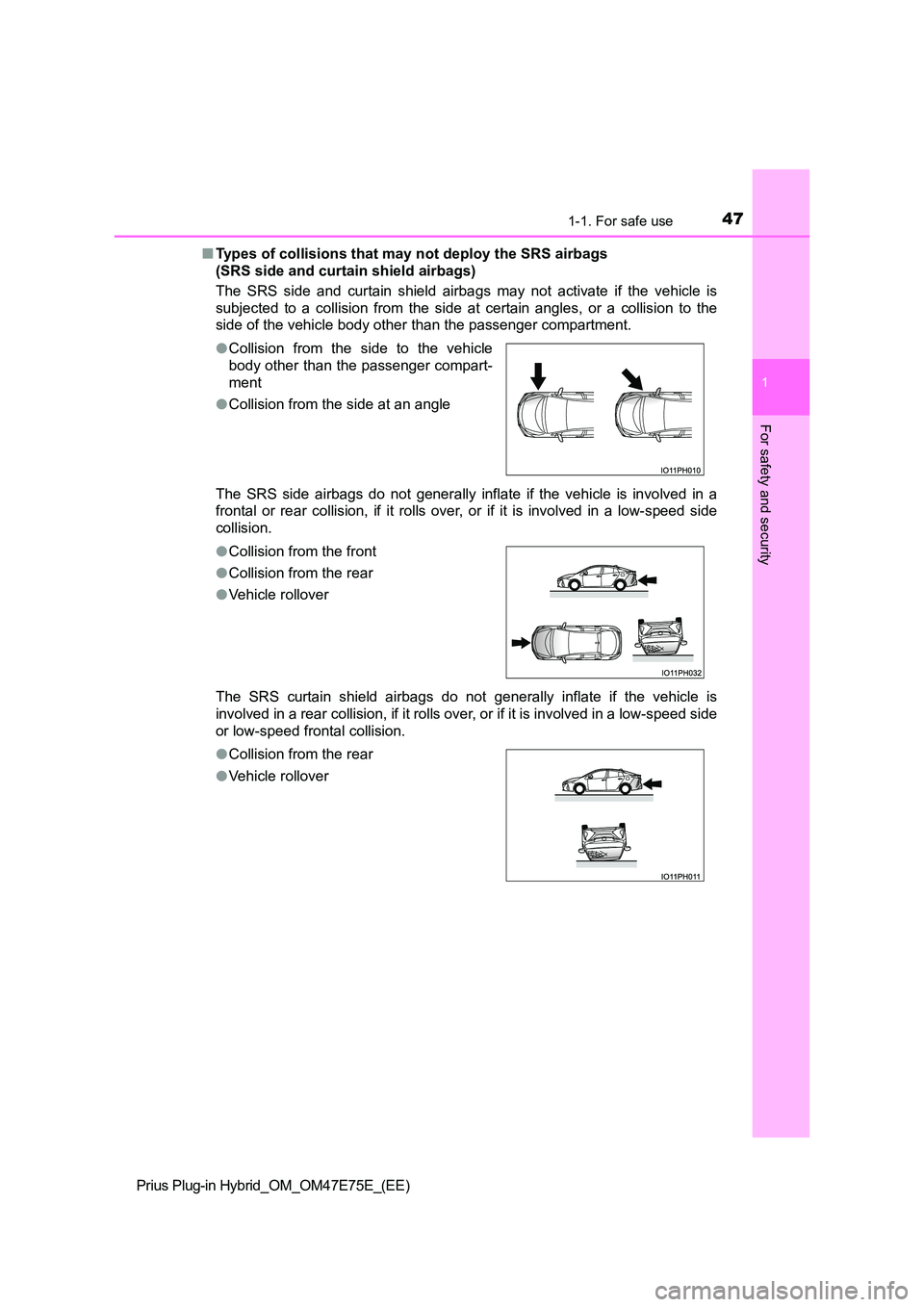

QTypes of collisions that may not deploy the SRS airbags
(SRS side and curtain shield airbags)
The SRS side and curtain shield airbags may not activate if the vehicle is
subjected to a collision from the side at certain angles, or a collision to the
side of the vehicle body other than the passenger compartment.
The SRS side airbags do not generally inflate if the vehicle is involved in a
frontal or rear collision, if it rolls over, or if it is involv ed in a low-speed side
collision.
The SRS curtain shield airbags do not generally inflate if the vehicle is
involved in a rear collision, if it rolls over, or if it is inv olved in a low-speed side
or low-speed frontal collision.
O Collision from the side to the vehicle
body other than the passenger compart-
ment
O Collision from the side at an angle
O Collision from the front
O Collision from the rear
O Vehicle rollover
O Collision from the rear
O Vehicle rollover

481-1. For safe use
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Q When to contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer
In the following cases, the vehicle will require inspection and /or repair. Con-
tact any authorized Toyota retailer or Toyota authorized repair er, or any reli-
able repairer as soon as possible.
O Any of the SRS airbags have been inflated.
O The front of the vehicle is damaged or
deformed, or was involved in an acci-
dent that was not severe enough to
cause the SRS front airbags to inflate.
O A portion of a door or its surrounding
area is damaged, deformed or has had a
hole made in it, or the vehicle was
involved in an accident that was not
severe enough to cause the SRS side
and curtain shield airbags to inflate.
O The pad section of the steering wheel,
dashboard near the front passenger air-
bag or lower portion of the driver’s side
instrument panel is scratched, cracked,
or otherwise damaged.
O The surface of the seats with the SRS
side airbag is scratched, cracked, or oth-
erwise damaged.

491-1. For safe use
1
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
For safety and security

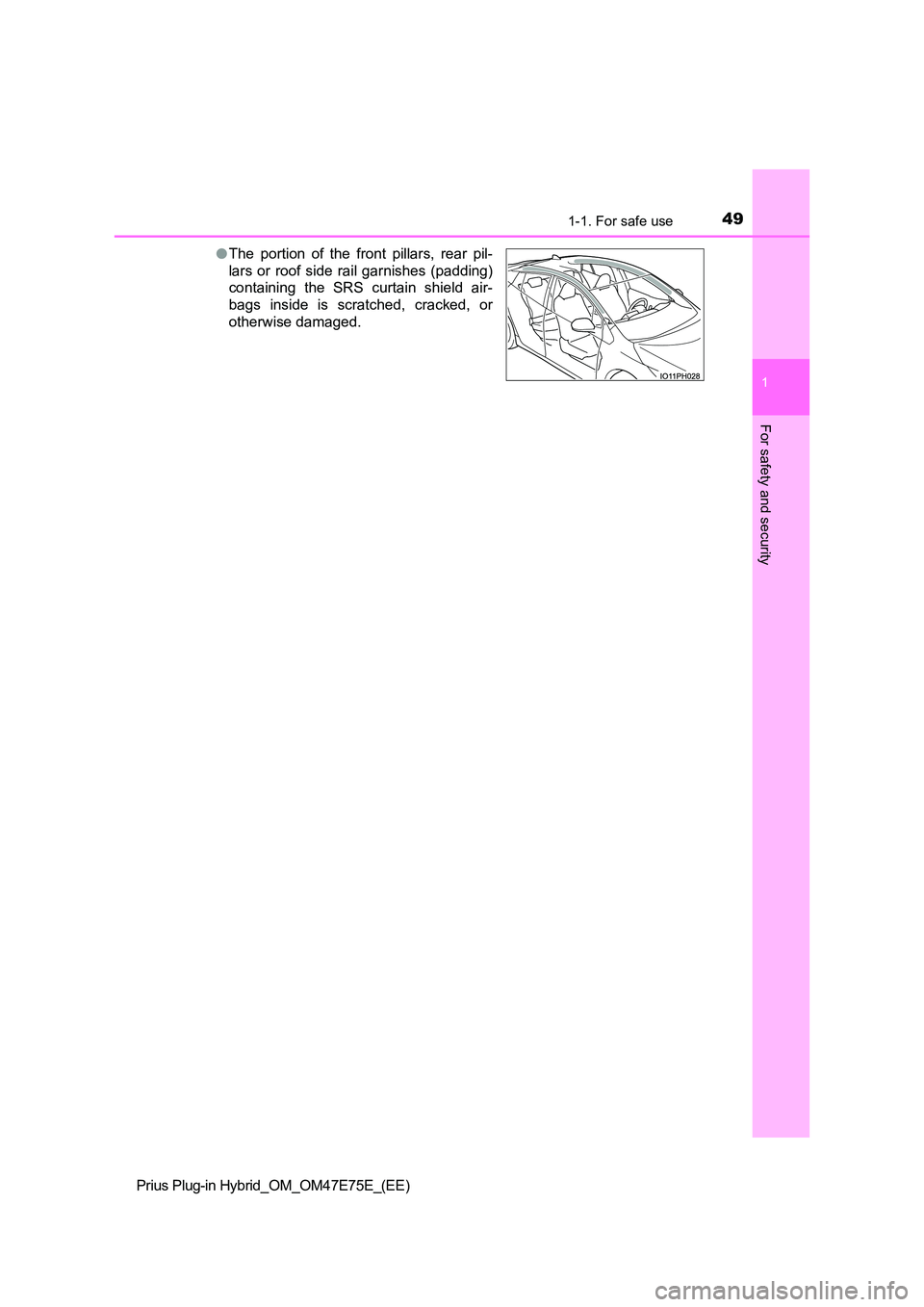

OThe portion of the front pillars, rear pil-
lars or roof side rail garnishes (padding)
containing the SRS curtain shield air-
bags inside is scratched, cracked, or
otherwise damaged.

501-1. For safe use
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

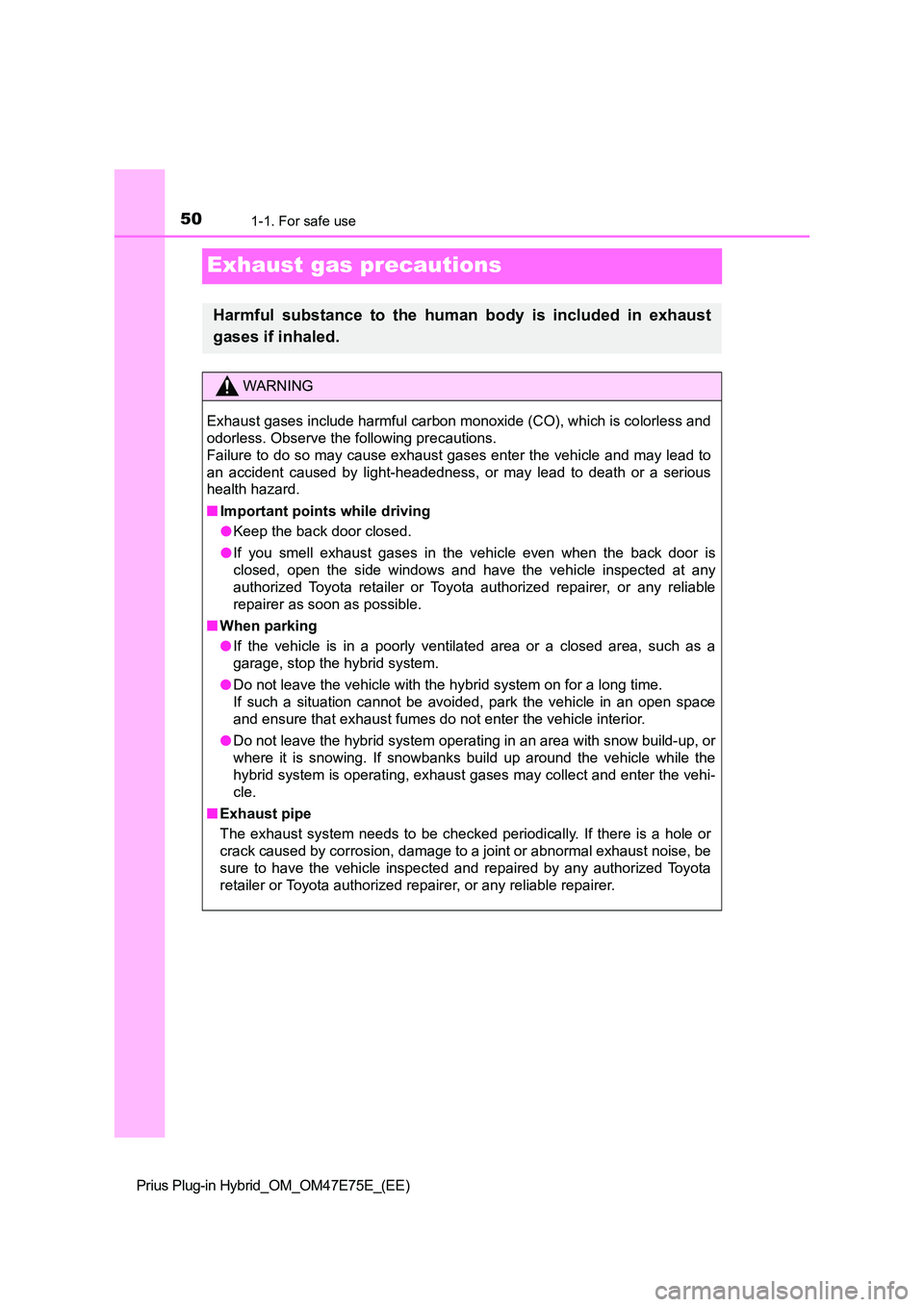

Exhaust gas precautions
Harmful substance to the human body is included in exhaust
gases if inhaled.
WARNING
Exhaust gases include harmful carbon monoxide (CO), which is co lorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to
an accident caused by light-headedness, or may lead to death or a serious
health hazard.
Q Important points while driving
O Keep the back door closed.
O If you smell exhaust gases in the vehicle even when the back door is
closed, open the side windows and have the vehicle inspected at any
authorized Toyota retailer or Toyota authorized repairer, or an y reliable
repairer as soon as possible.
Q When parking
O If the vehicle is in a poorly ventilated area or a closed area, such as a
garage, stop the hybrid system.
O Do not leave the vehicle with the hybrid system on for a long time.
If such a situation cannot be avoided, park the vehicle in an o pen space
and ensure that exhaust fumes do not enter the vehicle interior .
O Do not leave the hybrid system operating in an area with snow build-up, or
where it is snowing. If snowbanks build up around the vehicle w hile the
hybrid system is operating, exhaust gases may collect and enter the vehi-
cle.
Q Exhaust pipe
The exhaust system needs to be checked periodically. If there i s a hole or
crack caused by corrosion, damage to a joint or abnormal exhaus t noise, be
sure to have the vehicle inspected and repaired by any authoriz ed Toyota
retailer or Toyota authorized repairer, or any reliable repaire r.

511-2. Child safety
1
For safety and security
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

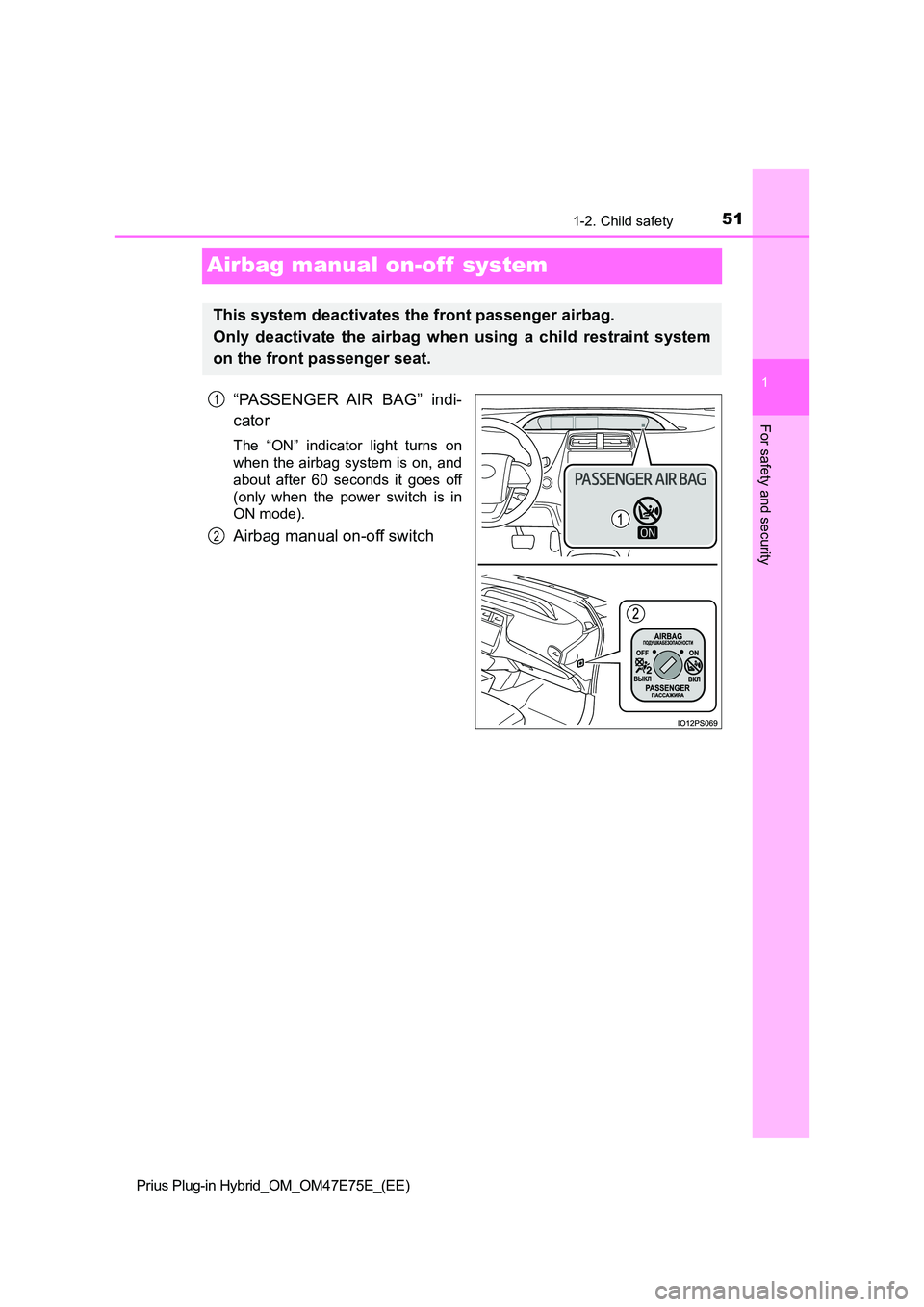

Airbag manual on-off system
“PASSENGER AIR BAG” indi-
cator
The “ON” indicator light turns on
when the airbag system is on, and
about after 60 seconds it goes off
(only when the power switch is in
ON mode).
Airbag manual on-off switch
This system deactivates the front passenger airbag.
Only deactivate the airbag when using a child restraint system
on the front passenger seat.
1
2

521-2. Child safety
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Insert the mechanical key into the
cylinder and turn to the “OFF”
position.
The “OFF” indicator light turns on
(only when the power switch is in
ON mode).
Q “PASSENGER AIR BAG” indicator information
If any of the following problems occur, it is possible that the re is a malfunction
in the system. Have the vehicle inspected by any authorized Toy ota retailer or
Toyota authorized repairer, or any reliable repairer.
O The “OFF” indicator does not illuminate when the airbag manual on-off
switch is set to “OFF”.
O The indicator light does not change when the airbag manual on-off switch is
switched to “ON” or “OFF”.
Deactivating the airbags for the front passenger
WARNING
Q When installing a child restraint system
For safety reasons, always install the child restraint system i n a rear seat. In
the event that the rear seat cannot be used, the front seat can be used as
long as the airbag manual on-off system is set to “OFF”.
If the airbag manual on-off system is left on, the strong impac t of the airbag
deployment (inflation) may cause serious injury or even death.
Q When a child restraint system is not installed on the front passenger
seat
Ensure that the airbag manual on-off system is set to “ON”.
If it is left off, the airbag may not deploy in the event of an accident, which
may result in serious injury or even death.

531-2. Child safety
1
For safety and security
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Riding with children
OIt is recommended that children sit in the rear seats to avoid acci-
dental contact with the shift lever, wiper switch etc.
O Use the rear door child-protector lock or the window lock switch to
avoid children opening the door while driving or operating the
power window accidentally. ( P. 276, 303)
O Do not let small children operate equipment which may catch or
pinch body parts, such as the power window, hood, back door,
seats etc.
Observe the following precautions when children are in the vehi -
cle.
Use a child restraint system appropriate for the child, until t he
child becomes large enough to properly wear the vehicle’s seat
belt.
WARNING
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by p laying with
the side windows or other features of the vehicle. In addition, heat build-up
or extremely cold temperatures inside the vehicle can be fatal to children.

541-2. Child safety
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

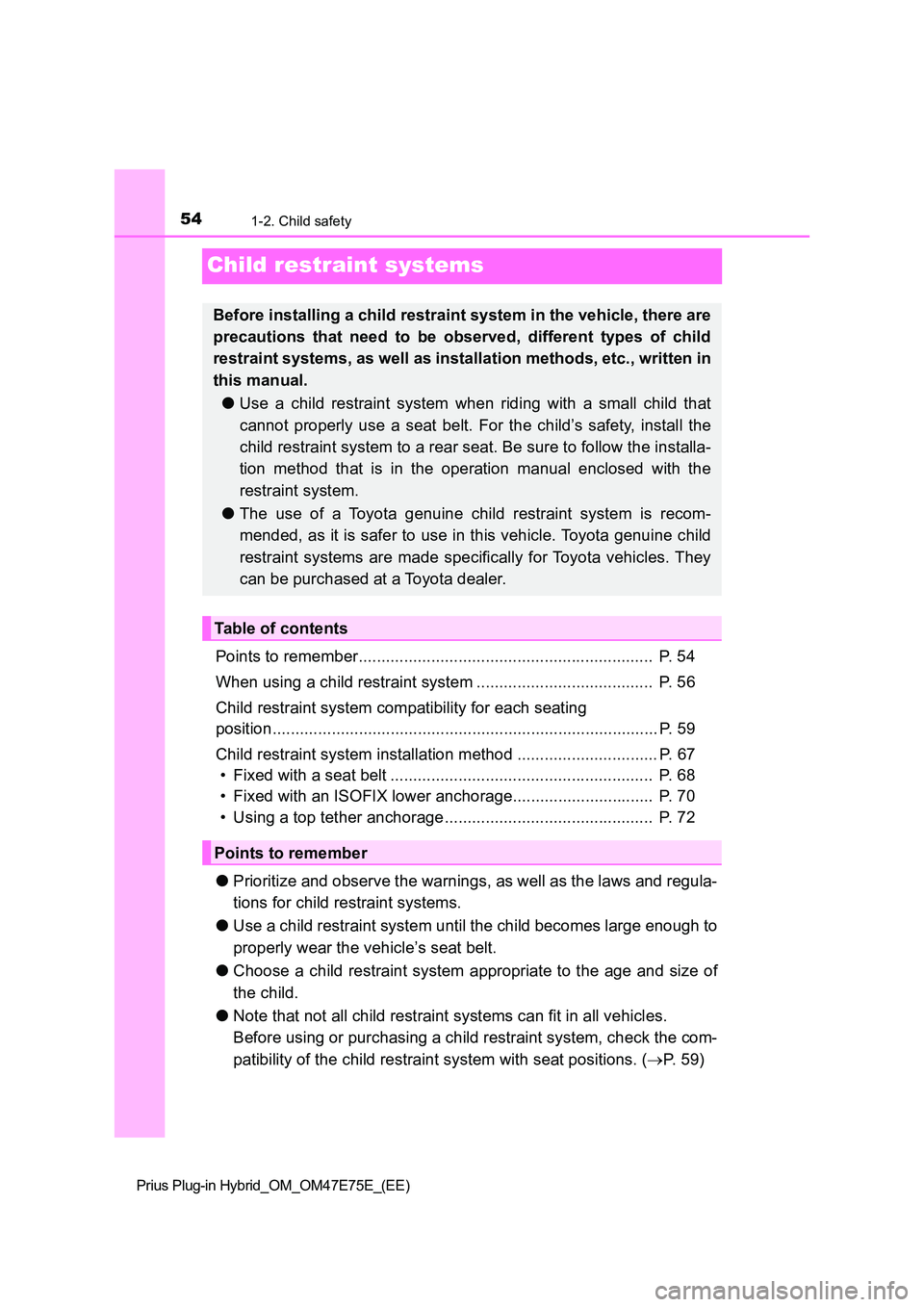

Child restraint systems
Points to remember................................................................. P. 54
When using a child restraint system ............................ ........... P. 56
Child restraint system compatibility for each seating
position....................................................... .............................. P. 59
Child restraint system installation method ..................... .......... P. 67
• Fixed with a seat belt ........................................ .................. P. 68
• Fixed with an ISOFIX lower anchorage.......................... ..... P. 70
• Using a top tether anchorage .................................. ............ P. 72
O Prioritize and observe the warnings, as well as the laws and regula-
tions for child restraint systems.
O Use a child restraint system until the child becomes large enough to
properly wear the vehicle’s seat belt.
O Choose a child restraint system appropriate to the age and size of
the child.
O Note that not all child restraint systems can fit in all vehicles.
Before using or purchasing a child restraint system, check the com-
patibility of the child restraint system with seat positions. ( P. 5 9 )
Before installing a child restraint system in the vehicle, there are
precautions that need to be observed, different types of child
restraint systems, as well as installation methods, etc., writt en in
this manual.
O Use a child restraint system when riding with a small child that
cannot properly use a seat belt. For the child’s safety, instal l the
child restraint system to a rear seat. Be sure to follow the in stalla-
tion method that is in the operation manual enclosed with the
restraint system.
O The use of a Toyota genuine child restraint system is recom-
mended, as it is safer to use in this vehicle. Toyota genuine c hild
restraint systems are made specifically for Toyota vehicles. Th ey
can be purchased at a Toyota dealer.
Table of contents
Points to remember
