2022 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

6478-1. Essential information
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises

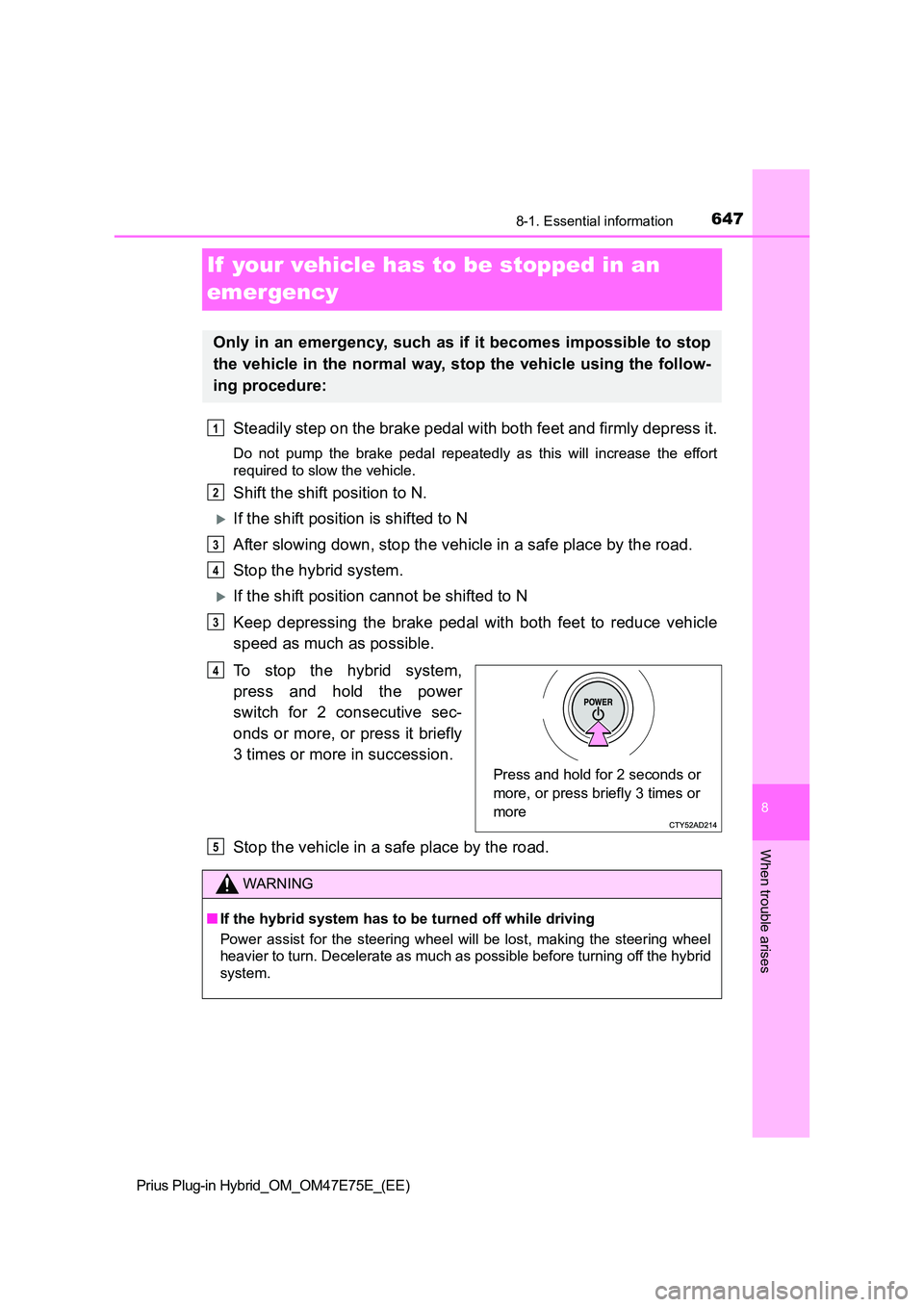

If your vehicle has to be stopped in an
emergency
Steadily step on the brake pedal with both feet and firmly depr ess it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift position to N.
If the shift position is shifted to N
After slowing down, stop the vehicle in a safe place by the roa d.
Stop the hybrid system.
If the shift position cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicl e
speed as much as possible.
To stop the hybrid system,
press and hold the power
switch for 2 consecutive sec-
onds or more, or press it briefly
3 times or more in succession.
Stop the vehicle in a safe place by the road.
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follo w-
ing procedure:
1
2
3
4
3
Press and hold for 2 seconds or
more, or press briefly 3 times or
more
Q
WARNING
Q If the hybrid system has to be turned off while driving
Power assist for the steering wheel will be lost, making the st eering wheel
heavier to turn. Decelerate as much as possible before turning off the hybrid
system.
5

6488-1. Essential information
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
If the vehicle is submerged or water on the
road is rising
O If the door can be opened, open the door and exit the vehicle.
O If the door can not be opened, open the window using the power
window switch and ensure an escape route.
O If the window can be opened, exit the vehicle through the window.
O If the door and window cannot be opened due to the rising water,
remain calm, wait until the water level inside the vehicle rise s to the
point that the water pressure inside of the vehicle equals the water
pressure outside of the vehicle and then open the door after wa iting
for the rising water to enter the vehicle, and exit the vehicle . When
the outside water level exceeds half the height of the door, th e door
cannot be opened from the inside due to water pressure.
Q Water level exceeds the floor
When the water level exceeds the floor and time has passed, the electrical
equipment will get damaged, the power windows will not operate, the engine
and motor stop, and the vehicle may not be able to get moving.
Q Using an emergency escape hammer*1
Laminated glass*2 is used in the windshield and the windows on this vehicle.
Laminated glass cannot be shattered with an emergency hammer*1.
*1: Contact any authorized Toyota retailer or Toyota authorized re pairer, or any
reliable repairer or aftermarket accessory manufacturer for fur ther informa-
tion about an emergency hammer.
*2: If equipped
This vehicle is not designed to be able to drive on roads that are
deeply flooded with water. Do not drive on roads where the
roads may be submerged or the water may be rising. It is dan-
gerous to remain in the vehicle, if it anticipated that the veh icle
will be flooded or set a drift. Remain calm and follow the foll ow-
ing.

6498-1. Essential information
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises

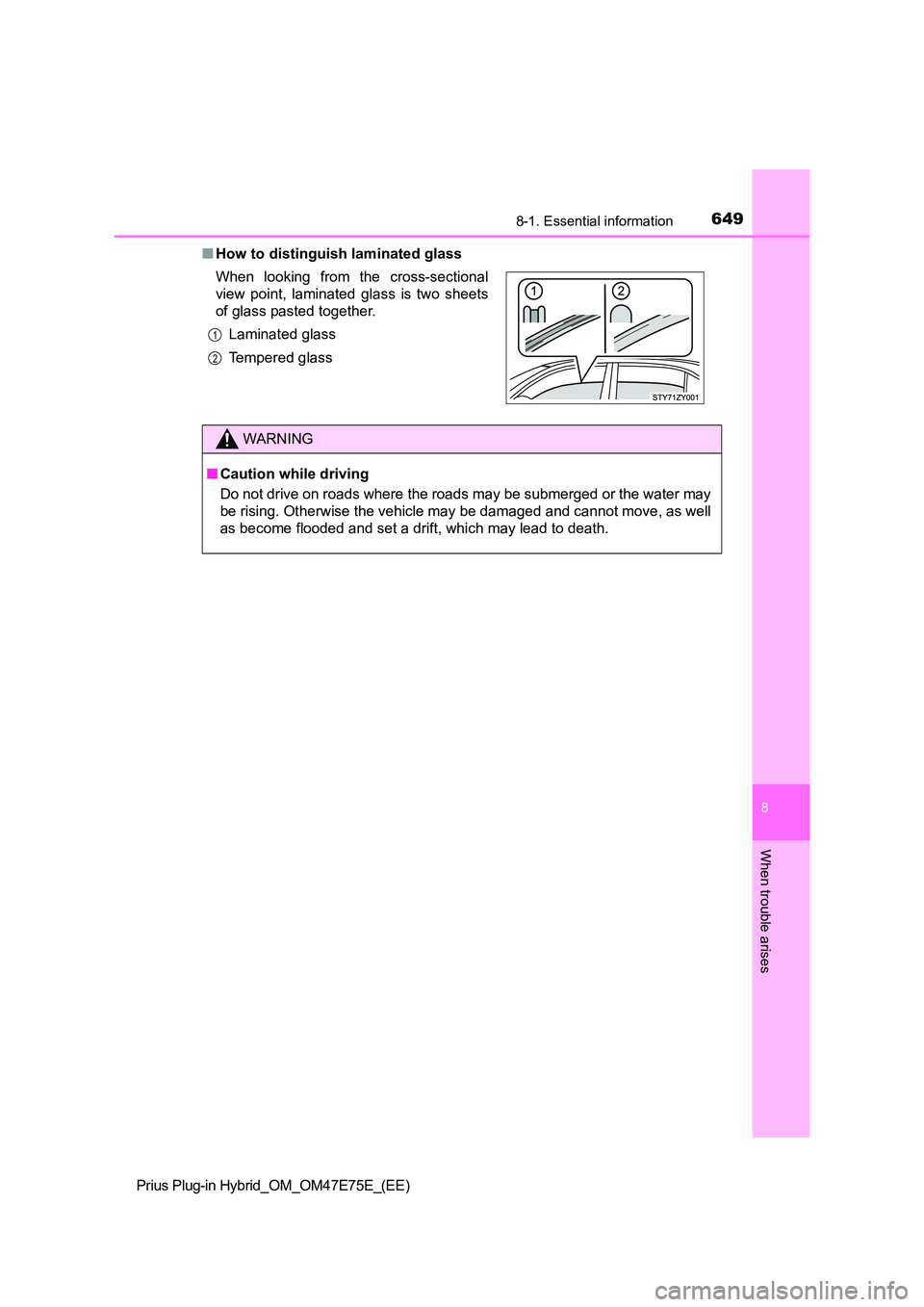

QHow to distinguish laminated glass
When looking from the cross-sectional
view point, laminated glass is two sheets
of glass pasted together.
Laminated glass
Tempered glass
WARNING
Q Caution while driving
Do not drive on roads where the roads may be submerged or the w ater may
be rising. Otherwise the vehicle may be damaged and cannot move , as well
as become flooded and set a drift, which may lead to death.
1
2

6508-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
If your vehicle needs to be towed
In the following situations, it is not possible to be towed by another
vehicle using cables or chains, as the front wheels may be lock ed due
to the parking lock. Contact any authorized Toyota retailer or To y o t a
authorized repairer, or any reliable repairer or commercial tow ing ser-
vice.
O There is a malfunction in the shift control system. (P. 326, 672)
O There is a malfunction in the immobilizer system. (P. 74)
O There is a malfunction in the smart entry & start system. (P. 693)
O The 12-volt battery is discharged. (P. 697)
The following may indicate a problem with your hybrid transmiss ion.
Contact any authorized Toyota retailer or Toyota authorized rep airer,
or any reliable repairer or commercial towing service before to wing.
O The hybrid system warning message is displayed and the vehicle
does not move.
O The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle
towed by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer or commercial towing service ,
using a wheel-lift type truck or flatbed truck.
Use a safety chain system for all towing, and abide by all stat e/
provincial and local laws.
Situations when it is not possible to be towed by another vehic le
Situations when it is necessary to contact dealers before towing

6518-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises
When using a flatbed truck to transport the vehicle, use tire strapping
belts. Refer to the owner’s manual of the flatbed truck for the tire
strapping method.
In order to suppress vehicle movement during transportation, se t the
parking brake and turn the power switch off.
If a tow truck is not available in an emergency, your vehicle m ay be
temporarily towed using cables or chains secured to the emergen cy
towing eyelets. This should only be attempted on hard surfaced roads
for short distances at under 30 km/h (18 mph).
A driver must be in the vehicle to steer and operate the brakes . The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.
Towing with a wheel-lift type truck
From the frontFrom the rear
Release the parking brake. Use a towing dolly under the
front wheels.
Using a flatbed truck
Emergency towing

6528-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
To have your vehicle towed by another vehicle, the towing eyelet must
be installed to your vehicle. Install the towing eyelet using t he follow-
ing procedure.
Take out the wheel nut wrench and towing eyelet. ( P. 613)
Remove the eyelet cover using
a flathead screwdriver.
To protect the bodywork, place a
rag between the screwdriver and
the vehicle body as shown in the
illustration.
Insert the towing eyelet into the
hole and tighten partially by
hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench or hard metal bar.
When tightening with a wheel nut
wrench or hard metal bar, make
sure not to damage the vehicle
body.
Securely attach cables or chains to the towing eyelet.
Take care not to damage the vehicle body.
Enter the vehicle being towed and start the hybrid system.
If the hybrid system does not start, turn the power switch to O N mode.
Turn off the Parking Support Brake function. (if equipped): P. 464
Emergency towing procedure
1
2
3
4
5
6

6538-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises

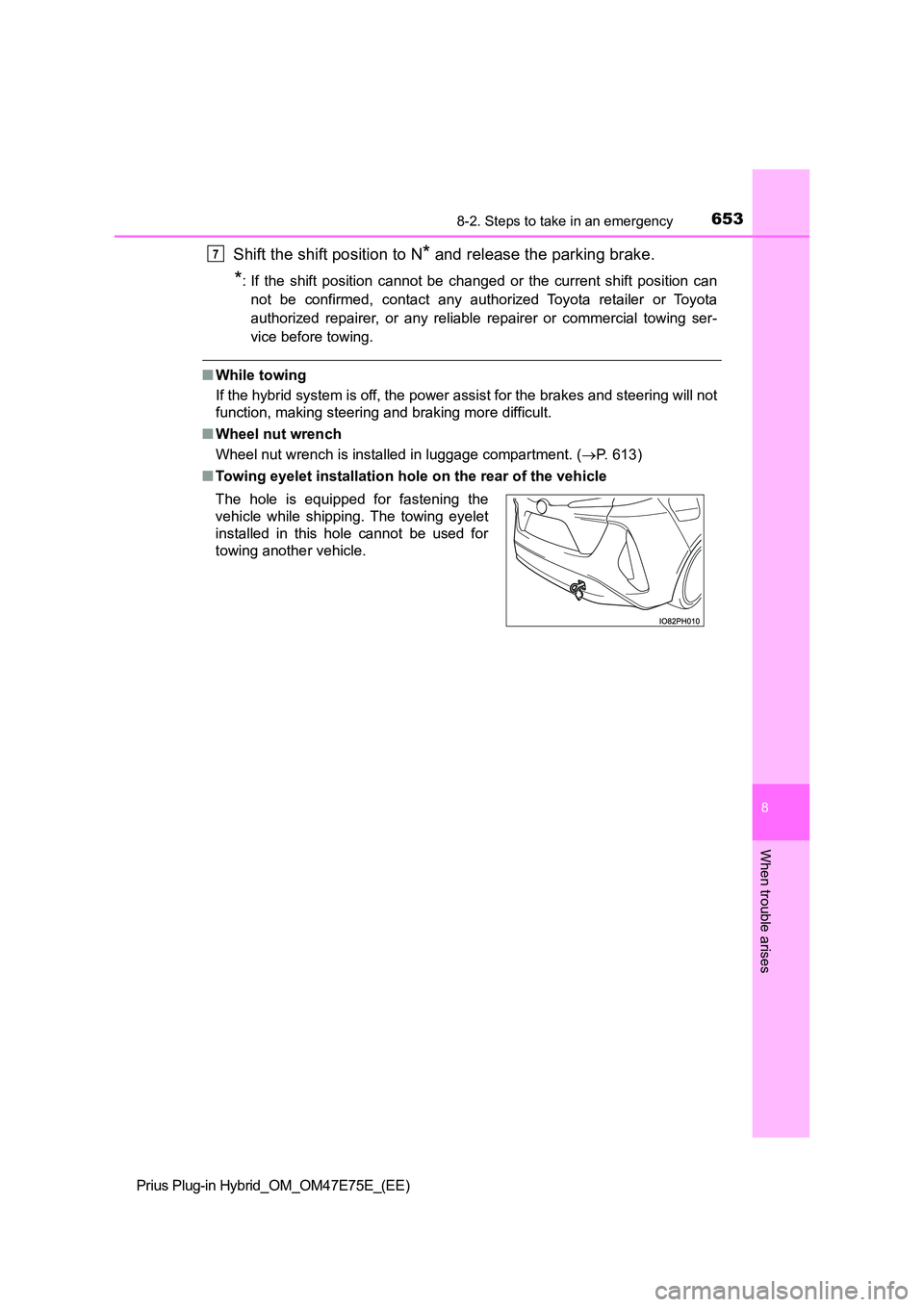

Shift the shift position to N* and release the parking brake.
*: If the shift position cannot be changed or the current shift position can
not be confirmed, contact any authorized Toyota retailer or Toy ota
authorized repairer, or any reliable repairer or commercial tow ing ser-
vice before towing.
Q While towing
If the hybrid system is off, the power assist for the brakes an d steering will not
function, making steering and braking more difficult.
Q Wheel nut wrench
Wheel nut wrench is installed in luggage compartment. ( P. 6 1 3 )
Q Towing eyelet installation hole on the rear of the vehicle
The hole is equipped for fastening the
vehicle while shipping. The towing eyelet
installed in this hole cannot be used for
towing another vehicle.
7

6548-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

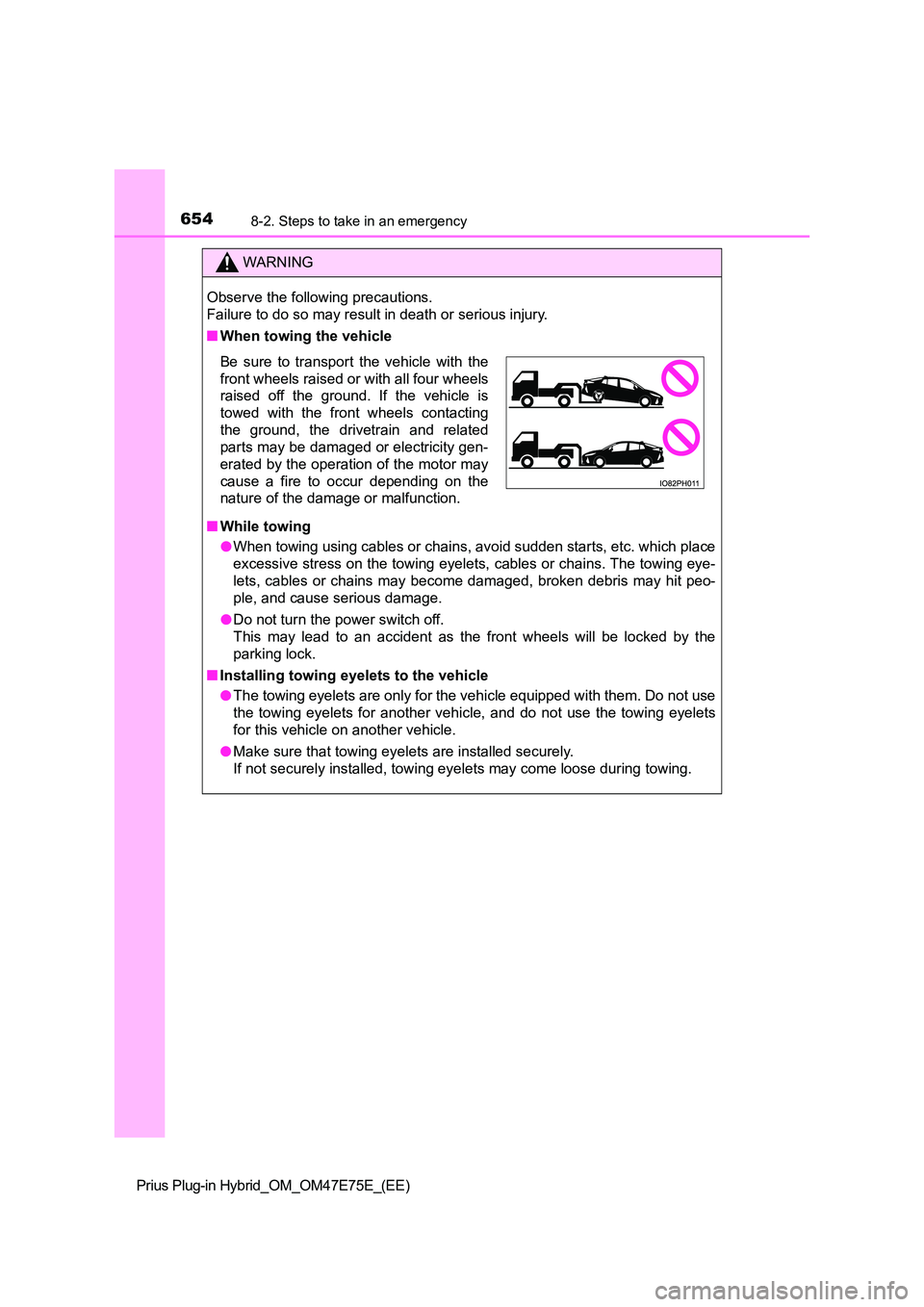

WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
Q When towing the vehicle
Q While towing
O When towing using cables or chains, avoid sudden starts, etc. which place
excessive stress on the towing eyelets, cables or chains. The t owing eye-
lets, cables or chains may become damaged, broken debris may hi t peo-
ple, and cause serious damage.
O Do not turn the power switch off.
This may lead to an accident as the front wheels will be locked by the
parking lock.
Q Installing towing eyelets to the vehicle
O The towing eyelets are only for the vehicle equipped with them. Do not use
the towing eyelets for another vehicle, and do not use the towi ng eyelets
for this vehicle on another vehicle.
O Make sure that towing eyelets are installed securely.
If not securely installed, towing eyelets may come loose during towing.
Be sure to transport the vehicle with the
front wheels raised or with all four wheels
raised off the ground. If the vehicle is
towed with the front wheels contacting
the ground, the drivetrain and related
parts may be damaged or electricity gen-
erated by the operation of the motor may
cause a fire to occur depending on the
nature of the damage or malfunction.
