2022 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

3515-4. Refueling
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving
Opening the fuel tank cap
OTurn the power switch off and ensure that all the doors and win-
dows are closed.
OConfirm the type of fuel.
QFuel types
P. 722
QFuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
Perform the following steps to open the fuel tank cap:
Before refueling the vehicle

3525-4. Refueling
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

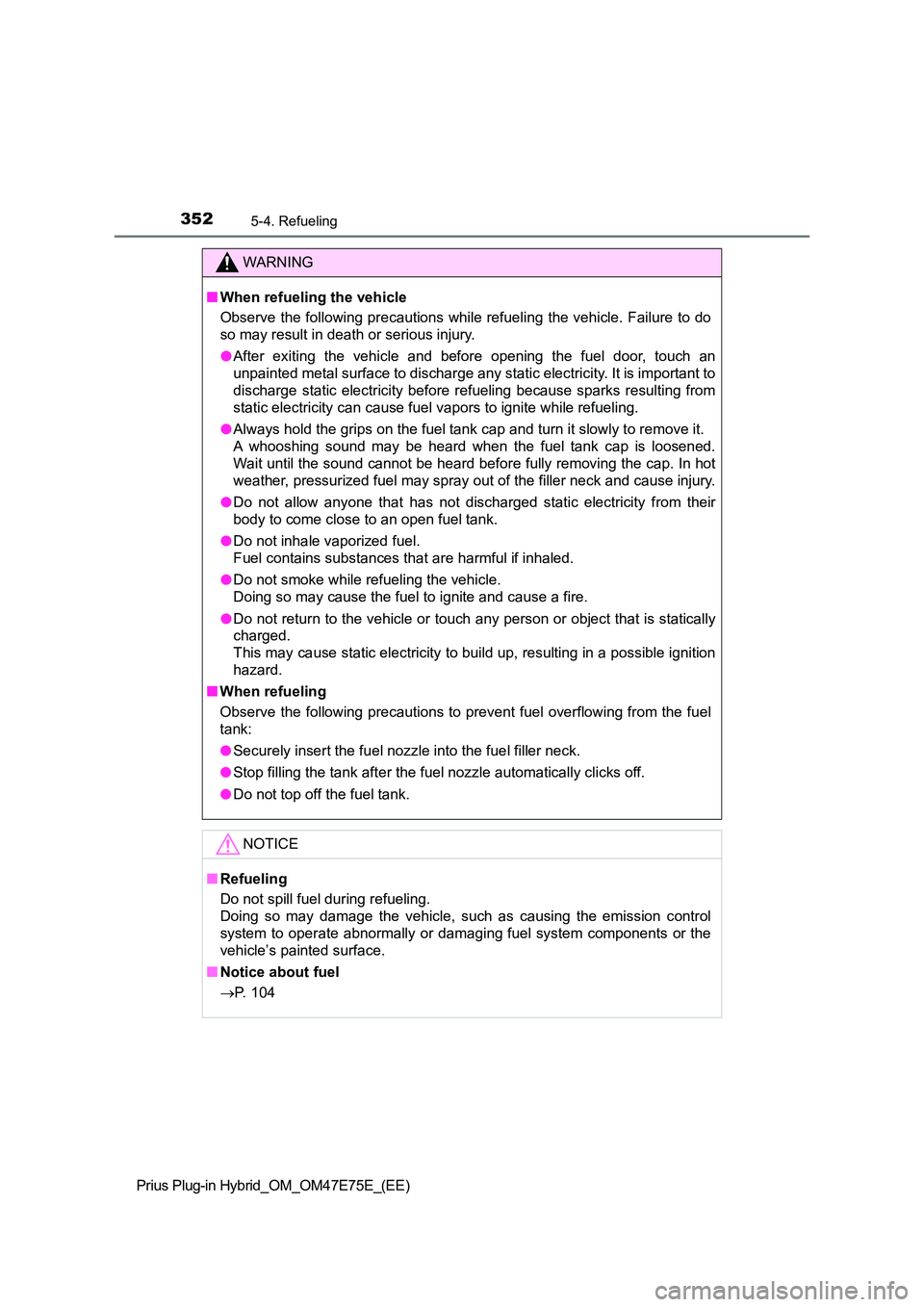

WARNING
QWhen refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do
so may result in death or serious injury.
O After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to discharge any static electricity. It is important to
discharge static electricity before refueling because sparks re sulting from
static electricity can cause fuel vapors to ignite while refuel ing.
O Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosen ed.
Wait until the sound cannot be heard before fully removing the cap. In hot
weather, pressurized fuel may spray out of the filler neck and cause injury.
O Do not allow anyone that has not discharged static electricity from their
body to come close to an open fuel tank.
O Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
O Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
O Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a p ossible ignition
hazard.
Q When refueling
Observe the following precautions to prevent fuel overflowing f rom the fuel
tank:
O Securely insert the fuel nozzle into the fuel filler neck.
O Stop filling the tank after the fuel nozzle automatically clicks off.
O Do not top off the fuel tank.
NOTICE
QRefueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission c ontrol
system to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.
Q Notice about fuel
 P. 104

3535-4. Refueling
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving

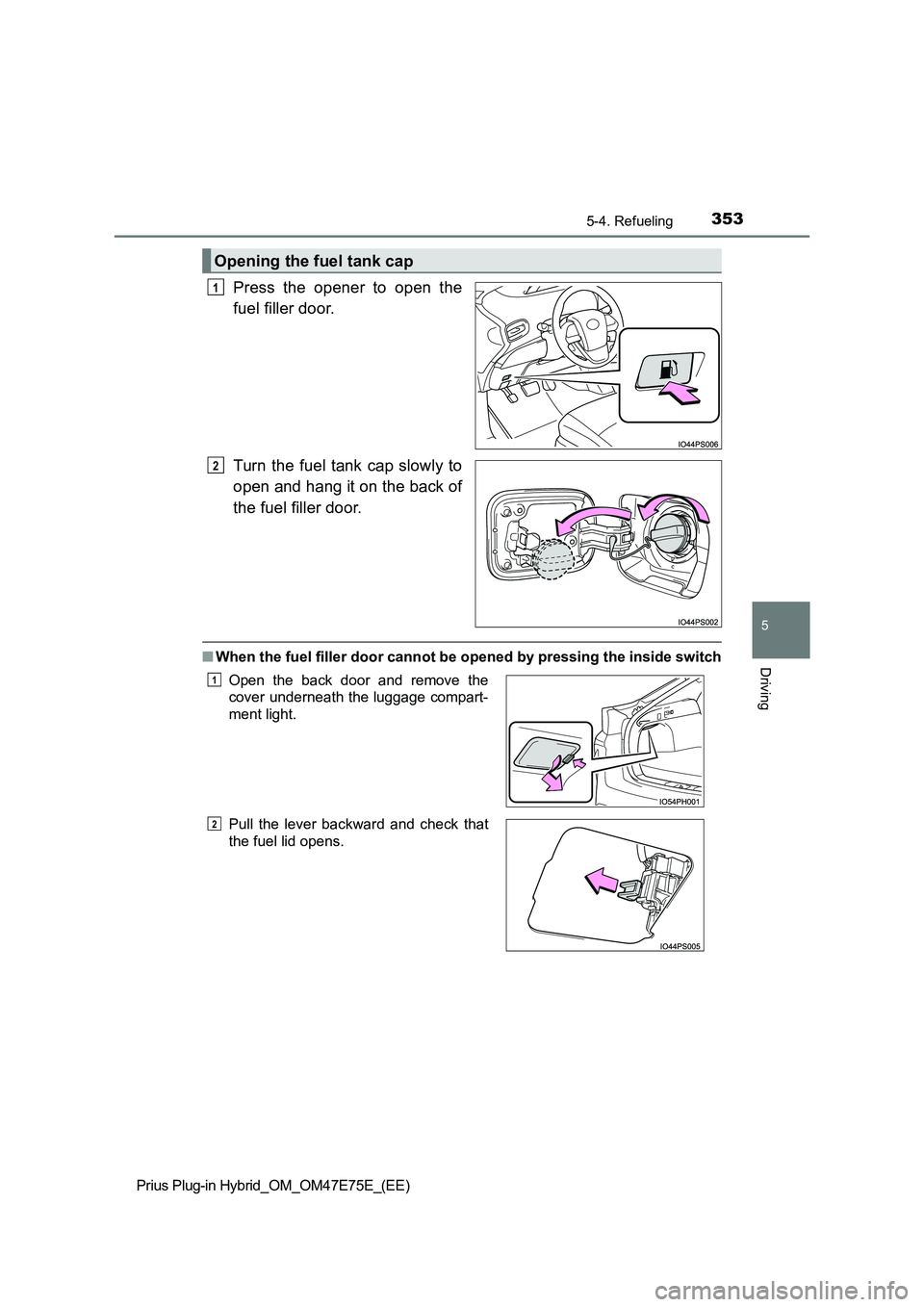

Press the opener to open the
fuel filler door.
Turn the fuel tank cap slowly to
open and hang it on the back of
the fuel filler door.
Q When the fuel filler door cannot be opened by pressing the inside switch
Opening the fuel tank cap
1
2
Open the back door and remove the
cover underneath the luggage compart-
ment light.
Pull the lever backward and check that
the fuel lid opens.
1
2

3545-4. Refueling
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

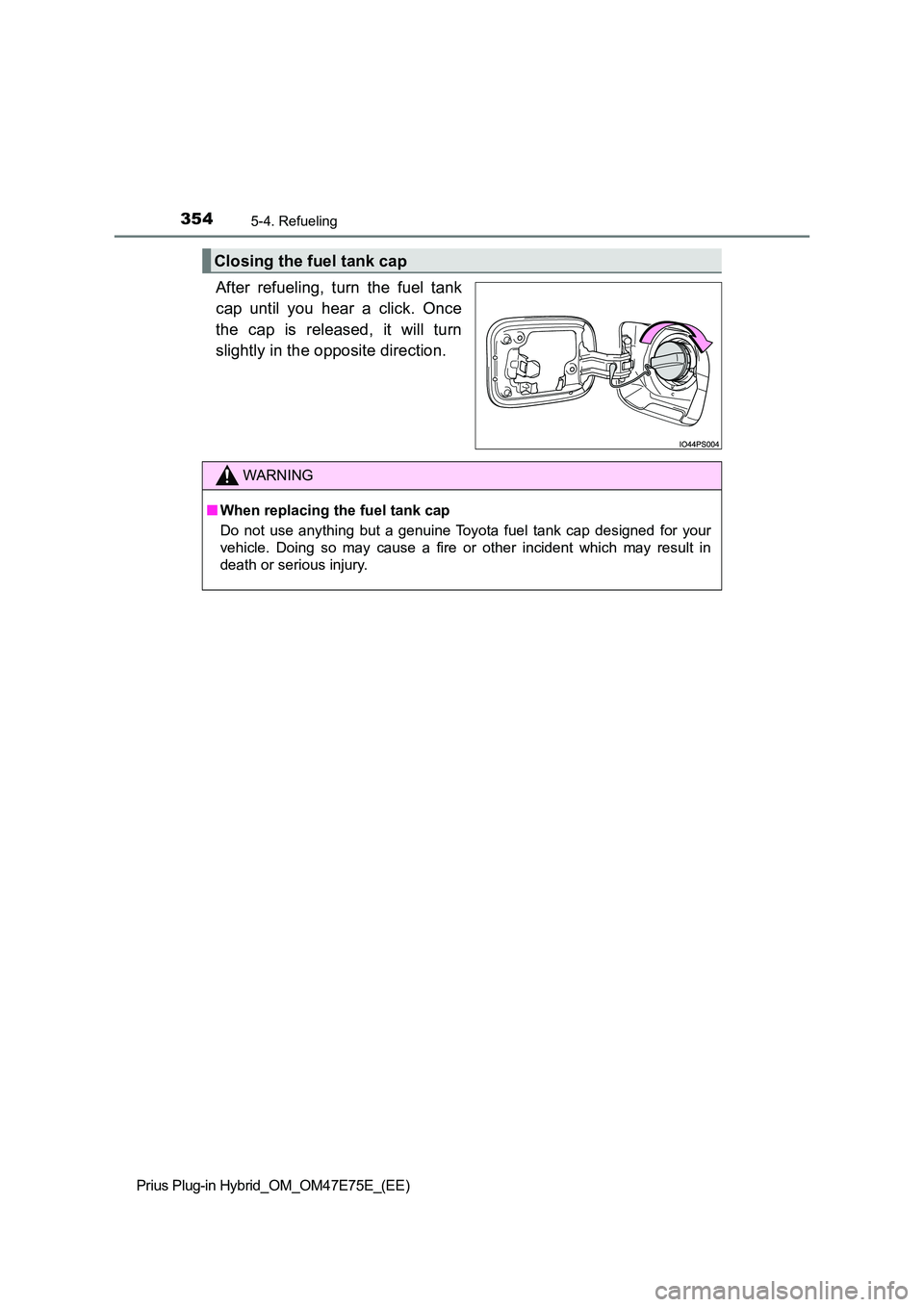

After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
Closing the fuel tank cap
WARNING
Q When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.

3555-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving
Toyota Safety Sense
XPCS (Pre-Collision System)
 P. 3 6 8
XLTA (Lane Tracing Assist)
 P. 3 7 9
XAHS (Adaptive High-beam System)
 P. 3 4 1
XRSA (Road Sign Assist)
 P. 3 9 5
XDynamic radar cruise control with full-speed range
 P. 4 0 1
The Toyota Safety Sense consists of the following drive assist
systems and contributes to a safe and comfortable driving expe-
rience:
Driving assist system
WARNING
Q Toyota Safety Sense
The Toyota Safety Sense is designed to operate under the assump tion that
the driver will drive safely, and is designed to help reduce th e impact to the
occupants and the vehicle in the case of a collision or assist the driver in
normal driving conditions.
As there is a limit to the degree of recognition accuracy and c ontrol perfor-
mance that this system can provide, do not overly rely on this system. The
driver is always responsible for paying attention to the vehicl e’s surround-
ings and driving safely.

3565-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

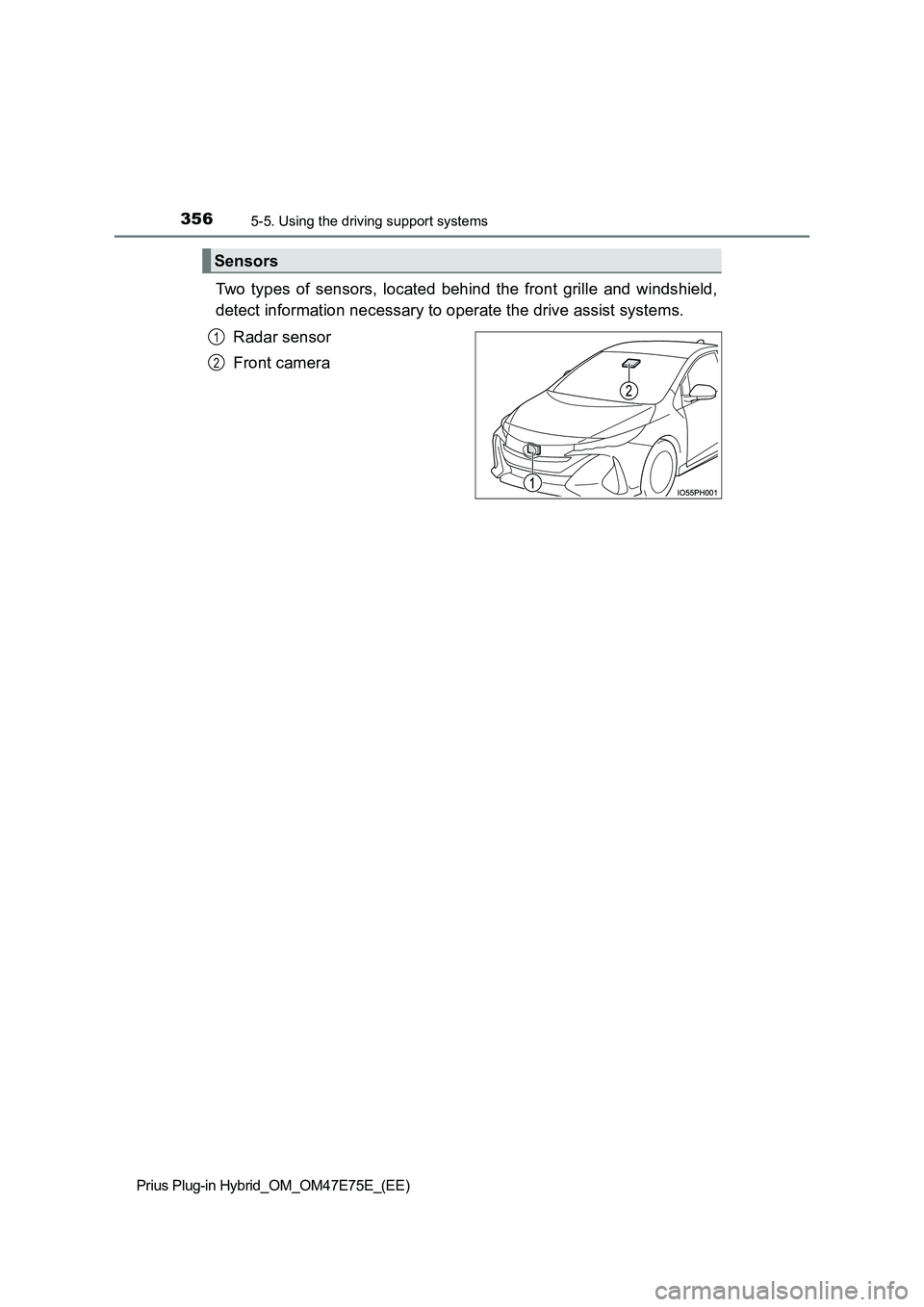

Two types of sensors, located behind the front grille and windshield,
detect information necessary to operate the drive assist system s.
Radar sensor
Front camera
Sensors
1
2

3575-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving
WARNING
QTo avoid malfunction of the radar sensor
Observe the following precautions.
Otherwise, the radar sensor may not operate properly, possibly leading to
an accident resulting in death or serious injury.
O Keep the radar sensor and the radar sensor cover clean at all times.
O Do not attach accessories, stickers (including transparent stickers) or
other items to the radar sensor , radar sensor cover or surrounding area.
O Do not subject the radar sensor or its surrounding area to a strong impact.
If the radar sensor, front grille, or front bumper has been sub jected to a
strong impact, have the vehicle inspected by any authorized Toy ota
retailer or Toyota authorized repairer, or any reliable repaire r.
O Do not disassemble the radar sensor.
O Do not modify or paint the radar sensor or radar sensor cover.
O In the following cases, the radar sensor must be recalibrated. Contact any
authorized Toyota retailer or Toyota authorized repairer, or an y reliable
repairer for details.
• When the radar sensor or front grille are removed and installe d, or
replaced
• When the front bumper is replaced
Radar sensor
Radar sensor cover
If the front of the radar sensor or the
front or back of the radar sensor cover
is dirty or covered with water droplets,
snow, etc., clean it.
Clean the radar sensor and radar sen-
sor cover with a soft cloth to avoid
damaging them.
1
2

3585-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
WARNING
QTo avoid malfunction of the front camera
Observe the following precautions.
Otherwise, the front camera may not operate properly, possibly leading to
an accident resulting in death or serious injury.
O Keep the windshield clean at all times.
• If the windshield is dirty or covered with an oily film, water droplets,
snow, etc., clean the windshield.
• If a glass coating agent is applied to the windshield, it will still be neces-
sary to use the windshield wipers to remove water droplets, etc . from
the area of the windshield in front of the front camera.
• If the inner side of the windshield where the front camera is installed is
dirty, contact any authorized Toyota retailer or Toyota authori zed
repairer, or any reliable repairer.
O If the part of the windshield in front of the front camera is fogged up or cov-
ered with condensation, or ice, use the windshield defogger to remove the
fog, condensation, or ice. ( P. 527)
O If water droplets cannot be properly removed from the area of the wind-
shield in front of the front camera by the windshield wipers, r eplace the
wiper insert or wiper blade.
O Do not attach window tint to the windshield.
O Replace the windshield if it is damaged or cracked.
After replacing the windshield, the front camera must be recali brated. Con-
tact any authorized Toyota retailer or Toyota authorized repair er, or any
reliable repairer for details.
O Do not allow liquids to contact the front camera.
O Do not allow bright lights to shine into the front camera.
ODo not attach objects, such as stickers,
transparent stickers, etc., to the outer
side of the windshield in front of the
front camera (shaded area in the illus-
tration).
A: From the top of the windshield to
approximately 1 cm (0.4 in.) below the
bottom of the front camera
B: Approximately 20 cm (7.9 in.)
(Approximately 10 cm [4.0 in.] to the
right and left from the center of the front
camera)
