2022 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

6718-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises
QIf “Auto Power OFF to Conserve Battery” is shown
The power switch has been turned off by the automatic power off function.
When starting the hybrid system next time, operate the hybrid s ystem for
approximately 5 minutes to recharge the 12-volt battery.
Q If “Engine Oil Level Low Add or Replace” is displayed
The engine oil level may be low. Check the level of the engine oil, and add
engine oil if necessary. This message may be displayed if the v ehicle is
stopped on a slope. Move the vehicle to a level surface and che ck if the mes-
sage disappears.
Q If “Accelerator and Brake Pedals Pressed Simultaneously” is shown
The accelerator and brake pedals are being depressed simultaneo usly.
( P. 310)
Release the accelerator pedal and depress the brake pedal.
Q If a message that indicates the malfunction of front camera is displayed
The following systems may be suspended until the problem shown in the
message is resolved. ( P. 366, 657)
O PCS (Pre-Collision System)
O LTA (Lane Tracing Assist)
O AHS (Adaptive High-beam System)
O RSA (Road Sign Assist)
O Dynamic radar cruise control with full-speed range
Q If a message that indicates the malfunction of radar sensor is displayed
The following systems may be suspended until the problem shown in the
message is resolved. ( P. 366, 657)
O PCS (Pre-Collision System)
O LTA (Lane Tracing Assist)
O Dynamic radar cruise control with full-speed range
Q If “Radar Cruise Control Unavailable See Owner’s Manual” is shown
The dynamic radar cruise control with full-speed range system i s suspended
temporarily or until the problem shown in the message is resolv ed. (causes
and coping methods: P. 366)
Q If “Radar Cruise Control Unavailable” is shown
The dynamic radar cruise control with full-speed range system c annot be
used temporarily. Use the system when it becomes available agai n.

6728-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Q If the shift position cannot be changed or the power switch is turned to
ACCESSORY mode even if trying to turn the power switch off when a
warning message is shown
If the 12-volt battery is discharged or the shift control syste m is malfunction-
ing, the followings may occur.
O The shift position may not be changed to P.
When parking, stop the vehicle on level ground and apply the pa rking brake
firmly.
O The hybrid system may not start.
O The power switch may be turned to ACCESSORY mode even if trying to
turn the power switch off.
In this case, the power switch may be turned off after applying the parking
brake.
O The automatic P position selection function (P. 332) may not operate.
Before turning the power switch off, be sure to press the P pos ition switch
and check that the shift position is in P by the shift position indicator or P
position switch indicator.
Q Warning buzzer
 P. 663
NOTICE
QIf “Maintenance Required for Traction Battery at Your Dealer” is shown
The hybrid battery (traction battery) is scheduled to be inspec ted or
replaced. Have the vehicle inspected by any authorized Toyota r etailer or
Toyota authorized repairer, or any reliable repairer immediately.
O Continuing to drive the vehicle without having the hybrid battery (traction
battery) inspected will cause the hybrid system not to start.
O If the hybrid system does not start, contact any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer immedia tely.

6738-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises

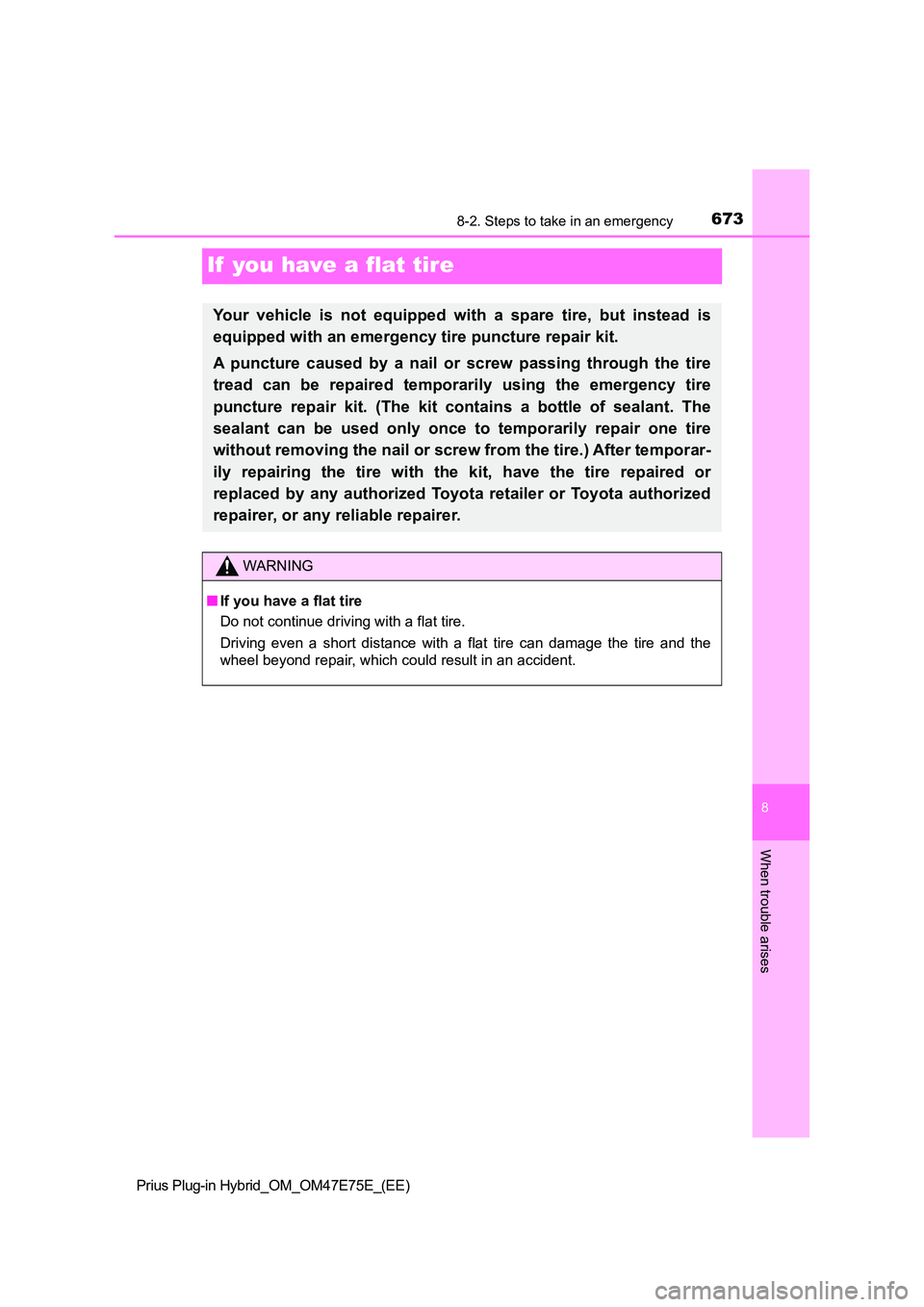

If you have a flat tire
Your vehicle is not equipped with a spare tire, but instead is
equipped with an emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire
tread can be repaired temporarily using the emergency tire
puncture repair kit. (The kit contains a bottle of sealant. The
sealant can be used only once to temporarily repair one tire
without removing the nail or screw from the tire.) After tempor ar-
ily repairing the tire with the kit, have the tire repaired or
replaced by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
WARNING
Q If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the t ire and the
wheel beyond repair, which could result in an accident.

6748-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

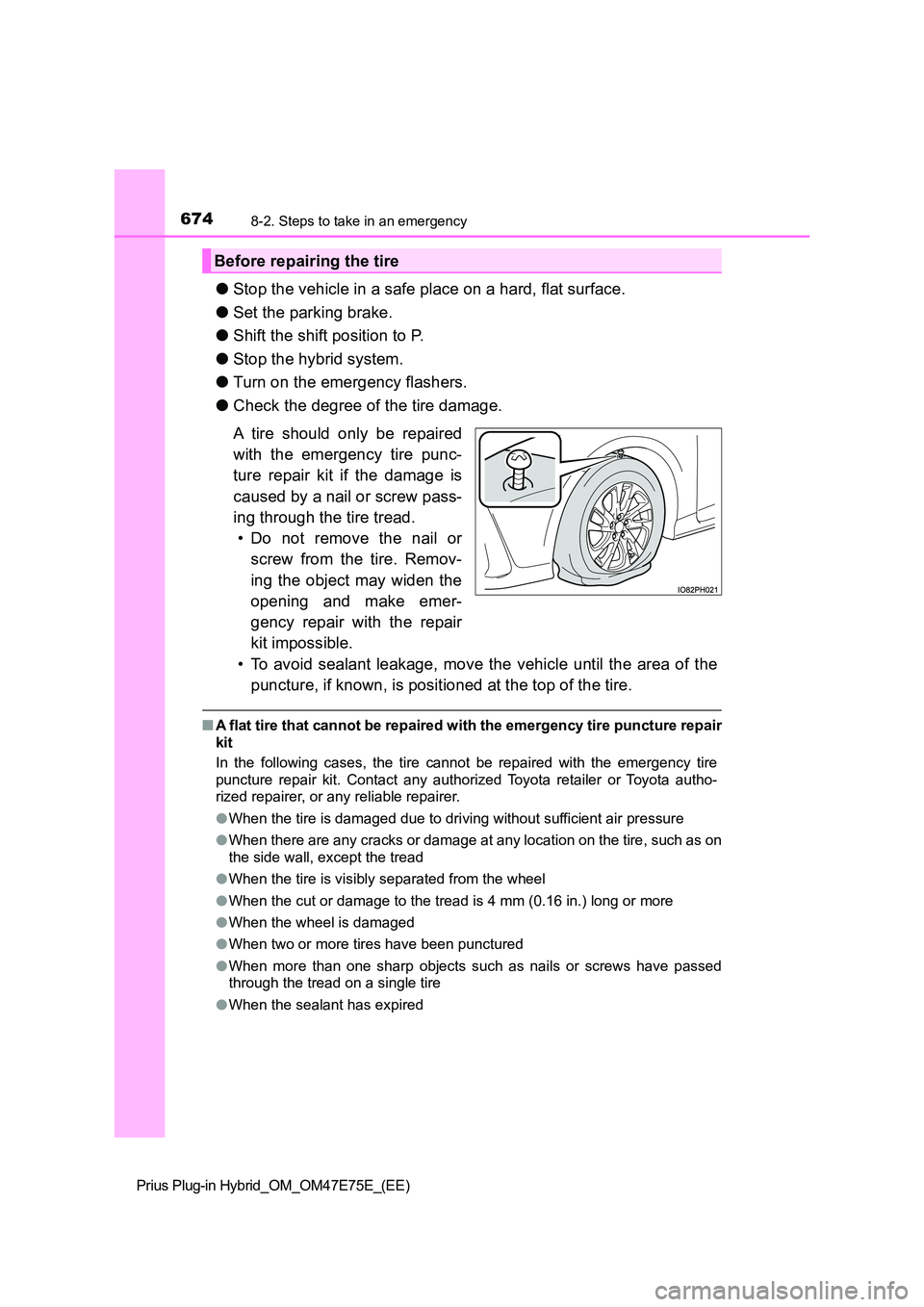

OStop the vehicle in a safe place on a hard, flat surface.
O Set the parking brake.
O Shift the shift position to P.
O Stop the hybrid system.
O Turn on the emergency flashers.
O Check the degree of the tire damage.
A tire should only be repaired
with the emergency tire punc-
ture repair kit if the damage is
caused by a nail or screw pass-
ing through the tire tread.
• Do not remove the nail or
screw from the tire. Remov-
ing the object may widen the
opening and make emer-
gency repair with the repair
kit impossible.
• To avoid sealant leakage, move the vehicle until the area of t he
puncture, if known, is positioned at the top of the tire.
Q A flat tire that cannot be repaired with the emergency tire puncture repair
kit
In the following cases, the tire cannot be repaired with the em ergency tire
puncture repair kit. Contact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
O When the tire is damaged due to driving without sufficient air pressure
O When there are any cracks or damage at any location on the tire, such as on
the side wall, except the tread
O When the tire is visibly separated from the wheel
O When the cut or damage to the tread is 4 mm (0.16 in.) long or more
O When the wheel is damaged
O When two or more tires have been punctured
O When more than one sharp objects such as nails or screws have passed
through the tread on a single tire
O When the sealant has expired
Before repairing the tire

6758-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises

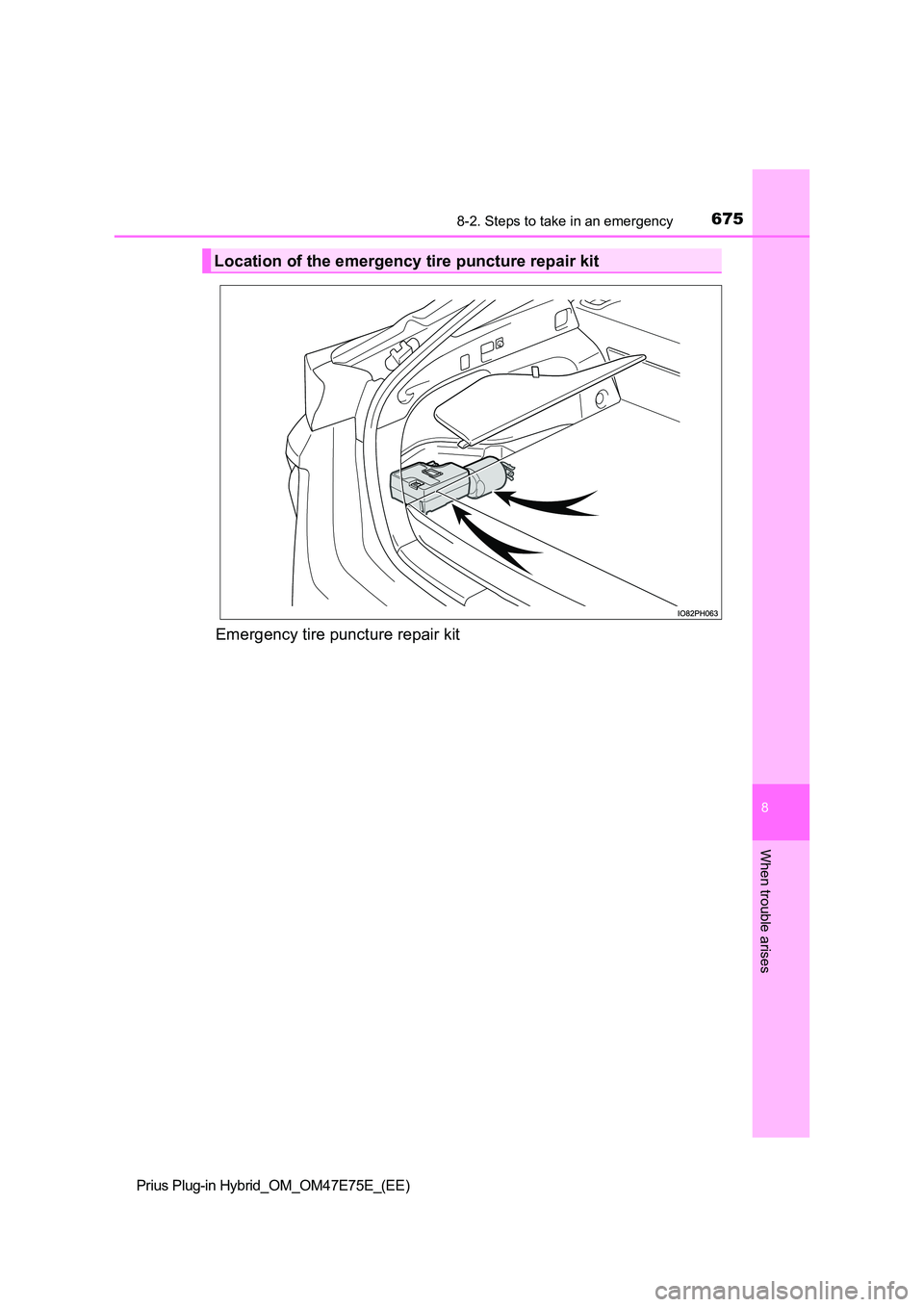

Emergency tire puncture repair kit
Location of the emergency tire puncture repair kit

6768-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

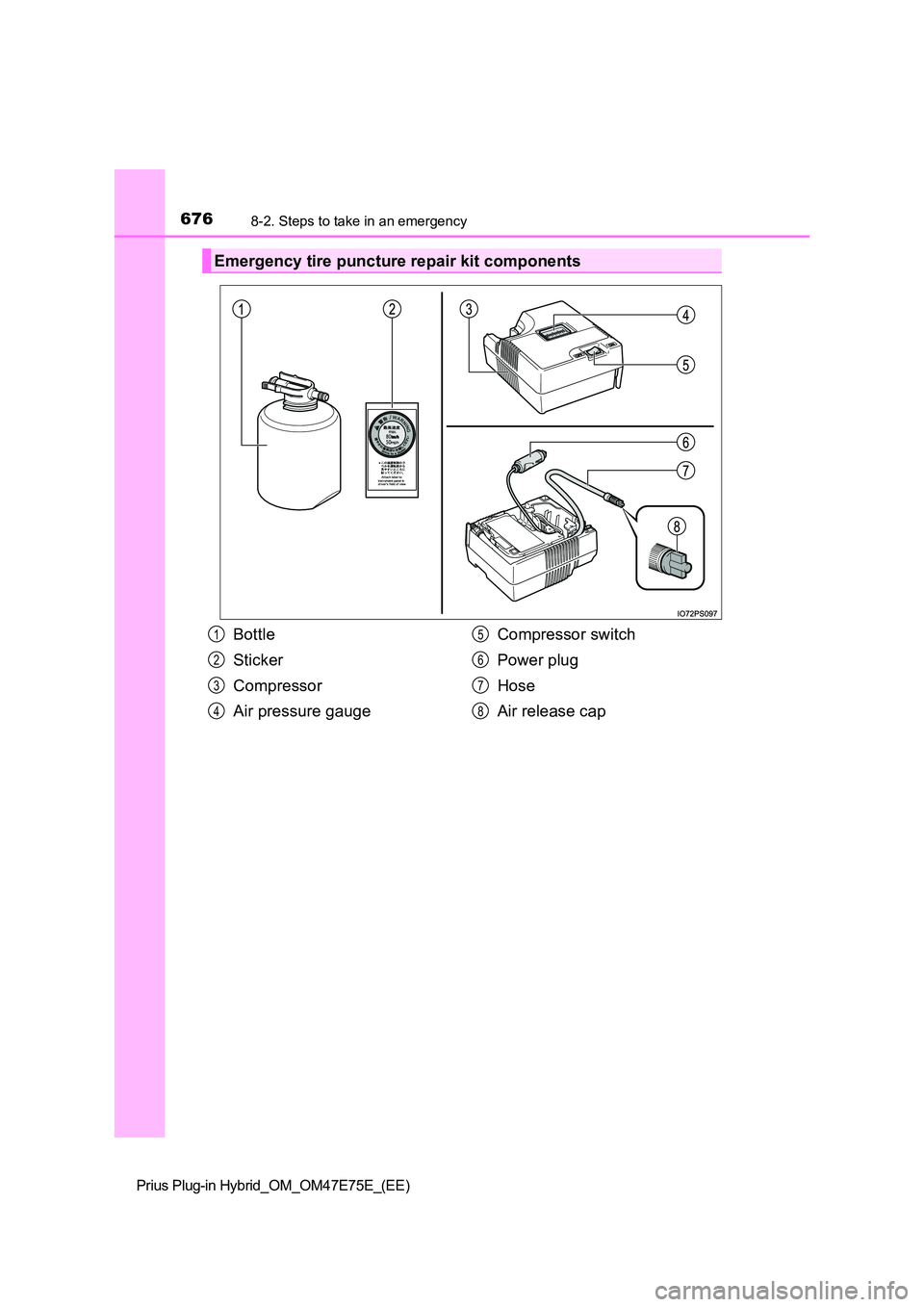

Emergency tire puncture repair kit components
Bottle
Sticker
Compressor
Air pressure gauge
Compressor switch
Power plug
Hose
Air release cap
1
2
3
4
5
6
7
8

6778-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises

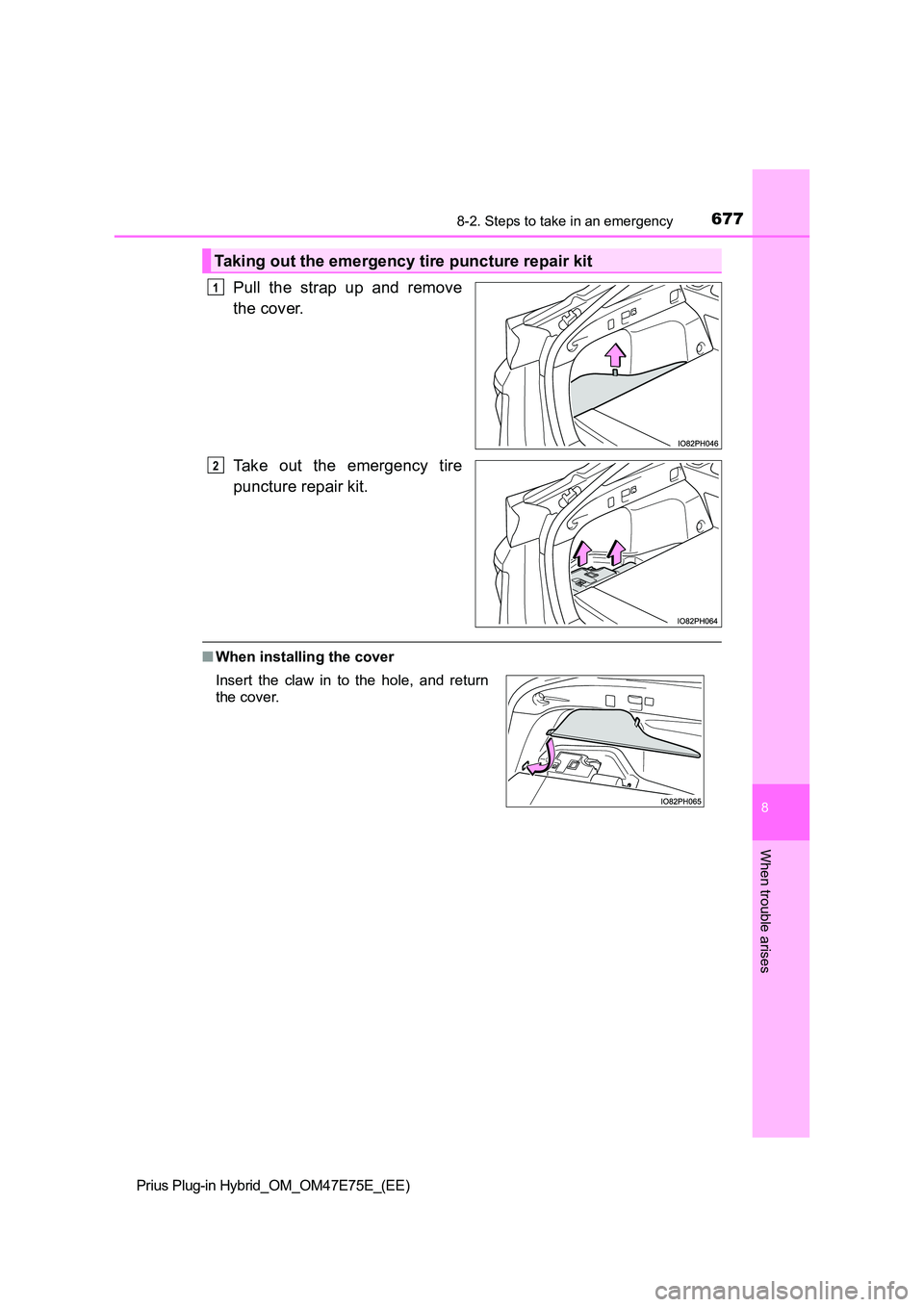

Pull the strap up and remove
the cover.
Take out the emergency tire
puncture repair kit.
Q When installing the cover
Taking out the emergency tire puncture repair kit
1
2
Insert the claw in to the hole, and return
the cover.

6788-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

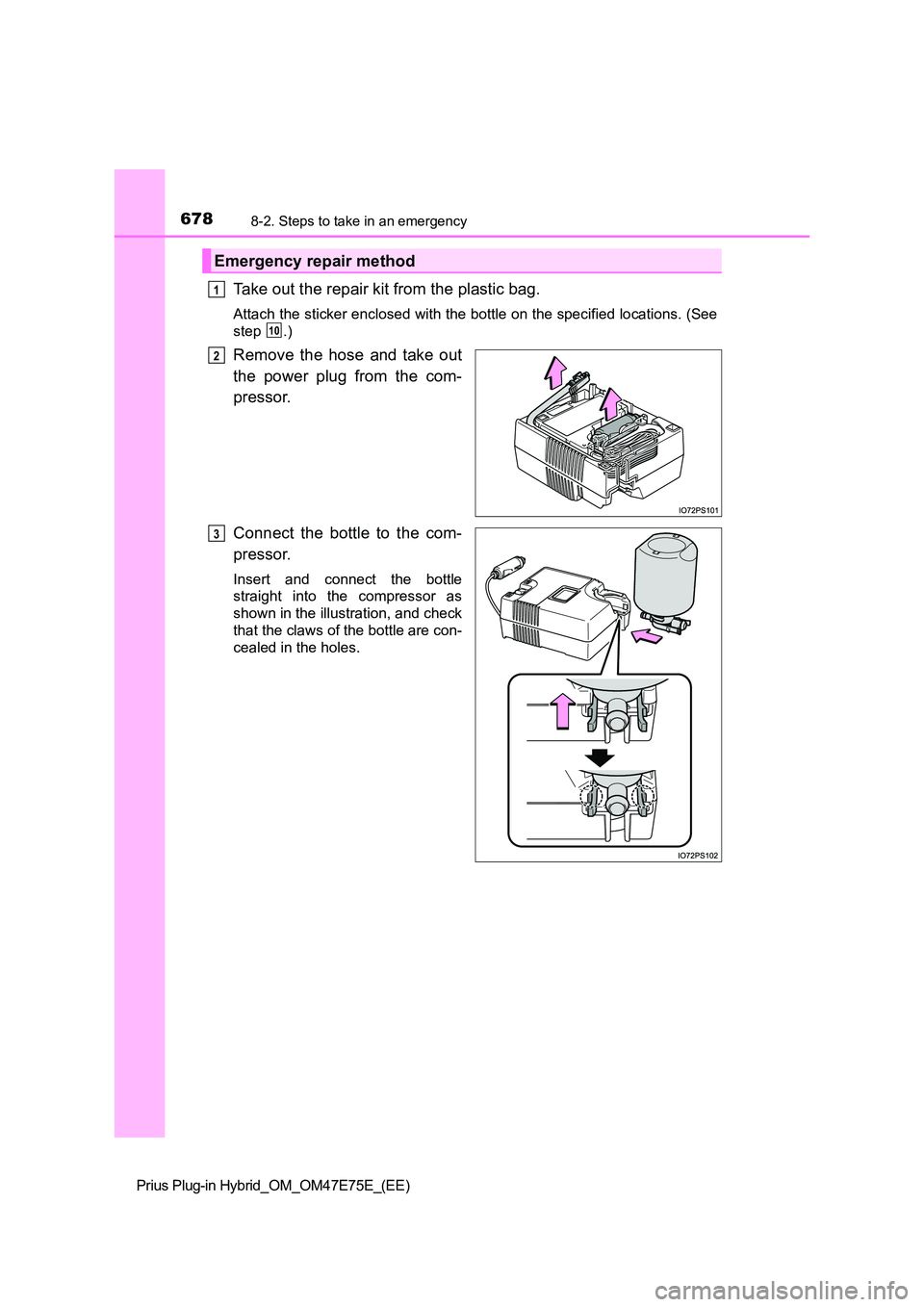

Take out the repair kit from the plastic bag.
Attach the sticker enclosed with the bottle on the specified locations. (See
step .)
Remove the hose and take out
the power plug from the com-
pressor.
Connect the bottle to the com-
pressor.
Insert and connect the bottle
straight into the compressor as
shown in the illustration, and check
that the claws of the bottle are con-
cealed in the holes.
Emergency repair method
1
10
2
3
