2022 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

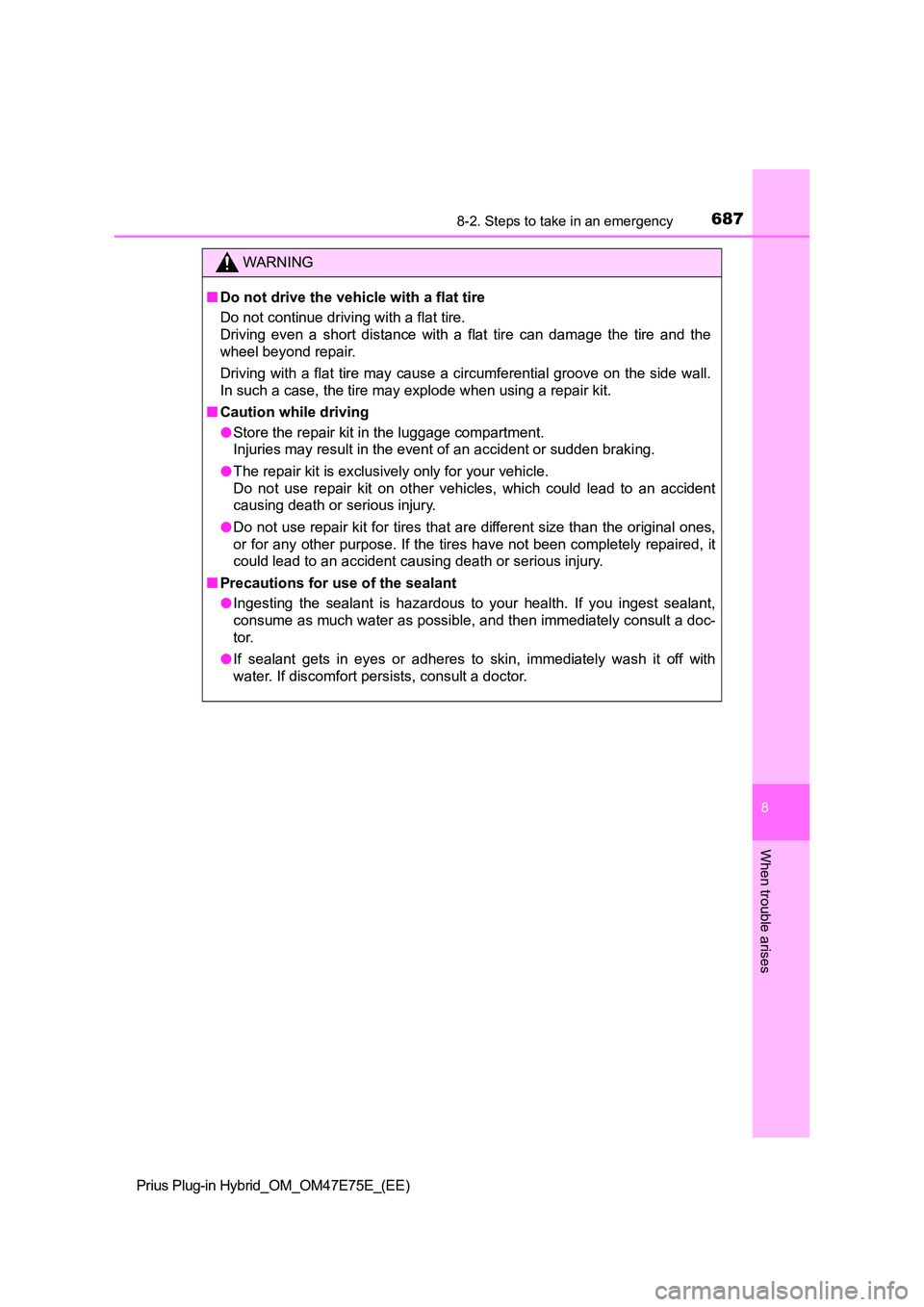

6878-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises
WARNING
QDo not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the t ire and the
wheel beyond repair.
Driving with a flat tire may cause a circumferential groove on the side wall.
In such a case, the tire may e xplode when using a repair kit.
Q Caution while driving
O Store the repair kit in the luggage compartment.
Injuries may result in the event of an accident or sudden braki ng.
O The repair kit is exclusively only for your vehicle.
Do not use repair kit on other vehicles, which could lead to an accident
causing death or serious injury.
O Do not use repair kit for tires that are different size than the original ones,
or for any other purpose. If the tires have not been completely repaired, it
could lead to an accident caus ing death or serious injury.
Q Precautions for use of the sealant
O Ingesting the sealant is hazardous to your health. If you ingest sealant,
consume as much water as possible, and then immediately consult a doc-
tor.
O If sealant gets in eyes or adheres to skin, immediately wash it off with
water. If discomfort persists, consult a doctor.

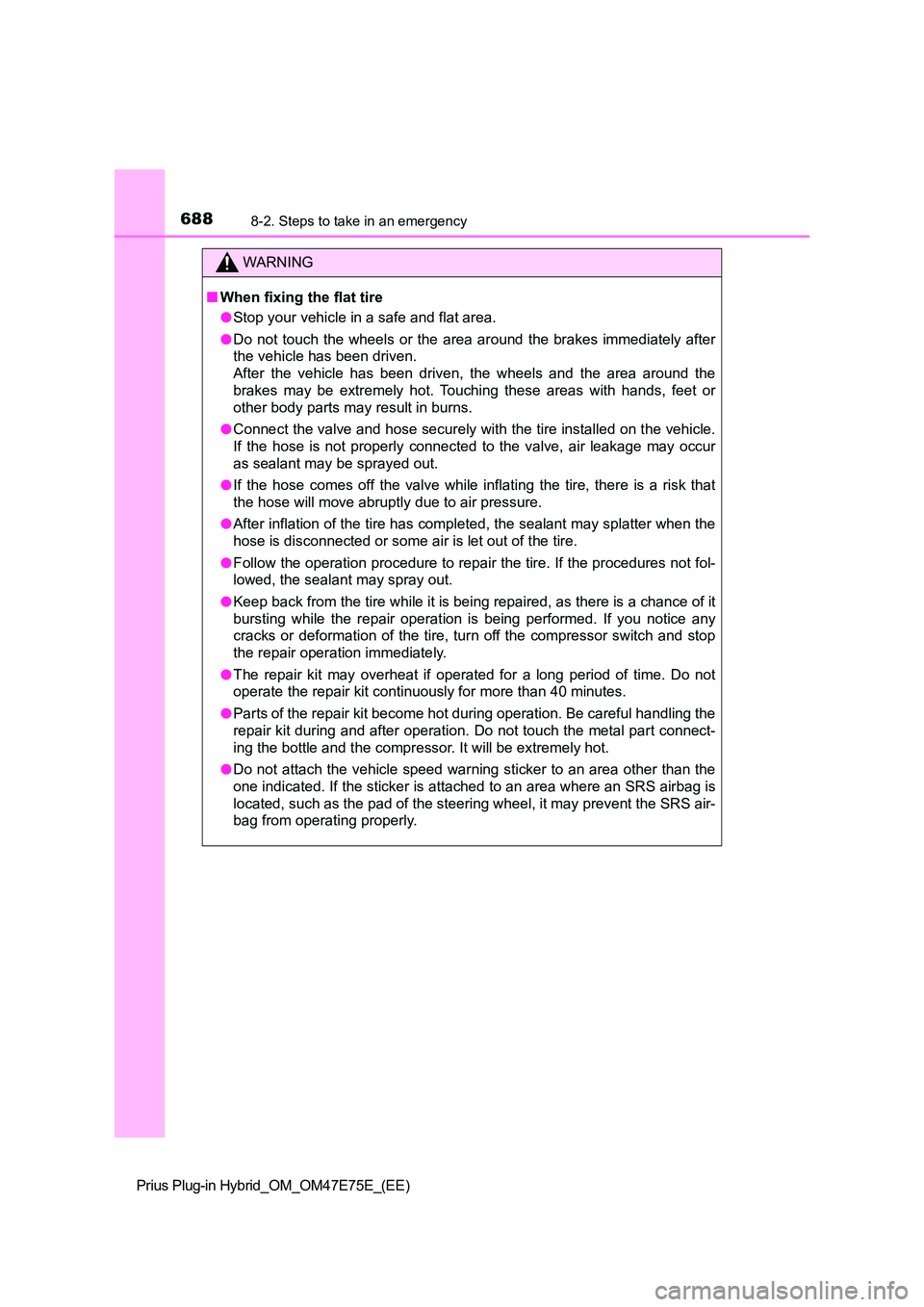

6888-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
WARNING
QWhen fixing the flat tire
O Stop your vehicle in a safe and flat area.
O Do not touch the wheels or the area around the brakes immediately after
the vehicle has been driven.
After the vehicle has been driven, the wheels and the area arou nd the
brakes may be extremely hot. Touching these areas with hands, f eet or
other body parts may result in burns.
O Connect the valve and hose securely with the tire installed on the vehicle.
If the hose is not properly connected to the valve, air leakage may occur
as sealant may be sprayed out.
O If the hose comes off the valve while inflating the tire, there is a risk that
the hose will move abruptly due to air pressure.
O After inflation of the tire has completed, the sealant may splatter when the
hose is disconnected or some air is let out of the tire.
O Follow the operation procedure to repair the tire. If the procedures not fol-
lowed, the sealant may spray out.
O Keep back from the tire while it is being repaired, as there is a chance of it
bursting while the repair operation is being performed. If you notice any
cracks or deformation of the tire, turn off the compressor swit ch and stop
the repair operation immediately.
O The repair kit may overheat if operated for a long period of time. Do not
operate the repair kit continuously for more than 40 minutes.
O Parts of the repair kit become hot during operation. Be careful handling the
repair kit during and after operation. Do not touch the metal p art connect-
ing the bottle and the compressor. It will be extremely hot.
O Do not attach the vehicle speed warning sticker to an area other than the
one indicated. If the sticker is attached to an area where an S RS airbag is
located, such as the pad of the steering wheel, it may prevent the SRS air-
bag from operating properly.

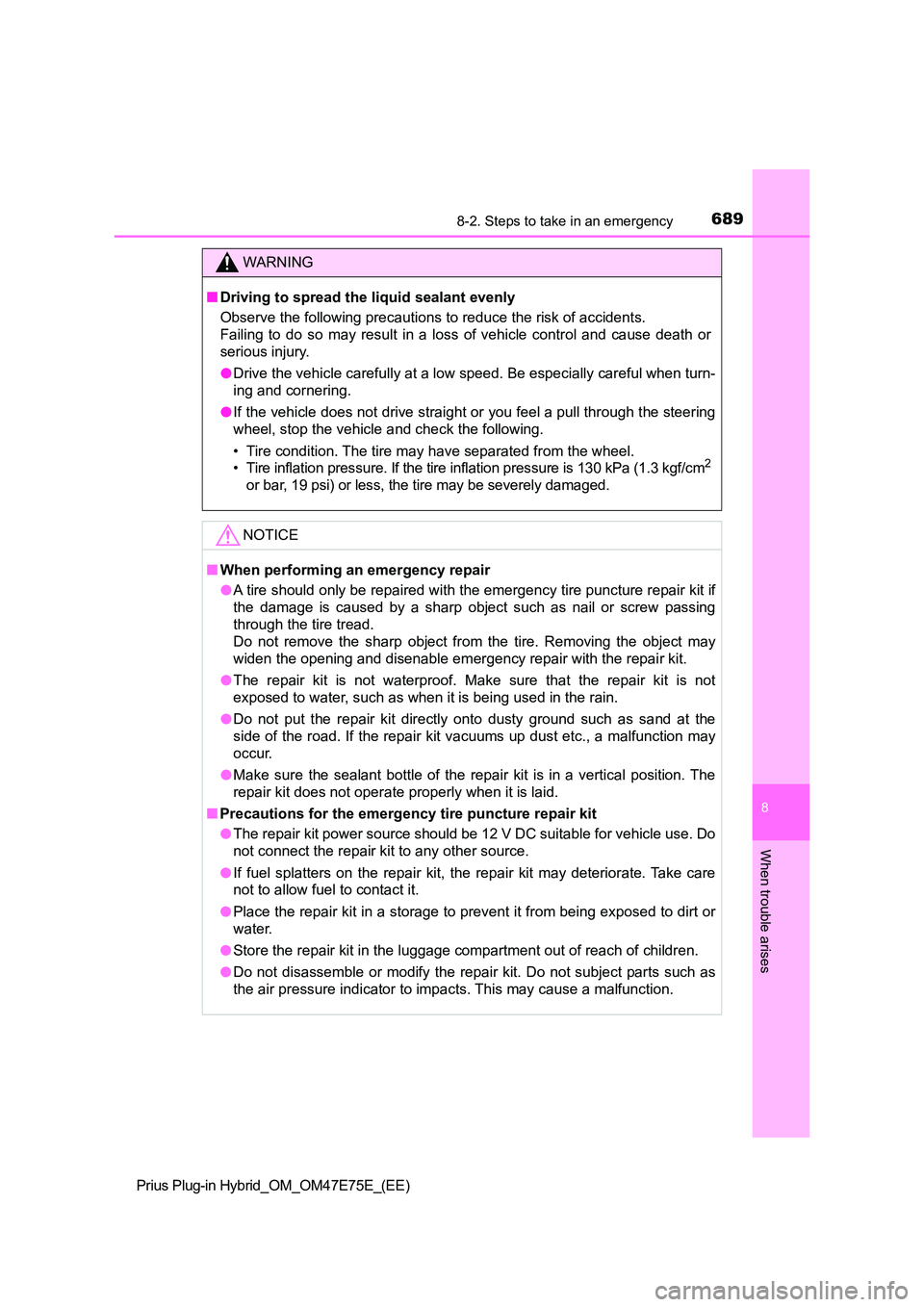

6898-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises
WARNING
QDriving to spread the liquid sealant evenly
Observe the following precautions to reduce the risk of acciden ts.
Failing to do so may result in a loss of vehicle control and ca use death or
serious injury.
O Drive the vehicle carefully at a low speed. Be especially careful when turn-
ing and cornering.
O If the vehicle does not drive straight or you feel a pull through the steering
wheel, stop the vehicle and check the following.
• Tire condition. The tire may have separated from the wheel.
• Tire inflation pressure. If the tire inflation pressure is 130 kPa (1.3 kgf/cm2
or bar, 19 psi) or less, the tire may be severely damaged.
NOTICE
QWhen performing an emergency repair
O A tire should only be repaired with the emergency tire puncture repair kit if
the damage is caused by a sharp object such as nail or screw pa ssing
through the tire tread.
Do not remove the sharp object from the tire. Removing the obje ct may
widen the opening and disenable em ergency repair with the repair kit.
O The repair kit is not waterproof. Make sure that the repair kit is not
exposed to water, such as when it is being used in the rain.
O Do not put the repair kit directly onto dusty ground such as sand at the
side of the road. If the repair kit vacuums up dust etc., a mal function may
occur.
O Make sure the sealant bottle of the repair kit is in a vertical position. The
repair kit does not operate properly when it is laid.
Q Precautions for the emergency tire puncture repair kit
O The repair kit power source should be 12 V DC suitable for vehicle use. Do
not connect the repair kit to any other source.
O If fuel splatters on the repair kit, the repair kit may deteriorate. Take care
not to allow fuel to contact it.
O Place the repair kit in a storage to prevent it from being exposed to dirt or
water.
O Store the repair kit in the luggage compartment out of reach of children.
O Do not disassemble or modify the repair kit. Do not subject parts such as
the air pressure indicator to impacts. This may cause a malfunc tion.

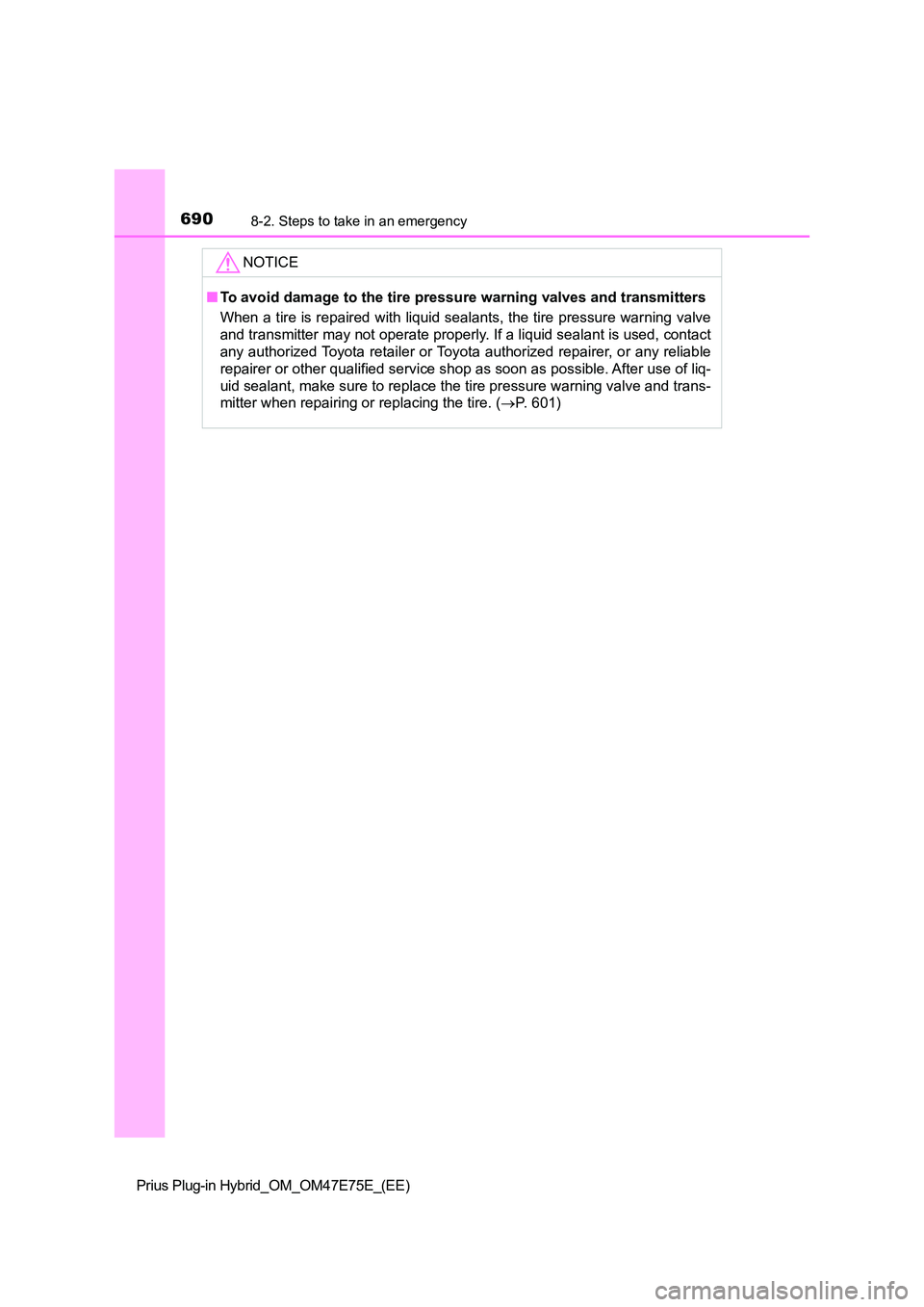

6908-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
NOTICE
QTo avoid damage to the tire pressure warning valves and transmitters
When a tire is repaired with liquid sealants, the tire pressure warning valve
and transmitter may not operate properly. If a liquid sealant i s used, contact
any authorized Toyota retailer or Toyota authorized repairer, o r any reliable
repairer or other qualified service shop as soon as possible. A fter use of liq-
uid sealant, make sure to replace the tire pressure warning val ve and trans-
mitter when repairing or replacing the tire. ( P. 601)

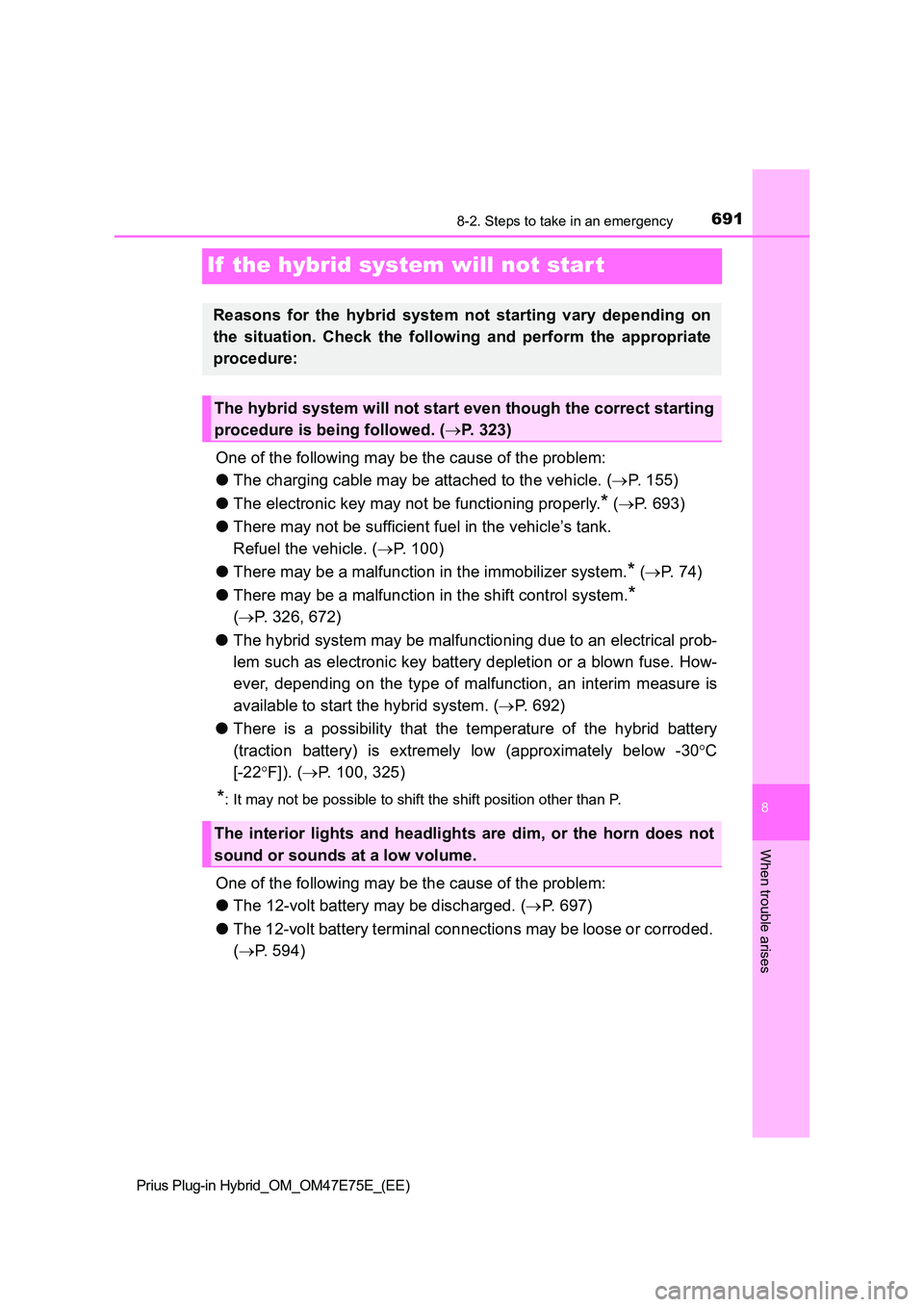

6918-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises
If the hybrid system will not star t
One of the following may be the cause of the problem:
O The charging cable may be attached to the vehicle. (P. 155)
O The electronic key may not be functioning properly.* (P. 693)
O There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle. ( P. 100)
O There may be a malfunction in the immobilizer system.* (P. 7 4 )
O There may be a malfunction in the shift control system.*
( P. 326, 672)
O The hybrid system may be malfunctioning due to an electrical prob-
lem such as electronic key battery depletion or a blown fuse. H ow-
ever, depending on the type of malfunction, an interim measure is
available to start the hybrid system. ( P. 692)
O There is a possibility that the temperature of the hybrid battery
(traction battery) is extremely low (approximately below -30 C
[-22 F]). (P. 100, 325)
*: It may not be possible to shift the shift position other than P.
One of the following may be the cause of the problem:
O The 12-volt battery may be discharged. (P. 697)
O The 12-volt battery terminal connections may be loose or corroded.
( P. 594)
Reasons for the hybrid system not starting vary depending on
the situation. Check the following and perform the appropriate
procedure:
The hybrid system will not start even though the correct starti ng
procedure is being followed. ( P. 323)
The interior lights and headlights are dim, or the horn does not
sound or sounds at a low volume.

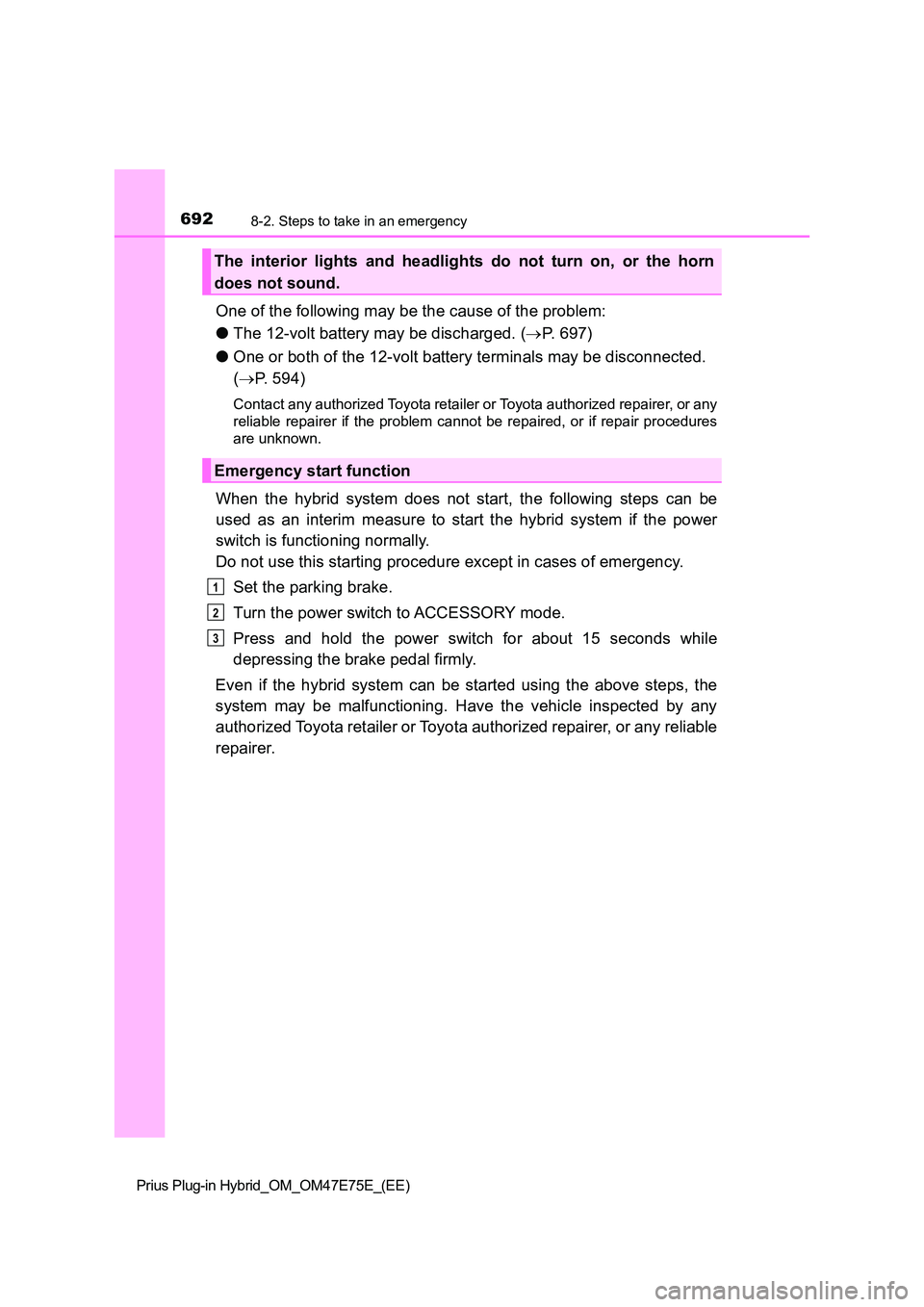

6928-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
One of the following may be the cause of the problem:
O The 12-volt battery may be discharged. (P. 697)
O One or both of the 12-volt battery terminals may be disconnected.
( P. 594)
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer if the problem cannot be repaired, or if repa ir procedures
are unknown.
When the hybrid system does not start, the following steps can be
used as an interim measure to start the hybrid system if the po wer
switch is functioning normally.
Do not use this starting procedure except in cases of emergency .
Set the parking brake.
Turn the power switch to ACCESSORY mode.
Press and hold the power switch for about 15 seconds while
depressing the brake pedal firmly.
Even if the hybrid system can be started using the above steps, the
system may be malfunctioning. Have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or an y reliable
repairer.
The interior lights and headlights do not turn on, or the horn
does not sound.
Emergency start function
1
2
3

6938-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises
If the electronic key does not operate
properly
Use the mechanical key ( P. 269) in order to perform the following
operations:
Locks all the doors
Closes the windows (turn and
hold)*
Unlocks all the doors
Opens the windows (turn and
hold)*
*: This setting must be customized at
any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer. ( P. 724)
If communication between the electronic key and vehicle is inter-
rupted ( P. 286) or the electronic key cannot be used because the
battery is depleted, the smart entry & start system and wireles s
remote control cannot be used. In such cases, the doors can be
opened and the hybrid system can be started by following the pr o-
cedure below.
Locking and unlocking the doors
1
2
3
4

6948-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Depress the brake pedal.
Touch the Toyota emblem side
of the electronic key to the
power switch.
When the electronic key is
detected, a buzzer sounds and the
power switch will turn to ON mode.
When the smart entry & start sys-
tem is deactivated in customization
setting, the power switch will turn
to ACCESSORY mode.
Firmly depress the brake pedal
and check that is shown
on the multi-information display.
Press the power switch.
In the event that the hybrid system still cannot be operated, c ontact
any authorized Toyota retailer or Toyota authorized repairer, o r any
reliable repairer.
Starting the hybrid system
1
2
IO82PH053
3
4
