2022 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

6077-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
7
Maintenance and care

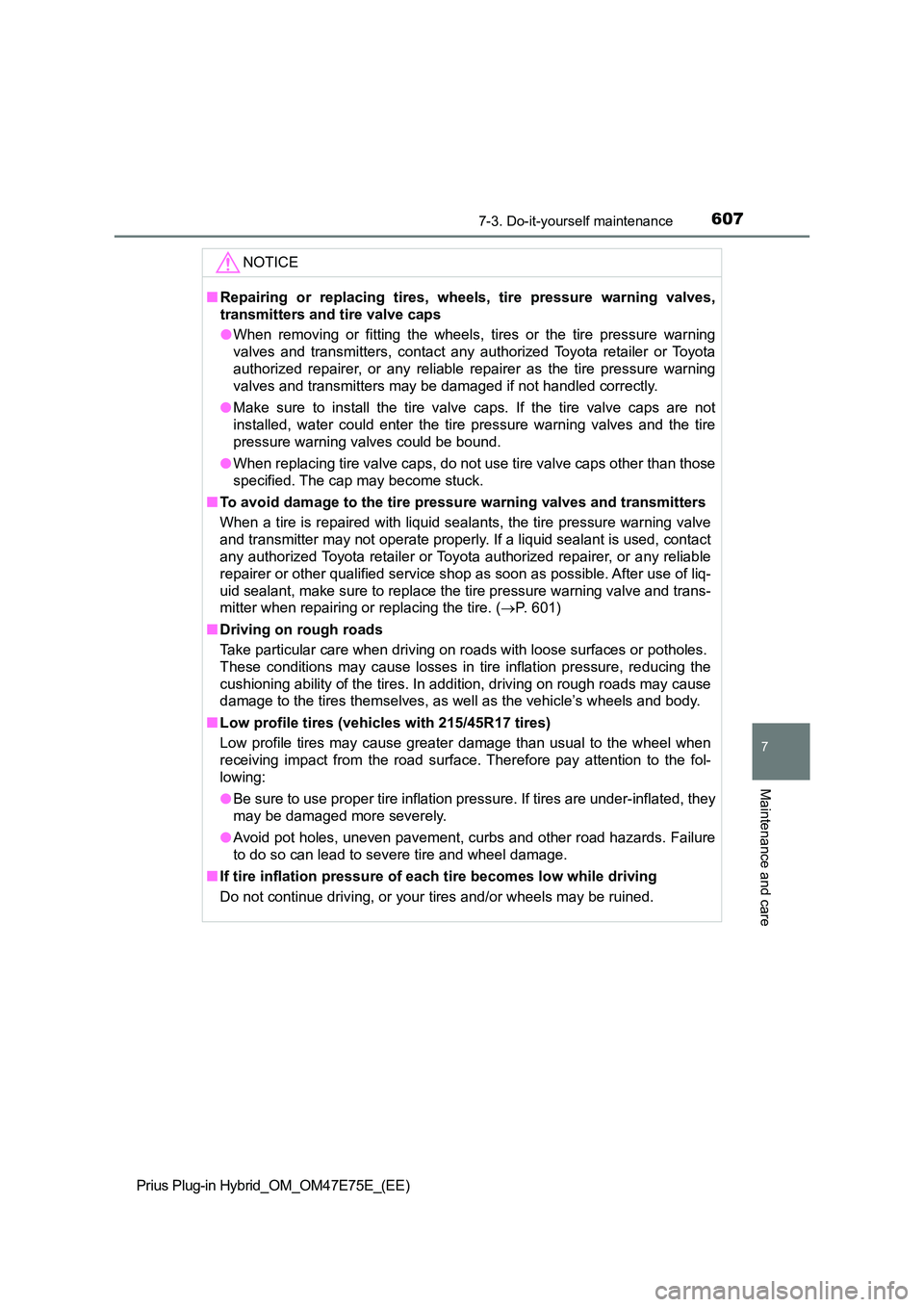

NOTICE
QRepairing or replacing tires, wheels, tire pressure warning valves,
transmitters and tire valve caps
O When removing or fitting the wheels, tires or the tire pressure warning
valves and transmitters, contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer as the tire press ure warning
valves and transmitters may be damaged if not handled correctly .
O Make sure to install the tire valve caps. If the tire valve caps are not
installed, water could enter the tire pressure warning valves a nd the tire
pressure warning valves could be bound.
O When replacing tire valve caps, do not use tire valve caps other than those
specified. The cap may become stuck.
Q To avoid damage to the tire pressure warning valves and transmitters
When a tire is repaired with liquid sealants, the tire pressure warning valve
and transmitter may not operate properly. If a liquid sealant i s used, contact
any authorized Toyota retailer or Toyota authorized repairer, o r any reliable
repairer or other qualified service shop as soon as possible. A fter use of liq-
uid sealant, make sure to replace the tire pressure warning val ve and trans-
mitter when repairing or replacing the tire. ( P. 601)
Q Driving on rough roads
Take particular care when driving on roads with loose surfaces or potholes.
These conditions may cause losses in tire inflation pressure, r educing the
cushioning ability of the tires. In addition, driving on rough roads may cause
damage to the tires themselves, as well as the vehicle’s wheels and body.
Q Low profile tires (vehicles with 215/45R17 tires)
Low profile tires may cause greater damage than usual to the wh eel when
receiving impact from the road surface. Therefore pay attention to the fol-
lowing:
O Be sure to use proper tire inflation pressure. If tires are under-inflated, they
may be damaged more severely.
O Avoid pot holes, uneven pavement, curbs and other road hazards. Failure
to do so can lead to severe tire and wheel damage.
Q If tire inflation pressure of each tire becomes low while driving
Do not continue driving, or your tires and/or wheels may be rui ned.

6087-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

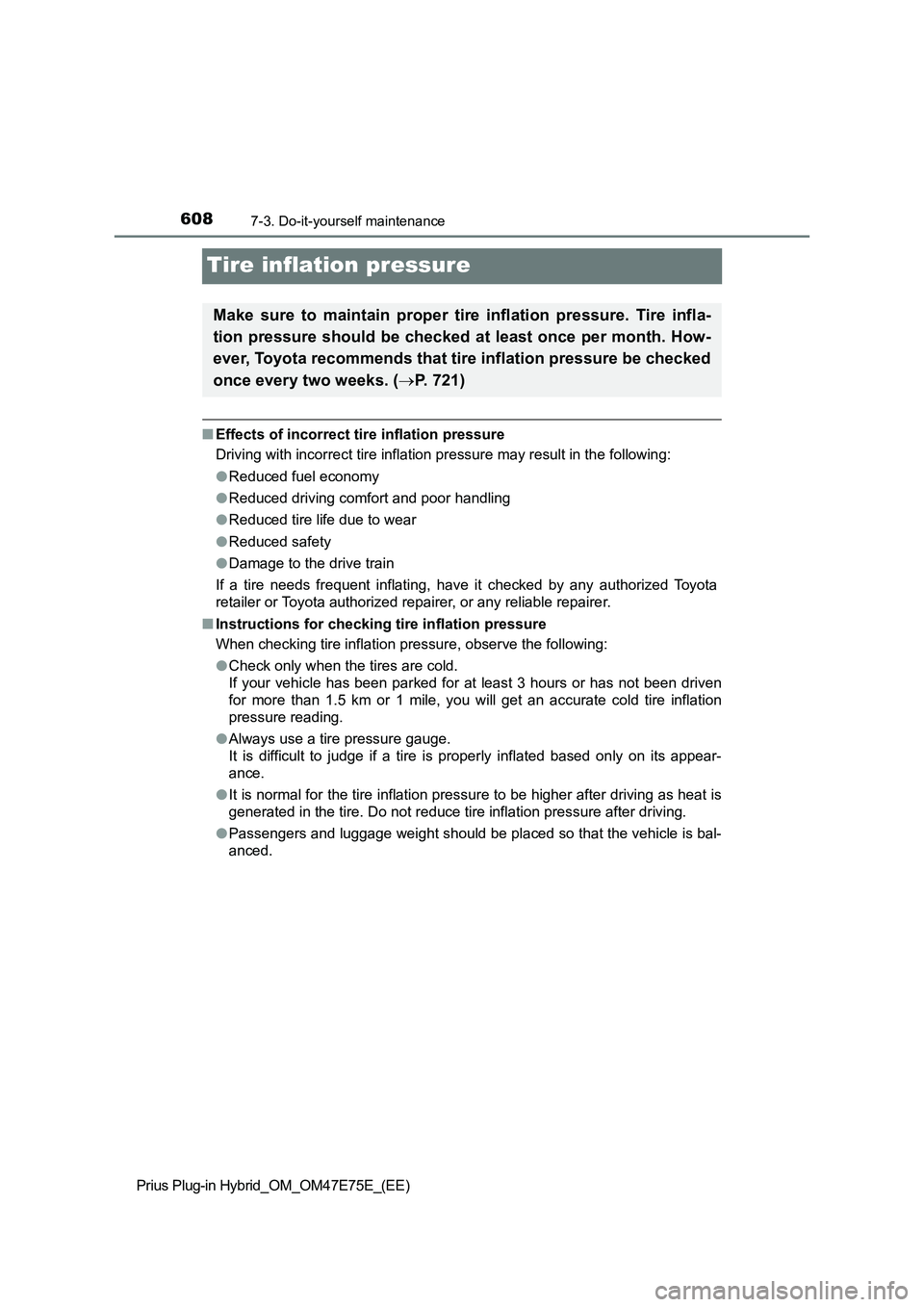

Tire inflation pressure
QEffects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following:
OReduced fuel economy
OReduced driving comfort and poor handling
OReduced tire life due to wear
OReduced safety
ODamage to the drive train
If a tire needs frequent inflating, have it checked by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
QInstructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following:
OCheck only when the tires are cold.
If your vehicle has been parked for at least 3 hours or has not been driven
for more than 1.5 km or 1 mile, you will get an accurate cold tire inflation
pressure reading.
OAlways use a tire pressure gauge.
It is difficult to judge if a tire is properly inflated based only on its appear-
ance.
OIt is normal for the tire inflation pressure to be higher after driving as heat is
generated in the tire. Do not reduce tire inflation pressure after driving.
OPassengers and luggage weight should be placed so that the vehicle is bal-
anced.
Make sure to maintain proper tire inflation pressure. Tire infla-
tion pressure should be checked at least once per month. How-
ever, Toyota recommends that tire inflation pressure be checked
once every two weeks. (P. 7 2 1 )

6097-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
7
Maintenance and care

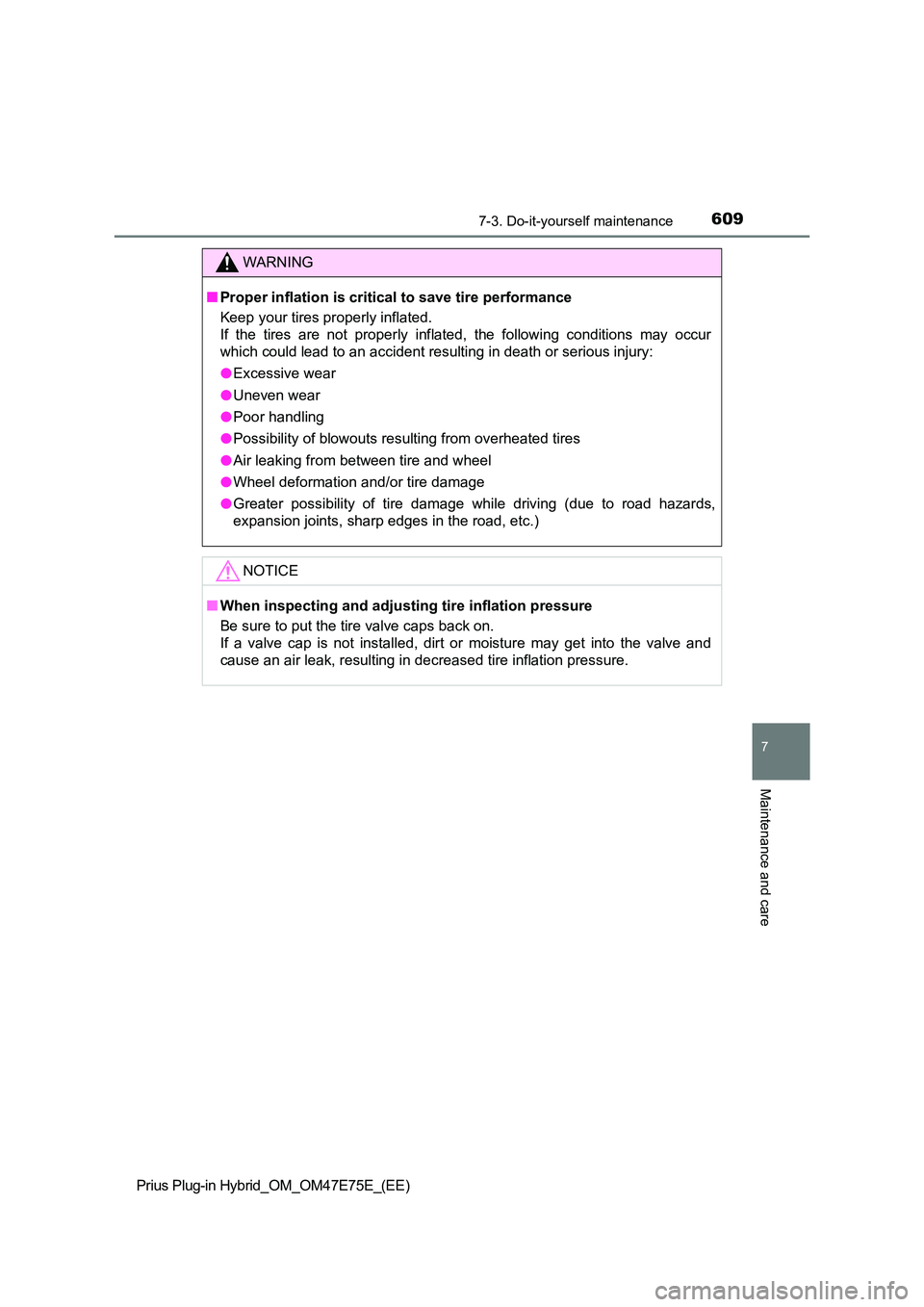

WARNING
QProper inflation is critical to save tire performance
Keep your tires properly inflated.
If the tires are not properly inflated, the following condition s may occur
which could lead to an accident resulting in death or serious i njury:
O Excessive wear
O Uneven wear
O Poor handling
O Possibility of blowouts resulting from overheated tires
O Air leaking from between tire and wheel
O Wheel deformation and/or tire damage
O Greater possibility of tire damage while driving (due to road hazards,
expansion joints, sharp edges in the road, etc.)
NOTICE
Q When inspecting and adjusting tire inflation pressure
Be sure to put the tire valve caps back on.
If a valve cap is not installed, dirt or moisture may get into the valve and
cause an air leak, resulting in decreased tire inflation pressu re.

6107-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Wheels
When replacing wheels, care should be taken to ensure that they are
equivalent to those removed in load capacity, diameter, rim width and
inset
*.
Replacement wheels are available at any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
*: Conventionally referred to as “offset”.
Toyota does not recommend using the following:
OWheels of different sizes or types
OUsed wheels
OBent wheels that have been straightened
OUse only Toyota wheel nuts and wrenches designed for use with
your aluminum wheels.
OWhen rotating, repairing or changing your tires, check that the
wheel nuts are still tight after driving 1600 km (1000 miles).
OBe careful not to damage the aluminum wheels when using tire
chains.
OUse only Toyota genuine balance weights or equivalent and a plas-
tic or rubber hammer when balancing your wheels.
If a wheel is bent, cracked or heavily corroded, it should be
replaced. Otherwise, the tire may separate from the wheel or
cause a loss of handling control.
Wheel selection
Aluminum wheel precautions

6117-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
7
Maintenance and care
QWhen replacing wheels
The wheels of your vehicle are equipped with tire pressure warn ing valves
and transmitters that allow the tire pressure warning system to provide
advance warning in the event of a loss in tire inflation pressu re. Whenever
wheels are replaced, tire pressure warning valves and transmitt ers must be
installed. ( P. 601)
WARNING
QWhen replacing wheels
O Do not use wheels that are a different size from those recommended in the
Owner’s Manual, as this may resu lt in a loss of handling control.
O Never use an inner tube in a leaking wheel which is designed for a tube-
less tire. Doing so may result in an accident, causing death or serious
injury.
Q When installing the wheel nuts
Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tight ened, lead-
ing to bolt or disc wheel damage. In addition, the oil or greas e can cause the
wheel nuts to loosen and the wheel may fall off, causing an acc ident and
resulting in death or serious injury. Remove any oil or grease from the wheel
bolts or wheel nuts.
Q Use of defective wheels prohibited
Do not use cracked or deformed wheels.
Doing so could cause the tire to leak air during driving, possi bly causing an
accident.
NOTICE
Q Replacing tire pressure warning valves and transmitters
O Because tire repair or replacement may affect the tire pressure warning
valves and transmitters, make sure to have tires serviced by an y autho-
rized Toyota retailer or Toyota authorized repairer, or any rel iable repairer
or other qualified service shop. In addition, make sure to purc hase your
tire pressure warning valves and transmitters at any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repaire r.
O Ensure that only genuine Toyota wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work prop erly with
non-genuine wheels.

6127-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Replacing the tire
OStop the vehicle in a safe place on a hard, flat surface.
OSet the parking brake.
OShift the shift position to P.
OStop the hybrid system.
When raising your vehicle with a jack, position the jack cor-
rectly.
Improper placement may damage your vehicle or cause injury.
Before jacking up the vehicle

6137-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
7
Maintenance and care

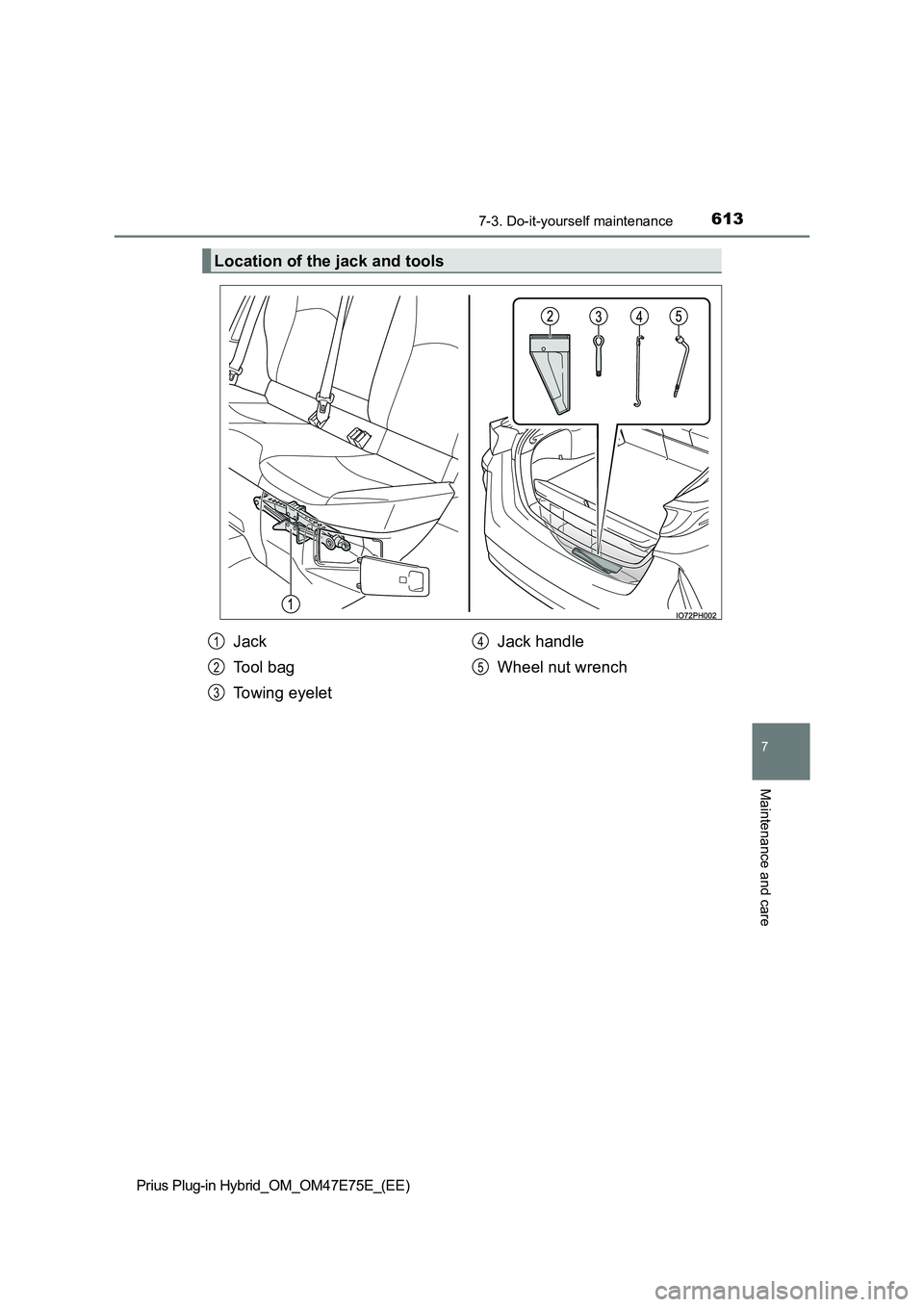

Location of the jack and tools
Jack
Tool bag
Towing eyelet
Jack handle
Wheel nut wrench
1
2
3
4
5

6147-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

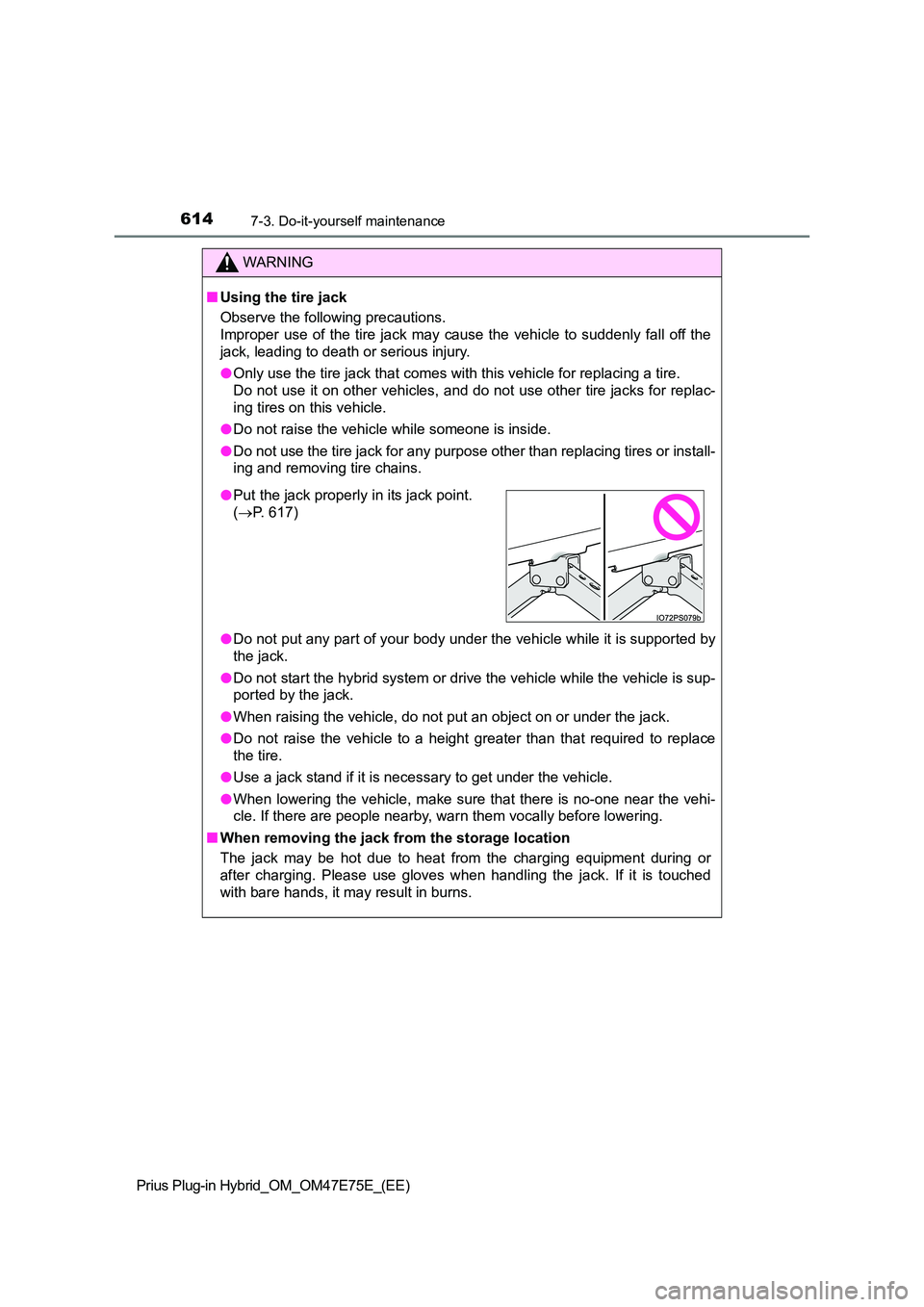

WARNING
QUsing the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to death or serious injury.
O Only use the tire jack that comes with this vehicle for replacing a tire.
Do not use it on other vehicles, and do not use other tire jack s for replac-
ing tires on this vehicle.
O Do not raise the vehicle while someone is inside.
O Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
O Do not put any part of your body under the vehicle while it is supported by
the jack.
O Do not start the hybrid system or drive the vehicle while the vehicle is sup-
ported by the jack.
O When raising the vehicle, do not put an object on or under the jack.
O Do not raise the vehicle to a height greater than that required to replace
the tire.
O Use a jack stand if it is necessary to get under the vehicle.
O When lowering the vehicle, make sure that there is no-one near the vehi-
cle. If there are people nearby, warn them vocally before lower ing.
Q When removing the jack from the storage location
The jack may be hot due to heat from the charging equipment dur ing or
after charging. Please use gloves when handling the jack. If it is touched
with bare hands, it may result in burns.
O Put the jack properly in its jack point.
( P. 617)
