2022 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

6558-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises
NOTICE

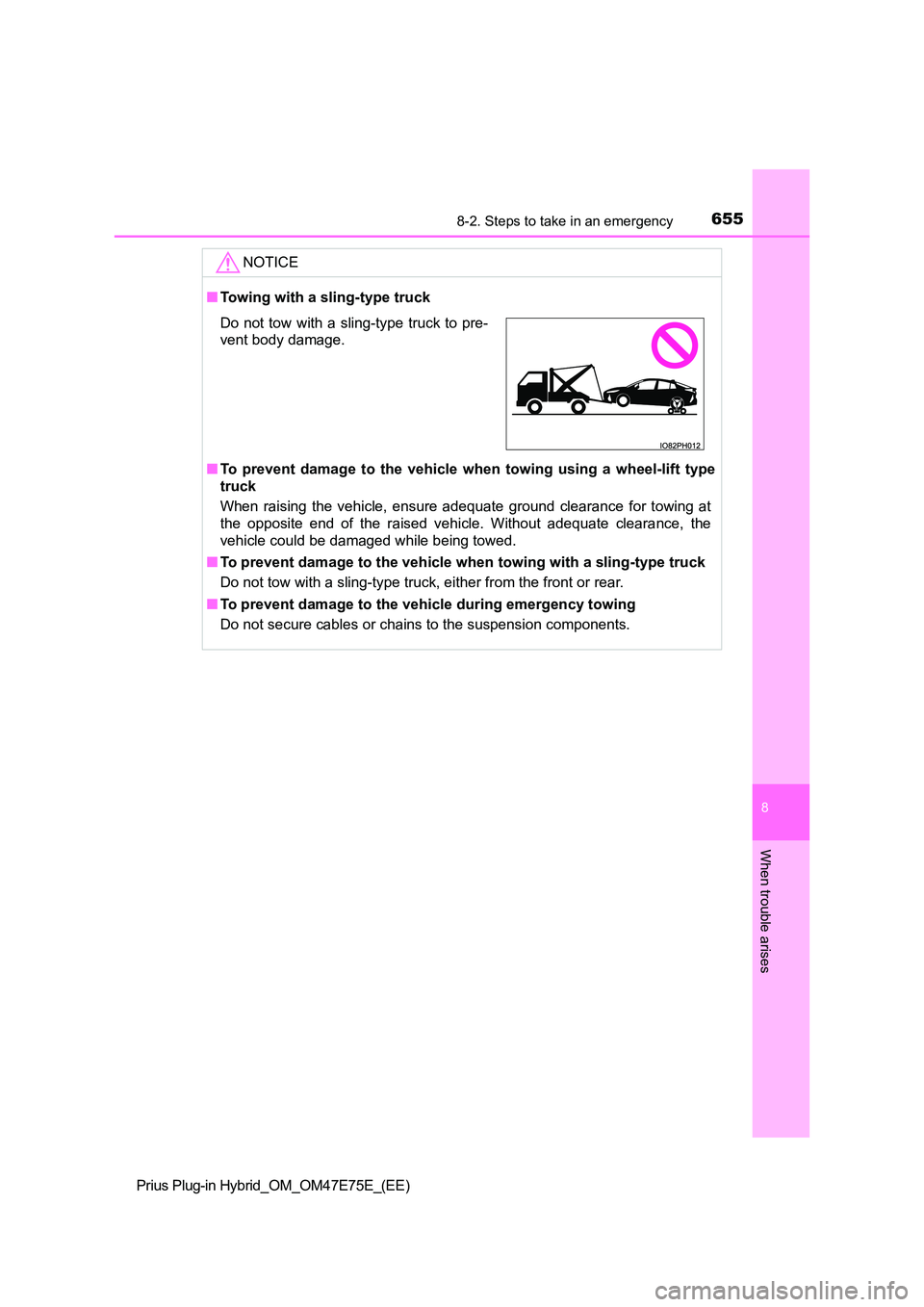

QTowing with a sling-type truck
Q To prevent damage to the vehicle when towing using a wheel-lift type
truck
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate cleara nce, the
vehicle could be damaged while being towed.
Q To prevent damage to the vehicle when towing with a sling-type truck
Do not tow with a sling-type tr uck, either from the front or rear.
Q To prevent damage to the vehicle during emergency towing
Do not secure cables or chains to the suspension components.
Do not tow with a sling-type truck to pre-
vent body damage.

6568-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
If you think something is wrong
OFluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
O Flat-looking tires or uneven tire wear
O High coolant temperature warning light flashes or comes on
O Changes in exhaust sound
O Excessive tire squeal when cornering
O Strange noises related to the suspension system
O Pinging or other noises related to the hybrid system
O Engine missing, stumbling or running roughly
O Appreciable loss of power
O Vehicle pulls heavily to one side when braking
O Vehicle pulls heavily to one side when driving on a level road
O Loss of brake effectiveness, spongy feeling, pedal almost touches
the floor
If you notice any of the following symptoms, your vehicle proba -
bly needs adjustment or repair. Contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repaire r as
soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

6578-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises

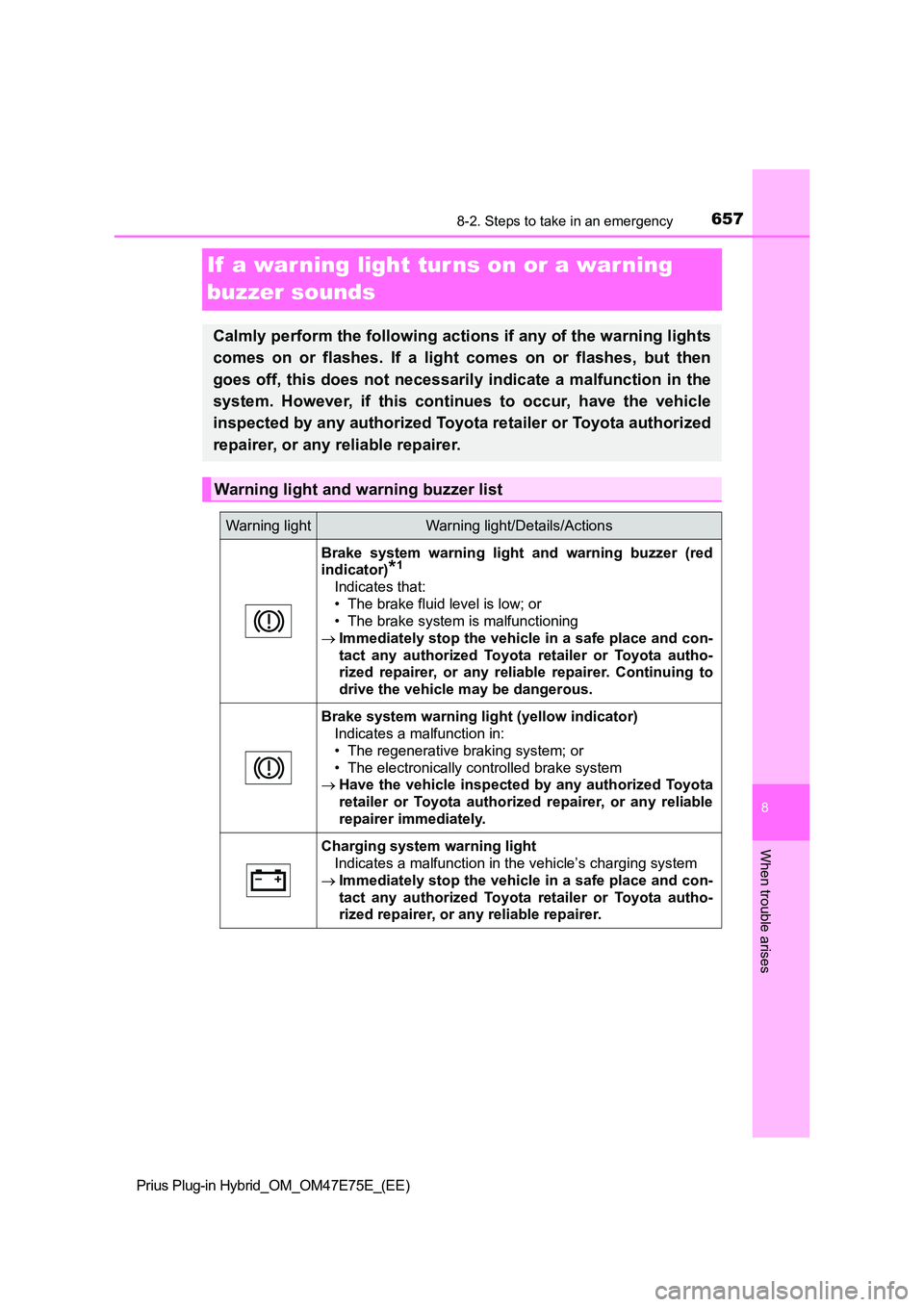

If a war ning light tur ns on or a warning
buzzer sounds
Calmly perform the following actions if any of the warning ligh ts
comes on or flashes. If a light comes on or flashes, but then
goes off, this does not necessarily indicate a malfunction in t he
system. However, if this continues to occur, have the vehicle
inspected by any authorized Toyota retailer or Toyota authorize d
repairer, or any reliable repairer.
Warning light and warning buzzer list
Warning lightWarning light/Details/Actions
Brake system warning light and warning buzzer (red
indicator)*1
Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning
 Immediately stop the vehicle in a safe place and con-
tact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer. Continuing to
drive the vehicle may be dangerous.
Brake system warning light (yellow indicator)
Indicates a malfunction in:
• The regenerative braking system; or
• The electronically controlled brake system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
 Immediately stop the vehicle in a safe place and con-
tact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.

6588-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Low engine oil pressure warning light
(warning buzzer)*2
Indicates that the engine oil pressure is too low
 Immediately stop the vehicle in a safe place and con-
tact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
Malfunction indicator lamp
Indicates a malfunction in:
• The hybrid system;
• The electronic engine control system; or
• The electronic throttle control system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
ABS warning light
Indicates a malfunction in:
• The ABS; or
• The brake assist system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
(Red/yellow)
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Warning lightWarning light/Details/Actions

6598-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises
(Flashes or illuminates)
PCS warning light
• When a buzzer sounds simultaneously:
Indicates a malfunction has occurred in the PCS (Pre-
Collision System).
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
• When a buzzer does not sound:
The PCS (Pre-Collision System) has become temporar-
ily unavailable, corrective action may be necessary.
 Follow the instructions displayed on the multi-infor-
mation display. ( P. 366, 665)
If the PCS (Pre-Collision System) or VSC (Vehicle Stability
Control) system is disabled, the PCS warning light will illu-
minate.
 P. 378
(Orange)
LTA indicator (warning buzzer)
Indicates a malfunction in the LTA (Lane Tracing Assist)
 Follow the instructions displayed on the multi-infor-
mation display. ( P. 394)
Slip indicator light
Indicates a malfunction in:
• The VSC system;
• The TRC system; or
• The hill-start assist control system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
The light will flash when the ABS, VSC or TRC system is
operating.
High coolant temperature warning light
• When the light flashes:
Indicates that the engine coolant temperature is too high
The light changes from a flashing to a solid light when
the temperature further increases
 Immediately stop the vehicle in a safe place.
( P. 703)
• When the light comes on without flashing:
Indicates a malfunction in the exhaust heat recirculator
system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Warning lightWarning light/Details/Actions

6608-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
(Flashes) (If equipped)

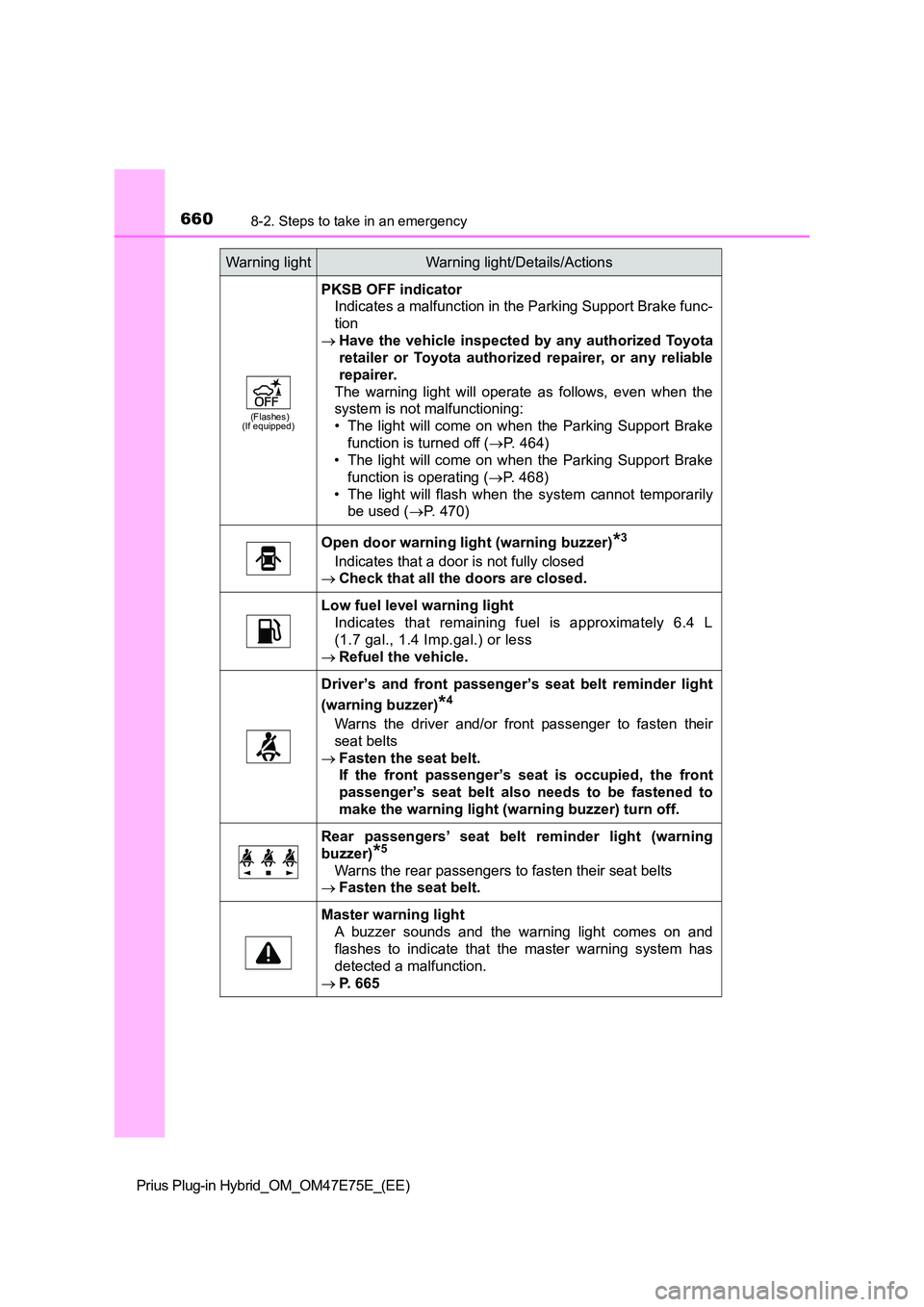

PKSB OFF indicator
Indicates a malfunction in the Parking Support Brake func-
tion
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer.
The warning light will operate as follows, even when the
system is not malfunctioning:
• The light will come on when the Parking Support Brake
function is turned off ( P. 464)
• The light will come on when the Parking Support Brake
function is operating ( P. 468)
• The light will flash when the system cannot temporarily
be used ( P. 470)
Open door warning light (warning buzzer)*3
Indicates that a door is not fully closed
 Check that all the doors are closed.
Low fuel level warning light
Indicates that remaining fuel is approximately 6.4 L
(1.7 gal., 1.4 Imp.gal.) or less
 Refuel the vehicle.
Driver’s and front passenger’s seat belt reminder light
(warning buzzer)*4
Warns the driver and/or fr ont passenger to fasten their
seat belts
 Fasten the seat belt.
If the front passenger’s seat is occupied, the front
passenger’s seat belt also needs to be fastened to
make the warning light (warning buzzer) turn off.
Rear passengers’ seat belt reminder light (warning
buzzer)*5
Warns the rear passengers to fasten their seat belts
 Fasten the seat belt.
Master warning light
A buzzer sounds and the warning light comes on and
flashes to indicate that the master warning system has
detected a malfunction.
 P. 665
Warning lightWarning light/Details/Actions

6618-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises
Tire pressure warning light
When the light comes on:
Low tire inflation pressure such as
• Natural causes ( P. 663)
• Flat tire ( P. 673)
 Adjust the tire inflation pressure to the specified
level.
The light will turn off after a few minutes. In case the
light does not turn off even if the tire inflation pres-
sure is adjusted, have the system checked by any
authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system ( P. 663)
 Have the system checked by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer.
Inappropriate pedal operation warning light*6 (warning
buzzer)
When a buzzer sounds:
Indicates a malfunction in:
• The Brake Override System
• The Drive-Start Control
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer.
Indicates that the shift position was changed and Drive-
Start Control was operated while depressing the accelera-
tor pedal.
 Momentarily release the accelerator pedal.
Indicates that the Parking Support Brake function (if
equipped) is operating ( P. 468)
 Follow the instruction that is displayed on the multi-
information display.
When a buzzer does not sound:
Indicates that the accelerator and brake pedals are being
depressed simultaneously, and the Brake Override Sys-
tem is operating.
 Release the accelerator pedal and depress the brake
pedal.
Warning lightWarning light/Details/Actions

6628-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
*1: Brake system warning buzzer:
When there is a possible problem that could affect braking perf ormance,
the warning light will come on and a warning buzzer will sound.
*2: Low engine oil pressure warning buzzer:
A buzzer also sounds continuously for approximately 30 seconds at maxi-
mum in addition to the low engine oil pressure warning light wh en the
“READY” indicator is illuminated.
*3: Open door warning buzzer:
The open door warning buzzer sounds to alert one or more of the doors is
not fully closed (with the vehicle having reached a speed of 5 k m/h
[3 mph]).
*4: Driver’s and front passenger’s seat belt warning buzzer:
The driver’s and front passenger’s seat belt warning buzzer sou nds to alert
the driver and front passenger that his or her seat belt is not fastened. If
the seat belt is unfastened, the buzzer sounds intermittently f or a certain
period of time after the vehicle reaches a certain speed.
*5: Rear passengers’ seat belt warning buzzer:
The rear passengers’ seat belt warning buzzer sounds to alert t he rear
passenger that his or her seat belt is not fastened. If the sea t belt is unfas-
tened, the buzzer sounds intermittently for a certain period of time, after
the seat belt is fastened and unfastened and the vehicle reache s a certain
speed.
*6: This symbol is displayed on the multi-information display.
Q Front passenger detection sensor, seat belt reminder and warning
buzzer
O If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warnin g buzzer to
sound even if a passenger is not sitting in the seat.
O If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
Q Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the vol tage tempo-
rarily drops, the electric power steering system warning light may come on
and the warning buzzer may sound.
Q If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank be comes com-
pletely empty. If the fuel tank is empty, refuel the vehicle im mediately. The
malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer as soon
as possible.
