2022 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

1192-2. Charging
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
This product must be grounded. In case of malfunction or break down,
grounding provides a path of least resistance for electric curr ent to
reduce the risk of electric shock. This product is equipped wit h a
grounding conductor and a grounding plug. The grounding plug mu st
be plugged into an appropriate socket that is properly installe d and
grounded in accordance with all local codes and ordinances.
The CCID (Charging Circuit Interrupting Device) has the followi ng
safety features.
QElectrical leakage detection function
If an electrical leakage is detected during charging, the power
source will be automatically interrupted, thus preventing fires or
electrical shocks caused by electrical leakage.
If the power source is interrupted, the error warning indicator flashes.
If the power source is interrupted: P. 120
QAutomatic check function
This is an automatic system check that is run before charging
begins to check for problems in the operation of the electrical leak-
age detection function.
If a malfunction is found in the electrical leakage detection f unction as a
result of the check, the error warning indicator flashes to inf orm the
user. ( P. 120)
QTemperature detection function
A temperature detection function is equipped to the plug. While
charging, if heat is generated due to looseness on the socket s ide
etc., this function suppresses heat by controlling the charging cur-
rent.
Grounding (Mode 2 charging cable)
WARNING
Q Grounding precautions
O Improper connection of the grounding conductor increases the risk of elec-
tric shock. Check with a qualified electrician or serviceman if you are in
doubt as to whether the product is properly grounded.
O Do not modify the grounding plug provided with the product. If it does not
fit the socket, have a proper socket installed by a qualified e lectrician.
Safety functions (Mode 2 charging cable)

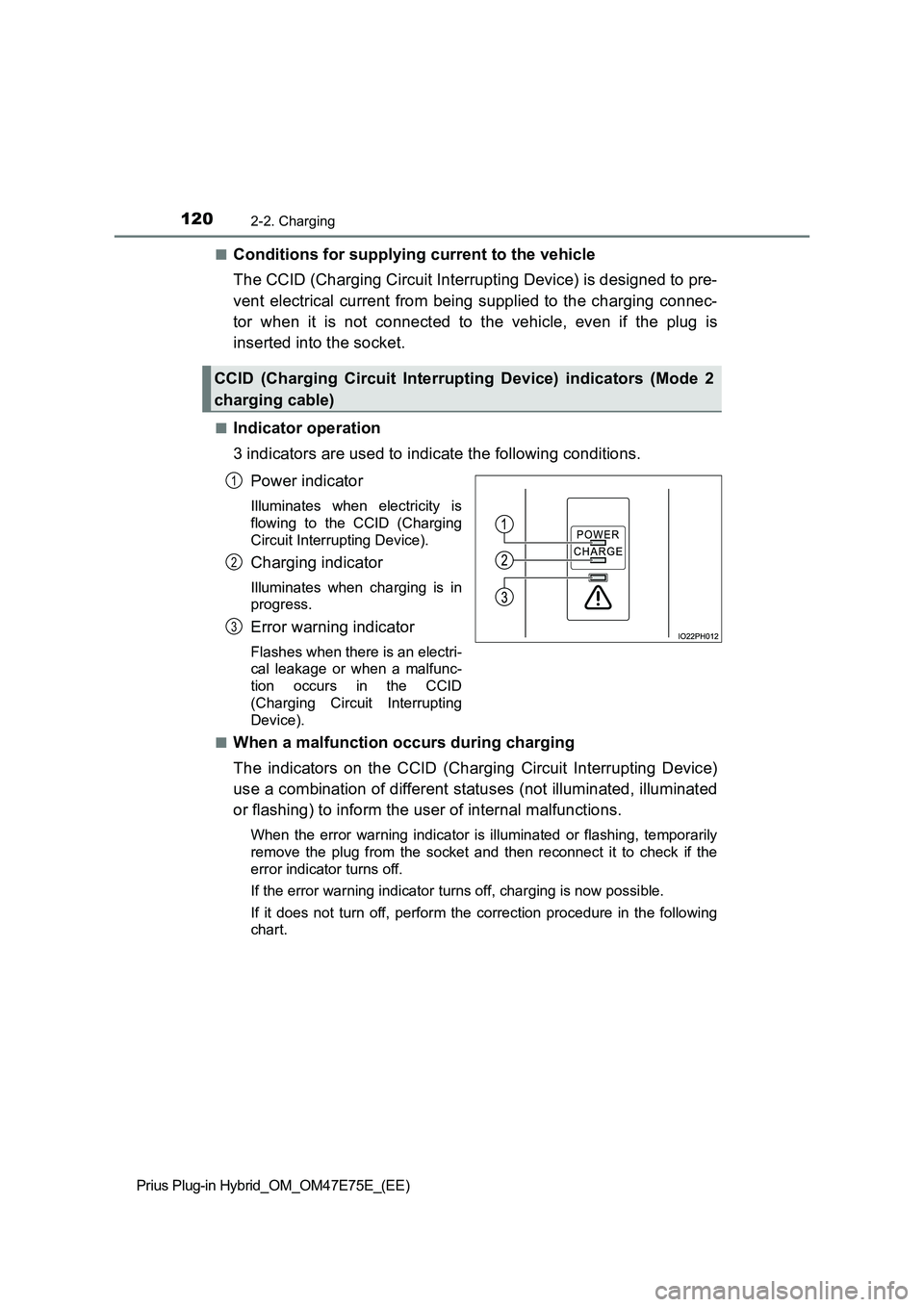

1202-2. Charging
Prius Plug-in Hybrid_OM_OM47E75E_(EE)Q
Conditions for supplying current to the vehicle
The CCID (Charging Circuit Interrupting Device) is designed to pre-
vent electrical current from being supplied to the charging connec-
tor when it is not connected to the vehicle, even if the plug is
inserted into the socket.
QIndicator operation
3 indicators are used to indicate the following conditions.
Power indicator
Illuminates when electricity is
flowing to the CCID (Charging
Circuit Interrupting Device).
Charging indicator
Illuminates when charging is in
progress.
Error warning indicator
Flashes when there is an electri-
cal leakage or when a malfunc-
tion occurs in the CCID
(Charging Circuit Interrupting
Device).
Q
When a malfunction occurs during charging
The indicators on the CCID (Charging Circuit Interrupting Device)
use a combination of different statuses (not illuminated, illuminated
or flashing) to inform the user of internal malfunctions.
When the error warning indicator is illuminated or flashing, temporarily
remove the plug from the socket and then reconnect it to check if the
error indicator turns off.
If the error warning indicator turns off, charging is now possible.
If it does not turn off, perform the correction procedure in the following
chart.
CCID (Charging Circuit Interrupting Device) indicators (Mode 2
charging cable)
1
2
3

1212-2. Charging
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
StatusPower
indicatorError
warning
indicator
Cause/Correction procedure
Charging
system errorNot
illuminatedNot
illuminated
or
illuminatedAn electrical leakage is
detected and charging is can-
celed, or there is a malfunction
in the charging cable.
Consult any authorized
Toyota retailer or Toyota
authorized repairer, or any
reliable repairer Illuminated Flashes
Plug
temperature
detection
malfunction
FlashesFlashes
There is a malfunction in the
plug temperature detection
part.
Consult any authorized
Toyota retailer or Toyota
authorized repairer, or any
reliable repairer
Plug
temperature
increase
detection
FlashesNot
illuminated
An increase in the temperature
of the plug is detected due to an
improper connection between
the socket and plug.
Check that the plug is
securely connected to the
socket.
Charging
cable life
span notice
IlluminatedFlashes
The number of charges using
the charging cable is nearing
the end of its usable life span.
Consult any authorized
Toyota retailer or Toyota
authorized repairer, or any
reliable repairer
Charging
cable life
span
IlluminatedIlluminated
The number of charges using
the charging cable has
exceeded its usable number of
charges.
Consult any authorized
Toyota retailer or Toyota
authorized repairer, or any
reliable repairer

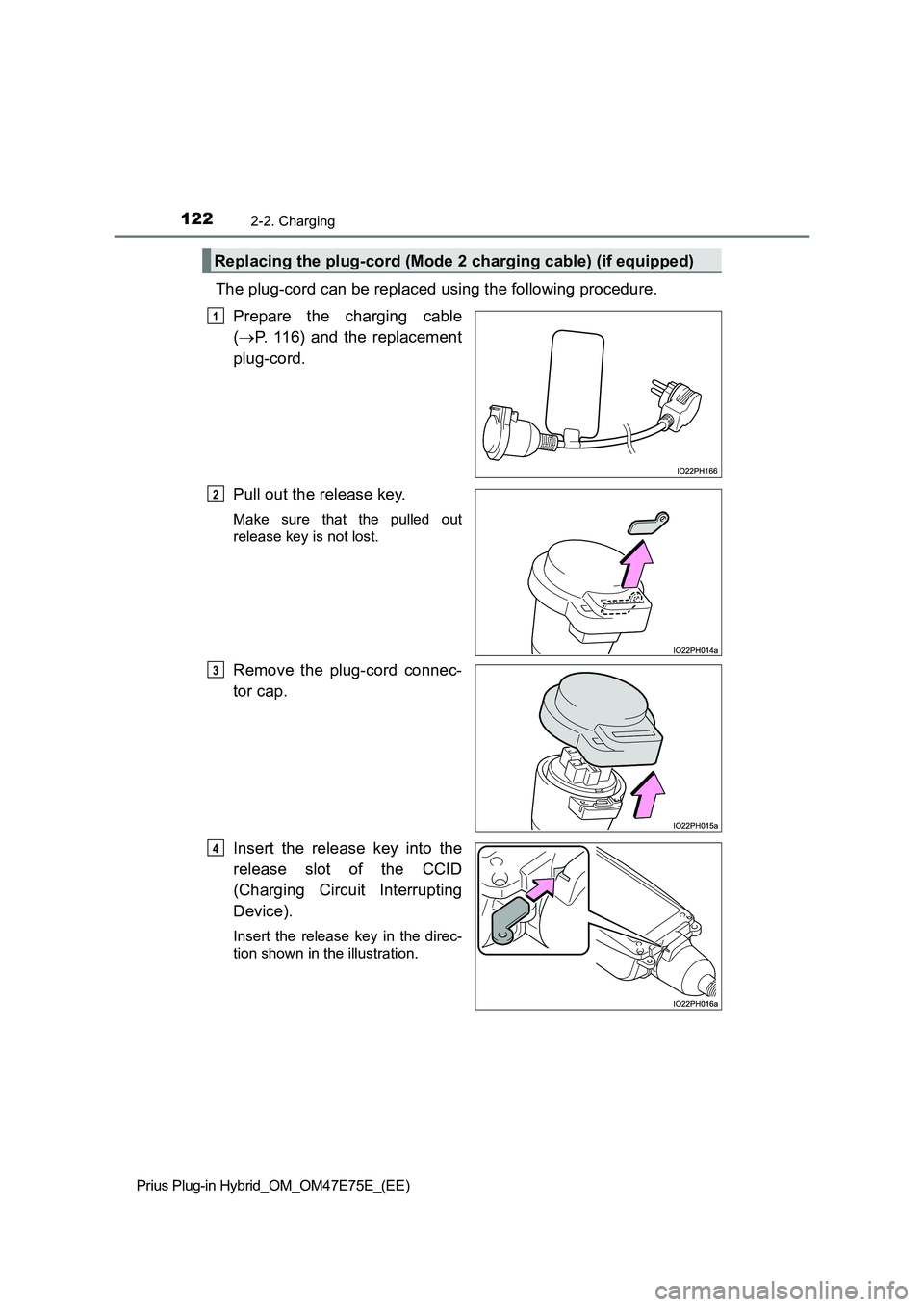

1222-2. Charging
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
The plug-cord can be replaced using the following procedure.
Prepare the charging cable
( P. 116) and the replacement
plug-cord.
Pull out the release key.
Make sure that the pulled out
release key is not lost.
Remove the plug-cord connec-
tor cap.
Insert the release key into the
release slot of the CCID
(Charging Circuit Interrupting
Device).
Insert the release key in the direc-
tion shown in the illustration.
Replacing the plug-cord (Mode 2 charging cable) (if equipped)
1
2
3
4

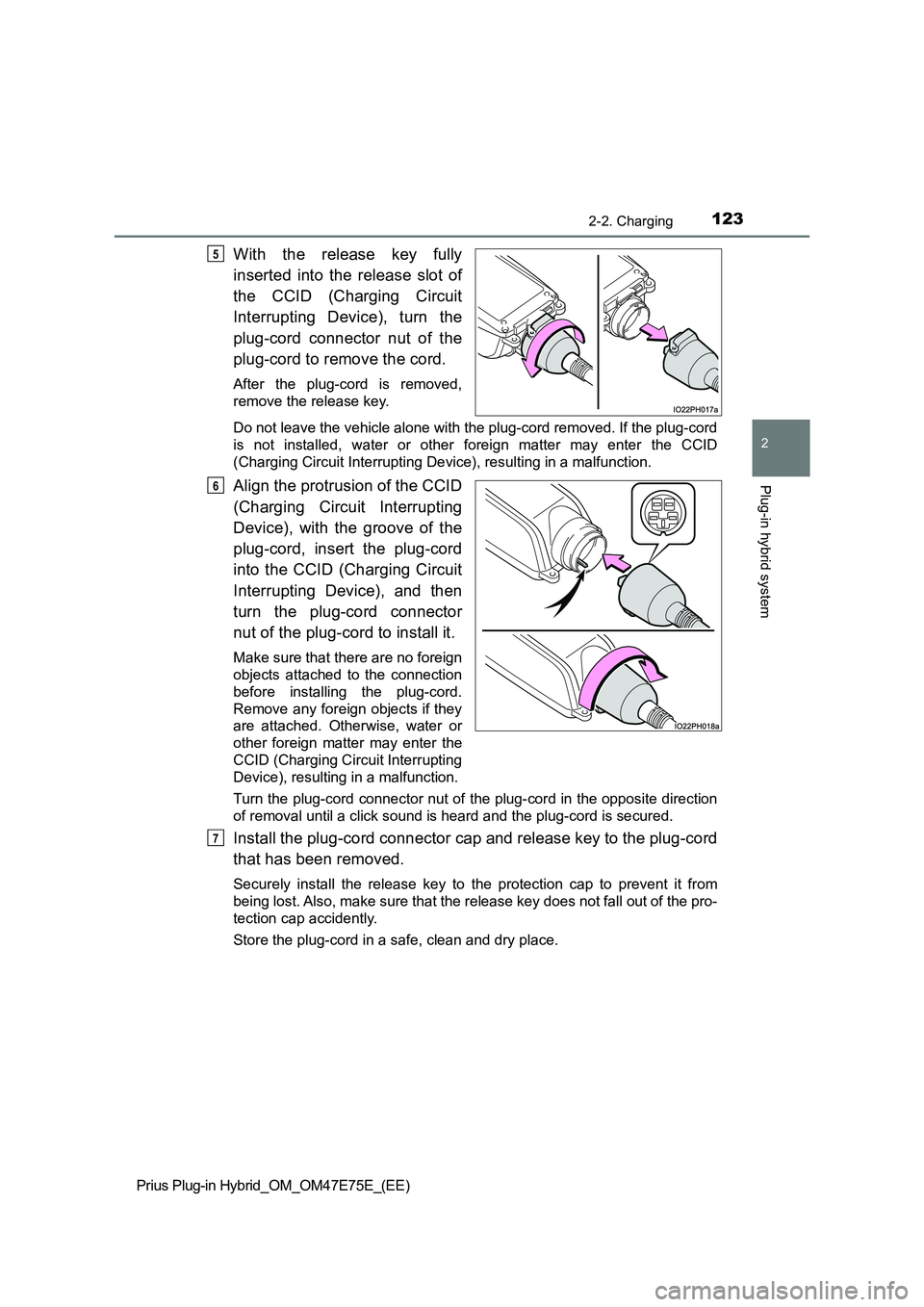

1232-2. Charging
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
With the release key fully
inserted into the release slot of
the CCID (Charging Circuit
Interrupting Device), turn the
plug-cord connector nut of the
plug-cord to remove the cord.
After the plug-cord is removed,
remove the release key.
Do not leave the vehicle alone with the plug-cord removed. If the plug-cord
is not installed, water or other foreign matter may enter the CCID
(Charging Circuit Interrupting Device), resulting in a malfunction.
Align the protrusion of the CCID
(Charging Circuit Interrupting
Device), with the groove of the
plug-cord, insert the plug-cord
into the CCID (Charging Circuit
Interrupting Device), and then
turn the plug-cord connector
nut of the plug-cord to install it.
Make sure that there are no foreign
objects attached to the connection
before installing the plug-cord.
Remove any foreign objects if they
are attached. Otherwise, water or
other foreign matter may enter the
CCID (Charging Circuit Interrupting
Device), resulting in a malfunction.
Turn the plug-cord connector nut of the plug-cord in the opposite direction
of removal until a click sound is heard and the plug-cord is secured.
Install the plug-cord connector cap and release key to the plug-cord
that has been removed.
Securely install the release key to the protection cap to prevent it from
being lost. Also, make sure that the release key does not fall out of the pro-
tection cap accidently.
Store the plug-cord in a safe, clean and dry place.
5
6
7

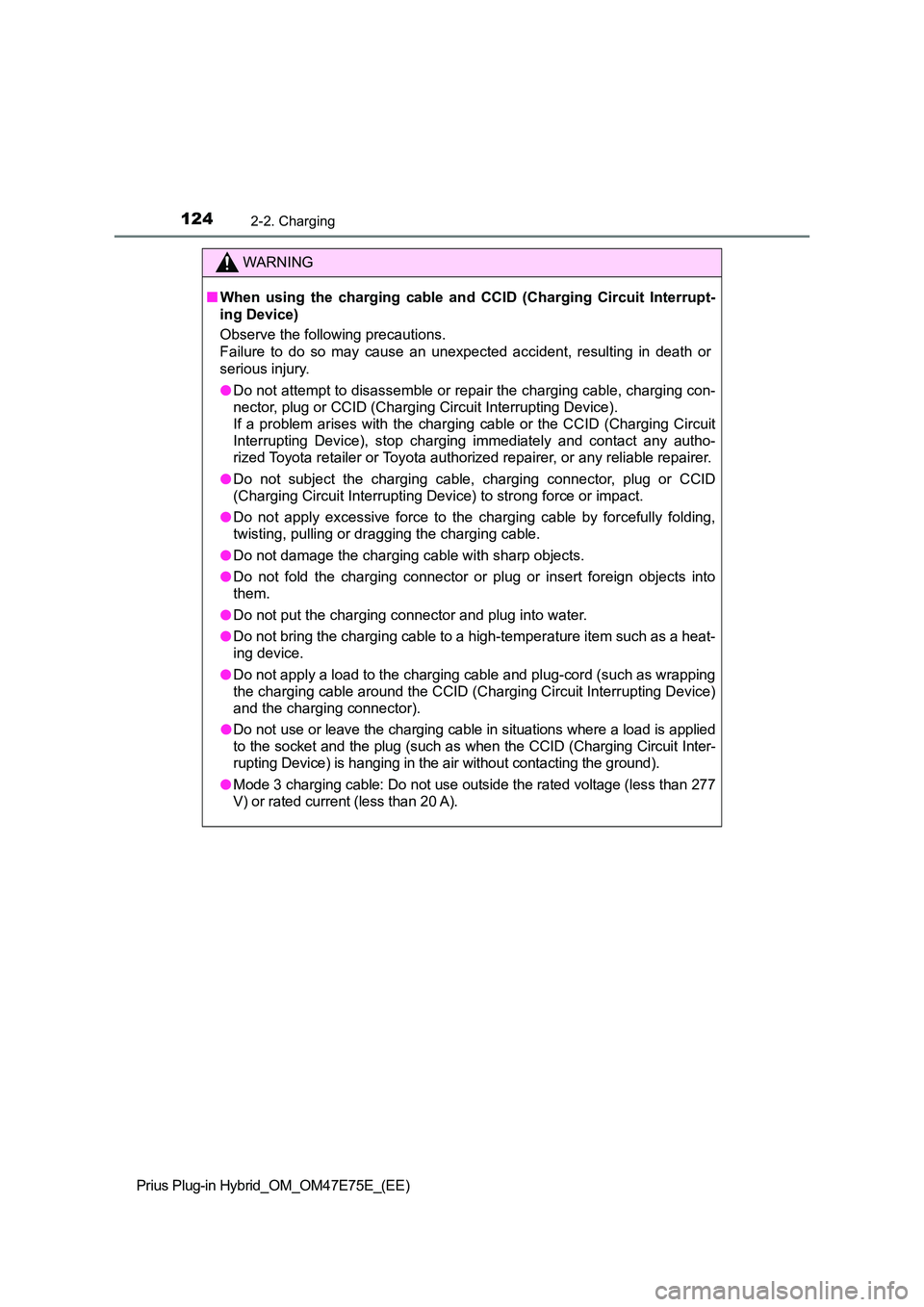

1242-2. Charging
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
WARNING
QWhen using the charging cable and CCID (Charging Circuit Interrupt-
ing Device)
Observe the following precautions.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
O Do not attempt to disassemble or repair the charging cable, charging con-
nector, plug or CCID (Charging Circuit Interrupting Device).
If a problem arises with the charging cable or the CCID (Chargi ng Circuit
Interrupting Device), stop charging immediately and contact any autho-
rized Toyota retailer or Toyota authorized repairer, or any rel iable repairer.
O Do not subject the charging cable, charging connector, plug or CCID
(Charging Circuit Interrupting Device) to strong force or impac t.
O Do not apply excessive force to the charging cable by forcefully folding,
twisting, pulling or dragging the charging cable.
O Do not damage the charging cable with sharp objects.
O Do not fold the charging connector or plug or insert foreign objects into
them.
O Do not put the charging connector and plug into water.
O Do not bring the charging cable to a high-temperature item such as a heat-
ing device.
O Do not apply a load to the charging cable and plug-cord (such as wrapping
the charging cable around the CCID (Charging Circuit Interrupting Device)
and the charging connector).
O Do not use or leave the charging cable in situations where a load is applied
to the socket and the plug (such as when the CCID (Charging Cir cuit Inter-
rupting Device) is hanging in the air without contacting the gr ound).
O Mode 3 charging cable: Do not use outside the rated voltage (less than 277
V) or rated current (less than 20 A).

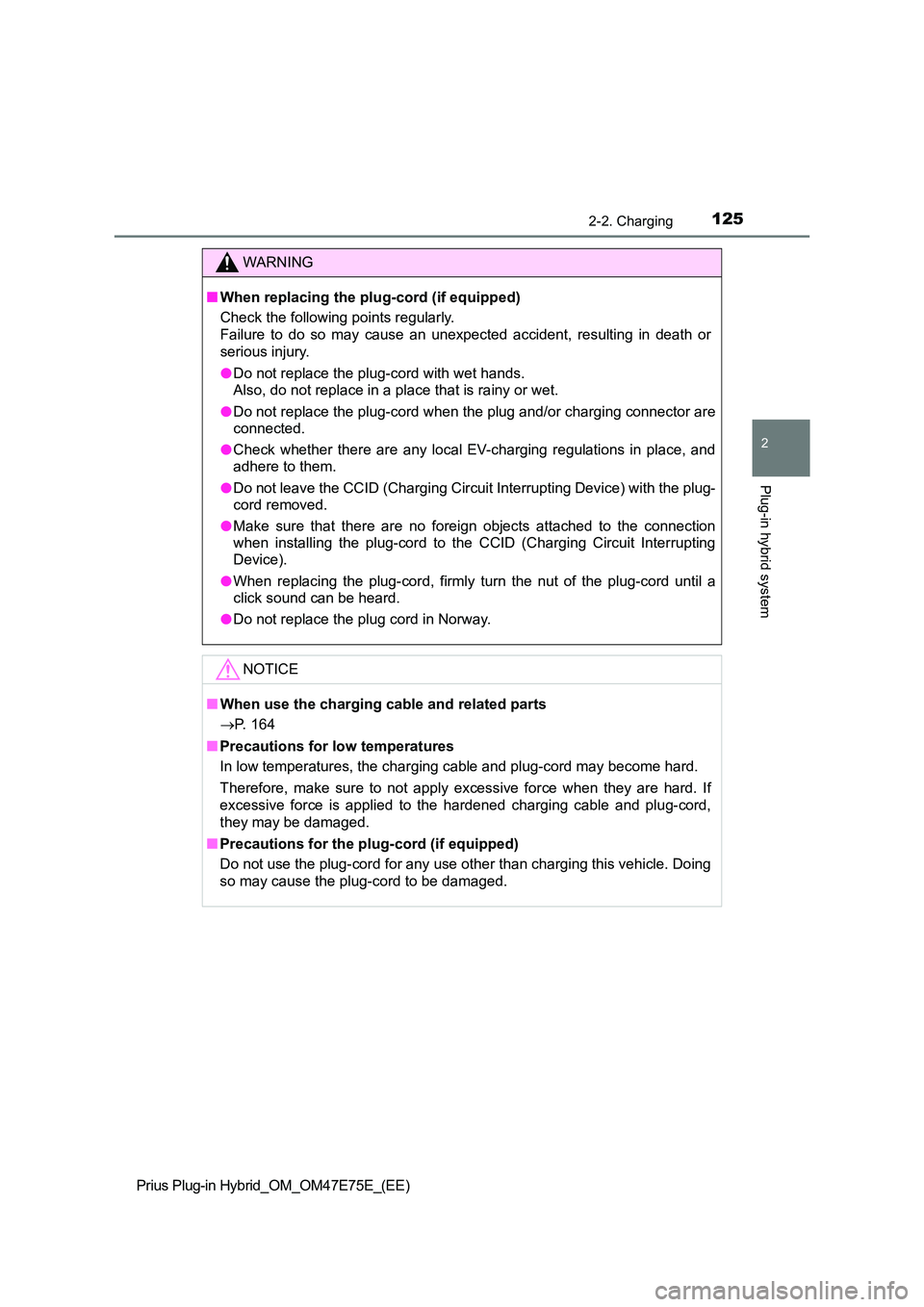

1252-2. Charging
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
WARNING
QWhen replacing the plug-cord (if equipped)
Check the following points regularly.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
O Do not replace the plug-cord with wet hands.
Also, do not replace in a place that is rainy or wet.
O Do not replace the plug-cord when the plug and/or charging connector are
connected.
O Check whether there are any local EV-charging regulations in place, and
adhere to them.
O Do not leave the CCID (Charging Circuit Interrupting Device) with the plug-
cord removed.
O Make sure that there are no foreign objects attached to the connection
when installing the plug-cord to the CCID (Charging Circuit Int errupting
Device).
O When replacing the plug-cord, firmly turn the nut of the plug-cord until a
click sound can be heard.
O Do not replace the plug cord in Norway.
NOTICE
QWhen use the charging cable and related parts
 P. 164
Q Precautions for low temperatures
In low temperatures, the charging cable and plug-cord may becom e hard.
Therefore, make sure to not apply excessive force when they are hard. If
excessive force is applied to the hardened charging cable and p lug-cord,
they may be damaged.
Q Precautions for the plug-cord (if equipped)
Do not use the plug-cord for any use other than charging this v ehicle. Doing
so may cause the plug-cord to be damaged.

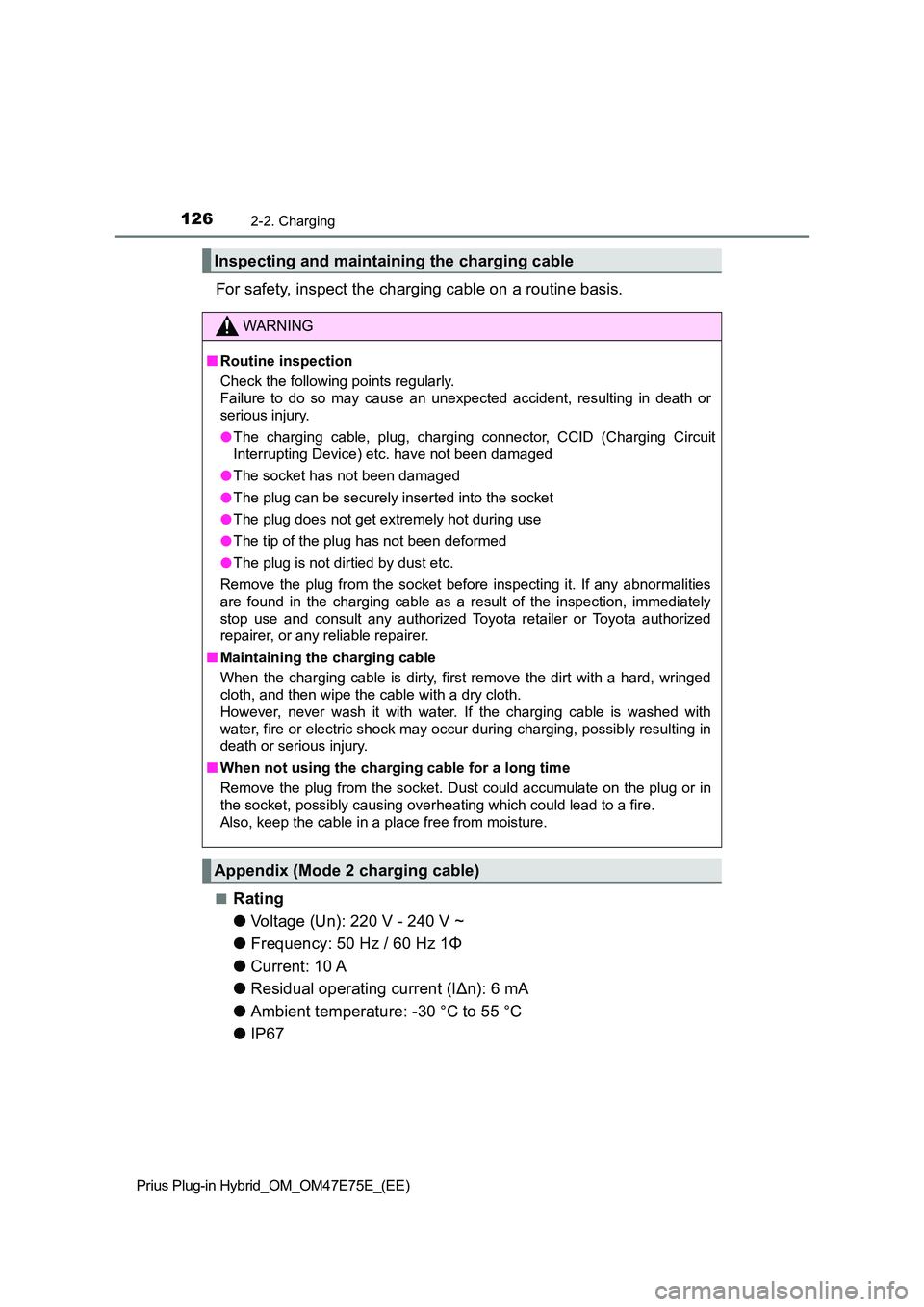

1262-2. Charging
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
For safety, inspect the charging cable on a routine basis.
QRating
O Voltage (Un): 220 V - 240 V ~
O Frequency: 50 Hz / 60 Hz 1Φ
O Current: 10 A
O Residual operating current (IΔn): 6 mA
O Ambient temperature: -30 °C to 55 °C
O IP67
Inspecting and maintaining the charging cable
WARNING
QRoutine inspection
Check the following points regularly.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
O The charging cable, plug, charging connector, CCID (Charging Circuit
Interrupting Device) etc. have not been damaged
O The socket has not been damaged
O The plug can be securely inserted into the socket
O The plug does not get extremely hot during use
O The tip of the plug has not been deformed
O The plug is not dirtied by dust etc.
Remove the plug from the socket before inspecting it. If any ab normalities
are found in the charging cable as a result of the inspection, immediately
stop use and consult any authorized Toyota retailer or Toyota a uthorized
repairer, or any reliable repairer.
Q Maintaining the charging cable
When the charging cable is dirty, first remove the dirt with a hard, wringed
cloth, and then wipe the cable with a dry cloth.
However, never wash it with water. If the charging cable is was hed with
water, fire or electric shock may occur during charging, possib ly resulting in
death or serious injury.
Q When not using the charging cable for a long time
Remove the plug from the socket. Dust could accumulate on the p lug or in
the socket, possibly causing overheating which could lead to a fire.
Also, keep the cable in a place free from moisture.
Appendix (Mode 2 charging cable)
