5596-4. Using the other interior features
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
6
Interior features
QLighting conditions of operation indicator light
*: Depending on the portable device, there are cases where the operation
indicator light will continue being lit up orange even after the charging is
complete.
OWhen the operation indicator light flashes
When an error occurs, the operation indicator light flashes an
orange color. Handle the error based on the following table.
Operation indicator lightConditions
Turning offWhen the Wireless charger power supply is
off
Green (comes on)On Standby (charging possible state)
When charging is complete*
Orange (comes on)
When placing the portable device on the
charging area (detecting the portable device)
Charging
Operation indicator
lightSuspected causesHandling method
Flashing repeatedly
once every second
(Orange)Vehicle to charger com-
munication failure.
Contact any autho-
rized Toyota retailer or
Toyota authorized
repairer, or any reliable
repairer.
Repeatedly flashes
3 times continuously
(Orange)
A foreign substance is
between the portable
device and charge area.
Remove the foreign
substance from
between portable
device and the charge
area.
The portable device is
out of sync due to the
device being shifted from
its position.Place the portable
device near the center
of the charge area.
Repeatedly flashes
4 times continuously
(Orange)Temperature rising
within the wireless char-
ger.Stop charging at once
and start charging
again after for a while.

560
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
6-4. Using the other interior features
QThe wireless charger can be operated when
The power switch is in ACCESSORY or ON mode.
QUsable portable devices
Qi standard wireless charge standard can be used on compatible devices.
However, not all Qi standard devices and compatibility are guaranteed.
Starting with mobile phones and smart phones, it is aimed for low power elec-
trically supplied portable devices of no more than 5W.
QWhen covers and accessories are attached to portable devices
Do not charge in situations where cover and accessories not able to handle
Qi are attached to the portable device. Depending on the type of cover and
accessory, it may not be possible to charge. When charging is not performed
even with the portable device placed on the charge area, remove the cover
and accessories.
QWhile charging, noise enters the AM radio
Turn off the wireless charger and confirm that the noise has decreased. If the
noise decreases, continuously pushing the power supply switch of the wire-
less charger for 2 seconds, the frequency of the charger can be changed and
the noise can be reduced.
Also, on that occasion, the operation indicator light will flash orange 2 times.
QImportant points of the wireless charger
OIf the electronic key cannot be detected within the vehicle interior, charging
cannot be done. When the door is opened and closed, charging may be
temporarily suspended.
OWhen charging, the wireless charging device and portable device will get
warmer, however this is not a malfunction.
When a portable device gets warm while charging, charging may stop due
to the protection function on the portable device side. In this case, when the
temperature of the portable device drops significantly, charge again.
QOperation sounds
When the power supply is turned on, while searching for the portable device a
sound will be produced, however this is not a malfunction.

5616-4. Using the other interior features
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
6
Interior features

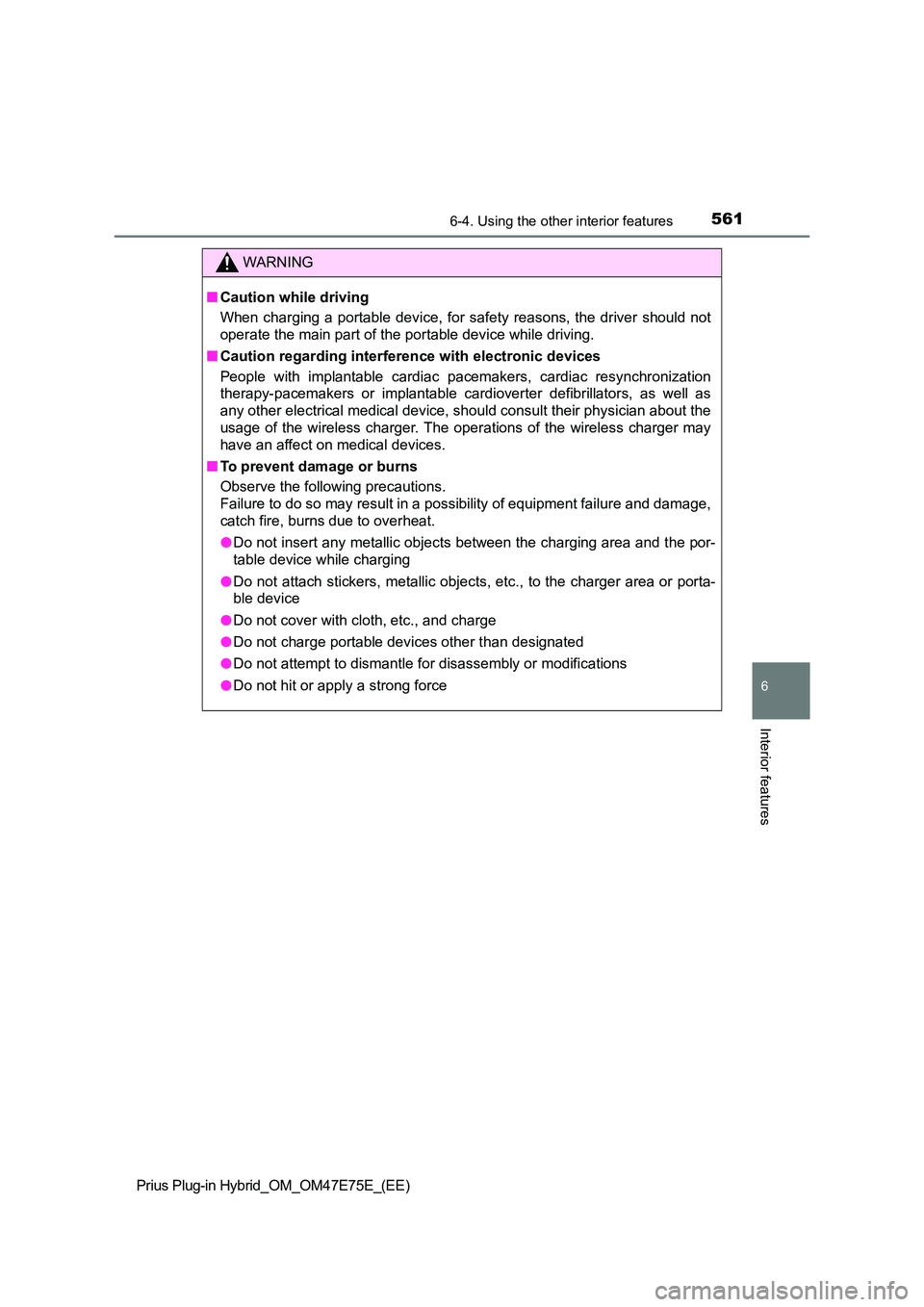

WARNING
QCaution while driving
When charging a portable device, for safety reasons, the driver should not
operate the main part of the portable device while driving.
Q Caution regarding interference with electronic devices
People with implantable cardiac pacemakers, cardiac resynchroni zation
therapy-pacemakers or implantable cardioverter defibrillators, as well as
any other electrical medical device, should consult their physi cian about the
usage of the wireless charger. The operations of the wireless c harger may
have an affect on medical devices.
Q To prevent damage or burns
Observe the following precautions.
Failure to do so may result in a possibility of equipment failu re and damage,
catch fire, burns due to overheat.
O Do not insert any metallic objects between the charging area and the por-
table device while charging
O Do not attach stickers, metallic objects, etc., to the charger area or porta-
ble device
O Do not cover with cloth, etc., and charge
O Do not charge portable devices other than designated
O Do not attempt to dismantle for disassembly or modifications
O Do not hit or apply a strong force

562
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
6-4. Using the other interior features

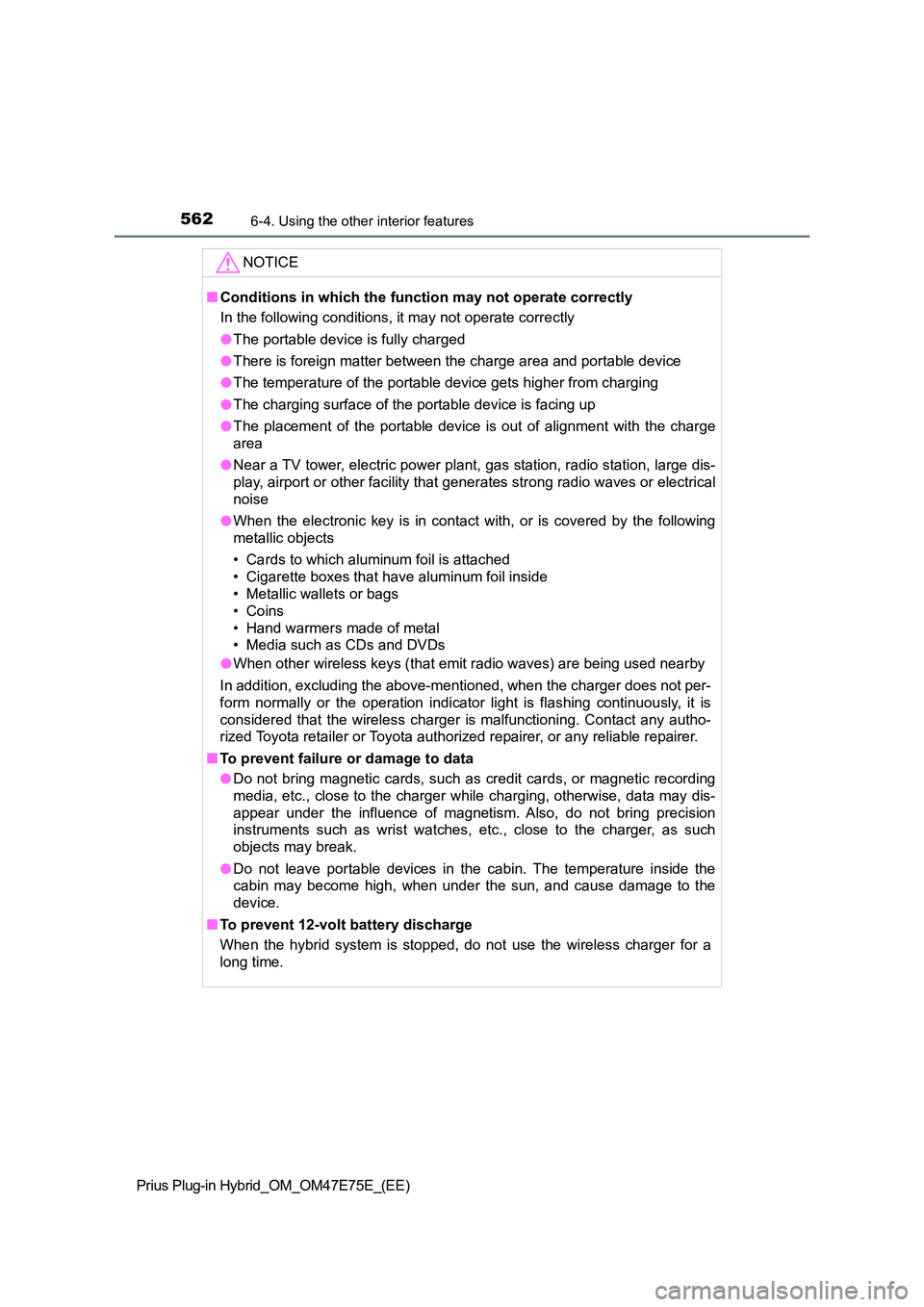

NOTICE
QConditions in which the function may not operate correctly
In the following conditions, it may not operate correctly
O The portable device is fully charged
O There is foreign matter between the charge area and portable device
O The temperature of the portable device gets higher from charging
O The charging surface of the portable device is facing up
O The placement of the portable device is out of alignment with the charge
area
O Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
O When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
O When other wireless keys (that emit radio waves) are being used nearby
In addition, excluding the above-mentioned, when the charger do es not per-
form normally or the operation indicator light is flashing cont inuously, it is
considered that the wireless charger is malfunctioning. Contact any autho-
rized Toyota retailer or Toyota authorized repairer, or any rel iable repairer.
Q To prevent failure or damage to data
O Do not bring magnetic cards, such as credit cards, or magnetic recording
media, etc., close to the charger while charging, otherwise, da ta may dis-
appear under the influence of magnetism. Also, do not bring pre cision
instruments such as wrist watches, etc., close to the charger, as such
objects may break.
O Do not leave portable devices in the cabin. The temperature inside the
cabin may become high, when under the sun, and cause damage to the
device.
Q To prevent 12-volt battery discharge
When the hybrid system is stopped, do not use the wireless char ger for a
long time.

5636-4. Using the other interior features
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
6
Interior features

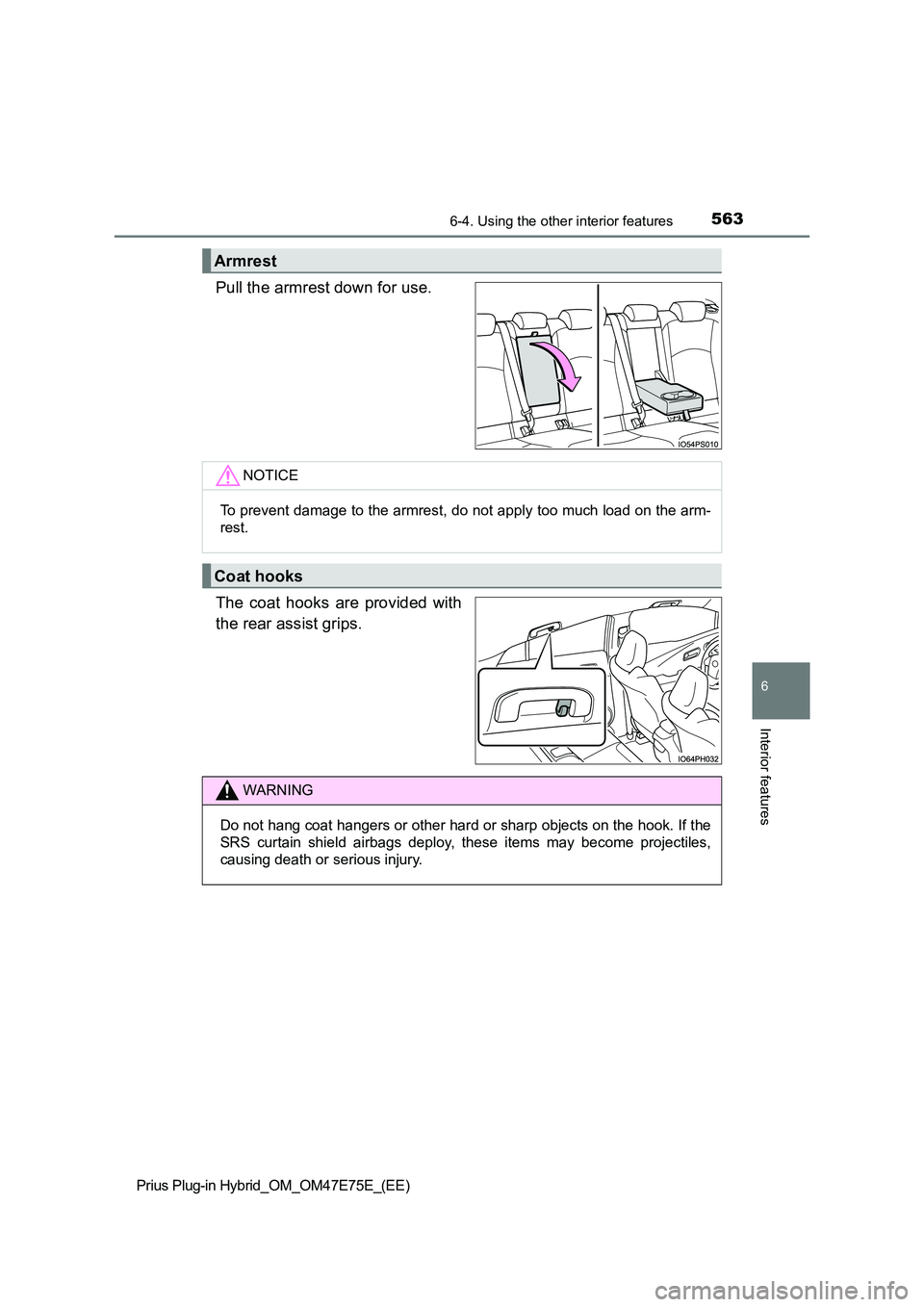

Pull the armrest down for use.
The coat hooks are provided with
the rear assist grips.
Armrest
NOTICE
To prevent damage to the armrest, do not apply too much load on the arm-
rest.
Coat hooks
WARNING
Do not hang coat hangers or other hard or sharp objects on the hook. If the
SRS curtain shield airbags deploy, these items may become proje ctiles,
causing death or serious injury.

564
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
6-4. Using the other interior features

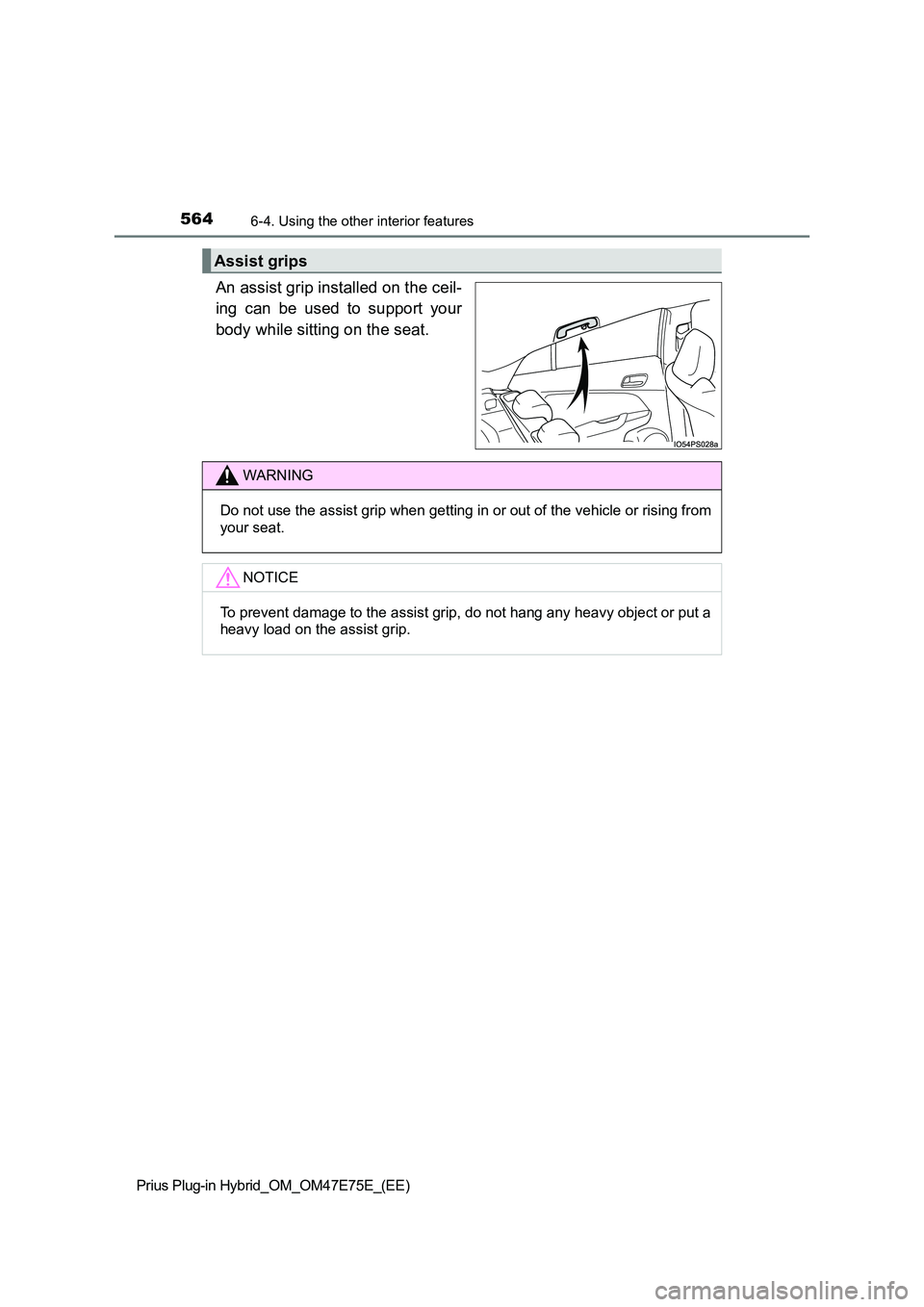

An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
Assist grips
WARNING
Do not use the assist grip when getting in or out of the vehicl e or rising from
your seat.
NOTICE
To prevent damage to the assist grip, do not hang any heavy obj ect or put a
heavy load on the assist grip.

565
7Maintenance and care
Prius Plug-in Hybrid_OM_OM47E75E_(EE)7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior .......... 566
Cleaning and protecting
the vehicle interior ........... 572
7-2. Maintenance
Maintenance
requirements.................... 578
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ...................... 581
Hood .................................. 584
Positioning a floor jack ....... 586
Engine compartment.......... 587
Tires ................................... 600
Tire inflation pressure ........ 608
Wheels ............................... 610
Replacing the tire ............... 612
Air conditioning filter .......... 624
Wiper insert
replacement ..................... 628
Electronic key battery ........ 631
Checking and replacing
fuses ................................ 634
Light bulbs ......................... 638

5667-1. Maintenance and care
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

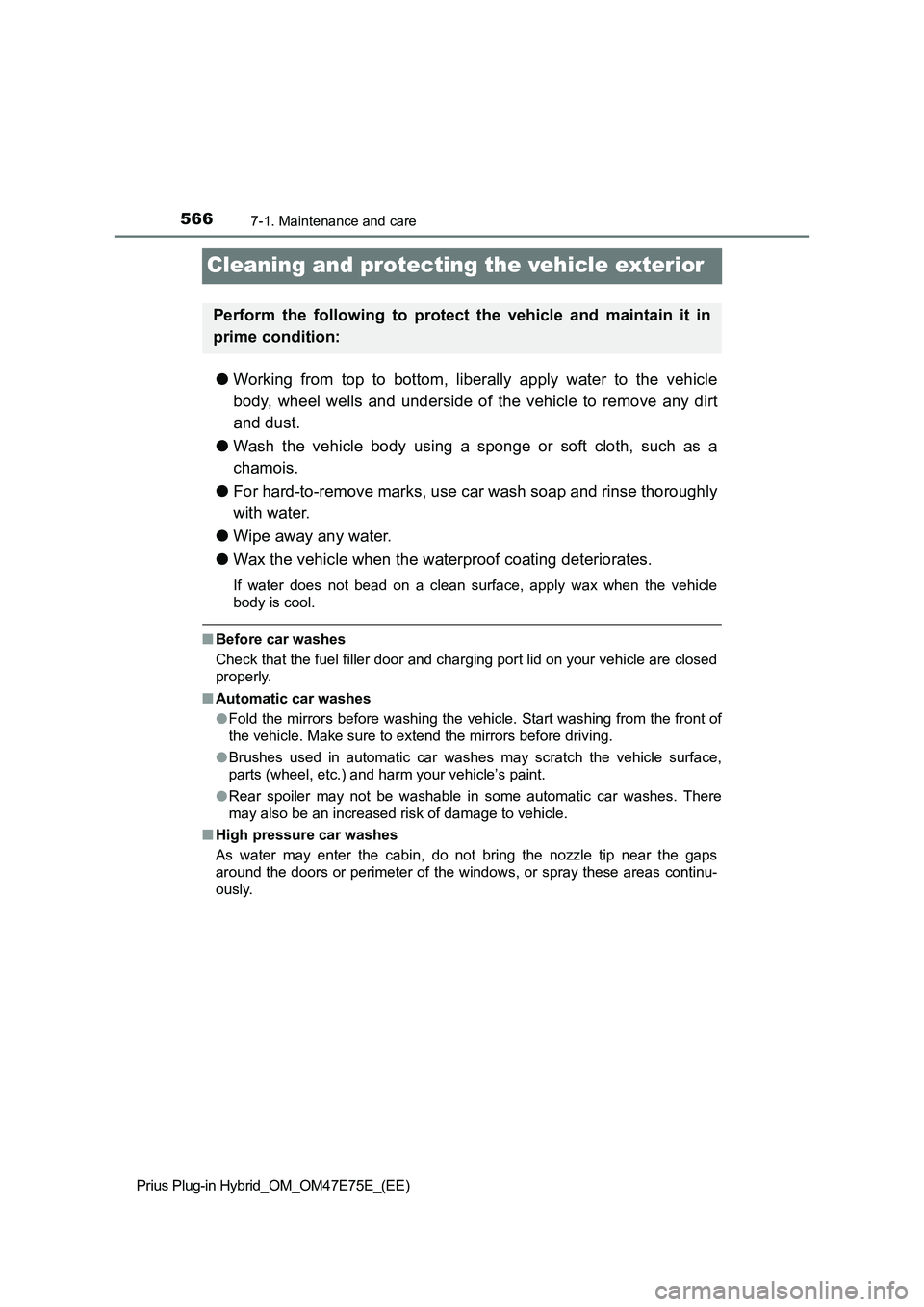

Cleaning and protecting the vehicle exterior
OWorking from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any dirt
and dust.
OWash the vehicle body using a sponge or soft cloth, such as a
chamois.
OFor hard-to-remove marks, use car wash soap and rinse thoroughly
with water.
OWipe away any water.
OWax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.
QBefore car washes
Check that the fuel filler door and charging port lid on your vehicle are closed
properly.
QAutomatic car washes
OFold the mirrors before washing the vehicle. Start washing from the front of
the vehicle. Make sure to extend the mirrors before driving.
OBrushes used in automatic car washes may scratch the vehicle surface,
parts (wheel, etc.) and harm your vehicle’s paint.
ORear spoiler may not be washable in some automatic car washes. There
may also be an increased risk of damage to vehicle.
QHigh pressure car washes
As water may enter the cabin, do not bring the nozzle tip near the gaps
around the doors or perimeter of the windows, or spray these areas continu-
ously.
Perform the following to protect the vehicle and maintain it in
prime condition:
