2022 TOYOTA PRIUS PLUG-IN HYBRID ad blue

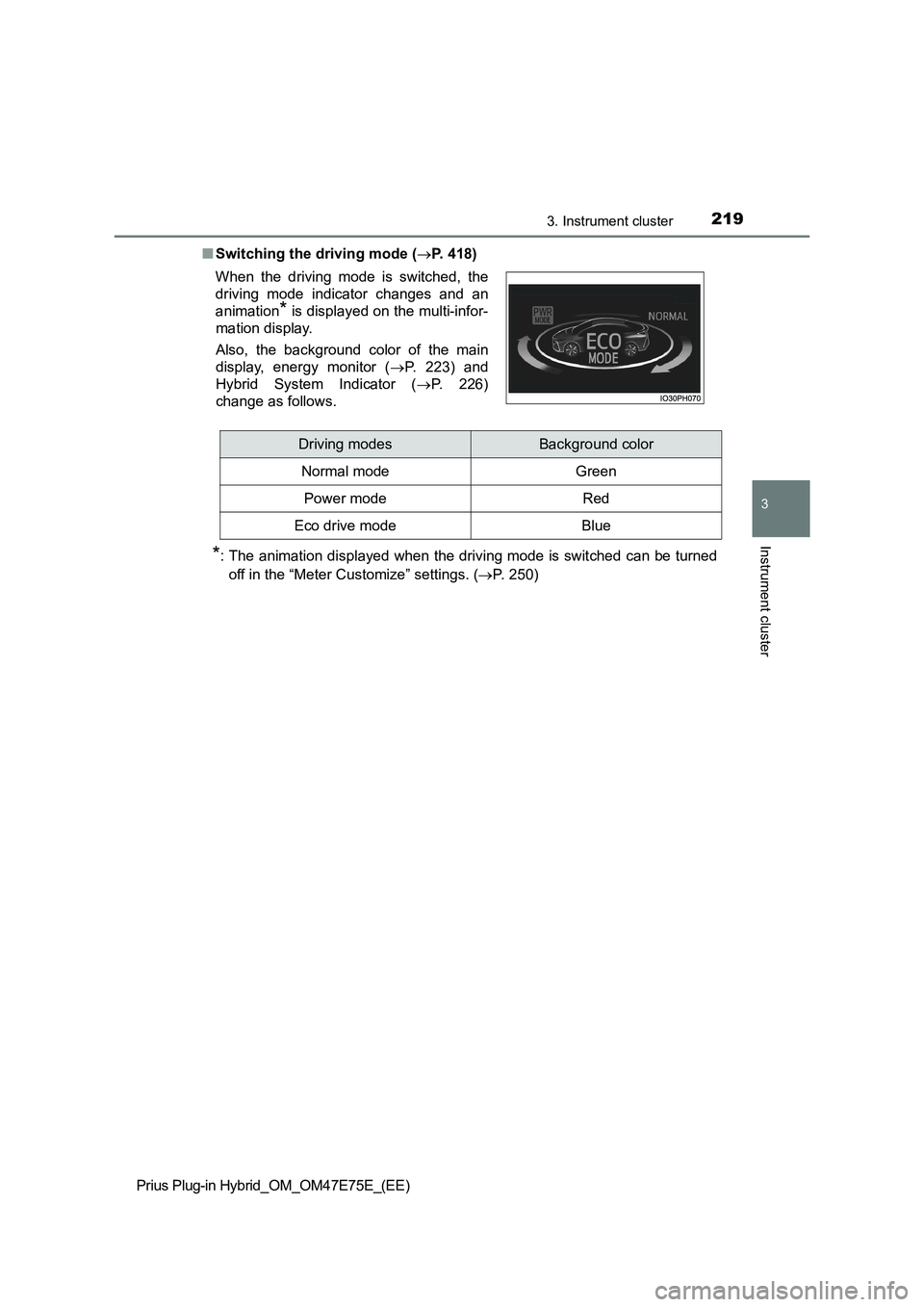

2193. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)QSwitching the driving mode (P. 418)
*: The animation displayed when the driving mode is switched can be turned
off in the “Meter Customize” settings. (P. 250) When the driving mode is switched, the
driving mode indicator changes and an
animation
* is displayed on the multi-infor-
mation display.
Also, the background color of the main
display, energy monitor (P. 223) and
Hybrid System Indicator (P. 226)
change as follows.
Driving modesBackground color
Normal mode Green
Power modeRed
Eco drive modeBlue

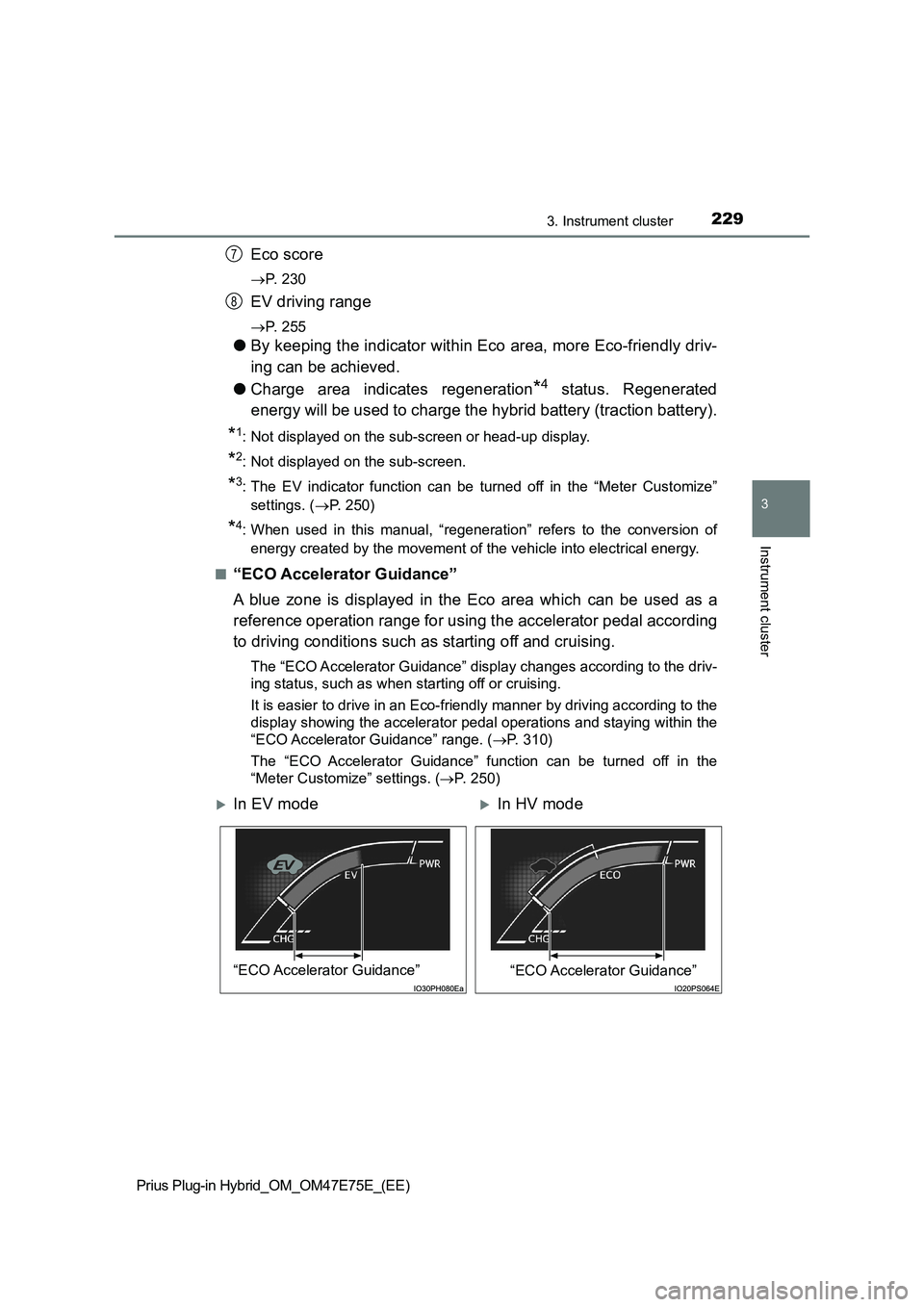

2293. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Eco score
P. 2 3 0
EV driving range
P. 2 5 5
OBy keeping the indicator within Eco area, more Eco-friendly driv-
ing can be achieved.
OCharge area indicates regeneration
*4 status. Regenerated
energy will be used to charge the hybrid battery (traction battery).
*1: Not displayed on the sub-screen or head-up display.
*2: Not displayed on the sub-screen.
*3: The EV indicator function can be turned off in the “Meter Customize”
settings. (P. 250)
*4: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
Q
“ECO Accelerator Guidance”
A blue zone is displayed in the Eco area which can be used as a
reference operation range for using the accelerator pedal according
to driving conditions such as starting off and cruising.
The “ECO Accelerator Guidance” display changes according to the driv-
ing status, such as when starting off or cruising.
It is easier to drive in an Eco-friendly manner by driving according to the
display showing the accelerator pedal operations and staying within the
“ECO Accelerator Guidance” range. (P. 310)
The “ECO Accelerator Guidance” function can be turned off in the
“Meter Customize” settings. (P. 250)
7
8
In EV modeIn HV mode
“ECO Accelerator Guidance”“ECO Accelerator Guidance”

2323. Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)QDisplay of the remaining hybrid battery (traction battery)
OThe current amount of the remaining hybrid battery (traction battery) is dis-
played in the Hybrid System Indicator or the sub-screen on the main display.
(P. 217)
• The remaining battery for EV driving in EV mode is displayed in green,
and the remaining battery used in HV mode is displayed in blue.
• The amount of the remaining battery displayed decrease as the vehicle is
driven and increase when the hybrid battery (traction battery) is charged,
electrical energy is regenerated using the regenerative braking (P. 93)
or electricity is generated by the gasoline engine.
• If the remaining battery is not displayed in green, HV mode is automati-
cally selected and EV mode cannot be used. To enable EV driving,
charge the hybrid battery (traction battery). (P. 111)
OThe amount of the hybrid battery (traction battery) in HV mode is automati-
cally controlled by the hybrid system. The amount of remaining hybrid battery
(traction battery) in HV mode may not reach the top line
* even if electrical
energy is regenerated using the regenerative braking (P. 93) or electricity
is generated by the gasoline engine. However, this does not indicate a mal-
function. Also, even if the display of the remaining hybrid battery (traction
battery) exceeds the top line, the display is shown in blue until the vehicle
returns to EV mode.
*: The position of the boundary line between EV mode and HV mode on the
display of the remaining hybrid battery (traction battery).
ODepending on the charging situation, when the display of the remaining
hybrid battery (traction battery) is shown during charging, charging continues
even after the display of the remaining hybrid battery (traction battery) shows
a fully charged state. However, this does not indicate a malfunction. Please
wait until charging is finished.The hybrid battery (traction battery)
is fully charged
The hybrid battery (traction battery)
for EV mode is not remaining
1
2

2633. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
QRemaining charge amount warning of hybrid battery (traction battery)
OThe buzzer sounds intermittently when the hybrid battery (traction battery)
remains without charging while the shift position is in N, or the remaining
charge amount drops below a certain level. If the remaining charge amount
drops further, the buzzer sounds continuously.
OWhen a warning message is shown on the multi-information display and the
buzzer sounds, follow the instructions displayed on the screen to perform
troubleshooting.
QColor of the hybrid battery (traction battery) on the navigation system
screen
It will be green when the hybrid battery (traction battery) is being charged,
and yellow when the hybrid battery (traction battery) is being used.
QColor of the gasoline engine on the navigation system screen
It will be blue when the engine is warming up.

741Alphabetical index
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Antenna
Smart entry & start system.... 283
Anti-lock brake system
(ABS) ...................................... 509
Function ................................ 509
Warning light ......................... 658
Approach warning ................... 411
Armrest ..................................... 563
Assist grips .............................. 564
Audio input
*
Audio system*
Automatic air conditioning
system .................................... 522
Air conditioning filter.............. 624
Automatic air conditioning
system ................................ 522
Blower customization ............ 526
Eco score (A/C score) ........... 244
Front seat concentrated
airflow mode (S-FLOW)...... 525
Humidity sensor .................... 534
Remote Air Conditioning
System................................ 535
Automatic headlight leveling
system .................................... 339
Automatic light control
system .................................... 338
Auxiliary boxes ........................ 548
Back door ................................. 278
Back-up light ............................ 638
Replacing light bulbs ............. 639
Wattage................................. 721Battery (12-volt battery) .......... 594
Battery checking ................... 594
Exchanging ........................... 700
If the 12-volt battery is
discharged .......................... 697
Preparing and checking
before winter....................... 516
Replacing .............................. 700
Warning light ......................... 657
Battery (traction battery)........... 98
Air intake vent ......................... 99
Charging ............................... 111
Location .................................. 98
Specification ......................... 715
Status indicator ..................... 113
Blind Spot Monitor (BSM) ....... 423
Blind Spot Monitor function ... 439
Rear Crossing Traffic Alert
function ............................... 443
Bluetooth
®*
Bottle holders .......................... 547
Brake
Fluid ...................................... 720
Parking brake........................ 336
Regenerative braking.............. 93
Warning light ......................... 657
Brake assist ............................. 509
Brake Override System ........... 310
Break-in tips ............................. 311
Brightness control
Instrument cluster light
control................................. 196
BSM (Blind Spot Monitor) ....... 423
Blind Spot Monitor function ... 439
Rear Crossing Traffic Alert
function ............................... 443
B
*: Refer to “Navigation system Owner’s manual”.
