2022 TOYOTA PRIUS PLUG-IN HYBRID wiper fluid

17Pictorial index
Prius Plug-in Hybrid_OM_OM47E75E_(EE)Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Energy monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 223
When the warning messages are displayed . . . . . . . . . . . . . . P. 665
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 336
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 336
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 516
Warning buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 336
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 335
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 337
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 337
Front fog lights/rear fog lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 347
Windshield wipers and washer switch . . . . . . . . . . . . . . . . P. 348
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 348
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 598
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 646
Fuel filler door opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 353
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 584
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 297
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 522
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 522
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 527
Audio system
*
*
: Refer to “Navigation system Owner’s manual”.
5
6
7
8
9
10
11
12
13
14

23Pictorial index
Prius Plug-in Hybrid_OM_OM47E75E_(EE)Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Energy monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 223
When the warning messages are displayed . . . . . . . . . . . . . . P. 665
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 336
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 336
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 516
Warning buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 336
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 335
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 337
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 337
Front fog lights/rear fog lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 347
Windshield wipers and washer switch . . . . . . . . . . . . . . . . P. 348
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 348
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 598
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 646
Fuel filler door opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 353
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 584
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 297
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 522
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 522
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 527
Audio system
*
*
: Refer to “Navigation system Owner’s manual”.
5
6
7
8
9
10
11
12
13
14

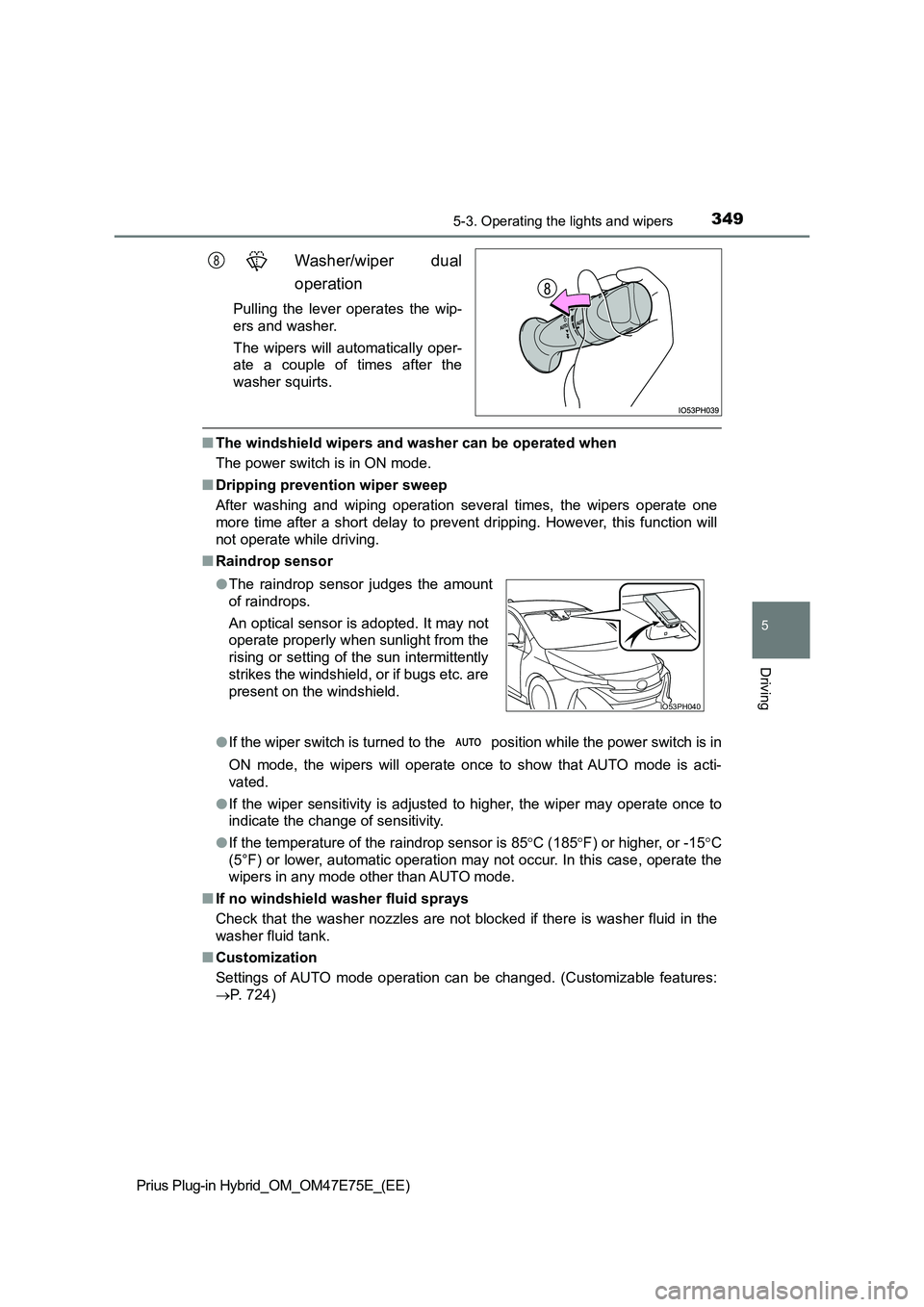

3495-3. Operating the lights and wipers
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
5
Driving
Washer/wiper dual
operation
Pulling the lever operates the wip-
ers and washer.
The wipers will automatically oper-
ate a couple of times after the
washer squirts.
Q The windshield wipers and washer can be operated when
The power switch is in ON mode.
Q Dripping prevention wiper sweep
After washing and wiping operati on several times, the wipers operate one
more time after a short delay to prevent dripping. However, thi s function will
not operate while driving.
Q Raindrop sensor
O If the wiper switch is turned to the position while the power switch is in
ON mode, the wipers will operate once to show that AUTO mode is acti-
vated.
O If the wiper sensitivity is adjusted to higher, the wiper may operate once to
indicate the change of sensitivity.
O If the temperature of the raindrop sensor is 85C (185F) or higher, or -15C
(5°F) or lower, automatic operation may not occur. In this case , operate the
wipers in any mode other than AUTO mode.
Q If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washe r fluid in the
washer fluid tank.
Q Customization
Settings of AUTO mode operation can be changed. (Customizable f eatures:
 P. 724)
8
OThe raindrop sensor judges the amount
of raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc. are
present on the windshield.IO53PH040

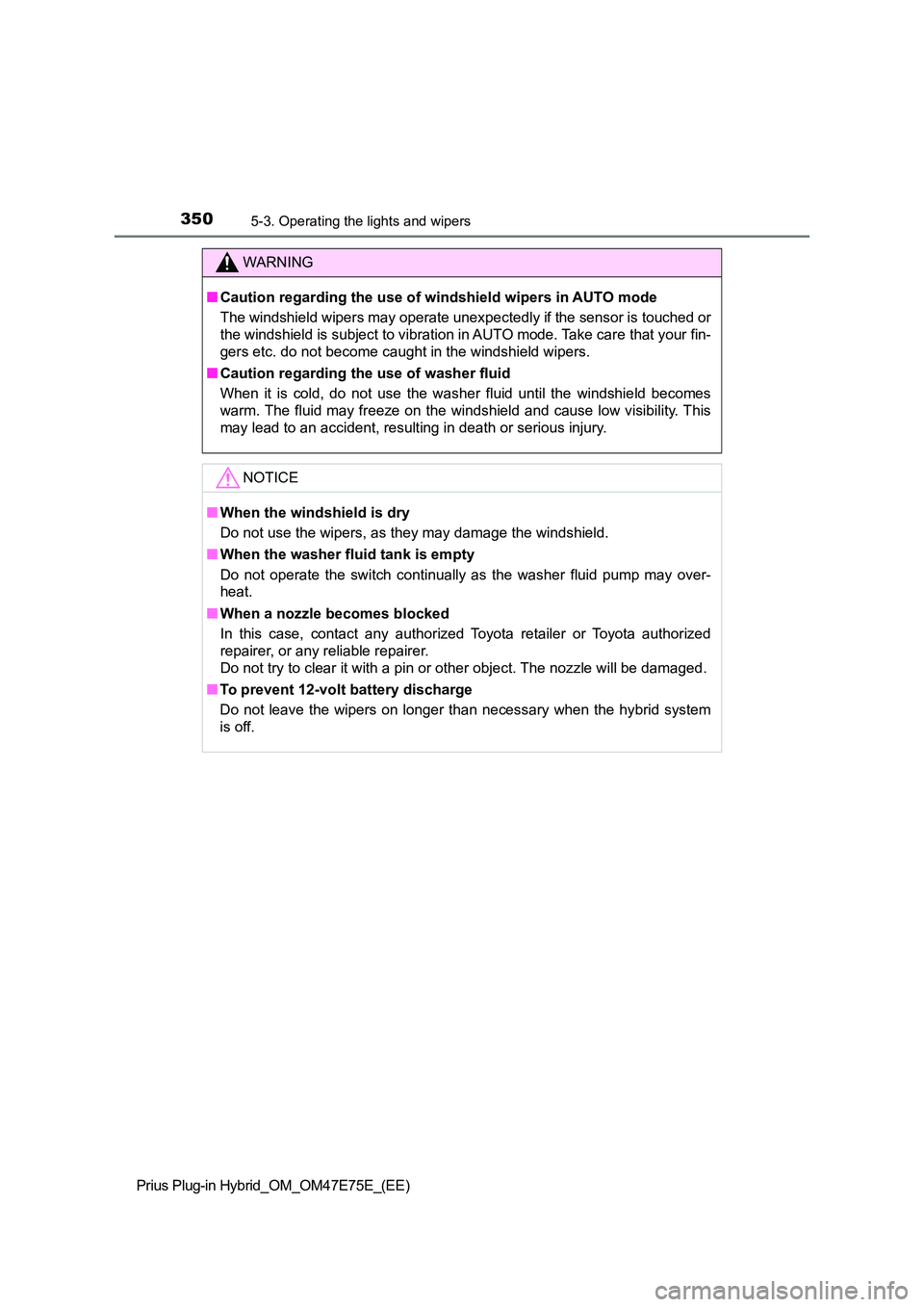

3505-3. Operating the lights and wipers
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
WARNING
QCaution regarding the use of windshield wipers in AUTO mode
The windshield wipers may operate unexpectedly if the sensor is touched or
the windshield is subject to vibration in AUTO mode. Take care that your fin-
gers etc. do not become caught in the windshield wipers.
Q Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshie ld becomes
warm. The fluid may freeze on the windshield and cause low visi bility. This
may lead to an accident, resulting in death or serious injury.
NOTICE
Q When the windshield is dry
Do not use the wipers, as they may damage the windshield.
Q When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
Q When a nozzle becomes blocked
In this case, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Do not try to clear it with a pin or other object. The nozzle w ill be damaged.
Q To prevent 12-volt battery discharge
Do not leave the wipers on longer than necessary when the hybri d system
is off.

5165-6. Driving tips
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Winter driving tips
OUse fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine/power control unit coolant
• Washer fluid
OHave a service technician inspect the condition of the 12-volt bat-
tery.
OHave the vehicle fitted with four snow tires or purchase a set of tire
chains for the front tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
Perform the following according to the driving conditions:
ODo not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
OTo ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
OCheck for and remove any excess ice or snow that may have accu-
mulated on the exterior lights, vehicle’s roof, chassis, around the
tires or on the brakes.
ORemove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Always drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.
Preparation for winter
Before driving the vehicle
