2022 HYUNDAI SANTA FE HYBRID Owners Manual

Driver Assistance System

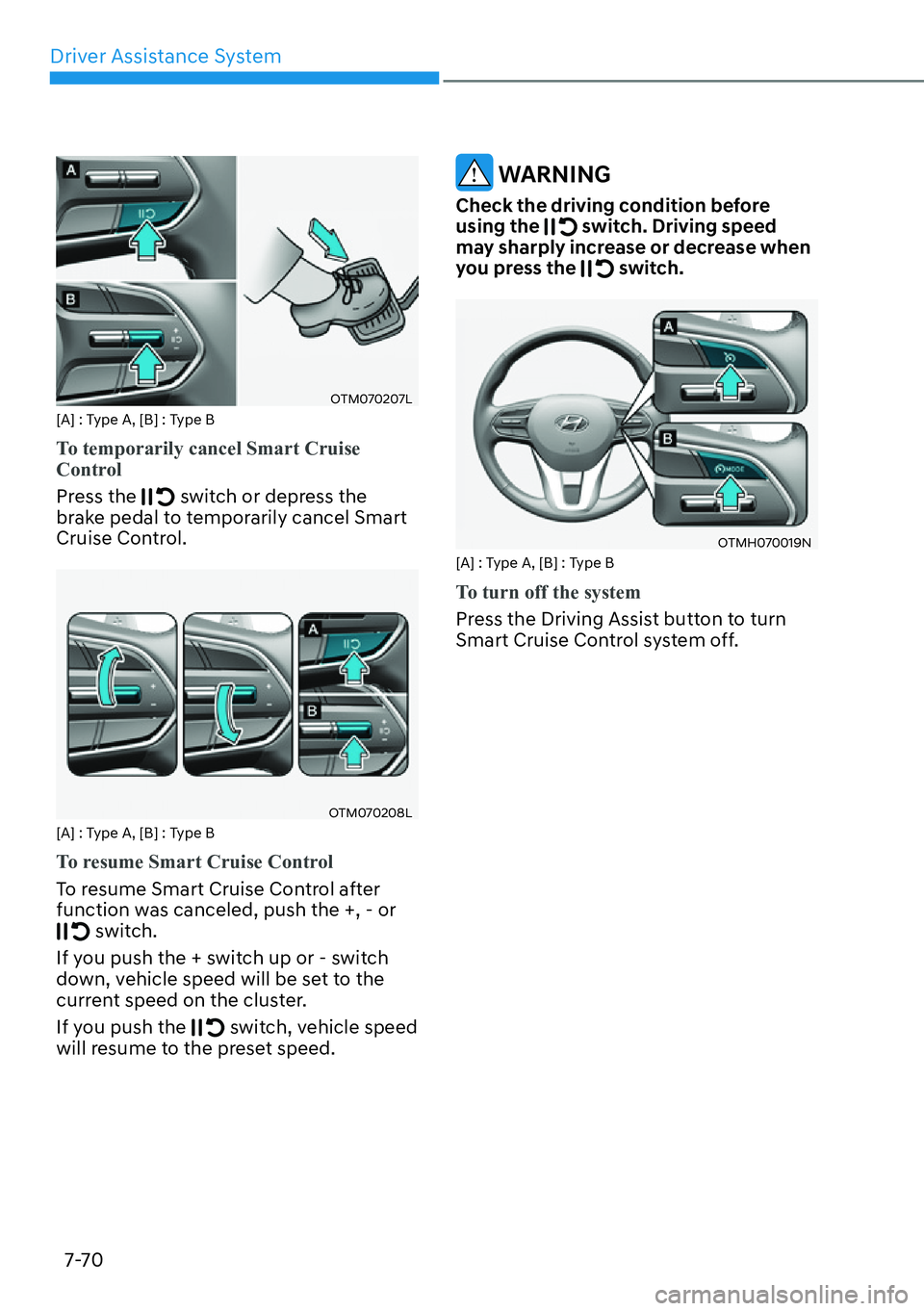

7-70
OTM070207L
[A] : Type A, [B] : Type B
To temporarily cancel Smart Cruise
Control
Press the switch or depress the
brake pedal to temporarily cancel Smart
Cruise Control.
OTM070208L
[A] : Type A, [B] : Type B
To resume Smart Cruise Control
To resume Smart Cruise Control after
function was canceled, push the +, - or
switch.
If you push the + switch up or - switch
down, vehicle speed will be set to the
current speed on the cluster.
If you push the
switch, vehicle speed
will resume to the preset speed.
WARNING
Check the driving condition before using the
switch. Driving speed
may sharply increase or decrease when
you press the
switch.
OTMH070019N
[A] : Type A, [B] : Type B
To turn off the system
Press the Driving Assist button to turn
Smart Cruise Control system off.

07
7-71
OTM070142N
Smart Cruise Control Reaction
With the engine on, select ‘Driver
DVVLVWDQFH
Ÿ6&&UHVSRQVH
TIURPWKH
settings menu to select the sensitivity of
vehicle speed when following the front
vehicle to maintain the set distance.
OTM070141N
Warning volume
With the engine on, select ‘Driver
DVVLVWDQFH
Ÿ:DUQLQJYROXPH
TIURPWKH
Settings menu to change the Warning
YROXPH
S+LJK
T
S0HGLXP
TRU
S/RZ
TIRU
Smart Cruise Control.
If you change the Warning volume,
the Warning volume of other Driver
Assistance systems may change.
Information
If the engine is restarted, Warning volume will maintain the last setting.
Smart Cruise Control Operation
Operating conditions
Smart Cruise Control will operate when
the following conditions are satisfied.
Basic function

[ The gear is in D (Drive)

[ 7KHGULYHU
TVGRRULVFORVHG
[ EPB (Electronic Parking Brake) is not applied

[ Your vehicle speed is within the
operating speed range
- 10~180 km/h (5~110 mph): when there is no vehicle in front
- 0~180 km/h (0~110 mph): when there is a vehicle in front

[ ESC (Electronic Stability Control), TCS
(Traction Control System) or ABS is on

[ ESC (Electronic Stability Control), TCS
(Traction Control System) or ABS is not
controlling the vehicle

[ Engine rpm is not in the red zone

[ Forward Collision-Avoidance Assist
brake control is not operating

[ Remote Smart Parking Assist brake
control is not operating
Information
At a stop, if there is no vehicle in front of
your vehicle, Smart Cruise Control will
turn on when the brake pedal is depressed.

Driver Assistance System
7-72
Overtaking Acceleration Assist
Overtaking Acceleration Assist will
operate when the turn signal indicator
is turned on to the left (left-hand drive)
or turned on to the right (right-hand
drive) while Smart Cruise Control is
operating, and the following conditions
are satisfied:
[Your vehicle speed is above 60 km/h
(40 mph)

[ The hazard warning flasher is off

[ A vehicle is detected in front of your
vehicle

[ Deceleration is not needed to
maintain distance with the vehicle in
front
WARNING

[ When the turn signal indicator is
turned on to the left (left-hand drive)
or turned on to the right (right-
hand drive) while there is a vehicle
ahead, the vehicle may accelerate
temporarily. Pay attention to the
road conditions at all times.

[ Regardless of your countries driving
direction, Overtaking Acceleration
Assist will operate when the
conditions are satisfied. When using the function in countries with
different driving direction, always
check the road conditions at all times.

[ Use Overtaking Acceleration Assist in
open highways when traffic is light.
Display and Control
Basic function
You can see the status of the Smart
Cruise Control operation in the Driving
Assist mode on the cluster. Refer to “LCD
Display Modes” section in chapter 4.
Smart Cruise Control will be displayed
as below depending on the status of function.
OTM070245

[ When operating
(1) Whether there is a vehicle ahead and the selected distance level are
displayed.
(2) Set speed is displayed.
(3) Whether there is a vehicle ahead and the target vehicle distance are
displayed.

07
7-73
OTM070155

[ When temporarily canceled
(1)
indicator is displayed.
(2) The previous set speed is shaded.
Information

[ The distance of the front vehicle on the
cluster is displayed according to the
actual distance between your vehicle and the vehicle ahead.

[ The target distance may vary according to the vehicle speed and the set
distance level. If vehicle speed is low, even though the vehicle distance have changed, the change of the target vehicle distance may be small. To temporarily accelerate
OTM070246
If you want to speed up temporarily
when Smart Cruise Control is on, depress
the accelerator pedal. While the speed
is increasing, the set speed, distance
level and target distance will blink on the
cluster.
WARNING
Be careful when accelerating
temporarily, because the speed and
distance is not controlled automatically
even if there is a vehicle in front of you.

Driver Assistance System
7-74
Smart Cruise Control temporarily canceled
OTM070113N
Smart Cruise Control will be temporarily
canceled automatically when:
[ The vehicle speed is above 190 km/h
(120 mph)

[ The vehicle is stopped for a certain
period of time

[ The accelerator pedal is continuously
depressed for a certain period of time

[ The conditions for the Smart Cruise
Control to operate is not satisfied
If Smart Cruise Control is temporarily
canceled automatically, the ‘SCC (Smart
&UXLVH&RQWUROFDQFHOOHG
TZDUQLQJ
message will appear on the cluster, and
an audible warning will sound to warn
the driver.
If the Smart Cruise Control is temporarily
canceled while the vehicle is at a
standstill with function operating,
EPB (Electronic Parking Brake) maybe applied.
WARNING
When Smart Cruise Control is
temporarily canceled, distance with the
front vehicle will not be maintained.
Always have your eyes on the road
while driving, and if necessary, depress
the brake pedal to reduce your driving
speed in order to maintain a safe
distance.
Smart Cruise Control conditions not
satisfied
OTM070112N
If the Driving Assist button, + switch,
- switch or
switch is pushed when
6PDUW&UXLVH&RQWURO
TVRSHUDWLQJ
conditions are not satisfied, the ‘SCC
6PDUW&UXLVH&WUOFRQGLWLRQVQRWPHW
T
will appear on the cluster, and an audible
warning will sound.

07

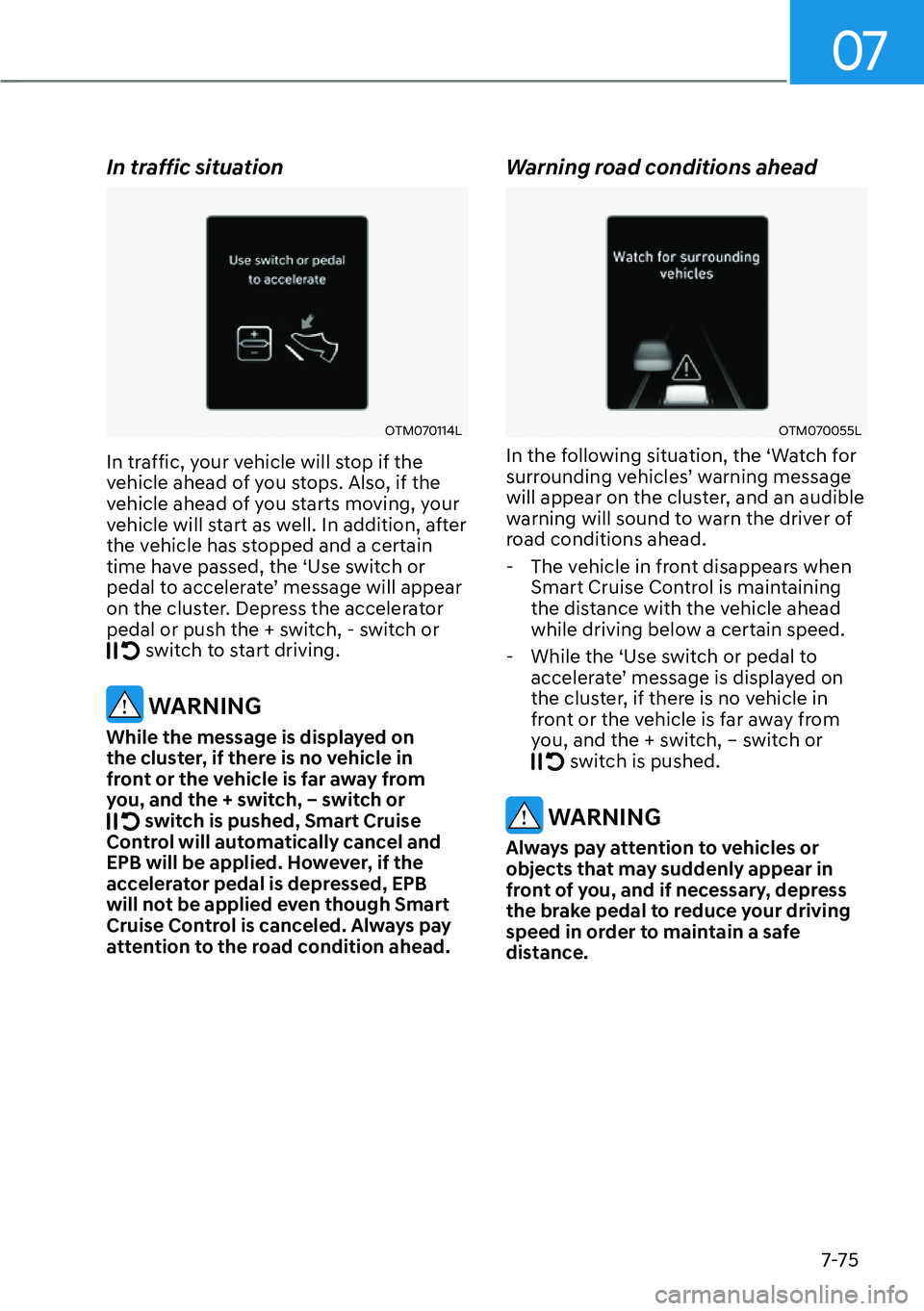

7-75
In traffic situation
OTM070114L
In traffic, your vehicle will stop if the
vehicle ahead of you stops. Also, if the
vehicle ahead of you starts moving, your
vehicle will start as well. In addition, after
the vehicle has stopped and a certain
time have passed, the ‘Use switch or
SHGDOWRDFFHOHUDWH
TPHVVDJHZLOODSSHDU
on the cluster. Depress the accelerator
pedal or push the + switch, - switch or
switch to start driving.
WARNING
While the message is displayed on
the cluster, if there is no vehicle in
front or the vehicle is far away from
you, and the + switch, – switch or
switch is pushed, Smart Cruise
Control will automatically cancel and
EPB will be applied. However, if the
accelerator pedal is depressed, EPB
will not be applied even though Smart
Cruise Control is canceled. Always pay
attention to the road condition ahead. Warning road conditions ahead
OTM070055L
In the following situation, the ‘Watch for
VXUURXQGLQJYHKLFOHV
TZDUQLQJPHVVDJH
will appear on the cluster, and an audible
warning will sound to warn the driver of
road conditions ahead.

- The vehicle in front disappears when
Smart Cruise Control is maintaining
the distance with the vehicle ahead
while driving below a certain speed.
- While the ‘Use switch or pedal to DFFHOHUDWH
TPHVVDJHLVGLVSOD\HGRQ
the cluster, if there is no vehicle in
front or the vehicle is far away from
you, and the + switch, – switch or
switch is pushed.
WARNING
Always pay attention to vehicles or
objects that may suddenly appear in
front of you, and if necessary, depress
the brake pedal to reduce your driving
speed in order to maintain a safe
distance.

Driver Assistance System
7-76
Collision warning
OTMH070014N
While Smart Cruise Control is operating,
when the collision risk with the vehicle
DKHDGLVKLJKWKH
S&ROOLVLRQZDUQLQJ
T
warning message will appear on the
cluster, and an audible warning will
sound to warn the driver. Always have
your eyes on the road while driving, and
if necessary, depress the brake pedal to
reduce your driving speed in order to
maintain a safe distance.
WARNING
In the following situations, Smart Cruise
Control may not warn the driver of a collision. - The distance from the front vehicle
is near, or the vehicle speed of the
front vehicle is faster or similar with
your vehicle
- The speed of the front vehicle is very
slow or is at a standstill
- The accelerator pedal is depressed
right after Smart Cruise Control is turned on
WARNING
Take the following precautions when
using Smart Cruise Control:
[ Smart Cruise Control does not
substitute for proper and safe
driving. It is the responsibility of the
driver to always check the speed and
distance to the vehicle ahead.
[
Smart Cruise Control may not
recognize unexpected and sudden
situations or complex driving
situations, so always pay attention to
driving conditions and control your
vehicle speed.

[ Keep Smart Cruise Control off when
the function is not in use to avoid
inadvertently setting a speed.

[ Do not open the door or leave the
vehicle when Smart Cruise Control
is operating, even if the vehicle is
stopped.

[ Always be aware of the selected
speed and vehicle distance.

[ Keep a safe distance according to
road conditions and vehicle speed.
If the vehicle distance is too close during high-speed driving, a serious
collision may result.

[ When maintaining distance with
the vehicle ahead, if the front
vehicle disappears, Smart Cruise
Control may suddenly accelerate to
the set speed. Always be aware of
unexpected and sudden situations
from occurring.

[ Vehicle speed may decrease on an
upward slope and increase on a
downward slope.

[ Always be aware of situations such
as when a vehicle cuts in suddenly.

[ When you are towing a trailer or
another vehicle, Smart Cruise
Control is turned off due to safety
reasons.

[ Turn off Smart Cruise Control when
your vehicle is being towed.

[ Smart Cruise Control may not
operate normally if interfered by
strong electromagnetic waves.

[ Smart Cruise Control may not
detect an obstacle in front and lead
to a collision. Always look ahead
cautiously to prevent unexpected
and sudden situations from occurring.

07
7-77

[
Vehicles moving in front of you with
a frequent lane change may cause
a delay in Smart Cruise Control
reaction or may cause function
to react to a vehicle actually in
an adjacent lane. Always drive
cautiously to prevent unexpected
and sudden situations from occurring.

[ Always be aware of the surroundings
and drive safely, even though a
warning message does not appear or
an audible warning does not sound.

[ If any other system’s warning
message is displayed or warning
sound is generated, Smart Cruise
Control warning message may not
be displayed and warning sound may
not be generated.

[ You may not hear the warning sound
of Forward Collision-Avoidance
Assist if the surrounding is noisy.

[ The vehicle manufacturer is not
responsible for any traffic violation
or accidents caused by the driver.

[ Always set the vehicle speed to the
speed limit in your country.
Information

[ Smart Cruise Control may not operate
for 15 seconds after the vehicle is
started or the front view camera or
front radar is initialized.

[ You may hear a sound when the brake
is controlled by Smart Cruise Control.
Smart Cruise Control
Malfunction and Limitations
Smart Cruise Control malfunction
OTM070116N
When Smart Cruise Control is not working
properly, the ‘Check SCC (Smart Cruise
&RQWUROV\VWHP
TZDUQLQJPHVVDJHZLOO
appear, and the
warning light will
illuminate on the cluster. Smart Cruise
Control is inspected by an authorized
HYUNDAI dealer.
Smart Cruise Control disabled
OTM070115N
When the front radar cover or sensor
is covered with snow, rain, or foreign
material, it can reduce the detecting
performance and temporarily limit or
disable Smart Cruise Control.
If this occurs, the ‘SCC (Smart Cruise
&RQWUROGLVDEOHG5DGDUEORFNHG
TZDUQLQJ
message will appear for a certain period
of time on the cluster.
Smart Cruise Control will operate
normally when snow, rain or foreign
material is removed.
