2022 HYUNDAI SANTA FE HYBRID Owners Manual

Instrument Cluster
4-8
Power gauge
„4.2-Inch
„12.3-Inch
OTMH041003NOTMH040004E
The power gauge indicates whether the
current driving condition is fuel efficient
or not.
[ CHARGE : Shows that the energy
made by the vehicle is being
converted to electrical energy.
(Regenerated energy)

[ ECO : Shows that the vehicle is being
driven in an Eco-friendly manner.

[ POWER : Shows that the vehicle is
exceeding the Eco-friendly range.
Information
Accordance to the power gauge area the
“EV” indicator comes on or off. - “EV” indicator ON : Vehicle is driven
using the electric motor or the gasoline engine is stopped.
- “EV” indicator OFF : Vehicle is driven using the gasoline engine.
Fuel gauge
„4.2-Inch „12.3-Inch
OTM040011OTM040012L
This gauge indicates the approximate
amount of fuel remaining in the fuel tank.
Information

[ The fuel tank capacity is given in
chapter 2.

[ The fuel gauge is supplemented by a low fuel warning light, which will illuminate when the fuel tank is nearly
empty.

[ On inclines or curves, the fuel gauge
pointer may fluctuate or the low fuel
warning light may come on earlier than usual due to the movement of fuel in the tank.
WARNING
Running out of fuel can expose vehicle
occupants to danger.
You must stop and obtain additional
fuel as soon as possible after the
warning light comes on or when the
gauge indicator comes close to the “0
or E (Empty)” level.
NOTICE
Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire damaging
the catalytic converter.

04
4-9
Hybrid battery SOC (State of Charge) gauge
„4.2-Inch„12.3-Inch
OTMH040011NOCN7H040003
This gauge indicates the remaining
hybrid battery power. If the SOC is near
the “0 or L (Low)” level, the vehicle
automatically operates the engine to
charge the battery.
However, if the Service Indicator (
)
and Malfunction Indicator Lamp (MIL) (
) turn on when the SOC gauge is
near the “0 or L (Low)” level, the vehicle
be checked by an authorized HYUNDAI
dealer.
NOTICE
Never try to start the vehicle if the fuel
tank is empty. In this condition, the
engine cannot charge the high voltage
battery of the hybrid system. If you
try to start the vehicle when the fuel
is empty, the high voltage battery will
become discharged and be damaged. Plug-in hybrid mode indicator
„AUTO mode

ôType A
ôType B
OTMPHQ010013LOTMPHQ010015L
„CS mode

ôType A
ôType B
OTMPHQ010014LOTMPHQ010016L

[ CD (Charge Depleting, Electric)
mode : The high-voltage (hybrid)
battery is used to drive the vehicle.

[ AUTO mode : CD mode and CS mode
are selected automatically depending
on road conditions.

[ CS (Charge Sustaining, Hybrid) mode :
The high-voltage (hybrid) battery and
gasoline engine is used to drive the
vehicle.
Information
Even when the battery charging rate is high and driving in electric mode is
possible, engine may turn on in some areas
to protect the system.

Instrument Cluster
4-10
Outside temperature gauge
„4.2-Inch
OTM040015
„12.3-Inch
OTM040013E
This gauge indicates the current outside
air temperatures by 1°C (1°F).
Note that the temperature indicated
on the LCD display may not change
as quickly as the outside temperature
(there may be a slight delay before the
temperature changes.)
You can change the temperature unit
from the Settings menu in the Cluster. Select:
- 6HWXS
Ÿ8QLW
Ÿ7HPSHUDWXUH8QLW
Ÿ°C/°F
For vehicles equipped with Automatic
Climate Control, you can also: - Press the AUTO button while pressing the OFF button on the climate control
unit for 3 seconds
Both the temperature unit on the cluster
LCD display and climate control screen will change. Odometer
„4.2-Inch
OTM040017
„12.3-Inch
OTM040019
The odometer indicates the total
distance that the vehicle has been
driven and should be used to determine
when periodic maintenance should be
performed.

04
4-11

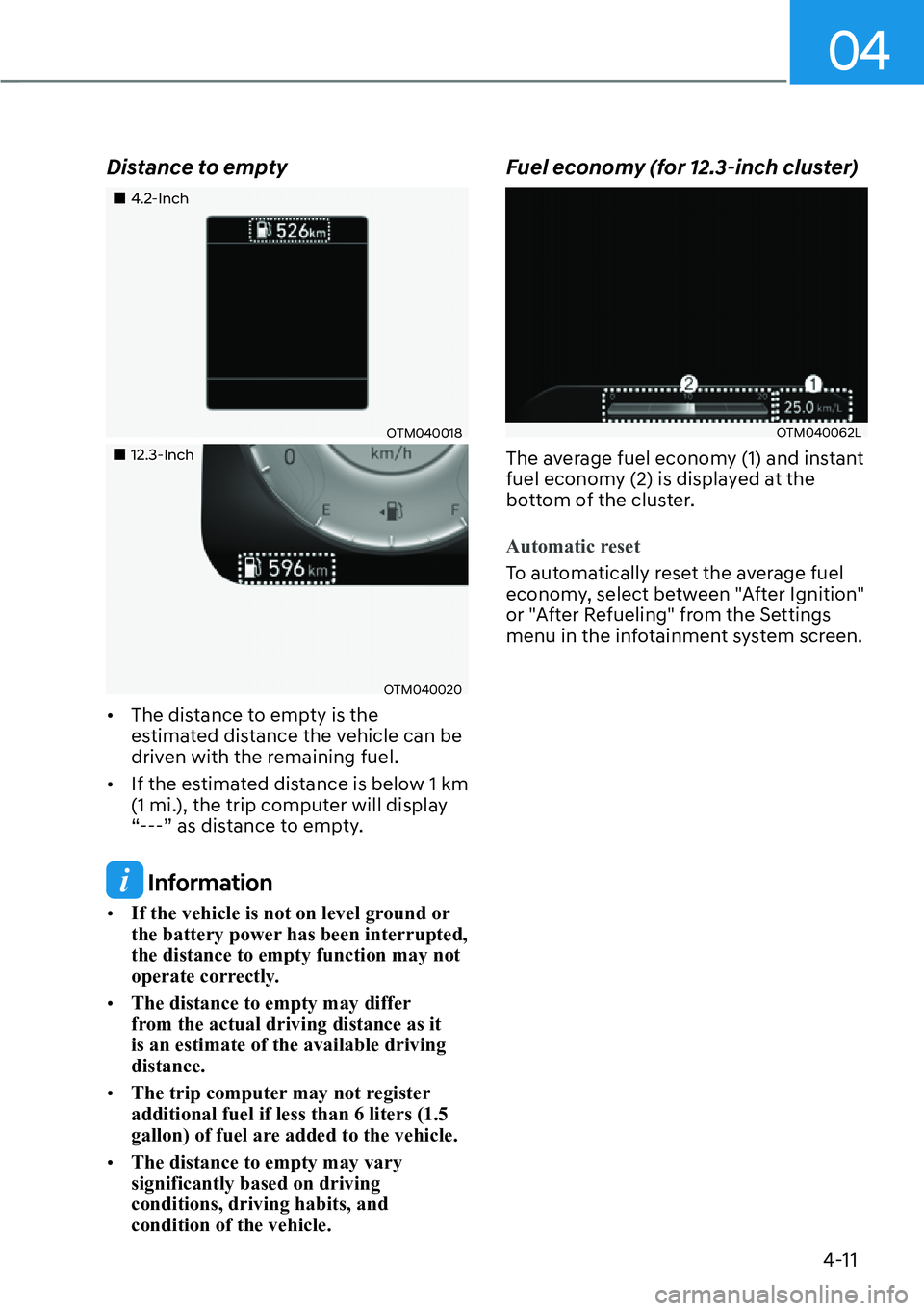

Distance to empty
„4.2-Inch
OTM040018
„12.3-Inch
OTM040020

[ The distance to empty is the
estimated distance the vehicle can be
driven with the remaining fuel.

[ If the estimated distance is below 1 km
(1 mi.), the trip computer will display
“---” as distance to empty.
Information

[ If the vehicle is not on level ground or
the battery power has been interrupted, the distance to empty function may not
operate correctly.

[ The distance to empty may differ
from the actual driving distance as it is an estimate of the available driving distance.

[ The trip computer may not register additional fuel if less than 6 liters (1.5
gallon) of fuel are added to the vehicle.

[ The distance to empty may vary significantly based on driving conditions, driving habits, and condition of the vehicle. Fuel economy (for 12.3-inch cluster)
OTM040062L
The average fuel economy (1) and instant
fuel economy (2) is displayed at the
bottom of the cluster.
Automatic reset
To automatically reset the average fuel
economy, select between "After Ignition"
or "After Refueling" from the Settings
menu in the infotainment system screen.

Instrument Cluster
4-12
Transmission Shift Indicator (if equipped)
Automatic transmission shift
indicator
„4.2-Inch
OTM040016
„12.3-Inch
OTM040014
This indicator displays which shift button
position is selected.
Warning and Indicator Lights
Information
Make sure that all warning lights are OFF
after starting the engine. If any light is still ON, this indicates a situation that needs attention.
Seat belt warning light
This warning light informs the driver that
the seat belt is not fastened.
For more details, refer to “Seat Belts”
section in chapter 3.
Air bag warning light
This warning light illuminates:

[ When you set the ignition switch or
the Engine Start/Stop button to the ON position.
- The air bag warning light illuminates for about 3 ~ 6 seconds and then
turns off when all checks have been
performed.

[ The air bag warning light will remain
illuminated if there is a malfunction
with the Safety Restraint System (SRS)
air bag operation.
If this occurs, you have the vehicle
inspected by an authorized HYUNDAI
dealer.

04
4-13
Parking brake & Brake fluid
warning light
This warning light illuminates:

[
When you set the ignition switch or
the Engine Start/Stop button to the ON position.

- The parking brake light illuminates
for about 3 seconds and will then
turn off once the parking brake is
released.

[ Whenever the parking brake is applied.

[ Whenever the brake fluid level in the
reservoir is low.
- If the warning light illuminates with the parking brake released, it
indicates the brake fluid level in the
reservoir is low.

[ Whenever the regenerative brake
does not operate.
If the brake fluid level in the reservoir is low:
1. Drive carefully to the nearest safe
location and stop your vehicle.
2. With the engine stopped, check the brake fluid level immediately and add
fluid as required (For more details,
refer to “Brake Fluid” section in
chapter 9) . After adding brake fluid,
check all brake components for fluid
leaks. If a brake fluid leak is found, or
if the warning light remains on, or if
the brakes do not operate properly,
do not drive the vehicle. you have the
vehicle inspected by an authorized
HYUNDAI dealer.
Dual-diagonal braking system
Your vehicle is equipped with dual-
diagonal braking system. This means you
still have braking on two wheels even if
one of the dual systems should fail.
With only one of the dual systems
working, more than normal pedal travel
and greater pedal pressure is required to
stop the vehicle.
Also, the vehicle will not stop in as short
a distance with only a portion of the
brake system working.
If the brakes fail while you are driving,
shift to a lower gear for additional engine
braking and stop the vehicle as soon as it
is safe to do so.
WARNING
Parking Brake & Brake Fluid Warning Light
Driving the vehicle with a warning light
ON is dangerous. If the Parking Brake
& Brake Fluid warning light illuminates
with the parking brake released, it
indicates that the brake fluid level is
low.
If this occurs, you have the vehicle
inspected by an authorized HYUNDAI
dealer.

Instrument Cluster
4-14
Regenerative brake warning
light
(yellow)
This warning light illuminates:
When the regenerative brake does not
operate and the brake does not perform
well. This causes the Brake Warning
light (red) and Regenerative Brake
Warning Light (yellow) to illuminate
simultaneously.
If this occurs, drive safely and you have
the vehicle inspected by an authorized
HYUNDAI dealer.
The operation of the brake pedal may
be more difficult than normal and the
braking distance may increase.
Anti-lock Brake System (ABS)
warning light
This warning light illuminates:

[
When you set the ignition switch or
the Engine Start/Stop button to the ON position.

- The ABS warning light illuminates
for about 3 seconds and then goes
off.

[ Whenever there is a malfunction with the ABS.
Note that the hydraulic braking
system will still be operational even if
there is a malfunction with the ABS. Electronic Brake Force
Distribution (EBD) system
warning light
When the ABS warning and
Parking Brake warning lights are on
simultaneously, it may indicate a
problem with the Electronic Brake Force
Distribution system.
If this occurs, you have the vehicle
inspected by an authorized HYUNDAI
dealer.
WARNING
Electronic Brake Force Distribution
(EBD) System Warning Light
When both ABS and Parking Brake &
Brake Fluid warning lights are on, the
brake system will not work normally
and you may experience an unexpected
and dangerous situation during sudden
braking.
If this occurs, avoid high speed driving
and abrupt braking.
you have the vehicle inspected by an
authorized HYUNDAI dealer as soon as possible.
Information - Electronic Brake Force Distribution (EBD)
system warning light
When the ABS warning light is on or both ABS and Parking Brake & Brake Fluid
warning lights are on, the speedometer,
odometer, or tripmeter may not work. Also, the EPS warning light may illuminate and the steering effort may
increase or decrease. If this occurs, you have the vehicle inspected by an authorized HYUNDAI
dealer as soon as possible.

04
4-15
Electric Power Steering (EPS)
warning light
This warning light illuminates:

[
When you set the ignition switch or
the Engine Start/Stop button to the ON position.
- The electric power steering Warning light illuminates for about 3 seconds
and then goes off.

[ Whenever there is a malfunction with the EPS.
If this occurs, you take your vehicle
to an authorized HYUNDAI dealer or
a service station and have the system
checked as soon as possible.
Malfunction Indicator Lamp (MIL)
This indicator light illuminates:

[ When you set the Engine Start/Stop
button to the ON position.

- The malfunction indicator light
illuminates for about 3 seconds and
then goes off.

[ Whenever there is a malfunction with
either the emission control system or
the engine or the vehicle powertrain.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
NOTICE

[ Driving with the Malfunction
Indicator Lamp (MIL) on may cause
damage to the emission control
system which could affect drivability
and/or fuel economy.

[ If the enhanced engine protection
system becomes activated due to
lack of engine oil, engine power
will be limited. If such condition
continues repeatedly, the
Malfunction Indicator Lamp will
illuminate.
