Instrument Cluster
4-32

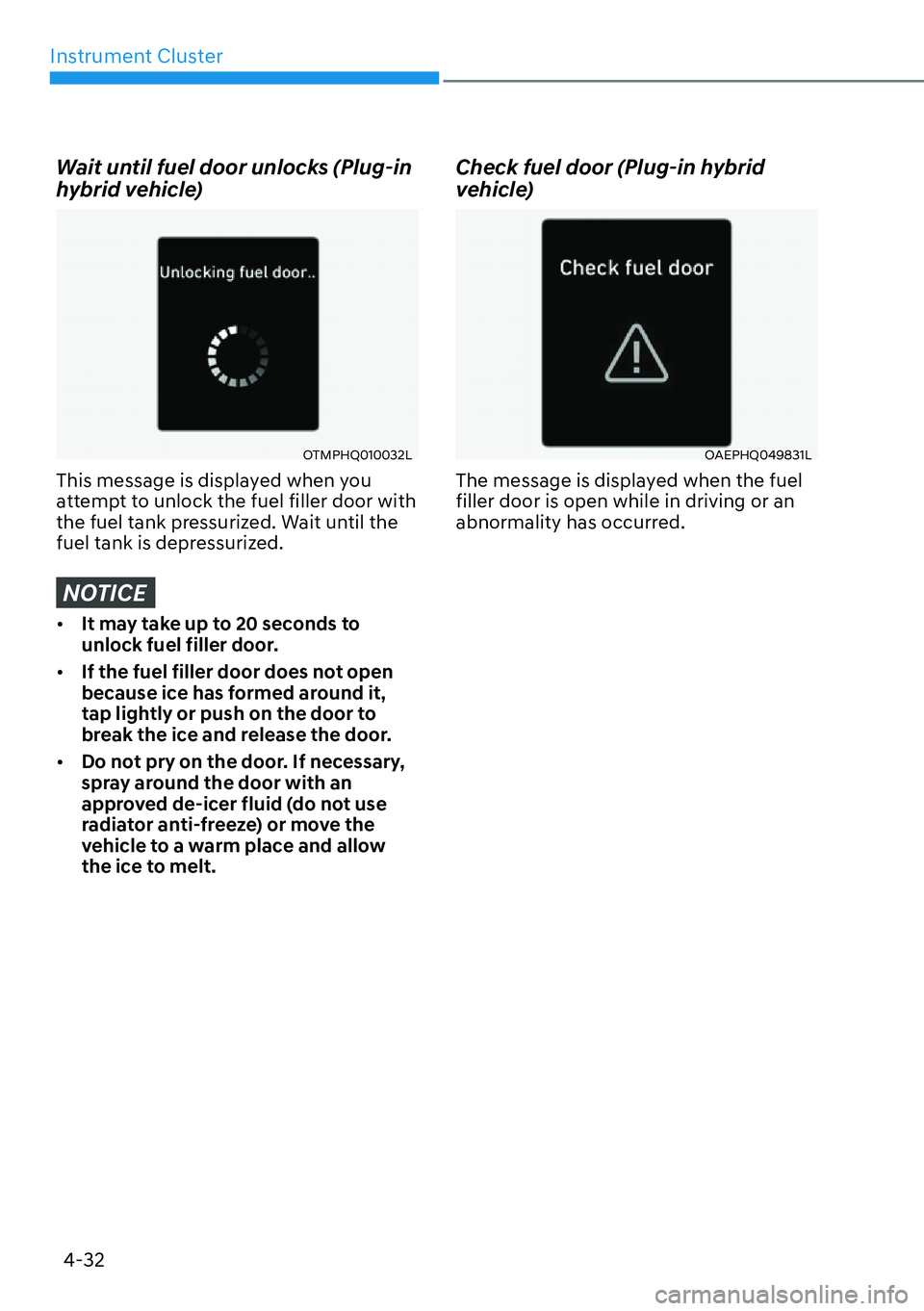

Wait until fuel door unlocks (Plug-in
hybrid vehicle)
OTMPHQ010032L
This message is displayed when you
attempt to unlock the fuel filler door with
the fuel tank pressurized. Wait until the
fuel tank is depressurized.
NOTICE

[ It may take up to 20 seconds to
unlock fuel filler door.

[ If the fuel filler door does not open
because ice has formed around it,
tap lightly or push on the door to
break the ice and release the door.

[ Do not pry on the door. If necessary,
spray around the door with an
approved de-icer fluid (do not use
radiator anti-freeze) or move the
vehicle to a warm place and allow
the ice to melt. Check fuel door (Plug-in hybrid
vehicle)
OAEPHQ049831L
The message is displayed when the fuel filler door is open while in driving or an
abnormality has occurred.

04
4-33
Fuel door unlocked (Plug-in hybrid
vehicle)
OTMPHQ010033L
The message is displayed when the fuel
filler door unlocked. Also means “Ready
to refuel”. Please press the rear center
edge of fuel filler door to open.
Shift to P to charge (Plug-in hybrid
vehicle)
OAEPHQ049833L
This message is displayed when the
charging connector is plugged with the
shift lever in R (Reverse), N (Neutral) or
D (Drive). Move the shift lever to P (Park)
and re-start the charging process. Switching to Hybrid mode to allow
heating or air conditioning (Plug-in
hybrid vehicle)
OAEPHQ049842L
This message is displayed when the
vehicle automatically switches to
HEV mode to allow heating or air
conditioning. It is when the coolant
temperature is low (below -14°C) and the
driver turns on the heating or cooling
system.
If the coolant temperature gets higher
than -14°C or the driver turns off the
heating or cooling system the vehicle
returns to its default (EV) mode.

Instrument Cluster
4-34
Maintaining Hybrid mode to allow
heating or air conditioning (Plug-in
hybrid vehicle)
OAEPHQ049841L
This message is displayed when the
vehicle maintains the HEV mode to allow
heating or air conditioning. The mode
does not change when the driver presses
the [HEV] button to switch from the HEV
mode to EV mode while the heating and
cooling system is on and the coolant
temperature is below -14°C. Low/High System Temp. Maintaining
Hybrid mode (Plug-in hybrid vehicle)OAEPHQ049834LOAEPHQ049835L
This message is displayed when the
temperature of the high-voltage
(hybrid) battery is too low or too high.
This warning message is to protect the
battery and the hybrid system.
Low/High System Temp. Switching
to Hybrid mode (Plug-in hybrid
vehicle)
OAEPHQ049836LOAEPHQ049837L
This message is displayed when the
temperature of the high-voltage (hybrid)
battery is too low or high. This warning
message is to protect the battery and the
hybrid system.

04
4-35
Switching to Hybrid mode to
lubricate engine (Plug-in hybrid
vehicle)
OAEPHQ049838L
This message is displayed when the
vehicle is automatically switched to the
HEV mode to lubricate engine while the
ignition switch is in the ON position.
Maintaining Hybrid mode to protect
engine (Plug-in hybrid vehicle)
OAEPHQ049839L
This message is displayed when
the [HEV] button is pressed but it is
impossible to switch from the HEV mode
to EV mode due to engine lubrication. Exit SPORT mode to switch to EV
(Plug-in hybrid vehicle)
OAEPHQ049840L
This message is displayed when [HEV]
button is pressed but it is impossible to
switch from the HEV mode to EV mode
because the SPORT mode is engaged.

4-36
Instrument Cluster/&'',63/$<

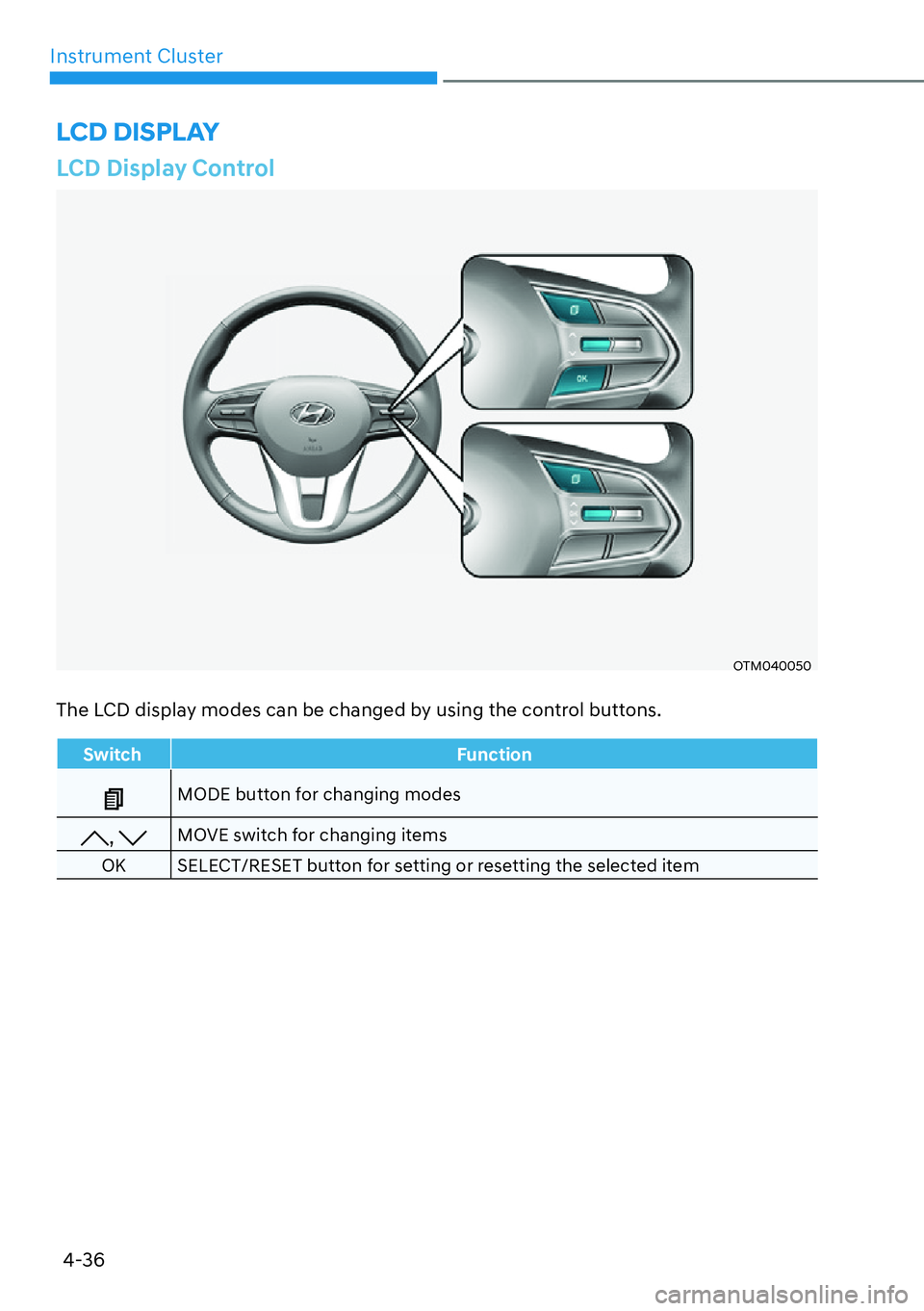

LCD Display Control
OTM040050
The LCD display modes can be changed by using the control buttons.
Switch Function
MODE button for changing modes
, MOVE switch for changing items
OK SELECT/RESET button for setting or resetting the selected item

04
4-37
View Modes
View modes Symbol Explanation
Driving Assist
This mode displays the state of : - Lane Keeping Assist
- Cruise Control
- Smart Cruise Control
- Lane Following Assist
- Highway Driving Assist

- Driver Attention Warning
For more information, refer to each system in chapter 7.
Trip Com-
puter
This mode displays driving information such as the tripme-
ter, fuel economy, etc.
For more details, refer to "Trip Computer" in this chapter.
Turn By Turn
(TBT)
This mode displays the state of the navigation.
User Settings
In this mode, you can change settings of the doors, lamps,
etc.
Warning
The Warning mode displays warning messages related to the
vehicle when one or more systems is not operating normally.
The information provided may differ depending on which functions are applicable
to your vehicle.

Instrument Cluster
4-38
Driving Assist mode
OTM040056
LKA/CC/SCC/LFA/HDA
This mode displays the state of Lane
Keeping Assist, Cruise Control, Smart
Cruise Control, Lane Following Assist,
and Highway Driving Assist
For more details, refer to each function
information in chapter 7.
OIG059288L
Driver Attention Warning
This mode displays the state of function
Driver Attention Warning.
For more details, refer to “Driver
Attention Warning (DAW)” in chapter 7.
Trip computer mode
OTM040039L
The trip computer mode displays
information related to vehicle driving
parameters including fuel economy,
tripmeter information and vehicle speed.
For more details, refer to “Trip
Computer” section in this chapter.
Turn By Turn (TBT) mode
OCN7060149
This mode displays the state of the
navigation.

04
4-39
Master warning group
OTM050218L
This warning light informs the driver the
following situations.
- Forward Collision-Avoidance Assist malfunction (if equipped)
- Forward Collision-Avoidance Assist radar blocked (if equipped)
- Blind-Spot Collision Warning malfunction (if equipped)
- Blind-Spot Collision Warning radar blocked (if equipped)
- LED headlamp malfunction (if equipped)
- High Beam Assist malfunction (if equipped)
- Smart Cruise Control malfunction (if equipped)
- Smart Cruise Control radar blocked (if equipped)
- Tire Pressure Monitoring System (TPMS) malfunction
The Master Warning Light illuminates
if one or more of the above warning
situations occur.
At this time, a Master Warning icon (
)
will appear beside the User Settings icon (
), on the LCD display.
If the warning situation is solved, the
master warning light will be turned
off and the Master Warning icon will
disappear.
OTM040024
Driving force distribution (AWD)
This mode displays information related to
AWD driving force.
If the vehicle is in AWD lock state, this
mode is not displayed.
For detailed information, refer to the
"All Wheel Drive" in the chapter 6.
OTM080005L
Tire Pressure
This mode displays information related to
Tire Pressure.
For more details, refer to "Tire Pressure
Monitoring System (TPMS)" in chapter 8.
