Instrument Cluster
4-40
Engine coolant temperature
OTMH040007
This engine coolant temperature gauge
display shows the temperature of the
engine coolant when the engine is running.
NOTICE
When the gauge indicator gets out of
the normal range, toward the "H(Hot)"
position, it indicates overheating of the
engine. It may damage the engine.
Do not continue driving with the
overheated engine.
For more details, refer to "If the Engine
Overheats" section in the chapter 8.
User settings mode
OTM040060L
In this mode, you can change the
settings of the instrument cluster, doors,
lamps, etc.
1. Driver Assistance
2. Eco vehicle
3. Head-up display 4. Cluster5. Lights6. Door
7. Convenience8. Units
The information provided may differ
depending on which functions are
applicable to your vehicle.
Shift to P to edit settings
This warning message appears if you try
to adjust the User Settings while driving.
For your safety, change the User Settings
after parking the vehicle, applying the
parking brake and pressing the P (Park)
button.
Quick guide help
This mode provides quick guides for the
systems in the User Settings mode.
Select an item, press and hold the OK
button.
For more details, about each system,
refer to this Owner’s Manual.
Information
When the infotainment system is applied,
only the User’s Setting mode on the infotainment system is supported but the
User’s Setting mode on the instrument
cluster is not supported.

04
4-41
1. Driver Assistance
ItemsExplanation
SCC reactionTo adjust the sensitivity of Smart Cruise Control.
[
Fast/Normal/Slow
For more details, refer to ''Smart Cruise Control (SCC)'' in
chapter 7.
Driving Convenience
[
Lane Following Assist
To activate or deactivate Lane Following Assist.
For more details, refer to "Lane Following Assist (LFA)'' in
chapter 7.
[ Highway Driving Assist
To activate or deactivate Highway Driving Assist.
For more details, refer to ''Highway Driving Assist (HDA)'' in
chapter 7.
[ Auto Highway Speed Control
To Activate or deactivate Auto Highway Speed Control.
For more details, refer to "Navigation-based Smart Cruise
Control(NSCC)" in chapter 7
[ Speed Limit Warning
To activate or deactivate Intelligent Speed Limit Warning
For more details, refer to Intelligent Speed Limit Warning
(ISLW) in chapter 7.
Warning Timing To adjust the warning timing of the driver assistance system.
[
Normal / Late
Warning Volume To adjust the warning volume of the driver assistance system.
[
High / Medium / Low / Off
Driver Attention Warning
[
Leading Vehicle Departure Alert
To activate or deactivate Leading Vehicle Departure Alert function.

[ Inattentive driving warning
To alert the driver's inattentive driving.
For more details, refer to "Driver Attention Warning (DAW)" in
chapter 7.

Instrument Cluster
4-42
ItemsExplanation
Forward SafetyTo adjust Forward Collision-Avoidance Assist (FCA)
[
Active Assist

[ Warning Only

[ Off
For more details, refer to "Forward Collision-Avoidance Assist
(FCA)" in chapter 7.
Lane Safety To adjust Lane Keeping Assist.
[
Active Assist

[ Warning Only

[ Off
For more details, refer to "Lane Keeping Assist (LKA)" in
chapter 7.
Blind-Spot Safety
[
Blind-Spot View
To activate or deactivate Blind-Spot View.
For more details, refer to "Blind-Spot View Monitor (BVM)" in
chapter 7.
[ Safe Exit Assist
To activate or deactivate the Safe Exit Assist.
For more details, refer to "Safe Exit Assist (SEA)" in chapter 7.
[ Active Assist

[ Warning Only

[ Off
To activate or deactivate Blind-Spot Collision-Avoidance Assist.
For more details, refer to Blind-Spot Collision-Avoidance
Assist (BCA) in chapter 7.

04
4-43
ItemsExplanation

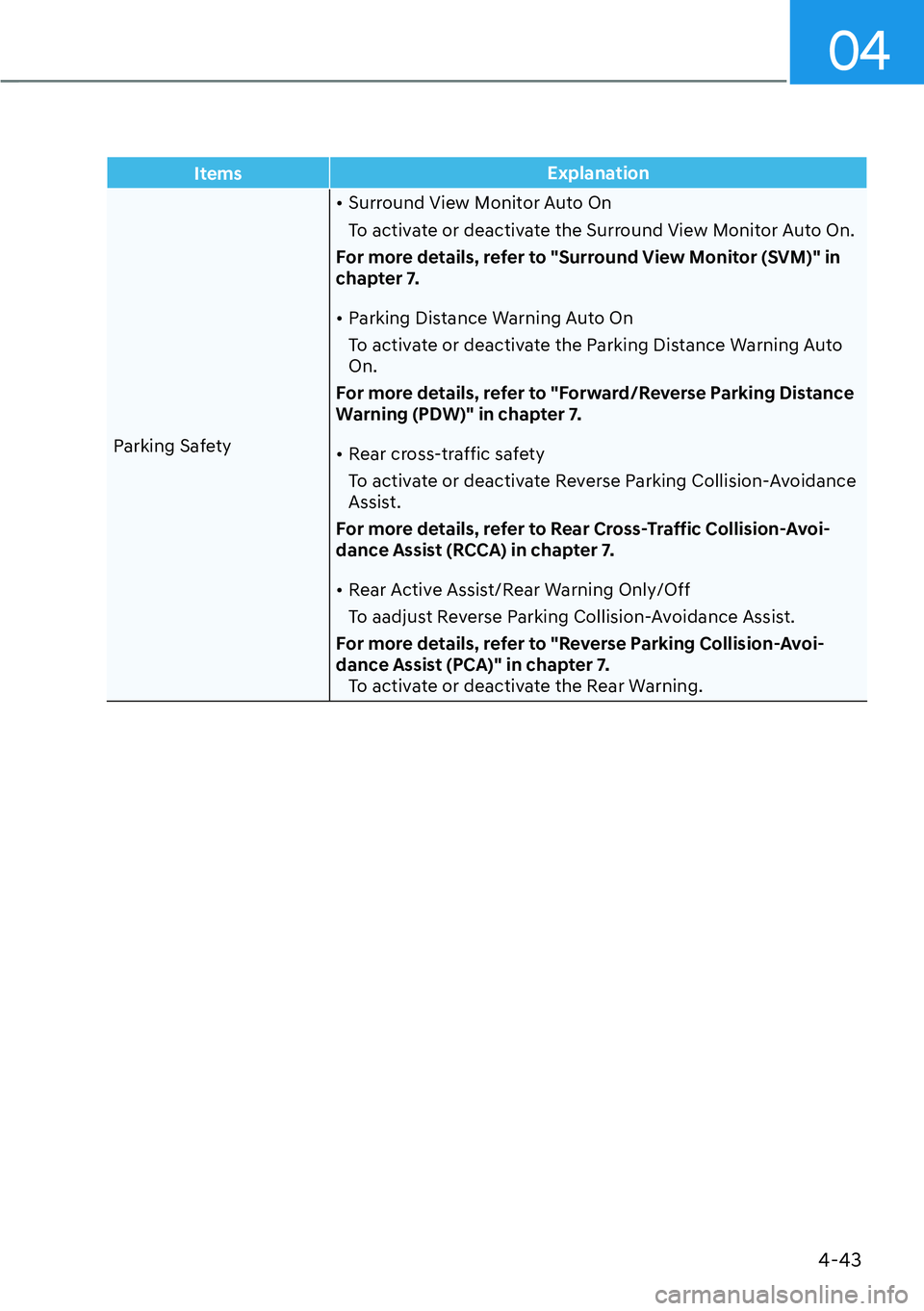

Parking Safety
[
Surround View Monitor Auto On
To activate or deactivate the Surround View Monitor Auto On.
For more details, refer to "Surround View Monitor (SVM)" in
chapter 7.
[ Parking Distance Warning Auto On
To activate or deactivate the Parking Distance Warning Auto On.
For more details, refer to "Forward/Reverse Parking Distance
Warning (PDW)" in chapter 7.
[ Rear cross-traffic safety
To activate or deactivate Reverse Parking Collision-Avoidance
Assist.
For more details, refer to Rear Cross-Traffic Collision-Avoi-
dance Assist (RCCA) in chapter 7.
[ Rear Active Assist/Rear Warning Only/Off
To aadjust Reverse Parking Collision-Avoidance Assist.
For more details, refer to "Reverse Parking Collision-Avoi-
dance Assist (PCA)" in chapter 7. To activate or deactivate the Rear Warning.

Instrument Cluster
4-44
2. ECO vehicle
ItemsExplanation
Coasting guide
[
Enable coasting guide : on/off
To inform driver when taking foot off from accelerator pedal by
getting information from Navigation system.
[ Sound
To adjust the sound of coasting guide.
Start coasting
[
Early/Normal/Late
To select options when Coasting Pop-up is displayed.

04
4-45

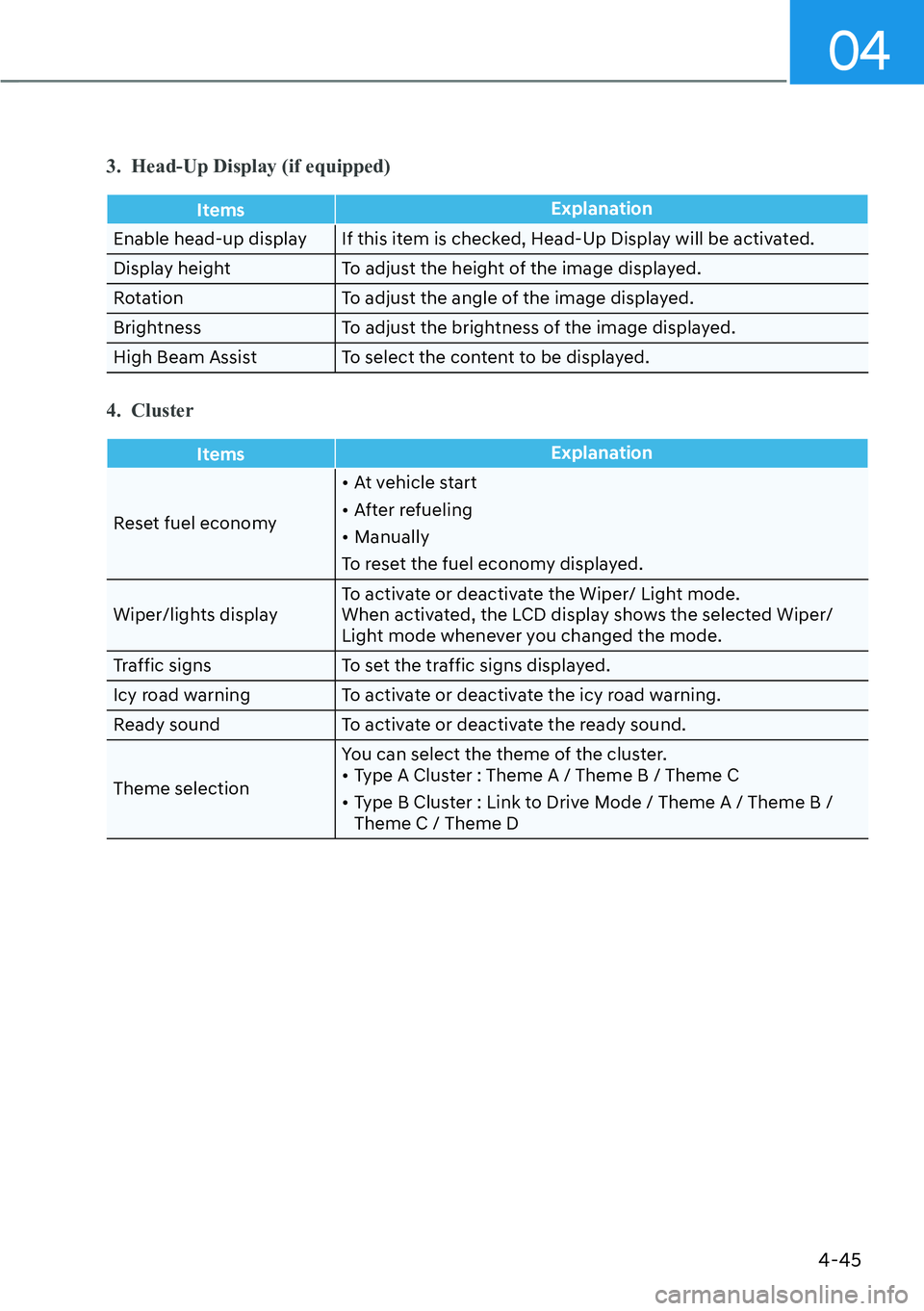

3. Head-Up Display (if equipped)
ItemsExplanation
Enable head-up display If this item is checked, Head-Up Display will be activated.
Display height To adjust the height of the image displayed.
Rotation To adjust the angle of the image displayed.
Brightness To adjust the brightness of the image displayed.
High Beam Assist To select the content to be displayed.
4. Cluster
ItemsExplanation
Reset fuel economy
[
At vehicle start

[ After refueling

[ Manually
To reset the fuel economy displayed.
Wiper/lights display To activate or deactivate the Wiper/ Light mode.
When activated, the LCD display shows the selected Wiper/
Light mode whenever you changed the mode.
Traffic signs To set the traffic signs displayed.
Icy road warning To activate or deactivate the icy road warning.
Ready sound To activate or deactivate the ready sound. Theme selection You can select the theme of the cluster.
[
Type A Cluster : Theme A / Theme B / Theme C

[ Type B Cluster : Link to Drive Mode / Theme A / Theme B / Theme C / Theme D

Instrument Cluster
4-46

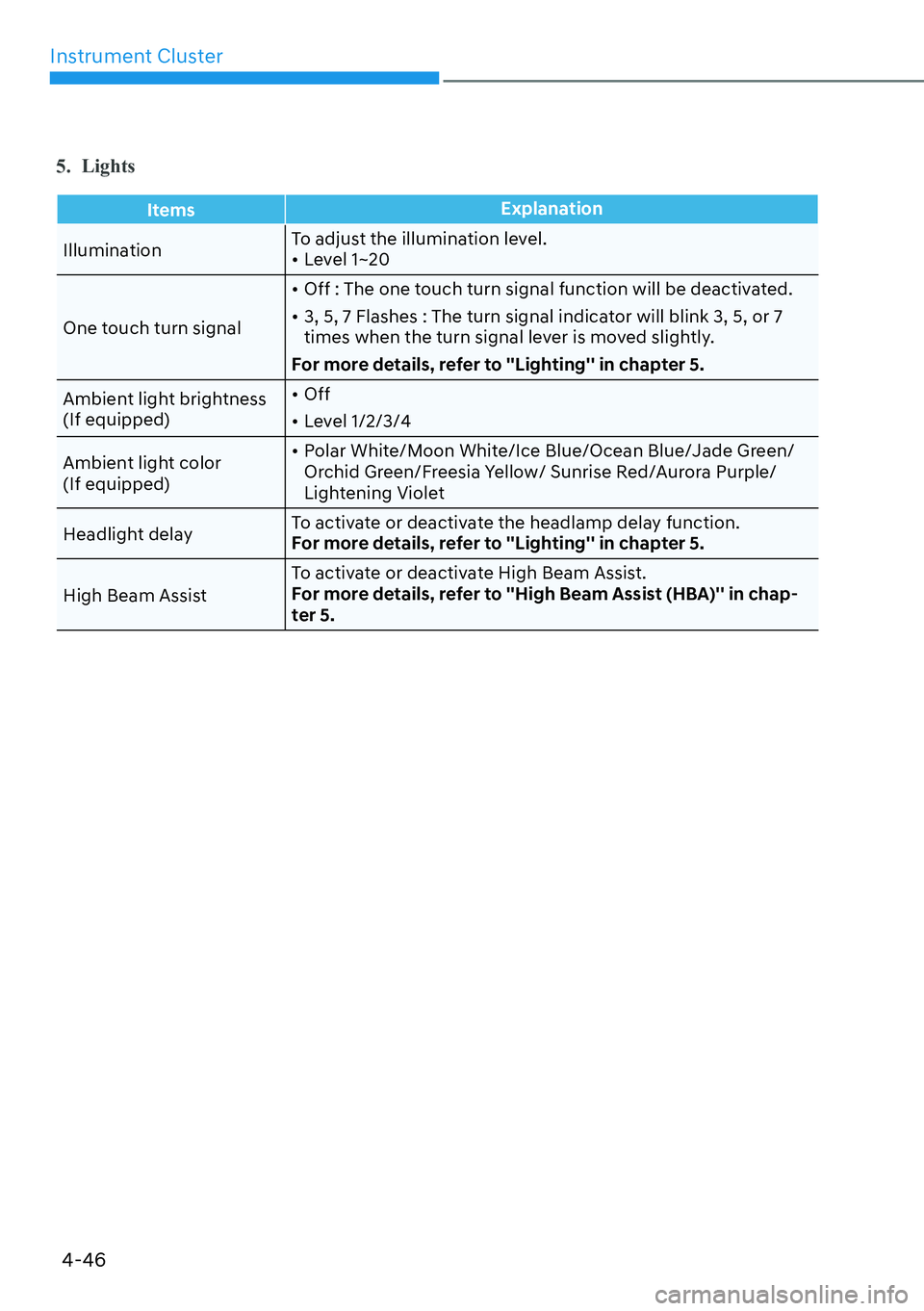

5. Lights
ItemsExplanation
IlluminationTo adjust the illumination level.
[
Level 1~20
One touch turn signal
[
Off : The one touch turn signal function will be deactivated.

[ 3, 5, 7 Flashes : The turn signal indicator will blink 3, 5, or 7
times when the turn signal lever is moved slightly.
For more details, refer to ''Lighting'' in chapter 5.
Ambient light brightness(If equipped)
[
Off

[ Level 1/2/3/4
Ambient light color(If equipped)
[
Polar White/Moon White/Ice Blue/Ocean Blue/Jade Green/
Orchid Green/Freesia Yellow/ Sunrise Red/Aurora Purple/
Lightening Violet
Headlight delay To activate or deactivate the headlamp delay function.
For more details, refer to ''Lighting'' in chapter 5.
High Beam Assist To activate or deactivate High Beam Assist.
For more details, refer to ''High Beam Assist (HBA)'' in chap-
ter 5.

04
4-47
6. Door
ItemsExplanation
Automatically lock
[
Enable on Shift : All doors will be automatically locked if
the shift button is shifted from the P (Park) position to the R
(Reverse), N (Neutral), or D (Drive) position. (only when the
vehicle is in ready mode)

[ Enable on Speed : All doors will be automatically locked
when the vehicle speed exceeds 15km/h (9.3mph).

[ Off : The auto door lock operation will be deactivated.
Automatically unlock
[
On Shift to P: All doors will be automatically unlocked if the
shift button is shifted to the P (Park) position. (only when the
vehicle is in ready mode)

[ On key out/On vehicle off : All doors will be automatically
unlocked when the ignition key is removed from the ignition
switch or the Engine Start/Stop button is set to the OFF position.

[ Off : The auto door unlock operation will be canceled.
Power tailgate If this item is checked, the power tailgate function will be
activated.
For more details, refer to ''Power tailgate'' in chapter 5.
Power tailgate opening speed To adjust the power tailgate speed.
[
Fast/Normal
For more details, refer to ''Power tailgate'' in chapter 5.
Smart tailgate To activate or deactivate the smart tailgate.
For more details, refer to ''Smart tailgate'' in chapter 5.
