2022 HYUNDAI SANTA FE HYBRID Owners Manual

Convenience Features
5-100
Cup Holder
„Front
OTM050030L
„Second row
OTMPH051013N
[A] : Press
Cups or small beverages cups may be
placed in the cup holders.
WARNING

[ Avoid abrupt starting and braking
when the cup holder is in use to
prevent spilling your drink. If hot
liquid spills, you could be burned.
Such a burn to the driver could cause
loss of vehicle control resulting in an accident.

[ Do not place uncovered or unsecured
cups, bottles, cans, etc., in the cup
holder containing hot liquid while
the vehicle is in motion. Injuries may
result in the event of a sudden stop or collision.

[ Only use soft cups in the cup holders.
Hard objects can injure you in an accident.
WARNING
Keep cans or bottles out of direct sun
light and do not put them in a hot
vehicle. It may explode.
NOTICE

[ Keep your drinks sealed while
driving to prevent spilling your drink.
If liquid spills, it may get into the
vehicle’s electrical/electronic system
and damage electrical/electronic parts.

[ When cleaning spilled liquids do not
use hot air to blow out or dry the cup
holder. This may damage the interior.

[ Do not forcefully open the cover. It
may damage if you forcefully open
the cover with your fingers, etc..
INTERIOR FEATURES

05
5-101
Ashtray (if equipped)
OPDE046419
To use the ashtray, open the cover.
To clean the ashtray:
The plastic receptacle should be
removed by lifting the plastic ashtray
receptacle upward after turning the
cover counterclockwise and pulling it out.
WARNING
Putting lit cigarettes or matches in
an ashtray with other combustible
materials may cause a fire.
Sunvisor
OTM048089
To use the sunvisor, pull it downward.
To use the sunvisor to block the sun
from the side window, pull it downward,
release it from the bracket (1) and swing
it to the side (2) towards the window.
To use the vanity mirror, pull down the
sunvisor and slide the mirror cover (3).
Adjust the sunvisor forward or backward
(4) as needed (if equipped). Use the
ticket holder (5) to hold tickets.
Close the vanity mirror cover securely
and return the sunvisor to its original
position after use.
WARNING
For your safety, do not block your view
when using the sunvisor.
NOTICE
The tab (5) adjacent to the vanity mirror
on the sunvisor can be used for toll
road tickets or self parking tickets. Use
caution when inserting tickets into the
ticket holder to avoid damage. Refrain
from putting several tickets in the ticket holder as this could also damage the
retaining tab.

Convenience Features
5-102

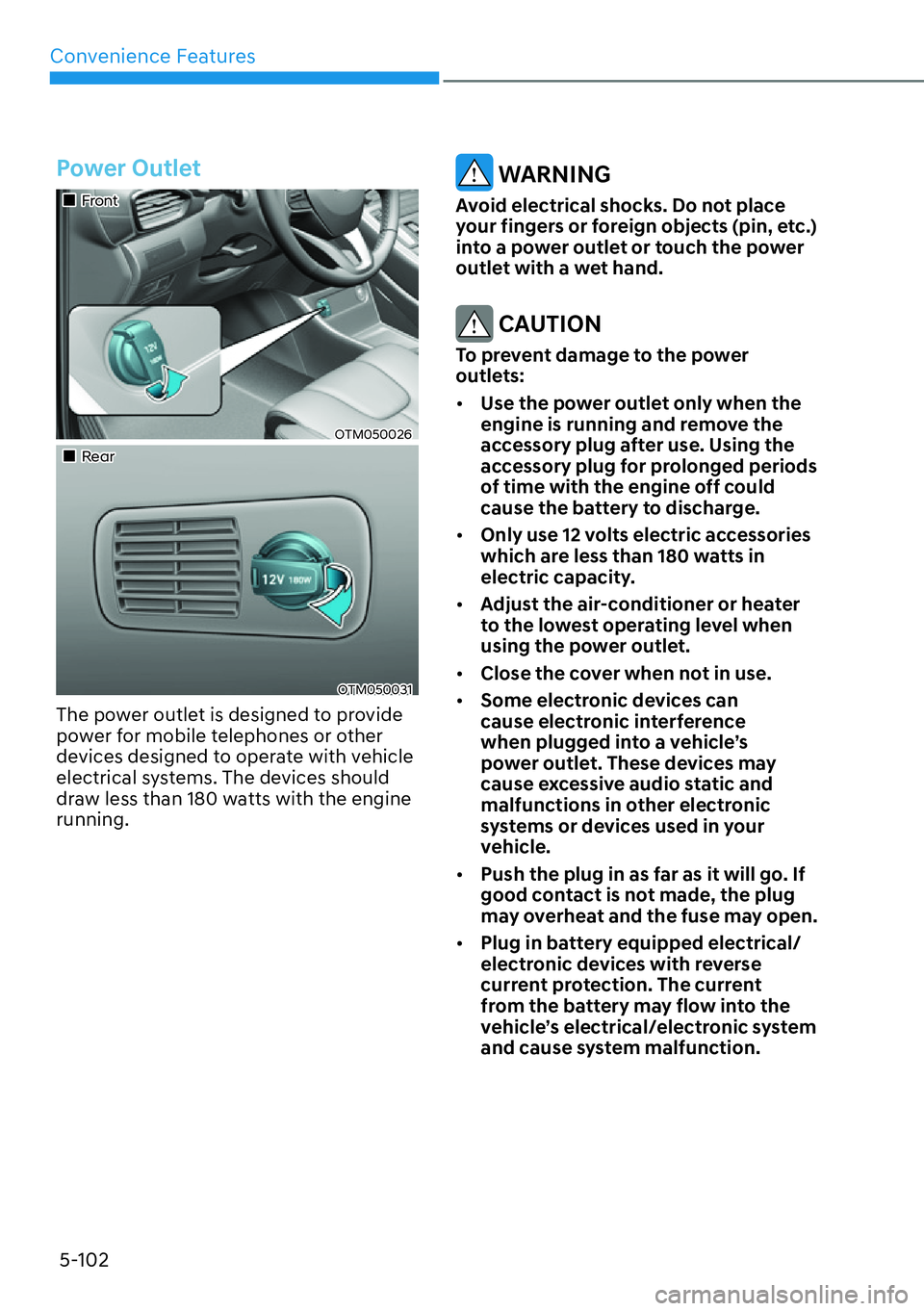

Power Outlet
„Front
OTM050026
„Rear
OTM050031
The power outlet is designed to provide
power for mobile telephones or other
devices designed to operate with vehicle
electrical systems. The devices should
draw less than 180 watts with the engine running.
WARNING
Avoid electrical shocks. Do not place
your fingers or foreign objects (pin, etc.)
into a power outlet or touch the power
outlet with a wet hand.
CAUTION
To prevent damage to the power
outlets:
[ Use the power outlet only when the
engine is running and remove the
accessory plug after use. Using the
accessory plug for prolonged periods
of time with the engine off could
cause the battery to discharge.

[ Only use 12 volts electric accessories
which are less than 180 watts in
electric capacity.

[ Adjust the air-conditioner or heater
to the lowest operating level when
using the power outlet.

[ Close the cover when not in use.

[ Some electronic devices can
cause electronic interference
when plugged into a vehicle’s
power outlet. These devices may
cause excessive audio static and
malfunctions in other electronic
systems or devices used in your
vehicle.

[ Push the plug in as far as it will go. If
good contact is not made, the plug
may overheat and the fuse may open.

[ Plug in battery equipped electrical/
electronic devices with reverse
current protection. The current
from the battery may flow into the
vehicle’s electrical/electronic system
and cause system malfunction.

05
5-103
USB Charger
„Front
OTM050028
„Second row
OTM050058
The USB charger is designed to recharge
batteries of small size electrical devices using a USB cable.
The electrical devices can be recharged
when the Engine Start/Stop button is in
the ACC or ON (or START) position.
The battery charging state may be
monitored on the electrical device. Disconnect the USB cable from the USB
port after use.
[
A smart phone or a tablet PC may
get warmer during the re-charging
process. It does not indicate any
malfunction with the charging system.

[ A smart phone or a tablet PC, which
adopts a different re-charging
method, may not be properly re-
charged. In this case, use an exclusive
charger of your device.

[ The charging terminal is only to
recharge a device. Do not use the
charging terminal either to turn ON
an audio or to play media In the
infotainment system.
AC Inverter (if equipped)
OTMA050011
The AC inverter supplies 115V/110W
electric power to operate electric
accessories or equipments.

Convenience Features
5-104
Information
OJX1070288L

[ Rated voltage : AC 115 volts

[ Maximum electric power : 150 watts

[ In order to avoid an electrical system
failure, electric shock, etc., be sure to
read owner’s manual before use.

[ Be sure to close the cover except the time of use.
WARNING
To reduce a risk of serious or fatal injuries:
[ Do not use a heated electric device
such as a coffeepot, toaster, heater,
iron, etc.

[ Do not insert foreign objects into the
outlet and do not touch the outlet as
you may get shocked.

[ Do not let children touch the AC
inverter.
NOTICE

[To prevent the battery from being
discharged, do not use the AC
inverter while the engine is not running.

[ When not using the AC inverter,
make sure to close the AC inverter
cover.

[ After using an electric accessory or equipment, pull the plug out.
Leaving the accessory or equipment
plugged in for a long time may cause
battery discharge.

[ Do not use an electric accessory or
equipment the power consumption
of which is greater than 220
volts/200 watts.

[ Some electric accessories or
equipment can cause electronic
interference. It may cause excessive audio noise and malfunctions in
other electric systems or devices in
the vehicle.

[ Do not use broken electric accessories or equipment, which
may damage the AC inverter and
electrical systems of the vehicle.

[ Do not use two or more electric
accessories or equipment at the
same time. It may cause damage to
the electrical systems of the vehicle.

[ When the input voltage is lower,
outlet LED will blink and the AC
inverter will turn off automatically. If
the input voltage goes up to normal,
the AC inverter will turn on again.

05
5-105
Wireless Smart Phone Charging
System (if equipped)
OTM050022
[A] : Indicator light, [B] : Charging pad
On certain models, the vehicle comes
equipped with a wireless smart phone
charger.
The system is available when all doors
are closed, and when the Engine Start/
Stop button is in the ON (or START) position. Charging smart phone
The wireless smart phone charging
system charges only the Qi-enabled smart phones (
). Read the label on
the smart phone accessory cover or
visit your smart phone manufacturer’s
website to check whether your smart
phone supports the Qi technology.
The wireless charging process starts
when you put a Qi-enabled smart phone
on the wireless charging unit.
1. Remove other items, including the smart key, from the wireless charging
unit. If not, the wireless charging
process may be interrupted. Place
the smart phone on the center of the
charging pad.
2. The indicator light is orange when the smart phone is charging. The indicator light will turn blue when phone
charging is complete.
3. You can turn ON or OFF the wireless charging function from the Settings
menu on the instrument cluster. Select:
- 6HWXS
Ÿ8VHUVHWWLQJV
Ÿ
&RQYHQLHQFH
Ÿ:LUHOHVV&KDUJLQJ
If your smart phone is not charging:
- Slightly change the position of the
smart phone on the charging pad.
- Make sure the indicator light is orange.

Convenience Features
5-106

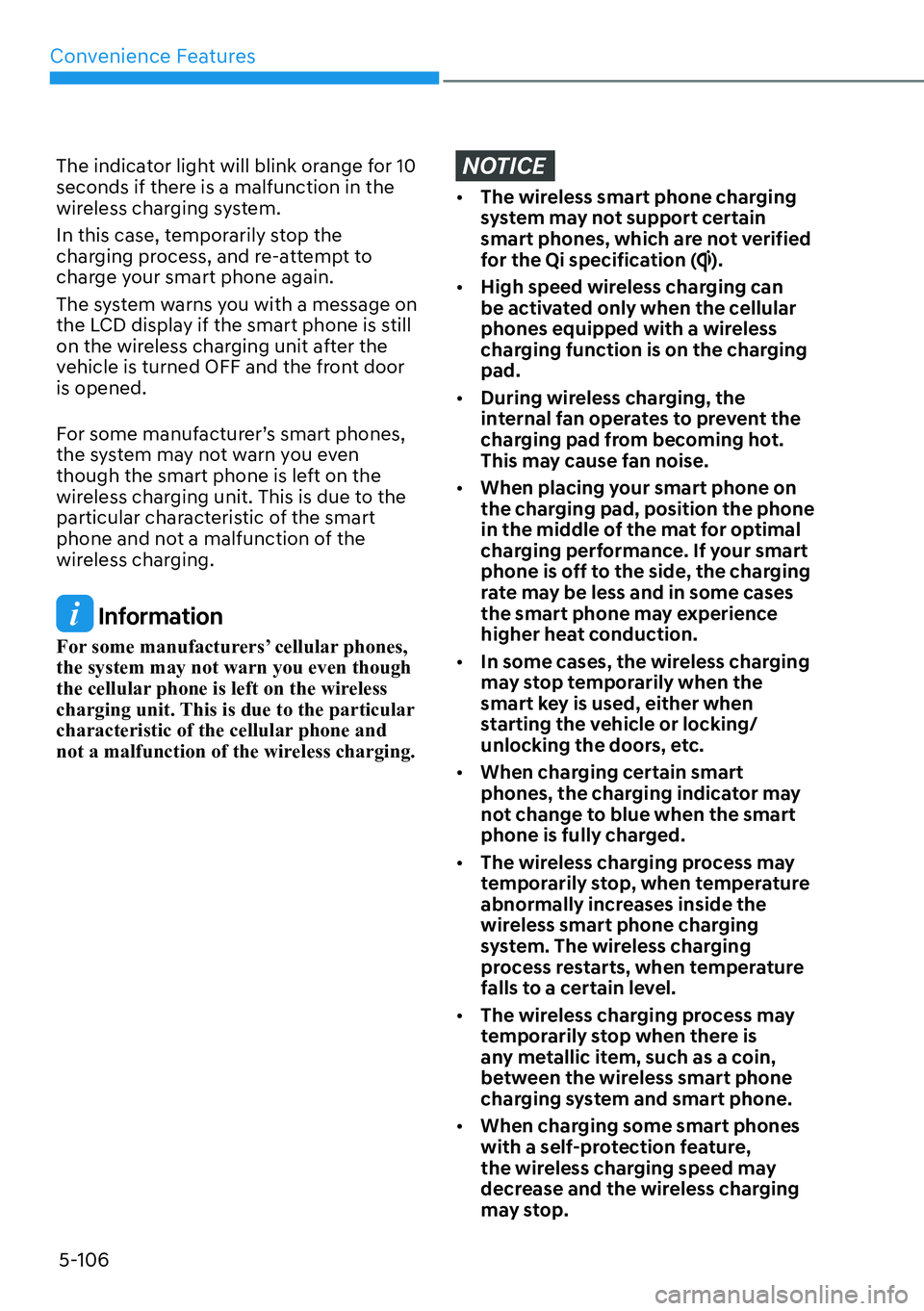

The indicator light will blink orange for 10
seconds if there is a malfunction in the
wireless charging system.
In this case, temporarily stop the
charging process, and re-attempt to
charge your smart phone again.
The system warns you with a message on
the LCD display if the smart phone is still
on the wireless charging unit after the
vehicle is turned OFF and the front door is opened.
For some manufacturer’s smart phones,
the system may not warn you even
though the smart phone is left on the
wireless charging unit. This is due to the
particular characteristic of the smart
phone and not a malfunction of the
wireless charging.
Information
For some manufacturers’ cellular phones, the system may not warn you even though
the cellular phone is left on the wireless
charging unit. This is due to the particular
characteristic of the cellular phone and
not a malfunction of the wireless charging.
NOTICE

[ The wireless smart phone charging
system may not support certain
smart phones, which are not verified
for the Qi specification (
).

[ High speed wireless charging can
be activated only when the cellular
phones equipped with a wireless
charging function is on the charging pad.

[ During wireless charging, the
internal fan operates to prevent the
charging pad from becoming hot.
This may cause fan noise.

[ When placing your smart phone on
the charging pad, position the phone
in the middle of the mat for optimal
charging performance. If your smart
phone is off to the side, the charging
rate may be less and in some cases
the smart phone may experience
higher heat conduction.

[ In some cases, the wireless charging
may stop temporarily when the
smart key is used, either when
starting the vehicle or locking/
unlocking the doors, etc.

[ When charging certain smart
phones, the charging indicator may
not change to blue when the smart
phone is fully charged.

[ The wireless charging process may
temporarily stop, when temperature
abnormally increases inside the
wireless smart phone charging
system. The wireless charging
process restarts, when temperature
falls to a certain level.

[ The wireless charging process may
temporarily stop when there is
any metallic item, such as a coin,
between the wireless smart phone
charging system and smart phone.

[ When charging some smart phones
with a self-protection feature,
the wireless charging speed may
decrease and the wireless charging
may stop.

05
5-107

[
If the smart phone has a thick cover,
the wireless charging may not be possible.

[ If the smart phone is not completely
contacting the charging pad,
wireless charging may not operate
properly.

[ Some magnetic items like credit
cards, phone cards or rail tickets may
be damaged if left with the smart
phone during the charging process.

[ When any smart phone without
a wireless charging function or a
metallic object is placed on the
charging pad, a small noise may
sound. This small sound is due to the
vehicle discerning compatibility of
the object placed on the charging
pad. It does not affect your vehicle or
the smart phone in any way.

[ If some metallic items such as coins
and other metallic substances exist
between the wireless charging
system and the cell phone, the
wireless charging process may be
temporarily interrupted, the metallic
substances can be hot, and the alarm
may not work when the cell phone is
left on the charging pad.
Information
If the Ignition switch is in the OFF position, the charging also stops.
Information
This device complies with Industry Canada RSS-210 standard. Operation is subject to the following two conditions: 1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired operation.
Clock
The clock can be set from the
infotainment system.
For detailed information, refer to the
separately supplied infotainment
system manual.
WARNING
Do not attempt to adjust the clock
while driving. Doing so may result in
distracted driving which may lead to
an accident involving personal injury or
death.
Coat Hook
OTM048095
These hooks are not designed to hold
large or heavy items.
