Driver Assistance System
7-30
Lane Keeping Assist Settings
Setting features
OTM070184N
Lane Safety
With the engine on, select or deselect

S'ULYHU$VVLVWDQFH
Ÿ/DQHVDIHW\
TIURPWKH
Settings menu to set whether or not to use each function. - ,I
S$VVLVW
TLVVHOHFWHG/DQH.HHSLQJ
Assist will automatically assist the
GULYHU
TVVWHHULQJZKHQODQHGHSDUWXUH
is detected to help prevent the vehicle
from moving out of its lane.
- If 'Warning Only' is selected, Lane Keeping Assist will warn the driver
with an audible warning when lane
departure is detected. The driver must
steer the vehicle.
- ,I
S2II
TLVVHOHFWHG/DQH.HHSLQJ$VVLVW
will turn off. The
indicator light
will turn off on the cluster.
WARNING

[ If 'Warning Only' is selected, steering
is not assisted.

[ Lane Keeping Assist does not control
the steering wheel when the vehicle
is driven in the middle of the lane.

[ The driver should always be aware
of the surroundings and steer the
vehicle if ‘Off’ is selected.
Turning Lane Keeping Assist On/Off (Lane Safety button)
OTMA070001C
With the engine on, press and hold
the Lane Safety button located on
the instrument panel to turn on Lane
Keeping Assist. The white
indicator
light will illuminate on the cluster.
Press and hold the button again to turn
off Lane Keeping Assist.
If the engine is restarted, Lane Keeping
Assist will maintain the last setting.
Information

[ When Lane Keeping Assist is turned off with the Lane Safety button, Lane Safety settings also changes to 'Off'.

[ If the engine is restarted, Lane Keeping Assist will maintain the last setting.

07
7-31

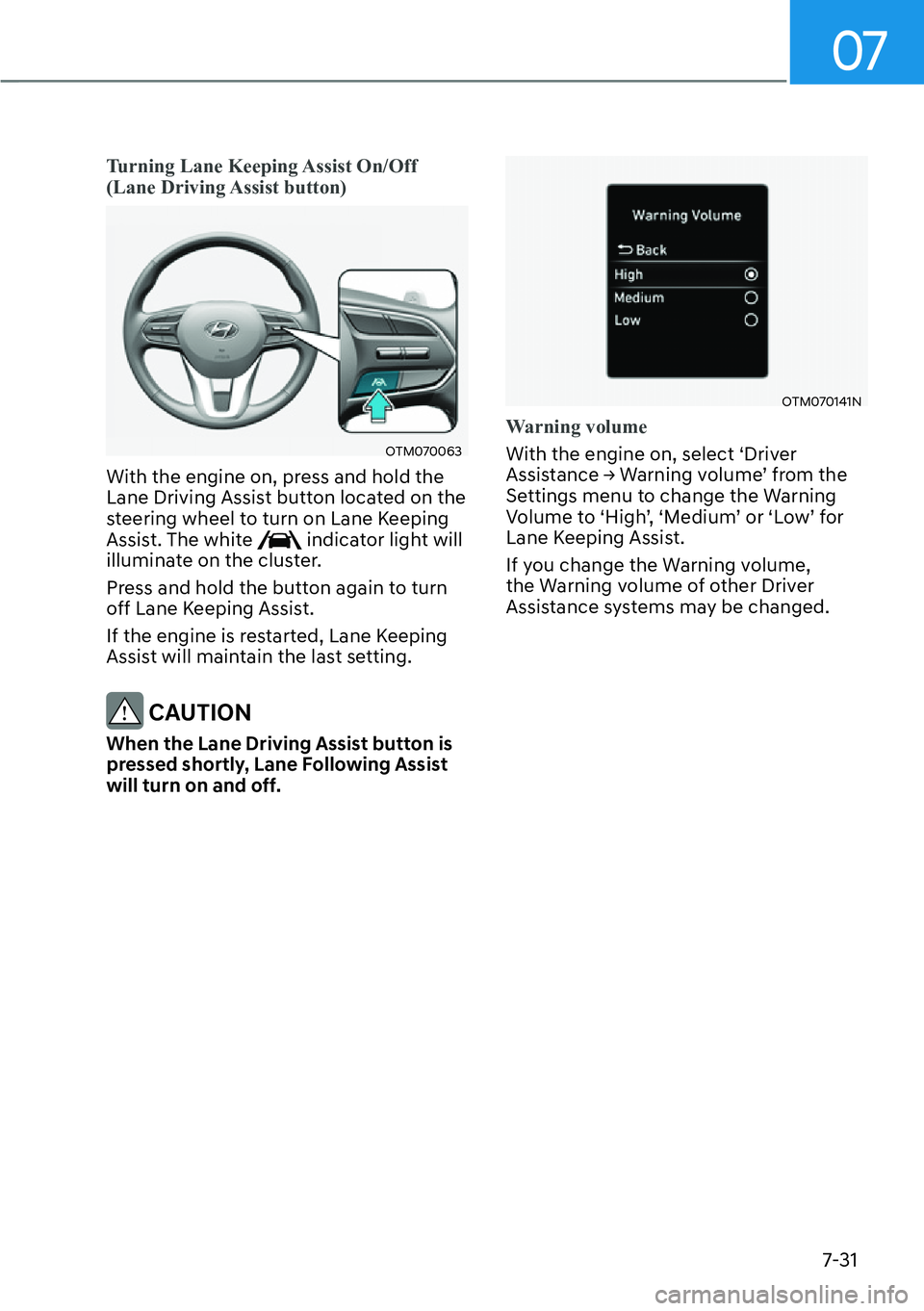

Turning Lane Keeping Assist On/Off
(Lane Driving Assist button)
OTM070063
With the engine on, press and hold the
Lane Driving Assist button located on the
steering wheel to turn on Lane Keeping
Assist. The white
indicator light will
illuminate on the cluster.
Press and hold the button again to turn
off Lane Keeping Assist.
If the engine is restarted, Lane Keeping
Assist will maintain the last setting.
CAUTION
When the Lane Driving Assist button is
pressed shortly, Lane Following Assist
will turn on and off.
OTM070141N
Warning volume
With the engine on, select ‘Driver
$VVLVWDQFH
Ÿ:DUQLQJYROXPH
TIURPWKH
Settings menu to change the Warning
9ROXPHWR
S+LJK
T
S0HGLXP
TRU
S/RZ
TIRU
Lane Keeping Assist.
If you change the Warning volume,
the Warning volume of other Driver
Assistance systems may be changed.

Driver Assistance System
7-32
Lane Keeping Assist Operation
Warning and control
Lane Keeping Assist will help warn and
control the vehicle with Lane Departure
Warning and Lane Keeping Assist.
„Left„Right
OTM070027OTM070028
Lane Departure Warning

[To warn the driver that the vehicle is
departing from the projected lane in
front, the green
indicator light
will blink on the cluster, the lane line
will blink on the cluster depending on
which direction the vehicle is veering,
and an audible warning will sound.

[ Lane Keeping Assist will operate
when your vehicle speed is between
approximately 60~200 km/h (40~120
mph).
Lane Keeping Assist

[To warn the driver that the vehicle
is departing from the projected lane
in front, the green
indicator
light will blink on the cluster, and the
steering wheel will make adjustments
to keep the vehicle inside the lane.

[ Lane Keeping Assist will operate
when your vehicle speed is between
approximately 60~200 km/h
(40~120 mph).
OTMH070016N
Hands-off warning
If the driver takes their hands off the
steering wheel for several seconds,
WKH
S.HHSKDQGVRQWKHVWHHULQJZKHHO
T
warning message will appear on the
cluster, and an audible warning will
sound in stages.

07
7-33

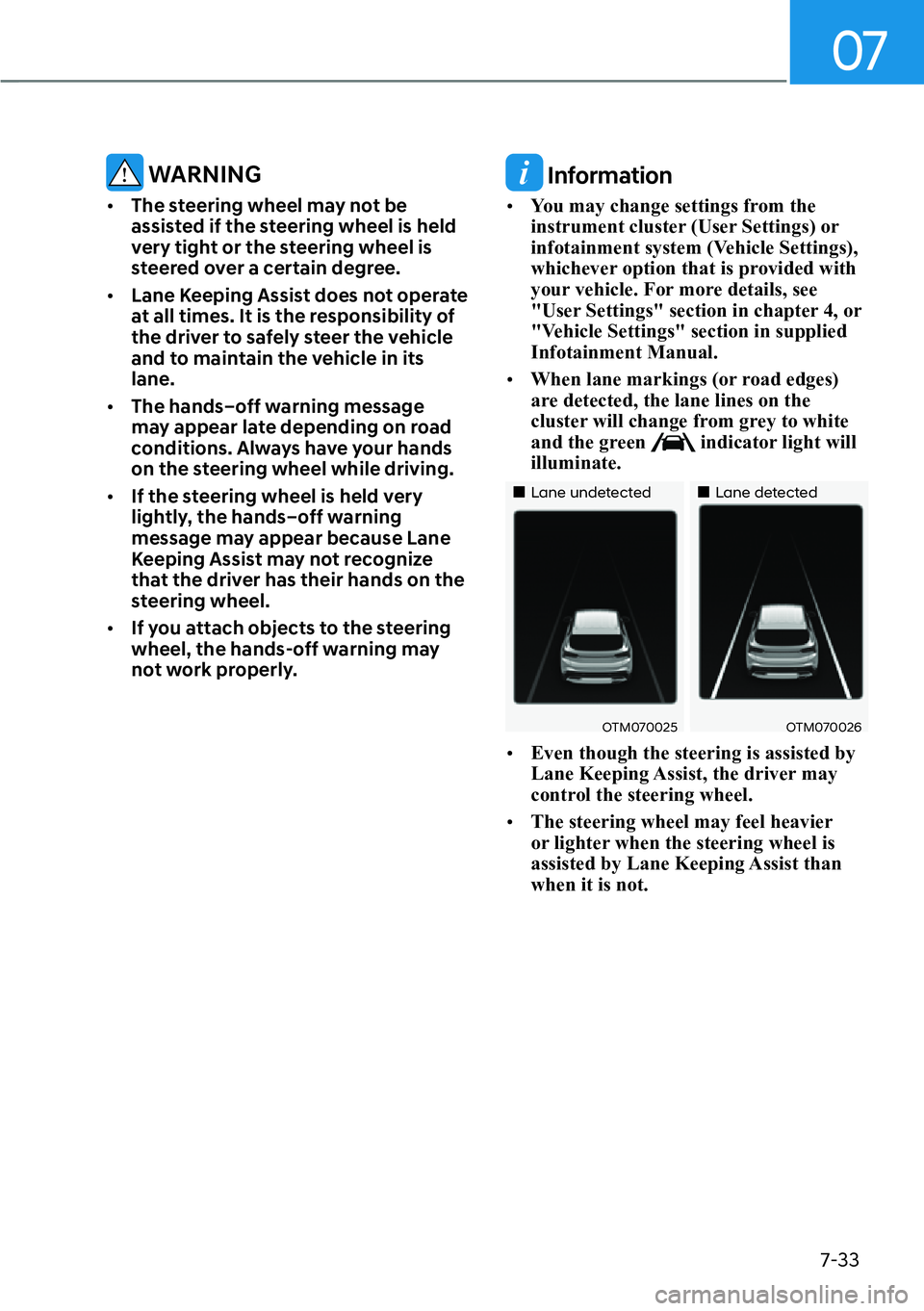

WARNING

[ The steering wheel may not be
assisted if the steering wheel is held
very tight or the steering wheel is
steered over a certain degree.

[ Lane Keeping Assist does not operate
at all times. It is the responsibility of
the driver to safely steer the vehicle
and to maintain the vehicle in its lane.

[ The hands–off warning message
may appear late depending on road
conditions. Always have your hands
on the steering wheel while driving.

[ If the steering wheel is held very
lightly, the hands–off warning
message may appear because Lane
Keeping Assist may not recognize
that the driver has their hands on the
steering wheel.

[ If you attach objects to the steering
wheel, the hands-off warning may
not work properly. Information

[ You may change settings from the
instrument cluster (User Settings) or
infotainment system (Vehicle Settings),
whichever option that is provided with
your vehicle. For more details, see
"User Settings" section in chapter 4, or
"Vehicle Settings" section in supplied Infotainment Manual.

[ When lane markings (or road edges)
are detected, the lane lines on the
cluster will change from grey to white
and the green
indicator light will
illuminate.
„Lane undetected „Lane detected
OTM070025OTM070026

[ Even though the steering is assisted by
Lane Keeping Assist, the driver may
control the steering wheel.

[ The steering wheel may feel heavier
or lighter when the steering wheel is
assisted by Lane Keeping Assist than when it is not.

Driver Assistance System
7-34

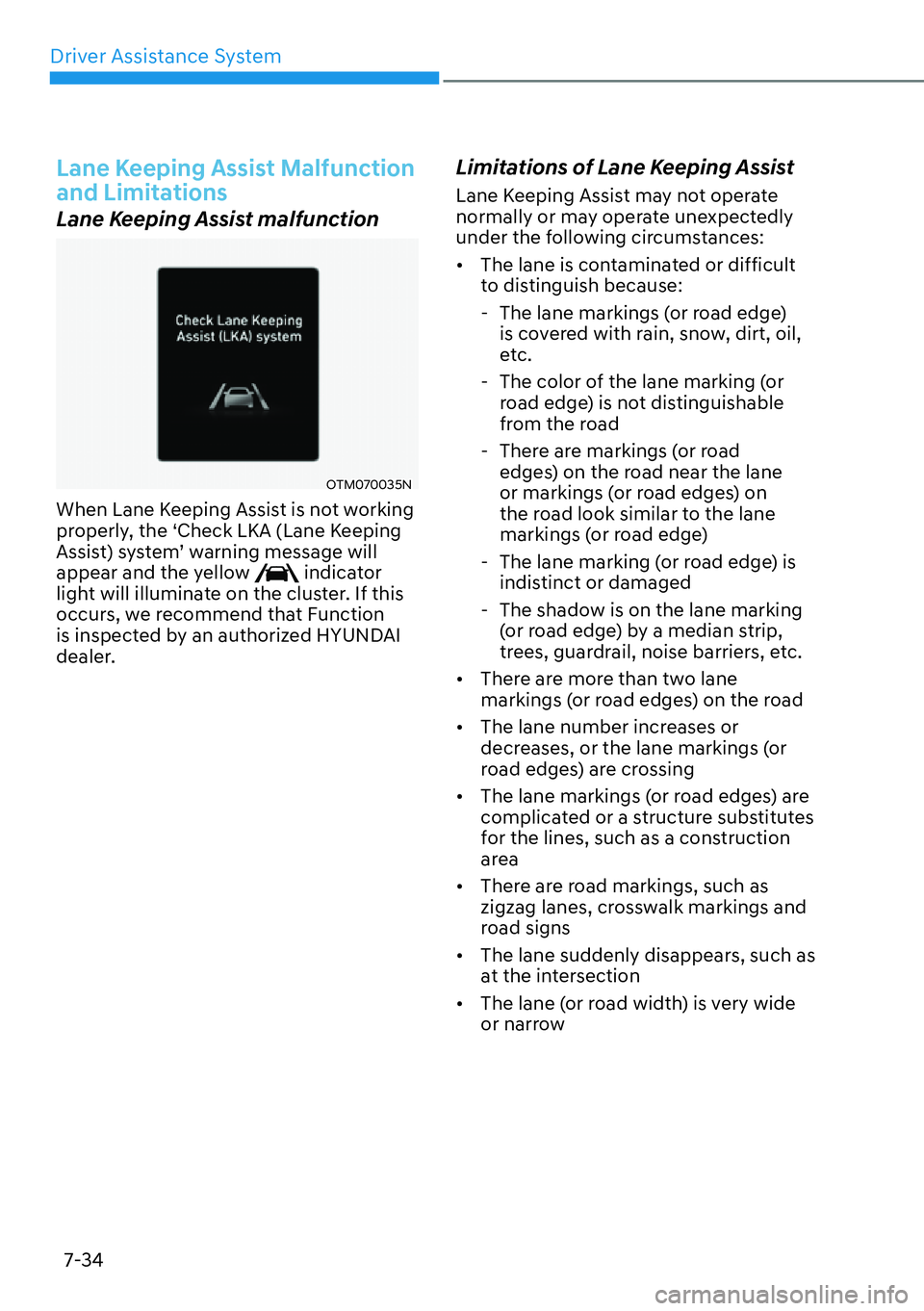

Lane Keeping Assist Malfunction
and Limitations
Lane Keeping Assist malfunction
OTM070035N
When Lane Keeping Assist is not working
properly, the ‘Check LKA (Lane Keeping
$VVLVWV\VWHP
TZDUQLQJPHVVDJHZLOO
appear and the yellow
indicator
light will illuminate on the cluster. If this
occurs, we recommend that Function
is inspected by an authorized HYUNDAI
dealer. Limitations of Lane Keeping Assist
Lane Keeping Assist may not operate
normally or may operate unexpectedly
under the following circumstances:
[
The lane is contaminated or difficult
to distinguish because:
- The lane markings (or road edge) is covered with rain, snow, dirt, oil,
etc.
- The color of the lane marking (or road edge) is not distinguishable
from the road
- There are markings (or road edges) on the road near the lane
or markings (or road edges) on
the road look similar to the lane
markings (or road edge)
- The lane marking (or road edge) is indistinct or damaged
- The shadow is on the lane marking (or road edge) by a median strip,
trees, guardrail, noise barriers, etc.

[ There are more than two lane
markings (or road edges) on the road

[ The lane number increases or
decreases, or the lane markings (or
road edges) are crossing

[ The lane markings (or road edges) are
complicated or a structure substitutes
for the lines, such as a construction
area

[ There are road markings, such as
zigzag lanes, crosswalk markings and
road signs

[ The lane suddenly disappears, such as
at the intersection

[ The lane (or road width) is very wide
or narrow

07
7-35

[
There is a road edge without a lane

[ There is a boundary structure in the
roadway, such as a tollgate, sidewalk,
curb, etc.

[ The distance to the front vehicle is
extremely short or the vehicle in front
is covering the lane marking (or road
edge)
For more details on the limitations
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
WARNING
Take the following precautions when
using Lane Keeping Assist:
[ The driver should hold the
responsibility to safely drive and
control the vehicle. Do not solely rely
on Lane Keeping Assist and drive
dangerously.

[ The operation of Lane Keeping
Assist can be cancelled or not
work properly depending on road
conditions and surroundings. Always be cautious while driving.

[ Refer to “Limitations of Lane Keeping
Assist” if the lane is not detected
properly.

[ When you are towing a trailer or
another vehicle, we recommend that
Lane Keeping Assist is turned off due
to safety reasons.

[ If the vehicle is driven at high speed,
the steering wheel will not be
controlled. The driver must always
follow the speed limit when using
Lane Keeping Assist.
[
If any other system’s warning
message is displayed or audible
warning is generated, Lane Keeping
Assist warning message may not be
displayed and audible warning may
not be generated.

[ You may not hear the warning
sound of Lane Keeping Assist if the
surrounding is noisy.

[ If you attach objects to the steering
wheel, steering may not be assisted
properly.

[ Lane Keeping Assist may not operate
for 15 seconds after the vehicle is
started, or the front view camera is
initialized.

[ Lane Keeping Assist will not operate when:
- The turn signal or hazard warning flasher is turned on
- The vehicle is not driven in the
center of the lane when Lane
Keeping Assist is turned on or right
after changing a lane
- ESC (Electronic Stability Control)
or VSM (Vehicle Stability
Management) is activated
- The vehicle is driven on a sharp
curve
- Vehicle speed is below 55 km/h
(35 mph) or above 210 km/h
(130 mph)
- The vehicle makes sharp lane changes
- The vehicle brakes suddenly

Driver Assistance System
7-36
%/,1'
Ø6327&2//,6,21
Ø$92,'$1&($66,67
ã%&$
ä
Blind-Spot Collision-Avoidance Assist
is designed to help detect and monitor
DSSURDFKLQJYHKLFOHVLQWKHGULYHU
TV
blind spot area and warn the driver
of a possible collision with a warning
message and audible warning.
In addition, if there is a risk of collision
when changing lanes or driving forward
out of a parking space, Blind-Spot
Collision-Avoidance Assist can help avoid
a collision by applying the brake.
OJX1079256
Blind-Spot Collision-Avoidance Assist
helps detect and inform the driver that a
vehicle is in the blind spot.
CAUTION
The detecting range may vary
depending on the speed of your vehicle.
However, even if there is a vehicle in the
blind spot area, Blind-Spot Collision-
Avoidance Assist may not warn you
when you pass by at high speeds.
OJX1079026
Blind-Spot Collision Assist helps detect
and informs the driver that a vehicle is
approaching at high speed from the blind
spot area.
CAUTION
Warning timing may vary depending on
the speed of the vehicle approaching at high speed.
OJX1079027
When changing lanes by detecting
the lane ahead, if Blind-Spot Collision-
Avoidance Assist judges that there is a
collision risk with an approaching vehicle
in the blind spot, function can help avoid
a collision by applying the brake.

07
7-37
OJX1079028
When you are driving forward out of a
parking space, if Blind-Spot Collision-
Avoidance Assist detects that there is a
collision risk with an approaching vehicle
in the blind spot, function will help avoid
a collision by applying the brake. Detecting sensor
OTMPH071001N
OTMPH071003N
[1] : Front view camera,
[2] : Rear corner radar
Refer to the picture above for the
detailed location of the detecting
sensors.
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensor:
[ Never disassemble the rear corner
radar or radar assembly, or apply any impact on it.

[ If there is impact on the rear corner
radar or near the radar, even though
the warning message does not
appear on the cluster, Blind-Spot
Collision-Avoidance Assist may
not operate properly. Blind-Spot
Collision-Avoidance Assist is be
inspected by an authorized HYUNDAI
dealer.
