2022 HYUNDAI SANTA FE HYBRID Owners Manual

Driver Assistance System
7-62
Blind-Spot View Monitor
Operating conditions
When the left or right side turn signal
turns on, the image in that direction is
displayed on the instrument cluster.
Off conditions

[
When the turn signal turns off, the
image on the instrument cluster will
turn off.

[ When the hazard warning flasher
is on, Blind-Spot View Monitor will
turn off, regardless of the turn signal
status.

[ When other important warning is
displayed on the instrument cluster,
Blind-Spot View Monitor may turn off.
Blind-Spot View Monitor Malfunction
When Blind-Spot View Monitor is not
working properly, or the cluster display
flickers, or the camera image does not
display normally, function is inspected by
an authorized HYUNDAI dealer.
WARNING

[ The image shown on the cluster may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.

[ Always keep the camera lens clean.
If the lens is covered with foreign
material, it may adversely affect
camera performance and Blind-
Spot View Monitor may not operate
normally.

07
7-63
OTM070111
(1) Cruise indicator
(2) Set speed
Cruise Control will allow you to drive at
speeds above 30 km/h (20 mph) without
depressing the accelerator pedal.
Cruise Control Operation
To set speed
1. Accelerate to the desired speed, which must be more than 30 km/h (20
mph).
OTM070205L
[A] : Type A, [B] : Type B
2. Press the Driving Assist button at
the desired speed. The set speed and Cruise (
) indicator will
illuminate on the cluster.
3. Release the accelerator pedal. Vehicle speed will maintain the set
speed even when the accelerator
pedal is not depressed.
Information
On a steep slope, the vehicle may slightly
slow down or speed up while driving uphill
or downhill.
&58,6(&21752/
ã&&
ä
ã,)(48,33('
ä

Driver Assistance System
7-64
To increase speed
OTM070020

[ Push the + switch up and release it
immediately. The cruising speed will
increase by 1 km/h (1 mph) each time
the switch is operated in this manner.

[ Push the + switch up and hold it
while monitoring the set speed on
the cluster. The cruising speed will
increase to the nearest multiple of
ten (multiple of five in mph) at first,
and then increase by 10 km/h (5 mph)
each time the switch is operated in
this manner.
Release the switch when the desired
speed is shown and the vehicle will
accelerate to that speed. To decrease speedOTM070019

[ Push the - switch down and release it
immediately. The cruising speed will
decrease by 1 km/h (1 mph) each time
the switch is operated in this manner.

[ Push the - switch down and hold it
while monitoring the set speed on
the cluster. The cruising speed will
decrease to the nearest multiple of
ten (multiple of five in mph) at first,
and then decrease by 10 km/h (5 mph)
each time the switch is operated in
this manner.
Release the switch at the speed you
want to maintain.

07
7-65
To temporarily pause Cruise Control
OTM070153
Cruise Control will be paused when:
[ Depressing the brake pedal.

[ Pushing the
button.

[ Shifting the gear to N (Neutral).

[ Decreasing vehicle speed to less than
approximately 30 km/h (20 mph).

[ ESC (Electronic Stability Control) is
operating.

[ Downshifting to 2nd gear when in Manual Shift mode.
The set speed will turn off but the Cruise (
) indicator will stay on. To resume Cruise Control
OTM070150
Push the +, - switch or
button.
If you push the + switch up or - switch
down, vehicle speed will be set to the
current speed on the cluster.
If you push the
button, vehicle
speed will resume to the preset speed.
Vehicle speed must be above 30 km/h
(20 mph) for the system to resume.
WARNING
Check the driving condition before using the
button. Driving speed
may sharply increase or decrease when
you press the
button.

Driver Assistance System

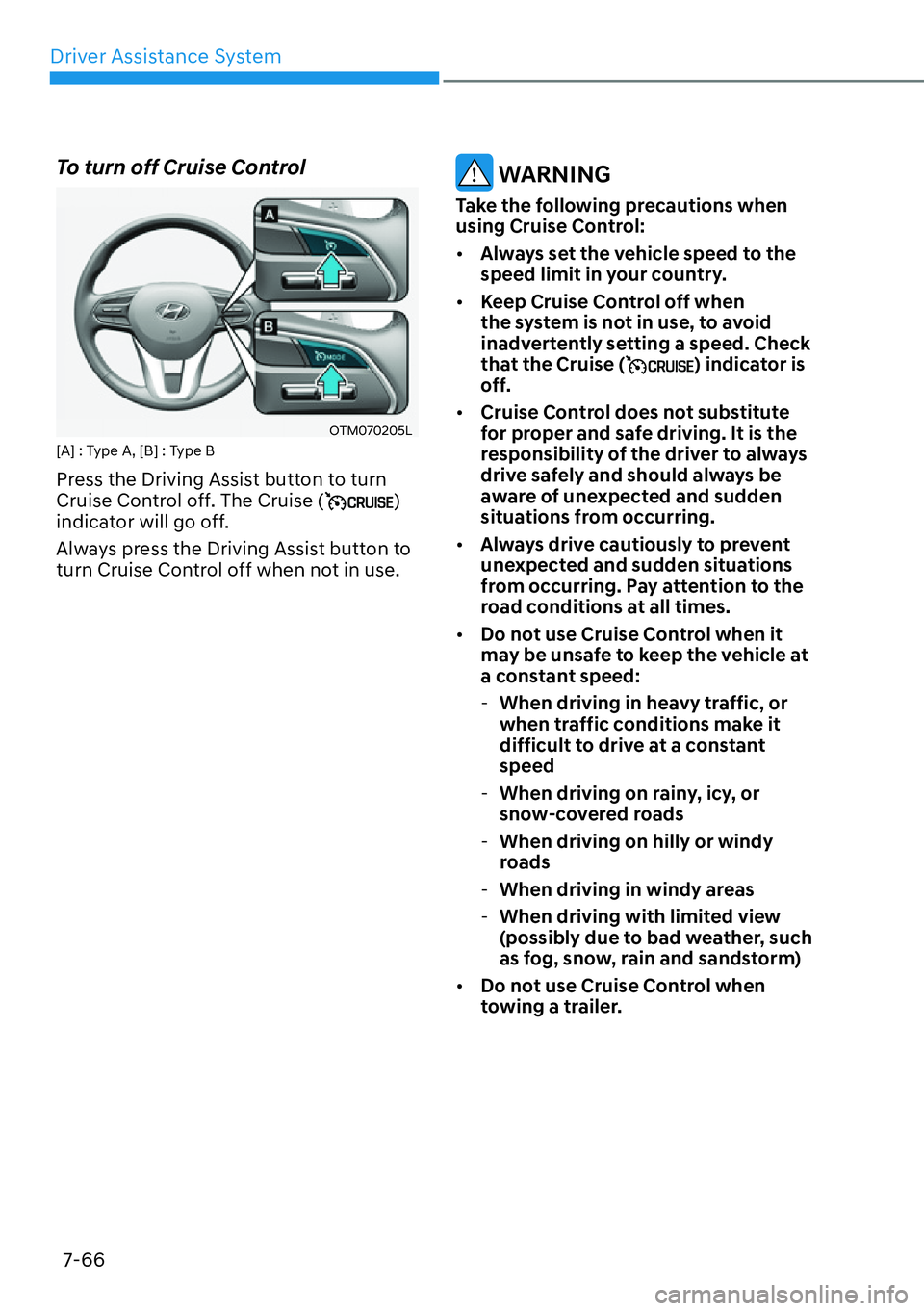

7-66
To turn off Cruise Control
OTM070205L
[A] : Type A, [B] : Type B
Press the Driving Assist button to turn
Cruise Control off. The Cruise (
)
indicator will go off.
Always press the Driving Assist button to
turn Cruise Control off when not in use.
WARNING
Take the following precautions when
using Cruise Control:
[ Always set the vehicle speed to the
speed limit in your country.

[ Keep Cruise Control off when
the system is not in use, to avoid
inadvertently setting a speed. Check
that the Cruise (
) indicator is
off.

[ Cruise Control does not substitute
for proper and safe driving. It is the
responsibility of the driver to always
drive safely and should always be
aware of unexpected and sudden
situations from occurring.

[ Always drive cautiously to prevent
unexpected and sudden situations
from occurring. Pay attention to the
road conditions at all times.

[ Do not use Cruise Control when it
may be unsafe to keep the vehicle at
a constant speed:
- When driving in heavy traffic, or
when traffic conditions make it
difficult to drive at a constant speed
- When driving on rainy, icy, or
snow-covered roads
- When driving on hilly or windy
roads
- When driving in windy areas
- When driving with limited view
(possibly due to bad weather, such
as fog, snow, rain and sandstorm)

[ Do not use Cruise Control when
towing a trailer.

07
7-67
Smart Cruise Control is designed to
detect the vehicle ahead and help
maintain the desired speed and
minimum distance between the vehicle ahead.
Overtaking Acceleration Assist
While Smart Cruise Control is operating,
if Smart Cruise Control judges that the
driver is determined to overtake the
vehicle in front, acceleration will be
assisted.
Detecting sensor
OTMPH071001N
OTM070022
[1] : Front view camera,
[2] : Front radar
The front view camera and front radar
are used as a detecting sensor to help
detect the vehicles in front.
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
Always keep the front view camera
and front radar in good condition to
maintain optimal performance of Smart
Cruise Control.
For more details on the precautions of
the front view camera and front radar,
refer to “Forward Collision-Avoidance
Assist (FCA)” section in chapter 7.
60$57&58,6(&21752/
ã6&&
ä
ã,)(48,33('
ä

Driver Assistance System
7-68
Smart Cruise Control Settings
Setting features
OTMH070019N
[A] : Type A, [B] : Type B
To turn on Smart Cruise Control

[ Press the Driving Assist button to turn
on Smart Cruise Control. The speed
will be set to the current speed on the
cluster.

[ If there is no vehicle in front of you,
the set speed will be maintained, but
if there is a vehicle in front of you,
the speed may decrease to maintain
the distance to the vehicle ahead. If
the vehicle ahead accelerates, your
vehicle will travel at a steady cruising
speed after accelerating to the set speed.
Information

[ If your vehicle speed is between 0~
30 km/h (0~ 20 mph) when you press
the Driving Assist button, the Smart
Cruise Control speed will be set to 30 km/h (20 mph).

[ The Driving Assist button symbol may
vary depending on your vehicle option.
OTM070206L
[A] : Type A, [B] : Type B
To set vehicle distance
Each time the button is pressed, the
vehicle distance changes as follows:
Distance 4 Distance 3
Distance 1Distance 2
Information

[ If you drive at 90 km/h (56 mph), the distance is maintained as follows: Distance 4 -
approximately 53 m (172 ft.) Distance 3 -
approximately 40 m (130 ft.) Distance 2 -
approximately 30 m (106 ft.) Distance 1 -
approximately 25 m (82 ft.)

[ The distance is set to the last set
distance when the engine is restarted,
or when Smart Cruise Control was temporarily canceled.

07

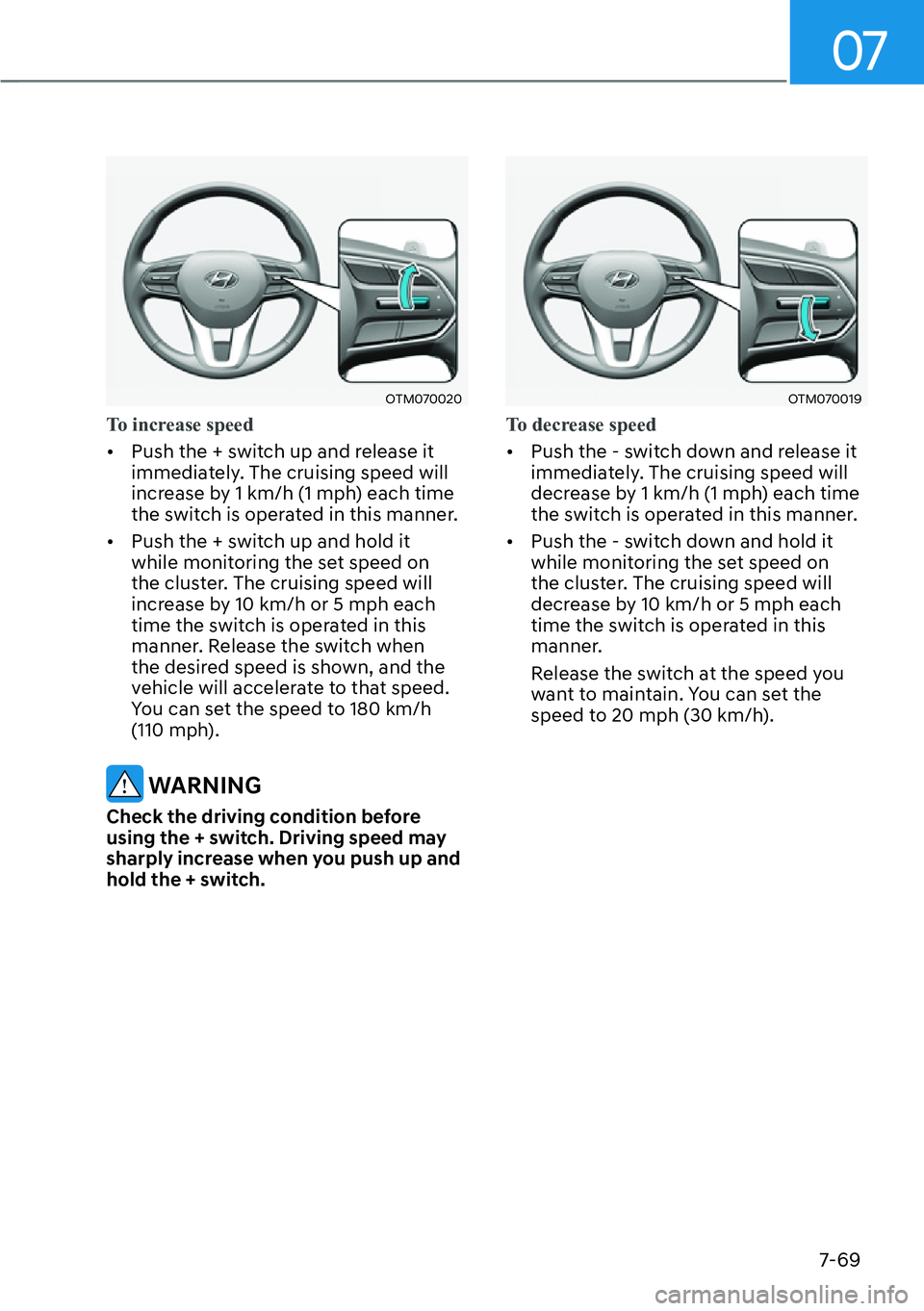

7-69
OTM070020
To increase speed

[Push the + switch up and release it
immediately. The cruising speed will
increase by 1 km/h (1 mph) each time
the switch is operated in this manner.

[ Push the + switch up and hold it
while monitoring the set speed on
the cluster. The cruising speed will
increase by 10 km/h or 5 mph each
time the switch is operated in this
manner. Release the switch when
the desired speed is shown, and the
vehicle will accelerate to that speed.
You can set the speed to 180 km/h
(110 mph).
WARNING
Check the driving condition before
using the + switch. Driving speed may
sharply increase when you push up and
hold the + switch.
OTM070019
To decrease speed

[ Push the - switch down and release it
immediately. The cruising speed will
decrease by 1 km/h (1 mph) each time
the switch is operated in this manner.

[ Push the - switch down and hold it
while monitoring the set speed on
the cluster. The cruising speed will
decrease by 10 km/h or 5 mph each
time the switch is operated in this
manner.
Release the switch at the speed you
want to maintain. You can set the
speed to 20 mph (30 km/h).
