2022 HYUNDAI SANTA FE HYBRID Owners Manual

Safety System
3-16
„Type A
OTM030058
„Type B
OTM030059
Removal/Reinstall
To remove the head restraint:
1. Recline the seatback (2) with the seatback angle lever (1).
2. Raise the head restraint as far as it can go.
3. Press the head restraint release button (3) while pulling the head restraint up
(4).
WARNING
NEVER allow anyone to travel in a seat
with the head restraint removed.
„Type A
OTM030061
„Type B
OTM030063
To reinstall the head restraint :
1. Recline the seatback.
2. Put the head restraint poles (2) into the holes while pressing the release
button (1).
3. Adjust the head restraint to the appropriate height.
4. Recline the seatback (4) with the seatback angle lever (3).
WARNING
Always make sure the head restraint
locks into position after reinstalling and
adjusting it properly.

03
3-17

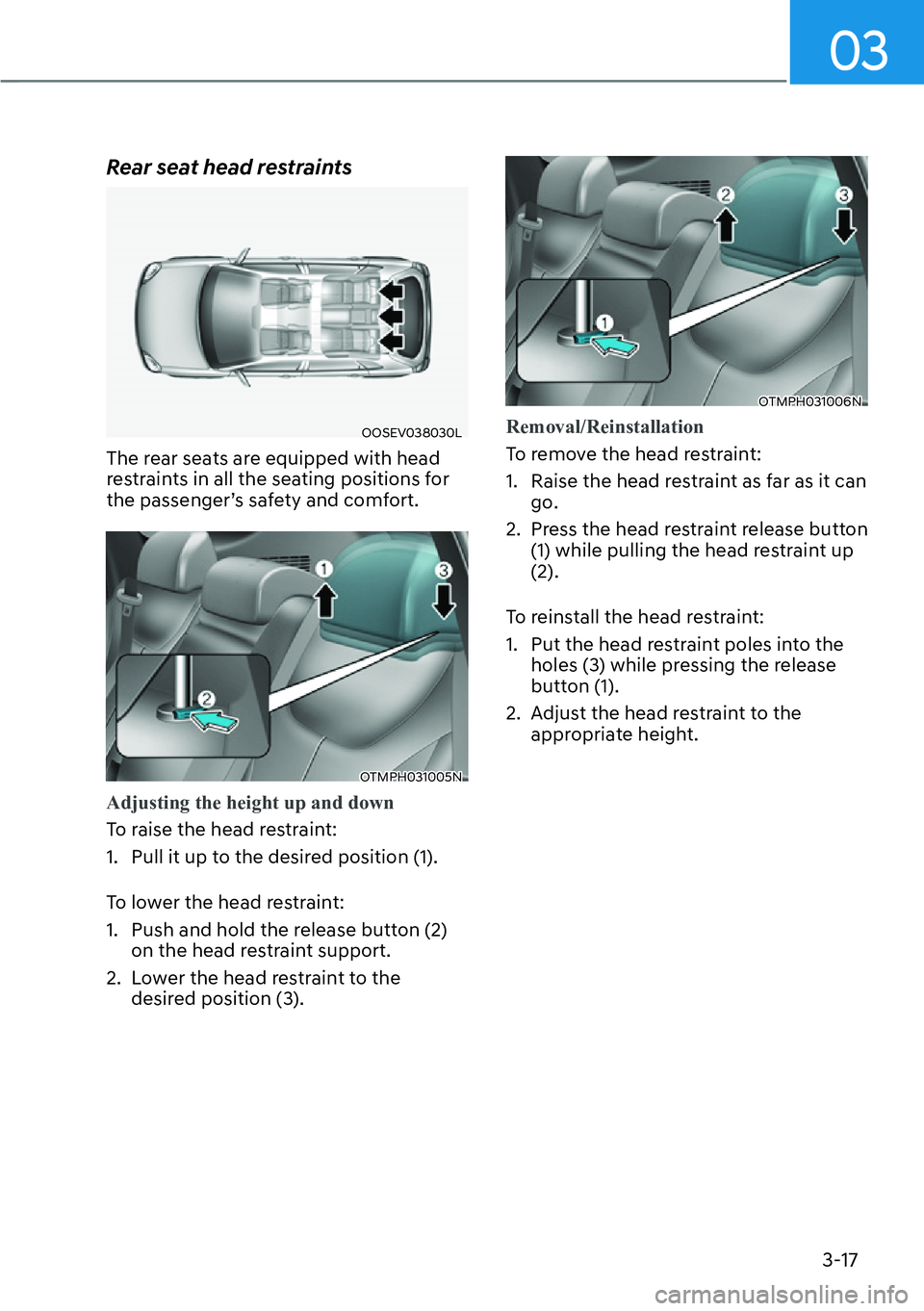

Rear seat head restraints
OOSEV038030L
The rear seats are equipped with head
restraints in all the seating positions for
the passenger’s safety and comfort.
OTMPH031005N
Adjusting the height up and down
To raise the head restraint:
1. Pull it up to the desired position (1).
To lower the head restraint:
1. Push and hold the release button (2) on the head restraint support.
2. Lower the head restraint to the desired position (3).
OTMPH031006N
Removal/Reinstallation
To remove the head restraint:
1. Raise the head restraint as far as it can go.
2. Press the head restraint release button (1) while pulling the head restraint up (2).
To reinstall the head restraint:
1. Put the head restraint poles into the holes (3) while pressing the release
button (1).
2. Adjust the head restraint to the appropriate height.

Safety System
3-18
Seat Warmers (if equipped)
Seat warmers are provided to warm the
seats during cold weather.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the seat warmers
OFF.
WARNING
The seat warmers can cause a SERIOUS
BURN, even at low temperatures and
especially if used for long periods of time.
Passengers must be able to feel if the
seat is becoming too warm so they can
turn it off, if needed.
People who cannot detect temperature
change or pain to the skin should
use extreme caution, especially the
following types of passengers:
[ Infants, children, elderly or disabled
persons, or hospital outpatients.

[ People with sensitive skin or who
burn easily.

[ Fatigued individuals.

[ Intoxicated individuals.

[ People taking medication that can
cause drowsiness or sleepiness.
WARNING
NEVER place anything on the seat
that insulates against heat when the
seat warmer is in operation, such as a
blanket or seat cushion. This may cause
the seat warmer to overheat, causing a
burn or damage to the seat.
NOTICE
To prevent damage to the seat warmers
and seats:
[ Never use a solvent such as paint
thinner, benzene, alcohol or gasoline
to clean the seats.

[ Do not place heavy or sharp objects
on seats equipped with seat
warmers.

[ Do not change the seat cover. It may
damage the seat warmer.
„Front seat
OTM030002
„Rear seat
OTM030078

03
3-19
While the engine is running, push either
of the switches to warm the driver's seat
or front passenger's seat.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the switches in the OFF position.
[
Manual temperature control
Each time you push the switch, the
temperature setting of the seat is
changed as follows :

- Front seat
OFF
LOW ( )HIGH ( )
MIDDLE ( )
- Rear seat
OFF
Ÿ HIGH ( )
Ÿ LOW ( )

[ Automatic temperature control
The seat warmer starts to
automatically control the seat
temperature in order to prevent
low-temperature burns after being manually turned ON.

- Front seat
OFF
Ÿ



¡
¢0,1
0,1
LOW ( )+,*+
0,''/(
- Rear seat
OFF

Ÿ HIGH ( )
Ÿ LOW ( )30 MIN
If HIGH temperature is manually
selected again, the temperature will
be controlled automatically.
[
When pressing the switch for more
than 1.5 seconds with the seat warmer
operating, the seat warmer will turn
OFF.

[ The seat warmer defaults to the OFF
position whenever the ignition switch is ON.

[ Auto Comfort Control (for driver’s
seat) (if equipped)
- The seat warmer automatically controls the seat temperature
depending on the ambient
temperature and the set climate
control temperature when the
engine is running. If the seat
warmer switch is pushed, the seat
warmer will have to be controlled
manually.
To use this function, it must be
activated from the Settings menu in
the AV/AVN system screen.
- The seat warmer defaults to the OFF position whenever the ignition
switch is ON. However, if the Auto
Comfort Control function is ON, the
driver’s seat warmer will turn on
and off depending on the ambient
temperature and the set climate
control temperature.
For more details, refer to the separately
supplied Infotainment manual with
your vehicle.
Information
With the seat warmer switch in the ON position, the heating system in the seat
turns off or on automatically depending on
the seat temperature.

Safety System
3-20
Air Ventilation Seat (if equipped)
OTM030003
The air ventilation seats are provided
to cool the front seats by blowing air
through small vent holes on the surface
of the seat cushions and seatbacks.
When the operation of the air ventilation
seat is not needed, keep the switches in the OFF position. While the engine is running, push the
switch to cool the driver's seat or the
front passenger's seat (if equipped).
NOTICE
To prevent damage to the air ventilation
seats:
[ Never use a solvent such as paint
thinner, benzene, alcohol or gasoline
to clean the seats.

[ Avoid spilling liquids on the surface
of the front seats and seatbacks; this
may cause the air vent holes to block
and not work properly.

[ Do not place materials such as plastic
bags or newspapers under the seats.
They may block the air intake causing
malfunction of the air vent.

[ Do not change the seat covers. It may
damage the air ventilation seat.

[ If the air vents do not operate, restart
the vehicle. If there is no change,
have your vehicle inspected by an
authorized HYUNDAI dealer.

03
3-21

[

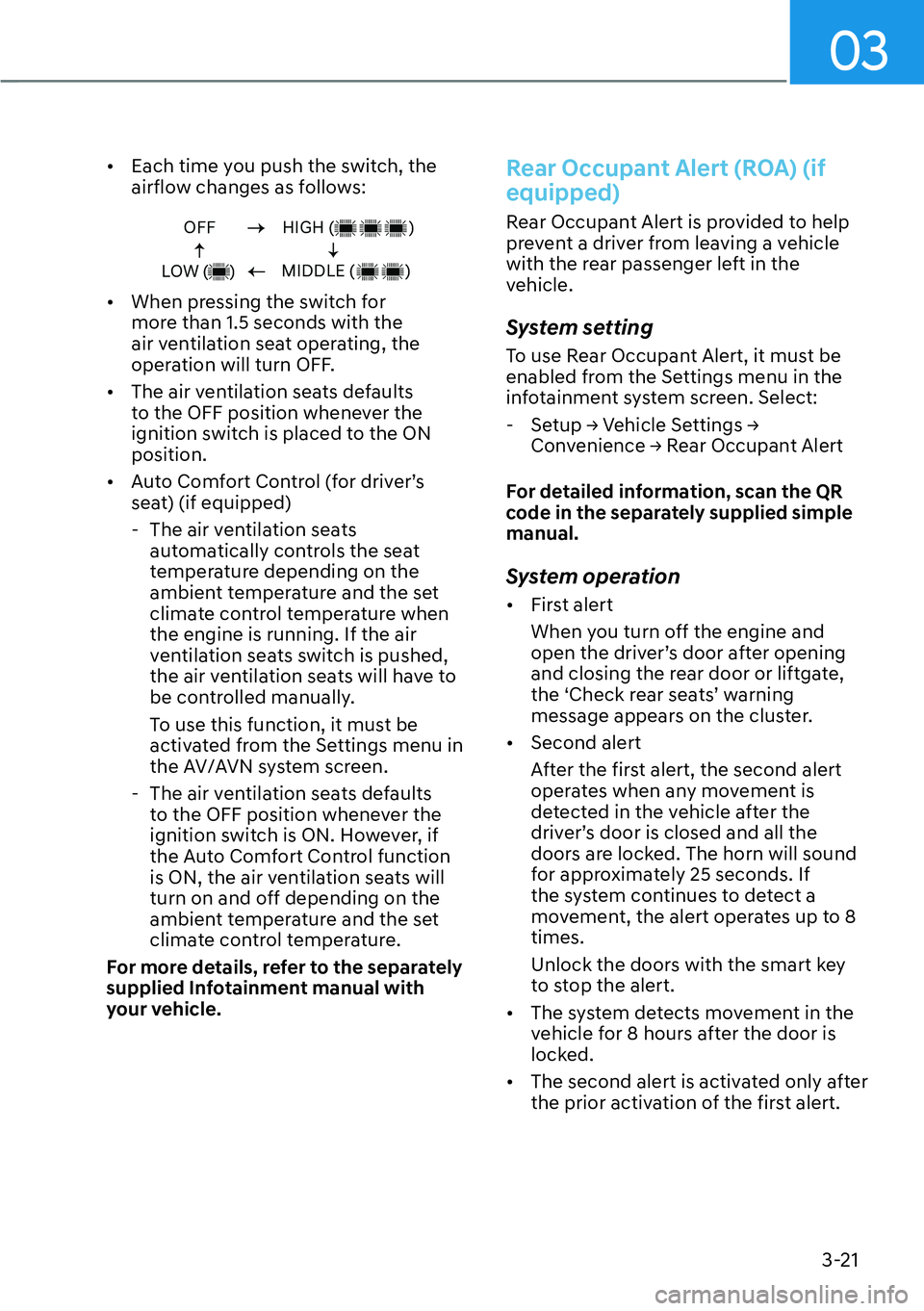

Each time you push the switch, the
airflow changes as follows:
OFF
LOW ( )HIGH ( )
MIDDLE ( )

[ When pressing the switch for
more than 1.5 seconds with the
air ventilation seat operating, the
operation will turn OFF.

[ The air ventilation seats defaults
to the OFF position whenever the
ignition switch is placed to the ON position.

[ Auto Comfort Control (for driver’s
seat) (if equipped)

- The air ventilation seats
automatically controls the seat
temperature depending on the
ambient temperature and the set
climate control temperature when the engine is running. If the air
ventilation seats switch is pushed,
the air ventilation seats will have to
be controlled manually.
To use this function, it must be
activated from the Settings menu in
the AV/AVN system screen.

- The air ventilation seats defaults
to the OFF position whenever the
ignition switch is ON. However, if
the Auto Comfort Control function
is ON, the air ventilation seats will
turn on and off depending on the
ambient temperature and the set
climate control temperature.
For more details, refer to the separately
supplied Infotainment manual with
your vehicle.
Rear Occupant Alert (ROA) (if equipped)
Rear Occupant Alert is provided to help
prevent a driver from leaving a vehicle
with the rear passenger left in the
vehicle.
System setting
To use Rear Occupant Alert, it must be
enabled from the Settings menu in the
infotainment system screen. Select: - 6HWXS
Ÿ9HKLFOH6HWWLQJV
Ÿ
&RQYHQLHQFH
Ÿ5HDU2FFXSDQW$OHUW
For detailed information, scan the QR
code in the separately supplied simple manual.
System operation
[ First alert
When you turn off the engine and
open the driver’s door after opening
and closing the rear door or liftgate,
the ‘Check rear seats’ warning
message appears on the cluster.

[ Second alert
After the first alert, the second alert
operates when any movement is
detected in the vehicle after the
driver’s door is closed and all the
doors are locked. The horn will sound
for approximately 25 seconds. If
the system continues to detect a
movement, the alert operates up to 8 times.
Unlock the doors with the smart key
to stop the alert.

[ The system detects movement in the
vehicle for 8 hours after the door is
locked.

[ The second alert is activated only after
the prior activation of the first alert.

Safety System
3-22
System precautions
[
Make sure that all the windows are
closed. If the window is open, the
alert may operate by the sensor
detecting an unintended movement
(for example wind or bugs).

[ „Cluster „Steering wheel
OTMH030009NOTM050216
If you do not want to use Rear
Occupant Alert, press the OK button
on the steering wheel when the first
alert is displayed on the cluster. Doing
so will deactivate the second alert one time.

[ An alert can occur if the there is an
impact on the roof.

[ If boxes or objects are stacked in the
vehicle, the system may not detect
the boxes or objects. Or, the alert may
operate if the boxes or objects fall off.

[ The sensor may not operate normally
if the senor is blocked with foreign
substances.

[ The alert may operate if movement
in the driver or passenger seat is
detected.

[ The alert may operate with the doors
locked due to car wash or surrounding
vibration or noise.

[ If the vehicle is started remotely (if
equipped with Remote Start), inside
movement detection will stop.
WARNING
Even if your vehicle is equipped with
Rear Occupant Alert, always make sure
to check the rear seat before you leave
the vehicle.
Rear Occupant Alert may not operate when:
[ Movement does not continue for
a certain period of time or the
movement is small.

[ The rear passenger is covered with
an object such as a blanket.

[ Always be cautious of the
passenger’s safety as the detection
function and second alert may
not operate depending on the
surrounding environment and certain conditions.

03
3-23
This section describes how to use the
seat belts properly. It also describes
some of the things not to do when using
seat belts.
Seat Belt Safety Precautions
Always fasten your seat belt and make
sure all passengers have fastened their
seat belts before starting any trip. Air
bags are designed to supplement the
seat belt as an additional safety device,
not a replacement. Most countries
require all occupants of a vehicle to wear
seat belts.
WARNING
Seat belts must be used by ALL
passengers whenever the vehicle is
moving. Take the following precautions
when adjusting and wearing seat belts:
[ Children under the age of 13 should
be properly restrained in the rear
seats.

[ Never allow children to ride in the
front passenger seat, unless the air
bag is deactivated. If a child is seated
in the front passenger seat, move
the seat as far back as possible and
properly restrain them in the seat.

[ NEVER allow an infant or child to be
carried on an occupant’s lap.

[ NEVER ride with the seatback
reclined when the vehicle is moving.

[ Do not allow children to share a seat
or seat belt.

[ Do not wear the shoulder belt under
your arm or behind your back.
[
NEVER wear a seat belt over fragile
objects. If there is a sudden stop or
impact, the seat belt can damage it.

[ Do not use the seat belt if it is
twisted. A twisted seat belt will not
protect you properly in an accident.

[ Do not use a seat belt if the webbing
or hardware is damaged.

[ Do not latch the seat belt into the
buckles of other seats.

[ NEVER unfasten the seat belt
while driving. This may cause loss
of vehicle control resulting in an accident.

[ Make sure there is nothing in the
buckle interfering with the seat belt
latch mechanism. This may prevent
the seat belt from fastening securely.

[ No modifications or additions
should be made by the user which
will either prohibit the seat belt
adjusting devices from operating to
remove slack, or prohibit the seat
belt assembly from being adjusted to
remove slack.
WARNING
Damaged seat belts and seat belt
assemblies will not operate properly.
Always replace:
[ Frayed, contaminated, or damaged
webbing.

[ Damaged hardware.

[ The entire seat belt assembly after it
has been worn in an accident, even
if damage to webbing or assembly is
not apparent.
SEAT BELTS
