2022 HYUNDAI SANTA FE HYBRID Owners Manual

01
1-45
NOTICE

[It may take up to 20 seconds to
unlock fuel filler door.

[ If the fuel filler door does not open
because ice has formed around it,
tap lightly or push on the door to
break the ice and release the door.

[ Do not pry on the door. If necessary,
spray around the door with an
approved de-icer fluid (do not use
radiator anti-freeze) or move the
vehicle to a warm place and allow
the ice to melt.
Check fuel door (Plug-in hybrid
vehicle)
OAEPHQ049831L
The message is displayed when the fuel filler door is open while in driving or an
abnormality has occurred. Fuel door unlocked (Plug-in hybrid
vehicle)
OTMPHQ010033L
The message is displayed when the fuel
filler door unlocked. Also means “Ready
to refuel”. Please press the rear center
edge of fuel filler door to open.
Shift to P to charge (Plug-in hybrid
vehicle)
OAEPHQ049833L
This message is displayed when the
charging connector is plugged with the
shift lever in R (Reverse), N (Neutral) or
D (Drive). Move the shift lever to P (Park)
and re-start the charging process.

Foreword / Hybrid System Overview
1-46
Switching to Hybrid mode to allow
heating or air conditioning (Plug-in
hybrid vehicle)
OAEPHQ049842L
This message is displayed when the
vehicle automatically switches to
HEV mode to allow heating or air
conditioning. It is when the heating and
cooling system is on and the coolant
temperature is below 70 °C and ambient
temperature is below -15 °C.
If the coolant temperature gets higher
than 80°C or ambient temperature is
higher than -10°C or the driver turns
off the heating or cooling system, the
vehicle returns to its default (EV) mode. Maintaining Hybrid mode to allow
heating or air conditioning (Plug-in
hybrid vehicle)OAEPHQ049841L
This message is displayed when the
vehicle maintains the HEV mode to allow
heating or air conditioning. The mode
does not change when the driver presses
the [HEV] button to switch from the HEV
mode to EV mode while the heating and
cooling system is on and the coolant
temperature is below (70°C) and outdoor
temperature is below -15°C.
Low/High System Temp. Maintaining
Hybrid mode (Plug-in hybrid vehicle)
OAEPHQ049834LOAEPHQ049835L
This message is displayed when the
temperature of the high-voltage
(hybrid) battery is too low or too high.
This warning message is to protect the
battery and the hybrid system.

01
1-47
Low/High System Temp. Switching
to Hybrid mode (Plug-in hybrid
vehicle)
OAEPHQ049836LOAEPHQ049837L
This message is displayed when the
temperature of the high-voltage (hybrid)
battery is too low or high. This warning
message is to protect the battery and the
hybrid system.
Switching to Hybrid mode to
lubricate engine (Plug-in hybrid
vehicle)
OAEPHQ049838L
This message is displayed when the
vehicle is automatically switched to the
HEV mode to lubricate engine while the
ignition switch is in the ON position. Maintaining Hybrid mode to protect
engine (Plug-in hybrid vehicle)
OAEPHQ049839L
This message is displayed when
the [HEV] button is pressed but it is
impossible to switch from the HEV mode
to EV mode due to engine lubrication.
Exit SPORT mode to switch to EV
(Plug-in hybrid vehicle)
OAEPHQ049840L
This message is displayed when [HEV]
button is pressed but it is impossible to
switch from the HEV mode to EV mode
because the SPORT mode is engaged.

Foreword / Hybrid System Overview
1-48

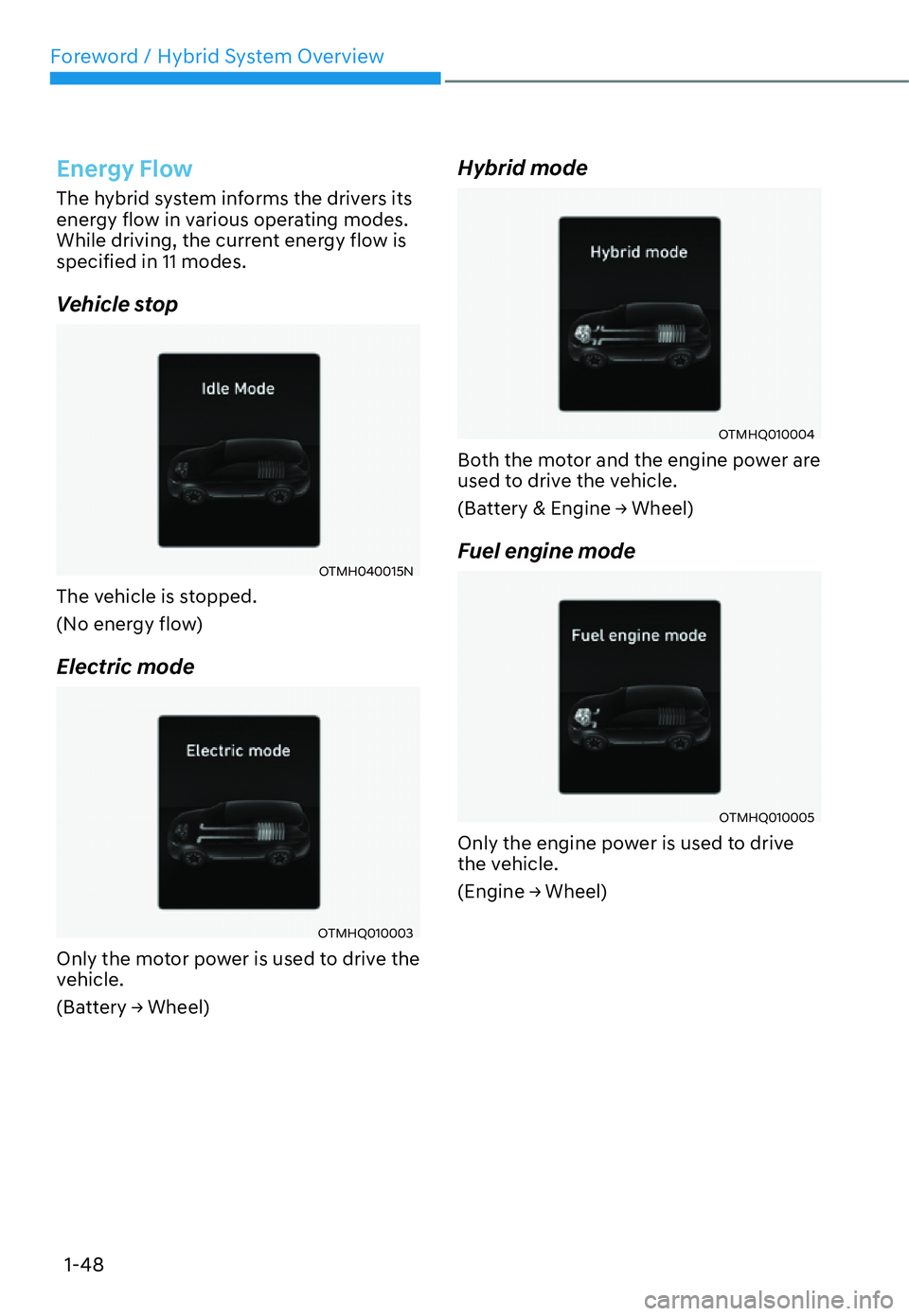

Energy Flow
The hybrid system informs the drivers its
energy flow in various operating modes.
While driving, the current energy flow is specified in 11 modes.
Vehicle stop
OTMH040015N
The vehicle is stopped.
(No energy flow)
Electric mode
OTMHQ010003
Only the motor power is used to drive the
vehicle.
%DWWHU\
Ÿ:KHHO Hybrid mode
OTMHQ010004
Both the motor and the engine power are
used to drive the vehicle.
%DWWHU\ (QJLQH
Ÿ:KHHO
Fuel engine mode
OTMHQ010005
Only the engine power is used to drive
the vehicle.
(QJLQH
Ÿ:KHHO

01
1-49

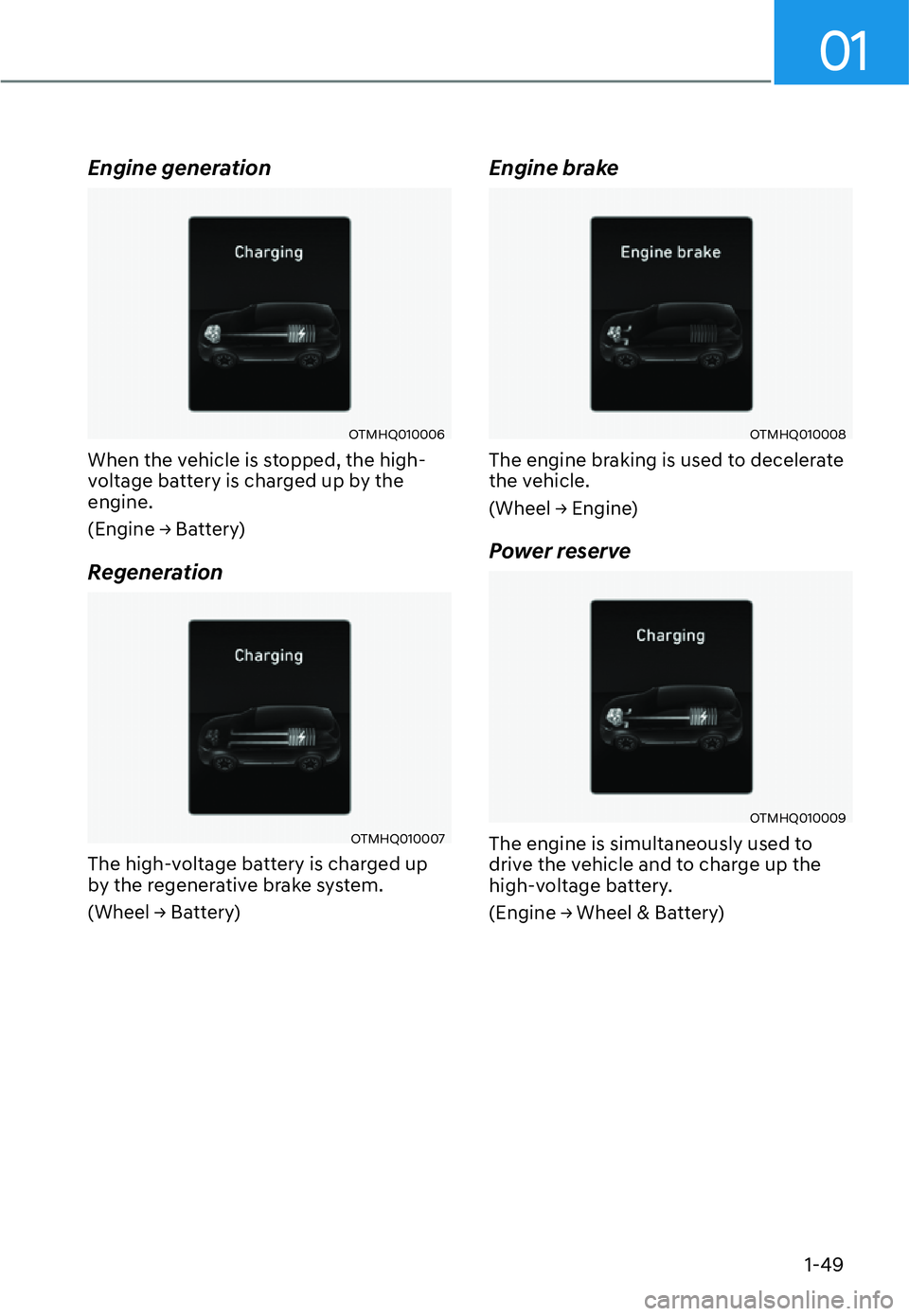

Engine generation
OTMHQ010006
When the vehicle is stopped, the high-
voltage battery is charged up by the engine.
(QJLQH
Ÿ%DWWHU\
Regeneration
OTMHQ010007
The high-voltage battery is charged up
by the regenerative brake system.
:KHHO
Ÿ%DWWHU\ Engine brake
OTMHQ010008
The engine braking is used to decelerate
the vehicle.
:KHHO
Ÿ(QJLQH
Power reserve
OTMHQ010009
The engine is simultaneously used to
drive the vehicle and to charge up the
high-voltage battery.
(QJLQH
Ÿ:KHHO %DWWHU\

Foreword / Hybrid System Overview
1-50

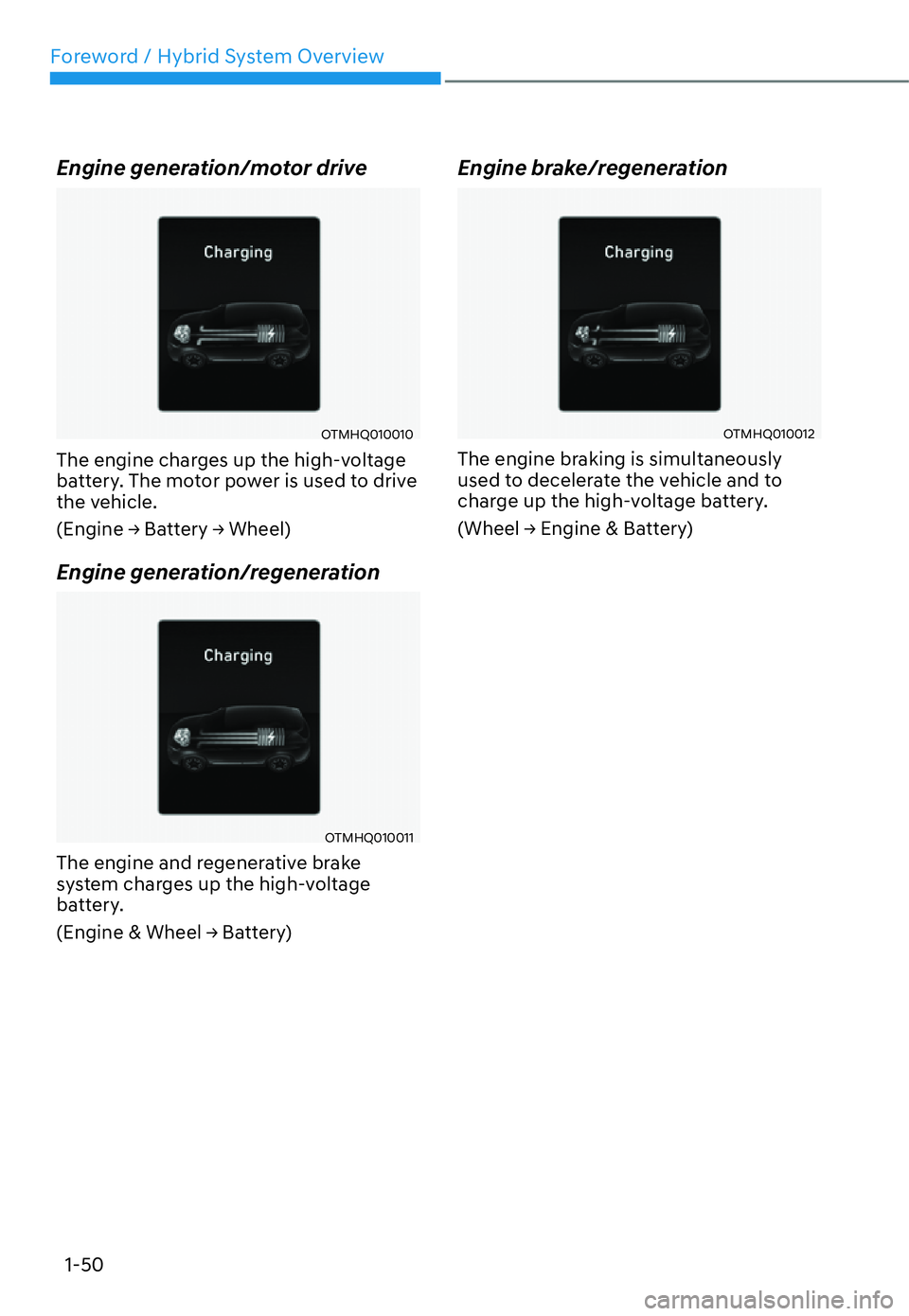

Engine generation/motor drive
OTMHQ010010
The engine charges up the high-voltage
battery. The motor power is used to drive
the vehicle.
(QJLQH
Ÿ%DWWHU\
Ÿ:KHHO
Engine generation/regeneration
OTMHQ010011
The engine and regenerative brake
system charges up the high-voltage
battery.
(QJLQH :KHHO
Ÿ%DWWHU\ Engine brake/regeneration
OTMHQ010012
The engine braking is simultaneously
used to decelerate the vehicle and to
charge up the high-voltage battery.
:KHHO
Ÿ(QJLQH %DWWHU\

01
1-51

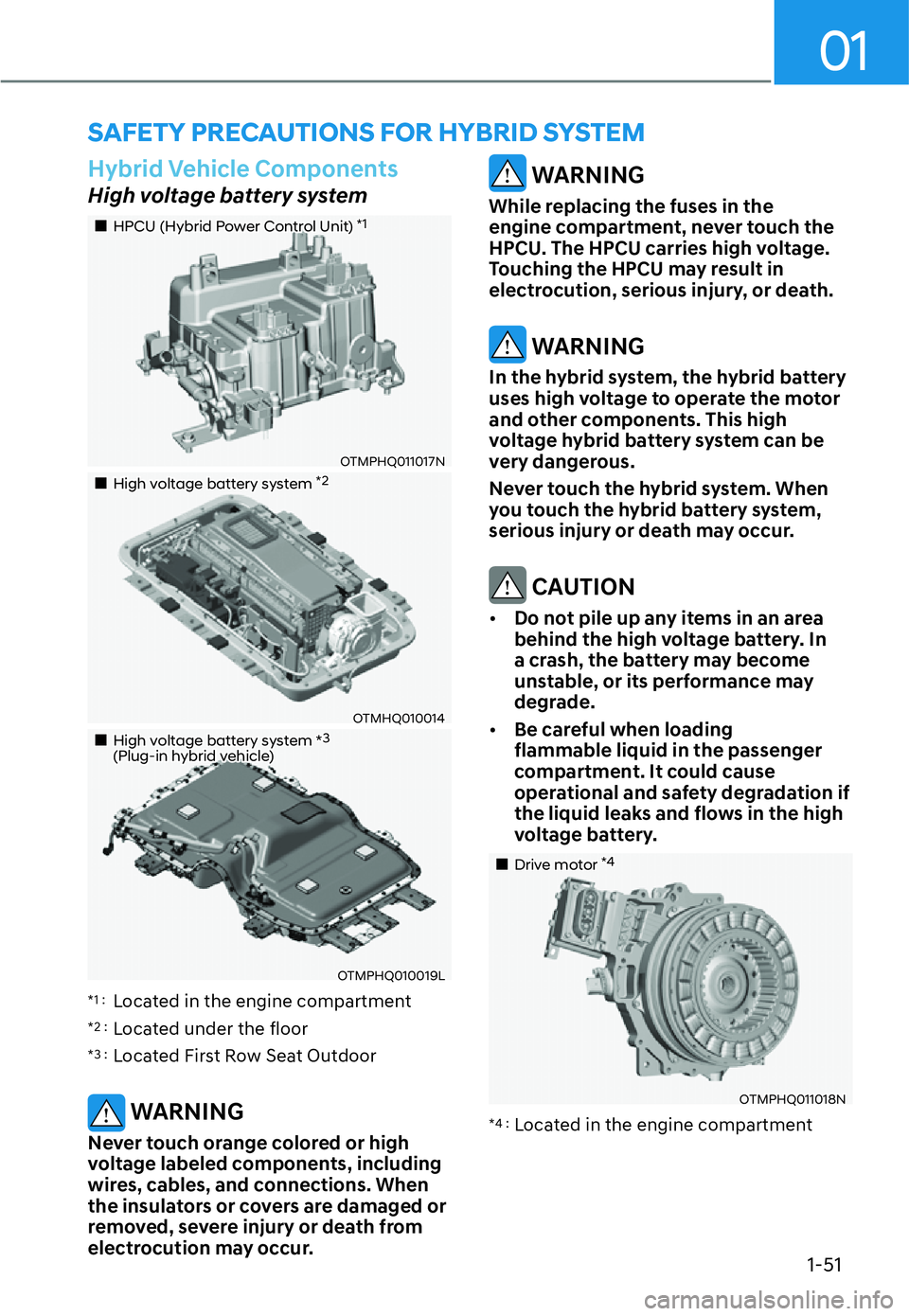

SAFETY PRECAUTIONS FOR HYBRID SYSTEM
Hybrid Vehicle Components
High voltage battery system
„HPCU (Hybrid Power Control Unit) *1
OTMPHQ011017N
„High voltage battery system *2
OTMHQ010014
„High voltage battery system *3 (Plug-in hybrid vehicle)
OTMPHQ010019L
*1 : Located in the engine compartment
*2 : Located under the floor
*3 : Located First Row Seat Outdoor
WARNING
Never touch orange colored or high
voltage labeled components, including
wires, cables, and connections. When
the insulators or covers are damaged or
removed, severe injury or death from
electrocution may occur.
WARNING
While replacing the fuses in the
engine compartment, never touch the
HPCU. The HPCU carries high voltage.
Touching the HPCU may result in
electrocution, serious injury, or death.
WARNING
In the hybrid system, the hybrid battery
uses high voltage to operate the motor
and other components. This high
voltage hybrid battery system can be
very dangerous.
Never touch the hybrid system. When
you touch the hybrid battery system,
serious injury or death may occur.
CAUTION

[ Do not pile up any items in an area
behind the high voltage battery. In
a crash, the battery may become
unstable, or its performance may
degrade.

[ Be careful when loading flammable liquid in the passenger compartment. It could cause
operational and safety degradation if
the liquid leaks and flows in the high
voltage battery.
„Drive motor *4
OTMPHQ011018N
*4 : Located in the engine compartment

Foreword / Hybrid System Overview
1-52
WARNING

[ Do not disassemble the high voltage
motor connector. The high voltage
motor connector may contain
residual high voltage. Coming in
contact with high voltage may result
in death or serious injury.

[ Your vehicle’s hybrid system should
only be inspected or repaired by an
authorized HYUNDAI dealer.
WARNING

[ Do not disassemble or assemble
the high voltage battery system.
Doing so may result in electric shock,
causing death or serious injury.

[ If you disassemble or assemble
hybrid system components
improperly, it may damage the
performance and reliability of your
vehicle.

[ If electrolyte comes in contact
with your body, clothes or eyes,
immediately flush with a large
quantity of fresh tap water. Have
your eyes examined by a doctor as soon as possible.
WARNING
Never assemble or disassemble the
high voltage battery system.
[ If you assemble or disassemble the
high voltage battery system, the
durability and performance of the
vehicle may be damaged.

[ When you want to check the high
voltage battery system, have the
vehicle inspected by an authorized
HYUNDAI dealer.

[ Do not touch the high voltage
battery and high voltage cable
connected to motor (orange color).
Severe burns and electric shock may
occur. For your safety, do not touch
the cover of electronic components
and electronic cable. Do not remove
the cover of electronic components
and electronic cable. In particular,
never touch the high voltage battery
system when the hybrid system in
operation. It may result in death or
serious injury.
WARNING

[ Never use the package modules
(high voltage battery, inverter and
converter) for any other purpose.

[ Do not use an unauthorized battery
charger to charge the high voltage
battery. Doing so may result in death
or serious injury.

[ Never locate the high voltage system
near or in a fire.

[ Never drill into or strike the package
module. Otherwise, it may be
damaged. An electric shock may
occur, resulting in serious injury or
death.
