Driver Assistance System
7-102
Extended rear view function
The rear view will maintain showing on
the screen to help you when parking.
Operating conditions
Shift the gear from R (Reverse) to N
(Neutral) or D (Drive), the rear view will
appear on the screen.
Off conditions

[
When vehicle speed is above 6 mph
(10 km/h), the rear view will turn off.

[ Shift the gear to P (Park), the rear view
will turn off.

[ Press the Parking/View button (1), the
rear view will turn off. Rear top view
OTM070212L
When you touch the
icon, the top view
is displayed on the screen and shows the
distance from the vehicle in the back of
your vehicle while parking.

07
7-103

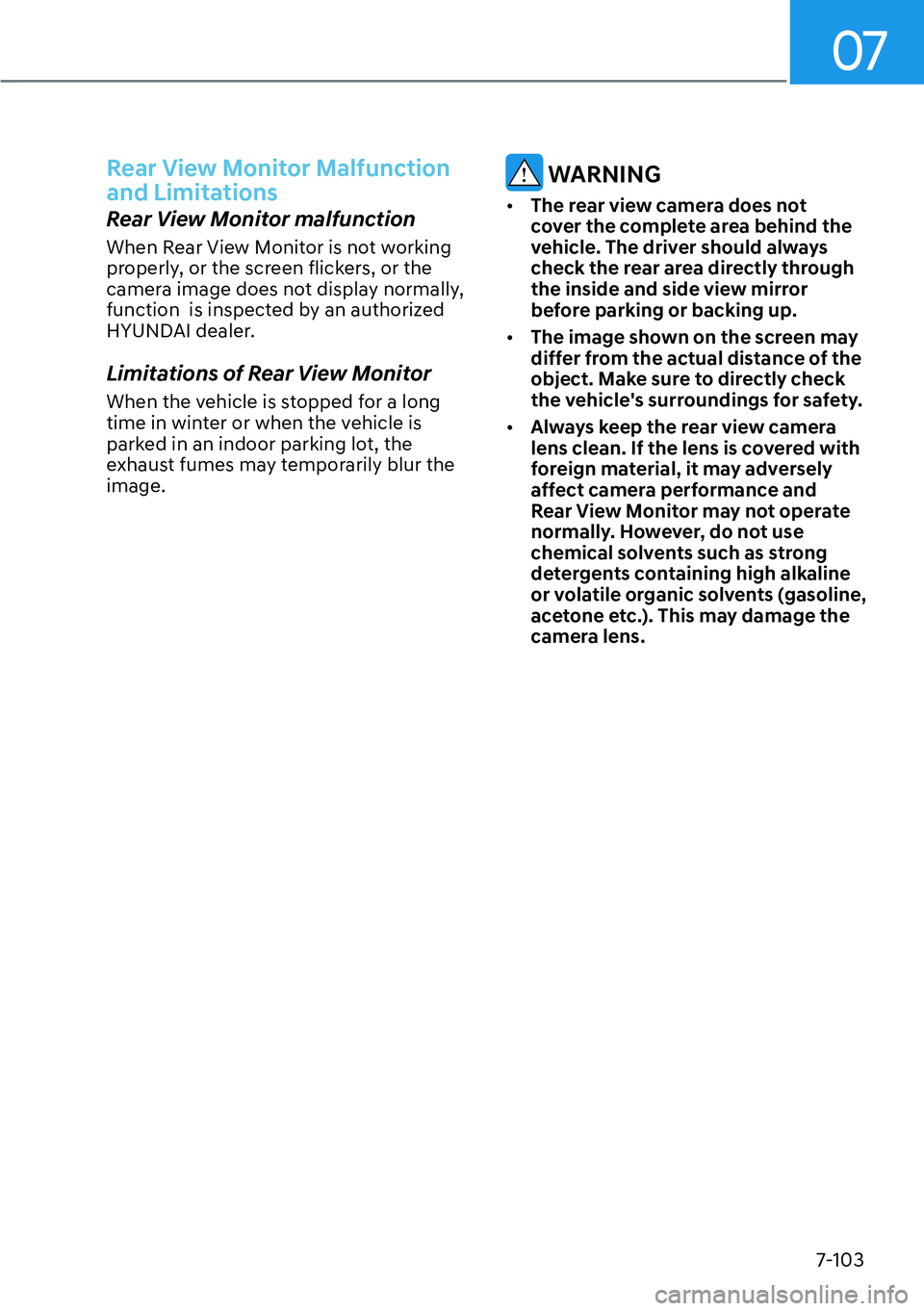

Rear View Monitor Malfunction
and Limitations
Rear View Monitor malfunction
When Rear View Monitor is not working
properly, or the screen flickers, or the
camera image does not display normally,
function is inspected by an authorized
HYUNDAI dealer.
Limitations of Rear View Monitor
When the vehicle is stopped for a long
time in winter or when the vehicle is
parked in an indoor parking lot, the
exhaust fumes may temporarily blur the image.
WARNING

[ The rear view camera does not
cover the complete area behind the
vehicle. The driver should always
check the rear area directly through
the inside and side view mirror
before parking or backing up.

[ The image shown on the screen may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.

[ Always keep the rear view camera
lens clean. If the lens is covered with
foreign material, it may adversely
affect camera performance and
Rear View Monitor may not operate
normally. However, do not use
chemical solvents such as strong
detergents containing high alkaline
or volatile organic solvents (gasoline,
acetone etc.). This may damage the
camera lens.

Driver Assistance System
7-104
6855281'9,(:021,725
ã690
ä
ã,)(48,33('
ä
OTM070183
OTM070182
Surround View Monitor can assist in
parking by allowing the driver to see
around the vehicle. Detecting sensor
OTMH070005
OTM070171
[1] : SVM-front view camera,
[2],[3] : SVM-side view camera (under the side view mirror),
[4] : SVM-rear view camera
Refer to the picture above for the
detailed location of the detecting
sensors.

07
7-105

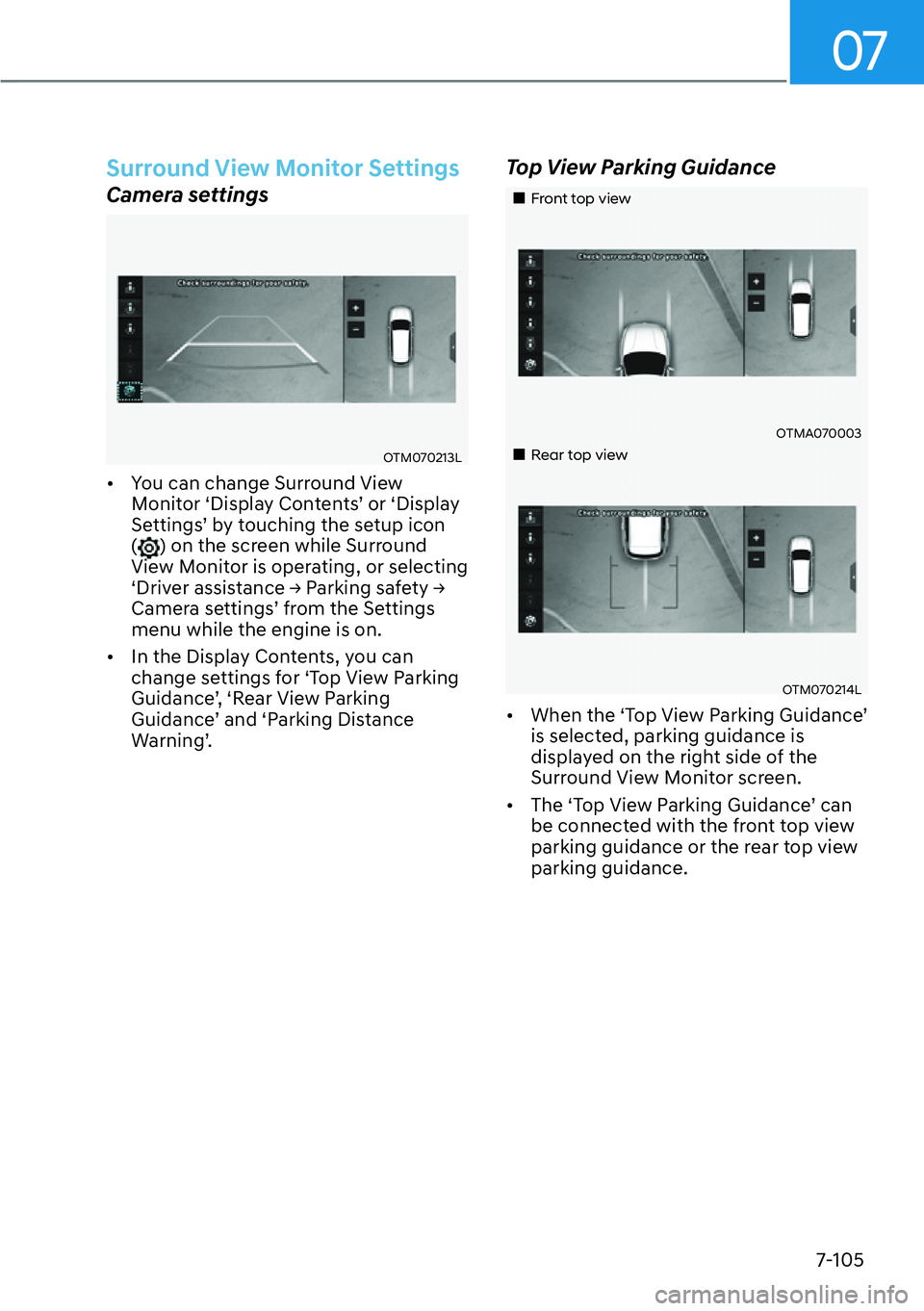

Surround View Monitor Settings
Camera settings
OTM070213L

[ You can change Surround View
0RQLWRU
S'LVSOD\&RQWHQWV
TRU
S'LVSOD\
6HWWLQJV
TE\WRXFKLQJWKHVHWXSLFRQ(
) on the screen while Surround
View Monitor is operating, or selecting

S'ULYHUDVVLVWDQFH
Ÿ3DUNLQJVDIHW\
Ÿ
&DPHUDVHWWLQJV
TIURPWKH6HWWLQJVmenu while the engine is on.

[ In the Display Contents, you can
change settings for ‘Top View Parking
*XLGDQFH
T
S5HDU9LHZ3DUNLQJ
*XLGDQFH
TDQG
S3DUNLQJ'LVWDQFH
:DUQLQJ
T Top View Parking Guidance
„Front top view
OTMA070003
„Rear top view
OTM070214L

[ :KHQWKH
S7RS9LHZ3DUNLQJ*XLGDQFH
T is selected, parking guidance is
displayed on the right side of the
Surround View Monitor screen.

[ 7KH
S7RS9LHZ3DUNLQJ*XLGDQFH
TFDQ be connected with the front top view
parking guidance or the rear top view parking guidance.

Driver Assistance System
7-106

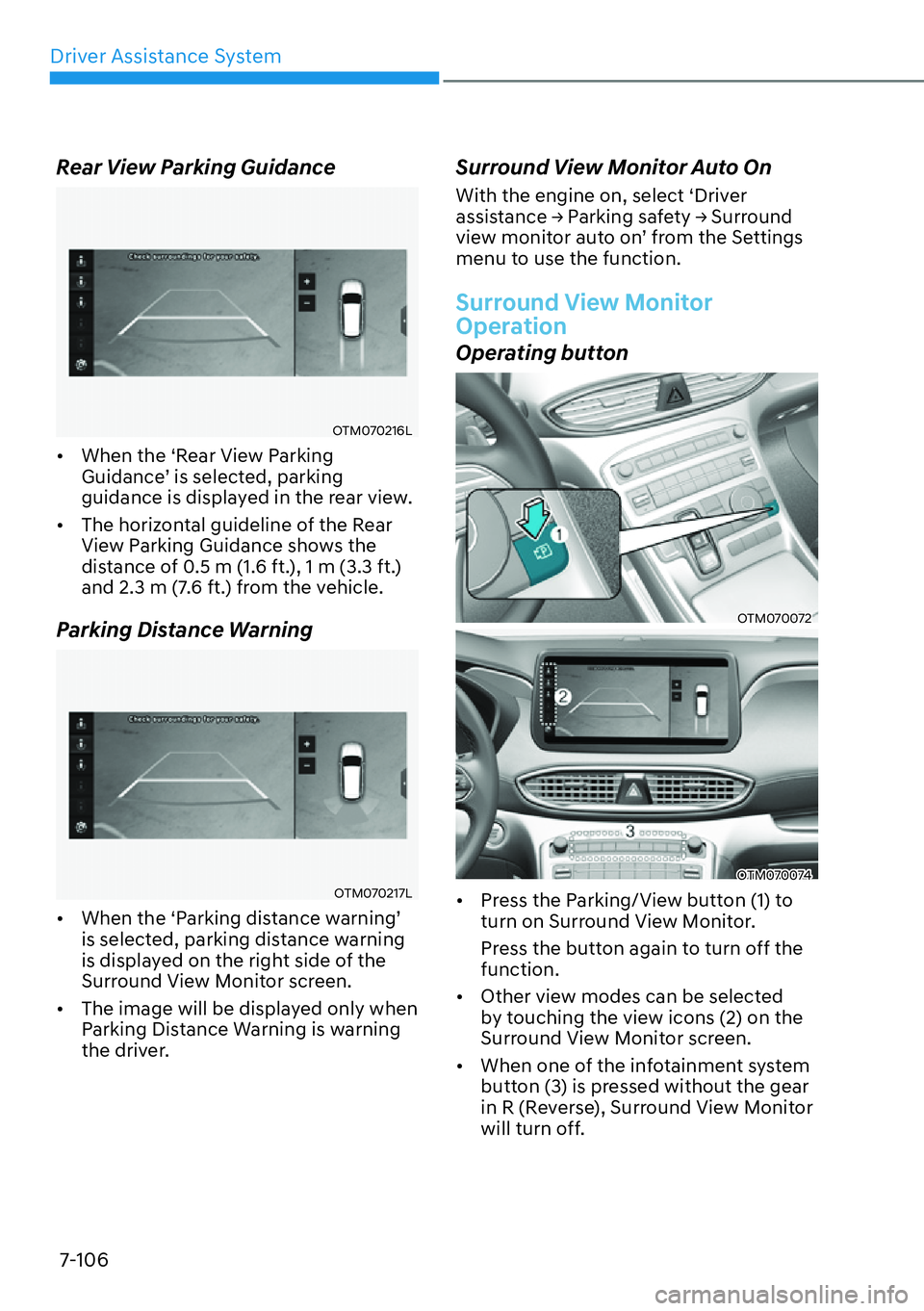

Rear View Parking Guidance
OTM070216L

[ When the ‘Rear View Parking
*XLGDQFH
TLVVHOHFWHGSDUNLQJ
guidance is displayed in the rear view.

[ The horizontal guideline of the Rear
View Parking Guidance shows the
distance of 0.5 m (1.6 ft.), 1 m (3.3 ft.)
and 2.3 m (7.6 ft.) from the vehicle.
Parking Distance Warning
OTM070217L

[ :KHQWKH
S3DUNLQJGLVWDQFHZDUQLQJ
T is selected, parking distance warning
is displayed on the right side of the
Surround View Monitor screen.

[ The image will be displayed only when
Parking Distance Warning is warning
the driver. Surround View Monitor Auto On
With the engine on, select ‘Driver
DVVLVWDQFH
Ÿ3DUNLQJVDIHW\
Ÿ6XUURXQG
YLHZPRQLWRUDXWRRQ
TIURPWKH6HWWLQJV
menu to use the function.
Surround View Monitor
Operation
Operating button
OTM070072
OTM070074

[ Press the Parking/View button (1) to
turn on Surround View Monitor.
Press the button again to turn off the function.

[ Other view modes can be selected
by touching the view icons (2) on the
Surround View Monitor screen.

[ When one of the infotainment system
button (3) is pressed without the gear
in R (Reverse), Surround View Monitor
will turn off.

07
7-107
Front view
The front image is displayed on the
screen when the gear is in N (Neutral)
orD (Drive) to assist in parking. The front
view has a top view/front view/side
view/3D view.
Operating conditions

[
When the gear is shifted from R
(Reverse) to N (Neutral) or D (Drive),
the last set mode of front view
function will be selected.

[ Front view function will operate when
the following conditions are satisfied:
- While the infotainment system screen is being displayed, press the
Parking/View button (1) briefly when
the gear is in D (Drive) or N (Neutral)
and vehicle speed is below 15 km/h
(9 mph).

[ Surround View Monitor Auto On
function will operate when the
following conditions are satisfied:
- :LWK
S'ULYHUDVVLVWDQFH
Ÿ3DUNLQJ
VDIHW\
Ÿ6XUURXQGYLHZPRQLWRU
DXWRRQ
TVHOHFWHGIURPWKH6HWWLQJV
menu, the front parking assist view
screen is displayed when Parking
Distance Warning warns the driver
while driving in D (Drive).
Off conditions

[ Press the Parking/View button (1)
again, the image will turn off.

[ When vehicle speed is above 15 km/h
(9 mph) with the gear in D (Drive),
Surround View Monitor will turn off
and the screen will change back to the
previous infotainment system screen.
Although you drive below 15 km/h (9
mph) again, Surround View Monitor
will not turn on.

[ Press one of the infotainment system
button (3), the screen will change to
the infotainment system screen.

[ Shift the gear to P (Park), the image
will turn off. Rear view
The rear image is displayed on the screen
when the gear is in P (Park) to assist in
parking. The rear view has a top view/
rear view/side view/3D view
Operating conditions

[
Shift the gear to R (Reverse), the
image will appear on the screen.

[ Press the Parking/View button (1)
while the gear is in P (Park), the rear
view will appear on the screen.
Off conditions

[The image cannot be turned off when
the gear is in R (Reverse).

[ Shift the gear from R (Reverse) to P
(Park), the image will turn off.

[ Press the Parking/View button (1)
again while the gear is in P (Park) with
the image on the screen.

Driver Assistance System
7-108
Surround View Monitor
Malfunction and Limitations
Surround View Monitor malfunction
When Surround View Monitor is not
working properly, or the screen flickers,
or the camera image does not display
normally, function is be inspected by an
authorized HYUNDAI dealer.
Limitations of Surround View
Monitor
[When the vehicle is stopped for a long
time in winter or when the vehicle is
parked in an indoor parking lot, the
exhaust fumes may temporarily blur the image.

[ The screen may be displayed
abnormally, and an icon will appear at
the top left side of the screen under
the following circumstances:
- The tailgate is opened
- The driver or front passenger door
is opened
- The side view mirror is folded
WARNING

[ ALWAYS look around your vehicle
to make sure there are no objects
or obstacles before moving the
vehicle. What you see on the screen
may differ from the actual vehicle’s
location.

[ The image shown on the screen may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.

[ Surround View Monitor is designed
to be used on a flat surface.
Therefore, if used on roads with
different heights such as curbs and speed bumps, the image in the
screen my not look correct.

[ Always keep the camera lens clean.
If the lens is covered with foreign
material, it may adversely affect
camera performance and Surround
View Monitor may not operate
normally. However, do not use
chemical solvents such as strong
detergents containing high alkaline
or volatile organic solvents (gasoline,
acetone etc.). This may damage the
camera lens.

07
7-109
Rear Cross-Traffic Collision-Avoidance
Assist is designed to help detect vehicles
approaching from the left and right side
while your vehicle is reversing, and warn
the driver that a collision is imminent
with a warning message and an audible
warning. Also, braking is assisted to help
prevent a collision.
OJX1079108
[A] : Rear Cross-Traffic Collision Warning operating range,
[B] : Rear Cross-Traffic Collision-Avoidance Assist operating range
CAUTION
The time of warning may vary
depending on vehicle speed of the
approaching vehicle. Detecting sensor
OTMPH071007N
[1] : Rear corner radar
Refer to the picture above for the
detailed location of the detecting
sensors.
Information
For more details on the precautions of
the rear corner radar, refer to “Blind-
Spot Collision-Avoidance Assist (BCA)”
section in this chapter.
5($5&5266
Ø75$)),&&2//,6,21
Ø$92,'$1&($66,67

ã5&&$
ä
ã,)(48,33('
ä
