2022 HYUNDAI SANTA FE HYBRID Owners Manual

Convenience Features
5-108
WARNING
OTM048096
Do not hang other objects such
as hangers or hard objects except
clothes. Also, do not put heavy, sharp
or breakable objects in the clothes
pockets. In an accident or when the
curtain air bag is inflated, it may cause
vehicle damage or personal injury.
Floor mat anchor(s)
ALWAYS use the Floor Mat Anchors to
attach the front floor mats to the vehicle.
The anchors on the front floor carpet
keep the floor mats from sliding forward.
WARNING
Do not overlay additional mats or liners
over the floor mats. If using All Weather
mats, remove the carpeted floor mats
before installing them. Only use floor
mats designed to connect to the
anchors.
WARNING
The following must be observed when
installing ANY floor mat to the vehicle.
[ Ensure to remove a protective
film attached on the carpet
before attaching a floor mat on
the front floor carpet. Otherwise,
the floor mat may move freely on
the protective film and it could
result in unintentional braking or
accelerating.

[ Ensure that the floor mats are
securely attached to the vehicle’s
floor mat anchor(s) before driving
the vehicle.

[ Do not use ANY floor mat that cannot
be firmly attached to the vehicle’s
floor mat anchors.

[ Do not stack floor mats on top of one
another (for example, all-weather
rubber mat on top of a carpeted floor
mat). Only a single floor mat should
be installed in each position.
IMPORTANT - Your vehicle was
manufactured with driver’s side floor
mat anchors that are designed to
securely hold the floor mat in place.
To avoid any interference with pedal
operation, HYUNDAI recommends that
the HYUNDAI floor mat designed for use
in your vehicle be installed.

05
5-109

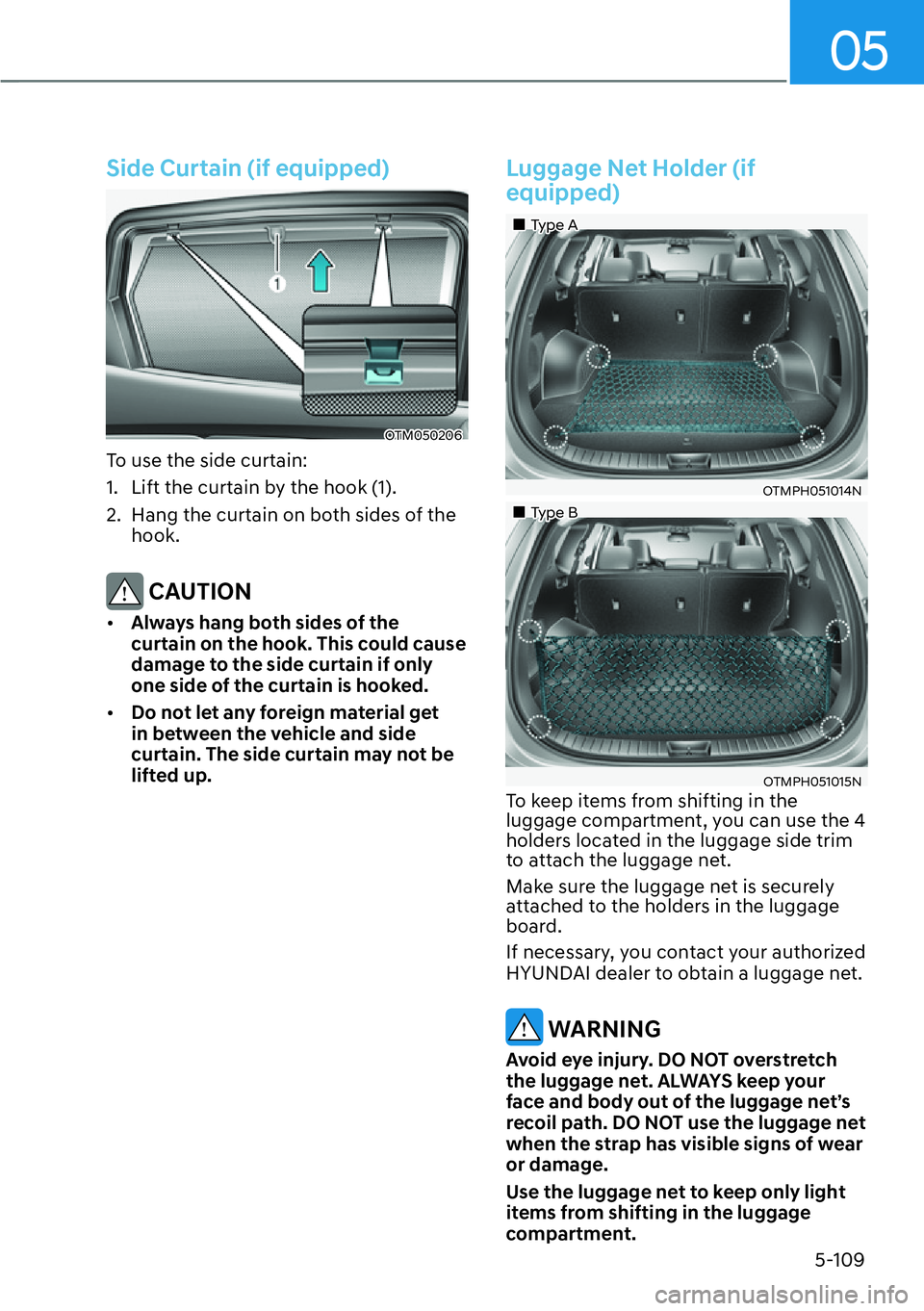

Side Curtain (if equipped)
OTM050206
To use the side curtain:
1. Lift the curtain by the hook (1).
2. Hang the curtain on both sides of the hook.
CAUTION

[ Always hang both sides of the curtain on the hook. This could cause
damage to the side curtain if only
one side of the curtain is hooked.

[ Do not let any foreign material get
in between the vehicle and side
curtain. The side curtain may not be
lifted up.
Luggage Net Holder (if equipped)
„Type A
OTMPH051014N
„Type B
OTMPH051015N
To keep items from shifting in the
luggage compartment, you can use the 4
holders located in the luggage side trim
to attach the luggage net.
Make sure the luggage net is securely
attached to the holders in the luggage
board.
If necessary, you contact your authorized
HYUNDAI dealer to obtain a luggage net.
WARNING
Avoid eye injury. DO NOT overstretch
the luggage net. ALWAYS keep your
face and body out of the luggage net’s
recoil path. DO NOT use the luggage net
when the strap has visible signs of wear or damage.
Use the luggage net to keep only light
items from shifting in the luggage compartment.

Convenience Features
5-110

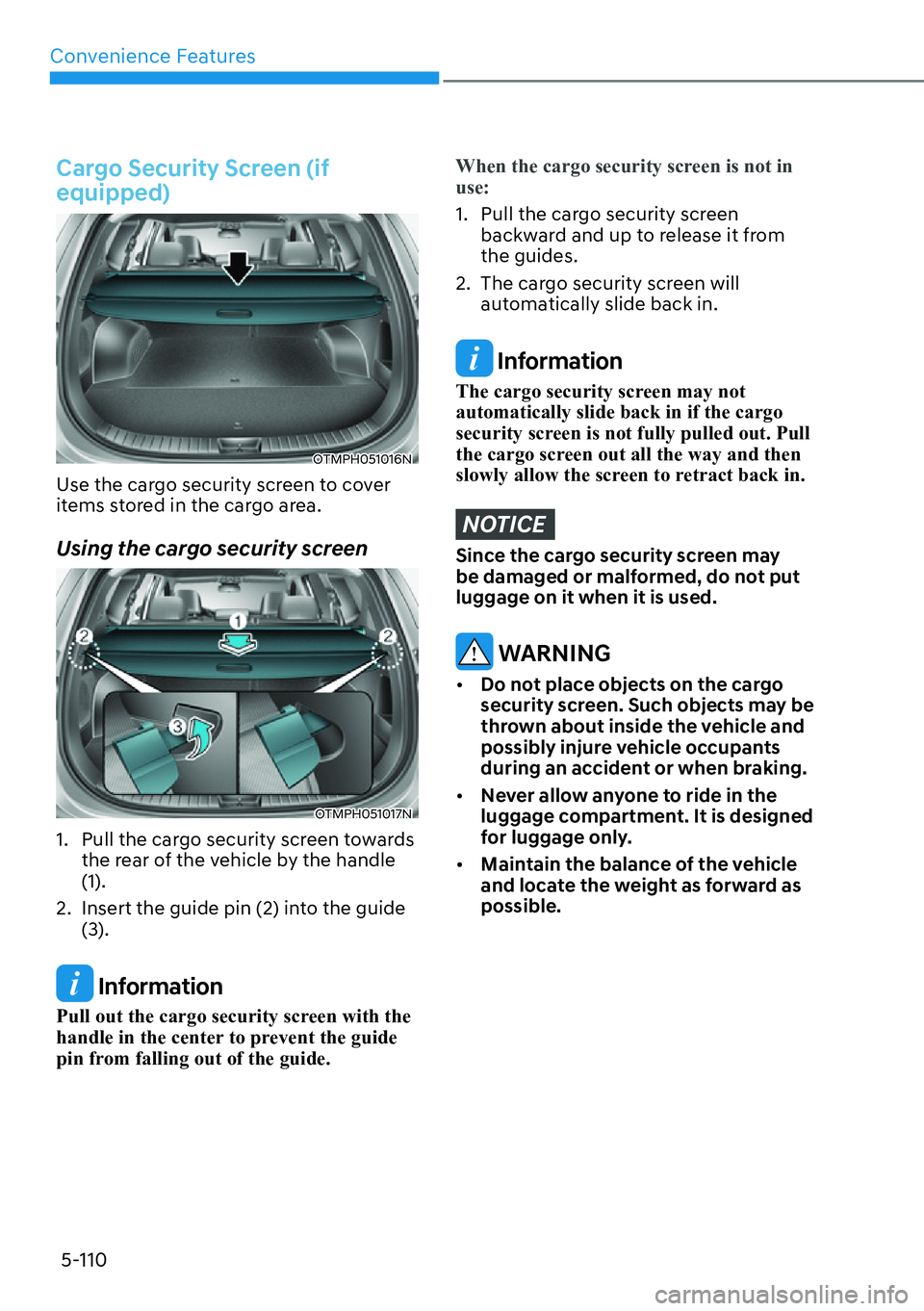

Cargo Security Screen (if equipped)
OTMPH051016N
Use the cargo security screen to cover
items stored in the cargo area.
Using the cargo security screen
OTMPH051017N
1. Pull the cargo security screen towards the rear of the vehicle by the handle (1).
2. Insert the guide pin (2) into the guide (3).
Information
Pull out the cargo security screen with the
handle in the center to prevent the guide
pin from falling out of the guide.
When the cargo security screen is not in use:
1. Pull the cargo security screen backward and up to release it from the guides.
2. The cargo security screen will automatically slide back in.
Information
The cargo security screen may not automatically slide back in if the cargo
security screen is not fully pulled out. Pull
the cargo screen out all the way and then
slowly allow the screen to retract back in.
NOTICE
Since the cargo security screen may
be damaged or malformed, do not put luggage on it when it is used.
WARNING

[ Do not place objects on the cargo
security screen. Such objects may be
thrown about inside the vehicle and
possibly injure vehicle occupants
during an accident or when braking.

[ Never allow anyone to ride in the luggage compartment. It is designed
for luggage only.

[ Maintain the balance of the vehicle
and locate the weight as forward as possible.

05
5-111
EXTERIOR FEATURES
Roof Side Rails
OTM050017
If your vehicle comes with roof side rails,
then roof side rails crossbars can be
installed on top of your vehicle.
The roof side rails crossbars are an
accessory and are available at your
HYUNDAI dealer.
NOTICE
If the vehicle is equipped with a
sunroof, be sure not to position cargo
onto the roof side rails in such a way
that it could interfere with sunroof
operation.
NOTICE

[ When carrying cargo on the roof side
rails, take the necessary precautions
to make sure the cargo does not
damage the roof of the vehicle.

[ When carrying large objects on the
roof side rails, make sure they do
not exceed the overall roof length or width.
WARNING

[ The following specification is the
maximum weight that can be loaded
onto the roof side rails. Distribute the
load as evenly as possible onto the
roof side rails and secure the load
firmly.
Loading cargo or luggage in excess
of the specified weight limit on the
roof side rails may damage your
vehicle.
ROOF SIDE RAILS 100 kg (220 lbs.)
EVENLY DISTRIBUTED

[ The vehicle center of gravity will be
higher when items are loaded onto
the roof side rails. Avoid sudden
starts, braking, sharp turns, abrupt
maneuvers or high speeds that may
result in loss of vehicle control or
rollover resulting in an accident.

[ Always drive slowly and turn corners
carefully when carrying items on the
roof side rails. Severe wind updrafts,
caused by passing vehicles or natural
causes, can cause sudden upward
pressure on items loaded on the
roof side rails. This is especially true
when carrying large, flat items such
as wood panels or mattresses. This
could cause the items to fall off the
roof side rails and cause damage to
your vehicle or others around you.

[ To prevent damage or loss of cargo
while driving, check frequently
before or while driving to make sure
the items on the roof side rails are
securely fastened.

Convenience Features
5-112
NOTICE

[If you install an aftermarket HID
head lamp, your vehicle’s audio and
electronic devices may not function
properly.

[ Prevent chemicals such as perfume,
cosmetic oil, sun cream, hand
cleaner, and air freshener from
contacting the interior parts
because they may cause damage or
discoloration.
USB Port
OTM050016
You can use an USB cable to connect
audio devices to the vehicle USB port.
Information
When using a portable audio device
connected to the power outlet, noise may
occur during playback. If this happens,
use the portable audio device’s power
source.
Antenna
Shark fin antenna
OTM049420
The shark fin antenna receives
transmitted data. (for example: AM/FM,
DAB, GPS)
Steering Wheel Remote Controls
OTM050207
NOTICE
Do not operate multiple audio remote
control buttons simultaneously.
,1)27$,10(176<67(0

05
5-113
VOLUME (VOL + / VOL -) (1)
[
Rotate the VOLUME scroll up to
increase volume.

[ Rotate the VOLUME scroll down to
decrease volume.
SEEK/PRESET (
/ ) (2)
If the SEEK/PRESET switch is pressed up
or down and held for 0.8 second or more,
it will function in the following modes:
[
RADIO mode
It will function as the AUTO SEEK
select button. It will SEEK until you
release the button.

[
MEDIA mode
It will function as the FF/RW button.
If the SEEK/PRESET switch is pressed up
or down, it will function in the following modes:
[
RADIO mode
It will function as the PRESET STATION
UP/DOWN button.

[
MEDIA mode
It will function as the TRACK UP/
DOWN button. MODE (3)
Press the MODE button to toggle
through Radio or Media modes. MUTE (
) (4)

[ Press the MUTE button to mute the sound.

[ Press the MUTE button again to
activate the sound.
Information
For detailed information, refer to the separately supplied infotainment system manual.

Convenience Features
5-114
Infotainment System
For detailed information, refer to the
separately supplied infotainment system manual.
Voice Recognition
OTM050209
For detailed information, refer to the
separately supplied infotainment
system manual.
Bluetooth® Wireless Technology
OTM050208
OTMPH051018N
(1) Call / Answer button
(2) Call end button
(3) Microphone
For detailed information, refer to the
separately supplied infotainment
system manual.
CAUTION
To avoid driver distractions, do not
excessively operate the device while
driving the vehicle which may lead to an accident.
