Unleaded
Your new vehicle is designed to use only unleaded fuel having an octane
number((R+M)/2) of 87 (Research Octane Number 91) or higher. (Do not use methanol
blended fuels)
Your new vehicle is designed to obtain maximum performance with UNLEADED FUEL,
as well as minimize exhaust emissions and spark plug fouling.
NOTICE
To prevent damage to the engine and engine components, never add any fuel
system cleaning agents to the fuel tank other than what has been specified.
Consult an authorized HYUNDAI dealer for additional information.
WARNING

[ Do not “top off” after the nozzle automatically shuts off when refueling.

[ Always check that the fuel cap is installed securely to prevent fuel spillage in the
event of an accident.
Gasoline containing alcohol and methanol
Gasohol, a mixture of gasoline and ethanol (also known as grain alcohol) are being
marketed along with or instead of leaded or unleaded gasoline. For example, “E15” is a
gasohol comprised of 15% ethanol and 85% gasoline.
Do not use gasohol containing more than 10% ethanol, and do not use gasoline or
gasohol containing any methanol. Either of these fuels may cause drivability problems
and damage to the fuel system, engine control system and emission control system.
Discontinue using gasohol of any kind if drivability problems occur.
“E85” fuel is an alternative fuel comprised of 85 percent ethanol and 15 percent
gasoline, and is manufactured exclusively for use in Flexible Fuel Vehicles. “E85” is
not compatible with your vehicle. Use of “E85” may result in poor engine performance
and damage to your vehicle’s engine and fuel system. HYUNDAI recommends that
customers do not use fuel with an ethanol content exceeding 15 percent.
NOTICE
To prevent damage to your vehicle’s engine and fuel system:
[ Never use gasohol which contains methanol.

[ Never use gasohol containing more than 15% ethanol.

[ Never use leaded fuel or leaded gasohol.

[ Never use “E85” fuel.
Your New Vehicle Limited Warranty does not cover damage to the fuel system or any
performance problems caused by the use of “E85” fuel.
FUEL REQUIREMENTS

Foreword / Hybrid System Overview
1-6

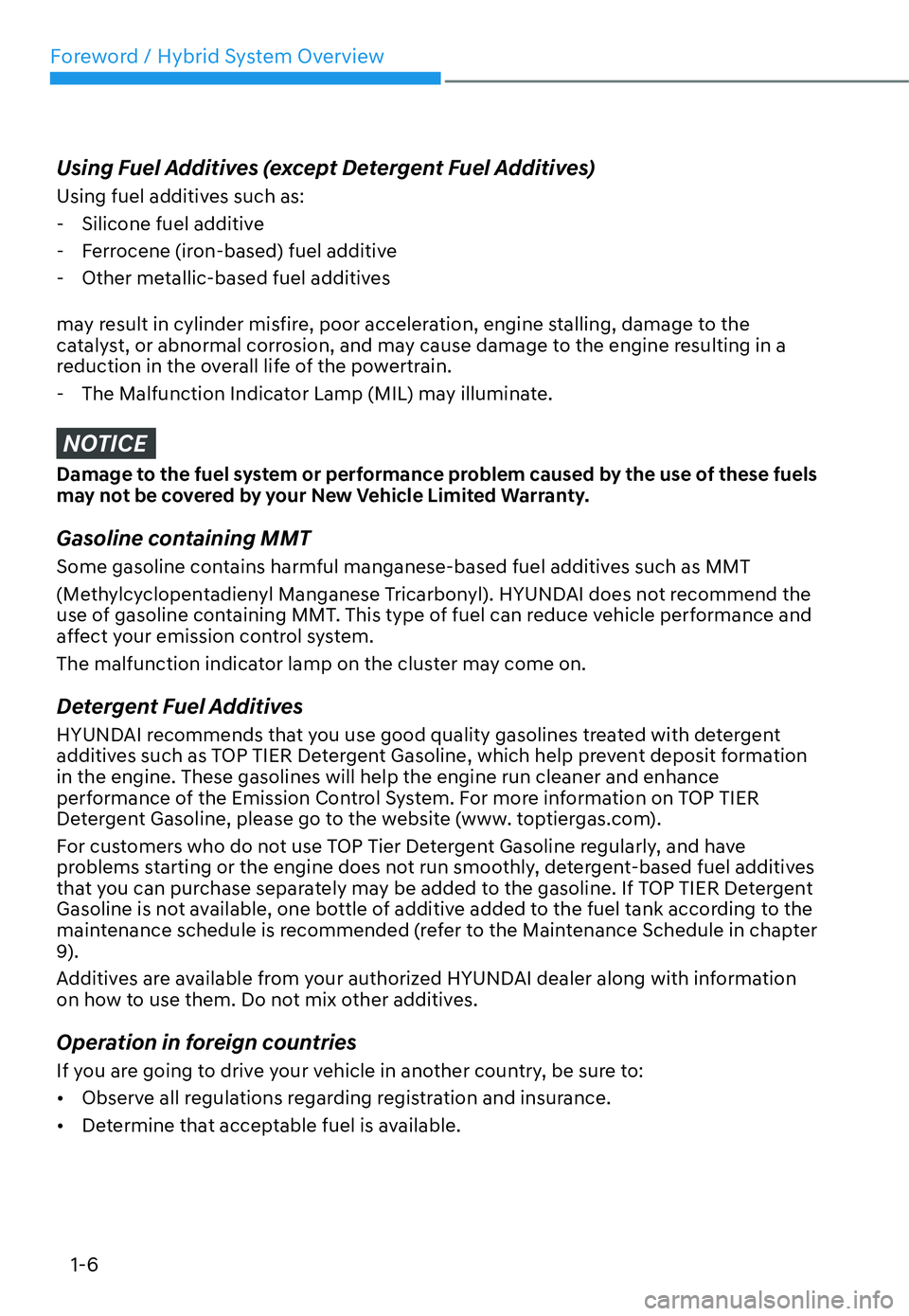

Using Fuel Additives (except Detergent Fuel Additives)
Using fuel additives such as: - Silicone fuel additive
- Ferrocene (iron-based) fuel additive
- Other metallic-based fuel additives
may result in cylinder misfire, poor acceleration, engine stalling, damage to the
catalyst, or abnormal corrosion, and may cause damage to the engine resulting in a
reduction in the overall life of the powertrain. - The Malfunction Indicator Lamp (MIL) may illuminate.
NOTICE
Damage to the fuel system or performance problem caused by the use of these fuels
may not be covered by your New Vehicle Limited Warranty.
Gasoline containing MMT
Some gasoline contains harmful manganese-based fuel additives such as MMT
(Methylcyclopentadienyl Manganese Tricarbonyl). HYUNDAI does not recommend the
use of gasoline containing MMT. This type of fuel can reduce vehicle performance and
affect your emission control system.
The malfunction indicator lamp on the cluster may come on.
Detergent Fuel Additives
HYUNDAI recommends that you use good quality gasolines treated with detergent
additives such as TOP TIER Detergent Gasoline, which help prevent deposit formation in the engine. These gasolines will help the engine run cleaner and enhance
performance of the Emission Control System. For more information on TOP TIER
Detergent Gasoline, please go to the website (www. toptiergas.com).
For customers who do not use TOP Tier Detergent Gasoline regularly, and have
problems starting or the engine does not run smoothly, detergent-based fuel additives
that you can purchase separately may be added to the gasoline. If TOP TIER Detergent
Gasoline is not available, one bottle of additive added to the fuel tank according to the
maintenance schedule is recommended (refer to the Maintenance Schedule in chapter
9).
Additives are available from your authorized HYUNDAI dealer along with information
on how to use them. Do not mix other additives.
Operation in foreign countries
If you are going to drive your vehicle in another country, be sure to:
[ Observe all regulations regarding registration and insurance.

[ Determine that acceptable fuel is available.

01
1-7

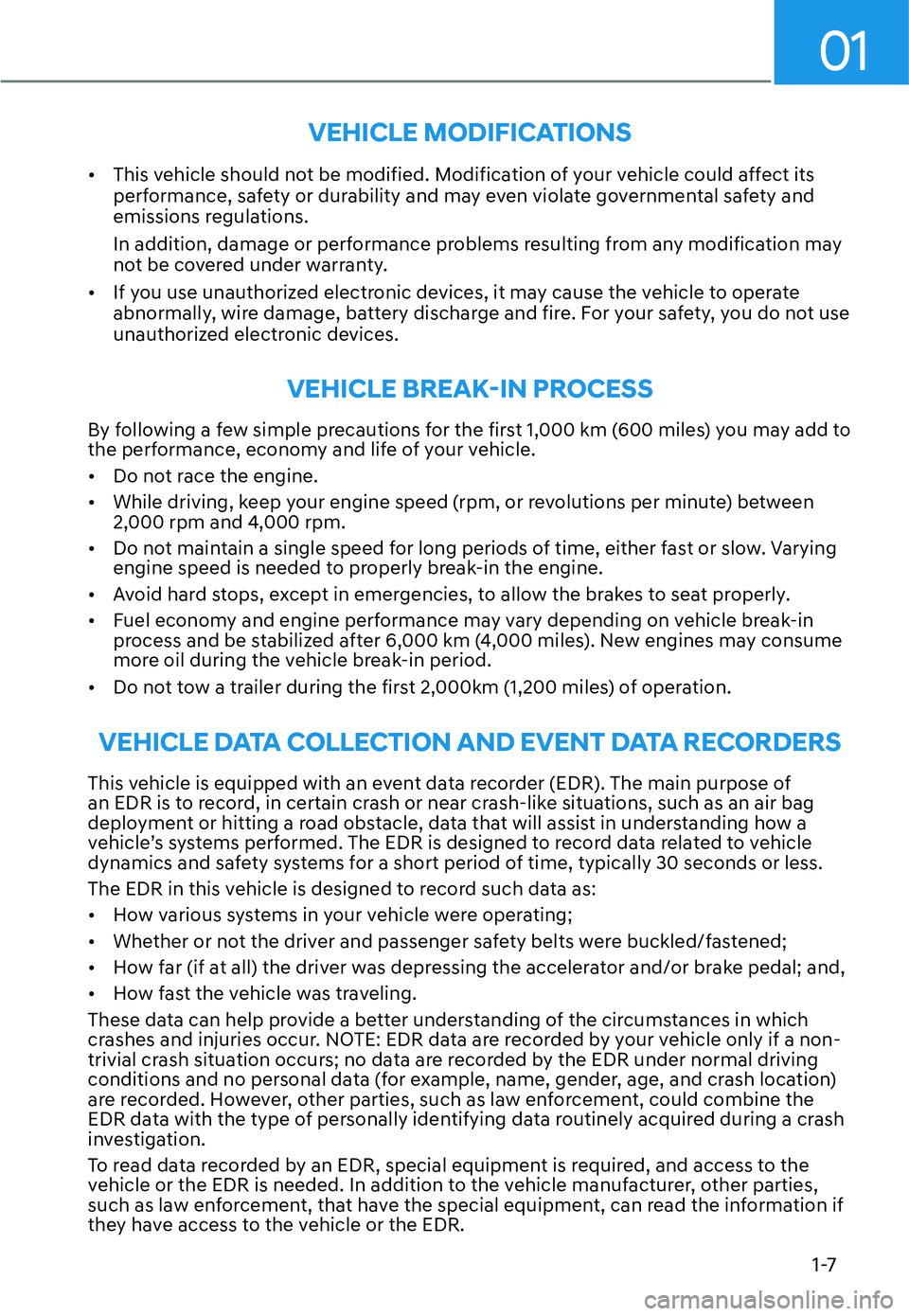

VEHICLE MODIFICATIONS

[This vehicle should not be modified. Modification of your vehicle could affect its
performance, safety or durability and may even violate governmental safety and
emissions regulations.
In addition, damage or performance problems resulting from any modification may
not be covered under warranty.

[ If you use unauthorized electronic devices, it may cause the vehicle to operate
abnormally, wire damage, battery discharge and fire. For your safety, you do not use
unauthorized electronic devices.
9(+,&/(%5($.
Ø,1352&(66
By following a few simple precautions for the first 1,000 km (600 miles) you may add to
the performance, economy and life of your vehicle.
[Do not race the engine.

[ While driving, keep your engine speed (rpm, or revolutions per minute) between
2,000 rpm and 4,000 rpm.

[ Do not maintain a single speed for long periods of time, either fast or slow. Varying
engine speed is needed to properly break-in the engine.

[ Avoid hard stops, except in emergencies, to allow the brakes to seat properly.

[ Fuel economy and engine performance may vary depending on vehicle break-in
process and be stabilized after 6,000 km (4,000 miles). New engines may consume
more oil during the vehicle break-in period.

[ Do not tow a trailer during the first 2,000km (1,200 miles) of operation.
VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS
This vehicle is equipped with an event data recorder (EDR). The main purpose of
an EDR is to record, in certain crash or near crash-like situations, such as an air bag
deployment or hitting a road obstacle, data that will assist in understanding how a
vehicle’s systems performed. The EDR is designed to record data related to vehicle
dynamics and safety systems for a short period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:
[How various systems in your vehicle were operating;

[ Whether or not the driver and passenger safety belts were buckled/fastened;

[ How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,

[ How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in which
crashes and injuries occur. NOTE: EDR data are recorded by your vehicle only if a non-
trivial crash situation occurs; no data are recorded by the EDR under normal driving
conditions and no personal data (for example, name, gender, age, and crash location)
are recorded. However, other parties, such as law enforcement, could combine the
EDR data with the type of personally identifying data routinely acquired during a crash
investigation.
To read data recorded by an EDR, special equipment is required, and access to the
vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties,
such as law enforcement, that have the special equipment, can read the information if
they have access to the vehicle or the EDR.

1-8
Foreword / Hybrid System Overview+(9
ã+<%5,'(/(&75,&9(+,&/(
ä6<67(0
The HYUNDAI Hybrid Electric Vehicle (HEV) uses both the gasoline engine and the
electric motor for power. The electric motor is run by a high-voltage HEV battery.
Depending on the driving conditions, the HEV computer selectively operates between
the engine and the electric motor or even both at the same time.
Fuel efficiency increases when the vehicle is driven by the electric motor with the HEV
battery.
The HEV battery charge must be maintained, so at times the engine will come on even
at idle to act as a generator. Charging also occurs when decelerating or by regenerative
braking.
Electric motorElectric motor Electric motor + EngineElectric motor + Engine EngineEngine ChargingCharging Engine OFFEngine OFF
Startup/Low speed cruise Acceleration High speed cruise Deceleration Stop
OTMHQ010001

1-9
01
3+(9
ã3/8*
Ø,1+<%5,'(/(&75,&9(+,&/(
ä6<67(0

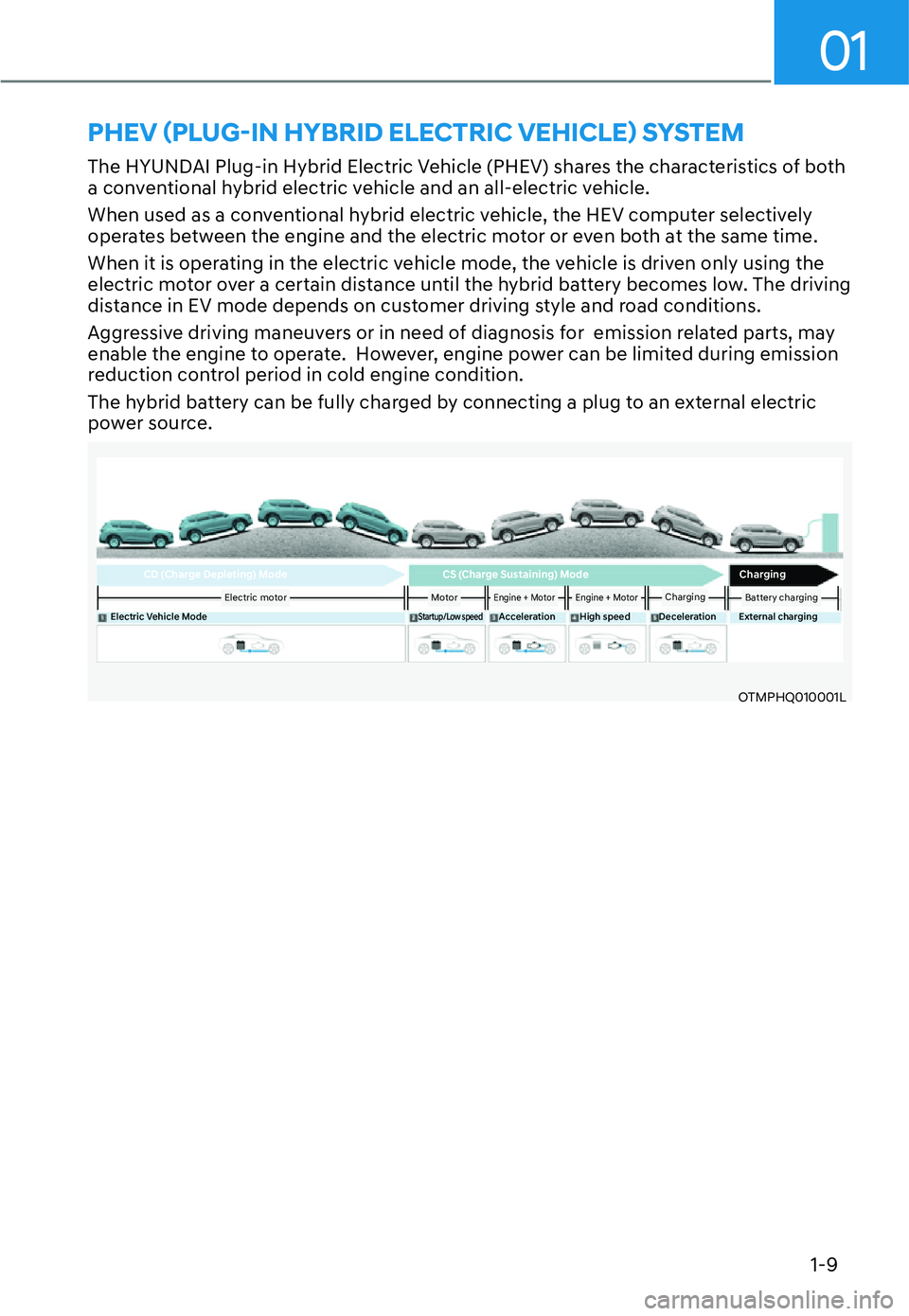

The HYUNDAI Plug-in Hybrid Electric Vehicle (PHEV) shares the characteristics of both
a conventional hybrid electric vehicle and an all-electric vehicle.
When used as a conventional hybrid electric vehicle, the HEV computer selectively
operates between the engine and the electric motor or even both at the same time.
When it is operating in the electric vehicle mode, the vehicle is driven only using the
electric motor over a certain distance until the hybrid battery becomes low. The driving
distance in EV mode depends on customer driving style and road conditions.
Aggressive driving maneuvers or in need of diagnosis for emission related parts, may
enable the engine to operate. However, engine power can be limited during emission
reduction control period in cold engine condition.
The hybrid battery can be fully charged by connecting a plug to an external electric
power source.
Electric Vehicle ModeAcceleration High speed Deceleration External chargingStartup/Low speedElectric motorElectric motor Battery chargingBattery charging
MotorMotor ChargingChargingEngine + MotorEngine + MotorEngine + MotorEngine + Motor
CS (Charge Sustaining) Mode
CD (Charge Depleting) Mode Charging
OTMPHQ010001L

Foreword / Hybrid System Overview
1-10
&+$5*,1*7+(3/8*
Ø,1+<%5,'9(+,&/(
Charging Information
AC Charge:
The plug-in hybrid vehicle is charged by
plugging into a AC charger installed in
your home or a public charging station.
(For further details, refer to the 'AC
Charge'.)
Trickle Charge:
The plug-in hybrid vehicle can be
charged by using household electricity.
The electrical outlet in your home must
comply with regulations and can safely
accommodate the Voltage / Current
(Amps) / Power (Watts) ratings specified
on the portable charge.
Charging Time
AC Charge:
Takes approximately 2 hours 15 minutes
at room temperature. (Can be charged to
100%.)
Information
Depending on the condition and durability
of the high voltage battery, charger
specifications, and ambient temperature,
the time required for charging the high
voltage battery may vary.

01
1-11
Charging Types
Category AC Charge Trickle Charge
Charging Inlet (Vehicle)
OTMPHQ011002NOTMPHQ011002N
Charging Connector
OTMPHQ011040NOTMPHQ011040N
Charging Outlet
OLFP0Q5007KOAEEQ016024
How to Charge Use AC charger installed in
homes or public charging
station Use household current
Charging Time Approx. 2 hours 15 minutes (to
fully charge, 100%) For charging at home. Please
note that the Trickle Charger is
slower than the AC Charger.

[ Depending on the condition and durability of the high voltage battery, charger
specifications, and ambient temperature, the time required for charging the high
voltage battery may vary.

[ Actual charger image and charging method may vary in accordance with the
charger manufacturer.

Foreword / Hybrid System Overview
1-12
Charging Status
OTMPHQ010003LWhen charging the high voltage battery,
the charge level can be checked from
outside the vehicle.
Classification
DetailsOperation of charging
indicator lamp
Mode Status Charging
inlet Charging
button
A READY Non-charging
state 0 ~ 65 % On (Yellow) Off
65 ~ 100 % On (Green) Off
B Aux. Battery
Saver / High
voltage warning Charging the 12V auxiliary
battery / High voltage warning
state On (Red) Off
C Charging Charging 0 ~ 65 %
Blinking
(Yellow) Off
65 ~ 100 % Blinking
(Green) Off
D Charging
complete Charging
completed (turns off in 5 seconds) 100 %
2Q*UHHQ
Ÿ
OFF Off
E Charging failed Error while charging Blinking
(Red) Off
F Scheduled
charging standby Reserved charging is operating
(turns OFF after 3 minutes) Off On
G Error CAN communication error
status 2Q*UHHQ
Ÿ
On (Orange)
Ÿ2Q5HG Off
