Unlock Charging Connector in
Emergency
OTMPHQ010011L
If the charging connector does not
disconnect due to battery discharge and
failure of the electric wires, open the
hood and slightly pull the emergency
cable. The charging connector will then disconnect.
Trickle Charge
„Portable Charger
OAEEQ016042N
(1) Code and Plug (Code set)
(2) Control Box
(3) Charging Cable and Charging Connector
Trickle charge can be used when
AC charge is not available by using
household electricity.
How to set the charge level of the
portable charger
PlugPlug Electric OutletElectric Outlet
OLFP0Q5020K
1. Check the rated current of the electric outlet prior to connecting the plug to
the outlet.
2. Connect the plug to a household electric outlet.
3. Check the display window on the control box.

Foreword / Hybrid System Overview
1-22
OOSEVQ0180544. Press the button (1) on the back of the
control box for more than 1 second
to adjust the charge level. (Refer to
charging cable type and example for
setting the charge level.)
5. The display window on the control box changes from 8A and 10A to 12A every
time you press the button (1).
6. When setting the charge level is complete, start charging according to
the trickle charge procedure.

à Example for setting the ICCB charge level (The example is only for reference and
may vary according to the surrounding environment.)
Outlet current ICCB charge level Control box display window
14-16A 12A
OOSEVQ018055
13-12A 10A
11-10A 8A
9-8A 6A

01
1-23
How to Connect Portable Charger
(ICCB: In-Cable Control Box)
PlugPlug Electric OutletElectric Outlet
OLFP0Q5020K
1. Connect the plug to a household electric outlet.
OOSEVQ018056
2. Check if the power lamp (green) illuminates on the control box.
3. Depress the brake pedal and apply the parking brake.
4. Turn OFF all switches, shift to P (Park), and turn OFF the vehicle.
OTMPHQ010005L
5. Press center edge of the charging door to open the charging door.
6. Check if there is dust on the charging connector and charging inlet.
OTMPHQ010006L
7. Hold the charging connector handle and connect it to the vehicle AC
charging inlet. Push the connector
until you hear a "clicking" sound. If
the charging connector and charging
terminal are not connected properly,
this may cause a fire.

Foreword / Hybrid System Overview
1-24
Information
Charging connector AUTO/LOCK mode
The charging connector is locked in the
inlet at a different period according to which mode is selected.
[ LOCK mode : The connector locks
when the charging connector is plugged into the charging inlet.

[ AUTO mode : The connector locks when charging starts.
For more details, refer to “Charging
Connector AUTO/ LOCK Mode” in this
chapter.
OOSEVQ018057
8. Charging starts automatically (charging lamp blinks).
„Type A „Type B
OTMPHQ010007LOTMPHQ010008L
9. Check if the charging indicator light of the high voltage battery
on the instrument cluster is turned
ON. Charging is not done when the
charging indicator lamp is OFF.
When the charging connector is not
connected properly, reconnect the
charging cable to charge it again.
Information

[ Even though charging is possible with
the ignition switch in the ON/START
position, for your safety, start charging when the ignition switch is in the
LOCK/OFF position and the vehicle
shifted to P (Park).
After charging has started, you can use electrical components such as the radio
by placing the ignition switch in ACC
or ON position.

[ Moving the shift lever from P (Park) to R (Reverse)/N(Neutral)/D (Drive) stops
the charging process.
To restart the charging process, move
the shift lever to P (Park), place the
ignition switch to the LOCK/OFF position, and disconnect the charging
cable. Then, connect the charging cable.

01
1-25
OAEPHQ049818L
10. After charging has started, the
estimated charging time is displayed
on the instrument cluster for about 1
minute.
If you open the driver seat door while
charging, the estimated charging time
is also displayed on the instrument
cluster for about 1 minute.
When scheduled charging is set, the
estimated charging time is displayed
as “--" .
Information
Depending on the condition and durability
of the high voltage battery, charger
specifications, and ambient temperature,
the time required for charging the battery
may vary. Checking Charging Status
OTMPHQ010003L
When charging the high voltage battery,
the charge level can be checked from
outside the vehicle.

Foreword / Hybrid System Overview
1-26
ClassificationDetailsOperation of charging
indicator lamp
Mode Status Charging
inlet Charging
button
A READY Non-charging
state 0 ~ 65 % On (Yellow) Off
65 ~ 100 % On (Green) Off
B Aux. Battery
Saver / High
voltage warning Charging the 12V auxiliary
battery / High voltage warning state On (Red) Off
C Charging Charging 0 ~ 65 %
Blinking
(Yellow) Off
65 ~ 100 % Blinking
(Green) Off
D Charging
complete Charging
completed (turns off in 5 seconds) 100 %
2Q*UHHQ
Ÿ
OFF Off
E Charging failed Error while charging Blinking
(Red) Off
F Scheduled
charging standby Reserved charging is operating
(turns OFF after 3 minutes) Off On
G Error CAN communication error
status 2Q*UHHQ
Ÿ
On (Orange)
Ÿ2Q5HG Off

1-27
01

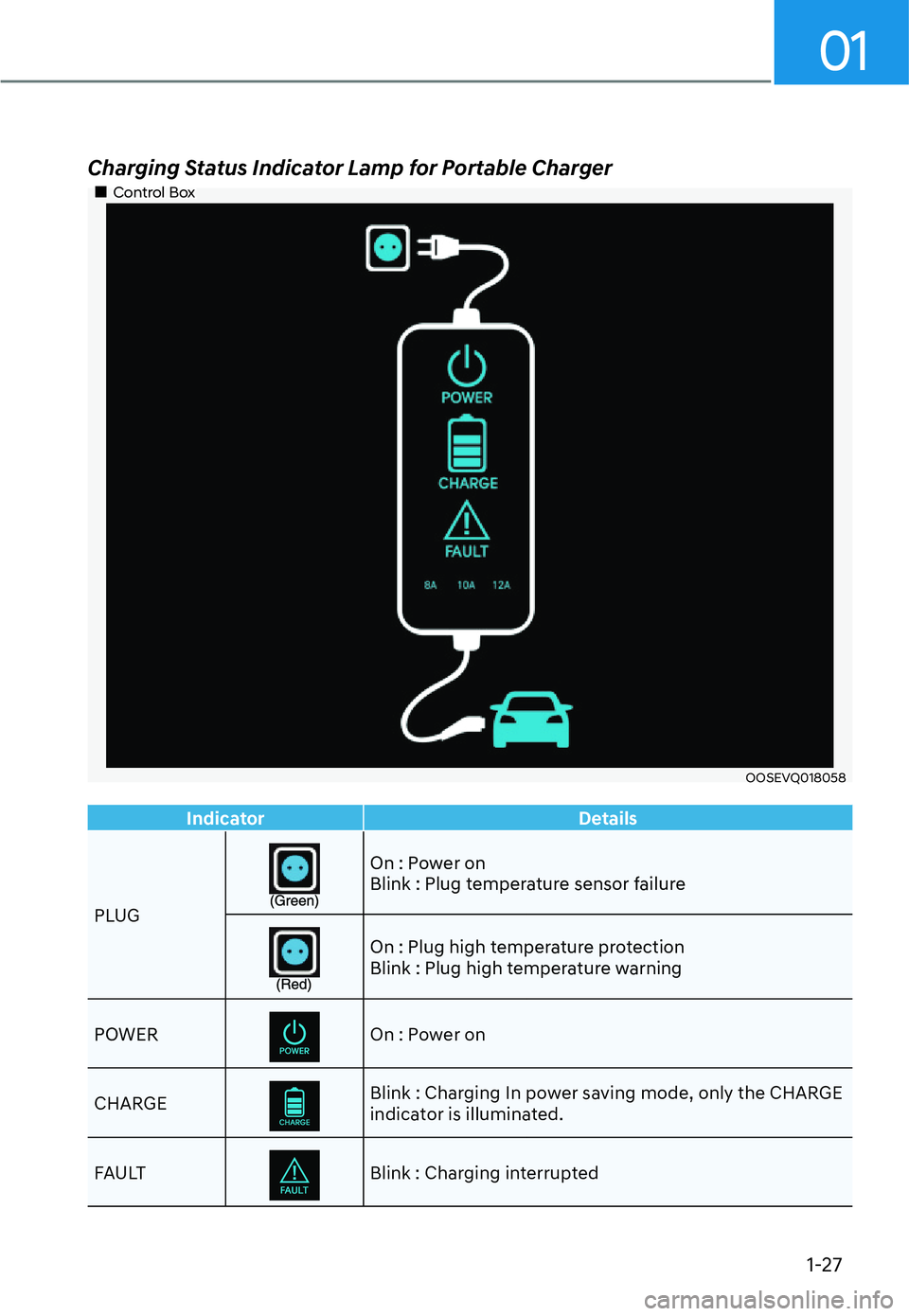

Charging Status Indicator Lamp for Portable Charger
„Control Box
OOSEVQ018058
IndicatorDetails
PLUG
On : Power on
Blink : Plug temperature sensor failure
On : Plug high temperature protection
Blink : Plug high temperature warning
POWER
On : Power on
CHARGE
Blink : Charging In power saving mode, only the CHARGE
indicator is illuminated.
FAULT
Blink : Charging interrupted

Foreword / Hybrid System Overview
1-28
IndicatorDetails
CHARGE LEVEL
Type A Type B Type C
12 A 10 A 8 A
10 A 8 A 7 A
8 A 6 A 6 A
The charging current changes (3
level) whenever the button (1) is
pressed for 1 sec with the charger
plugged into an electrical outlet
but not the vehicle. * Back of the control box
OAEQ047025
VEHICLE
Charging connector plugged
Charging
Blink : Charging impossible
