Driving Your Vehicle
6-66
Vehicle capacity weight
5 persons : 480 kg (1,058 lbs.)
Vehicle capacity weight is the maximum
combined weight of occupants and
cargo. If your vehicle is equipped with a
trailer, the combined weight includes the
tongue load.
Seating capacity
Total : 5 persons (Front seat : 2 persons,
Rear seat : 3 persons)
Seating capacity is the maximum
number of occupants including a driver,
your vehicle may carry. However, the
seating capacity may be reduced based
upon the weight of all of the occupants,
and the weight of the cargo being carried
or towed. Do not overload the vehicle as
there is a limit to the total weight, or load
limit including occupants and cargo, the
vehicle can carry.
Towing capacity
With brake system: 907 kg (2,000 lbs.)
Without brake system: 750 kg (1,653 lbs.)
Towing capacity is the maximum trailer
weight including its cargo weight, your
vehicle can tow.
Cargo capacity
The cargo capacity of your vehicle will
increase or decrease depending on the
weight and the number of occupants
and the tongue load, if your vehicle is
equipped with a trailer.
Steps for determining correct load limit
1. Locate the statement "The combined
weight of occupants and cargo should
never exceed XXX kg or XXX lbs." on
your vehicle's placard.
2. Determine the combined weight of the driver and passengers that will be
riding in your vehicle.
3. Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.
4. The resulting figure equals the available amount of cargo and
luggage load capacity. For example,
if the "XXX" amount equals 1400
lbs. and there will be five 150 lb
passengers in your vehicle, the
amount of available cargo and luggage load capacity is 650 lbs.
(1400 - 750 (5 x 150) = 650 lbs.)
5. Determine the combined weight of luggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo and
luggage load capacity calculated in
Step 4.
6. If your vehicle will be towing a trailer, load from your trailer will be
transferred to your vehicle. Consult
this manual to determine how this
reduces the available cargo and
luggage load capacity of your vehicle.
WARNING
Do not overload the vehicle as there
is a limit to the total weight, or load
limit, including occupants and cargo,
the vehicle can carry. Overloading can
shorten the life of the vehicle. If the
GVWR or the GAWR is exceeded, parts
on the vehicle can break, and it can
change the handling of your vehicle.
These could cause you to lose control
and result in an accident.

06
6-67
Example 1

g+
Maximum Load(1400 lbs.)
(635 kg) Passenger Weight
(150 lbs. × 2 = 300 lbs.) (68 kg × 2 = 136 kg) Cargo Weight
(1100 lbs.)
(499 kg)
Example 2

g+
Maximum Load (1400 lbs.)
(635 kg) Passenger Weight
(150 lbs. × 5 = 750 lbs.) (68 kg × 5 = 340 kg) Cargo Weight
(650 lbs.)(295 kg)
Example 3

g+
Maximum Load (1400 lbs.)(635 kg) Passenger Weight
(172 lbs. × 5 = 860 lbs.) (78 kg × 5 = 390 kg) Cargo Weight
(540 lbs.)(245 kg)

Driving Your Vehicle
6-68
Certification label
OBH059070
The certification label is located on the
driver's door sill at the center pillar and
shows the maximum allowable weight of
the fully loaded vehicle. This is called the
GVWR (Gross Vehicle Weight Rating). The
GVWR includes the weight of the vehicle,
all occupants, fuel and cargo.
This label also tells you the maximum
weight that can be supported by the
front and rear axles, called Gross Axle
Weight Rating (GAWR).
The total weight of the vehicle, including
all occupants, accessories, cargo, and
trailer tongue load must not exceed the
Gross Vehicle Weight Rating (GVWR) or
the Gross Axle Weight Rating (GAWR).
To find out the actual loads on your front
and rear axles, you need to go to a weigh
station and weigh your vehicle. Be sure
to spread out your load equally on both
sides of the centerline.
WARNING
Overloading
[ Never exceed the GVWR for your
vehicle, the GAWR for either the front
or rear axle and vehicle capacity
weight. Exceeding these ratings
can affect your vehicle's handling
and braking ability, and cause an accident.

[ Do not overload your vehicle.
Overloading your vehicle can cause
heat buildup in your vehicle's tires
and possible tire failure, increased
stopping distances and poor vehicle
handling-all of which may result in a
crash.
NOTICE
Overloading your vehicle may cause
damage. Repairs would not be covered
by your warranty. Do not overload your
vehicle.
WARNING
If you carry items inside your vehicle
(for example, suitcases, tools, packages,
or anything else), they are moving as
fast as the vehicle. If you have to stop
or turn quickly, or if there is a crash, the
items will keep going and can cause
an injury if they strike the driver or a
passenger.
[ Put items in the cargo area of your
vehicle. Try to spread the weight
evenly.

[ Do not stack items, like suitcases,
inside the vehicle above the tops of
the seats.

[ Do not leave an unsecured child
restraint in your vehicle.

[ When you carry something inside the
vehicle, secure it.

7
Driving SafetyForward Collision–Avoidance Assist (FCA) (Front View Camera Only) .................. 7-2
Forward Collision–Avoidance Assist (FCA) (Sensor fusion) ................................... 7-14
Lane Keeping Assist (LKA) ....................................................................................... 7-29
Blind-Spot Collision-Avoidance Assist (BCA) ......................................................... 7-36
Safe Exit Assist (SEA) ............................................................................................... 7-49
Driver Attention Warning (DAW) ............................................................................. 7-55
Blind-Spot View Monitor (BVM) ...............................................................................7-61
Driving Convenience Cruise control (CC) .................................................................................................. 7-63
Smart Cruise Control (SCC)..................................................................................... 7-67
Navigation-Based Smart Cruise Control (NSCC) .................................................. 7-83
Lane Following Assist (LFA) .....................................................................................7-90
Highway Driving Assist (HDA) ................................................................................. 7-94
Parking Safety Rear View Monitor (RVM) ...................................................................................... 7-100
Surround View Monitor (SVM) .............................................................................. 7-104
Rear Cross-Traffic Collision-Avoidance Assist (RCCA) ........................................ 7-109
Reverse Parking Distance Warning (PDW) ............................................................7-121
Forward/Reverse Parking Distance Warning (PDW) ............................................ 7-124
Reverse Parking Collision-Avoidance Assist (PCA) ...............................................7-129
Remote Smart Parking Assist (RSPA) .................................................................... 7-137
Declaration of Conformity .............................................................................................7-151
7. Driver Assistance System

Driver Assistance System
7-2
Basic function
OTM070237
Forward Collision-Avoidance Assist is
designed to help detect and monitor the
vehicle ahead or detect a pedestrian in
the roadway and warn the driver that
a collision is imminent with a warning
message and audible warning, and if
necessary, apply emergency braking.
Detecting sensor
OTMPH071001N
[1] : Front view camera
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensor:
[ NEVER disassemble the detecting
sensor or sensor assembly, or apply
any impact on it.

[ If the detecting sensor have been
replaced or repaired, we recommend
that you have your vehicle inspected
by an authorized HYUNDAI dealer.

[ NEVER install any accessories or
stickers on the front windshield, or
tint the front windshield.

[ Pay extreme caution to keep the
front view camera dry.

[ NEVER place any reflective objects
(for example, white paper, mirror)
over the dashboard. Any light
reflection may prevent Forward
Collision-Avoidance Assist from
functioning properly.
)25:$5'&2//,6,21
Ù$92,'$1&($66,67
ã)&$
ä
ã)5217
9,(:&$0(5$21/<
ä
ã,)(48,33('
ä

07
7-3
Forward Collision-Avoidance
Assist Settings

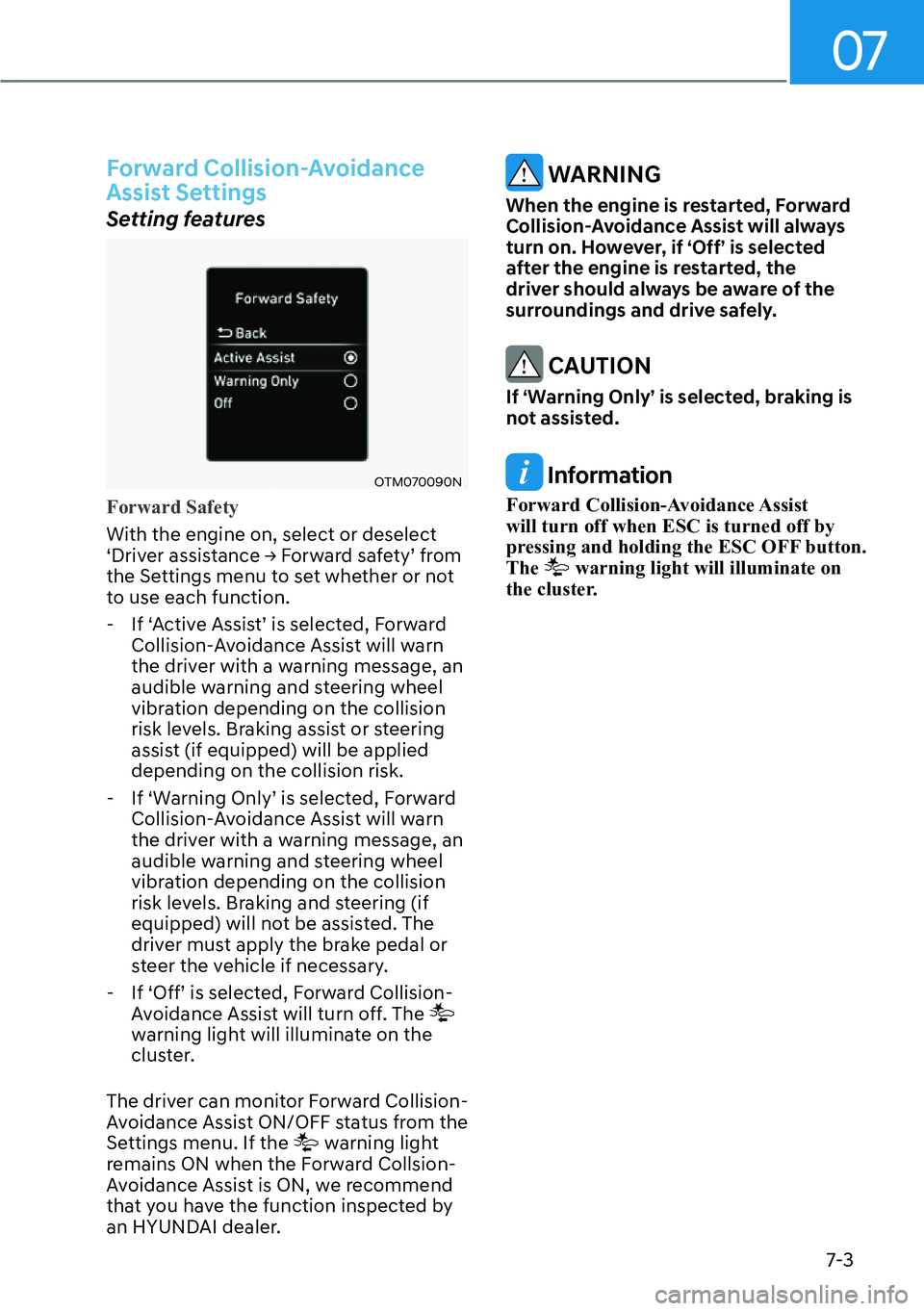

Setting features

OTM070090N
Forward Safety
With the engine on, select or deselect

S'ULYHUDVVLVWDQFH
Ÿ)RUZDUGVDIHW\
TIURP
the Settings menu to set whether or not
to use each function. - ,I
S$FWLYH$VVLVW
TLVVHOHFWHG)RUZDUG
Collision-Avoidance Assist will warn
the driver with a warning message, an
audible warning and steering wheel
vibration depending on the collision
risk levels. Braking assist or steering
assist (if equipped) will be applied depending on the collision risk.
- ,I
S:DUQLQJ2QO\
TLVVHOHFWHG)RUZDUG
Collision-Avoidance Assist will warn
the driver with a warning message, an
audible warning and steering wheel
vibration depending on the collision
risk levels. Braking and steering (if
equipped) will not be assisted. The
driver must apply the brake pedal or
steer the vehicle if necessary.
- ,I
S2II
TLVVHOHFWHG)RUZDUG&ROOLVLRQ
Avoidance Assist will turn off. The

warning light will illuminate on the
cluster.
The driver can monitor Forward Collision-
Avoidance Assist ON/OFF status from the
Settings menu. If the
warning light
remains ON when the Forward Collsion-
Avoidance Assist is ON, we recommend
that you have the function inspected by
an HYUNDAI dealer.
WARNING
When the engine is restarted, Forward
Collision-Avoidance Assist will always
turn on. However, if ‘Off’ is selected
after the engine is restarted, the
driver should always be aware of the
surroundings and drive safely.
CAUTION
If ‘Warning Only’ is selected, braking is
not assisted.
Information
Forward Collision-Avoidance Assist will turn off when ESC is turned off by
pressing and holding the ESC OFF button. The
warning light will illuminate on
the cluster.

Driver Assistance System
7-4
OTM070140N
Warning Timing
With the engine on, select ‘Driver
DVVLVWDQFH
Ÿ:DUQLQJWLPLQJ
TIURPWKH
Settings menu to change the initial
warning activation time for Forward
Collision-Avoidance Assist.
When the vehicle is first delivered,
:DUQLQJWLPLQJLVVHWWR
S1RUPDO
T,I\RX
change the Warning timing, the warning
time of other Driver Assistance systems
may change.
OTM070141N
Warning Volume
With the engine on, select ‘Driver
DVVLVWDQFH
Ÿ:DUQLQJYROXPH
TIURPWKH
Settings menu to change the Warning
YROXPHWR
S+LJK
T
S0HGLXP
TRU
S/RZ
TIRU
Forward Collision-Avoidance Assist.
+RZHYHUHYHQLI
S2II
TLVVHOHFWHGWKH
Warning Volume of Forward Collision
Avoidance Assist will not turn off but the
YROXPHZLOOVRXQGDV
S/RZ
T
+RZHYHUHYHQLI
S2II
TLVVHOHFWHGWKH
Warning Volume of Forward Collision
Avoidance Assist will not turn off but the
YROXPHZLOOVRXQGDV
S/RZ
T
If you change the warning volume,
the Warning volume of other Driver
Assistance systems may change.
CAUTION

[ The setting of the Warning timing
and Warning volume applies to
all functions of Forward Collision-
Avoidance Assist.

[ Even though, ‘Normal’ is selected for
Warning Timing if the front vehicle
suddenly stops the initial warning
activation time may not seem late.

[ Select ‘Late’ for Warning timing
when traffic is light and when driving
speed is slow.
Information
If the engine is restarted, Warning timing
and Warning volume will maintain the last setting.

07
7-5
Forward Collision-Avoidance
Assist Operation
Basic function
Warning and control
The basic function of Forward Collision-
Avoidance Assist is to warn and help
control the vehicle depending on
FROOLVLRQOHYHO
S&ROOLVLRQZDUQLQJ
T

S(PHUJHQF\EUDNLQJ
TDQG
S6WRSSLQJ
YHKLFOHDQGHQGLQJEUDNHFRQWURO
T
OTMH070014N
Forward Collsion-Avoidance Assist
[ To warn the driver of a collision, the

S&ROOLVLRQ:DUQLQJ
TZDUQLQJPHVVDJH
will appear on the cluster and an
audible warning will sound.

[ If a vehicle is detected in front,
tForward Collsion-Avoidance Assist
will operate when your vehicle speed
is between approximately 6~112 mph
(10~180 Km).

[ If a pedestrian is detected in front,
Forward Collsion-Avoidance Assist
will operate when your vehicle speed
is between approximately 6~37 mph
(10~60 Km).

[ ,I
S$FWLYH$VVLVW
TLVVHOHFWHGEUDNLQJ may be assisted.
OTM070144N
Emergency braking
[ To warn the driver that emergency
braking will occur, the ‘Emergency
EUDNLQJ
TZDUQLQJPHVVDJHZLOODSSHDU
on the cluster and an audible warning will sound.

[ If a vehicle is detected in front,
Forward Collsion-Avoidance Assist will
operate when your vehicle speed is
between approximately 10~60 km/h
(6~37 mph).

[ If a pedestrian is detected in front,
Forward Collsion-Avoidance Assist will
operate when your vehicle speed is
between approximately 10~60 km/h
(6~37 mph).

[ In emergency braking situation,
braking is assisted with strong braking
power by Forward Collsion-Avoidance
Assist to help prevent collision with
the vehicle or pedestrian ahead.
