Driver Assistance System
7-118

[
When the vehicle is parked diagonally
OJX1079113
[A] : Vehicle
Rear Cross-Traffic Collision-
Avoidance Assist. may be limited
when backing up diagonally,
and may not detect the vehicle
approaching from the left or right.
If this occurs, Rear Cross-Traffic
Collision-Avoidance Assist may not
warn the driver or control the brakes
when necessary.
Always check your surroundings while backing up.
[
When the vehicle is on or near a slopeOTM070229L
Rear Cross-Traffic Collision-
Avoidance Assist. may be limited
when the vehicle is on a uphill or
downhill slope, or near it, and may
not detect the vehicle approaching
from the left or right. If this occurs,
Rear Cross-Traffic Collision-
Avoidance Assist may not warn the
driver or control the brakes when
necessary.
Always check your surroundings while backing up.

07
7-119

[
Pulling into the parking space where
there is a structure
OJX1079115
[A] : Structure, [B] :Wall
Rear Cross-Traffic Collision-
Avoidance Assist. may detect
vehicles passing by in front of
you when parking in reverse into
a parking space with a wall or
structure in the rear or side area.
If this occurs, Rear Cross-Traffic
Collision-Avoidance Assist may
unnecessarily warn the driver and
control the brake.
Always check your surroundings while backing up.
[
When the vehicle is parked rearward OJX1079116
Rear Cross-Traffic Collision-
Avoidance Assist. may detect
vehicles passing by behind you when
parking in reverse into a parking
space. If this occurs, the function
may unnecessarily warn the driver
and control the brake.
Always check your surroundings while backing up.
WARNING

[ When you are towing a trailer or
another vehicle, we recommend
that Rear Cross-Traffic Collision-
Avoidance Assist is turned off due to
safety reasons.

[ Rear Cross-Traffic Collision-
Avoidance Assist may not operate
normally if interfered by strong
electromagnetic waves.

[ Rear Cross-Traffic Collision-
Avoidance Assist may not operate
for 3 seconds after the vehicle is
started, or the rear corner radars are
initialized.

Driver Assistance System
7-120
Information
This device complies with Industry Canada RSS-210 standard.
Operation is subject to the following three conditions: 1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's authority to operate the device.
Information
Radio frequency radiation exposure information: This equipment complies with RSS
radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm
(8 in.) between the radiator (antenna) and
your body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.

07
7-121
5(9(56(3$5.,1*',67$1&(:$51,1*
ã3':
ä

ã,)(48,33('
ä
Reverse Parking Distance Warning can
help warn the driver if an obstacle is
detected within a certain distance when
the vehicle is moving in reverse at low speeds.
Detecting sensor
OTM070081L
[1] : Rear ultrasonic sensors
Refer to the picture above for the
detailed location of the detecting
sensors.
Reverse Parking Distance
Warning Settings
Warning Volume
6HOHFW
S'ULYHUDVVLVWDQFH
Ÿ:DUQLQJ
YROXPH
TIURPWKHFOXVWHURULQIRWDLQPHQW
system Settings menu to change the
:DUQLQJYROXPHWR
S+LJK
T
S0HGLXP
T
RU
S/RZ
TIRU5HYHUVH3DUNLQJ'LVWDQFH
Warning.
If you change the Warning Volume,
the warning volume of other Driver
Assistance systems may change.
Reverse Parking Distance
Warning Operation
Operating button
OTM070082L
Parking Distance Warning Off button

[ Press the Parking Distance Warning OFF ( ) button to turn on Reverse
Parking Distance Warning. Press the
button again to turn off the function.

[ When Reverse Parking Distance
Warning is off (button indicator
light on), if you shift the gear to R
(Reverse), Reverse Parking Distance
Warning will automatically turn on
(button indicator light off).

Driver Assistance System
7-122
Reverse Parking Distance Warning
[
Reverse Parking Distance Warning
will operate when the gear is in R
(Reverse).

[ Reverse Parking Distance Warning
detects a person, animal or object in
WKHUHDUZKHQWKHYHKLFOH
TVUHDUZDUG
speed is below 10 km/h (6 mph).
Distance
from object Warning
indicator when
driving
backward Warning
sound
60~120 cm
(24~48 in.)Buzzer beeps
intermittently
30~60 cm (12~24 in.)
Beeps more frequently
within 30 cm (12 in.)
Beeps
continuously

[ The corresponding indicator will
illuminate when ever each ultrasonic
sensor detects a person, animal or
object in its sensing range. Also an
audible warning will sound.

[ When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.

[ The shape of the indicator in the
illustration may differ from the actual
vehicle.
Reverse Parking Distance
Warning Malfunction and
Precautions
Reverse Parking Distance Warning
malfunction
After starting the engine, a beep will
sound when the gear is shifted to R
(Reverse) to indicate Reverse Parking
Distance Warning is operating properly.
However, if one or more of the following
occurs, first check whether the ultrasonic
sensor is damaged or blocked with
foreign material.
If it still does not work properly, have
the vehicle inspected by an authorized
HYUNDAI dealer.
[The audible warning does not sound.

[ The buzzer sounds intermittently.

[ 7KH
S3DUNLQJVHQVRUHUURURUEORFNDJH
T warning message appears on the
cluster.
OTM070218L

07
7-123
WARNING

[ Reverse Parking Distance Warning
is a supplemental system. The
operation of Reverse Parking
Distance Warning can be affected
by several factors (including
environmental conditions). It is the
responsibility of the driver to always
check the rear view before and while parking.

[ Your new vehicle warranty does not
cover any accidents or damage to
the vehicle due to the malfunction of
Reverse Parking Distance Warning.

[ Pay close attention when driving
near objects, pedestrians, and
especially children. Some objects
may not be detected by the
ultrasonic sensors, due to the objects
distance, size or material, all of
which can limit the effectiveness of
the sensor.
Limitations of Reverse Parking
Distance Warning
[ Reverse Parking Distance Warning
may not operate normally when:
- Moisture is frozen to the sensor
- Sensor is covered with foreign material, such as snow or water
(Reverse Parking Distance Warning
will operate normally when such
foreign material are removed.)

- The weather is extremely hot or cold
- The sensor or sensor assembly is disassembled
- The surface of the sensor is pressed hard or an impact is applied with a
hard object
- The surface of the sensor is scratched with a sharp object
- The sensors or its surrounding area is directly sprayed with high
pressure washer
[
Reverse Parking Distance Warning
may malfunction when:

- Heavy rain or water spray is present
- Water flows on the surface of the sensor
- $IIHFWHGE\DQRWKHUYHKLFOH
TV
sensors
- The sensor is covered with snow
- Driving on uneven road, gravel roads or bushes
- Objects that generates ultrasonic waves are near the sensor
- Installing the license plate differently from the original location
- The vehicle bumper height or ultrasonic sensor installation has been modified
- Attaching equipments or accessories around the ultrasonic
sensors

[ The following objects may not be
detected:

- Sharp or slim objects, such as ropes,
chains or small poles.
- Objects, which tend to absorb sensor frequency, such as clothes,
spongy material or snow.
- Objects smaller than 100 cm (40 in.) in length and narrower than 14 cm
(6 in.) in diameter.
- Pedestrians, animals or objects that are very close to the ultrasonic
sensors

[ Parking Distance Warning Indicators
may be displayed differently from
the actual detected location when
the obstacle is located between the
sensors.

[ Parking Distance Warning indicator
may not occur sequentially depending
on vehicle speed or obstacle shape.

[ If Reverse Parking Distance Warning
needs repair, function is be inspected
by an authorized HYUNDAI dealer.

Driver Assistance System
7-124
)25:$5'5(9(56(3$5.,1*',67$1&(:$51,1*
ã3':
ä

ã,)(48,33('
ä
Forward/Reverse Parking Distance
Warning can help warn the driver if an
obstacle is detected within a certain
distance when the vehicle is moving
forward or in reverse at low speeds.
Detecting sensor
OTM070080
OTM070081[1] : Front ultrasonic sensors,
[2] : Rear ultrasonic sensors
Refer to the picture above for the
detailed location of the detecting
sensors.
Forward/Reverse Parking
Distance Warning Settings
Warning Volume
6HOHFW
S'ULYHUDVVLVWDQFH
Ÿ:DUQLQJ
YROXPH
TIURPWKHFOXVWHURULQIRWDLQPHQW
system Settings menu to change the
:DUQLQJYROXPHWR
S+LJK
T
S0HGLXP
T
RU
S/RZ
TIRU)RUZDUG5HYHUVH3DUNLQJ
Distance Warning.
If you change the Warning Volume,
the warning volume of other Driver
Assistance systems may change.
Parking Distance Warning Auto On
To use Parking Distance Warning Auto
On function, select ‘Driver Assistance

Ÿ3DUNLQJ6DIHW\
Ÿ3DUNLQJ'LVWDQFH
:DUQLQJ$XWR2Q
TIURPWKHFOXVWHURU
infotainment system Settings menu.

07
7-125

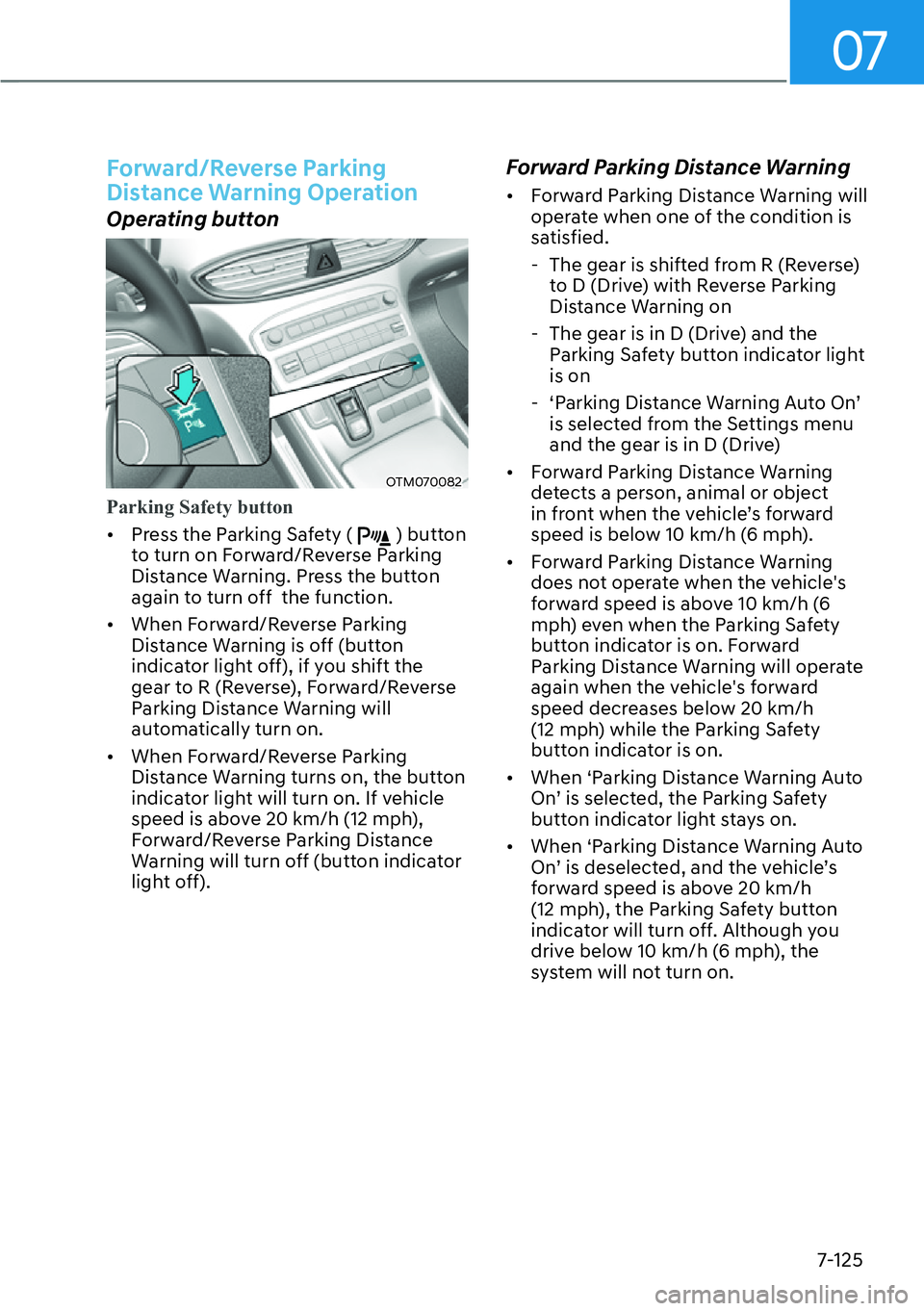

Forward/Reverse Parking
Distance Warning Operation
Operating button
OTM070082
Parking Safety button

[Press the Parking Safety ( ) button
to turn on Forward/Reverse Parking
Distance Warning. Press the button
again to turn off the function.

[ When Forward/Reverse Parking
Distance Warning is off (button
indicator light off), if you shift the
gear to R (Reverse), Forward/Reverse
Parking Distance Warning will
automatically turn on.

[ When Forward/Reverse Parking
Distance Warning turns on, the button
indicator light will turn on. If vehicle
speed is above 20 km/h (12 mph),
Forward/Reverse Parking Distance
Warning will turn off (button indicator
light off). Forward Parking Distance Warning
[
Forward Parking Distance Warning will
operate when one of the condition is
satisfied.
- The gear is shifted from R (Reverse) to D (Drive) with Reverse Parking
Distance Warning on
- The gear is in D (Drive) and the Parking Safety button indicator light is on
-
S3DUNLQJ'LVWDQFH:DUQLQJ$XWR2Q
T
is selected from the Settings menu
and the gear is in D (Drive)

[ Forward Parking Distance Warning
detects a person, animal or object
LQIURQWZKHQWKHYHKLFOH
TVIRUZDUG
speed is below 10 km/h (6 mph).

[ Forward Parking Distance Warning
does not operate when the vehicle's
forward speed is above 10 km/h (6
mph) even when the Parking Safety
button indicator is on. Forward
Parking Distance Warning will operate
again when the vehicle's forward
speed decreases below 20 km/h
(12 mph) while the Parking Safety
button indicator is on.

[ When ‘Parking Distance Warning Auto
2Q
TLVVHOHFWHGWKH3DUNLQJ6DIHW\
button indicator light stays on.

[ When ‘Parking Distance Warning Auto
2Q
TLVGHVHOHFWHGDQGWKHYHKLFOH
TV
forward speed is above 20 km/h
(12 mph), the Parking Safety button
indicator will turn off. Although you
drive below 10 km/h (6 mph), the
system will not turn on.
