2022 HYUNDAI SANTA FE HYBRID Owners Manual

Driver Assistance System
7-54
Safe Exit Assist disabled
OTM070098N
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Safe Exit
Assist.
If this occurs, the ‘Blind-spot safety
V\VWHPVGLVDEOHG5DGDUEORFNHG
T
warning message will appear on the
cluster.
Safe Exit Assist will operate properly
when such foreign material or trailer,
etc. is removed, and then the engine is
restarted.
If Safe Exit Assist does not operate
normally after it is removed, function is
inspected by an authorized HYUNDAI
dealer.
WARNING

[ Even though the warning message
does not appear on the cluster, Safe
Exit Assist may not properly operate.

[ Safe Exit Assist may not properly
operate in an area (for example,.
open terrain) where any substance
are not detected right after the engine is turned on, or when the
detecting sensor is blocked with
foreign material right after the engine is turned on.
CAUTION
Turn off Safe Exit Assist to install a
trailer, carrier, etc., or remove the
trailer, carrier, etc. to use Safe Exit
Assist.
Limitations of Safe Exit Assist
Safe Exit Assist may not operate properly,
or it may operate unexpectedly under the
following circumstances:
[ Getting out of the vehicle where trees
or grass are overgrown

[ Getting out of the vehicle where the
road is wet

[ The approaching vehicle is very fast or
very slow
For more details on the limitations of
the rear corner radar, refer to “Blind-
Spot Collision-Avoidance Assist (BCA)”
section in chapter 7.
WARNING

[ Safe Exit Assist may not operate
normally if interfered by strong
electromagnetic waves.

[ Safe Exit Assist may not operate
for 3 seconds after the vehicle is
started, or the rear corner radars are
initialized.

07
7-55
Basic function
Driver Attention Warning can help
determine the driver's attention level by
analyzing driving pattern, driving time,
etc. while vehicle is being driven. Driver
Attention Warning will recommend a
EUHDNZKHQWKHGULYHU
TVDWWHQWLRQOHYHO
falls below a certain level.
Leading Vehicle Departure Alert function
Leading Vehicle Departure Alert function
will inform the driver when the front
vehicle departs from a stop.
Detecting sensor
OTMPH071001N
[1] : Front view camera
The front view camera is used to help
detect driving patterns and front vehicle
departure while vehicle is being driven.
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
Always keep the front view camera in
good condition to maintain optimal
performance of Driver Attention
Warning.
For more details on the precautions
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
Driver Attention Warning
Settings
Setting features
OTM070188N
Driver Attention Warning
With the engine on, select or deselect

S'ULYHU$VVLVWDQFH
Ÿ'$:'ULYHU
$WWHQWLRQ:DUQLQJ
TIURPWKH6HWWLQJV
menu to set whether or not to use each function. - ,I
S,QDWWHQWLYH'ULYLQJ:DUQLQJ
TLV
selected, Driver Attention Warning will
LQIRUPWKHGULYHUWKHGULYHU
TVDWWHQWLRQ
level and will recommend taking a
break when the level falls below a
certain level.
OTM070189N
Leading Vehicle Departure Alert
-,I
S/HDGLQJ9HKLFOH'HSDUWXUH$OHUW
T
is selected, Driver Attention Warning
will inform the driver when a detected
vehicle in front in front departs from
a stop.
'5,9(5$77(17,21:$51,1*
ã'$:
ä

Driver Assistance System
7-56
OTM070140N
Warning timing
With the engine on, select ‘Driver
DVVLVWDQFH
Ÿ:DUQLQJWLPLQJ
TIURPWKH
Settings menu to change the initial
warning activation time for Driver
Attention Warning.
When the vehicle is first delivered,
:DUQLQJWLPLQJLVVHWWR
S1RUPDO
T,I\RX
change the Warning timing, the warning
time of other Driver Assistance systems
may change.
Information
If the engine is restarted, Driver Attention
Warning will maintain the last setting.
Driver Attention Warning
Operation
Basic function
Display and warning
The basic function of Driver Attention
Warning is to inform the driver of their

S$WWHQWLRQ/HYHO
TDQGWRZDUQWKHGULYHUWR

S&RQVLGHUWDNLQJDEUHDN
T
Attention level
„Function „Disabled
OTM070102LOTM070106N
„Attentive driving„Swaying warning
OTMPH071008NOTM070191N

[ The driver can monitor his/her driving
conditions on the cluster.
- :KHQWKH
S6ZD\LQJZDUQLQJ
TLV
deselected from the Settings menu,

S6\VWHP2II
TLVGLVSOD\HG
- Driver Attention Warning will operate when vehicle speed is
between 0~180 km/h (0~110 mph).
- When vehicle speed is not within the operating speed, the message
'Disabled' will be displayed.

07
7-57

[ 7KHGULYHU
TVDWWHQWLRQOHYHOLVGLVSOD\HG
on the scale of 1 to 5. The lower the
level is, the more inattentive the driver is.

[ The level decreases when the driver
does not take a break for a certain
period of time.
Taking a break
OTM070105L

[ 7KH
S&RQVLGHUWDNLQJDEUHDN
TPHVVDJH will appear on the cluster and an
audible warning will sound to suggest
that the driver take a break, when the
GULYHU
TVDWWHQWLRQOHYHOLVEHORZ

[ Driver Attention Warning will not
suggest a break when the total driving
time is shorter than 10 minutes or 10
minutes has not passed after the last
break was suggested.
WARNING
For your safety, change the Settings
after parking the vehicle at a safe
location.
CAUTION

[ Driver Attention Warning may
suggest a break depending on the
driver’s driving pattern or habits,
even if the driver doesn’t feel
fatigued.

[ Driver Attention Warning is a
supplemental system and may not be
able to determine whether the driver
is inattentive.

[ The driver who feels fatigued should
take a break at a safe location, even
though there is no break suggestion
by Driver Attention Warning.
Information

[ You may change settings from the
instrument cluster (User Settings) or
infotainment system (Vehicle Settings),
whichever option that is provided with
your vehicle. For more details, see
"User Settings" section in chapter 4, or
"Vehicle Settings" section in supplied Infotainment Manual.

[ Driver Attention Warning will reset the
last break time to 00:00 in the following situations:
- The engine is turned off
- The driver unfastens the seat belt
and opens the driver’s door
- The vehicle is stopped for more than 10 minutes

[ When the driver resets Driver Attention
Warning, the last break time is set to
00:00 and the driver’s attention level is set to High.

Driver Assistance System
7-58

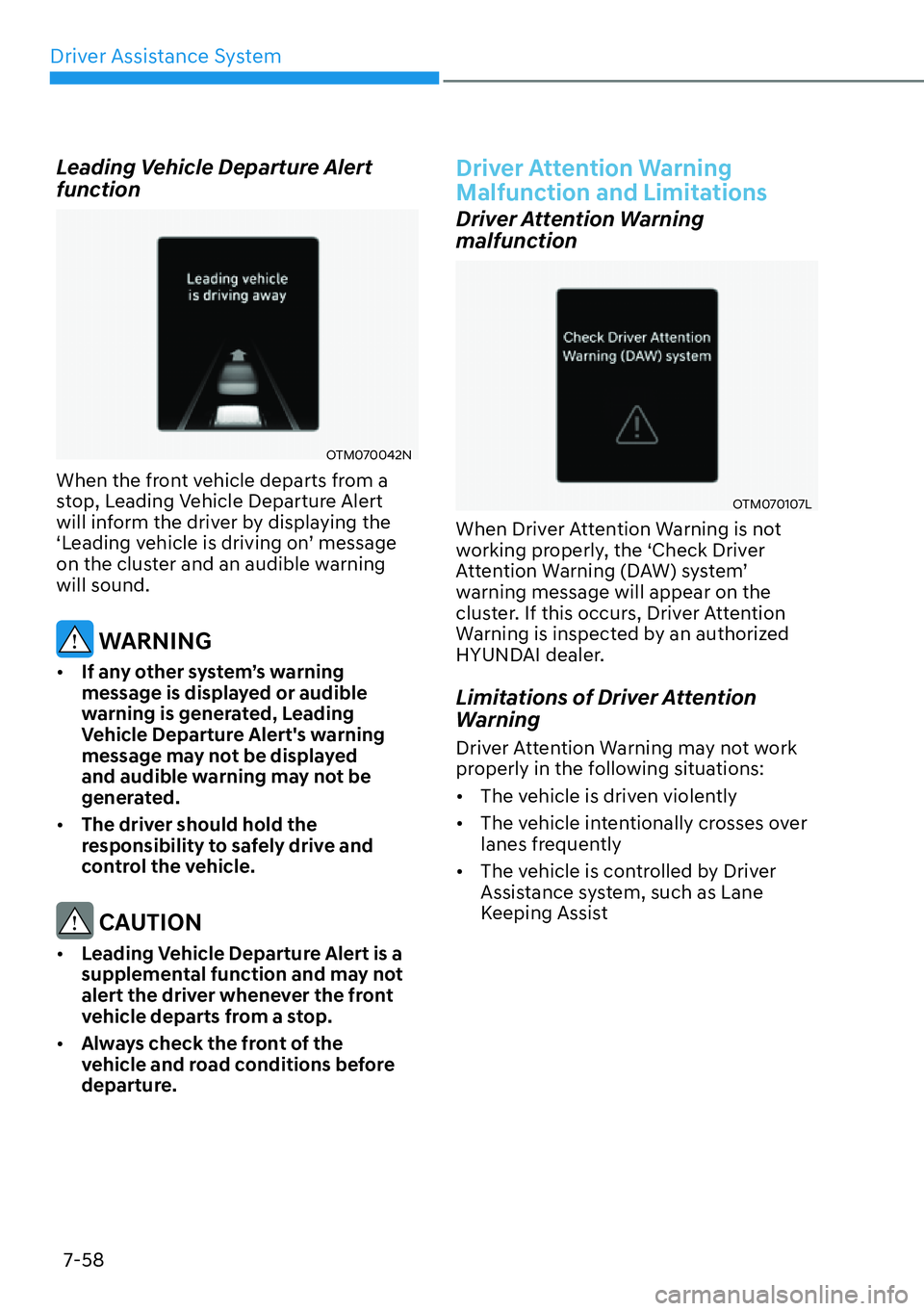

Leading Vehicle Departure Alert
function
OTM070042N
When the front vehicle departs from a
stop, Leading Vehicle Departure Alert
will inform the driver by displaying the

S/HDGLQJYHKLFOHLVGULYLQJRQ
TPHVVDJH
on the cluster and an audible warning will sound.
WARNING

[ If any other system’s warning
message is displayed or audible
warning is generated, Leading
Vehicle Departure Alert's warning
message may not be displayed
and audible warning may not be
generated.

[ The driver should hold the
responsibility to safely drive and
control the vehicle.
CAUTION

[ Leading Vehicle Departure Alert is a
supplemental function and may not
alert the driver whenever the front
vehicle departs from a stop.

[ Always check the front of the
vehicle and road conditions before
departure.
Driver Attention Warning
Malfunction and Limitations
Driver Attention Warning
malfunction
OTM070107L
When Driver Attention Warning is not
working properly, the ‘Check Driver
$WWHQWLRQ:DUQLQJ'$:V\VWHP
T
warning message will appear on the
cluster. If this occurs, Driver Attention
Warning is inspected by an authorized
HYUNDAI dealer.
Limitations of Driver Attention
Warning
Driver Attention Warning may not work
properly in the following situations:
[ The vehicle is driven violently

[ The vehicle intentionally crosses over
lanes frequently

[ The vehicle is controlled by Driver
Assistance system, such as Lane
Keeping Assist

07
7-59

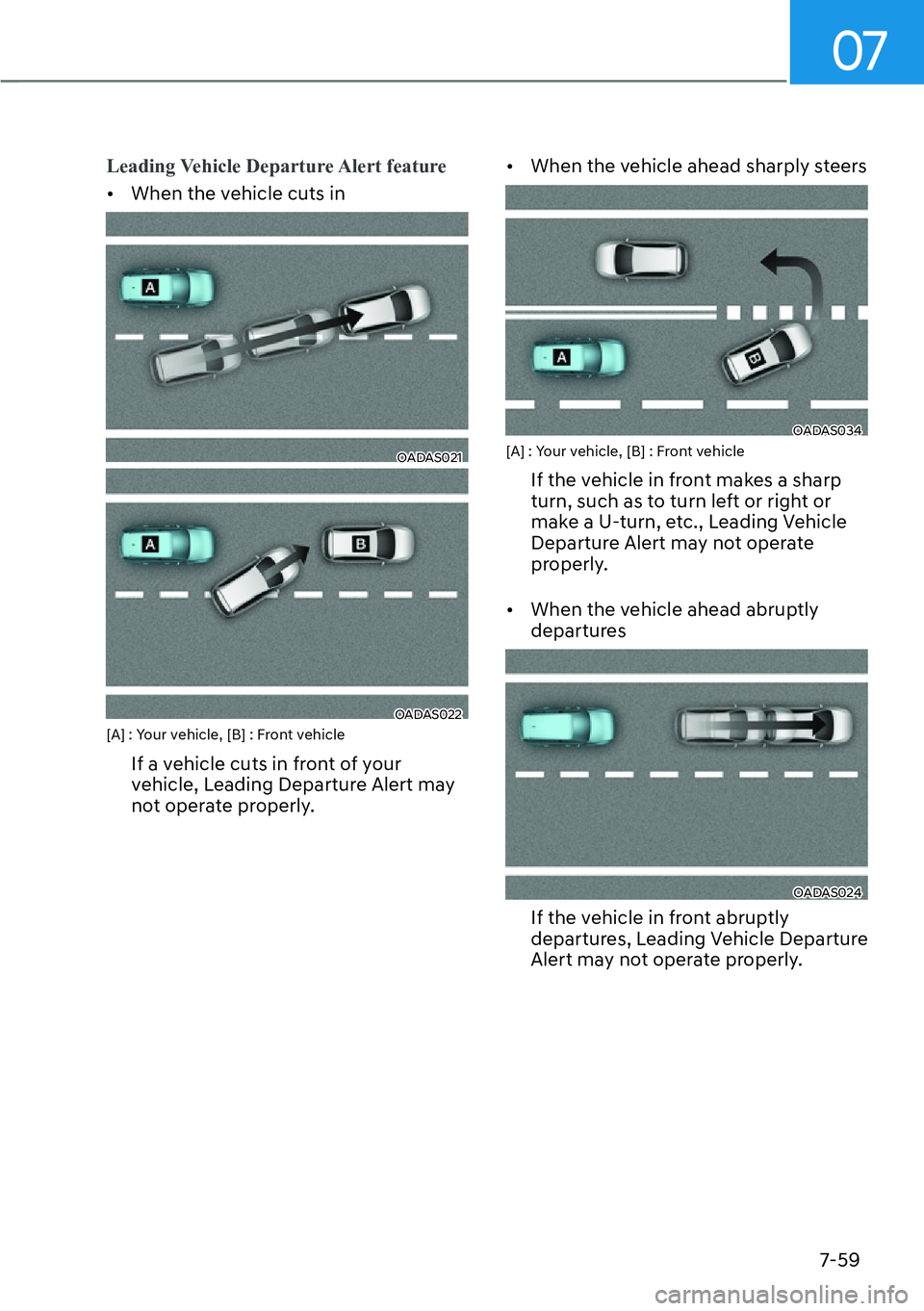

Leading Vehicle Departure Alert feature

[When the vehicle cuts in
OADAS021
OADAS022
[A] : Your vehicle, [B] : Front vehicle
If a vehicle cuts in front of your
vehicle, Leading Departure Alert may
not operate properly.
[
When the vehicle ahead sharply steers
OADAS034
[A] : Your vehicle, [B] : Front vehicle
If the vehicle in front makes a sharp
turn, such as to turn left or right or
make a U-turn, etc., Leading Vehicle
Departure Alert may not operate
properly.

[ When the vehicle ahead abruptly
departures
OADAS024
If the vehicle in front abruptly
departures, Leading Vehicle Departure
Alert may not operate properly.

Driver Assistance System
7-60

[

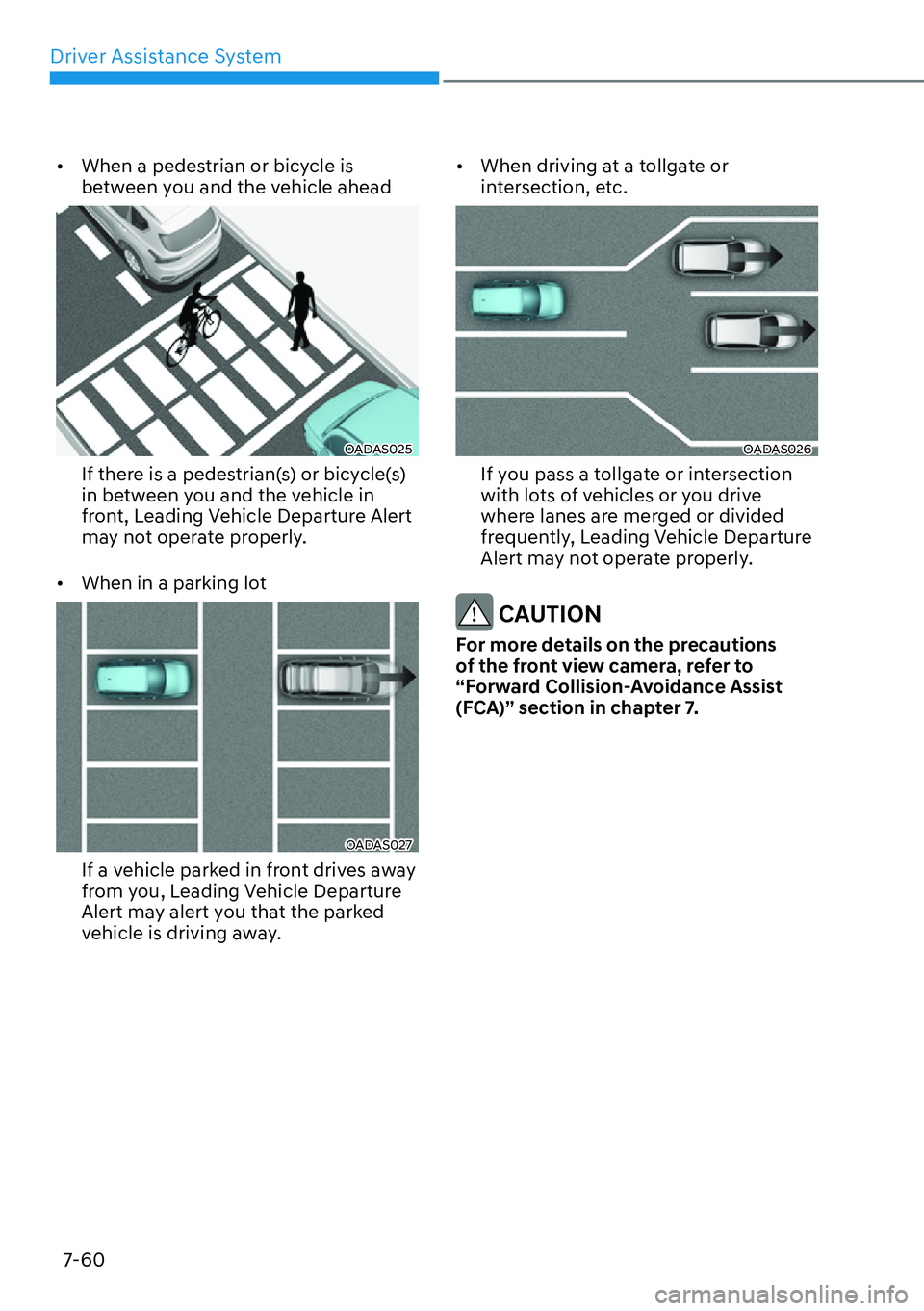

When a pedestrian or bicycle is
between you and the vehicle ahead
OADAS025
If there is a pedestrian(s) or bicycle(s)
in between you and the vehicle in
front, Leading Vehicle Departure Alert
may not operate properly.

[ When in a parking lot
OADAS027
If a vehicle parked in front drives away
from you, Leading Vehicle Departure
Alert may alert you that the parked
vehicle is driving away.
[
When driving at a tollgate or
intersection, etc.
OADAS026
If you pass a tollgate or intersection
with lots of vehicles or you drive
where lanes are merged or divided
frequently, Leading Vehicle Departure
Alert may not operate properly.
CAUTION
For more details on the precautions
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.

07
7-61
„Left side„Right side
OTMPH071009COTMPH071010C
Blind-Spot View Monitor displays the
rear blind spot area of the vehicle in the
cluster when the turn signal is turned on
to help change lanes.
Detecting sensor
OTMPH071001N
[1], [2] : SVM-side view camera (camera located at bottom of the mirror)
Refer to the picture above for the
detailed location of the detecting
sensors.
Blind-Spot View Monitor
Settings
Setting functions for the system
Blind-Spot View
With the engine on, select ‘Driver
DVVLVWDQFH
Ÿ%OLQGVSRWVDIHW\
Ÿ%OLQG
VSRWYLHZ
TIURPWKH6HWWLQJVPHQXWR
turn on Blind-Spot View Monitor and
deselect to turn off Blind-Spot View
Monitor.
System Operation
Operating switch
OIG046417
Turn signal switch
Blind-Spot View Monitor will turn on and
off when the turn signal is turned on and
off.
%/,1'
Ø63279,(:021,725
ã%90
ä
ã,)(48,33('
ä
