Vehicle Information
2-14

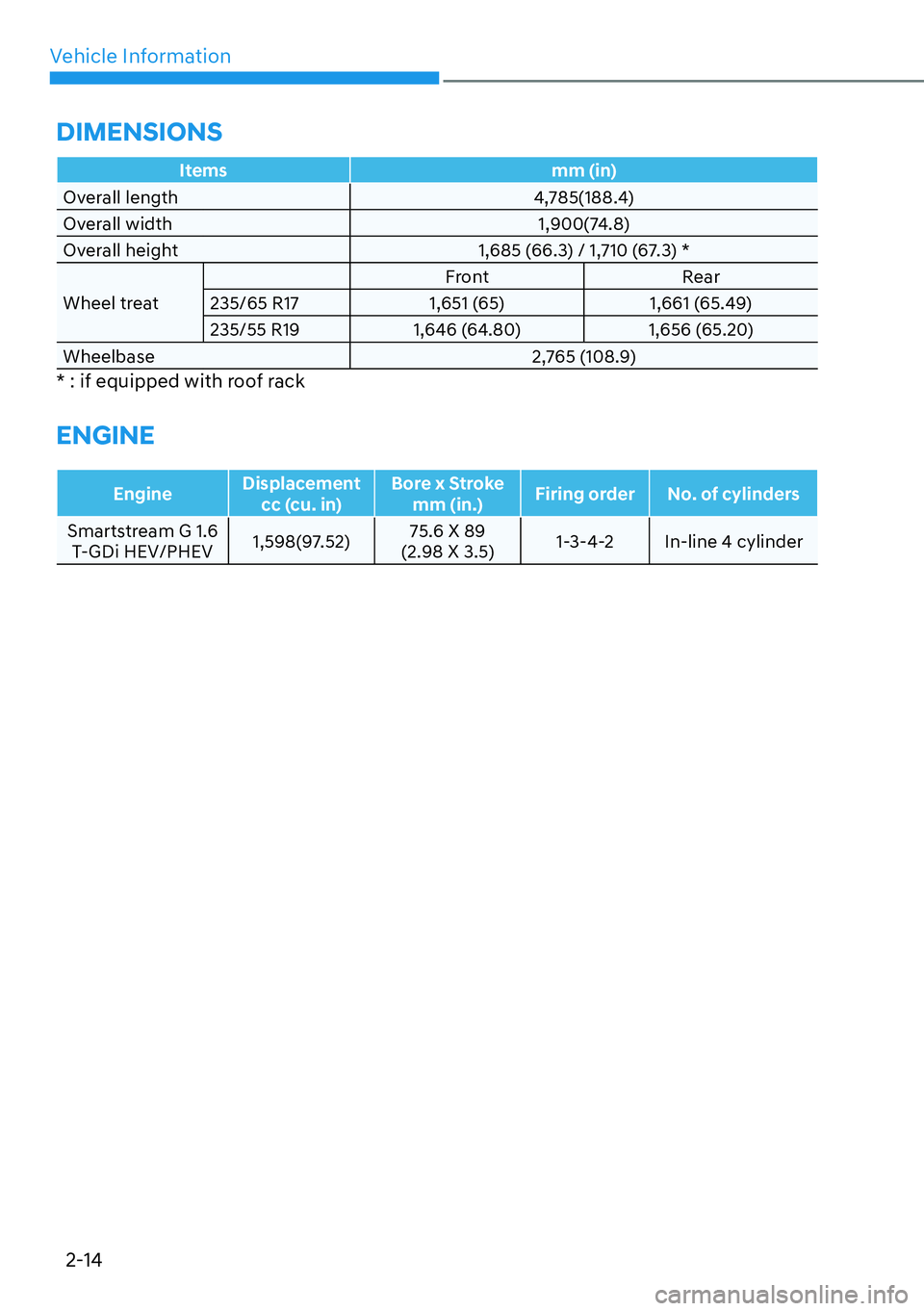

Itemsmm (in)
Overall length 4,785(188.4)
Overall width 1,900(74.8)
Overall height 1,685 (66.3) / 1,710 (67.3) *
Wheel treat Front Rear
235/65 R17 1,651 (65) 1,661 (65.49) 235/55 R19 1,646 (64.80) 1,656 (65.20)
Wheelbase 2,765 (108.9)
* : if equipped with roof rack
ENGINE
Engine Displacement
cc (cu. in) Bore x Stroke
mm (in.) Firing order No. of cylinders
Smartstream G 1.6
T-GDi HEV/PHEV 1,598(97.52)75.6 X 89
(2.98 X 3.5) 1-3-4-2 In-line 4 cylinder
',0(16,216

02
2-15
Light bulb Bulb type Wattage
FrontType A
Headlamp
High LED LED
Low LED LED
Daytime running lamp (DRL) / position lamp LED LED
Turn signal lamp PY27W 27
Side marker lamp LED LED
Type B Headlamp
High LED LED
Low LED LED
Daytime running lamp (DRL) / position lamp LED LED
Turn signal lamp LED LED
Side marker lamp LED LED
Turn signal lamp (Outside mirror) LED LED
Rear Type A
Tail lamp W5W 5
Tail/Stop lamp P21/5W 5/21 Turn signal lamp P28/8W 28
Side marker lamp W5W 5
Type B Tail lamp LED LED
Stop lamp LED LED
Turn signal lamp LED LED
Side marker lamp LED LED
Reverse lamp W16W 16
License plate lamp W5W 5
High mounted stop lamp LED LED
Interior Map lamp
Type A W10W 10
Type B LED LED
Room lamp FESTOON 10
Personnal lamp LED LED
Glove box lamp W5W 5
Sunvisor lamp FESTOON 5
Luggage compartment lamp FESTOON 10
%8/%:$77$*(

Vehicle Information
2-16
Item Tire sizeWheel
size Inflation pressure
bar (kPa, psi) Wheel lug
nut torque
kgf·m (N·m)
Normal load Maximum load
Front Rear Front Rear
Full size tire HEV
235/65 R17 7.0J X 17
240(35)255
(37) 275
(40) 11~13
(107~127)
235/55 R19 7.5J X 19
PHEV 235/55 R19 7.5J X 19 248(36)
Compact spare tire T135/90 D17 4.0B x 17 420 (60)
NOTICE

[
It is permissible to add 20 kPa (3 psi) to the standard tire pressure specification if
colder temperatures are expected soon. Tires typically lose 7 kPa (1 psi) for every
7°C (12°F) temperature drop. If extreme temperature variations are expected,
recheck your tire pressure as necessary to keep them properly inflated.

[ An air pressure generally decreases, as you drive up to a high-altitude area above
sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures in
advance. If necessary, inflate them to a proper level (Air inflation per altitude: +10
kPa/1 km (+2.4 psi/1 mile)).

[ Must do not exceed maximum inflation pressure shown on equipped tire
sidewall.
CAUTION
When replacing tires, ALWAYS use the same size, type, brand, construction and
tread pattern supplied with the vehicle. If not, it can damage the related parts or
make it work irregularly.
7,5(6$1':+((/6

02
2-17
Items Weight of volume Classification
Refrigerantg (oz.)R1234yf Front 650 (22.93) ± 25 (0.88)
R-1234yf
Rear 875 (30.87) ± 25 (0.88)
Compressor lubricant g (oz.) Front 150 (5.29) ± 10 (0.35)
POE
Front + Rear 230 (8.11)± 10 (0.35)
For more details, you contact an authorized HYUNDAI dealer.
92/80($1':(,*+7
Items Smartstream G1.6
T-GDi HEV Smartstream G1.6
T-GDi PHEV
AWD AWD
Gross vehicle weight Kg (lbs.)2,530 (5,578) 2,650(5,842)
Luggage volume
Items 5-seater
SAE

bFX)W BEHIND 1ST ROW
2,041 (72.1) ~ *2,396 (84.6)
(*Forward and upright seat position)
BEHIND 2ND ROW 1,032 (36.4) ~ 1,075 (37.9)
(*upright seat position)
$,5&21',7,21,1*6<67(0

Vehicle Information
2-18
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil
*1
*2

(drain and refill) Recommends
4.8
b
(5.1 US qt.) SAE 0W-20, API SN PLUS/SP or
ILSAC GF-6
Automatic transmission fluid
6

b
(6.3 US qt.) SP4M-1,
S-OIL ATF SP4M-1
Coolant
b86TWMixture of antifreeze and water
(Phosphate-based Ethylene glycol
coolant for aluminum radiator)
Inverter Coolant HEV

b
(5.23 US
qt.) Contact an authorized HMC dealer/service partner *4
PHEV
b
(7.55 US qt.)
Rear differential oil (AWD) 0.53 ~ 0.63

b
(0.56 ~ 0.67 US qt.) HYPOID GEAR OIL API GL-5, SAE
75W/85 (SK HCT-5 GEAR OIL
75W/85 or EQUIVALENT)
Transfer case oil (AWD) a
b
(0.56 ~ 0.67 US qt.) HYPOID GEAR OIL API GL-5, SAE
75W/85 (SK HCT-5 GEAR OIL
75W/85 or EQUIVALENT)
Brake fluid *3
As required SAE J1704 DOT-4 LV, FMVSS 116
DOT-4, ISO4925 CLASS-6
Fuel HEV

b
(70.8 US qt.) Refer to “Fuel requirements” in
chapter 1.
PHEV
b
(49.7 US qt.)
*1 : Refer to the recommended SAE viscosity numbers on the next page.
*2 : Requires < API SN PLUS (or above) Full synthetic> grade engine oil.
*3 : To maintain the best braking performance and ABS/ESC performance, You use
genuine brake fluid that conform to specifications.
*4 : Different type of coolant or water may damage the electrical component.
5(&200(1'('/8%5,&$176$1'&$3$&,7,(6

02
2-19
Recommended SAE Viscosity Number
CAUTION
Always be sure to clean the area around any filler plug, drain plug, or dipstick before
checking or draining any lubricant. This is especially important in dusty or sandy
areas and when the vehicle is used on unpaved roads. Cleaning the plug and dipstick
areas will prevent dirt and grit from entering the engine and other mechanisms that could be damaged.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather
operating (engine start and engine oil flowability). Lower viscosity engine oils can
provide better fuel economy and cold weather performance, however, higher viscosity
engine oils are required for satisfactory lubrication in hot weather. Using oils of any
viscosity other than those recommended could result in engine damage.
When choosing an oil, consider the range of temperature your vehicle will be operated
in before the next oil change. Proceed to select the recommended oil viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature °C -30 -20 -10 0 10 20 30 40 50
(°F) -10 0 20 40 60 80 100 120
Smartstream G 1.6 T-GDi HEV
0W-200W-20
Smartstream G 1.6 T-GDi PHEV0W-200W-20
An engine oil displaying this API Certification Mark conforms to
the international Lubricant Specification Advisory Committee
(ILSAC). It is recommended to only use engine oils that uphold
this API Certification Mark.

Vehicle Information
2-20
9(+,&/(,'(17,),&$7,21 180%(5
ã9,1
ä
„Frame number
OTMA088011
The vehicle identification number (VIN)
is the number used in registering your
vehicle and in all legal matters pertaining
to its ownership, etc. The number is punched on the floor
under the passenger seat. To check the
number, open the cover.
„VIN label (if equipped)
OTM010023L
The VIN is also on a plate attached to
the top of the left side dashboard. The
number on the plate can easily be seen
through the windshield from outside.
9(+,&/(&(57,),&$7,21 /$%(/
OTMPH011021N
The vehicle certification label attached
on the driver’s (or front passenger’s)
side center pillar gives the vehicle
identification number (VIN).

02
2-21
7,5(63(&,),&$7,21$1' 35(6685(/$%(/
OTM010024L
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your vehicle.
(1*,1(180%(5
OTMH010020
The engine number is stamped on the
engine block as shown in the drawing.
$,5&21',7,21(5
&2035(6625/$%(/
OHI088008L
A compressor label informs you the type
of compressor your vehicle is equipped with such as model, supplier part
number, production number, refrigerant
(1) and refrigerant oil (2).
