2022 HYUNDAI SANTA FE HYBRID Owners Manual

09
9-47
Instrument panel fuse panel
Fuse NameFuse Rating Circuit Protected
MODULE 4 7.5AData Link Connector, Stop Lamp Switch, Driver Door
Area Unit IAU (Identity Authentication Unit)
AIR BAG 1 15ASRS Control Module, Passenger Occupant Detection Sensor
IG3 2 10AInstrument Cluster, Front A/C Control Module,
CDM Unit,Electronic A/C Compressor, Audio, A/V &
Navigation Head Unit
BRAKE
SWITCH 7.5A IBU, Stop Lamp Switch
IG3 4 15A Battery System Assembly, OBC Unit
OBC 10A OBC Unit
MODULE 9 15AFront A/C Control Module, Driver Door Area Unit, Power
Tailgate Unit,Rear Occupant Alert (ROA) Sensor, Audio,
A/V & Navigation Head Unit,Driver IMS Control Module,
Head-Up Display, Instrument Cluster,Driver/Passenger
Power Outside Mirror,Electronic Refrigerant Reduced
Pressure Valve
MODULE 10 10ARear Corner Radar LH/RH, Front Wireless Charger, VESS Unit
A/BAG IND 10A Overhead Console Assembly, Instrument Cluster
FUEL LID10ACrash Pad Switch, ICM Relay Box (Fuel Lid Lock/Unlock
Relay)
IBU1 7.5A IBU
MODULE 2 7.5AAC Inverter Outlet, AC Inverter Module, Front Air
Ventilation Control Module,Front Seat Warmer Control
Module, Rear Seat Heater LH/RH
MODULE 8 7.5AHazard Switch, Mood Lamp, Rain Sensor, Mood Lamp
Unit,Mood Lamp #1/#2, Driver/Passenger Smart Key
Outside Handle,Driver/Passenger Power Outside Mirror,
Data Link Connector
S/HEATERDRV/ PASS 20A
Front Air Ventilation Control Module, Front Seat Warmer
Control Module
AIR BAG 2 15A SRS Control Module
E-SHIFTER1 10A Electronic Shift Dial
E-SHIFTER2 7.5A Electronic Shift Dial

Maintenance
9-48
Fuse NameFuse Rating Circuit Protected
MODULE 5 7.5ALane Departure Warning Unit, Crash Pad Switch,
IBU,AWD ECU, VESS Unit, Upper Console Switch,Parking
Collision Avoidance Assist Unit, Surround View Monitor Unit
IG3 3 10A HPCU, SUC
IBU 2 15AIBU, BLE (Bluetooth Low Energy) Unit, IAU (Identity
Authentication Unit),Driver/Passenger Smart Key Outside Handle
SUNROOF 2 20A Panorama Sunroof
MODULE 1 7.5A IBU, IAU (Identity Authentication Unit)
IG3 1 20A ICM Relay Box (IG3 Relay)
P/WINDOW RH 25Aassenger Safety Power Window Module,Rear Power
Window Switch RH, Rear Safety Power Window RH
IG3 5 10AElectronic Water Pump (Battery), Electronic Water Pump (HEV)
RR SEAT(LH) 25A Rear Seat Heater LH
CLUSTER 7.5A Instrument Cluster, Head Up Display
MDPS 10A MDPS Unit
A/C 7.5AE/R Junction Block (Blower Relay, PTC Heater
Relay#1/#2),Front A/C Control Module
CHILD LOCK 15A ICM Relay Box (Child Lock/Unlock Relay)
DOOR LOCK 20ADoor Lock Relay, Door Unlock Relay, Tailgate Relay,
Driver Door Unlock Relay
SUNROOF1 20A Panorama Sunroof
P/WINDOW LH 25ADriver Safety Power Window Module, Rear Power
Window Switch LH,Rear Safety Power Window LH
MODULE 3 7.5A IBU
MODULE 6 7.5AAudio, A/V & Navigation Head Unit, A/V & Navigation
Keyboard,Front Wireless Charger, Electro Chromic
Mirror,Overhead Console Assembly, Rear Seat Heater
LH/RH,Driver IMS Control Module, Front Seat Warmer
Control Module,Front Air Ventilation Control Module
WASHER 15A Multifunction Switch
CHARGERLOCK 10ACDM Unit, ICM Relay Box (Charger Connector Lock/
Unlock Relay)

09

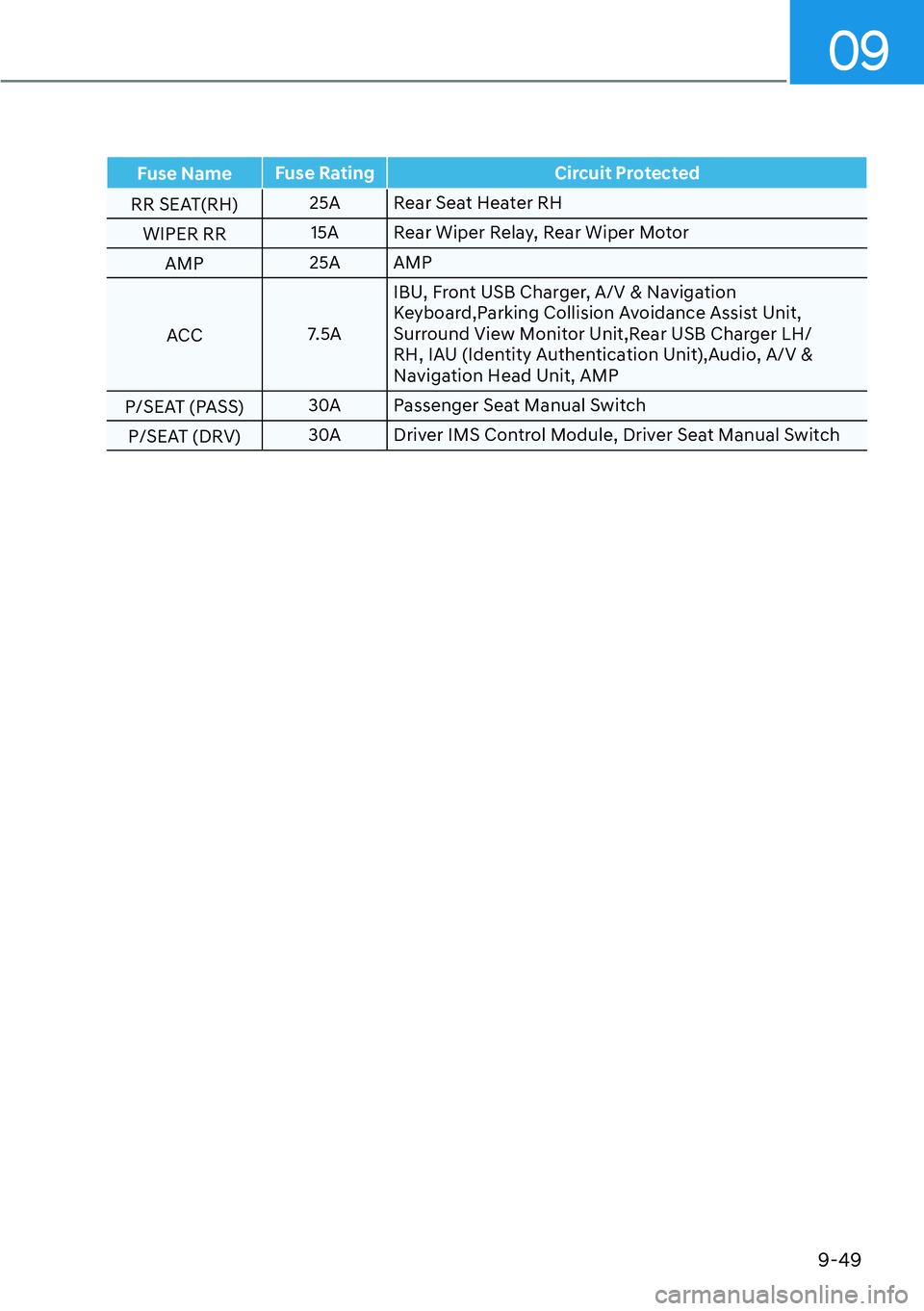

9-49
Fuse NameFuse Rating Circuit Protected
RR SEAT(RH) 25A Rear Seat Heater RH
WIPER RR 15A Rear Wiper Relay, Rear Wiper Motor
AMP 25A AMP
ACC 7.5AIBU, Front USB Charger, A/V & Navigation
Keyboard,Parking Collision Avoidance Assist Unit,
Surround View Monitor Unit,Rear USB Charger LH/
RH, IAU (Identity Authentication Unit),Audio, A/V &
Navigation Head Unit, AMP
P/SEAT (PASS) 30A Passenger Seat Manual Switch
P/SEAT (DRV) 30A Driver IMS Control Module, Driver Seat Manual Switch

Maintenance

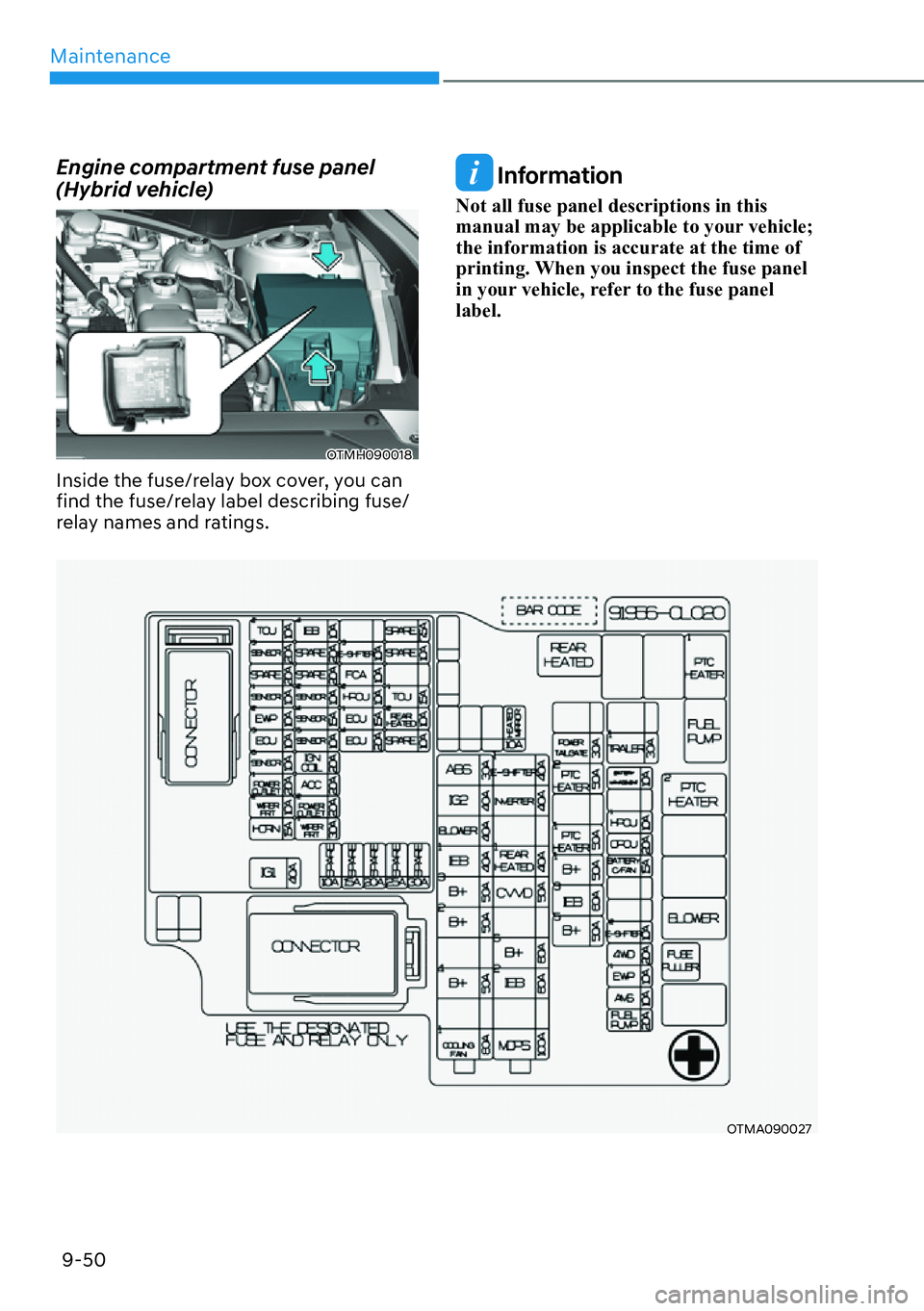

9-50
Engine compartment fuse panel
(Hybrid vehicle)
OTMH090018
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle; the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel label.
OTMA090027

09
9-51
Engine compartment fuse panel
Type Fuse NameFuse
Rating Circuit Protected
MULTI
FUSE 1 (10P) C/FAN 1
80A Cooling Fan Controller
B+4 50AICU Junction Block
(Fuse – F16/F17/F26/F27/F36/F46)
B+2 50AICU Junction Block (IPS 8 SPOC+/IPS 11/IPS 13/IPS 14/IPS 15)
B+3 50AICU Junction Block
(Fuse – F19/F29/F38/F39/F48/F49)
IEB 1 40A IEB Unit
BLOWER 40A RLY. 9 (Blower Relay)
IG2 40A PCB Block (IG2 Relay)
ABS 30A Not Used
MULTI
FUSE 2
(10P) MDPS
100AMDPS Unit

à MDPS(Motor Driven Power Steering) is the same
as EPS(Electric Power Steering)
IEB 2 60A IEB Unit
B+6 60A PCB Block (B+)
CVVD 50A CVVD Actuator
RR HTD1 40A RLY. 1 (Rear Heated Relay)
INVERTER 40A AC Inverter Module
E-SHIFTER 1 40A SCU
FUSE HTD MIRR 10A
RLY. 1 (Rear Heated Relay), Driver/Passenger Outside
Mirror, Front A/C Control Module
B+5 50A ICU Junction Block (F4/F14/F23/F24/F33/F34/F44)
IEB 3 60A IEB Unit
B+1 50A ICU Junction Block (IPS 1 SPOC+/IPS 2/IPS 3/IPS 4/
IPS 5/IPS 6/IPS 7/ Long Term Load Latch Relay, Short
Term Load Latch elay)
PTC HEATER 1 50A
RLY. 4 (PTC Heater Relay #1)
PTC HEATER 2 50A
RLY. 6 (PTC Heater Relay #2)
POWER TAIL GATE 30A
Power Tail Gate Unit
FUEL PUMP 20A RLY. 5 (Fuel Pump Relay)

Maintenance

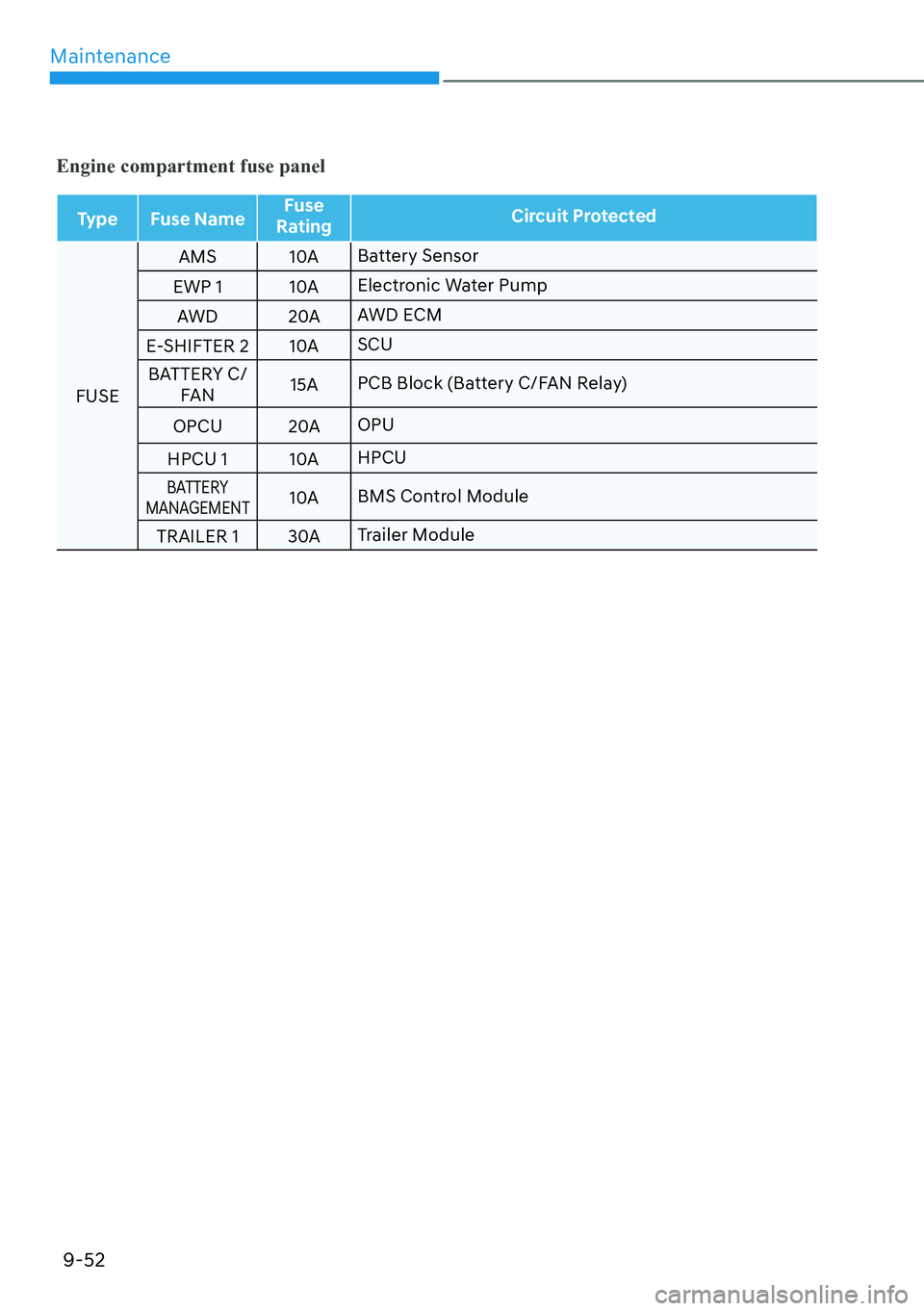

9-52
Engine compartment fuse panel
Type Fuse NameFuse
Rating Circuit Protected
FUSEAMS 10A
Battery Sensor
EWP 1 10A Electronic Water Pump
AWD 20A AWD ECM
E-SHIFTER 2 10A SCU
BATTERY C/ FAN 15A
PCB Block (Battery C/FAN Relay)
OPCU 20A OPU
HPCU 1 10A HPCU
BATTERY
MANAGEMENT10A BMS Control Module
TRAILER 1 30A Trailer Module

09

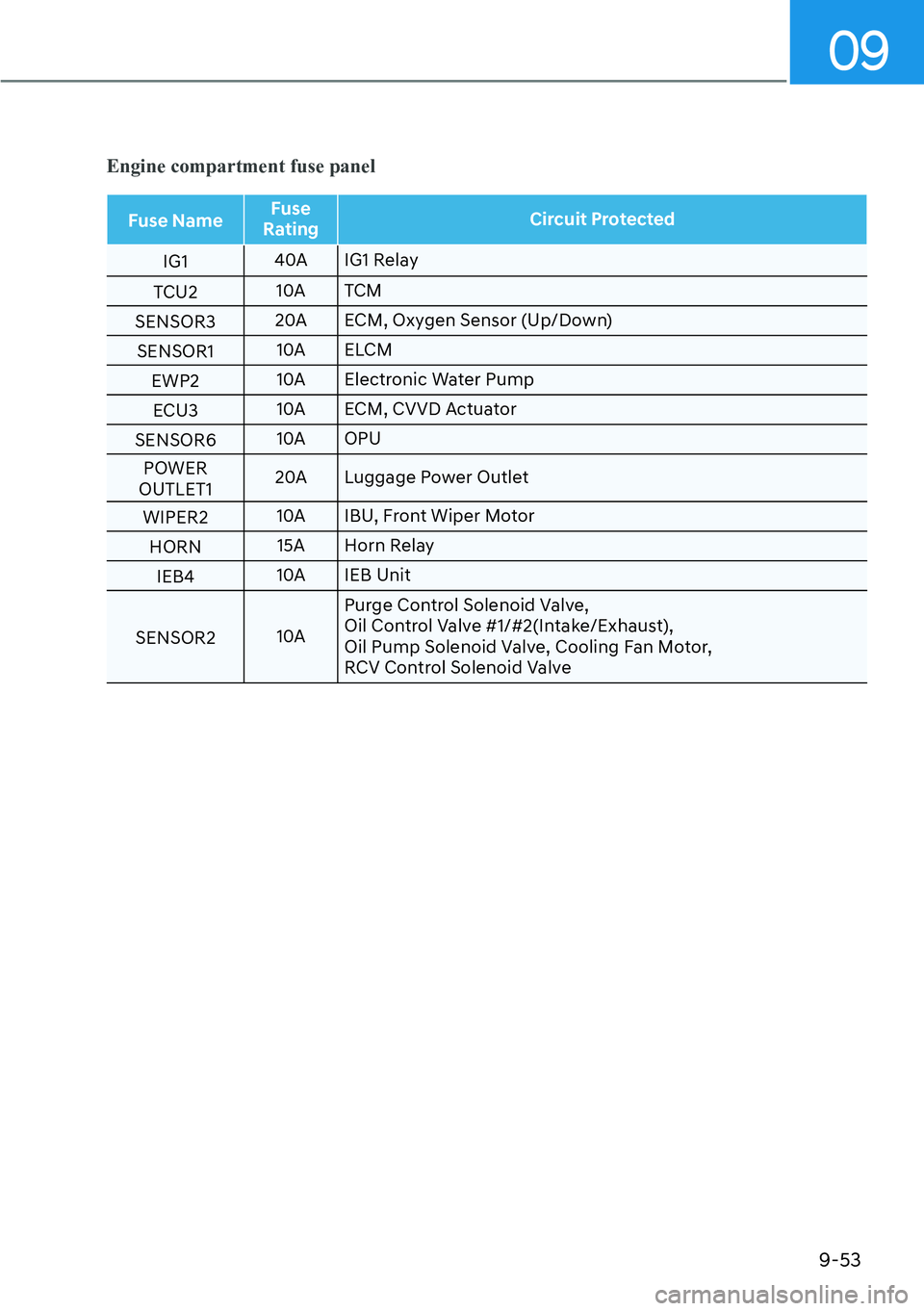

9-53
Engine compartment fuse panel
Fuse NameFuse
Rating Circuit Protected
IG1
40A IG1 Relay
TCU2 10A TCM
SENSOR3 20A ECM, Oxygen Sensor (Up/Down)
SENSOR1 10A ELCM
EWP2 10A Electronic Water Pump
ECU3 10A ECM, CVVD Actuator
SENSOR6 10A OPU
POWER
OUTLET1 20A Luggage Power Outlet
WIPER2 10A IBU, Front Wiper Motor
HORN 15A Horn Relay
IEB4 10A IEB Unit
SENSOR2 10APurge Control Solenoid Valve,
Oil Control Valve #1/#2(Intake/Exhaust),
Oil Pump Solenoid Valve, Cooling Fan Motor,
RCV Control Solenoid Valve

Maintenance
9-54
Engine compartment fuse panel
Fuse NameFuse
Rating Circuit Protected
SENSOR4
15A Active Purge Pump
SENSOR5 10A E/R Junction Block (RLY. 5)
IGN COIL 20A Ignition Coil #1/#2/#3/#4
ACC 20A ICU Junction Block (Fuse – F37/F47)
POWER
OUTLET2 20A Front Power Outlet
WIPER1 30A Front Wiper Motor, Front Wiper (Low) Relay
E-SHIFTER3 10A SCU
FCA 10A Front Radar Unit
HPCU 2 10A HPCU
ECU1 15A ECM
ECU4 20A ECM
TCU1 15A TCM
RR HTD2 10A E/R Junction Block (RLY. 1)
