2022 HYUNDAI SANTA FE HYBRID Owners Manual

Driver Assistance System
7-38

[
If the rear corner radars have been
replaced or repaired, the vehicle be
inspected by an authorized HYUNDAI
dealer.

[ Use only genuine parts to repair the
rear bumper where the rear corner
radar is located.

[ Do not apply license plate frame or
objects, such as a bumper sticker,
film or a bumper guard near the rear
corner radar.

[ Blind-Spot Collision-Avoidance
Assist may not work properly if the
bumper has been replaced, or the
surroundings of the rear corner radar has been damaged or paint has been applied.

[ If a trailer, carrier, etc. is installed,
it may adversely affect the
performance of the rear corner radar
or Blind-Spot Collision-Avoidance
Assist may not operate.
For more details on the precautions
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in this chapter..
Blind-Spot Collision-Avoidance
Assist Settings
Setting features
OTM070096N
Blind-spot safety
With the engine on, select or deselect

S'ULYHUDVVLVWDQFH
Ÿ%OLQGVSRWVDIHW\
T
from the Settings menu to set whether or
not to use each function. - ,I
S$FWLYHDVVLVW
TLVVHOHFWHG%OLQG6SRW
Collision-Avoidance Assist will warn
the driver with a warning message, an
audible warning and braking assist will be applied depending on the collision
risk levels.
- ,I
S:DUQLQJ2QO\
TLVVHOHFWHG%OLQG
Spot Collision-Avoidance Assist
will warn the driver with a warning
message and an audible warning
depending on the collision risk levels.
Braking will not be assisted.
- ,I
S2II
TLVVHOHFWHG%OLQG6SRW
Collision-Avoidance Assist will turn
off.

07
7-39
OTM070097N
When the engine is restarted with Blind-
Spot Collision-Avoidance Assist off,
WKH
S%OLQG6SRW6DIHW\6\VWHPLV2II
T
message will appear on the cluster.
,I\RXFKDQJHWKHVHWWLQJIURP
S2II
TWR

S$FWLYH$VVLVW
TRU
S:DUQLQJ2QO\
TWKH
warning light on the side view mirror will
blink for three seconds.In addition, if the engine is turned on,
when Blind-Spot Collision-Avoidance
$VVLVWLVVHWWR
S$FWLYH$VVLVW
TRU
S:DUQLQJ
2QO\
TWKHZDUQLQJOLJKWRQWKHVLGHYLHZ
mirror will blink for three seconds.
WARNING

[ If ‘Warning only’ is selected, braking
is not assisted.

[ If ‘Off’ is selected, the driver should
always be aware of the surroundings
and drive safely.
Information
If the engine is restarted, Blind-Spot
Collision-Avoidance Assist will maintain the last setting.
OTM070140N
Warning timing
With the engine on, select ‘Driver
DVVLVWDQFH
Ÿ:DUQLQJWLPLQJ
TIURPWKH
Settings menu to change the initial
warning activation time for for Blind-
Spot Collision-Avoidance Assist.
When the vehicle is first delivered,
:DUQLQJWLPLQJLVVHWWR
S1RUPDO
T,I\RX
change the Warning timing, the warning
time of other Driver Assistance systems
may change.

Driver Assistance System
7-40
OTM070141N
Warning volume
With the engine on, select ‘Driver
DVVLVWDQFH
Ÿ:DUQLQJYROXPH
TIURPWKH
Settings menu to change the Warning
9ROXPHWR
S+LJK
T
S0HGLXP
TRU
S/RZ
TIRU
Blind-Spot Collision-Avoidance Assist.
However, when Warning Volume is
turned Off, the steering wheel vibration
function will turn on if it was turned Off.
If you change the Warning volume,
the warning volume of other Driver
Assistance systems may change.
CAUTION

[ The setting of the Warning timing
and Warning volume applies to all
functions of the Blind-Spot Collision-

[ Avoidance Assist.

[ Even though ‘Normal’ is selected
for Warning timing, if vehicles
approache at high speed, the initial
warning activation time may seem
late.

[ Select ‘Late’ for Warning timing
when traffic is light and when driving
speed is slow.
Blind-Spot Collision-Avoidance
Assist Operation
Warning and control
OHY059034
Vehicle detection

[To warn the driver a vehicle is
detected, the warning light on the
side view mirror and head-up display
(if equipped) will illuminate.

[ Blind-Spot Collision-Avoidance Assist
will operate when your vehicle speed
is above 20 km/h (12 mph) and the
speed of the vehicle in the blind spot
area is above 10 km/h (7 mph).

07
7-41
Collision Warning

[Collision warning will operate when the turn signal is turned on in the
direction of the detected vehicle.

[ ,I
S:DUQLQJ2QO\
TLVVHOHFWHGIURPWKH Settings menu, the collision warning
will operate when your vehicle
approaches the lane the blind spot
vehicle is detected.

[ To warn the driver of a collision, the
warning light on the side view mirror
and head-up display (if equipped) will
blink. At the same time, an audible
warning will sound.

[ When the turn signal is turned off or
you move away from the lane, the
collision warning will be canceled and
Blind-Spot Collision-Avoidance Assist
will return to vehicle detection state.
WARNING

[ The detecting range of the rear
corner radar is determined by a
standard road width, therefore, on
a narrow road, Blind-Spot Collision-
Avoidance Assist may detect other
vehicles in two lanes over and warn
you. In contrast, on a wide road,
Blind-Spot Collision-Avoidance
Assist may not be able to detect a
vehicle driving in the next lane and
may not warn you.

[ When the hazard warning flasher is
on, the collision warning by the turn
signal will not operate.
Information
If the driver's seat is on the left side, the
collision warning may occur when you
turn left. Maintain a proper distance with the vehicles in the left lane. If the driver's seat is on the right side, the collision
warning may occur when you turn right.
Maintain a proper distance with the vehicles in the right lane.
OTMPH071004N
Collision-Avoidance Assist (while driving)

[ To warn the driver of a collision, the
warning light on the side view mirror
will blink and a warning message will
appear on the cluster. At the same
time, an audible warning will sound
and warning light on the head-up
display (if equipped) will blink.

[ Blind-Spot Collision-Avoidance Assist
will operate when your vehicle speed
is between 60~200 km/h (40~120
mph) and both lane markings of the
driving lane are detected.

[ Emergency Braking will be assisted to
help prevent collision with the vehicle
in the blind spot area.

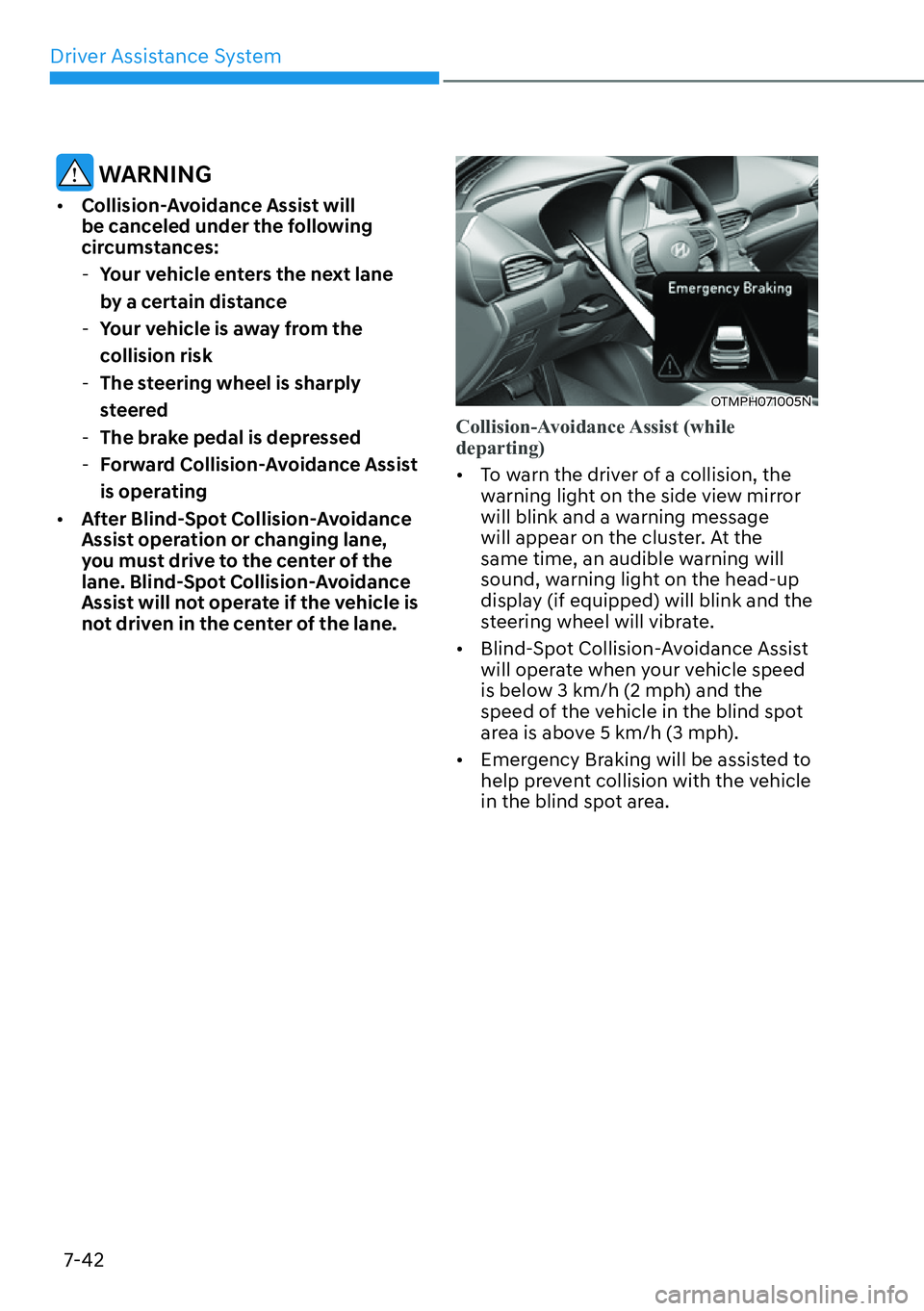

Driver Assistance System
7-42
WARNING

[ Collision-Avoidance Assist will
be canceled under the following
circumstances:
- Your vehicle enters the next lane
by a certain distance
- Your vehicle is away from thecollision risk
- The steering wheel is sharply
steered
- The brake pedal is depressed
- Forward Collision-Avoidance Assist
is operating

[ After Blind-Spot Collision-Avoidance
Assist operation or changing lane,
you must drive to the center of the
lane. Blind-Spot Collision-Avoidance
Assist will not operate if the vehicle is
not driven in the center of the lane.
OTMPH071005N
Collision-Avoidance Assist (while departing)

[To warn the driver of a collision, the
warning light on the side view mirror
will blink and a warning message
will appear on the cluster. At the
same time, an audible warning will
sound, warning light on the head-up
display (if equipped) will blink and the
steering wheel will vibrate.

[ Blind-Spot Collision-Avoidance Assist
will operate when your vehicle speed
is below 3 km/h (2 mph) and the
speed of the vehicle in the blind spot
area is above 5 km/h (3 mph).

[ Emergency Braking will be assisted to
help prevent collision with the vehicle
in the blind spot area.

07
7-43
OTM070059L

[ When the vehicle is stopped due
to emergency braking, the ‘Drive
FDUHIXOO\
TZDUQLQJPHVVDJHZLOO
appear on the cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.

[ Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.
WARNING
Take the following precautions when
using Blind-Spot Collision-Avoidance
Assist:
[ For your safety, change the Settings
after parking the vehicle at a safe
location.

[ If any other system’s warning
message is displayed or audible
warning is generated, Blind-Spot
Collision-Avoidance Assist warning
message may not be displayed
and audible warning may not be
generated.

[ You may not hear the warning sound
of Blind-Spot Collision-Avoidance
Assist if the surrounding is noisy

[ Blind-Spot Collision-Avoidance
Assist may not operate if the driver
applies the brake pedal to avoid collision.

[ When Blind-Spot Collision-Avoidance
Assist is operating, braking control
by the function will automatically
cancel when the driver excessively
depresses the accelerator pedal or
sharply steers the vehicle.

[ During Blind-Spot Collision-
Avoidance Assist operation, the
vehicle may stop suddenly injuring
passengers and shifting loose
objects. Always have the seat belt on
and keep loose objects secured.

[ Even if there is a problem with Blind-
Spot Collision-Avoidance Assist, the
vehicle’s basic braking performance
will operate properly.

[ Blind-Spot Collision-Avoidance
Assist
does not operate in all situations or
cannot avoid all collisions.

Driver Assistance System
7-44

[
Blind-Spot Collision-Avoidance
Assist may warn the driver late or
may not warn the driver depending
on the road and driving conditions.

[ Driver should maintain control of the
vehicle at all times. Do not depend
on Blind-Spot Collision-Avoidance
Assist. Maintain a safe braking
distance, and if necessary, depress
the brake pedal to reduce driving
speed or to stop the vehicle.

[ Never operate Blind-Spot Collision-
Avoidance Assist on people, animal,
objects, etc. It may cause serious
injury or death.
WARNING
The brake control may not operate
properly depending on the status of
ESC (Electronic Stability Control).
There will only be a warning when: - The ESC (Electronic Stability Control)
warning light is on
- ESC (Electronic Stability Control) is
engaged in a different function
Blind-Spot Collision-Avoidance
Assist Malfunction and
Limitations
Blind-Spot Collision-Avoidance
Assist malfunction
OTM070099N
When Blind-Spot Collision-Avoidance
Assist is not working properly, the ‘Check
%OLQG6SRW6DIHW\V\VWHP
TZDUQLQJ
message will appear on the cluster
for several seconds, and the master (
) warning light will illuminate on
the cluster. If the master warning light
illuminates, have the vehicle inspected
by an authorized retailer of HYUNDAI
dealer.
OTM070100N
When the side view mirror warning
light is not working properly, the ‘Check
VLGHYLHZPLUURUZDUQLQJOLJKW
TZDUQLQJ
message will appear on the cluster
for several seconds, and the master (
) warning light will illuminate on
the cluster. If the master warning light
illuminates, have the vehicle inspected
by an authorized retailer of HYUNDAI
dealer.

07
7-45
Blind-Spot Collision-Avoidance
Assist disabled
OTM070098N
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Blind-Spot
Collision-Avoidance Assist.
If this occurs, the ‘Blind-Spot Safety
V\VWHPGLVDEOHG5DGDUEORFNHG
TZDUQLQJ
message will appear on the cluster.
Blind-Spot Collision-Avoidance Assist
will operate properly when such foreign
material or trailer, etc. is removed, and
then the engine is restarted.
If Blind-Spot Collision-Avoidance Assist
does not operate properly after it is
removed, have the vehicle inspected by
an authorized HYUNDAI dealer.
WARNING

[ Even though the warning message
does not appear on the cluster,
Blind- Spot Collision-Avoidance
Assist may not properly operate.

[ Blind-Spot Collision-Avoidance
Assist may not properly operate in
an area (for example, open terrain)
where any objects are not detected
right after the engine is turned on, or
when the detecting sensor is blocked
with foreign material right after the engine is turned on.
CAUTION
Turn off Blind-Spot Collision-Avoidance
Assist to install a trailer, carrier, etc., or
remove the trailer, carrier, etc. to use
Blind-Spot Collision-Avoidance Assist.
Limitations of Blind-Spot Collision-
Avoidance Assist
Blind-Spot Collision-Avoidance Assist
may not operate properly, or it may
operate unexpectedly under the
following circumstances:
[ There is inclement weather, such as
heavy snow, heavy rain, etc.

[ The rear corner radar is covered with
snow, rain, dirt, etc.

[ The temperature around the rear
corner radar is high or low

[ Driving on a highway (or motorway)
ramp

[ The road pavement (or the peripheral
ground) abnormally contains metallic
components (for example, possibly
due to subway construction)

[ There is a fixed object near the
vehicle, such as sound barriers,
guardrails, central dividers, entry
barriers, street lamps, signs,
tunnels, walls, etc. (including double
structures)

[ Driving in large areas where there are
few vehicles or structures (i.e. desert,
meadow, suburb, etc.)

[ Driving through a narrow road where
trees or grass are overgrown

[ Driving on a wet road surface, such as
a puddle on the road

[ The other vehicle drives very close
behind your vehicle, or the other
vehicle passes by your vehicle in close
proximity
