Closing the fuel filler door
1. To install the fuel tank cap, turn it
clockwise until it “clicks” one time.
2. Close the fuel filler door until it is latched securely.
Information
Make the vehicle door to LOCK position
and the fuel filler door completely closed
in order to lock the fuel filler door.
If the fuel filler door is not completely
closed, the fuel filler door will not be locked.
CAUTION
Keep the door into LOCK position when
the vehicle is being washed.
WARNING
Automotive fuel is highly flammable
and explosive. Failure to follow these
guidelines may result in SERIOUS
INJURY or DEATH:
[ Read and follow all warnings posted
at the gas station.

[ Before refueling, note the location
of the Emergency Fuel Shut-Off, if
available, at the gas station.

[ Before touching the fuel nozzle, you
should eliminate the potential build-
up of static electricity by touching
a metal part of the vehicle, a safe
distance away from the fuel filler
neck, nozzle, or other gas source,
with your bare hand.

[ Do not use mobile phones while
refueling. Electric current and/or
electronic interference from cellular
phones can potentially ignite fuel
vapors and cause a fire.

[ Do not get back into a vehicle
once you have begun refueling.
You can generate a buildup of
static electricity by touching,
rubbing or sliding against any item
or fabric capable of producing
static electricity. Static electricity
discharge can ignite fuel vapors
causing a fire. If you must re-enter
the vehicle, you should once again
eliminate potentially dangerous
static electricity discharge by
touching a metal part of the vehicle,
away from the fuel filler neck, nozzle
or other fuel source, with your bare hand.

05
5-61

[
When using an approved portable
fuel container, be sure to place the
container on the ground prior to
refueling. Static electricity discharge
from the container can ignite fuel
vapors causing a fire.
Once refueling has begun, contact
between your bare hand and the
vehicle should be maintained until
the filling is complete.

[ Use only approved portable plastic
fuel containers designed to carry and
store fuel.

[ When refueling, always shift the
gear to the P (Park) position, set
the parking brake, and press the
Engine Start/Stop button to the
OFF position. Sparks produced by
electrical components related to the
engine can ignite fuel vapors causing
a fire.

[ Do not use matches or a lighter and
do not smoke or leave a lit cigarette
in your vehicle while at a gas station,
especially during refueling.

[ Do not over-fill or top-off your
vehicle tank, which can cause fuel spillage.

[ If a fire breaks out during refueling,
leave the vicinity of the vehicle, and
immediately contact the manager
of the gas station and then contact
the local fire department. Follow any
safety instructions they provide.

[ If pressurized fuel sprays out, it can
cover your clothes or skin and thus
subject you to the risk of fire and
burns. Always remove the fuel cap
carefully and slowly. If the cap is
venting fuel or if you hear a hissing
sound, wait until the condition stops
before completely removing the cap.

[ Always check that the fuel cap is
installed securely to prevent fuel
spillage in the event of an accident.
Information
Make sure to refuel your vehicle according
to the “Fuel Requirements” section in
suggested in chapter 1.
NOTICE

[ Do not spill fuel on the exterior
surfaces of the vehicle. Any type of
fuel spilled on painted surfaces may damage the paint.

[ If the fuel filler cap requires
replacement, use only a genuine
HYUNDAI cap or the equivalent
specified for your vehicle. An
incorrect fuel filler cap can result
in a serious malfunction of the fuel
system or emission control system.

Convenience Features
5-62

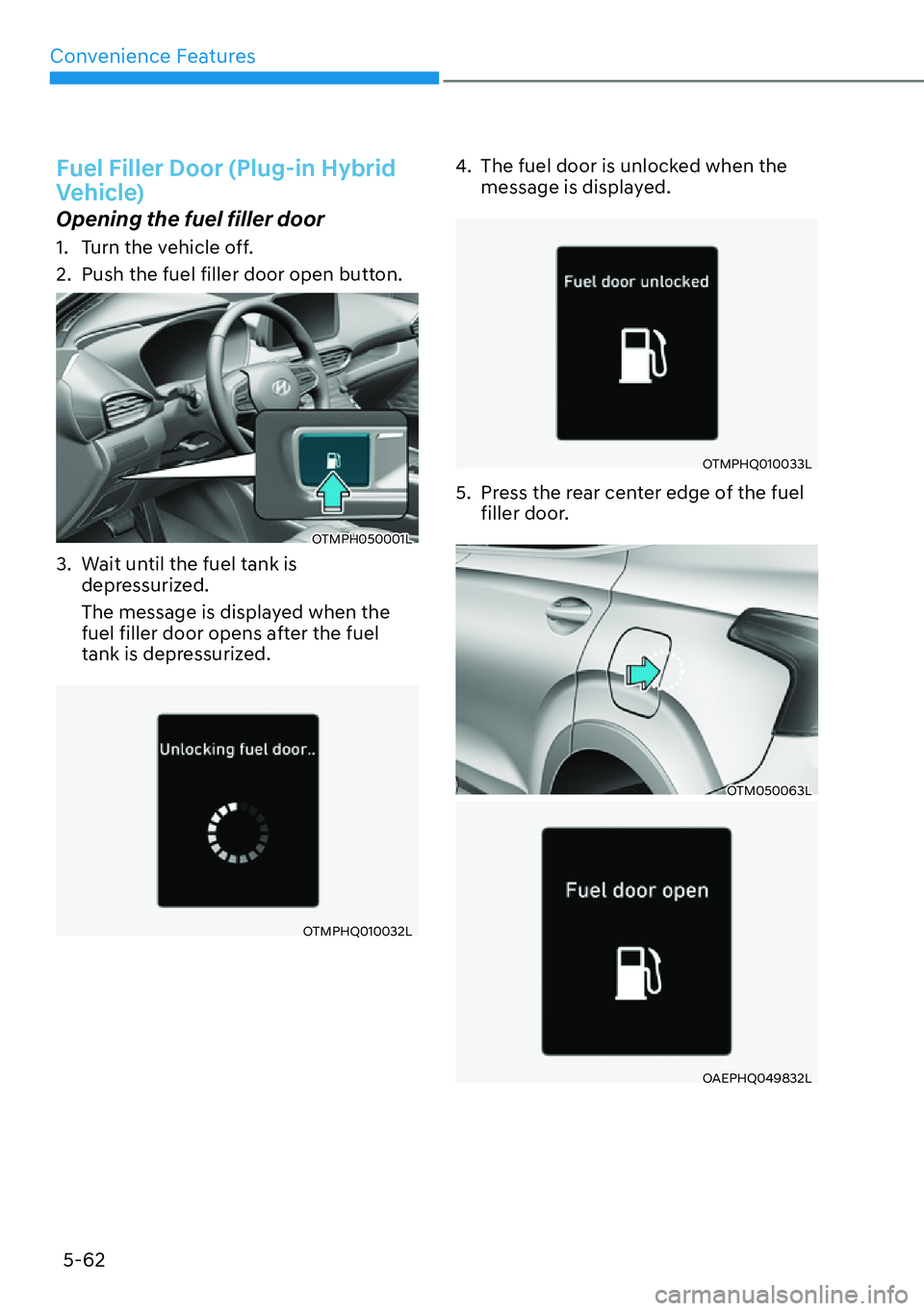

Fuel Filler Door (Plug-in Hybrid
Vehicle)
Opening the fuel filler door
1. Turn the vehicle off.
2. Push the fuel filler door open button.
OTMPH050001L
3. Wait until the fuel tank is depressurized.
The message is displayed when the
fuel filler door opens after the fuel
tank is depressurized.
OTMPHQ010032L 4. The fuel door is unlocked when the
message is displayed.
OTMPHQ010033L
5. Press the rear center edge of the fuel filler door.
OTM050063L
OAEPHQ049832L

05
5-63
OTMPH040003L
6. Pull the fuel filler door (1) out to fully open.
7. To remove the fuel tank cap (2), turn it counterclockwise. You may hear a
hissing noise as the pressure inside
the tank equalizes.
8. Place the cap on the fuel filler door.
NOTICE

[ It may take up to 20 seconds to
unlock fuel filler door.

[ If the fuel filler door does not open
because ice has formed around it,
tap lightly or push on the door to
break the ice and release the door.

[ Do not pry on the door. If necessary,
spray around the door with an
approved de-icer fluid (do not use
radiator anti-freeze) or move the
vehicle to a warm place and allow
the ice to melt.
WARNING

[ Before refueling, be sure to check
what type of fuel is used for your
vehicle. If you put diesel fuel into
a gasoline-powered vehicle or
gasoline into a diesel-powered
vehicle, it may affect the fuel system
and cause serious damage to the
vehicle.

[ Add fuel into the fuel tank within
20 minutes after opening the fuel
filler door. After 20 minutes, the fuel
tank may shut off, causing fuel to
overflow. In this case, re-press the
fuel filler door opening button.

[ Do not leave the fuel filler door
opened for an extended period of
time. It may discharge the battery.

[ Close the fuel filler door after fueling
the vehicle. If you start the vehicle with the fuel filler door opened,
the message, “Check fuel door”,
illuminates on the LCD display.

[ Avoid refueling the vehicle while
charging the (high-voltage) hybrid
battery. It may cause a fire or an
explosion due to static electricity.
Closing the fuel filler door
1. To install the fuel tank cap, turn it clockwise until it “clicks” one time.
2. Close the fuel filler door and press the rear center edge of fuel filler door.
3. When the fuel filler door is closed well, it will lock in 5 seconds.

à If the fuel door is opened again as soon as it is closed, the fuel door will
not lock. Then, close the fuel door well again and it will lock in 5 seconds.

Convenience Features
5-64
WARNING
Automotive fuel is highly flammable
and explosive. Failure to follow these
guidelines may result in SERIOUS
INJURY or DEATH:
[ Read and follow all warnings posted
at the gas station.

[ Before refueling, note the location
of the Emergency Fuel Shut-Off, if
available, at the gas station.

[ Before touching the fuel nozzle, you
should eliminate the potential build-
up of static electricity by touching
a metal part of the vehicle, a safe
distance away from the fuel filler
neck, nozzle, or other gas source,
with your bare hand.

[ Do not use mobile phones while
refueling. Electric current and/or
electronic interference from cellular
phones can potentially ignite fuel
vapors and cause a fire.

[ Do not get back into a vehicle
once you have begun refueling.
You can generate a buildup of
static electricity by touching,
rubbing or sliding against any item
or fabric capable of producing
static electricity. Static electricity
discharge can ignite fuel vapors
causing a fire. If you must re-enter
the vehicle, you should once again
eliminate potentially dangerous
static electricity discharge by
touching a metal part of the vehicle,
away from the fuel filler neck, nozzle
or other fuel source, with your bare hand.
[
When using an approved portable
fuel container, be sure to place the
container on the ground prior to
refueling. Static electricity discharge
from the container can ignite fuel
vapors causing a fire.
Once refueling has begun, contact
between your bare hand and the
vehicle should be maintained until
the filling is complete.

[ Use only approved portable plastic
fuel containers designed to carry and
store fuel.

[ When refueling, always shift the
gear to the P (Park) position, set
the parking brake, and press the
Engine Start/Stop button to the
OFF position. Sparks produced by
electrical components related to the
engine can ignite fuel vapors causing
a fire.

[ Do not use matches or a lighter and
do not smoke or leave a lit cigarette
in your vehicle while at a gas station,
especially during refueling.

[ Do not over-fill or top-off your
vehicle tank, which can cause fuel spillage.

[ If a fire breaks out during refueling,
leave the vicinity of the vehicle, and
immediately contact the manager
of the gas station and then contact
the local fire department. Follow any
safety instructions they provide.

[ If pressurized fuel sprays out, it can
cover your clothes or skin and thus
subject you to the risk of fire and
burns. Always remove the fuel cap
carefully and slowly. If the cap is
venting fuel or if you hear a hissing
sound, wait until the condition stops
before completely removing the cap.

[ Always check that the fuel cap is
installed securely to prevent fuel
spillage in the event of an accident.

05
5-65
Information
Make sure to refuel your vehicle according
to the “Fuel Requirements” section in
suggested in chapter 1.
NOTICE

[ Do not spill fuel on the exterior
surfaces of the vehicle. Any type of
fuel spilled on painted surfaces may damage the paint.

[ If the fuel filler cap requires
replacement, use only a genuine
HYUNDAI cap or the equivalent
specified for your vehicle. An
incorrect fuel filler cap can result
in a serious malfunction of the fuel
system or emission control system.
WARNING
In case of using EV drive mode for a certain time without running engine,
EMM (Engine Maintenance Mode) will
automatically activate by the system to
protect the fuel system and the engine.
Therefore, even though if it is possible
to use EV drive mode with enough
battery power, the engine may run by
the system to protect fuel system and
the engine. If you leave the fuel without
refueling or using for over 6 months, the
remained fuel in the fuel system may
be deteriorated. From this, corrosion
or blocking problem may occur. It is
recommended using minimum 40 % of
remained fuel at least every 6 months
by selecting Hybrid (CS)mode and
refuel the vehicle with new fuel.

Convenience Features
5-66
OTM050066
The Head-Up Display is an optional
feature that allows the driver to view
information projected onto a transparent
screen while still keeping your eyes
safely on the road ahead while driving.
Head-Up Display Settings
OIK047152N

[ Head-up display can be enabled from
the Settings menu in the User Settings
mode on the instrument cluster LCD
display. Select:
- 6HWXS
Ÿ+HDG8S'LVSOD\
Ÿ(QDEOH
Head-Up Display

[ After turning on the head-up
display, you can change the settings
of ‘Display Height’ and ‘Content
Selection’ of the Head-Up Display.
Head-Up Display Information
OTM050211
1. Turn by Turn (TBT) navigation
2. Traffic
3. Speedometer
4. SCC set speed
5. SCC vehicle distance
6. Highway Driving Assist
7. Lane Following Assist
8. Lane Safety
9. Blind-Spot Safety
10. Highway Auto Speed Change
Information
If you select Turn By Turn (TBT) navigation information as Head-Up
Display contents, the Turn By Turn (TBT) navigation information will not be
displayed in the instrument cluster LCD
display.
+($'
Ø83',63/$<
ã+8'
ä
ã,)(48,33('
ä

05
5-67
Precautions While Using the
Head-Up Display

[It may sometimes be difficult to read
information on the Head-Up Display in
the following situations.
- The driver is improperly positioned in the driver’s seat
- The driver wears polarizing-filter sunglasses
- An object is located above the head-up display cover
- The vehicle is driven on a wet road
- Any improper lighting accessory is installed inside the vehicle, or there
is incoming light from outside of the
vehicle
- The driver wears glasses
- The driver wears contact lenses
When it is difficult to read the Head-
Up Display information, adjust the
image height or brightness level from
the Settings menu in the infotainment
system screen.
[
For your safety, make sure to stop the
vehicle before adjusting the settings.

[ Do not tint the front windshield glass
or add other types of metallic coating.
Otherwise, the Head-Up Display
image may be invisible.

[ Do not place any accessories on the
crash pad or attach any objects on the windshield glass.

[ When replacing the front windshield
glass, replace it with a windshield
glass designed for Head-Up Display
operation. Otherwise, duplicated
images may be displayed on the windshield glass.
WARNING
Blind-Spot Collision Warning
warnings on the Head-Up Display are
supplemental. Do not solely depend on
them to change lanes. Always take a
look around before changing lanes.
