Status / Diagnosis / Countermeasure
OOSEVQ018059

[ Charging connector plugged into
vehicle (Green ON)

[ Plug temperature sensor failure
(Green blink)

[ Plug high temperature protection
(Red blink)

[ Plug high temperature warning (Red ON)
You contact an authorized HYUNDAI
dealer.
OOSEVQ018063
Charging connector plugged into vehicle
(Green ON)
OOSEVQ018060
While charging
[ Charge indicator (Green blink)

[ Vehicle indicator (Blue ON)
OOSEVQ018064
Before plugging charging connector into
vehicle (Red blink)
[ Abnormal temperature

[ ICCB (In-Cable Control Box) failure
You contact an authorized HYUNDAI
dealer.

Foreword / Hybrid System Overview
1-30
OOSEVQ018061
Plugged into vehicle (Red blink)
[ Diagnostic device failure

[ Current leakage

[ Abnormal temperature
You contact an authorized HYUNDAI
dealer.
OOSEVQ018065
After plugging charging connector into
vehicle (Red blink)
[ Communication failure
You contact an authorized HYUNDAI
dealer.
OOSEVQ018062

[ Plug temperature sensor failure
(Green blink)

[ Plug high temperature protection
(Red blink)

[ Plug high temperature warning (Red ON)
You contact an authorized HYUNDAI
dealer.
OAEEQ016053
Power saving mode
[ 3 minutes after charging starts (Green
blink)

01
1-31

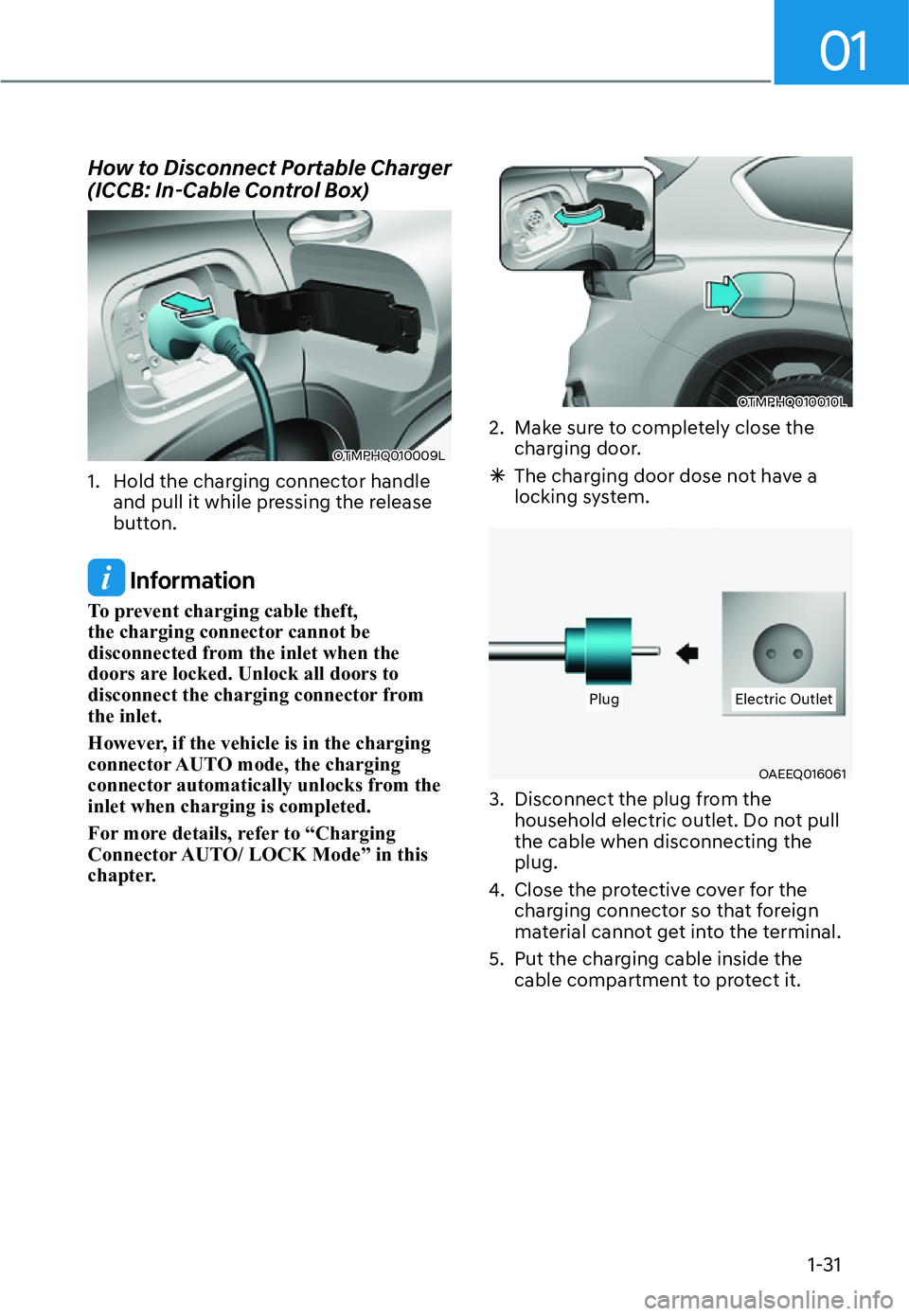

How to Disconnect Portable Charger
(ICCB: In-Cable Control Box)
OTMPHQ010009L
1. Hold the charging connector handle and pull it while pressing the release
button.
Information
To prevent charging cable theft,
the charging connector cannot be
disconnected from the inlet when the
doors are locked. Unlock all doors to
disconnect the charging connector from the inlet.
However, if the vehicle is in the charging
connector AUTO mode, the charging
connector automatically unlocks from the inlet when charging is completed.
For more details, refer to “Charging
Connector AUTO/ LOCK Mode” in this
chapter.
OTMPHQ010010L
2. Make sure to completely close the charging door.

à The charging door dose not have a
locking system.
PlugPlug Electric OutletElectric Outlet
OAEEQ016061
3. Disconnect the plug from the household electric outlet. Do not pull the cable when disconnecting the plug.
4. Close the protective cover for the charging connector so that foreign
material cannot get into the terminal.
5. Put the charging cable inside the cable compartment to protect it.

Foreword / Hybrid System Overview
1-32
Unlock Charging Connector in
Emergency
OTMPHQ010011L
If the charging connector does not
disconnect due to battery discharge and
failure of the electric wires, open the
hood and slightly pull the emergency
cable. The charging connector will then disconnect. Precautions for Portable Charger
(ICCB: In-Cable Control Box)
[
Use the portable charger that is
certified by HYUNDAI Motors.

[ Do not try to repair, disassemble, or
adjust the portable charger.

[ Do not use an extension cord or
adapter.

[ Stop using immediately when failure
occurs.

[ Do not touch the plug and charging
connector with wet hands.

[ Do not touch the terminal part of the
AC charging connector and the AC
charging inlet on the vehicle.

[ Do not connect the charging
connector to voltage that does not
comply with regulations.

[ Do not use the portable charger if it
is worn out, exposed, or there exists
any type of damage on the portable
charger.

[ If the ICCB case and AC charging
connector is damaged, cracked, or the
wires are exposed in any way, do not
use the portable charger.

[ Do not let children operate or touch
the portable charger.

01
1-33
Starting the Vehicle
Vehicles with smart key system
1. Carry the smart key or leave it inside the vehicle.
2. Make sure the parking brake is firmly applied.
3. Make sure the shift button is in P (Park). With the shift button in N
(Neutral), you cannot start the vehicle.
4. Depress the brake pedal.
5. Press the Engine Start/Stop button. If the hybrid system starts, the “
”
indicator will come on.
Whether the engine is cold or warm, it
should be started without depressing
the accelerator.
After following the start procedures, “
” indicator on the instrument
cluster will turn on. For more details,
please check chapter 6.
ECONOMICAL and SAFE OPERATION of
Hybrid system
[ Drive smoothly. Accelerate at a
moderate rate and maintain a steady
cruising speed. Do not make “jack-
rabbit” starts. Do not race between
stoplights.
Avoid heavy traffic whenever possible.
Always maintain a safe distance
from other vehicles so you can
avoid unnecessary braking. This also
reduces brake wear out.

[ The regenerative brake generates
energy when the vehicle decelerates.

[ When the hybrid battery power is
low, the hybrid system automatically
recharges the hybrid battery.

[ When the engine is running with the
shift button in N (Neutral), the hybrid
system cannot generate electricity.
The hybrid battery cannot recharge
with the shift button in N (Neutral).
Information
In the hybrid system, the engine
automatically runs and stops. When the hybrid system operates, the “
”
indicator is illuminated. In the following situation, the engine may
operate automatically.
- When the engine is ready to run
- When the hybrid battery is being charged
- Depending on the temperature condition of the hybrid battery
Special Features
Hybrid vehicles sound different than
gasoline engine vehicles. When the
hybrid system operates, you may
hear a sound from the hybrid battery
system under the floor. If you apply
the accelerator pedal rapidly, you may
hear an unconventional sound. When
you apply the brake pedal, you may
hear a sound from the regenerative
brake system. When the hybrid system
is turned off or on, you may hear a
sound in the engine compartment. If
you depress the brake pedal repeatedly
when the hybrid system is turned on,
you may hear a sound in the engine
compartment. None of these sounds
indicate a problem. These are normal
characteristics of hybrid vehicles.
If any of following occur, it’s a normal
condition if you hear a motor sound in
the engine compartment:
- After turning off the hybrid system, the brake pedal is released.
- When the hybrid system is turned off, the brake pedal is applied.
- When the driver door is opened.
DRIVING THE HYBRID VEHICLE

Foreword / Hybrid System Overview
1-34
When the hybrid system is turned ON,
the gasoline engine may run or may not.
In this situation, you may feel a vibration.
This does not indicate a malfunction. When the “
” indicator illuminates, the
hybrid system is ready to begin driving.
Even if the engine is off, you can operate
the vehicle as long as the “
” indicator
is illuminated.
NOTICE
The hybrid system contains many
electronic components. High voltage
components, such as cables and other
parts, may emit electromagnetic waves.
Even when the electromagnetic cover
blocks electromagnetic emissions,
electromagnetic waves may have an
effect on electronic devices. When your
vehicle is not used for a long period of
time, the hybrid system will discharge.
You need to drive the vehicle several
times a month. Driving at least for 1
hour or 16 km. When the hybrid battery
is discharged, or when it is impossible
to jump start the vehicle, you contact
your authorized HYUNDAI dealer.
WARNING

[ When you start the hybrid system
with the shift button in P (Parking), the “
” indicator illuminates on
the instrument cluster. The driver
can drive the vehicle, even when the
gasoline engine is off.

[ When you leave the vehicle, you
should turn OFF the hybrid system
or locate the shift button in P (Park).
When you depress the accelerator
pedal by mistake, or when the shift
button is not in P (Park), the vehicle
will abruptly move, possibly resulting
in serious injury or death. Virtual Engine Sound System (VESS)
The Virtual Engine Sound System
generates engine sound for pedestrians
to hear vehicle sound because there is
limited sound while motor power is used.
[
When the engine is running, the gear
shift button is not in P (Park), the VESS
will operate.

[ When the gear is shifted to R
(Reverse), an additional warning
sound will be heard.
What does regenerative braking do?
It uses an electric motor when
decelerating and when braking and
transforms kinetic energy to electrical
energy in order to charge the high
voltage battery.
Battery
[ The vehicle is composed of a high
voltage battery that drives the motor
and air conditioner, and an AGM type
12V battery that drives the lamps,
wipers, and audio system.

[ The integrated 12V battery is
automatically charged when the
vehicle is in the ready (
) mode.

[ Plug-in hybrid vehicle
- The vehicle is composed of a high voltage battery that drives the
motor and air-conditioner, and an
auxiliary battery (12 V) that drives
the lamps, wipers, and audio
system.
- The auxiliary battery is automatically charged when the
vehicle is in the ready (
) mode.

01
1-35
Hybrid System Gauge
Power gauge
„4.2-Inch
OTMH040003
„12.3-Inch
OTMH040004E
The hybrid system gauge indicates
whether the current driving condition is
fuel efficient or not.
[ CHARGE:
Shows that the energy made by the
vehicle is being converted to electrical
energy. (Regenerated energy)

[ ECO:
Shows that the vehicle is being driven
in an Eco-friendly manner.

[ POWER:
Shows that the vehicle is exceeding
the Eco-friendly range. Hybrid battery SOC (State of Charge) gauge
„4.2-Inch
OTMH040011N
„12.3-Inch
OCN7H040003
This gauge indicates the remaining
hybrid battery power. If the SOC is near
the “L (Low) or O” level, the vehicle
automatically operates the engine to
charge the battery.
However, if the Service Indicator (
)
and Malfunction Indicator Lamp (MIL) (
) turn on when the SOC gauge is
near the “L (Low) or O” level, the vehicle
be checked by an authorized HYUNDAI
dealer.

Foreword / Hybrid System Overview
1-36
Plug-In Hybrid Mode (Plug-In
Hybrid Vehicle)
„EV/HEV button
OTMPHQ010012L
Pressing the [EV/HEV] button changes
the plug-in hybrid system modes,
between Electric (CD) mode and Hybrid
(CS) mode.
Each time the mode is changed a
corresponding indicator is displayed on
the instrument cluster as follows.
„AUTO mode ‡Type A ‡Type B
OTMPHQ010013LOTMPHQ010015L
„CS mode
‡Type A ‡Type B
OTMPHQ010014LOTMPHQ010016L
Plug-in hybrid mode indicator

[CD (Charge Depleting, Electric)
mode : The high-voltage (hybrid)
battery is used to drive the vehicle.

[ AUTO mode : CD mode and CS mode
are selected automatically depending
on road conditions.

[ CS (Charge Sustaining, Hybrid) mode :
The high-voltage (hybrid) battery and
gasoline engine is used to drive the
vehicle.
Information
Even when the battery charging rate is high and driving in electric mode is
possible, engine may turn on in some areas
to protect the system.
