2022 HYUNDAI SANTA FE HYBRID Owners Manual

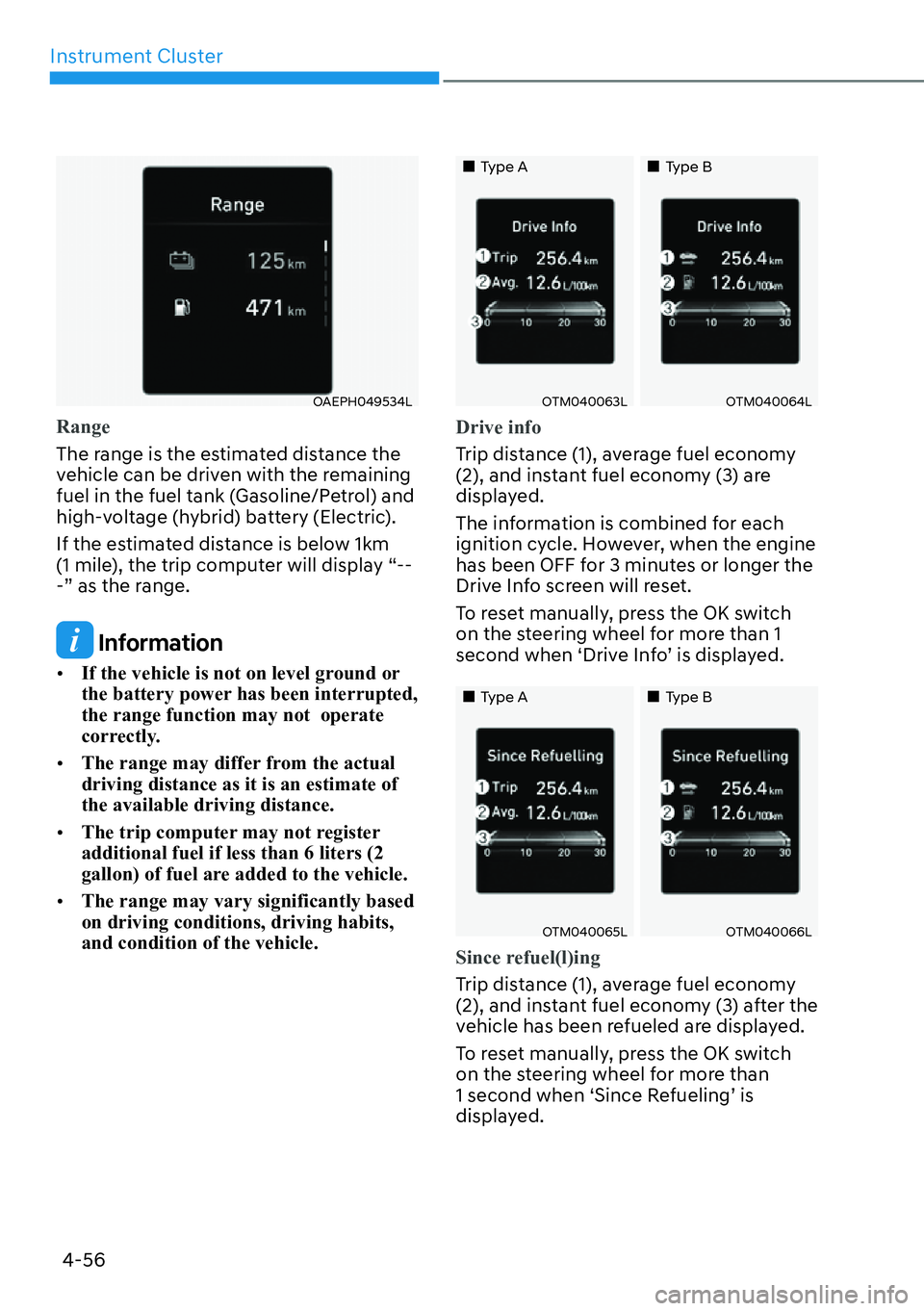

Instrument Cluster
4-56
OAEPH049534L
Range
The range is the estimated distance the
vehicle can be driven with the remaining
fuel in the fuel tank (Gasoline/Petrol) and
high-voltage (hybrid) battery (Electric).
If the estimated distance is below 1km
(1 mile), the trip computer will display “--
-” as the range.
Information

[ If the vehicle is not on level ground or
the battery power has been interrupted, the range function may not operate
correctly.

[ The range may differ from the actual driving distance as it is an estimate of the available driving distance.

[ The trip computer may not register additional fuel if less than 6 liters (2
gallon) of fuel are added to the vehicle.

[ The range may vary significantly based on driving conditions, driving habits, and condition of the vehicle.
„Type A „Type B
OTM040063LOTM040064L
Drive info
Trip distance (1), average fuel economy
(2), and instant fuel economy (3) are
displayed.
The information is combined for each
ignition cycle. However, when the engine
has been OFF for 3 minutes or longer the
Drive Info screen will reset.
To reset manually, press the OK switch
on the steering wheel for more than 1
second when ‘Drive Info’ is displayed.
„Type A„Type B
OTM040065LOTM040066L
Since refuel(l)ing
Trip distance (1), average fuel economy
(2), and instant fuel economy (3) after the
vehicle has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.

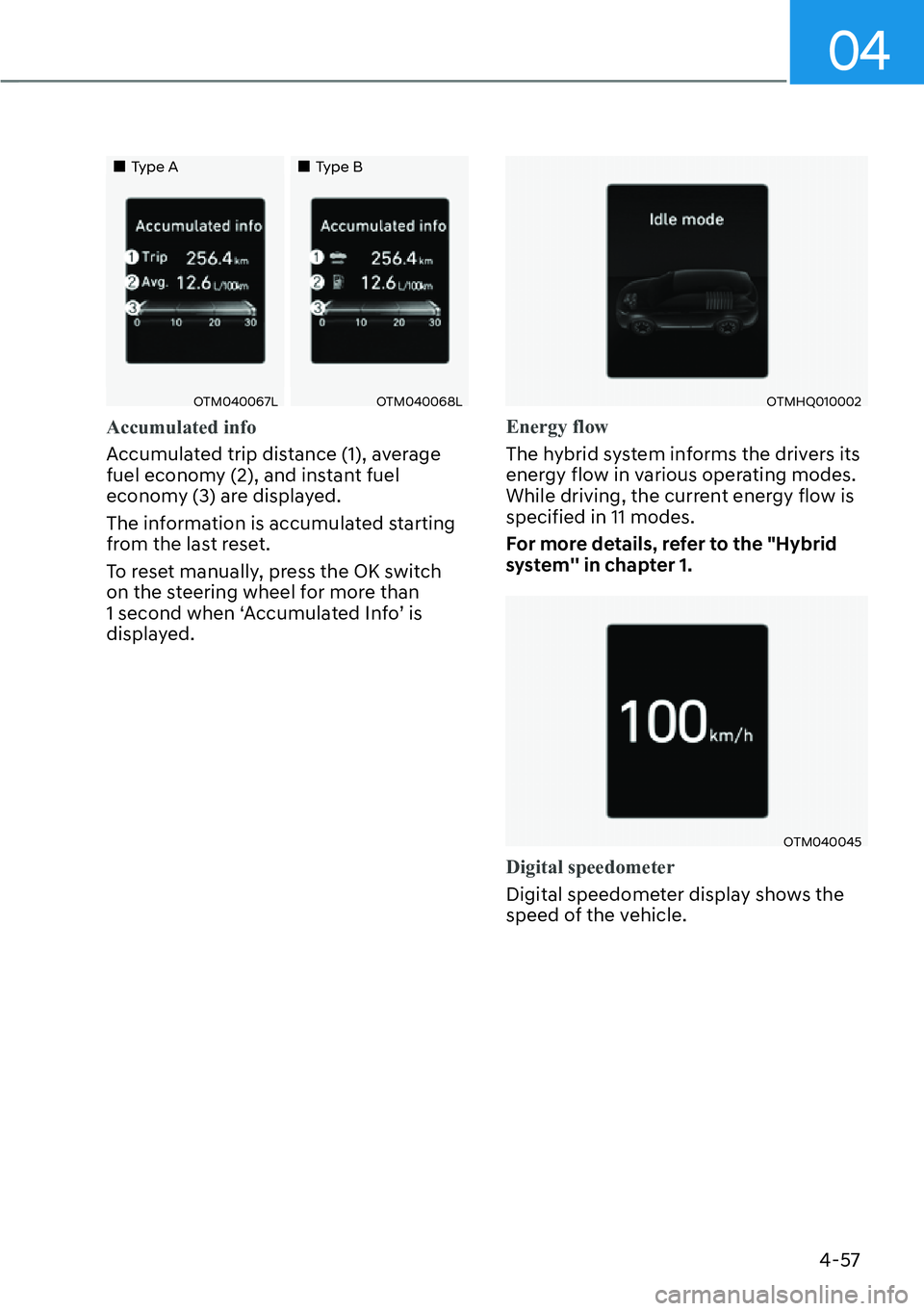

04
4-57
„Type A„Type B
OTM040067LOTM040068L
Accumulated info
Accumulated trip distance (1), average
fuel economy (2), and instant fuel
economy (3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.
OTMHQ010002
Energy flow
The hybrid system informs the drivers its
energy flow in various operating modes.
While driving, the current energy flow is specified in 11 modes.
For more details, refer to the "Hybrid
system'' in chapter 1.
OTM040045
Digital speedometer
Digital speedometer display shows the
speed of the vehicle.

Instrument Cluster
4-58

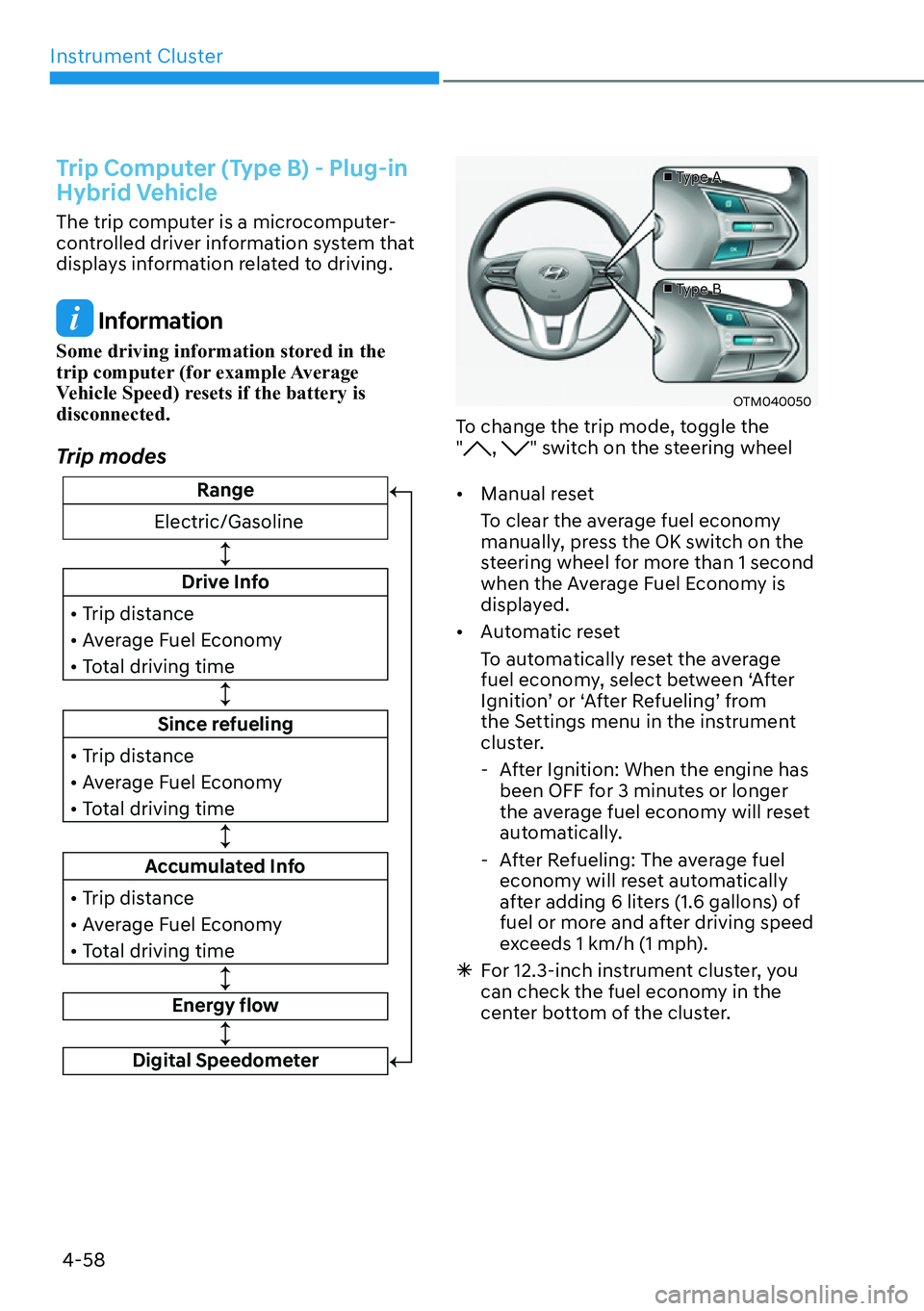

Trip Computer (Type B) - Plug-in
Hybrid Vehicle
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is disconnected.
Trip modes
Since refueling

[7ULSGLVWDQFH

[$YHUDJH)XHO(FRQRP\

[7RWDOGULYLQJWLPH
Drive Info

[7ULSGLVWDQFH

[$YHUDJH)XHO(FRQRP\

[7RWDOGULYLQJWLPH
Accumulated Info

[7ULSGLVWDQFH

[$YHUDJH)XHO(FRQRP\

[7RWDOGULYLQJWLPH
Energy flow
Digital Speedometer
Range
(OHFWULF*DVROLQH

v Type A

v Type B
OTM040050
To change the trip mode, toggle the "
, " switch on the steering wheel

[ Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.

[ Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.

- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel economy will reset automatically
after adding 6 liters (1.6 gallons) of
fuel or more and after driving speed
exceeds 1 km/h (1 mph).

à For 12.3-inch instrument cluster, you
can check the fuel economy in the
center bottom of the cluster.

04
4-59
OAEPH049534L
Range
The range is the estimated distance the
vehicle can be driven with the remaining
fuel in the fuel tank (Gasoline/Petrol) and
high-voltage (hybrid) battery (Electric).
If the estimated distance is below 1km
(1 mile), the trip computer will display “--
-” as the range.
Information

[ If the vehicle is not on level ground or
the battery power has been interrupted, the range function may not operate
correctly.

[ The range may differ from the actual driving distance as it is an estimate of the available driving distance.

[ The trip computer may not register additional fuel if less than 6 liters (2
gallon) of fuel are added to the vehicle.

[ The range may vary significantly based on driving conditions, driving habits, and condition of the vehicle.
„Type A „Type B
OJX1049011LOTM040061L
Drive info
Trip distance (1), average fuel economy
(2), and total driving time (3) are
displayed.
The information is combined for each
ignition cycle. However, when the engine
has been OFF for 3 minutes or longer the
Drive Info screen will reset.
To reset manually, press the OK switch
on the steering wheel for more than 1
second when ‘Drive Info’ is displayed.
„Type A„Type B
OJX1049013L OJX1049066L
Since refuel(l)ing
Trip distance (1), average fuel economy
(2), and total driving time (3) after the
vehicle has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.

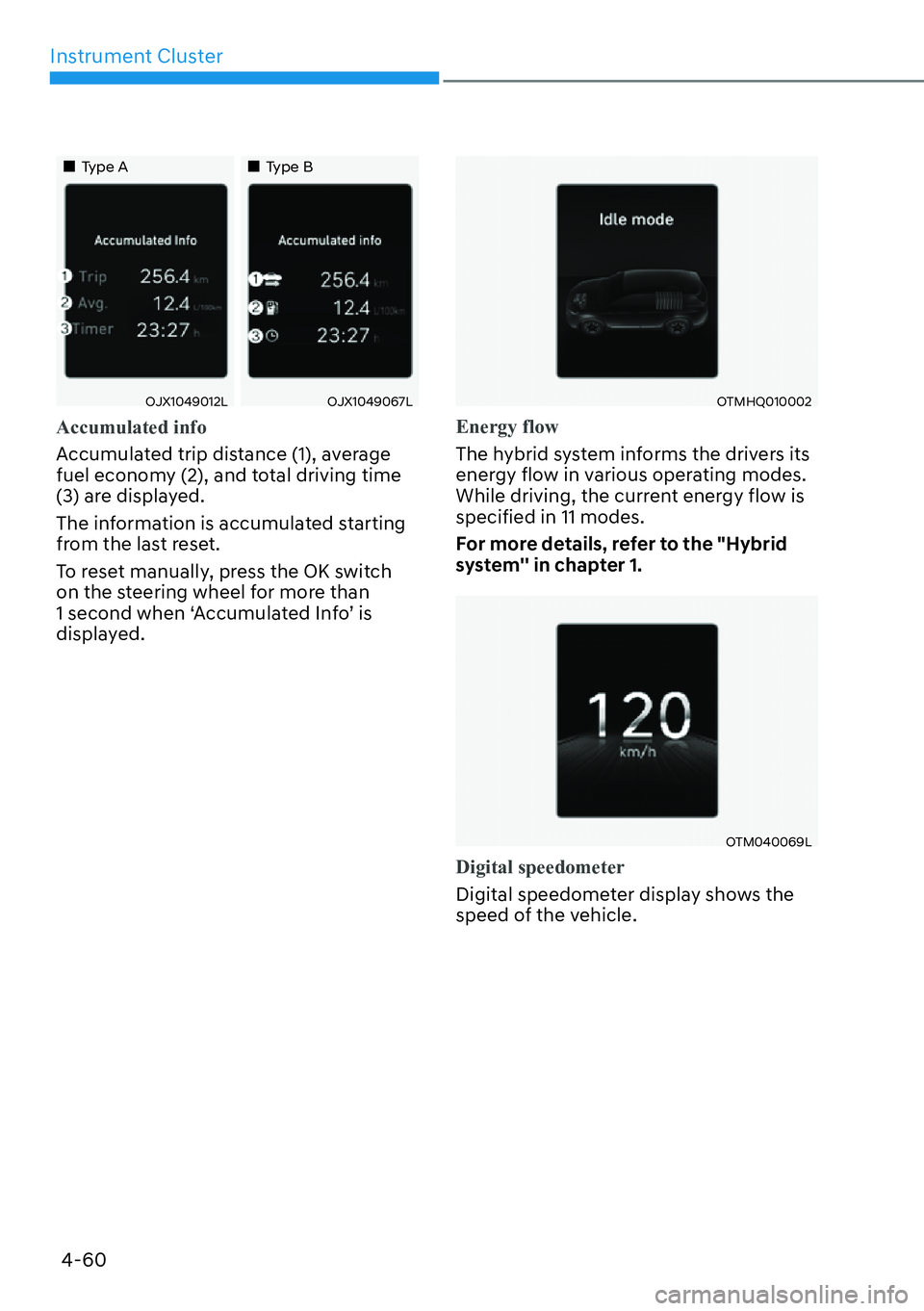

Instrument Cluster
4-60
„Type A„Type B
OJX1049012L OJX1049067L
Accumulated info
Accumulated trip distance (1), average
fuel economy (2), and total driving time
(3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.
OTMHQ010002
Energy flow
The hybrid system informs the drivers its
energy flow in various operating modes.
While driving, the current energy flow is specified in 11 modes.
For more details, refer to the "Hybrid
system'' in chapter 1.
OTM040069L
Digital speedometer
Digital speedometer display shows the
speed of the vehicle.

5
Accessing Your Vehicle ..................................................................................... 5-4Remote Key ...................................................................................................................5-4
Smart Key ..................................................................................................................... .5-7
Immobilizer System ....................................................................................................5-12
Door Locks ........................................................................................................ 5-13 Operating Door Locks From Outside The Vehicle .....................................................5-13
Operating Door Locks From Inside The Vehicle ....................................................... 5-14
Auto Door Lock/Unlock Features ...............................................................................5-15
Electronic Child Safety Lock ...................................................................................... 5-16
Theft-Alarm System ......................................................................................... 5-18
Integrated Memory System............................................................................. 5-19 Storing Memory Positions ......................................................................................... 5-19
Recalling Memory Positions ......................................................................................5-20
Resetting The System ................................................................................................5-20
Easy Access Function ..................................................................................................5-21
Steering Wheel .................................................................................................5-22 Electric Power Steering (EPS) .................................................................................... 5-22
Tilt / Telescopic Steering ........................................................................................... 5-23
Heated Steering Wheel ............................................................................................. 5-23
Horn............................................................................................................................. 5-24
Mirrors ..............................................................................................................5-25 Inside Rearview Mirror ............................................................................................... 5-25
Side View Mirrors .......................................................................................................5-36
Reverse Parking Aid ...................................................................................................5-38
Windows .......................................................................................................... 5-40 Power Windows .......................................................................................................... 5-41
Panoramic Sunroof ......................................................................................... 5-44 Power Sunshade ........................................................................................................ 5-44
Tilt Open/Close...........................................................................................................5-45Slide Open/Close .......................................................................................................5-45
Resetting The Sunroof ............................................................................................... 5-47
Sunroof Open Warning ............................................................................................. 5-48
Exterior Features ............................................................................................. 5-49 Hood .......................................................................................................................... . 5-49
Tailgate ...................................................................................................................... . 5-50
Power Tailgate ............................................................................................................ 5-52
Smart Tailgate ............................................................................................................. 5-57
Fuel Filler Door ...........................................................................................................5-59
Fuel Filler Door (Plug-in Hybrid Vehicle) ..................................................................5-62
5. Convenience Features

5
Head-Up Display (HUD).................................................................................. 5-66Head-Up Display Settings ........................................................................................ 5-66
Head-Up Display Information .................................................................................. 5-66
Precautions While Using The Head-Up Display ....................................................... 5-67
Lighting ............................................................................................................ 5-68 Exterior Lights ........................................................................................................... 5-68
High Beam Assist (HBA) ................................................................................. 5-72 High Beam Assist Settings ......................................................................................... 5-72
High Beam Assist Operation ...................................................................................... 5-73
High Beam Assist Malfunction And Limitations ....................................................... 5-73
Interior Lights ...................................................................................................5-75 Interior Lamp Auto Cut .............................................................................................. 5-75
Front Lamps ................................................................................................................ 5-75
Rear Lamps ................................................................................................................. 5-76
Vanity Mirror Lamp ..................................................................................................... 5-76
Luggage Compartment Lamp ................................................................................... 5-76
Puddle Lamp ............................................................................................................... 5-77
Welcome System ........................................................................................................ 5-77
Wipers And Washers ........................................................................................5-79 Windshield Wipers ..................................................................................................... 5-79
Front Windshield Washers ......................................................................................... 5-81
Rear Window Wiper And Washer .............................................................................. 5-81
Automatic Climate Control System ............................................................... 5-82 Automatic Heating And Air Conditioning .................................................................5-83
Manual Heating And Air Conditioning ......................................................................5-83
System Operation ...................................................................................................... 5-88
System Maintenance ................................................................................................ 5-90
Windshield defrosting and defogging ........................................................... 5-92 Automatic Climate Control System...........................................................................5-92
Auto Defogging System (Only for Automatic Climate Control System) .................5-93
Rear Window Defroster............................................................................................. 5-94

5
Climate Control Additional Features ............................................................. 5-95Auto Defogging System .............................................................................................5-95
Auto Dehumidify ....................................................................................................... 5-96
Recirculating Air When Washer Fluid is Used .......................................................... 5-97
Sunroof inside air recirculation ................................................................................. 5-97
Auto. Controls That Use Climate Control Settings (for driver’s seat) ..................... 5-97
Storage Compartment .................................................................................... 5-98 Center Console Storage ............................................................................................ 5-98
Glove Box ................................................................................................................... 5-98
Tray .......................................................................................................................... ... 5-99
Luggage Tray ............................................................................................................. 5-99
Interior Features ............................................................................................ 5-100 Cup Holder ................................................................................................................ 5-100
Ashtray ....................................................................................................................... 5-101
Sunvisor ..................................................................................................................... 5 -101
Power Outlet ............................................................................................................. 5-102
Usb Charger .............................................................................................................. 5-103
AC Inverter ................................................................................................................ 5-103
Wireless Smart Phone Charging System ................................................................ 5-105Clock ......................................................................................................................... .5-107
Coat Hook ..................................................................................................................5-1 07
Floor Mat Anchor(S) ................................................................................................. 5-108
Side Curtain .............................................................................................................. 5-109
Luggage Net Holder ................................................................................................. 5-109
Cargo Security Screen .............................................................................................. 5-110
Exterior Features ............................................................................................. 5-111 Roof Side Rails ............................................................................................................ 5-111
Infotainment System ...................................................................................... 5-112 Usb Port ..................................................................................................................... 5 -112
Antenna ...................................................................................................................... 5 -112
Steering Wheel Remote Controls ............................................................................. 5-112
Infotainment System ................................................................................................. 5-114
Voice Recognition ..................................................................................................... 5-114
Bluetooth® Wireless Technology .............................................................................. 5-114
5. Convenience Features
