2022 HYUNDAI SANTA FE HYBRID Owners Manual

01
1-13

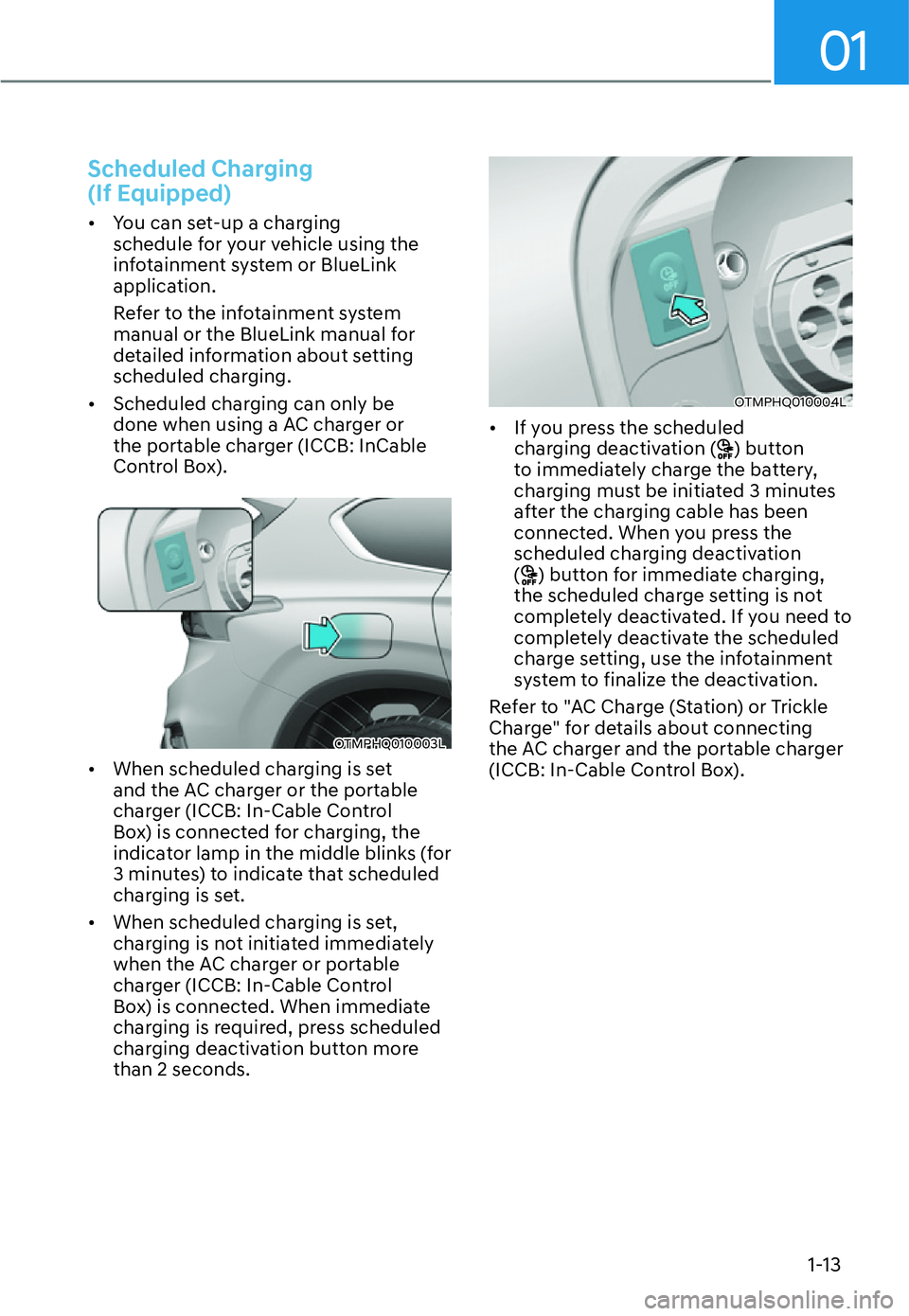

Scheduled Charging
(If Equipped)

[You can set-up a charging
schedule for your vehicle using the
infotainment system or BlueLink
application.
Refer to the infotainment system
manual or the BlueLink manual for
detailed information about setting
scheduled charging.

[ Scheduled charging can only be
done when using a AC charger or
the portable charger (ICCB: InCable
Control Box).
OTMPHQ010003L

[ When scheduled charging is set
and the AC charger or the portable
charger (ICCB: In-Cable Control
Box) is connected for charging, the
indicator lamp in the middle blinks (for
3 minutes) to indicate that scheduled
charging is set.

[ When scheduled charging is set,
charging is not initiated immediately
when the AC charger or portable
charger (ICCB: In-Cable Control
Box) is connected. When immediate
charging is required, press scheduled
charging deactivation button more than 2 seconds.
OTMPHQ010004L

[ If you press the scheduled
charging deactivation (
) button
to immediately charge the battery,
charging must be initiated 3 minutes
after the charging cable has been
connected. When you press the
scheduled charging deactivation (
) button for immediate charging,
the scheduled charge setting is not
completely deactivated. If you need to
completely deactivate the scheduled
charge setting, use the infotainment
system to finalize the deactivation.
Refer to "AC Charge (Station) or Trickle
Charge" for details about connecting
the AC charger and the portable charger
(ICCB: In-Cable Control Box).

Foreword / Hybrid System Overview
1-14
Charging Connector Lock
OAEEQ019085R
You may select when the charging
connector can be locked and unlocked in
the charging inlet.
The driver can select the charge
connector lock mode from the User
Settings in the LCD display by selecting

8VHU6HWWLQJV
Ÿ&RQYHQLHQFH
Ÿ/RFNLQJ
Charging Cable'.
When the Charging Connector is
Locked
While
charging Always Do not
lock (if
equipped)
Before
charging XO X
While
charging OO X
Finished
charging XO X
Always mode
The connector locks when the charging
connector is plugged into the charging
inlet. The connector is locked until all
doors are unlocked by the driver. This
mode can be used to prevent charging
cable theft.
[
If the charging connector is unlocked
when all doors are unlocked, but the
charging cable is not disconnected
within 15 seconds, the connector will
be automatically locked again.

[ If the charging connector is unlocked
when all doors are unlocked, but all
doors are locked again, immediately,
the connector will be automatically
locked again.
While charging mode
The connector locks when charging
starts. The connector unlocks when
charging is complete. This mode can be
used when charging in a public charging
station.
Do not lock mode (if equipped)
The connector unlocks regardless of the
state of charging.
Press the charging connector release
button, disconnect the connector.
Be careful to theft of the charging cable.

01
1-15
Charging Precautions
„AC Charger
OLFP0Q5007K
Actual charger image and charging
method may vary in accordance with the
charger manufacturer.
WARNING

[ Electromagnetic waves that are
generated from the charger can seriously impact medical electric
devices such as an implantable
cardiac pacemaker.
When using medical electric devices
such as an implantable cardiac
pacemaker, make sure to ask the
medical team and manufacturer
whether charging your electric
vehicle will impact the operation of
the medical electric devices such as
an implantable cardiac pacemaker.

[ Check to make sure there is no
water or dust on the charging
cable connector and plug before
connecting to the charger and
charging inlet. Connecting while
there is water or dust on the charging
cable connector and plug may cause
a fire or electric shock.
[
Be careful not to touch the charging
connector, charging plug, and the
charging inlet when connecting
the cable to the charger and the
charging inlet on the vehicle.

[ Comply with the following in order
to prevent electrical shock when
charging:
- Use a waterproof charger.
- Be careful when touching the
charging connector and charging
plug with your hands wet, or when
standing in water or snow while
connecting the charging cable.
- Be careful when there is lightning.
- Be careful when the charging
connector and plug is wet.

[ Immediately stop charging when
you find abnormal symptoms (odor,
smoke).

[ Replace the charging cable if the
cable coating is damaged to prevent electrical shock.

[ When connecting or removing the
charging cable, make sure to hold
the charging connector handle and
charging plug.
If you pull the cable itself (without
using the handle), the internal wires
may disconnect or get damaged. This
may lead to electric shock or fire.

Foreword / Hybrid System Overview
1-16
CAUTION

[ Always keep the charging connector
and charging plug in clean and
dry condition. Be sure to keep the
charging cable in a condition where
there is no water or moisture.

[ Make sure to use the designated
charger for charging the electric
vehicle. Using any other charger may
cause failure.

[ Before charging the battery, turn the
vehicle OFF.

[ When the vehicle is switched OFF
while charging, the cooling fan
inside the motor compartment may
automatically operate. Do not touch
the cooling fan while charging.

[ Be careful not to drop the charging
connector. The charging connector can be damaged.AC Charge
„AC Charger
OLFP0Q5007K
Actual charger image and charging
method may vary in accordance with the
charger manufacturer.
How to Connect AC Charger
1. Depress the brake pedal and apply the parking brake.
2. Turn OFF all switches, shift to P (Park), and turn OFF the vehicle.
OTMPHQ010005L
3. Press center edge of the charging door to open the charging door.

01
1-17

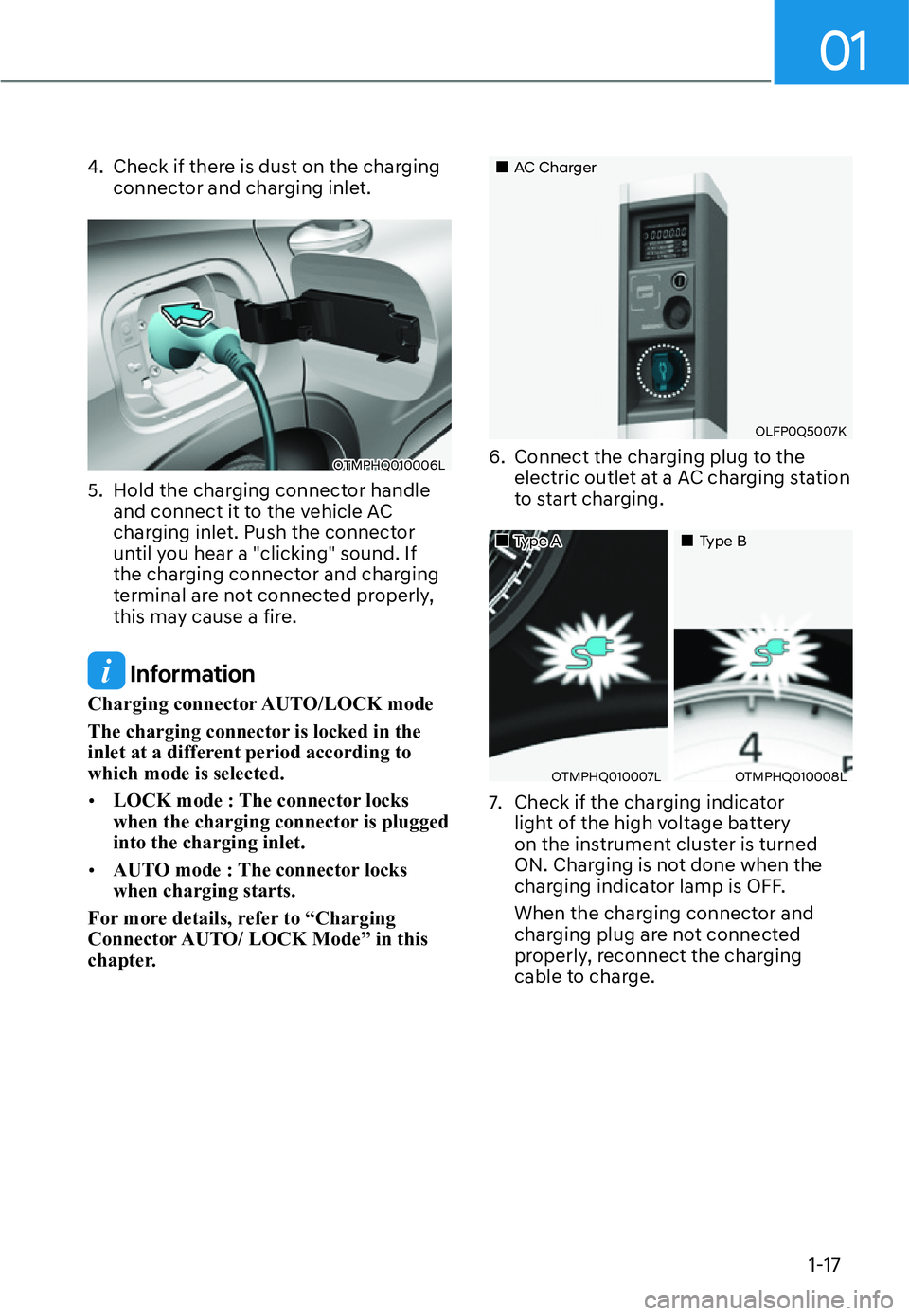

4. Check if there is dust on the charging
connector and charging inlet.
OTMPHQ010006L
5. Hold the charging connector handle and connect it to the vehicle AC
charging inlet. Push the connector
until you hear a "clicking" sound. If
the charging connector and charging
terminal are not connected properly,
this may cause a fire.
Information
Charging connector AUTO/LOCK mode
The charging connector is locked in the
inlet at a different period according to which mode is selected.
[ LOCK mode : The connector locks
when the charging connector is plugged into the charging inlet.

[ AUTO mode : The connector locks when charging starts.
For more details, refer to “Charging
Connector AUTO/ LOCK Mode” in this
chapter.
„AC Charger
OLFP0Q5007K
6. Connect the charging plug to the electric outlet at a AC charging station
to start charging.
„Type A „Type B
OTMPHQ010007LOTMPHQ010008L
7. Check if the charging indicator light of the high voltage battery
on the instrument cluster is turned
ON. Charging is not done when the
charging indicator lamp is OFF.
When the charging connector and
charging plug are not connected
properly, reconnect the charging
cable to charge.

Foreword / Hybrid System Overview
1-18
Information

[ Even though charging is possible with
the ignition switch in the ON/START
position, for your safety, start charging when the ignition switch is in the
LOCK/OFF position and the vehicle
shifted to P (Park). After charging has started, you can use electrical components such as the radio by
placing the ignition switch in the ACC
or ON position.

[ During AC charging, the radio
reception may be bad.

[ Moving the shift lever from P (Park) to R (Reverse)/N(Neutral)/D (Drive) stops
the charging process.
To restart the charging process, move
the shift lever to P (Park), place the
ignition switch to the LOCK/OFF position, and disconnect the charging
cable. Then, connect the charging cable.
OAEPHQ049818L
8. After charging has started, the estimated charging time is displayed
on the instrument cluster for about 1
minute.
If you open the driver seat door while
charging, the estimated charging time
is also displayed on the instrument
cluster for about 1 minute.
When scheduled charging is set, the
estimated charging time is displayed
as “--" .
Information
Depending on the condition and durability
of the high voltage battery, charger
specifications, and ambient temperature,
the time required for charging the battery
may vary.
Checking Charging Status
OTMPHQ010003L
When charging the high voltage battery,
the charge level can be checked from
outside the vehicle.

01
1-19

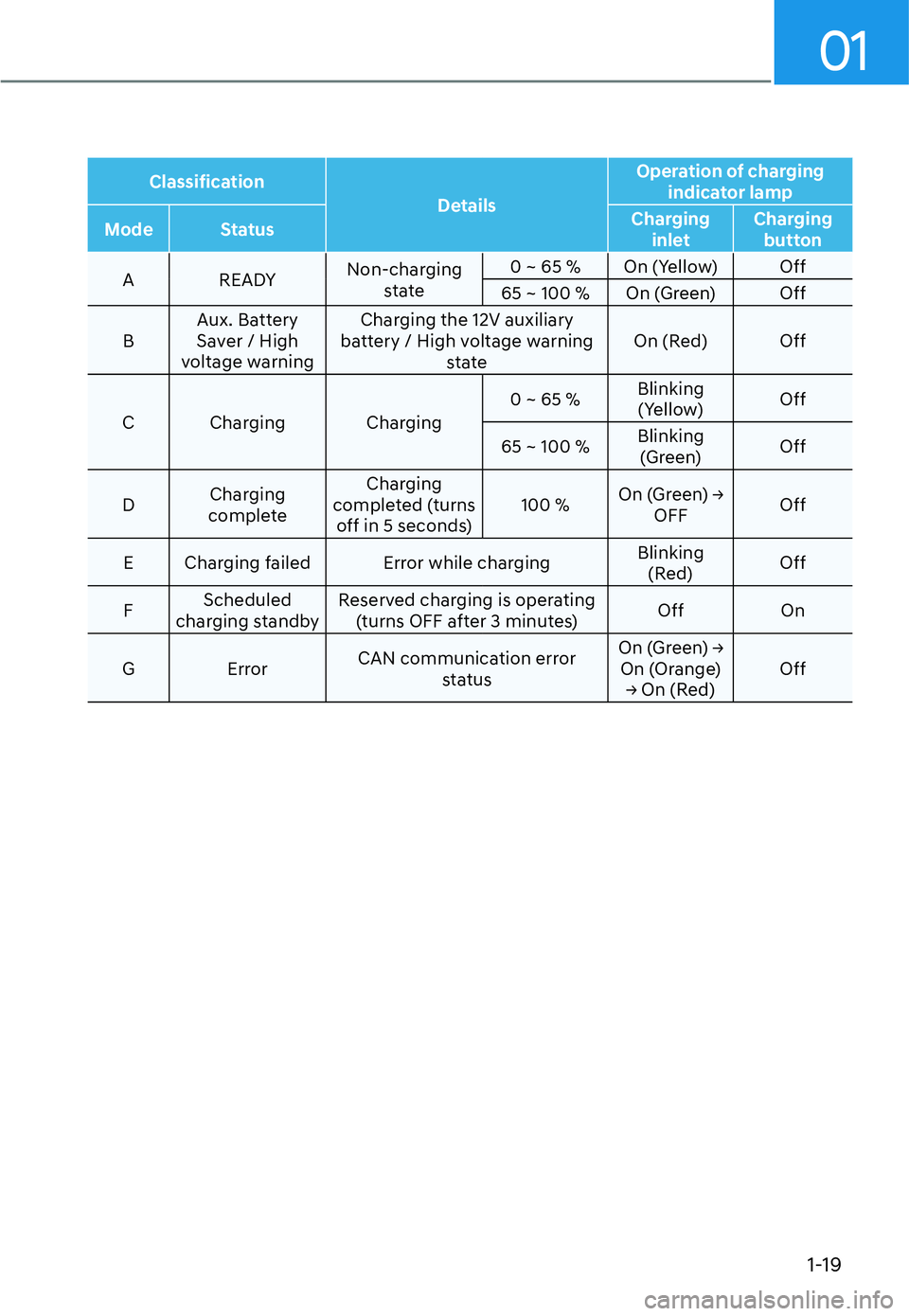

ClassificationDetailsOperation of charging
indicator lamp
Mode Status Charging
inlet Charging
button
A READY Non-charging
state 0 ~ 65 % On (Yellow) Off
65 ~ 100 % On (Green) Off
B Aux. Battery
Saver / High
voltage warning Charging the 12V auxiliary
battery / High voltage warning state On (Red) Off
C Charging Charging 0 ~ 65 %
Blinking
(Yellow) Off
65 ~ 100 % Blinking
(Green) Off
D Charging
complete Charging
completed (turns off in 5 seconds) 100 %
2Q*UHHQ
Ÿ
OFF Off
E Charging failed Error while charging Blinking
(Red) Off
F Scheduled
charging standby Reserved charging is operating
(turns OFF after 3 minutes) Off On
G Error CAN communication error
status 2Q*UHHQ
Ÿ
On (Orange)
Ÿ2Q5HG Off

Foreword / Hybrid System Overview
1-20
How to Disconnect AC Charger
„AC Charger
OLFP0Q5007K
1. When charging is complete, remove the charging plug from the electrical
outlet of the AC charging station.
OTMPHQ010009L
2. Hold the charging connector handle and pull it while pressing the release
button.
Information
To prevent charging cable theft,
the charging connector cannot be
disconnected from the inlet when the
doors are locked. Unlock all doors to
disconnect the charging connector from the inlet.
However, if the vehicle is in the charging
connector AUTO mode, the charging
connector automatically unlocks from the inlet when charging is completed.
For more details, refer to “Charging
Connector AUTO/ LOCK Mode” in this
chapter.
OTMPHQ010010L
3. Make sure to completely close the charging door.

à The charging door dose not have a
locking system.
